Chore-Time LIBERTY Feeding System Setup guide

LIBERTY®Feeding System
with Electronic Sensor (ES)
MF2426BJanuary 2014
Installation and Operators Manual
Installation and Operators Manual

Chore-Time Warranty LIBERTY® Feeding System with Electronic Sensor (ES)
2MF2426B
LIMITED WARRANTY
Chore-Time Group, a division of CTB, Inc. (“Chore-Time”) warrants the new CHORE-TIME LIBERTY®Feeding System
with Electronic Sensor manufactured by Chore-Time to be free from defects in material or workmanship under normal
usage and conditions, for One (1) year from the date of installation by the original purchaser (“Warranty”). Chore-Time
provides for an extension of the aforementioned Warranty period (“Extended Warranty Period”) with respect to certain
Product parts (“Component Part”) as set forth in the table below. If such a defect is determined by Chore-Time to exist
within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B.
the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B. the factory of manufacture.
This Warranty is not transferable, and applies only to the original purchaser of the Product.
CONDITIONS AND LIMITATIONS
THIS WARRANTY CONSTITUTES CHORE-TIME’S ENTIRE AND SOLE WARRANTY AND CHORE-TIME
EXPRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
EXPRESS AND IMPLIED WARRANTIES, INCLUDING, WIHTOUT LIMITATION, WARRANTIES AS TO
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES. CHORE-TIME shall not be liable for any direct,
indirect, incidental, consequential or special damages which any purchaser may suffer or claim to suffer as a result of any
defect in the Product. Consequential or Special Damages as used herein include, but are not limited to, lost or damaged
products or goods, costs of transportation, lost sales, lost orders, lost income, increased overhead, labor and incidental costs,
and operational inefficiencies. Some jurisdictions prohibit limitations on implied warranties and/or the exclusion or
limitation of such damages, so these limitations and exclusions may not apply to you. This warranty gives the original
purchaser specific legal rights. You may also have other rights based upon your specific jurisdiction.
Compliance with federal, state and local rules which apply to the location, installation and use of the Product are the
responsibility of the original purchaser, and CHORE-TIME shall not be liable for any damages which may result from non-
compliance with such rules.
The following circumstances shall render this Warranty void:
· Modifications made to the Product not specifically delineated in the Product manual.
· Product not installed and/or operated in accordance with the instructions published by the CHORE-TIME.
· All components of the Product are not original equipment supplied by CHORE-TIME.
· Product was not purchased from and/or installed by a CHORE-TIME authorized distributor or certified
representative.
· Product experienced malfunction or failure resulting from misuse, abuse, mismanagement, negligence, alteration,
accident, or lack of proper maintenance, or from lightning strikes, electrical power surges or interruption of
electricity.
· Product experienced corrosion, material deterioration and/or equipment malfunction caused by or consistent with
the application of chemicals, minerals, sediments or other foreign elements.
· Product was used for any purpose other than for the care of poultry and livestock.
The Warranty and Extended Warranty may only be modified in writing by an officer of CHORE-TIME. CHORE-TIME
shall have no obligation or responsibility for any representations or warranties made by or on behalf of any distributor,
dealer, agent or certified representative.
Chore-Time Warranty
Product Time Period from Installation Charge to be paid by the purchaser for replacement
Feeder Pans 0 - 3 years No Charge
3-4 years 4/10 of then current list price
4-5 years 5/10 of then current list price
Rotating Centerless Augers
excluding applications involving high
moisture feed stuffs (exceeding 18%)
10 years No Charge
Chore-Time manufactured roll formed
steel auger tubes 10 years No Charge
Effective: January 2014

Contents
Topic Page
MF2426B 3
Chore-Time Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Decal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DANGER: Moving Auger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DANGER: Electrical Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CAUTION: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Manufacturer’s Recommendations: Birds per Pan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Planning the Floor Feeding System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Laying out the Suspension System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the Suspension System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Lift Winch Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing the Main Winch Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Screw Hook Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Ceiling Hook Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Steel Truss Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Drop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Support Cords and Feed Cone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Assemble the Feed Cone and Center Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Assemble the Center Support and Feed Cone to grill. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Feeder Line Assembly and Suspension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Feeder Pan Tube Assembly Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Assemble and Suspend the Feeder Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Installing the End Control, Boot Assembly, and Auger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Auger Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Auger Brazing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Actuator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Actuator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Springs at end of system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Actuator Springs (9’-4 hole Tubes). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installing Actuator Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Attaching Feeder Lift Cords to the Actuator Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Anti-Roost Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MIDLINE Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Midline Control with Mechanical Switch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Midline Control with (ES) Switch Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
LIBERTY Feeder Management and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Initial Start-up of the Feeding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
General Operation of the LIBERTY Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
End Control and Mid line Control Pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Control Pans utilize the manual ALL-OUT™ FLOOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Contents - continued
Topic Page
4MF2426B
Floor Feeding System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Gear Head Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Mechanical Switch Adjustment Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
SENSOR Switch Adjustment for Control Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Feeder Line Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Power Lift Winch Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Trouble Shooting the Floor Feeding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
End Control With Electronic Sensor Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Electronic Sensor Control Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Mid Control with Electronic Sensor Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Mechanical Switch Single Phase Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Mechanical Switch Single Phase Wiring Diagram (with Motor Starter) . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Mechanical Switch Three Phase Wiring Diagram: 220 V.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Mechanical Switch Three Phase Wiring Diagram: 380/415 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
150# Plastic Hopper Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Hopper Boot Suspension Bracket (optional)
For Single and Twin Boot Hopper Support Kit: Part No. 49358. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Single Boot Components: Part No. 6822 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Twin Boot Components: Part No. 6824 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Feeder Line Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
ACTUATOR KIT: Part No. 52494. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
LIBERTY Feeder Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Poultry Trainers and Line Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Power Unit Assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Power Unit Assembly Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Silver Control: Part No. 52347 & Green Control: Part No. 52348. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
LIBERTY Feeding System End Control with Electronic Sensor Switch
Silver Control: Part No. 54574 & Green Control: Part No. 54576 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
LIBERTY Feeding System Mechanical Midline Control
Silver Control: Part No. 52340 & Green Control: Part No. 52341 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
LIBERTY Feeding System Midline Control with Electronic Sensor Switch
Silver Control: Part No. 54587 & Green Control: Part No. 54586 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
2883 Power Winch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Miscellaneous Suspension Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

LIBERTY® Feeding System with Electronic Sensor (ES) About this Manual
MF2426B 5
The intent of this manual is to help you in twoways. One is to follow step-by-step in the order of assembly of your
product. The other way is for easy reference if you have questions in a particular area.
Important: Read ALL instructions carefully before starting construction.
Important: Pay particular attention to all SAFETY information.
• Metric measurements are shown in millimeters and in brackets, unless otherwise specified. (") equals inchesand
(') equals feet in measurements.
Examples:
1" [25.4]
4' [1 219]
• Optional equipment contains necessary instructions for assembly or operation.
• Major changes from the last printing will be listed on the back cover.
This Planning Symbol is used in areas where planning needs to take place before construction
continues.
• Very small numbers near an illustration (i.e., 1257-48) are identification of the graphic, not a part number.
Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous
situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or
damaged safety decals immediately.
Using the equipment for purposes other than specified in this manual may cause personal injury and/or damage to
the equipment.
Safety–Alert Symbol
This is a safety–alert symbol. When you see this symbol on your equipment, be alert to the
potential for personal injury. This equipment is designed to be installed and operated as safely
as possible...however, hazards do exist.
Understanding Signal Words
Signal words are used in conjunction with the safety–alert symbol to identify the severity of the warning.
DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or
serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or
serious injury.
CAUTION indicates a hazardous situation which, if not avoided, MAY result in minor or moderate
injury.
About this Manual
Safety Information

General Information LIBERTY® Feeding System with Electronic Sensor (ES)
6MF2426B
Follow Safety Instructions
Carefully read all safety messages in this manual and on your equipment safety signs. Follow recommended
precautions and safe operating practices.
Keep safety signs in good condition. Replace missing or damaged safety signs.
Decal Descriptions
DANGER: Moving Auger
This decal is placed on the Panel Weldment.
Severe personal injury will result, if the electrical power is not
disconnected, prior to servicing the equipment.
DANGER: Electrical Hazard
Disconnect electrical power before inspecting or servicing equipment unless
maintenance instructions specifically state otherwise.
Ground all electrical equipment for safety.
All electrical wiring must be done by a qualified electrician in accordance
with local and national electric codes.
Ground all non-current carrying metal parts to guard against electrical shock.
Electrical disconnects and over current protection are not supplied with the
equipment.
CAUTION:
Use caution when working with the Auger—springing Auger may cause
personal injury.
Support Information
The Chore-Time LIBERTY®Feeding System is designed to feed poultry feed types. Using this equipment for any
other purpose or in a way not within the operating recommendations specified in this manual will void the
warranty and may cause personal injury.
This manual is designed to provide comprehensive planning and installation information. The Table of Contents
General Information
Manboot 3/98

LIBERTY® Feeding System with Electronic Sensor (ES) General Information
MF2426B 7
Manufacturer’s Recommendations: Birds per Pan
*Notice: Please be advised that the maximum number of birds that may be successfully produced per feed pan
may vary based upon such factors as climate, housing type or style, bird breeds, genetic factors of the birds at
issue, grower management practices, etc. All other environmental and management circumstances, such as proper
bird density per house, access to adequate nutrients in feed, access to adequate water supply, proper ventilation,
adequate health care for the birds, and other similar factors, must meet industry standards and recommendations,
if any, of applicable bird breeder companies.
* NOTICE: The above Manufacturer’s recommendations do not constitute a product warranty and are in no way
to be considered as a guarantee of performance for poultry production. In addition, the above information in no
way alters or revises the terms and conditions of any applicable Chore-Time manufacturer’s warranty.
Type Max weight and/or
weeks of age Feeders Number of birds/pan
Broiler 4.5 lbs/2 kg. REVOLUTION®12, MODEL’S: C2®Plus, LIBERTY®,
C2®Plus S, C™, H2™, H2™ Plus
60 - 90
Broiler 6 lbs/2.7 kg REVOLUTION 8 & 12, C2 Plus,
C2 Plus S, G Plus, G Plus S, C, LIBERTY, H2, H2 Plus 55 - 80
Broiler 7 lbs/3.1 kg REVOLUTION 8 & 12, C2 Plus,
C2 Plus S, G Plus, G Plus S, C, LIBERTY, H2, H2 Plus 55 - 75
Broiler 9 lbs/4.0 kg REVOLUTION 8, G Plus, G Plus S
LIBERTY 45 – 65
Broiler Breeder Pullet –
rearing 0 – 18 weeks C2 Plus (Breeder), C2 Plus S (Breeder) 14 - 15
Broiler Breeder Pullet –
rearing 0 – 18 weeks Hi-Yield C2 Plus (Breeder), C2 Plus S (Breeder) 12-14
Broiler Breeder Male –
rearing 0 -- 18 weeks C2 Plus (Breeder), C2 Plus S (Breeder),
G Plus (Breeder),
G Plus S (Breeder)
11-13
Broiler Breeder Layer 17 + weeks C2 Plus (Breeder),
C2 Plus S (Breeder) 13 - 14
Broiler Breeder Layer 17 + weeks
Hi-Yield C2 Plus (Breeder), C2 Plus S (Breeder) 12 - 13
Broiler Breeder Male 17 + weeks REVOLUTION 8, G Plus (Breeder), G Plus S (Breeder) 8-10
Commercial Layer Pullet
– rearing 0 – 20 weeks REVOLUTION 12, C2Plus, H2, H2 Plus 40-60
Commercial Layer 18 + weeks REVOLUTION 12, C2 Plus, C, H2, H2 Plus 30 - 40
Turkey Poult 0 – 7 weeks REVOLUTION 8, H2 Plus, H2,
LIBERTY, G Plus, G Plus S 60 - 65
Turkey Hens 0 – 7 weeks REVOLUTION 8, G Plus, H2 Plus, LIBERTY, H2 40 - 50
Turkey Female 5 + weeks ATF, ATF Plus 60
Turkey Male 5 + weeks ATF, ATF Plus 40 - 50
Ducks 0 – 3 weeks G Plus, G Plus S 60 - 70
Ducks 4 – 8 weeks G Plus, G Plus S 50 - 60

Planning the Floor Feeding System LIBERTY® Feeding System with Electronic Sensor (ES)
8MF2426B
1.Select the House Layout.
A.Optional Mid Line Controls may be used for partial house brooding. See Figure 1.
B.Systems with line lengths over 500’should be split in the center, as shown in Figure 2. This will reduce auger
running time and eliminate the need for Mid-Line Controls for partial house brooding.
2.Determine the Feed Bin location.
3.Determine the Brood Curtain location.
4.Determine the location for the End Control Pans, and if used the Mid Line Control Pans. The
Feeder Control Pans should be at least 10’ [3 m] from the Wall or Brood Curtain.
5.Determine the distance to the Feeder Line from the Side Wall.
6.Determine the distance from the Feed Hoppers to the End Wall for a Straight Line Feeding System.
Planning the Floor Feeding System
1523-112 4/.2002
Feed Bin
Feed Hopper
Mid Line Control
Brood Curtain
End Control
& Power Unit
Control Tube
Control Tube
Control Tube
Control Tube
10' [3 m]
Minimum 10' [3 m]
Minimum

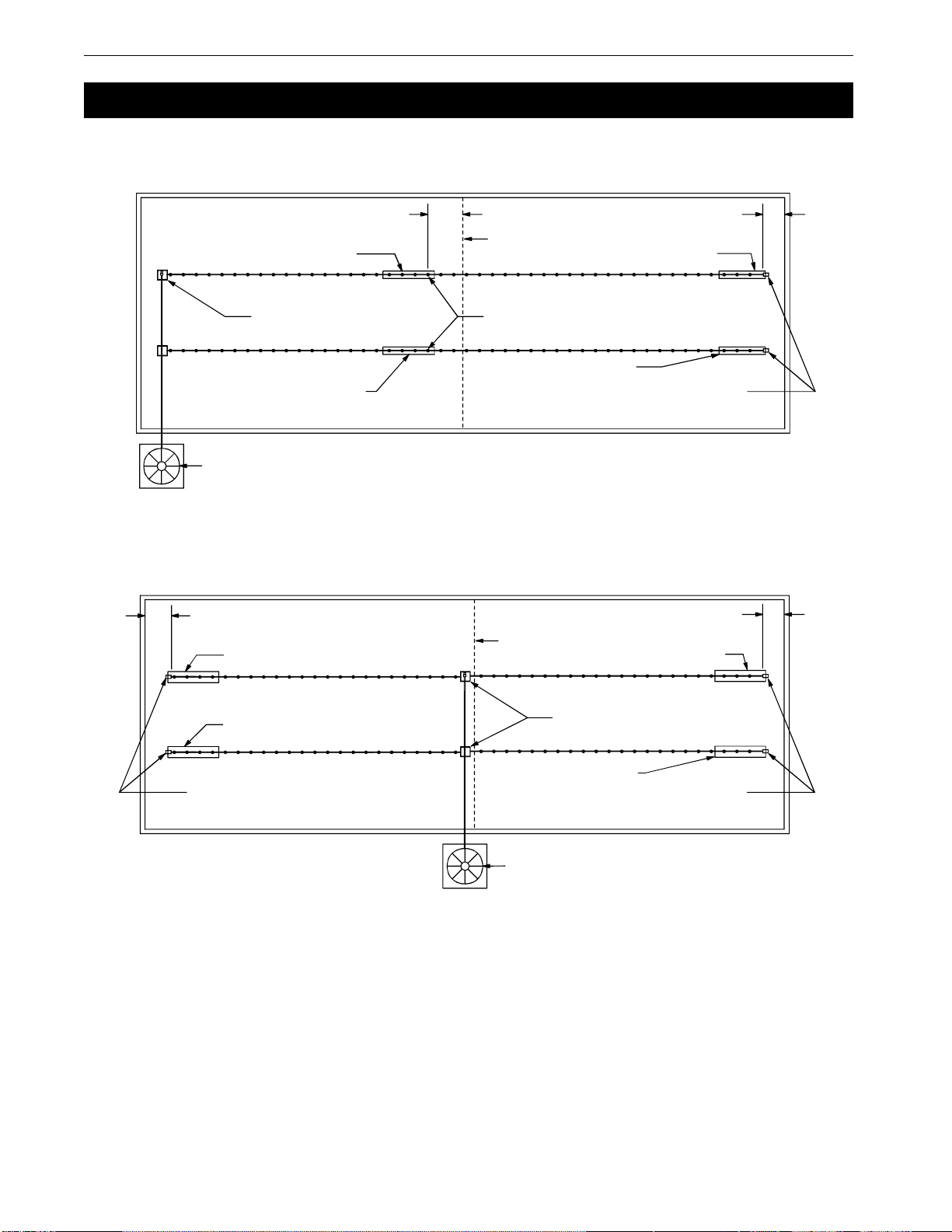

Figure 1.Component location diagram for systems up to 500 feet. (Top View).
10' [3 m]
Minimum 10' [3 m]
Minimum
1523-111 4/2002
Feed Bin
Feed Hoppers
Brood Curtain
End Control
& Power Unit
End Control
& Power Unit
Control Tube
Control Tube
Control Tube
Control Tube
Figure 2.Component location diagram for systems over 500 feet. (Top View).

LIBERTY® Feeding System with Electronic Sensor (ES) General Installation Information
MF2426B 9
Liberty Feeding System read the installation instructions in this manual prior to beginning the installation. This
manual provides the necessary information on the installation, operation, and maintenance of the Chore-Time
feeding equipment you have purchased.
The Liberty Feeding System Control Unit uses a 348 RPM. Gearhead, delivering approximately
17 lbs [7.7 kg] per minute. This rating is based on feed with a density of 40 lbs per cubic foot [640 kg per cubic
meter].
Single phase 60 Hz and single and three phase 50 Hz Power Units are available for the Liberty Feeding System
Feeder.
Systems up to 300' [91 m] require 1/3 HP Power Units. Systems over 300' [91 m] require 1/2 HP Power Units.
1.Select the Suspension type.
A. For systems up to 350' [107 m]
General Installation Information
Laying out the Suspension System
Full Line
Suspension Kit Swivel Pulley
8' (2.4 m)
Power Winch
Swivel Pulley 3.5" (8.9 cm)
Pulley
3' (90 cm)
Maximum

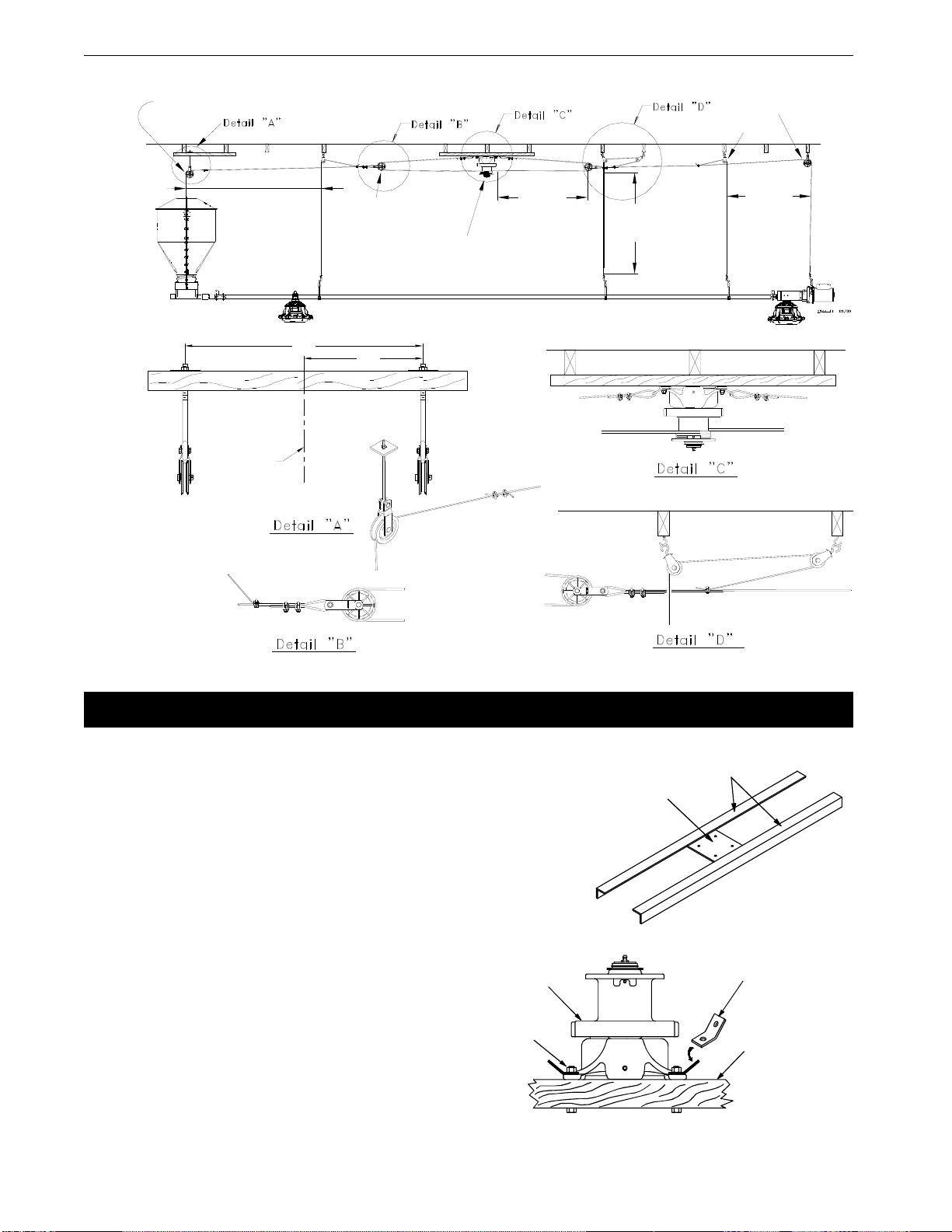

Figure 3.Suspension for systems up to 350’ [107 m]

Installing the Suspension System LIBERTY® Feeding System with Electronic Sensor (ES)
10 MF2426B
B.For systems over 350' [107 m]
Power Lift Winch Installation
1.Bolt the Power Winch, fully assembled, to the Power
Lift Winch Support, either a 2'' x 8'' [50x200 mm]
board that will span at least 3 rafters or a 3/8'' [9.5
mm] thick steel plate welded to two pieces angle
iron that are each long enough to span at least 2 raf-
ters, using
5/16-18 hardware supplied in the Hardware Pack-
age. The brake mechanism will extend toward one
side. See Figure 5.
2.Install a Cable Hook, supplied in
Hardware Package, between the
mounting bolt and Power Winch
frame, as shown in Figure 6.
Installing the Suspension System
Full Line
Suspension Kit
8' (2.4 m) 3.5" (8.9 cm)
Pulley
Power Winch
Maximum
Distance of Travel
+ 2' (61 cm) Maximum
Distance
of Travel
3' (90 cm)
Maximum
Swivel Pulley
Suspension Kit
Drop Line
11.0"
22.0"
CENTER OF
HOPPER
Figure 4.Suspension for systems over 350’ [107 m]
1255-115 2/2001
Angle Iron
3/8" [9.5 mm]
Thick Steel Plate
Figure 5.Optional Power Lift Winch Support Detail
5/16-18 Bolt,
Washer, and
Lock Nut
Cable Hook
Power Lift Winch
Power Lift
Winch Support
1523-114 4/2002
Figure 6.Assembling the Power Winch to the Rafters

LIBERTY® Feeding System with Electronic Sensor (ES) Installing the Suspension System
MF2426B 11
3.Attach the Power Lift Winch Support (with the Power Winch secured) to the ceiling at the center of
the feeder line. See Figure 7. The Power Lift Winch Support must be parallel to the feeder line and
must span at least 3 rafters in a wood frame house and 2 rafters in a steel frame house.
4.If the hopper is located at the center of the feeder line, locate the Power Winch a few feet offset
from the center of the feeder line. However, the Winch Drum must be directly in line with where the
main cable is to be installed.
Installing the Main Winch Cable
The Suspension Systems are based on ceiling heights of 14' [4.3 m] with Suspension Drop points every 8' [2.4 m].
DO NOT EXCEED 10' [3 m] BETWEEN SUSPENSION DROPS. Refer to suspension section in this manual for
installation details.
Adequate overhead structure must be provided to support the
weight of the feeders, hoppers, power units, etc. The type of
installation required depends on the feeder line length.
IMPORTANT:Special support is required at each
Hopper location
•Power Unit Locations: The Feeder Line must be
supported within 3' [.9 m] of the Power Unit. This is in
addition to the required Power Unit suspension. If the Control
Unit or Hopper does not come out directly under a truss,
fasten a pulley to a 2'' x 8'' [50 x 200 mm] board or steel angle
that will span 2 trusses and is capable of supporting 300 lbs
[136 kg] for the Hopper and 75 lbs [34 kg] for the Control Unit.
•Feed Hopper Locations: The Feeder Line must be supported within 1' [30 cm] of the Feed Hopper.
This is in addition to the required Feeder Hopper suspension. After determining the type of suspension
system required, decide where the Feeder Line is to be installed. Mark a straight line on the ceiling or rafters
the full length of the Feeder Line. Use a string, chalk line, or the winch cable, temporarily attached with
staples, to mark the line. Center the line directly over where the Feeder Line is to be installed.
1.Extend the 3/16" [5 mm] Main Winch Cable the full length of the feeder line. Attach the cable temporarily to
the ceiling with nails, staples, or some type of fasteners. Figure 9 shows a double back arrangement for feed
lines over 350' [107 m]
1523-76 4/2002
Power Lift
Winch Support
Rafte
r

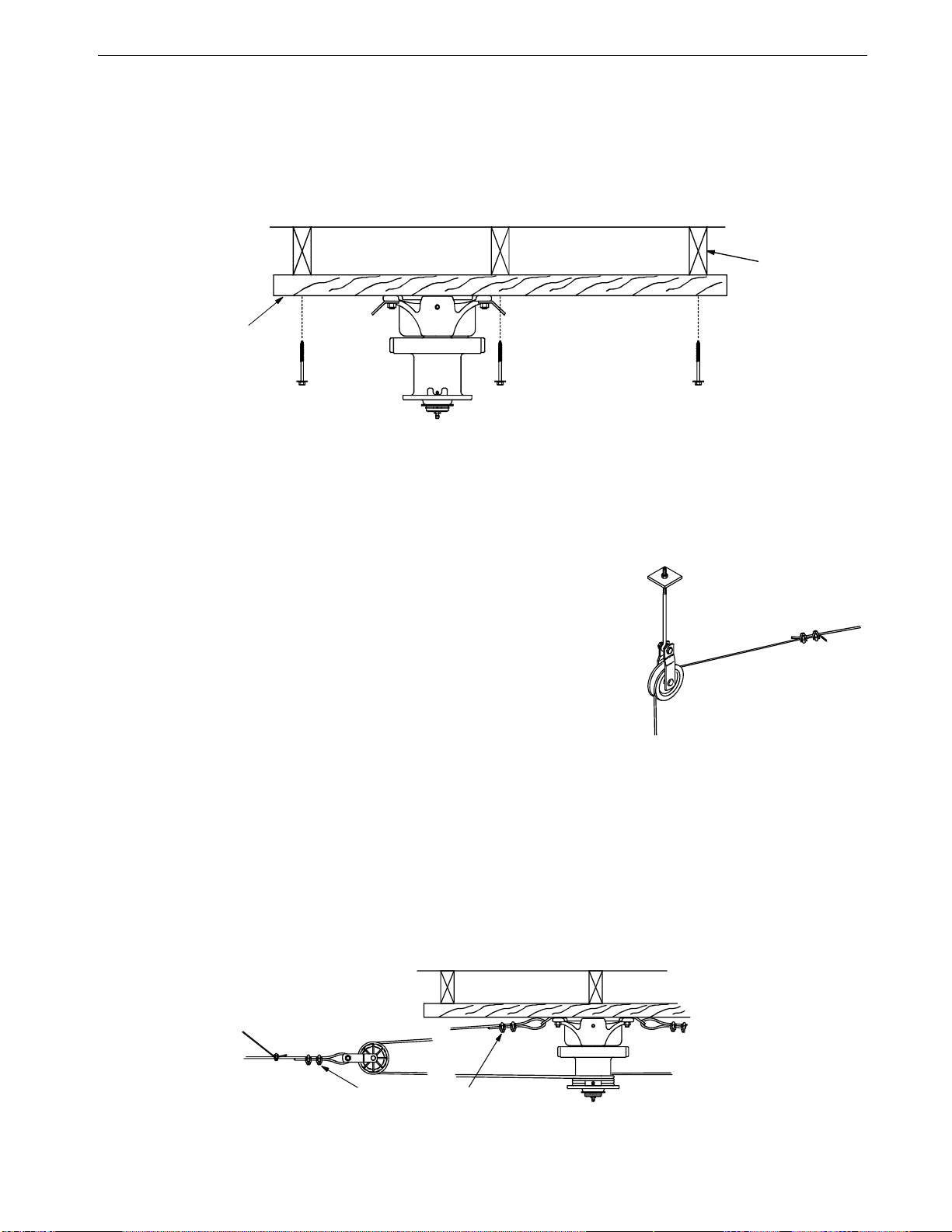

Figure 7.Mounting the Power Lift Winch and support to the rafters.
1255-113 1/2001
Figure 8.Full line suspension kit
1255-63 4/2001
Double Clamp these areas
Figure 9.Double back arrangement for feed lines over 350’ [107 m]

Installing the Suspension System LIBERTY® Feeding System with Electronic Sensor (ES)
12 MF2426B
2.Route the cable through the Winch Drum
Relief located near the bottom of the
drum. Tighten the set screw to anchor
the cable to the drum. See Figure 10.
3.Turn the winch drum one full revolution.
Guide the cable against the flange at the
bottom of the winch drum. The cable
must not wrap over itself on the drum,
but should be wrapped as close as
possible to each previous wrap. See
Figure 11.

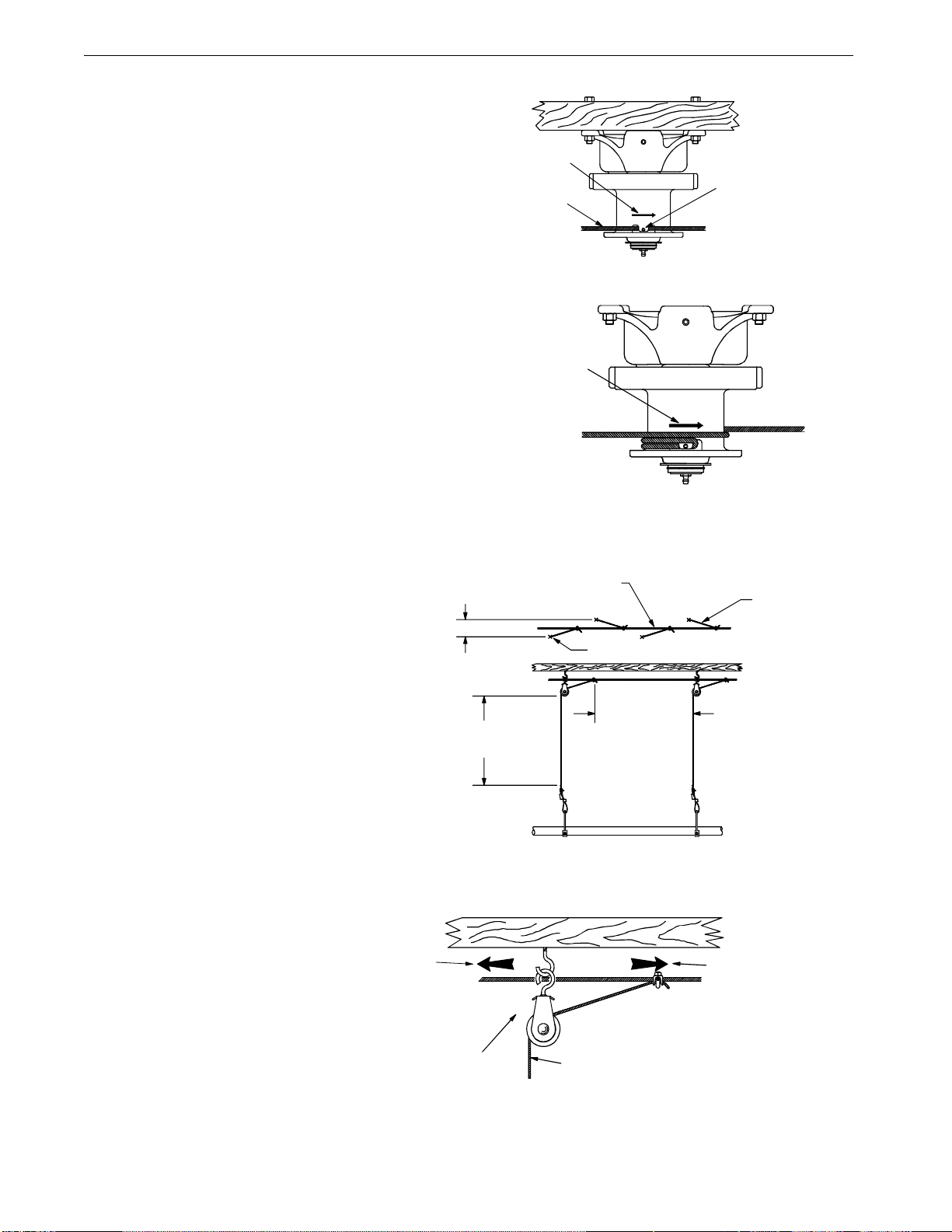

Screw Hook Installation
The recommended distance between the drops
for the Liberty Feeding System is 8’ [2.4 m] on
center. Do not exceed 10’ [3 m] spacing on drop
lines.
If the distance raised is greater than the distance
between the drop spacings, offset the hooks 3"
[7.6 cm] to each side of the line to prevent the
cable clamps from catching the pulleys. See
Figure 12.
Screw the hook into the truss
the full length of the threads
to prevent bending.
The openings of the screw
hooks must be pointed away
from the direction of travel
when the Power Winch raises
the feeder line.
See Figure 13.
1523-77 4/2002
Winch Drum Relief
with Set Screw
3/16" Main
Winch Cable
Drum Direction
of Rotation
Figure 10.Attaching the cable to the Power Winch
1523-83 4/2002
Drum Direction
of Rotation
Figure 11.Power Winch Drum Rotation
1523-82 4/2002
3/16" [5 mm]
Main Winch Cable
Screw Hook or Ceiling Hook Location
3/32" [2 mm]
Drop Cable
Distance
of Cable
Travel
Distance Feeder
is to be Raised
3" [7.6 cm]
Offset
Figure 12.Drop line off set detail
Screw Hook
opening facing
opposite direction
of travel
Winch End
(Direction of Travel)
3/16" Main
Winch Cable 3/32" Drop Cable 1523-81 4/2002
Figure 13.Screw Hook Installation

LIBERTY® Feeding System with Electronic Sensor (ES) Installing the Suspension System
MF2426B 13
Ceiling Hook Installation
The ceiling hook may be used in a variety
of installations. Depending on your
ceiling or rafter type, install the Ceiling
Hooks as shown in Figure 14 - 17.
Steel Truss Installations
Wood Truss Installations
1523-804/2002
Secure Ceiling Hook to truss
using self-drilling screws
through opposite holes
Cable Travel

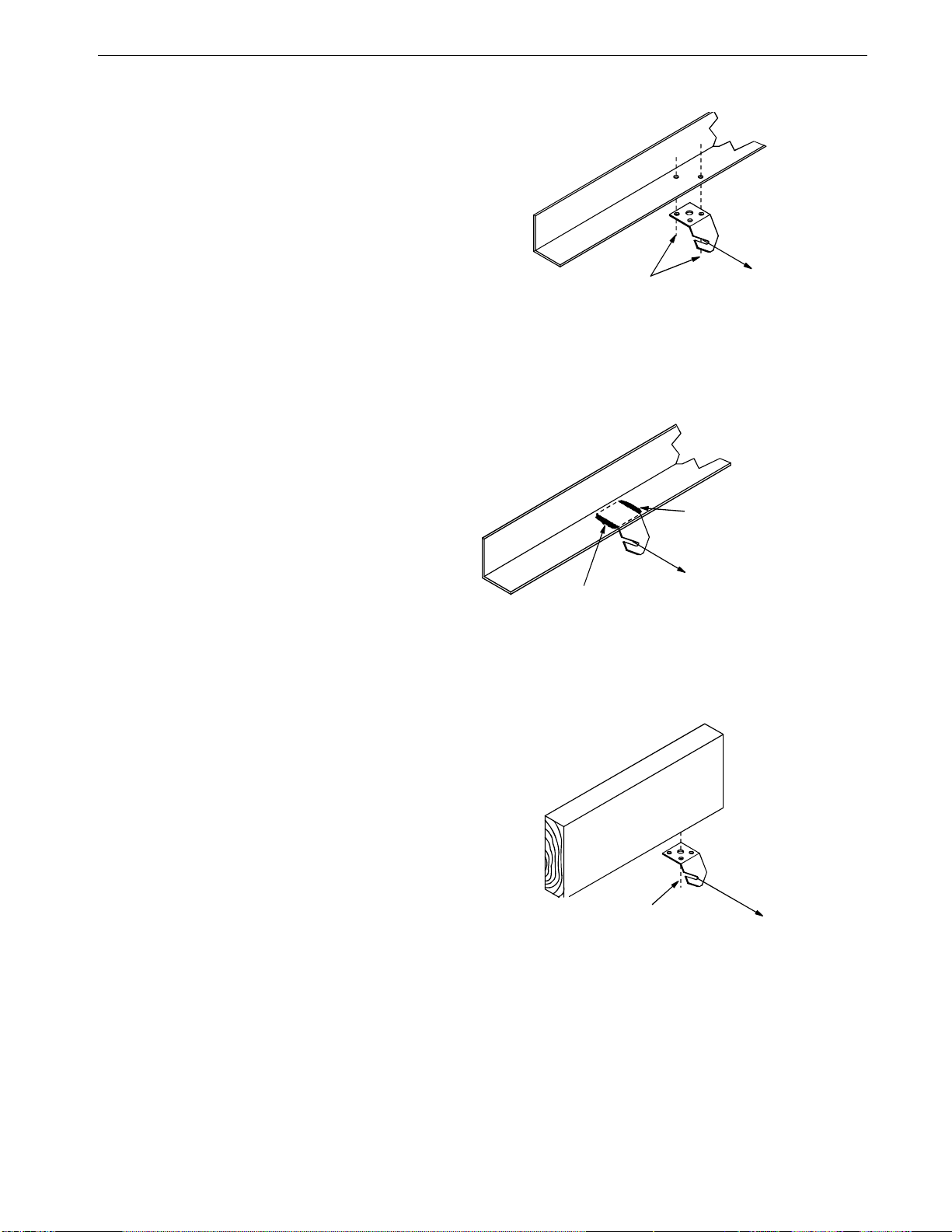

Figure 14.Steel Truss Ceiling Bracket Installation
1523-78 4/2002
Cable Travel
Weld Ceiling Bracket
to truss here
Weld Ceiling Bracket
to truss here
Figure 15.Welded Steel Truss Ceiling Bracket Installation
Figure 16.Wood Truss Ceiling Bracket Installation
1523-79 4/2002
Secure Ceiling Bracket to truss
using a 1/4" lag screw (not supplied)
through the center hole
Cable Travel

Installing the Suspension System LIBERTY® Feeding System with Electronic Sensor (ES)
14 MF2426B
6.After securing the Ceiling Hook to the truss,
slide the hook of a Swivel Pulley into the slot, as
shown in Figure 17.
Drop Installation
Refer to Figure 12 on page 11.
1.Attach a 3004 Pulley to each hook.
2.Thread the end of the 3/32" or 1/8" cable through the pulley toward the winch. Clamp this end to the
3/16" winch cable about 6" [150 mm] from the last pulley, using a 3/16" cable clamp. See
applicable figure; Figure 13 or Figure 17.
3.Allow enough cable length for installation of
the Adjustment Leveler.
Sufficient cable is included to provide
"throwbacks" on drops located beneath and near
the winch. Figure 18 shows a "throwback" cable
arrangement
4.Begin installing suspension drops at the
winch and proceed to the end of the feeder
line.Keepthemaincabletightbetween drops.
It may be necessary to hang a weight on the end of the cable to maintain tension on the line.
Support Cords and Feed Cone
With the large end of the Feed Cone up, slide the straight end of the Support Cord in the openings on each side of
the Feed Cone. The BEAD OF THE CORD must lock under the lip of the cone.
1523-84 4/2002
Wood Truss
Ceiling Bracket
1/4" Lag Screw
Swivel Pulley
3/32" Drop Cable
Figure 17.Pulley Installation
967-4 2/01
Figure 18.“Throwback” cable arrangement
Figure 19. Assembling lift Cords to Feed Cone
CORD
Turkey Feeder
Broiler Feeder

LIBERTY® Feeding System with Electronic Sensor (ES) Installing the Suspension System
MF2426B 15

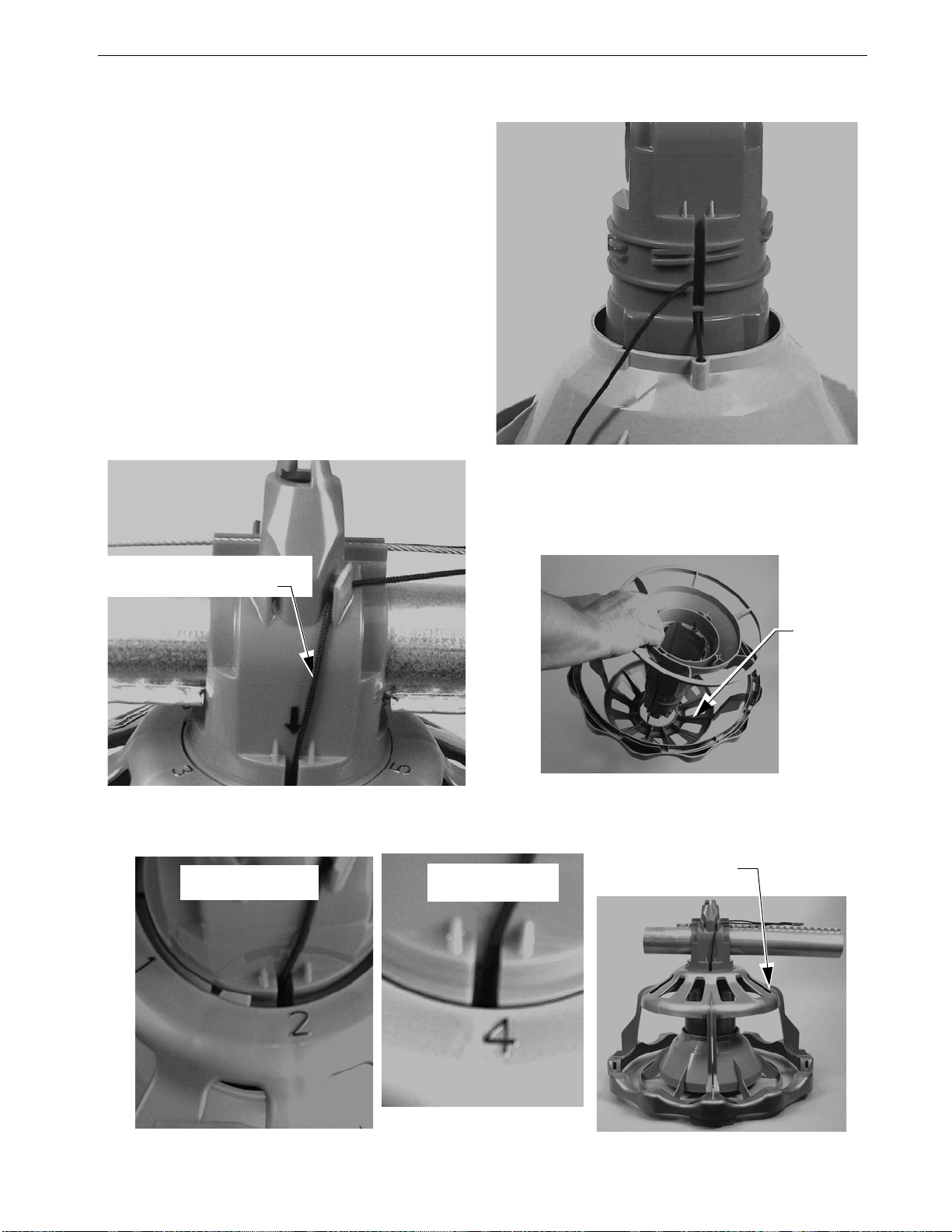

Assemble the Feed Cone and Center Support
Slide the feed cone down over the top of the support
cone. be sure to align the guides on the support cone.
Pass the cords up the channel on the support cone. be
sure to run the cord under the retainer as shown.See
Figure 20.
Run the end of the cord up through the guides on the top
of the support cone. Tie cords together to hold the cords
in place.
Assemble the Center Support and
Feed Cone to grill.
2.Guide the cone assembly through the grill cap, be
sure the cords pass through the cap. See Figure 21
3.Align the threads and rotate the grill to the cone
assembly. See Figure 22. While hold the pan
SHIELD cap use a piece of tube to rotate the feed
cone to position #4 FOR TURKEY AND #2 FOR
BROILERS.
4.Rotate the support cone while holding the pan shield (DO NOT USE THE BOTTOM OF THE GRILL TO
HOLD WHILE ROTATING) FOR TURKEYS SET TO #4 FOR BROILERS SET TO #2
Figure 20. Assembling lift Cords to Feed Cone
Run cord behind guide and
under the hold down.
SHIELD
Figure 21.Assembling Support Cone to grill
TURKEY
BROILER
Shield
Figure 22.Feeder Cone Strut (side view)

Feeder Line Assembly and Suspension LIBERTY® Feeding System with Electronic Sensor (ES)
16 MF2426B
5.Holding the grill at 90 degree to the pan. Align
the pan pivots then snap the lock in place see
Figure 23. make sure the pan hinges are locked
in place.
6.Flip the pan over and snap the pan into the grill. Be sure all snaps are locked in place. See Figure 24.
The Feeder Assemblies will be installed on the auger tubes in the Feeder Line Installation section.
Feeder Pan Tube Assembly Process
1.1.Slide one Feeder Pan Assembly per hole onto the auger tubes.
IMPORTANT: Install all the feeders on the tubes in the same orientation.
2.When sliding the feeders on the tubes, make sure the grill openings are on the same side of the tube.
3.Rotate the auger tubes so that the seam is down, this holds the Pan Assemblies in place on the tubes. See
Figure 25.
Feeder Line Assembly and Suspension
Figure 23.Assemble the grill ass’y to the feeder pan
Figure 24.Assembling Support Cord to Feed Cone
Pan Not properly snapped in place. The
silver tabs should be on top of the Pan Ring.
Figure 25.Assembling Feeders on the Tubes

LIBERTY® Feeding System with Electronic Sensor (ES) Feeder Line Assembly and Suspension
MF2426B 17

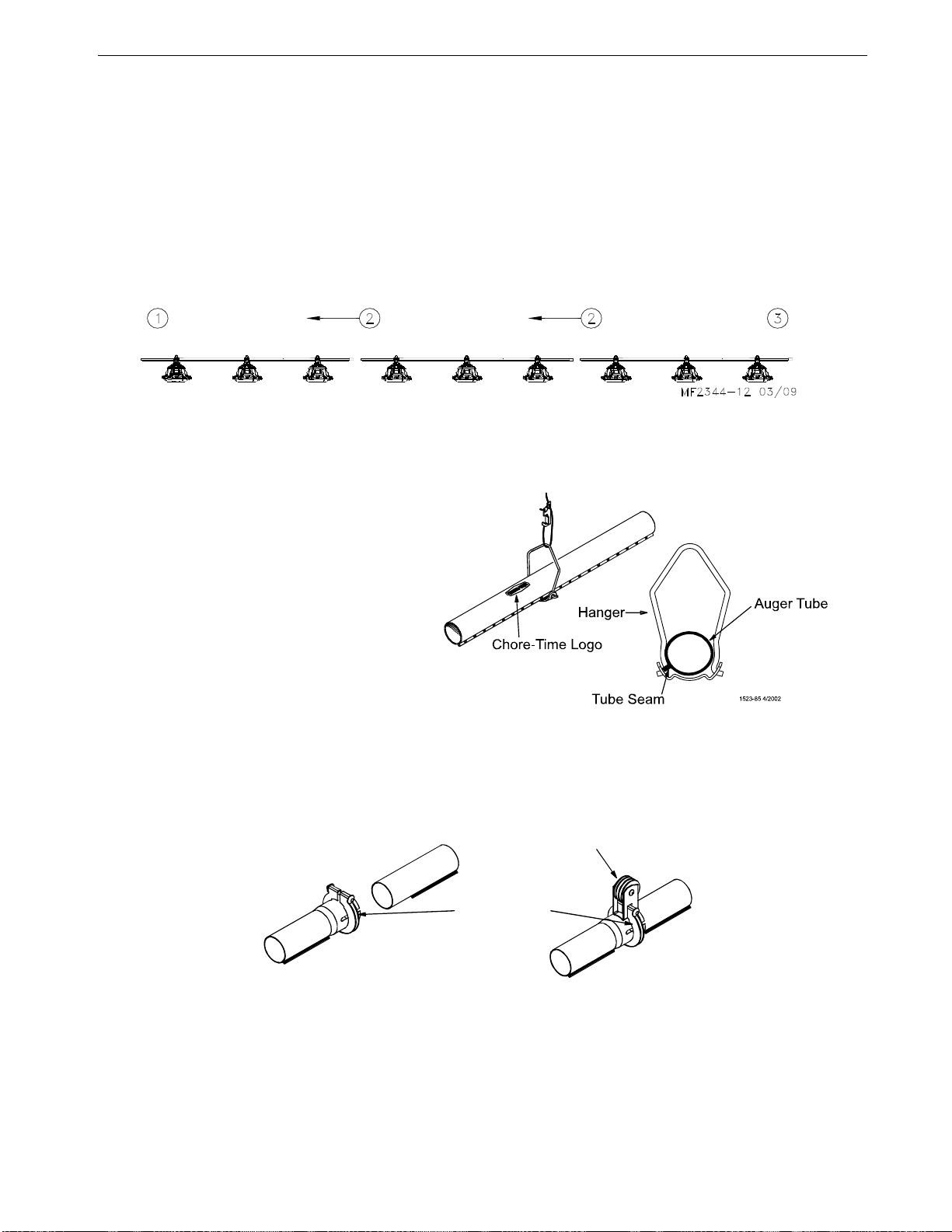

Assemble and Suspend the Feeder Line
1. The auger tubes and feeders may be laid out end to end in approximately the final location of the line.
The belled end of each tube should be toward the Hopper end of the line.
See Figure 26.
2. Connect the individual feeder tubes together by inserting the straight end of one tube as far as
possible into the belled end of the next tube. The last Feeder Tube before the End Control Pan or
Mid Line Control pan needs to be a Control Tube
3. To achieve total feed drop out all
along the system, the Chore-Time
Logoshould be centeredat the crown
of the tubes and all the Hangers
should be installed as shown in
Figure 27.
4. Place a Tube Clamp Assembly or
Clamp/Anti-Roost Bracket at each
joint. Figure 28 shows the standard
Clamp and Clamp/Anti-Roost
Bracket. Systems using 9’ or 10’
tubes require a Clamp/Anti-Roost
Brackets every fifth joint.
Systems using 12’ tubes require a Clamp/Anti-Roost Bracket at every fourth joint. All other joints in
the system use the standard Tube Clamp Assembly.
Figure 26.Assembling Feeders on the Tubes
Figure 27.Assembling Feeders on the Tubes
1255-86 9/2000
1) 1/4" [6 mm]
Tube Clamp
1523-86 4/2002
Anti-Roost Bracket
Figure 28.Assembling Feeders on the Tubes

Feeder Line Assembly and Suspension LIBERTY® Feeding System with Electronic Sensor (ES)
18 MF2426B
Continue down the entire length of the feeder line so
that every joint is secured with a standard Clamp or
Clamp/Anti-RoostBracket. Figure29showstheproper
clamp location on the tube joint. Do not tighten the
clamp at this time.
4.Install the Hangers on the feed line tube at the 8’
[2.4 m] spacings determined by the suspension
drop lines. Figures 27 and 30 show the proper
installation of the Hanger Assembly. Make sure the
outlet drop hole is downward when the Hangers are
installed, otherwise feed will not be allowed to
drop into the feeder pan.
5.Install Adjustment Leveler within 6" [152 mm] of
feeder line. Figure 31 shows the proper cable
routing around the Adjustment Leveler.
6.Following the installation of all drops, check drop
cables before raising feeder line. Cable must be
tracking properly on all pulleys before raising the
feeder line.
7.Raise the feeder line to a convenient working
height.
8.With the feeder line suspended, measure from the
floor or ceiling to the auger tubes to level the
system.
9.Before tightening each clamp:
-make sure each tube is level (not
sagging, sloping, etc.).
-make sure straight end of each tube is
fully inserted in belled end of next tube.
-if providing total drop out, tubes
should be rotated so that the Chore-
Time Logo is on crown of tube.
10.make sure the clamps are located, as
shown in Figure 29.
11.Finally, tighten the Tube Clamps on
the feeder tubes. Clamp the joints
securely, but do not crush the tubes. Re-
adjust all Adjustment Levelers as
needed and trim off excess cable as
shown in Figure 31.

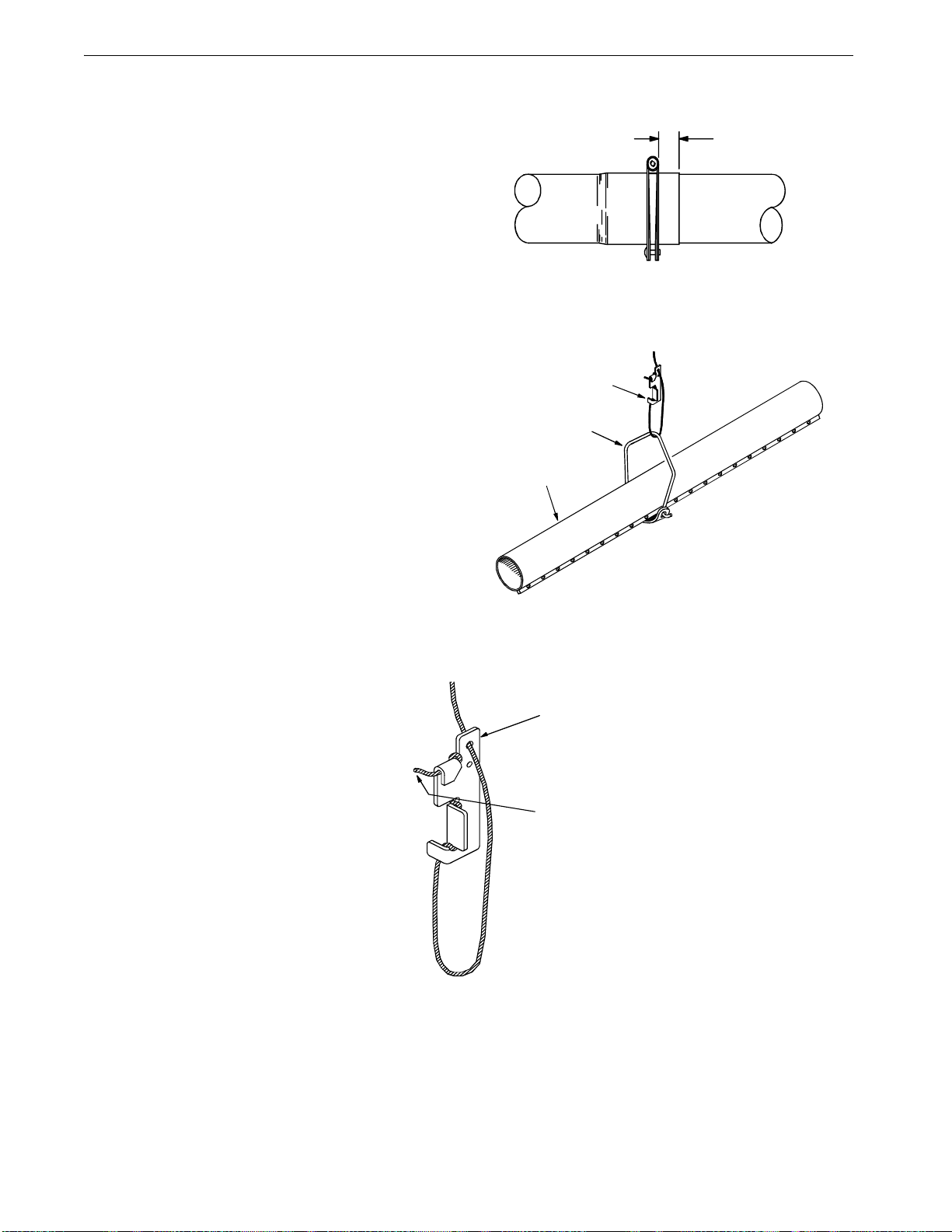

1523-115 4/2002
1/4" [6 mm]
Figure 29.Assembling Feeders on the Tubes
1523-87 4/2002
Cable Lock
Hanger
Auger Tube
Figure 30.Assembling Feeders on the Tubes
1523-89 4/2002
Use the large hole for 1/8" [3 mm] Drop Cable
Use the small hole for 3/32" [2 mm] Drop Cable
After tightening Tube Clamps on the feeder
tubes, trim off excess cable (see text)
Figure 31.Assembling Feeders on the Tubes

LIBERTY® Feeding System with Electronic Sensor (ES) Feeder Line Assembly and Suspension
MF2426B 19
Installing the End Control, Boot Assembly, and Auger
The End Control Unit must be at least 10 feet [3 m] from the end of the building to allow birds access around the
end of the feeder line.
1.Assemble the End Control Unit to the Feeder Line Control Tube using a clamp/anti-roost bracket.
See Figure 32. DO NOT INSTALL THE POWER UNIT AT THIS TIME.
2.Install the Feeder Boot by sliding the straight end of the Feeder Boot into the belled end of the
Feeder Tube. Install a clamp/anti-roost bracket on the bell and tighten. The Feeder Boot must be
level with the open top of the Feeder Boot flat. See Figure 33.
DO NOT INSTALL THE ANCHOR BEARING AND BEARING RETAINER AT THIS
TIME.
Auger Installation
Note: Use extreme caution when working with the auger. The auger is under tension and may spring
causing personal injury. Wear protective clothing, gloves, and safety glasses when working with
the auger.
To avoid kinking the auger, be careful not to drop the rolled auger when handling. Inspect the auger carefully as
it is installed. Small kinks may be straightened. Large kinks must be removed and the auger brazed back together.
LIBERTY™ELECT.
END CONTROL GR
Figure 32.End Control Installation
END AND MID LINE CON-
TROL BOTH WILL USE
MANUAL ALL-OUT FLOOD
Feeder Tube Bell End
Feeder Boot
Anchor Bearing
Bearing Retainer
1523-90 4/2002
Figure 33.Installing the Feeder Boot
Manboot 3/98
BE CAREFUL
WHEN WORKING
WITH THE AUGER!

Feeder Line Assembly and Suspension LIBERTY® Feeding System with Electronic Sensor (ES)
20 MF2426B
Cut the leading 18" [450 mm] and last 18" [450 mm] off each roll of auger. Also, cut out any other distorted auger
sections and reconnect the auger as specified in the Auger Brazing section of this manual.
1.Use extreme caution when pushing the auger
into the auger tubes. Keep your hand away form
the end of the auger tube to avoid injury.
2.With the auger coiled about 6 feet [1.8 m] from
the end of the boot, uncoil the auger from the
outside and feed the auger through the boot into
the tubes.
3.Push the auger into the tube in short strokes.
4.Uncoil and handle the auger carefully to avoid
damaging or kinking the auger.
5.If more that one coil is required for each feeder
line, the auger ends will have to be brazed
together. Refer to the Brazing the Auger section
in this manual.
6.Install the Anchor Bracket to the Power Unit/
Gearhead, as shown in Figure 34, with the
included 5/16-18 Bolts.
KEEP HANDS AWAY FROM
PINCH POINTS WHEN INSTALLING
AUGER.
CAUTION
1523-91 4/2002
Anchor Bracket
5/16-18 Bolts
Figure 34.Installing anchor plate
