Redexim DS800 User manual

NOTE:
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST
PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING MANUAL IS
CAREFULLY READ BEFORE THE RINK IS USED.
0718 English Manual code: 933.120.416
Operating and Parts
manual
RINK
Model DS800 & DS1200
Serial number:
Redexim

2
T A B L E O F C O N T E N T S
Contents Page
Safety regulations ....................................................................... 3
Short description......................................................................... 5
Technical data ............................................................................. 5
Initial Operating ........................................................................... 6
Operation.............................................................................................. 6
* Before every ride ........................................................................ 6
* Coupling and taking off.............................................................. 7
* Loading........................................................................................ 7
* Spreading .................................................................................... 8
* Lubricate spreader (every 50 operating hours) ...................... 11
* Oil change for conveyor belt gears (every 2 years) ................ 12
* Axle maintenance (every 100 hours) ...................................... 12
* Adjust sand droping plate (as required) ............................... 13
* Stretch conveyor belt (in case of slipping) ............................ 13
* Installing and removing the conveyor belt ............................. 14
* Stretching conveyor belt after assembly ............................... 14
* External hydraulic unit
#
......................................................... 15
* Problem analyse......................................................................... 16
Technical alterations reserved.
Parts marked with
#
are only available as additional equipment.

3
! SAFETY REGULATIONS !
(1) The Topdresser DS800/DS1200 is built solely for spreading small-grained, loose material
such as sand, small granular material or similar products.
Any other usage is not in accordance with the indicated use. The manufacturer
does not answer for any damage resulting from incorrect usage. The user alone
has to incur the risk.
Usage in accordance with the intended use also includes compliance with the
manufacturer’s conditions of operation, maintenance and repair.
(2) The spreader is built according to prior art and operationally reliable; however,
the spreader could put life and limb of the operator or of third persons
at risk if it
is not used, maintained and repaired by persons who are familiar with it and have
been informed of the dangers.
(3) Any person who, in the plant of the user, is responsible for the operation,
maintenance and repair of the spreader, must have read and understood the
operating instructions and, in particular, this chapter, Safety Regulations.
Detach the spreader from the towing vehicle during maintenance and service work.
Only use original spare parts from the manufacturer for repairs.
Alongside the references in these operating instructions, the general regulations
for safety and for prevention of accidents must be observed.
When using public roads, the corresponding provisions (e.g. StVZO) will be
in force.
Accompanying persons are not allowed !
(4) A spreader may only be towed along public roads once it holds the necessary
registration. Complete road-worthiness certificate, licensing permit and the
additional safety facilities necessary for this (Lighting set, wheel chocks)
#
are
obtainable on request of the customer.
(5) The operator is obliged to check the spreader for any external damage or
failure before putting it into operation. Any changes (including operating
performance) which might affect safety must immediately be remedied. Changes
to and rebuilding of the spreader (other than changes allowed by the
manufacturer) are, for reasons of safety, not allowed.

4
! SAFETY REGULATIONS !
(6) Before starting work, the operator must make himself familiar with all fittings and controls as well
as their functioning.
Spreaders must be properly attached (Risk of injuries !)
Before driving away, check the immediate vicinity and care for a good field of vision.
(7) Whilst spreading is in operation, no one is allowed to enter the loading ramp.
A label with this notice is stuck on both sides of the spreader. This notice must always be well
legible and has to be replaced if damaged!
(8) Whilst the spreader is in operation, do not enter the zone of danger of the spreader since rotating
parts and foreign flying particles might cause any injuries.
(9) Adjusting and repair work on axle (wheel bearings, tyres) must only be undertaken by properly
trained and authorised personnel.
(10) Before starting work on the hydraulic system, it is important that it is without pressure.
The hydraulic hose pipes must be regularly checked and replaced if damaged or worn out. The
replacement hose pipes must conform with the manufacturer’s technical requirements.
(11) The authorized supporting load on the towing vehicle should be noted.
(12) A sound level of 74 dB (a) is emitted in the immediate vicinity of the spiners on the Topdresser
DS800/DS1200.
Used oil damages the environment; please dispose of carefully

5
SHORT DESCRIPTION
The Topdresser DS800/DS1200 is used for spreading small-grained, loose material, such as sand,
small granular material or similar products. The spreading equipment of the Topdresser is driven
by a gear box with hydraulic motor for conveyor belt and a separate hydraulic motor for each
spinner. The number of revolutions of the hydraulic system for the conveyor belt and spinners can
be continuously adjusted independently by means of a flow divider. Spreading density or
spreading amount can be determined by the tractors speed, spinner speed and conveyor belt speed.
Technical Data
Dimensions DS800 DS1200
L engt 2.40 m (95” ) 3.40 m ( 133 “)
Width 1.45 m (57 “) 1.70m (67’’)
Height 1.05 m (40”) 1.60 m ( 66.5”)
Loading capacity 0.80 m
3
(1.04 cu yd) 1.2 m³ (1.56 cu yd)
Weights
Authorized total weight 1500 Kg ( 3300 lbs) 2500 kg (5512 lbs)
Authorized axle load -- 2000 kg (4409 lbs)
Authorized supporting load -- 500 kg (1102lbs)
Empty weight approx. 420 kg ( 925 lbs) 490 kg (1010 lbs)
Spreading width up to 12 m (36 ft)
Tyre equipment mounted version 4 Swing tyres Multi Trac
( no tyres) Titan 24x13.00-12
Tyre pressure -- 0.80 bar ( 10 PSI)
Speed limit 30 km/h (19 mph)
Towing capacity 30 HP, Min 1200 Kg min 20 Kw (25HP)
(2600 lbs) lift capacity
Spreading amount continuously adjustable
Hydraulic connected load
Minimum conveying capacity towing vehicle 25 l/min (6 US gal/min)
Minimum pressure towing vehicle 140 bar (1960 PSI)
The typeplate is fastened onto the front right-hand side of the spreader

6
................................................................................................................................
INITIAL OPERATING
* Should the spreader be used on public roads
(German law: only possible with licensing certificate and registration)
- Attach license plate to plate holder at the left-handed rear side.
- Check lighting set
#
.
* After the first ride with a full load
- Retighten wheel nuts.
- Check wheel hub clearance and have it adjusted, if necessary.
- Test tyre pressure.
For DS800 Mounted machine on utility vehicle
- Take away loading ramp of vehicle
- Connect complete machine with subframe (same as with ramp) on the
connecting points, and secure machine with pin.
- Install hydraulic pipes under machine to the back.
OPERATION
Before every ride
- Check for any externally recognizable failures or damage and repair them.
- Check tyre pressure.
- Check lighting
#
.
- Check conveyor belt tread, reset if necessary. Conveyor belt must not
graze the sides.

7
OPERATION
Coupling and taking off
- Attach spreader to towing vehicle.
- Mount spreader on back of utility vehicle.

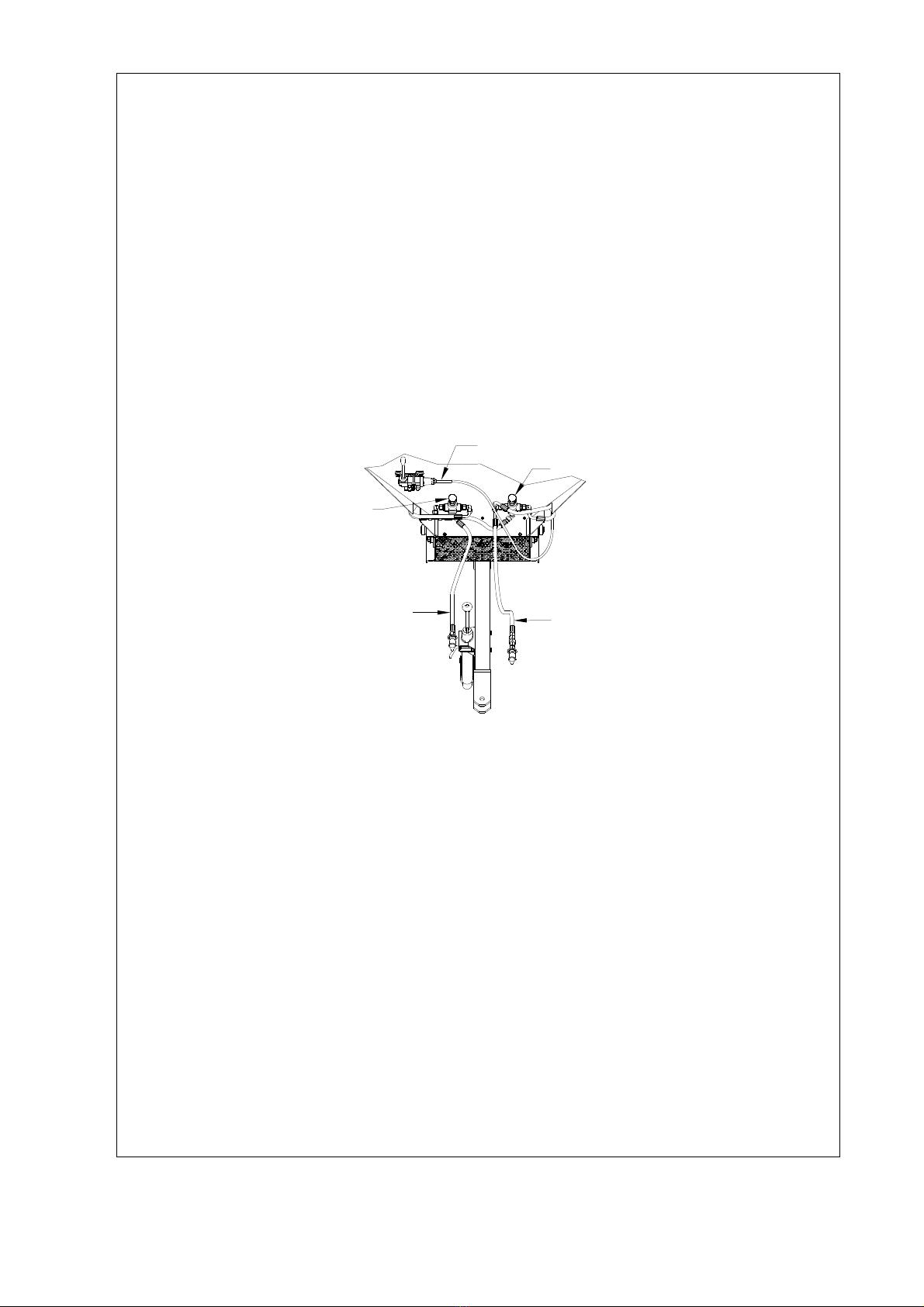

- Carry out hydraulic connection (see page 8 for further details):
- Oil circulation is required. Install valve (5) for conveyor belt on towing vehicle.
Please use therefore enclosed bracket.
- With External Oil Supply
#
, mount the plug-on pump on the PTO driver on the
tractor and secure against slippage using the mounted torque support.
(PTO speed 450 rpm).
To ensure optimum operation, the oil temperature should have reached a
temperature of around 25
o
C before starting work (see viewing window at the oil
tank). Not sufficient oil power, can reduce the spinner disc speed. Check the oil level
before starting work (centre of the oil viewing window).
- Plug the seven-pole plug
#
into towing vehicle.
! Hydraulic hoses in such a way that they do not drag
to the ground or chafe at the towing vehicle.
Taking off the spreader is carried out in an analogous way.
Loading
- Pay attention to the desired maximum ground pressure.
- When loading, pay attention for the authorized total weight.

8





SPREADING
If you run the machine, the spinner discs will be activated immediately. The conveyor belt and the
closing gate will be activated with the valve (5). First the gate opens and part of a second later the
conveyor belt starts moving. Before starting work, please choose gate opening 1-4 at the rear of the
machine.
Controls:
1 Regulator for setting the speed of the conveyor belt
2 Regulator for setting the speed of the spinner discs
3 Revers hydraulic line
4 Power hydraulic line
5 Valve for activating conveyor belt and gate
Adjusting spreading thickness:
The spreading thickness (mm) is dependent on
- the speed of the towing vehicle
- the speed of the conveyor belt (regulator)
- the speed of the spinner discs
- the gate opening
Set the controller for the conveyor belt speed to the required value.
Set the controller for the spinner disc speed to the required value.
Activate valve for gate and conveyor belt
Different spreading material needs different adjustments. On the machines DS800/DS1200 we
have given you all possibilities to adjust a very even spreading pattern.
1 Droping plate (see page 11)
2 Angle of the spreading showels
3 Conveyor belt speed
4 Spinner disc speed
5 Opening of the automatic gate

9
Rink Disc Spreader DS 800 / DS 1200 Spreading Guide
Application
Topdressing
Spinner
Regulator
Floor Control Gate Door Approx.
Spreading
Width
Light
8-10 10 1 10m
Medium
6-7 10 2 8m
Heavy
4 10 3-4 4m

10

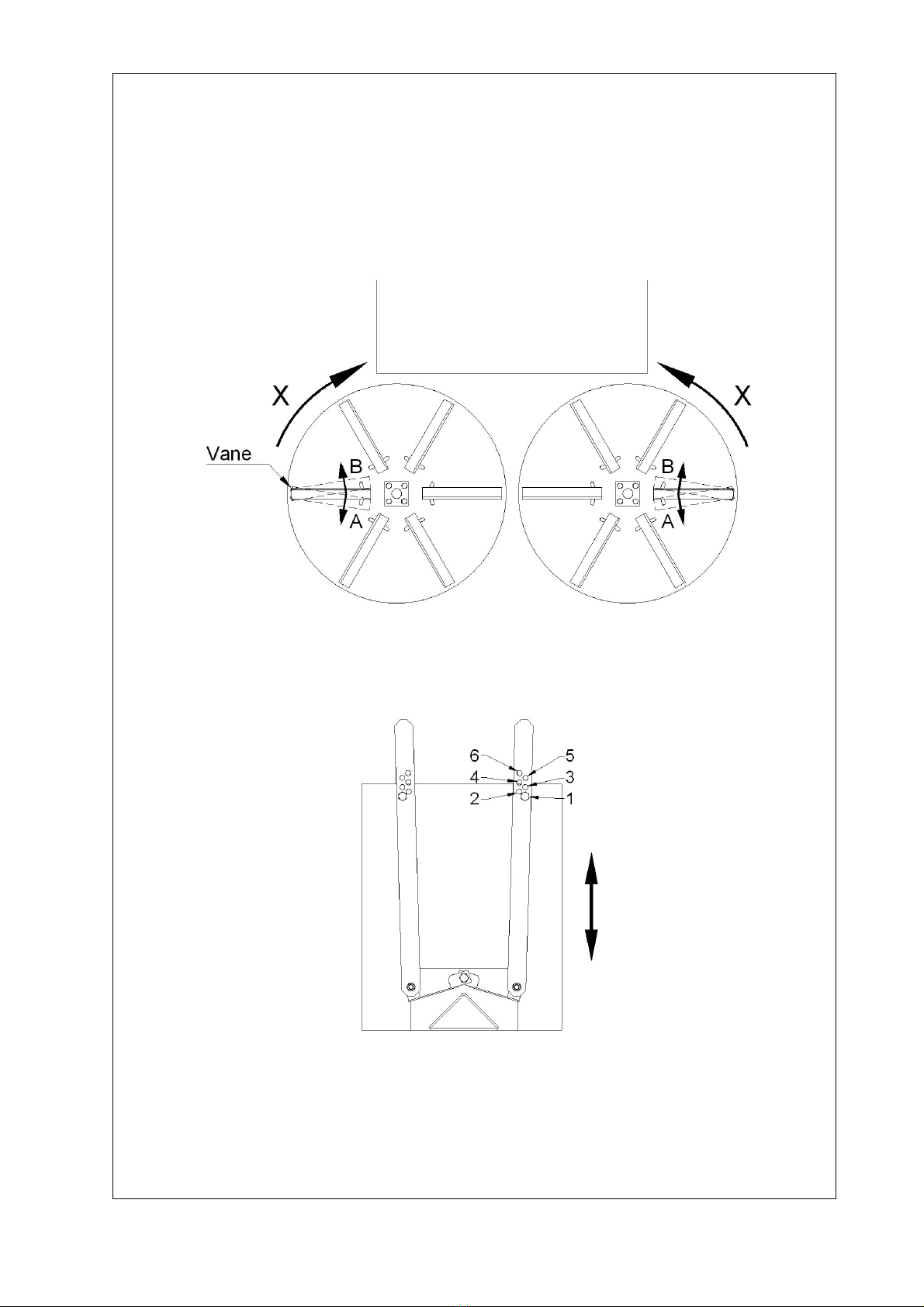

Disk settings in case of unequal spreading pattern:
A: Only outside material concentration – move all vanes in direction B
B: Only inside material concentration – move all vanes in direction A
For dry sand material you must bring the funnel in position 1

11




REPAIR AND MAINTENANCE
Lubricate spreader (every 50 operating hours)
Lubricate with multi-purpose grease:
1 Bearings on both sides of the spreading discs
2 Bearings on both sides of the rear conveyor shaft
3 Bearings on both sides of the front conveyor shaft
4 Bearings on both sides of the drive axle (only on DS1200)
Bearings without a lubricating nipple require no greasing.

12
REPAIR AND MAINTENANCE

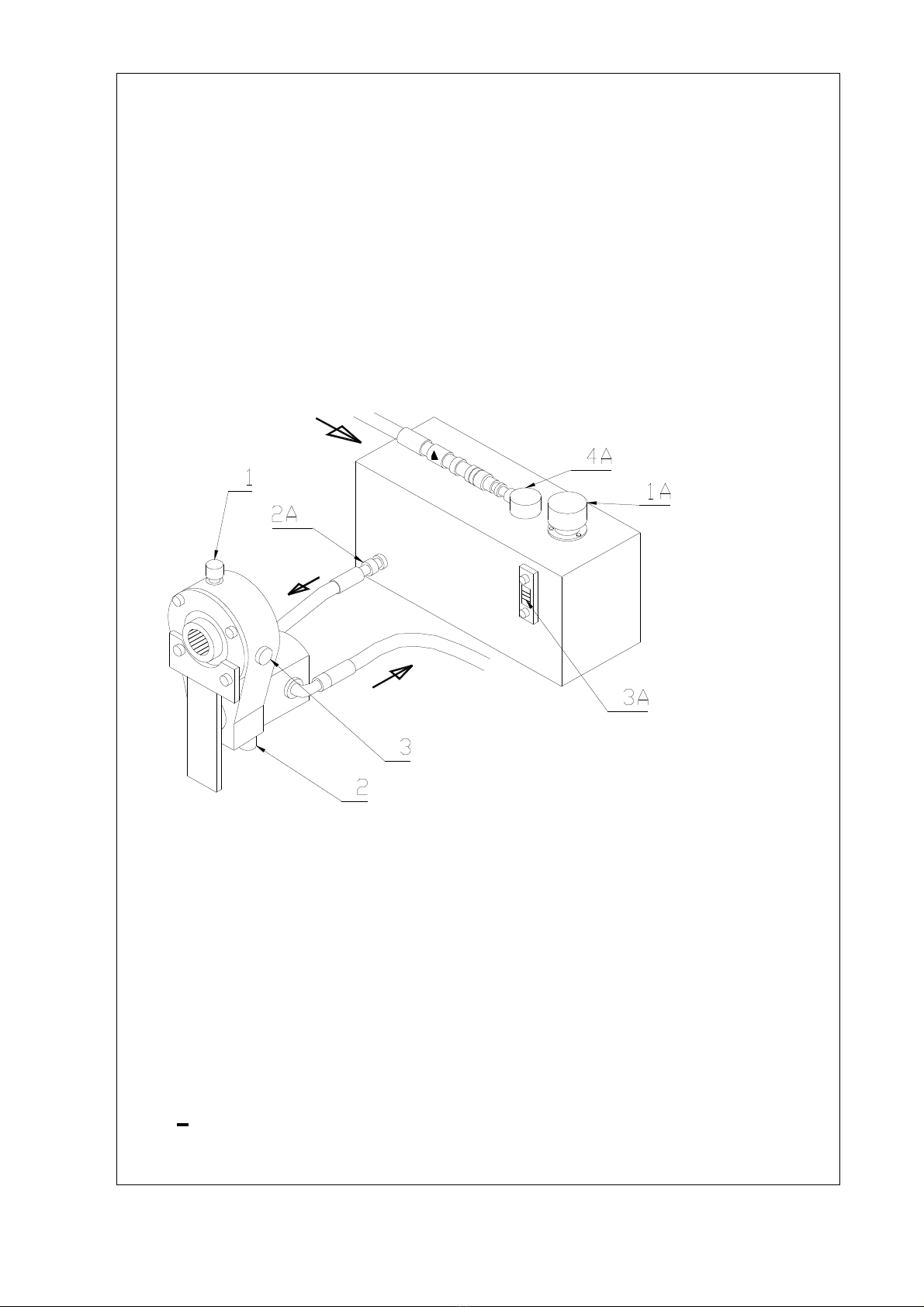

Oil change for conveyor belt gears (every 2 years.)
- Unscrew filler screw (1).
- Loosen drain plug (2) from the below inside area and drain off oil.
- Screw on drain plug with new gasket.
- Add 0.6 l Oil SAE 120 to 140.
- Screw on filler screw with the new gasket.
Axle maintenance (every 100 operating hours)
! Maintenance work on the axle should only be carried out
by fully trained and authorised personnel.
- Retighten wheel nuts.
- Check wheel hub clearance and have it adjusted, if necessary

13






REPAIR AND MAINTENANCE

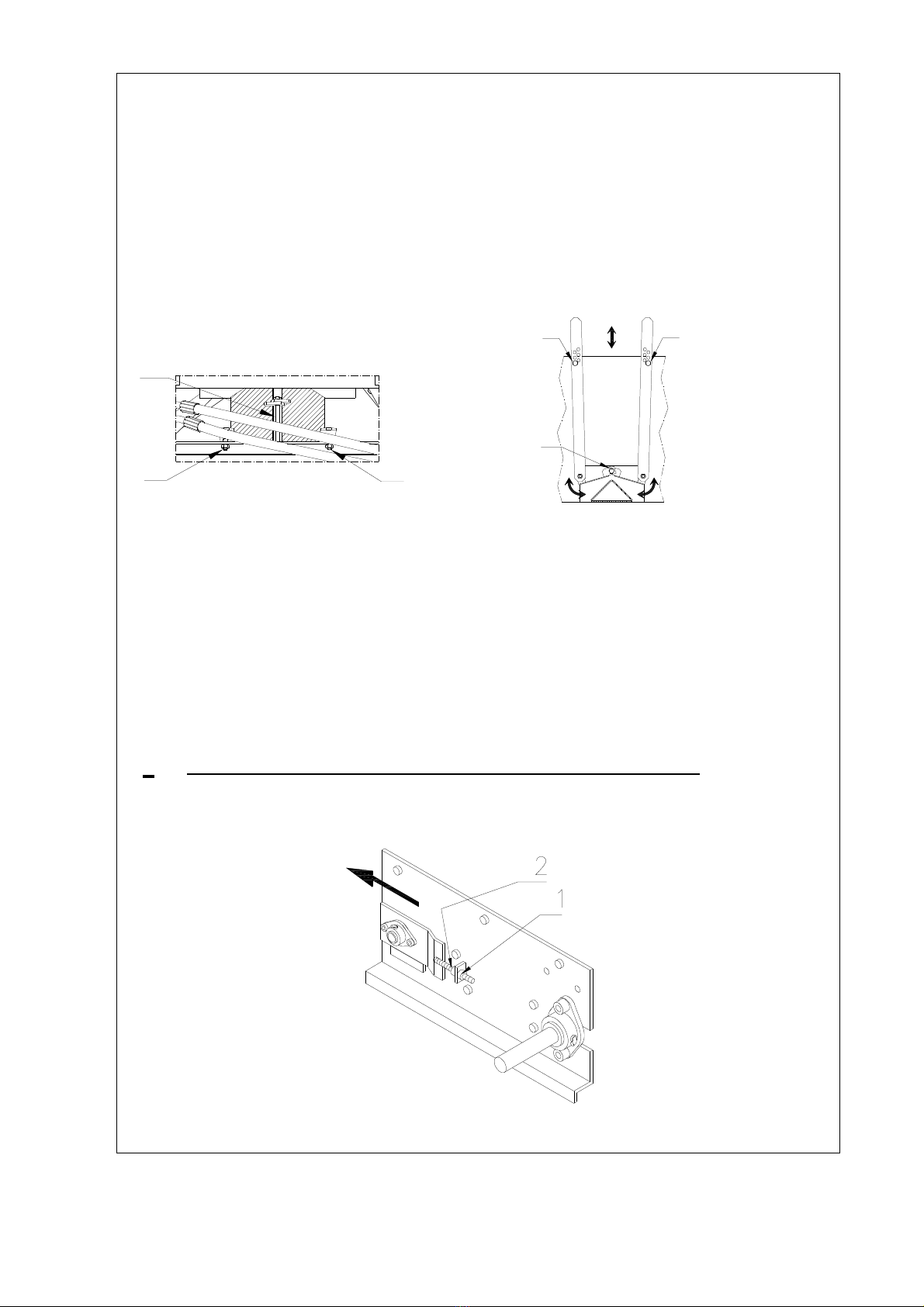

Adjust sand droping plate (according to requirements)
The sand droping plate has to be adjusted, if the spreading pattern is uneven. Therefore you have to
increase or reduce the angle of the plate. In addition, each spreading showel can be adjusted as well.
- Loose screw (1)
- Droping plate (2) in requested position.
- Tighten srew (1)
Stretch conveyor belt (in case of slipping)
-Loosen counternut (1).
-Turn nut (2) once clockwise.
-Tighten counternut.
! Excessive stretching can reduce the life span of the conveyor belt .

14
REPAIR AND MAINTENANCE
Installing and removing the conveyor belt
- Loosen screws on both sides (1) and remove the chassis.
- Remove the spreading device by loosening the screws (2).
- Release the tension on the conveyor belt on both sides (3).
- Remove the bearing on the right seen in the direction of travel (4).
- Pull away the side element (5) with tension bearing (6).
- Remove the conveyor belt.
The reassembly takes place in reverse order.
Stretching conveyor belt after assembly
- Mark a disctance of 1000 mm (39”) in the loose condition of the belt. Spann the belt
with the 2 tension bolts to a length of 1003 mm (40”).
- Allow the conveyor belt to run in for approx. 30 minutes until it runs centrally.
The conveyor belt should not graze the sides. If readjustment is
necessary increase tension on the side which is doing the grazing.
Too much tension will reduce the life span of the conveyor belt.

15
REPAIR AND MAINTENANCE
External hydraulic unit
#
Oil change for the hydraulic pump (every 100 operating hours)
- Unscrew filler screw (1).
- Loosen drain plug (2) and drain off oil.
- Screw on drain plug with new gasket.
- Add oli SAE 90 right up to the level of the control screw (3).
- Screw on filler screw with new gasket.
Oil change for the hydraulic tank (according to requirements)
- Unscrew the filling nozzle (1A).
- Release the suction hose (2A) and drain off the oil.
- Screw the suction hose back into place.
- Top up with Bio-Hydraulic oil CG 46 until the level reaches the centre of the
viewing window (3A).
- Screw the filling nozzle back on.
Please note:
! This is a closed hydraulic circuit. In order to prevent the
ingress of contaminants, the runback filter (4A) must be
replaced every 100 operating hours.

16
problem analyse
gate will not open no sand in hopper fill up the hopper
disc will not spread wide enough spinners turn to slow check oil supplier
sand layer to thin not enough sand comes on to the
disc.
disc speed to fast
forward speed to high
open gate more, increase the belt
speed to low
lower disc speed
lower forward speed
sand layer to thick to much sand comes on the disc
disc speed to low
forward speed to low
close gate more lower belt speed
check speed of the disc
speed up forward speed
to much sand in the center of the
strook sand comes not on the right place on the disc
vane of the disc not in right
position
change the angle of the sand
drop plate
change angle of the vane
( note: depence on material)
to much sand on the outside of
the strook sand comes not on the right place on the disc
vane on the disc not in right
position
change the angle of the sand
drop plate
change angle of the vane
( note: depence on material)
lumbs of sand fall of the belt
belt turns to slow
sand is too wet
speed up the belt
Reduce opening of gate and
increase belt speed
Belt not starting Valve is not activated Activate valve
Hydraulic components not
working Check hydraulic hoses if connected correct Change pump line and reverse line
Belt not moving Too Much weight, tension too
low Reduce weight and/or tight belt

17
Parts list
RINK DS800/DS1200
Ordering spare parts
To ensure that your spare parts order can be processed quickly, always
specify the following data when ordering.
- Chassis number / Ident. number
- Model (year of construction if available)
- Part number from respective spare parts list
- Designation
- Order number
Ordering example: 529413 1994 13 Conveyor belt 10524
Chassis number Model Part no. Designation Order no.
