Installation Manual:
D-Max & T-Max System

© 2020 Ziggity Systems, Inc.
ZIGGITY SYSTEMS, INC.
STANDARD WARRANTY
Ziggity Systems, Inc. (“Ziggity”) warrants to the original retail purchaser (“Purchaser”) of any Ziggity product (“Product”) that for one
(1) year from the date of original retail purchase the Product will be free from defects in materials and workmanship that are material
in nature. The sole remedy available to Purchaser in the event of such a defect will be the repair or replacement (at Ziggity’s sole
option) of the materially defective Product, excluding labor. Purchaser will be responsible for the expense of shipping the defective
Product to Ziggity and, upon Ziggity’s approval of the warranty claim, Ziggity will be responsible for the expense of shipping the
repaired or replaced Product to Purchaser. Any Product or Product replacement parts provided by Ziggity under this warranty are
only warranted for the remainder of the warranty period for the original Product. Any Product or Product replacement part replaced
by Ziggity under this warranty becomes the property of Ziggity.
This warranty excludes liability for defects in or damage to the Product (both internal and external) caused, directly or
indirectly, by misuse, neglect, negligence, alteration, accident, excessive mineral or chemical contact, corrosive chemical
use, minerals or sediment in the water, poor quality water, acts of nature or failure to: (A) follow Ziggity’s guidelines and
recommendations for the Product, (B) follow installation and operating instructions for the Product, (C) use potable and
ltered water in and with the Product, or (D) properly maintain the Product. Furthermore, this warranty does not extend to
any item that is manufactured by others, including without limitation items such as: galvanized support pipe, water lters,
water meters, sight gauges and proportioners. These items are warranted separately by the original manufacturer, if at all.
Ziggity makes no other representations or warranties of any kind except as expressly stated in this warranty. Ziggity
disclaims any and all implied warranties including the warranty of merchantability and the warranty of tness for a
particular purpose. To the fullest extent permitted by applicable law, Ziggity shall not be liable to Purchaser for any
consequential, incidental, exemplary, punitive, special, or indirect damages, and Ziggity shall not be liable for any
damages that are based on negligence, breach of warranty, or strict liability. Ziggity’s liability under this warranty shall
in no event exceed the purchase price paid by Purchaser for the defective Product. Some states do not allow exclusion
or limitation of damages to the full extent described above, so the above exclusions and limitations may not apply fully
to you.
Ziggity may from time to time, through its issuance of formal Information Update documents, provide for supplemental warranty
coverage in addition to this standard warranty for certain products, or may provide for deviations or exclusions from this standard
warranty for certain products. If any such supplemental, deviation, or exclusion Information Updates apply to your Product, you will
be provided with a copy of such Information Updates at the time of your original retail purchase and the standard warranty provided
for above will be deemed modied accordingly.
No person, including any dealer, distributor, agent, or other representative of Ziggity, is authorized to make any
representation or warranty concerning the Product other than as specically contained in this standard warranty and
any Information Update from Ziggity providing for any supplemental warranty coverage or deviation or exclusion from
warranty coverage. Ziggity reserves the right to change Product models, make changes to the Product and Product
specications, at any time and without notice or obligation to Purchaser.
ZIGGITY SYSTEMS, INC.
EXTENDED DRINKER WARRANTY
In addition to its standard warranty, Ziggity provides an extended warranty for certain Drinkers manufactured by Ziggity. All other
provisions of the standard warranty apply to the Extended Drinker Warranty. If any covered Drinker is determined by Ziggity to be
defective in materials or workmanship after the expiration of the one (1) year standard warranty period and prior to ten (10) years
after the date of the original retail purchase, Ziggity will provide a replacement Drinker or Drinker components, as applicable, to the
original retail purchaser at the following discount off of published list/brutto prices:
End User End User
Purchase Date Discount
0 - 36 months 100% (No charge)
37 - 60 months 65%
61 - 120 months 40%
WARNING – AVOID USE WITH OR EXPOSURE TO CORROSIVE PRODUCTS
Do not allow Ziggity products to come into contact with petroleum, phenol or aldehyde based products or any other corrosive
product in general. Contact with such corrosive products is likely to result in damage to or failure of the Ziggity product. Additionally,
aggressive chlorination and/or acidication programs (greater than 1 ppm and/or pH less than 6) will shorten the life of Ziggity
products. Failure to follow this warning will void any otherwise applicable warranty coverage for the Ziggity product when the
product is chemically damaged.

3
The Poultry Watering Specialists
CONTENTS
T-MAX SYSTEM FLOOR APPLICATION INSTALLATION
Support Pipe............................................................................................................................... 4
Regulator.................................................................................................................................... 5
Clip-On Saddle Assembly........................................................................................................... 6
Clip-On Bracket Placement ........................................................................................................ 7
Clip-On Bracket .......................................................................................................................... 7
Pipe Connector........................................................................................................................... 9
End Assembly........................................................................................................................... 10
Clip-On Bracket Screw Placement ........................................................................................... 10
Clip-On Bracket Screw ............................................................................................................. 11
D-Max Drinker .......................................................................................................................... 11
T-Max Drinker Assembly With Cordless Drill and Nutsetter..................................................... 12
T-Max Drinker Assembly And Installation - Hand Assembly .................................................... 13
T-Max to Flex Saddle Reinforcement Assembly ...................................................................... 14
Heavy Duty Anti-Roost ............................................................................................................. 15
PN 2970.................................................................................................................................... 16
PN 2971.................................................................................................................................... 17
Drain Hose................................................................................................................................ 20
OPTIONAL EQUIPMENT
Air Release and Shut-Off Assemblies ...................................................................................... 22
Control Clock / Controller / Solenoid Flush............................................................................... 23
Regulator Ball Valve Lock ........................................................................................................ 24
BEST PRACTICE
D-Max Drinker Disassembly..................................................................................................... 26
D-Max Drinker Assembly.......................................................................................................... 27
T-Max Drinker Disassembly ..................................................................................................... 28
T-Max Drinker Assembly .......................................................................................................... 29
Solenoid Flush Valve Maintenance .......................................................................................... 30
Normal Operation Mode / Flush Mode ..................................................................................... 31
IMPORTANT NOTE: If the oor system has a house slope greater than 15 cm / 6 in and
less than 75 cm / 30 in, please consult the “Installation Manual: Slope Neutralizer Floor
Application” for further instruction.

© 2020 Ziggity Systems, Inc.
4
SUPPORT PIPE
1 2
3 4
5 6
7
3 m / 10 ft max
Raise lines to 121 cm / 48 in
Open
End Loop through
open end
rst
Use #8 / M4.2 self
drilling screw.
Use impact drill to
install.
Note Very Important: When
installing slope neutralizers,
cable clamps must be
installed at all system
hangers in place of sliding
cord or cable adjusters.

© 2020 Ziggity Systems, Inc.
5

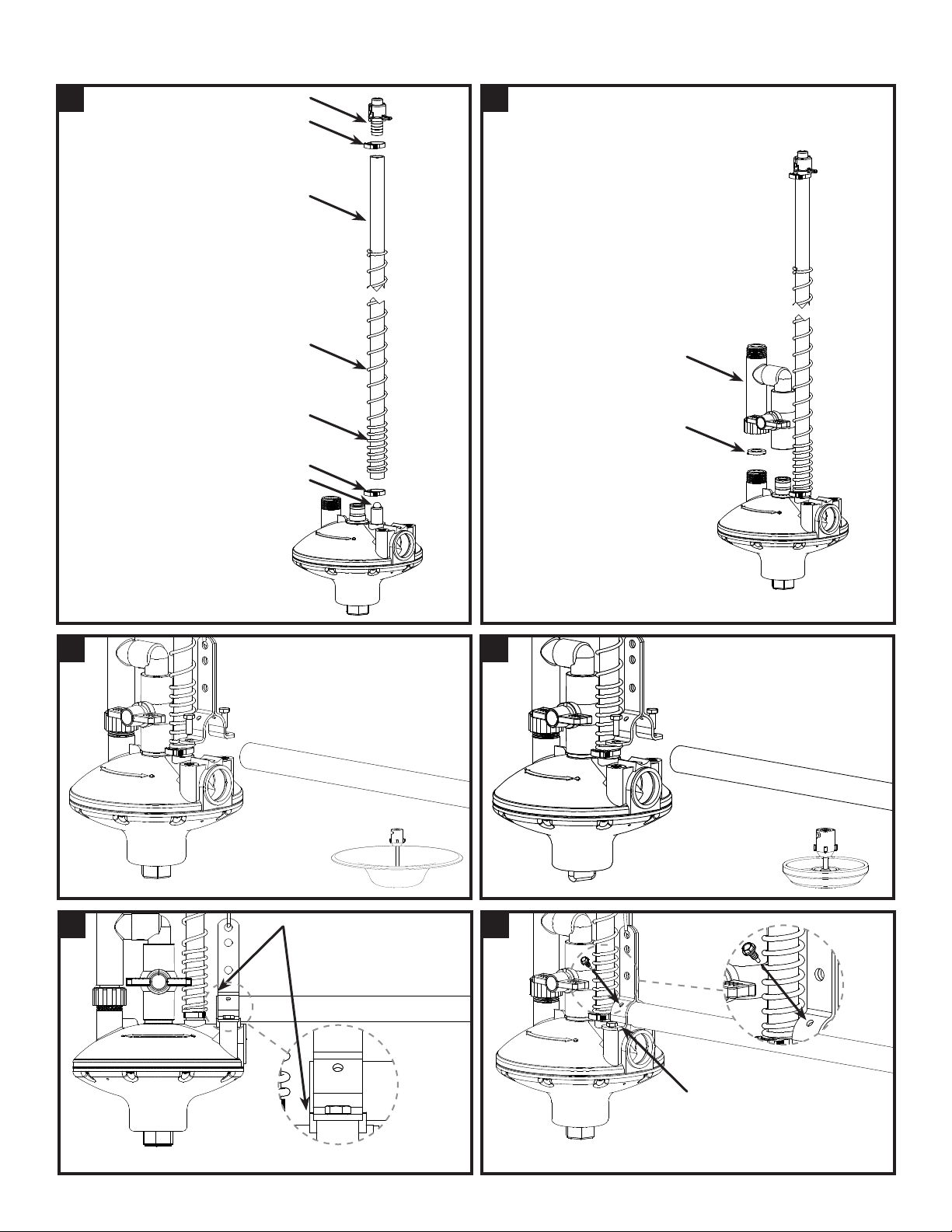

REGULATOR
Do Not over tighten.
Torque Setting:
1.7 Nm / 15 in lbs MAX
3
Regulator shown
is for T-Max
systems
5 6
4
Flush
Regulator shown
is for D-Max
systems
Ball
Clamp
NOTE: The tighter coils
towards the bottom
Spring
Riser Tube
Riser Tube Cap
Clamp
Install the riser tube
components onto the regulator.
Be sure to place the ball inside
the tube and that the orientation
of the spring is as shown.
Install the ush unit onto
the regulator as shown.
Be sure to place the hose
washer in to the ush unit
before installation.
Hose Washer
Flush Unit
12

© 2020 Ziggity Systems, Inc.
6
DO NOT OFFSET THE TOOL
TO ONE SIDE. THIS WILL CAUSE
DAMAGE AND PRODUCT TO FAIL
5
PN 3817
Vice-Grip 11R
Use large vice-grip plier clamp
(11R shown) to squeeze the clip
until the second snap is engaged.
Use PN 3817 to squeeze the clip
until the second snap is engaged. DO NOT offset the tool to
one side. This will cause
damage and product to fail.
Center PN 3817 on the
clip-on saddle as
shown.
Center tool on the
clip-on saddle as
shown.
Use PN 3817 or vise-grip plier “11R” to complete this step of the installation.
CLIP-ON SADDLE ASSEMBLY - APPLIES TO 1 in PVC PIPE SYSTEMS ONLY
12
Install the grommet onto the saddle.
Grommet
A
3
Clip-On
Saddle
Water
Pipe
Position clip-on saddle onto water pipe.
A
4
Squeeze clip into its
rst snap position using
ngers as shown.
A
E
E
Saddle: Clip-On
Big Z Flex
Saddle: Clip-On
Big Z Extended

© 2020 Ziggity Systems, Inc.
7

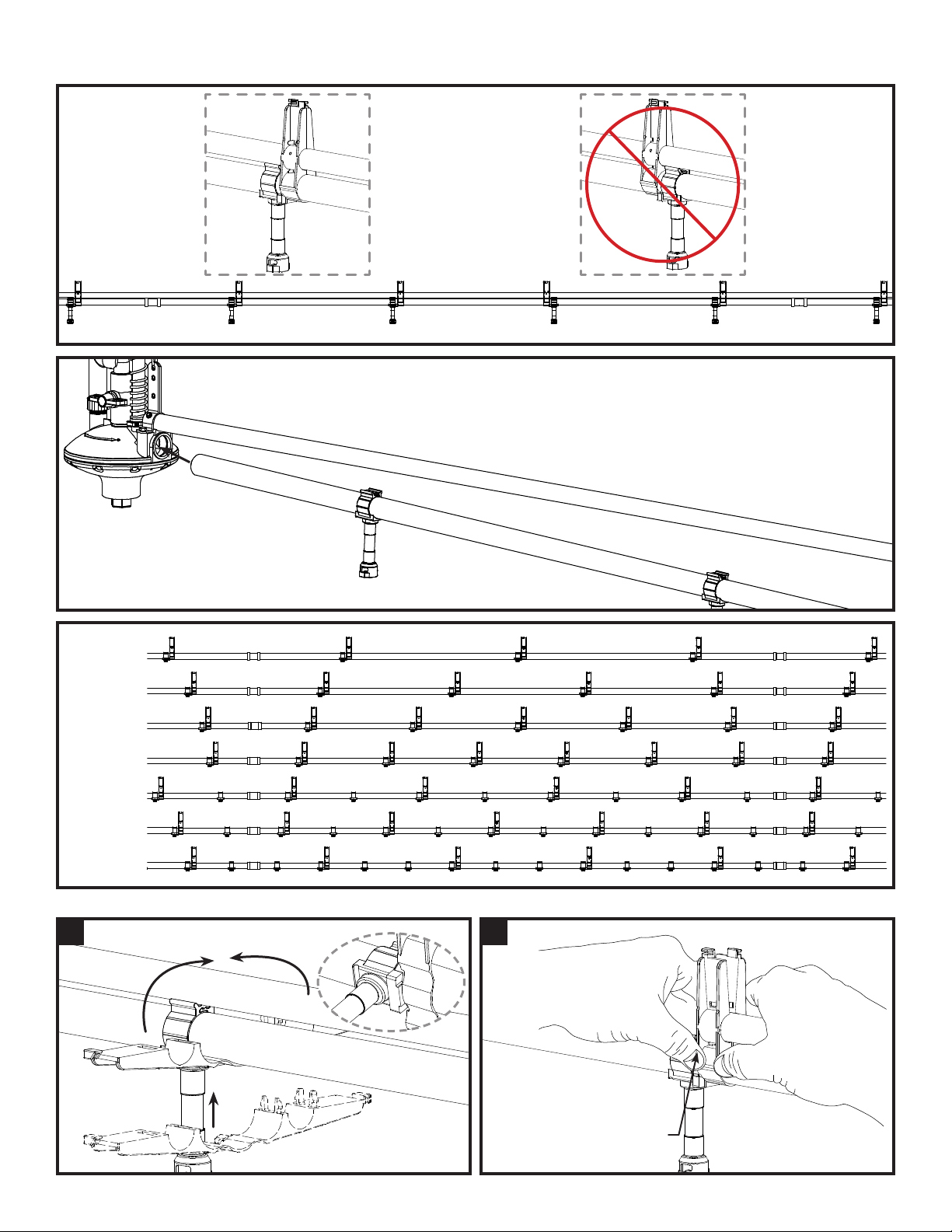

CLIP-ON BRACKET PLACEMENT
6 Saddles
8 Saddles
10 Saddles
12 Saddles
5 Saddles
4 Saddles
3 Saddles
1

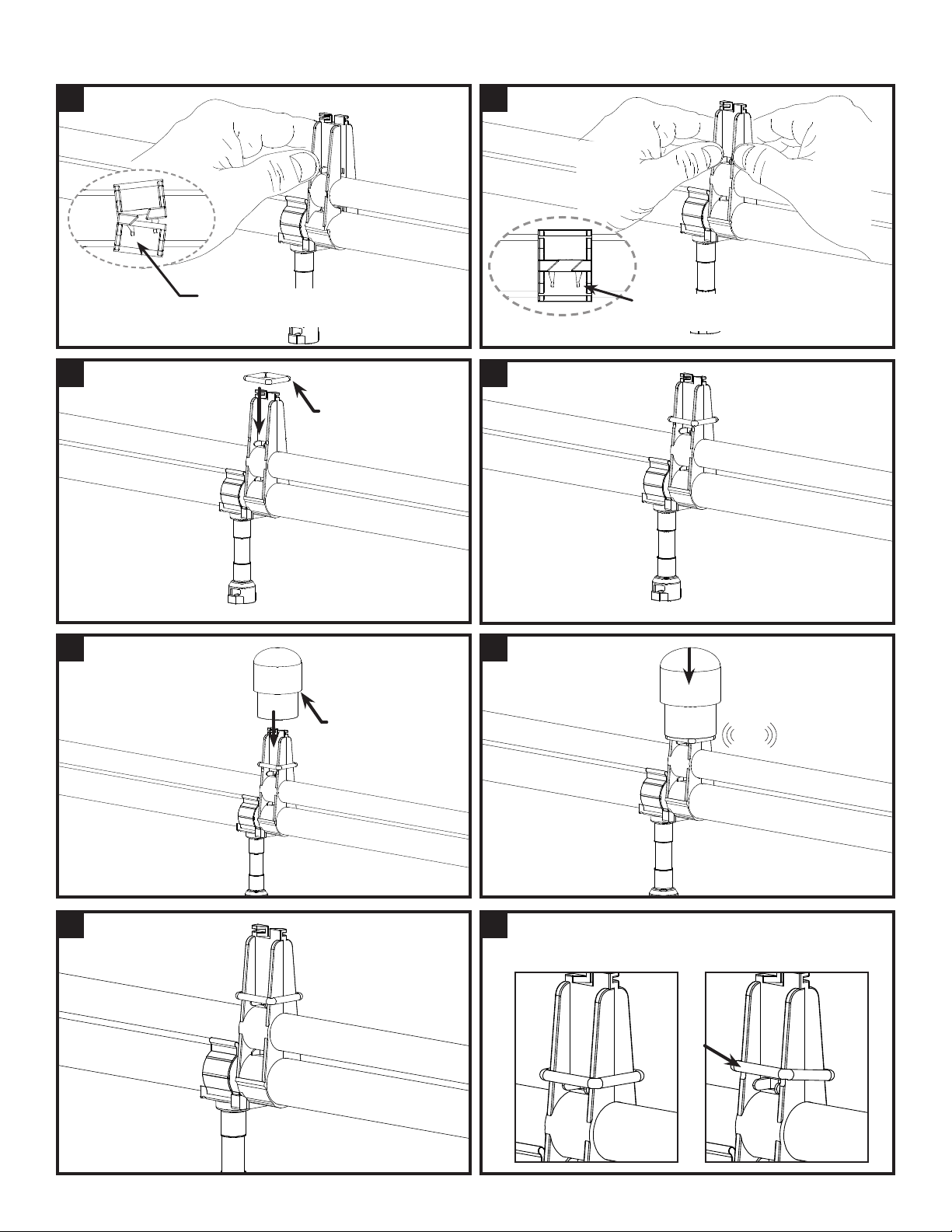

CLIP-ON BRACKET
2
Snap bottom clips into
place.
Detail A Detail B
Detail A Detail A Detail ADetail B
All brackets must face
the same direction.

CLIP-ON BRACKET
9 10 Make sure all four corners are snapped into place.
Good Bad
© 2020 Ziggity Systems, Inc.
8
6
5
7 8
PN 3840
PN 3868 SNAP
43
Snap upper side clips into
place. Snap remaining clips
into place.
PN 3840 only required for
T-Max system.

© 2020 Ziggity Systems, Inc.
9
46 mm /1/4 in
Hold Pipe A and the Pipe Connector securely. Pull Pipe B away from the connector approximately 6 mm /
1/4 in using your thumb as a guide. Repeat this process for each pipe connector.
Pipe A Pipe B
Pipe Connector Pipe BPipe A
6 mm - 1/4 in Gap

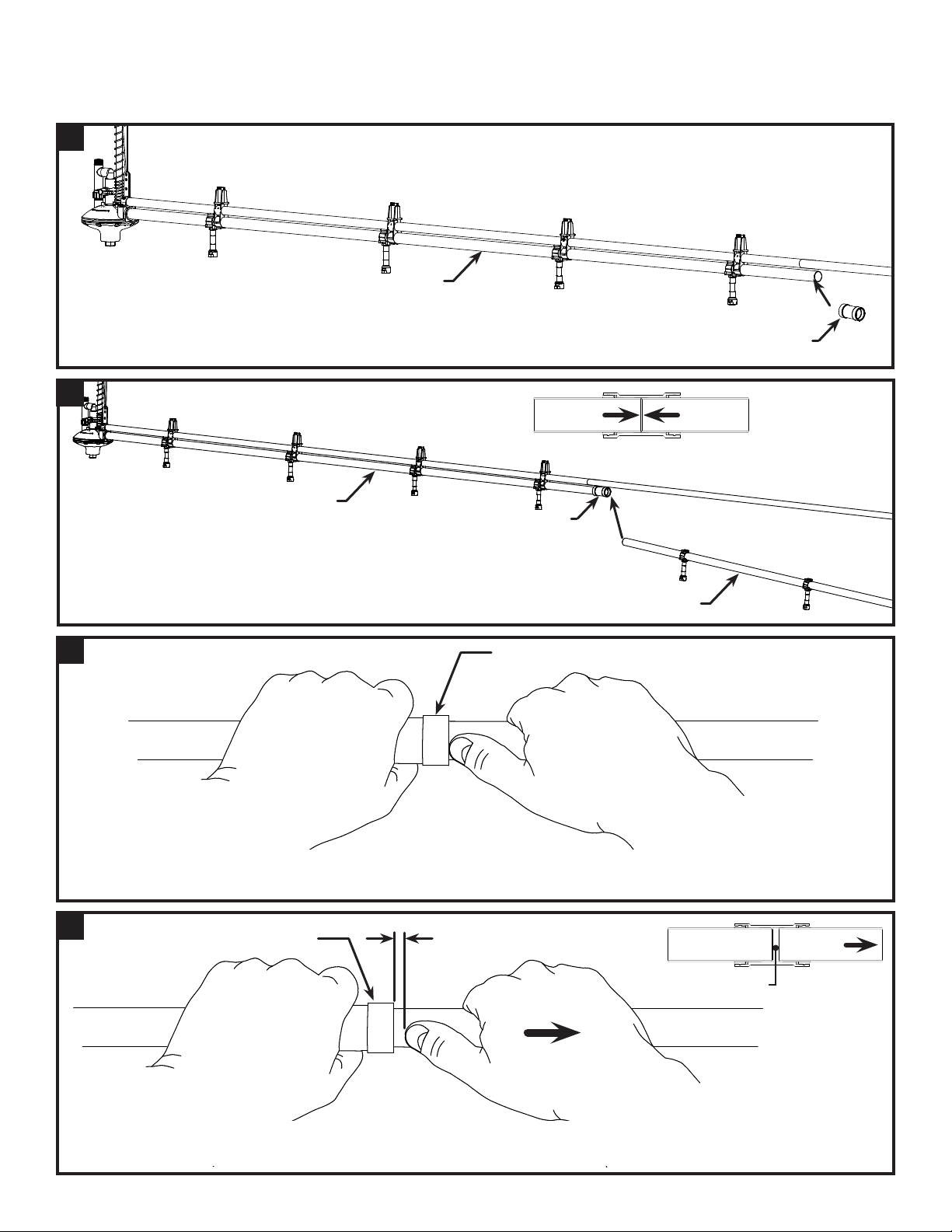

PIPE CONNECTOR
3
1
2
Pipe Connector
Pipe A
With Pipe A afxed to the support pipe, install the Pipe Connector all the way
against the stop on the inside of the pipe connector.
Pipe A
Pipe Connector
Pipe A
Pipe Connector
Pipe B
Install pipe B all the way against the stop on the inside of the
pipe connector.
Pipe B
With both pipes inserted into the connector and up against the stop, place your thumb on the
edge of the pipe connector as shown.
WARNING: All Ziggity pipes must be installed in a manner shown in order to accommodate pipe expansion and
contractions as a result of temperature changes. Failure to do so will cause pipe snaking and breakage.
Pipe BPipe A

© 2020 Ziggity Systems, Inc.
10
5 6
Do Not install system hangers onto pipe
connectors.
END ASSEMBLY
3
2
Cut plastic pipe
25 mm / 1 in
6 Saddles
8 Saddles
10 Saddles
12 Saddles
5 Saddles
4 Saddles
3 Saddles
CLIP-ON BRACKET SCREW PLACEMENT
Denotes self
tapping screw
placement.
Option 2Option 1
Optional system hanger placement.
PIPE CONNECTOR
Ball
Clamp
NOTE: The tighter coils
towards the bottom
Spring
Riser Tube
Riser Tube Cap
Clamp
Install the riser tube components
onto the end assembly. Be sure
to place the ball inside the tube
and that the orientation of the
spring is as shown.
1
Use a impact drill to install the self-tapping screw
Ensure the support
pipe extends 9.5 mm
/ 3/8 in min. past the
support pipe clamp.

© 2020 Ziggity Systems, Inc.
11
CLIP-ON BRACKET SCREW
D-MAX DRINKER
1 2
Pipe Connector
Pipe Connector
1 2
Use #8 / M4.2 self
drilling screw. Use
impact drill to install.
Install self tapping screw.

© 2020 Ziggity Systems, Inc.
12
1
34
5 6
7 8

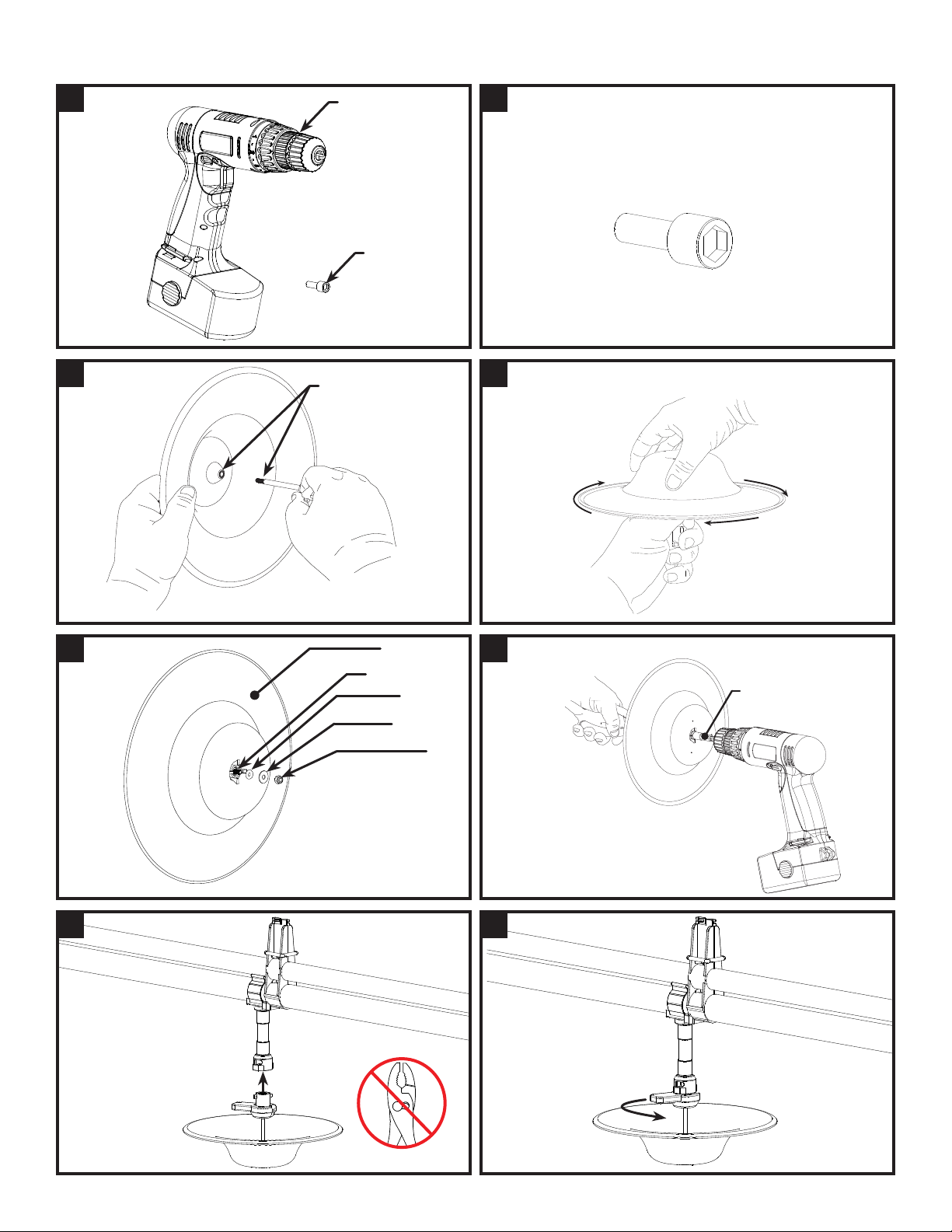

T-MAX DRINKER ASSEMBLY WITH CORDLESS DRILL AND NUTSETTER
2
PN 2998
When nutsetter slips, Do Not
tighten any farther. Doing so will
damage the activator.
Use nutsetter PN 2998 ONLY! Black in color.
Activator
Trigger Pin
O-Ring
Washer
Nut
Thread on the activator until it stops and cannot
be turned any further.
Thread
Cordless Drill
Nutsetter
Use nutsetter PN 2998 ONLY! Black in color.
Do Not attempt to use any other nutsetter other
than the one noted above!!

© 2020 Ziggity Systems, Inc.
13
1 2
3 4
6 7
TOO TIGHT TOO LOOSE
5
T-MAX DRINKER ASSEMBLY AND INSTALLATION - HAND ASSEMBLY
Thread
Thread on the activator until it stops and cannot be
turned any further.
Activator
Trigger Pin
O-Ring
Washer
Nut
To avoid damaging the activator,
Do Not over tighten!
Use nut driver only.
7 mm
Torque Setting:
1.4 Nm / 12 in lbs MAX

© 2020 Ziggity Systems, Inc.
14
1
34
5 6
T-MAX TO FLEX SADDLE REINFORCEMENT ASSEMBLY
2
DO NOT over tighten!

© 2020 Ziggity Systems, Inc.
15
1
2
3
4
HEAVY DUTY ANTI-ROOST
PN 2971, Installation Assembly: Heavy Duty Anti-Roost - Add-On
NOTE: Please refer to part illustration for all items included in this assembly.
Drinker lines 76 m / 250 ft or shorter
use PN 2970
Drinker lines greater than 76 m / 250 ft but less than 152 m / 500 ft
use PN 2970 and PN 2971
PN 2970 +2971
PN 2970, Installation Assembly: Heavy Duty Anti-Roost - Base
NOTE: Please refer to part illustration for all items included in this assembly.
PN 2970

© 2020 Ziggity Systems, Inc.
16
5
1
HEAVY DUTY ANTI-ROOST
Drinker lines greater than 152 m / 500 ft but less than 228 m / 750 ft
use PN 2970 and 2 X PN 2971. (Continue adding 1 PN 2971 for every 75 m / 250 ft.)
PN 2970 +2971 +2971
PN 2970

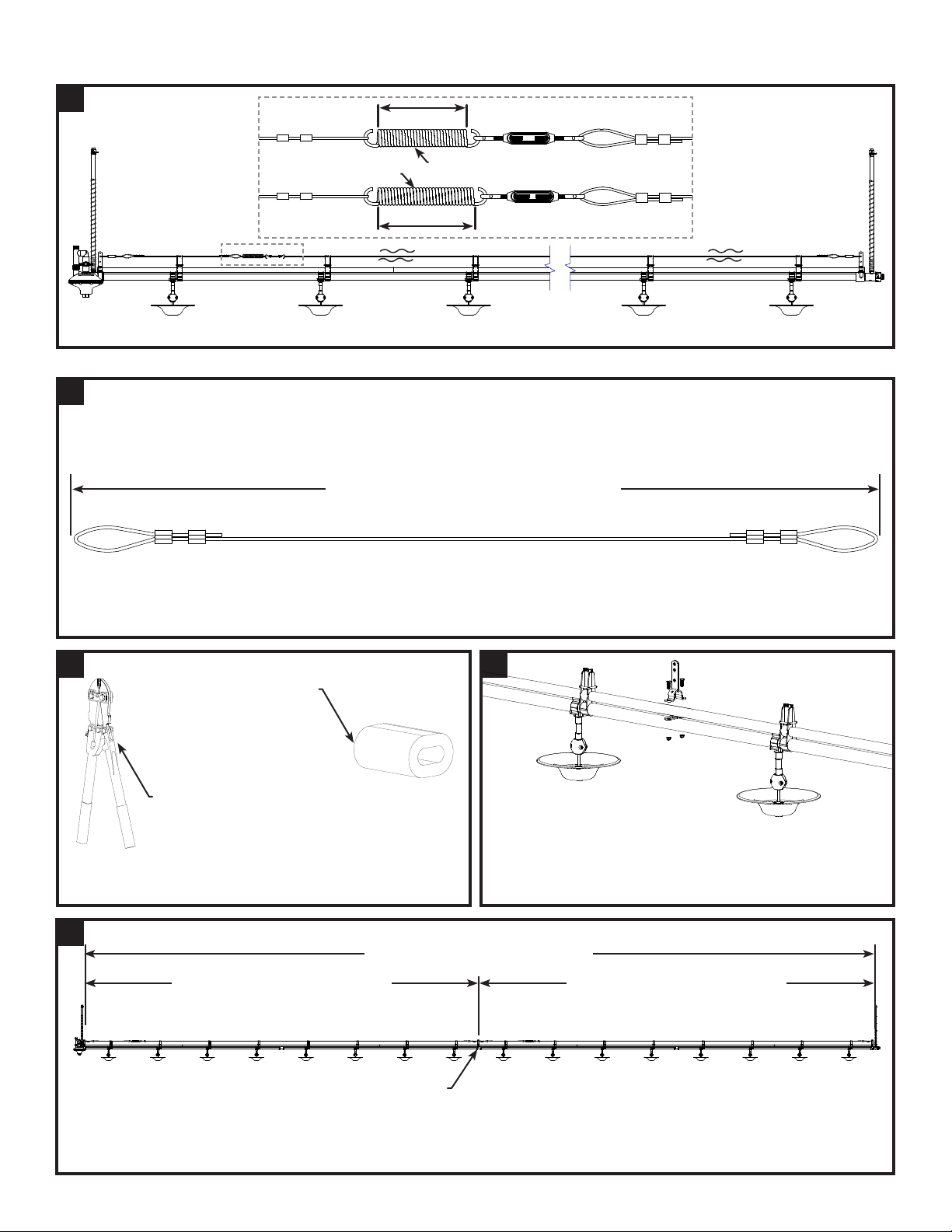

5 Saddles / Pipe - 38 cm / 15 in Long cable loop
4 and 3 Saddles / Pipe - 61 cm / 24 in Long cable loop
Cable Loop Length (See note below)
Heavy Duty Cable Loop - Created on site from PN 2524 / 2525 cable. You will need one for PN 2970
base kit. See below for the estimated length of the cable loop based on the saddle spacing of your system.
Use 2.4 mm / 3/32 in 1 X 7 galvanized cable.
2 3
Crimping Tool
Always use the proper crimping tool to crimp the
clip. For example Ziggity’s PN 2487.
PN 2667 Clip
4
1460 Insulator
2669 Spring
2698 Turnbuckle
(Ziggity’s PN 2524 / 2525) 2.4 mm
/ 3/32 in 1 X 7 galvanized cable

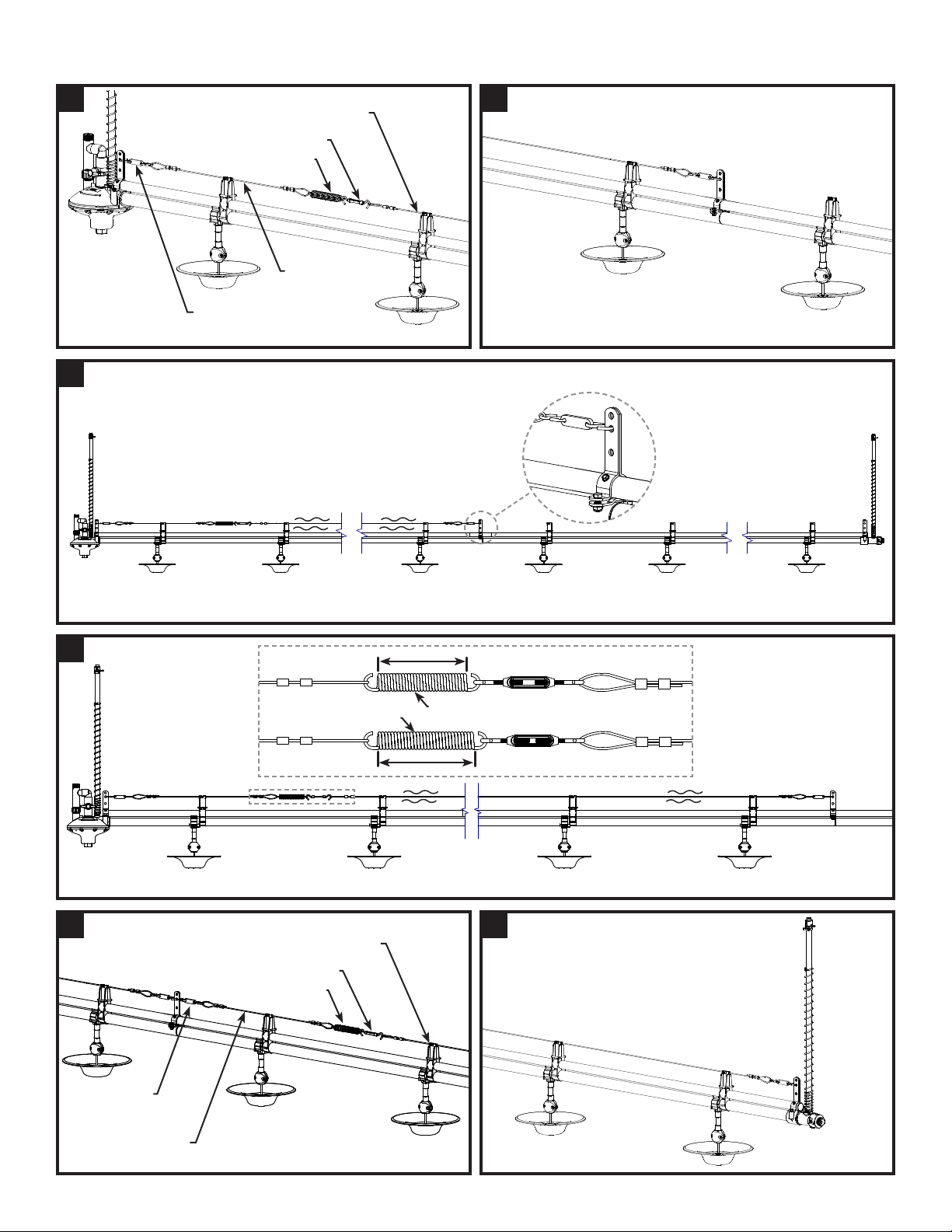

Heavy Duty
Cable Loop
Pull the cable taut and attach it to the end assembly with the insulator.

© 2020 Ziggity Systems, Inc.
5
17
4
PN 2970
With the cable taut, turn the turnbuckle to tighten the cable. Do Not stretch the spring more than 75 mm / 1/4 in.
Spring at rest
Stretched Spring
1/4 in / 75 mm MAX
PN 2971
5 Saddles / Pipe - 38 cm / 15 in Long cable loop
4 and 3 Saddles / Pipe - 61 cm / 24 in Long cable loop
Heavy Duty Cable Loop - Created on site from PN 2524 / 2525 cable. You will need one for PN 2970
base and one for every PN 2971 add-on kit installed. See below for the estimated length of the cable loop
based on the saddle spacing of your system. Use 2.4 mm / 3/32 in 1 X 7 galvanized cable.
2 3
1
Crimping Tool
Always use the proper crimping tool to crimp the
clip. For example Ziggity’s PN 2487.
PN 2667 Clip
Center bracket assembly between the two nearest
drinkers where your measurement required a add-
on kit installation. This will ensure that there is no
interference with other components of the kit.
Cable Length: 53 m / 175 ft
Example: If the system is 106 m / 350 ft one add-on kit is needed. Add-on kit should be installed in the center
of the line.
PN 2971 Inline Kit
Cable Length: 53 m / 175 ft
Cable Length: 106 m / 350 ft
Cable Loop Length (See note below)

© 2020 Ziggity Systems, Inc.
18
7
8
10
PN 2971
6
1460 Insulator
2669 Spring
2698 Turnbuckle
2524 / 2525
Heavy Duty Cable
Heavy Duty
Cable Loop
9
5
Pull the wire cable taut and attach it to the bracket assembly with the insulator.
1460
Insulator
2669 Spring
2698 Turnbuckle
Heavy Duty
Cable Loop
With the cable taut, turn the turnbuckle to tighten the cable. Do Not stretch the spring more than 75 mm / 1/4 in.
Spring at rest
Stretched Spring
75 mm / 1/4 in MAX
(Ziggity’s PN 2524 / 2525) 2.4 mm /
3/32 in 1 X 7 galvanized cable

© 2020 Ziggity Systems, Inc.
19
11
12
13
PN 2971
Pull the cable taut and attach it to the end assembly with the insulator.
14 15
Anti-Roost
Controller
Ground Hot
Ground
Hot
Insulated
Spring at rest
Stretched Spring
75 mm / 1/4 in MAX
With the cable taut, turn the turnbuckle to tighten the cable. Do Not stretch the spring more than 75 mm / 1/4 in.
VERY IMPORTANT: Line must be grounded. VERY IMPORTANT: Line must be grounded.

© 2017 Ziggity Systems, Inc.
20
16
PN 2971

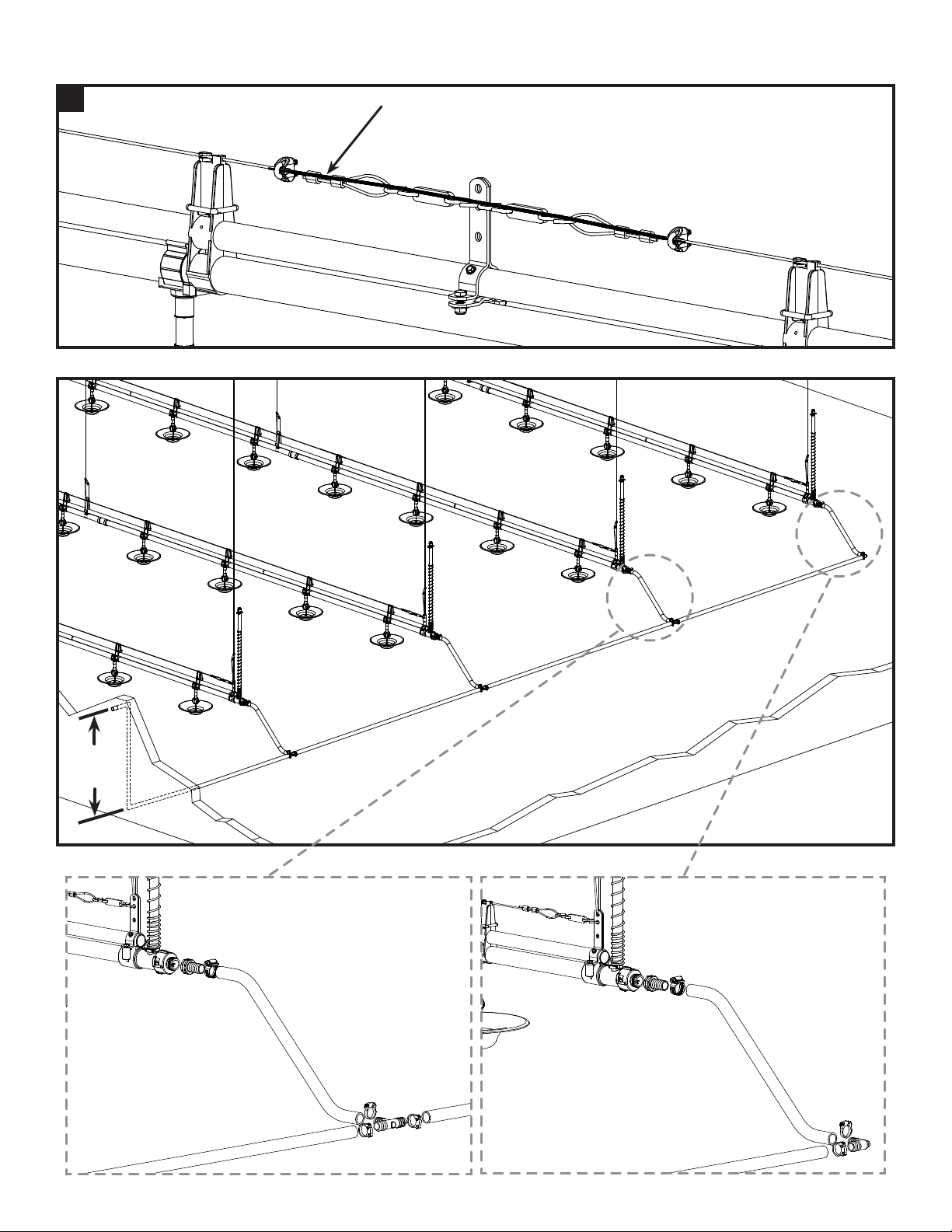

Use an insulated wire to make a “jumper” wire to bypass the
insulators. This is only needed when PN 2971 kit is installed. You
will need to do this at every add-on kit.
DRAIN HOSE
175 cm
/ 70 in
Use 19 mm / 3/4 in
drain hose.
