Titon TP325 User manual

ventilation systems
First Fix Base
Product Manual
EN
TP325

2
Warnings, Safety information and
Guidance
Important Information
Important: read these instructions fully before the
installation of this appliance
1. Installation of the appliance and accessories must be carried
out by a qualied and suitable competent person and be car-
ried out in clean, dry conditions where dust and humidity are
at minimal levels.
2. All wiring must conform to current I.E.E. Wiring Regulations
and all applicable standards and Building Regulations.
3. The appliance must be connected to a local double pole
isolation switch with a contact separation of at least 3mm.
Ideally located adjacent to the unit.
4. The appliance must be earthed.
5. Seperate cables must be used for power and boost control.
6. Units are suitable for 230V ~ 50/60Hz single phase with a
fuse rating of 3A.
7. Q Plus models - Boost cable - Unshielded 4 Core 18-24AWG
Stranded, Tinned Copper.
8. Boost cables should not be placed within 50mm or on the
same metal cable tray as any 230V lighting or power cables.
9. The unit must be stored in a clean and dry environment.
10. Do not install the appliance in areas where the following may
be present or occur;
• Excessive oil or a grease laden atmosphere,
• Corrosive or ammable gases, liquids or vapours,
• Ambient temperatures above 40°C or below -5°C,
• Humidity levels above 90% or is a wet environment.

3
11. The appliance is not suitable for installation to the exterior of
the dwelling.
12. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
13. Children should be supervised to ensure that they do not
play with the appliance.
14. Ensure that external grilles are located away from any ue
outlet, in accordance with relevant Building Regulations.
15. The unit must not be connected to a tumble dryer.
16. The unit must not be connected to a cooker hood.
17. Precautions must be taken to avoid the back-ow of gases
into the room from an open ue appliance.
18. Ensure all ducting,is free from debris and blockages before
switching on the unit.

4
Warnings, Safety information and Guidance
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Overview
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Component Identication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Packaging Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installation
Fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Ducting Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
How to Convert Port Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cable Entry Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CME1 TP350 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CME1 Q Plus TP301A/301HA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CME2 &2.1 Q Plus TP303A/303HA TP 303A/303HA/TP313A/TP313HA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CME2.1 Q Plus TP313CH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Contents

5
Product Overview
This booklet is required for the rst part of a two stage installation of one of the
following Units:
CME1 TP350
CME1 Q Plus TP301A
CME1 Q Plus TP301HA
CME2 Q Plus TP303A
CME2 Q Plus TP303HA
CME2.1 Q Plus TP313A
CME2.1 Q Plus TP313HA
CME2 Q Plus LS TP305HA
CME2.1 Q Plus LS TP313HALS
CME2.1 Q Plus TP313CH
The installer must be aware which specic model has been specied before
commencing installation.
CME1 TP350
CME1 Q Plus TP301A/301HA
CME2 & 2.1 Q Plus TP 303A/303HA/TP313A/TP313HA
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS
CME2.1 Q Plus TP313CH
have dierent wiring requirements.
Ensure the correct wiring diagram is used for the installation.
The unit may be damaged if wired incorrectly.
The installer of the second stage will receive further documentation to complete
the installation and commissioning.

6
Dimensions
This diagram details the overall size of the unit and the additional space required
around the unit to allow for commissioning and future servicing and maintenance.
450
421
355
390
252
550
450
590
Service Void
All dimensions in mm

7
Component Identication
Base
Cover / Scroll / Inlet Ring assembly
Supplied as second x.

8
Packaging Contents
Inspect the unit when taking delivery. Check the unit for damage and that all
accessories have been supplied. The box contains:
CME Base x 1.
Port covers x 3.
This Product manual x 1.
All shortages or damage must be immediately reported to the supplier.

9
Notes

10

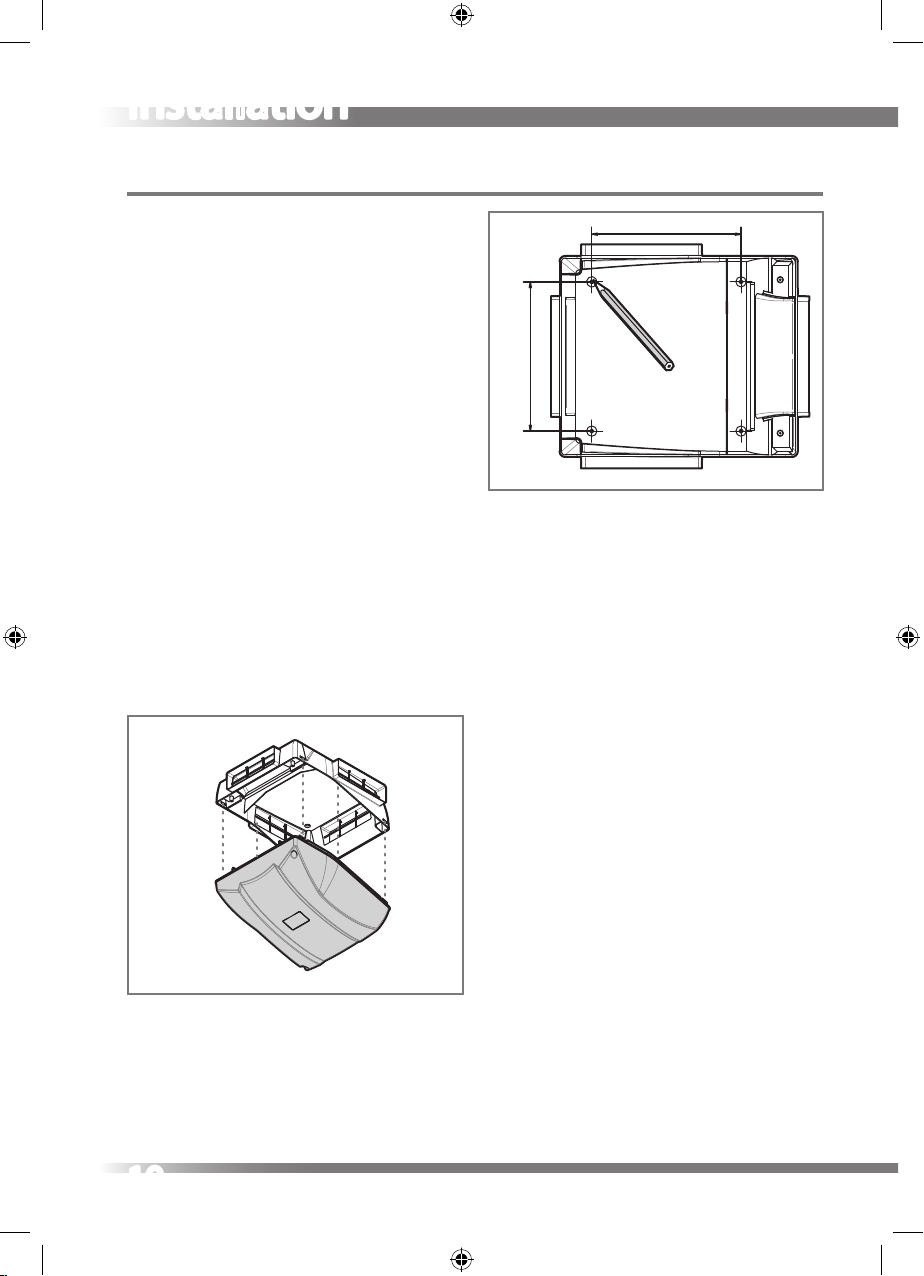

Installation
Fixing
1. The unit must be securely xed to a
smooth at surface, any orientation
is possible.
2. Mark the four xing hole centres
using the Base as a template.
3. Drill holes for xings, use 4mm
Pan Head screws. Always use a
xing type and length suited to
the substrate type. The unit weighs
approximately 5kg.
4. Mount the Base, ensuring it is not
distorted by the xings or mounting surface.
5. Clip the Motor and Lid assembly to the Base, ensure that all 6 clips have
engaged.
Tighten screws by hand, DO NOT over tighten screws or use power tools.
260
260
EXTRACT
PORT

11
Ducting Connections
Titon recommend the use of guidance given in the Domestic Ventilation
Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and
Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all
installations in the United Kingdom.
The above documents can be downloaded free from www.planningportal.gov.uk.
Titon recommend that:
1. 204 x 60mm ducting is used for the
connection of the Extract Port to
Outside.
2. 204 x 60mm or 110 x 54mm ducting
is used for connection to the other
ports.
3. A minimum distance of 200mm
between the CME unit and any
sharp bends in duct work.
4. Ducting should be insulated where
it passes through unheated areas
and voids.
5. Unit should be insulated when
tted in unheated area.
6. Where a duct extends externally above roof level the section above the roof
should be insulated or a condensate trap should be tted just below roof level.
7. Where ducts pass through re barriers, they must be appropriately re stopped
in accordance with the requirements of Part B Building Regulations (England &
Wales).
8. A ducting condensate drain must be tted to vertical Extract Port to Outside
duct work.
9. Condensate drain pipe work must be adequately secured, installed to have
a minimum 5° fall and be insulated if any part of the pipe passes though an
unheated void.
EXTRACT
PORT
Extract Port to Outside

12
10. All insulation to be the equivalent of
at least 25mm of insulating material
with a thermal conductivity
of 0.04 W/(mK).
11. Ducting must be installed in such
a way that resistance to airow is
minimised.
12. Ducting connected to the Extract
Port to Outside must be to the
external air outside the building
envelope.
13. All ducting joints including those
to the CME unit’s Duct Ports and
Convertible Port Covers must be
permanently connected and sealed.
14. Do not distort ducting, Convertible
Port Cover or Duct Ports.
15. 204 x 60mm ducting ts inside the
units Duct Ports.
16. 110 x 54mm ducting ts inside the
Convertible Port Cover.
17. Unused extract ports must be tted
with non-converted or undamaged
port covers.

13
How to Convert Port Cover
1. To enable tment of 110 x 54mm
ducting, modify the Convertible
Port Cover by tearing out the ‘rip
strip’.
2. When using the convertible port
cover ensure the tear out section is
completely removed.

14
Wiring
The installer must be aware which specic model has been specied before
commencing installation of the wiring.
CME1 TP350
CME1 Q Plus TP301A/301HA
CME2 & 2.1 Q Plus TP 303A/303HA/TP313A/TP313HA
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS
CME2.1 Q Plus TP313CH
have dierent wiring requirements.
Ensure the correct wiring diagram is used for the installation.
The unit may be damaged if wired incorrectly.
The installer of the second stage will receive further documentation to complete
the installation and commissioning.
Cable Entry Position
Cable Access is via the preformed cable entries on the unit COVER, position arrowed
CME1 TP350
A boost switch must be connected for the unit to run,
see wiring diagram (a connection is required between
COM and L1 or L2 for the unit to operate).
Boost controls should be clearly identied and
conveniently located.
The boost can be operated by any device which
provides a two-way switch suitable for a 230V/3A mains power supply.
EXTRACT
PORT

15
Wiring Diagram for Continuous and Boost Speeds 1, 2 or 3 EE 155
Wiring Diagram for Continuous Speed 1,2 or 3 and Boost Speed 4 EE 156
Two Way switch
Double Pole Isolator 3A Fuse
L2
L1
L
COM
N
L
N
Two Way switch
Double Pole Isolator 3A Fuse
L
N
L2
L1
L
COM
N
Two Way switch
Double Pole Isolator 3A Fuse
L2
L1
L
COM
N
L
N
Two Way switch
Double Pole Isolator 3A Fuse
L
N
L2
L1
L
COM
N

16
The installer must be aware which specic model has been specied before
commencing installation of the wiring.
CME1 TP350
CME1 Q Plus TP301A/301HA
CME2 & 2.1 Q Plus TP 303A/303HA/TP313A/TP313HA
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS
CME2.1 Q Plus TP313CH
have dierent wiring requirements.
Ensure the correct wiring diagram is used for the installation.
The unit may be damaged if wired
incorrectly.
The installer of the second stage
will receive further documentation
to complete the installation and
commissioning. EXTRACT
PORT

17
CME1 Q Plus TP301A/301HA
CME2 &2.1 Q Plus TP303A/303HA TP 303A/303HA/TP313A/
TP313HA
Double Pole Isolator 3A Fuse
L
N
L
N
Supply Wiring Diagram 230V~50/60Hz ref EE 141
Volt-free boost switching of CME
controller PCB using single-pole
switches TP 502, TP 503, TP 507
and/or TP500 / TP501 Humidistat.
There is no limit to the number of
single pole switches or
humidistats that can used.
TP500 / TP501
123
Boost swiching and Humidistat connection ref EE 151

18
Volt-free setback switching of CME
controller PCB using single-pole
latching switch and / or volt-free
normally open relay contacts.
To avoid the unit being inadvertently
left in Setback Mode, it is recom-
mended that only one latching switch
is tted.
Volt-free setback switch or
normally open relay contacts
Setback Switch connection ref EE 152
Three position Rotary Switch TP 508 switching and connection ref EE 153
SWITCH POSITIONS
1 - Setback Speed
2 - Continous Speed
3 - Boost Speed
LU1U2U3
TP 508
Three position rotary switch

19

20
The installer must be aware which specic model has been specied before
commencing installation of the wiring.
CME1 TP350
CME1 Q Plus TP301A/301HA
CME2 & 2.1 Q Plus TP 303A/303HA/TP313A/TP313HA
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS
CME2.1 Q Plus TP313CH
have dierent wiring requirements.
Ensure the correct wiring diagram is used for the installation.
The unit may be damaged if wired
incorrectly.
The installer of the second stage
will receive further documentation
to complete the installation and
commissioning. EXTRACT
PORT
