TMB Tornado User manual

USE AND MAINTENANCE MANUAL
PROFESSIONAL SANITIZATION MACHINES
ORIGINAL INSTRUCTION DOC. 10098249 - Ver. AA - 05-2020
Tornado

CONTENTS
CONTENTS ...................................................................................................................................3
GENERAL SAFETY REGULATIONS ...........................................................................................4
MACHINE WITH CONNECTION TO THE ELECTRICITY GRID ............................................................................. 4
BATTERY-POWERED MACHINE ............................................................................................................................ 6
USING THE MACHINE ............................................................................................................................................ 7
DEACTIVATION OF THE MACHINE ........................................................................................................................ 9
MAINTENANCE ..................................................................................................................................................... 10
TRANSPORT ......................................................................................................................................................... 11
LOCATION OF THE MAIN MACHINE COMPONENTS .............................................................12
GENERAL DESCRIPTION .........................................................................................................12
DEFINITION OF LEVELS OF WARNING .............................................................................................................. 12
SYMBOLS USED IN THE MANUAL ...................................................................................................................... 12
PURPOSE AND CONTENT OF THE MANUAL ..................................................................................................... 13
TARGET GROUP ................................................................................................................................................... 13
PRESERVATION OF THE USER ........................................................................................................................... 13
ON CONSIGNMENT OF THE MACHINE .............................................................................................................. 13
INTRODUCTORY COMMENT ............................................................................................................................... 13
IDENTIFICATION DATA ......................................................................................................................................... 13
TECHNICAL DESCRIPTION .................................................................................................................................. 13
INTENDED USE ..................................................................................................................................................... 13
SAFETY .................................................................................................................................................................. 14
REGULATIONS ...................................................................................................................................................... 14
SERIAL NUMBER PLATE ...................................................................................................................................... 14
TECHNICAL DATA .....................................................................................................................14

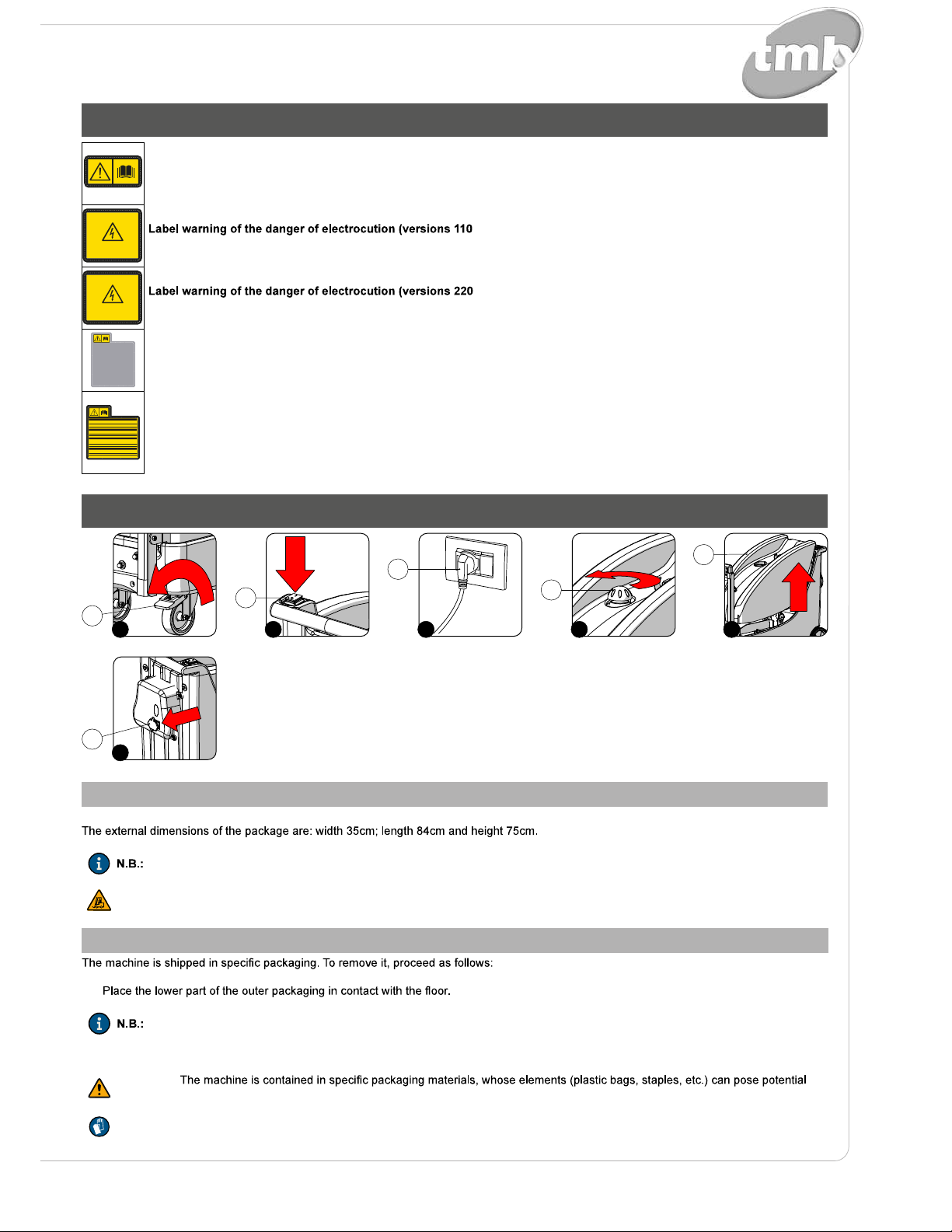

LABELS USED ON THE MACHINE ...........................................................................................15
PREPARATION OF MACHINE ...................................................................................................15
HANDLING THE PACKAGED MACHINE .............................................................................................................. 15
HOW TO UNPACK THE MACHINE ....................................................................................................................... 15
HOW TO MOVE THE MACHINE ........................................................................................................................... 16
MACHINE SAFETY ................................................................................................................................................ 16
TYPE OF BATTERY TO BE USED (battery-powered versions) ............................................................................ 16
BATTERY MAINTENANCE AND DISPOSAL (battery-powered versions) ............................................................. 16
INSERTING THE BATTERIES INTO THE MACHINE (battery-powered versions) ................................................ 16
CONNECTING THE BATTERIES TO THE MACHINE'S ELECTRICAL SYSTEM (battery-powered versions) ..... 17
RECHARGING THE BATTERIES (battery-powered versions) .............................................................................. 17

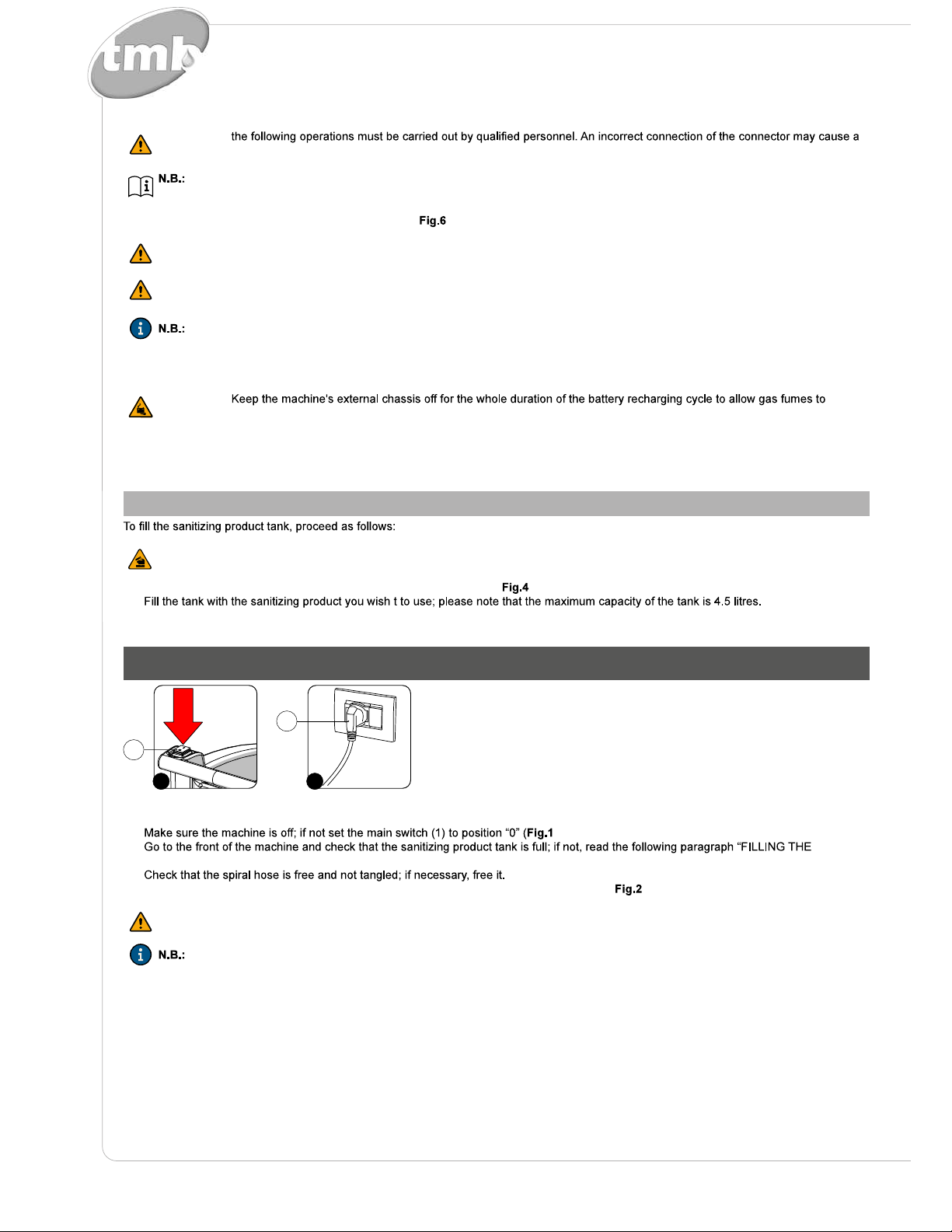

FILLING THE SANITIZING PRODUCT TANK ....................................................................................................... 18
PREPARING TO WORK .............................................................................................................18
STARTING WORK ......................................................................................................................19

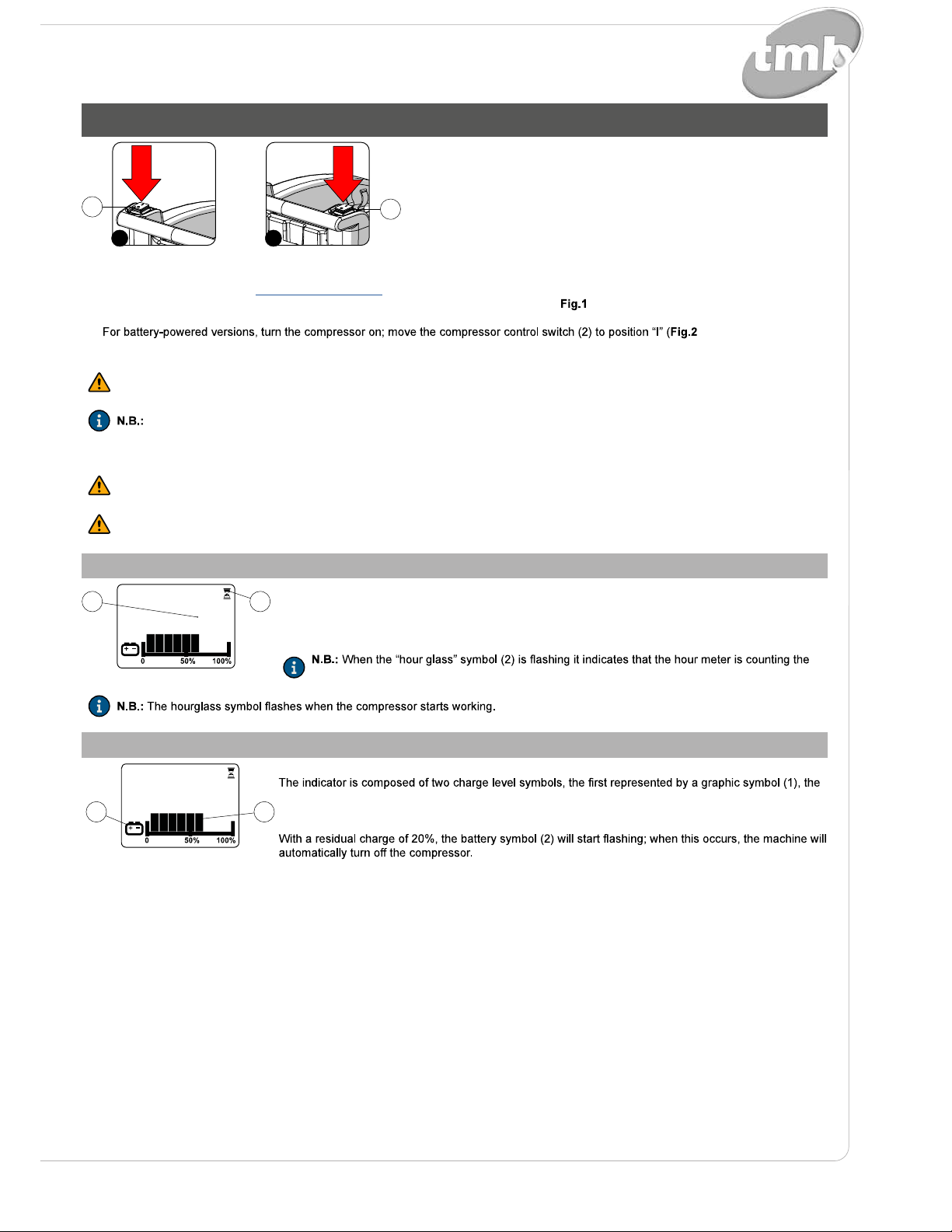

HOUR METER (battery-powered versions) ........................................................................................................... 19
BATTERY CHARGE LEVEL INDICATOR (battery-powered versions)................................................................... 19
AT THE END OF THE WORK .....................................................................................................20
ROUTINE MAINTENANCE .........................................................................................................20
EMPTYING THE SANITIZING PRODUCT TANK .................................................................................................. 20
CLEANING THE NEBULIZER SYSTEM ................................................................................................................ 21
DISPOSAL ..................................................................................................................................21
TROUBLESHOOTING ................................................................................................................22
EC DECLARATION OF CONFORMITY .....................................................................................23
3

4
GENERAL SAFETY REGULATIONS
The following symbols are used to indicate any potentially hazardous situations.
Always read this information carefully and take the necessary precautions to
protect any people and/or objects that may be present.
Operator cooperation is paramount for accident prevention. No accident
directly responsible for the machine's operation. Most accidents that occur at the
workplace, during work activities, or while in transit, are caused by the failure to
respect the most basic safety regulations. An attentive, careful operator is most
any prevention programme.
KEEP THESE SAFETY WARNINGS WITH THE MACHINE USER
MANUAL.
DANGER: indicates an imminent dangerous situation that, unless avoided,
will result in death or serious injuries.
WARNING: Indicates a potentially dangerous situation that, unless avoided,
could cause death of serious injury.
ATTENTION: Indicates a potentially dangerous situation that, unless
avoided, could cause slight or moderate injuries.
MACHINE WITH CONNECTION TO THE ELECTRICITY GRID
DANGER:
•
and remove the power cable from the mains socket.
•
with all the safety instructions and warnings. This machine has been designed
electrical or mechanical components is found, the machine must be repaired
at the relative authorized service center before use, in order to prevent further
damage to the machine or physical injury to the user.
• Before connecting the machine to the electric socket, make sure the electrical
information on the serial number plate corresponds to that of the mains supply.
The machine must only be powered with alternating current and with a voltage

5
equal to that shown on the serial number plate.
• The power supply cable outlet must have an earth connection in compliance
with the regulatory standards.
• If the machine packaging contains the cable to connect to the mains supply, it
should only be used for the above-mentioned machine.
• Before using, check for any damage on the connection cable and on the power
plug. If the cable is damaged, immediately contact a technician for restoring
normal functioning.
• Connect the machine only to an electrical connection installed by an electrical
installer in conformity with IEC 60364-1.
• Never touch the power plug with wet hands.
• Make sure that the cable to the mains or the extension cable have not been
damaged by having been walked on, crushed, pulled or the like. Protect the
cable from heat and from contact with oils or sharp edges.
• Regularly check that the cable connecting to the mains is not damaged, for
example with signs of ageing or cracks. If the cable is damaged it should be
replaced before using the machine again.
• Protection against splashes of water and the mechanical strength need to
be ensured also after any replacement of the joints of the power cable or the
extension cable.
WARNING:
• To prevent unauthorized use of the machine, the power supply should be cut
from the mains socket.
ATTENTION:
•
the main switch and disconnect the power cable from the mains socket.
• The procedure causes a short-term reduction in voltage.
• In unfavourable grid conditions the other appliances could be damaged.
•

6
EXTENSION CABLE (electrical versions)
WARNING:
• Only use the materials expressly recommended by a service technician as
cable extensions (contact an authorized retailer) or else high quality models.
When using an extension, respect its minimum cross-section.

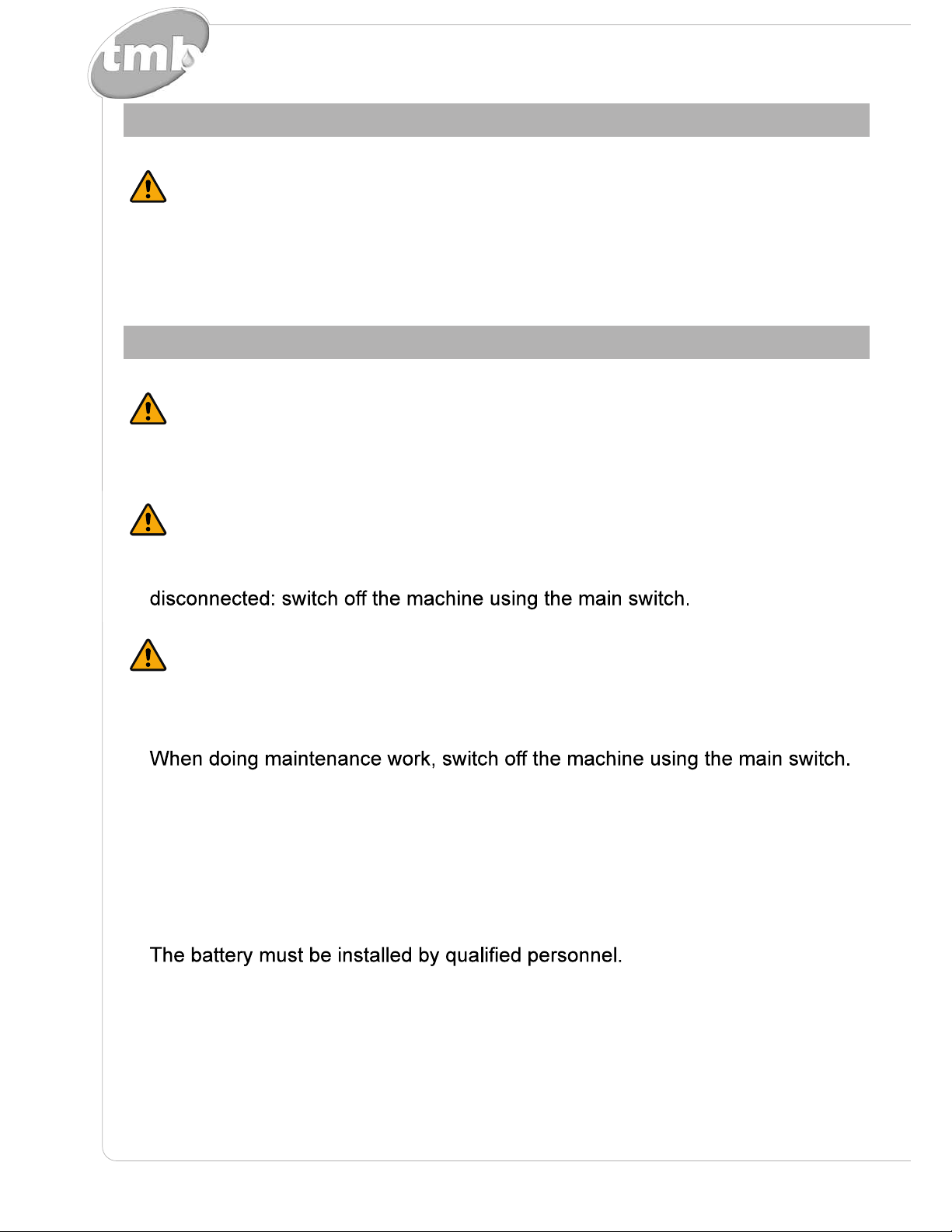

BATTERY-POWERED MACHINE
DANGER:
• In case of danger, act promptly, moving the main switch to position “0”.
WARNING:
• In order to prevent unauthorized use of the machine, the power supply must be
ATTENTION:
• The machine must only be powered with a voltage equal to that shown on the
serial number plate.
•
• If lead batteries (WET) have been installed on the machine, avoid tilting the
machine beyond 30° with respect to the horizontal plane, as this could cause
the highly corrosive liquid to leak out of the batteries.
• Avoid contact with the battery acid.
• Keep all metal objects away from the batteries.
• Use a non-conductive device for removing the battery.
• Use a suitable tool when lifting the batteries.
•
• Always observe the safety measures of the site regarding removing the battery.
• Remove the batteries if the machine needs to be tilted in order to perform
maintenance procedures.
• The machine should not be left unattended at the end of its working cycle
because of the presence of toxic-harmful materials inside it (batteries, etc.),
which are subject to regulations regarding their disposal at special centers (see
the chapter on Scrapping).

7
RECHARGING THE BATTERIES (battery-powered versions)
DANGER:
• If the battery charger power cable is damaged or broken, it should be replaced
by the charger manufacturer or authorized service personnel, or by another
• The socket for the battery charger cable must have a prescribed earth
connection.
•
batteries. Explosive gases are emitted during the charging phase.
•
the charging procedure in areas that are well ventilated and away from open
• Before charging check that the electric cable that connects the battery charger
to the batteries is not damaged, and if it is damaged do not use it and contact
technical assistance.
• Before charging check that the electric cable that connects the battery charger
to the mains is not damaged, and if it is damaged do not use it and contact
technical assistance.
• Before starting to charge the batteries, check there is no stagnant water or
humidity in the battery charger socket.
• Do not disconnect the direct current cable of the battery charger from the
socket of the machine when the battery charger is operating. This is necessary
to prevent electric arcs forming. To disconnect the battery charger when
WARNING:
• Do not use incompatible battery chargers since they could damage the
• Before using the battery charger, make sure that the frequency and the voltage
indicated on the battery charger serial number plate or in the charger user
manual (enclosed with the machine documentation) match the mains voltage.
• Keep the battery charger's cable at a safe distance from any hot surfaces.
• Never smoke in the machine's vicinity while the batteries are charging.
• Carefully read the user manual of the battery charger you want to use before
recharging.

8

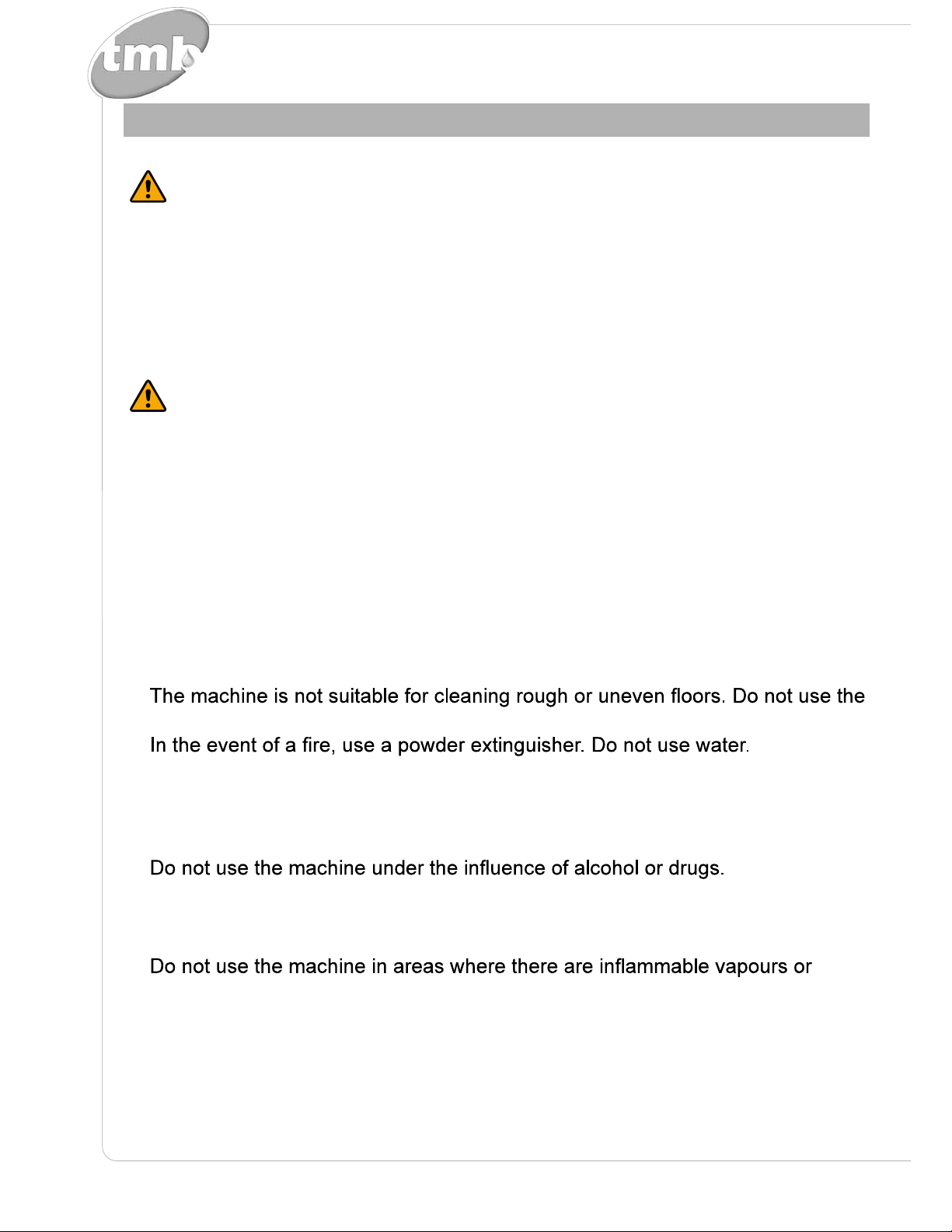

USING THE MACHINE
DANGER:
• The nebulized product must never be directed towards equipment containing
electrical components.
• If the machine is used in dangerous areas (e.g. petrol stations), the relative
safety standards must be observed. It is forbidden to use the machine in
environments with a potentially explosive atmosphere.
WARNING:
• The machine must not be used by persons (including children) with reduced
physical, sensory or mental capabilities, or by those who lack the necessary
experience or knowledge, unless they are under supervision or have received
instructions for use.
• Keep the machine out of reach of children when it is connected to the power.
• Always use the machine in compliance with its intended use, taking into
consideration local conditions and looking out for the presence of others when
working, especially children.
• Do not use the machine on surfaces with a slope greater than the one indicated
on the serial number plate.
•
machine on slopes.
•
• Do not use the machine if you do not have the requisite knowledge or
authorisation.
• Do not use the machine if these safety warnings and the machine user manual
have not been read and understood.
•
• Do not use the machine when using a mobile phone or other types of electronic
devices.
• Do not use the machine if it is not working correctly.
•
liquids or combustible powders.
• The machine must not be used if it has been dropped or if there are visible
signs of damage or leakage from the sanitizing product tank.

9
ATTENTION:
• Children must be supervised to ensure they do not play with the machine.
• During the working of the machine, pay attention to other people and especially
to children.
• Read the labels on the machine carefully. Do not cover them for any reason,
and replace them immediately if they become damaged.
• The machine must only be used and stored in an enclosed or covered
environment.
• The machine must not be used or stored outdoors in damp conditions or
directly exposed to rain.
• The machine does not cause harmful vibrations.
• Only use the machine in accordance with the instructions set out in these
safety warnings and in the machine user manual.
• Always follow the instructions for mixing, use and disposal on the containers of
the chemical substances.
• Always take appropriate measures to protect any individuals and/or objects that
may be present while using this machine.
•
risk of objects falling from heights.
• Do not place any liquid containers on the machine.
•
respect the warnings indicated on the container labels.
• Always use appropriate gloves and protective equipment when handling the
•
• Before starting to work check that there are no leaks.
• Before starting to work check that all the safety devices have been installed
and are working correctly.
• Only use the machine in well-lit areas.
DEACTIVATION OF THE MACHINE
WARNING:
• Always protect the machine against sunlight, rain, and other atmospheric
agents, both while it is stationary and while it is in function. Store the machine
in a dry, sheltered place: this machine is only designed for use under dry
conditions, and must not be used or stored outdoors under humid conditions.
• Do not park the machine near combustible materials, powders, gases or
liquids.

10
•
• If the machine is left unattended, it must be protected from any accidental
movements.
•
electrical versions, you must also disconnect the power cable from the mains
socket.
ATTENTION:
• The machine must only be stored in temperatures ranging from +10 °C to +40
°C. The humidity level must be between 30% and 95%.
MAINTENANCE
DANGER:
• In order to avoid short-circuits when working in the vicinity of electrical
remove any rings, watches and/or clothing with metallic parts that might come
into contact with the electrically powered components.
•
supports.
WARNING:
• The cleaning and maintenance to be carried out by the user must not be
performed by unsupervised children.
• Read all the relevant instructions carefully before performing any maintenance/
repair operations.
• If the machine does not work properly, check this is not caused by failure
to carry out maintenance. Otherwise, ask for intervention of the authorized
technical assistance center.
• Restore all electrical connections after any maintenance interventions.

11
ATTENTION:
• Block the wheels before lifting the machine.
• Lift the machine with equipment that can sustain the weight to be lifted.
•
follow the supplied routine maintenance instructions scrupulously.
• If any parts need to be replaced, always request ORIGINAL spare parts from
an authorized Dealer or Retailer.
• In order to ensure the machine's safety and proper functionality, always have
of this Manual) performed by authorized personnel or by an authorized service
center.
• Do not wash the machine with direct jets of water, pressurized water or with
corrosive substances, and do not wet it in the vicinity of electrical components.
• Have the machine checked by an authorized technical assistance center every
year.
• When disposing of consumable materials, observe the laws and regulations in
force. Once the machine has reached the end of its service life, the materials
contained within it must be disposed of in an appropriate manner, keeping in
mind that the machine itself has been built using fully recyclable materials.
•
• Do not physically change the design characteristics of the machine.
• Use spare parts provided by authorized service centers.
• Wear personal protective equipment as required and as suggested in the
manual.
TRANSPORT
WARNING:
• Drain the sanitizing product tank before transporting the machine.
• Secure the device according to the directives in force in the country of use, so
that it cannot slide or tip over when being transported.

LOCATION OF THE MAIN MACHINE COMPONENTS
The machine's main components are the following:
1. Control handlebars.
2. Sanitizing solution tank lid.
3. Rear wheel.
4. Spray gun support.
5. Telescopic handlebars (battery-powered versions).
6. Battery charger display (battery-powered versions).
7. Battery charger power socket (battery-powered versions).
8. Pivoting front wheel with parking brake.
9. Main machine switch.
10. Compressor control switch (battery-powered versions).
11. Control display (battery-powered versions).
elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The
reproduction, even partial, of the text and drawings contained in this document is prohibited by law. The company reserves the right to make
GENERAL DESCRIPTION
DEFINITION OF LEVELS OF WARNING
DANGER: indicates an imminent dangerous situation that, unless avoided, will result in death or serious injuries.
WARNING: Indicates a potentially dangerous situation that, unless avoided, could cause death of serious injury.
ATTENTION: Indicates a potentially dangerous situation that, unless avoided, could cause slight or moderate injuries.
instructs the reader to pay particular attention to the topic that follows.
SYMBOLS USED IN THE MANUAL
Open book symbol with an "i":
Indicates the need to consult the instruction manual.
Open book symbol:
Tells the operator to read the user manual before using the device.
Covered place symbol:
The operations preceded by this symbol must always be carried out in a dry, covered area.
Indicates additional information for the operator, to improve the use of the device.
Warning symbol:
Carefully read the sections preceded by this symbol meticulously following the instructions indicated for the safety of the operator
and the device.
Danger symbol (corrosive substances):
The operator should always wear protective gloves to avoid the risk of serious injury to the hands caused by corrosive substances.
12
1 4
5
9
2
6
10
7
8
11
3

PURPOSE AND CONTENT OF THE MANUAL
The aim of this manual is to provide customers with all the information needed to use the machine in the safest, most appropriate and
most autonomous way. This includes information concerning technical aspects, safety, operation, downtime, maintenance, spare parts and
machine. If in doubt about the correct interpretation of instructions, contact your nearest TMB Customer Service Center to obtain the necessary
TARGET GROUP
PRESERVATION OF THE USER
The Use and Maintenance Manual must be stored in its special pouch close to the machine, protected from liquids and anything else that could
compromise its legibility.
ON CONSIGNMENT OF THE MACHINE
When the machine is consigned to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping
material can be obtained, and compensation for damage successfully claimed.
INTRODUCTORY COMMENT
operations described in the attached documentation. We therefore suggest you read this instruction booklet carefully and read it again whenever
always available for advice or direct intervention.
IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and the serial number (written on the relevant
plate).
TECHNICAL DESCRIPTION
Tornado
which is appropriate to the work to be carried out. .
Danger symbol (battery acid leakage):
Indicates the danger of leaking acid or acid fumes from the batteries while they are being recharged.
Danger symbol (moving carriages):
Indicates that the packed product should be handled with suitable carriages that conform to legal requirements.
Mandatory room ventilation symbol:
Informs the operator that the room must be ventilated while the batteries are being recharged.
Indicates that the operator should always wear protective gloves, to avoid the risk of serious injury to his hands from sharp objects.
Recycling symbol:
Tells the operator to carry out the operations in compliance with environmental regulations in force in the place where the appliance
is being used.
Disposal symbol:
Carefully read the sections marked with this symbol for disposing of the appliance.
INTENDED USE
places.
ATTENTION: The machine is not suitable for use in the rain, or under water jets.
IT IS FORBIDDEN
addition, it is not suitable as a means of transport for people or objects.
13

SAFETY
of the person directly responsible for machine operation. The majority of occupational accidents that happen either in the workplace or whilst
and is fundamental in order to implement any prevention programme.
REGULATIONS
All references to forwards and backwards, front and rear, right and left indicated in this manual should be understood as referring to the operator
in the driving position, with his/her hands on the control handlebars.
SERIAL NUMBER PLATE
The serial number plate is located at the rear of the machine, and indicates the general characteristics thereof,
always be provided together with any request for assistance or when purchasing spare parts.
TECHNICAL DATA
TECHNICAL DATA U/M
[KMS]
Tornado
230V 50Hz
Tornado
110V 60Hz
Tornado
Battery
Type of power supply (V - Hz) 230- 50 110 - 60 24 - #
Nominal input power kW 0,36 0,36 0,36
Nominal pump power W 16 16 16
Nominal compressor power W 350 350 350
Sanitizing product tank capacity l 4,5 4,5 4,5
Sanitizing product consumption rpm 50 50 50
Length of power supply cable m 10 10 -
Maximum length of spray gun extendible hose m 3 3 3
Machine dimensions (length - height - width) mm
740
650
355
740
650
355
795
650
355
Dimensions of individual battery compartment (length - height - width) mm - -
125
160
200
Recommended battery N / (V-AhC5) 2 / (12-33) 2 / (12-33) 2 / (12-33)
Machine weight when empty kg 18 18 24
Machine weight with batteries kg - - 48
Weight of the machine when ready for use (GVW) kg 23 23 53
Sound pressure level in operator seat [ISO 11201] (LpA) dB <70 <70 <70
wA) dB <80 <80 <80
Uncertainty KpA dB ±1,5 ±1,5 ±1,5
m/s2<2.5 <2.5 <2.5
Vibration measurement uncertainty ±4% ±4% ±4%
IP24 IP24 IP24
ON ON -
60335-1] - - II # I
14

LABELS USED ON THE MACHINE
Label indicating the need to read the Use and Maintenance Manual:
Applied in the vicinity of the steering column in order to remind the operator to read the user and maintenance manual before
using the machine.
110/120
VOLT
ATTENTION!
-120 volt):
Used on the machine to warn the operator that there is a danger of electrocution with a voltage from 110-120 volt.
220/230
VOLT
ATTENTION!
-230 volt):
Used on the machine to warn the operator that there is a danger of electrocution with a voltage from 220-230 volt.
ATTENZIONE: caricare la batteria solamente quando il display o le
spie sul cruscotto indicano il livello zero. Il tempo di ricarica della
batteria deve essere di minimo 12 ore. Attendere sempre
l’accensione del led verde prima di considerare terminata la ricarica.
WARNING: charge the battery only when the display or the lights of
the instrument board indicate level zero. Charge time of the battery
must be at least 12 hours. Always wait for the switching on of the
green led, only then the recharge has been completed.
ATENCIÓN: cargar la batería solamente cuando el señal baterías y
las luces pilotos sobre el tablero de instrumentos indican el nivel cero.
El tiempo de carga de la batería será de 12 horas como mínimo.
Esperar siempre el encendido de la led vierde antes que considerar
la recarga terminada.
ATTENTION: charger la batterie seulement quand le témoin de
batterie ou la lampe témoin sur le tableau de bord indiquent le niveau
zéro. Le temps de recharge de la batterie doit être au minimum de 12
heures. Attendre toujours l’allumage du led vert avant de considérer
la recharge terminée.
ACTHTUNG: die Batterie darf nur geladen werden, wenn die Batterie
Standsanzeige oder die Batteriekontrollleuchte den
Batteriestand von Null signalisiert. Die Ladezeit der Batterie muß
mindestens 12 Stunden betragen. Warten Sie immer bis die Anzeige
grün aufleuchtet, erst dann ist die Ladung vollständing durchgeführt.
Battery gas emissions warning label (battery-powered versions):
Used on the back of the machine. The label indicates when and how to charge the batteries.
ATTENZIONE
Le batterie emettono gas di idrogeno infiammabile. Ne può risultare un incendio o un
esplosione. Tenere scintille e fiamme libere lontane quando la macchina è in carica.
Disconnettere il cavo delle batterie e del carica batterie prima di eseguire la
manutenzione
Non caricare le batterie con il cavo danneggiato
ATTENTION!
Batteries emit flammacle hydrogen gas. Explosion or fire can result. Keep sparks and
open flame away when charging
Disconnect battery cables and charger plug before servicing machine
Do not charge batteries with damaged cord
¡ATENCIÓN!
Les batteries émettent gaz inflammables. Cela peut provoquer un incendie ou une
explosion. Gardez des étincelles et des flammes à distance lorsque la machine est en
charge.
Débranchez le câble de la batterie et du chargeur avant d'effectuer la manutention.
Ne charger pas les batteries dans le cas où les câbles soient endommagés.
ACHTUNG!
Batterien entwickeln entzündbare Gase. Es kann zu einem Brand oder einer Explosion
führen. Halten Sie Funken und offene Flammen, während der Batterieladung.
Trennen Sie die Kabel der Batterie und Ladegerät Bevor jede Wartung.
Die Batterien nicht laden mit beschädigten Batteriekabeln.
Battery gas emissions warning label (battery-powered versions):
Used on the back of the machine. The label indicates the dangers that may be present when recharging the batteries.
PREPARATION OF MACHINE
HANDLING THE PACKAGED MACHINE
The machine's overall weight including packaging is 20Kg.
it is recommended that all the packaging components be kept for any future machine transportation.
DANGER: Move the packaged product with handling equipment that complies with legal requirements regarding size and mass of the
packaging.
HOW TO UNPACK THE MACHINE
1.
Use the pictograms printed on the box as reference.
2. Remove the outer package.
WARNING:
hazards, and must not be left within reach of children, disabled persons, etc.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
15
1
6
3 542
2
5
3
4
1
6

MACHINE SAFETY
To ensure that work is carried out in the best safety conditions, proceed as follows:
1. .
2. For electrical versions, disconnect the plug (3) of the power cable from the mains supply socket ( ).
CAUTION: We recommend handling the power cable with dry hands to avoid serious injury.
CAUTION: To prevent damaging the power cable, disconnect the plug from the mains socket by directly pulling the plug and not the
cable.
3. Check that the sanitizing solution tank is empty, otherwise empty it.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
ATTENTION: the place designated for this operation must comply with current environmental protection regulations.
4. Engage the front wheel stops (1) ( ).
TYPE OF BATTERY TO BE USED (battery-powered versions)
Used batteries must meet the requirements set out in DIN EN 50272-3 "Traction batteries for industrial trucks".
.
We advise using two 12V 33AhC5 AGM batteries to power the machine, as seen here to the side.
We advise using two 12V 33AhC5 AGM batteries.
BATTERY MAINTENANCE AND DISPOSAL (battery-powered versions)
For battery maintenance and recharging, respect the instructions provided by the battery manufacturer. When the batteries reach the end of
their service life, they must be disconnected by a specialized and properly trained operator, and must be subsequently removed from the battery
compartment using suitable lifting devices.
INSERTING THE BATTERIES INTO THE MACHINE (battery-powered versions)
The batteries must be housed in the special compartment inside the machine and should be handled using lifting equipment that is suitable both
regard to the weight and the coupling system used.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
ATTENTION: to prevent an accidental short circuit use insulated tools to connect the batteries, and do not place or drop metal objects on
the battery. Remove rings, watches and any clothing with metal parts that may come into contact with the battery terminals.
HOW TO MOVE THE MACHINE
To transport the machine safely, proceed as follows:
DANGER: before starting any task, make sure the current regulations concerning the safe transport of dangerous substances are
scrupulously observed.
1. Check that the sanitizing solution tank is empty, otherwise empty it.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
ATTENTION: the place designated for this operation must comply with current environmental protection regulations.
2. Stand at the back of the machine.
3. Use a ramp to move the machine up onto the transport vehicle.
ATTENTION: during this operation, check there are no people or objects near the machine.
the ramp gradient must not be such as to cause damage to the machine as it goes up.
4. Place the machine on the means of transport, and engage the front wheel stops ( ).
WARNING: Secure the device according to the directives in force in the country of use, so that it cannot slide or tip over.
16

The various phases for inserting the batteries in the battery compartment are as follows:
1. Carry out the steps necessary to secure the machine, see paragraph “MACHINE SAFETY” on page 16.
2. Go to the front of the machine and remove the cap (4) from the tank ( )
3. Remove the plastic chassis (5) of the machine ( ).
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
The equipment needed for removing the bolts is not included with the machine.
for battery maintenance and daily recharging, you must fully respect the indications provided by the manufacturer or retailer.
ATTENTION: all installation and maintenance operations must be carried out by specialized personnel.
before installing the battery, clean the battery compartment.
Check that the connectors on the cables supplied are functioning correctly.
ATTENTION: check that the characteristics of the battery that you are looking to use are appropriate for the type of work to be performed.
ATTENTION: Check the battery charge and the condition of the contacts on the battery.
ATTENTION: the lifting hooks must not damage the blocks, connectors or cables.
Before inserting the batteries into the machine, remember to cover the terminals with a little grease to protect them against external
corrosion.
4. House the batteries in the compartment, positioning the poles “+” and “-“ opposite each other.
ATTENTION: The battery compartment cover acts as a support surface when it is in a horizontal position, and the handle (5) acts as a
CONNECTING THE BATTERIES TO THE MACHINE'S ELECTRICAL SYSTEM (battery-powered versions)
The batteries should be connected so as to obtain a total voltage of 24V.
ATTENTION: It is recommended that the electrical connection operations be carried out by specialized and trained personnel.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
ATTENTION: to prevent an accidental short circuit use insulated tools to connect the batteries, and do not place or drop metal objects on
the battery. Remove rings, watches and any clothing with metal parts that may come into contact with the battery terminals.
When the connection is complete, reposition the chassis on the machine.
The equipment needed for removing the bolts is not included with the machine.
RECHARGING THE BATTERIES (battery-powered versions)
ATTENTION:
within a few minutes of noting the "discharged batteries" signal.
ATTENTION: Never leave the batteries completely discharged, even if the machine is not being used.
1. Bring the machine to the battery recharging area.
ATTENTION:
either damage it, or be damaged through contact with it.
DANGER: the room used to recharge the batteries must be adequately ventilated to prevent the accumulation of gases that leak from
batteries.
17

2. Carry out the steps necessary to secure the machine (see paragraph “MACHINE SAFETY” on page 16).
ATTENTION:
malfunction of the device.
Carefully read the use and maintenance instructions of the battery charger that is used for charging, this document is delivered
along with the machine.
3. Remove the cap (6) from the battery charger socket ( ).
ATTENTION: before connecting the batteries to the battery charger, make sure it is suitable for the batteries used.
WARNING: Before inserting the battery charger power cable into the socket, verify that there is no condensate or other forms of liquids.
the battery charger power cable is delivered inside the bag containing this instruction booklet.
4. Plug the battery charger cable into the mains socket.
5. Connect the battery charger's power cable to the socket on the battery charger itself.
ATTENTION:
escape.
6. When the recharge cycle is complete, disconnect the battery charger cable from the mains.
7. Disconnect the battery charger's power cable from the socket on the battery charger itself.
8. Reposition the cap in the battery charger socket.
FILLING THE SANITIZING PRODUCT TANK
CAUTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
1. Go to the front of the machine and remove the cap (4) from the tank ( ).
2.
3. Replace the cap previous removed from the tank.
PREPARING TO WORK
Before beginning to work, it is necessary to:
1. ).
2.
SANITIZING PRODUCT TANK” on page 18.
3.
4. For electrical versions, connect the plug (2) of the power cable to the mains supply socket ( ).
CAUTION: We recommend handling the power cable with dry hands to avoid serious injury.
Always unroll the power cord completely to prevent it from overheating.
18
21
1
2

STARTING WORK
To start working, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Go to the rear of the machine and switch it on, turning the main switch (1) to position “I” ( ).
3. Remove the spray gun from the holder.
4. ).
5. Start nebulizing the sanitizing product by pressing the lever on the spray gun.
CAUTION: During this phase and throughout the work, do not point the jet of the spray in the direction of your face or the people around
you.
Wait a few seconds for the sanitizing product to be circulated and nebulized.
6. Proceed with the work that you wish to carry out.
CAUTION: When working, do not point the jet of the spray in the direction of your face or the people around you.
CAUTION: When working, do not point the jet of the spray in the direction of electrical or electronic components.
HOUR METER (battery-powered versions)
0.4
H
1 2
The control display is present on the body of the machine, and this shows the total usage time via a series
of numbers (1).
The digits that precede the "." symbol identify the hours, whereas the numbers that precede the “.” symbol
identify the tenths of an hour (a tenth of an hour corresponds to six minutes).
appliance's operating time.
BATTERY CHARGE LEVEL INDICATOR (battery-powered versions)
0.4
H
2 1
The control display is on the control panel, the battery charge level can be seen at the bottom.
second by a symbol that represents a battery (2).
The graphic symbol (1) is composed of 9 charge levels, each of which represents a residual charge
percentage.
19
21
12

At the end of the work, and before carrying out any type of maintenance, perform the following operations:
1. ).
2. ).
3. For electrical versions, disconnect the plug (3) of the power cable from the mains supply socket ( ).
CAUTION: We recommend handling the power cable with dry hands to avoid serious injury.
CAUTION: To prevent damaging the power cable, disconnect the plug from the mains socket by directly pulling the plug and not the
cable.
4. Perform all procedures indicated in the chapter “ROUTINE MAINTENANCE OPERATIONS”.
5. Once the routine maintenance operations are complete, take the machine to the designated storage location.
ATTENTION:
damage it, or be damaged through contact with it.
6. Secure the machine, see paragraph “MACHINE SAFETY” on page 16.
AT THE END OF THE WORK
ROUTINE MAINTENANCE
Before carrying out any routine maintenance operations, proceed as follows:
1. Take the machine to the maintenance area.
WARNING: the place designated for this operation must comply with current regulations concerning safety at work and current
environmental protection regulations.
2. Carry out the steps necessary to secure the machine, see paragraph “MACHINE SAFETY” on page 16.
ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
EMPTYING THE SANITIZING PRODUCT TANK
To empty the sanitizing product tank, proceed as follows:
1. Go to the front of the machine and remove the cap (1) from the tank ( )
2. Remove the plastic chassis (2) of the machine ( ).
The equipment needed for removing the bolts is not included with the machine.
3. Remove the sanitizing product tank and empty it.
the place designated for this operation must comply with current environmental protection regulations.
4. Repeat the operations in reverse order to reassemble all the parts.
20
32
23
1
1
21
2
1
3
3
54
4
5
