TMC TI6NB+ User manual

TI6NB
Pentium II 440BX ATX Motherboard
User's Manual
Version 1.0C

ii TI6NB Pentium II 440BX ATX Motherboard User’s Manual
The brand names, product names and trade names in this manual
are trademarks or registered trademarks of their respective
holders.
This publication is protected by copyright and all rights are
reserved. No part of it may be reproduced or transmitted by any
means or in any form, without prior consent in writing from the
manufacturer.
The information in this document has been carefully checked and
is believed to be accurate. However, the manufacturer assumes
no responsibility for any inaccuracies that may appear in this
manual. In no event will the manufacturer be liable for direct,
indirect, special, exemplary, incidental or consequential damages
resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The material contained
herein is for informational purposes only.

Contents
TI6NB Pentium II 440BX ATX Motherboard User’s Manual iii
Contents
Chapter 1 Introduction....................................................1
Chapter 2 Specifications..................................................2
Chapter 3 Hardware Description ...................................4
3.1 Processor ...................................................................................6
3.2 L2 Cache ...................................................................................6
3.3 Main Memory............................................................................6
3.4 BIOS..........................................................................................9
3.5 I/O Port Address Map................................................................9
3.6 DMA Channels........................................................................10
3.7 Interrupt Request (IRQ) Lines.................................................10
3.8 Onboard PCI-IDE....................................................................10
3.9 Onboard Multi-I/O ..................................................................11
3.10 Onboard AGP Slot.................................................................11
3.11 Hardware Monitoring IC........................................................11
Chapter 4 Configuring the Motherboard ....................12
4.1 CPU Frequency Select: S1(1-8) ..............................................14
4.2 Clear CMOS Select: JP4 .........................................................15
Chapter 5 Installation....................................................16
5.1 I/O Connectors ........................................................................18
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.....................18
5.3 J8: ATX Power Supply Connector..........................................19
5.4 J17: CPU Fan Power Connector..............................................19
5.5 USB1: USB Connector............................................................19
5.6 J2, J3: Serial Ports...................................................................20
5.7 J4: Parallel Port Connector......................................................21
5.8 J9: IrDA Connector .................................................................21
5.9 J5: Floppy Drive Connector ....................................................22
5.10 J19, J18: EIDE Connectors ...................................................23
5.11 J20: Front Bezel Connectors .................................................24
5.12 J21: Chassis Fan Power Connector........................................26
5.13 JP3: Wake on LAN Connector..............................................26
5.14 JP5: SB-Link Connector........................................................27

Contents
iv TI6NB Pentium II 440BX ATX Motherboard User’s Manual
Chapter 6 BIOS and System Setup...............................28
6.1 BIOS Introduction ...................................................................31
6.2 BIOS Setup..............................................................................31
6.3 Standard CMOS Setup.............................................................33
6.4 BIOS Features Setup................................................................36
6.5 Chipset Features Setup.............................................................39
6.6 Power Management Setup .......................................................43
6.7 PNP/PCI Configuration ...........................................................46
6.8 Load BIOS Defaults ................................................................48
6.9 Load Setup Defaults.................................................................48
6.10 Integrated Peripherals............................................................49
6.11 Supervisor / User Password...................................................51
6.12 IDE HDD Auto Detection......................................................52
6.13 Save & Exit Setup..................................................................53
6.14 Exit Without Saving...............................................................53
Chapter 7 System Monitor Utility User’s Guide.........53
Chapter 8 LANDesk User’s Guide ...............................60
Appendix..........................................................................67
A. Slot 1 Retention Mechanism......................................................67
B. Additions & Errata.....................................................................68
.

Chapter 1 Introduction
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 1
Chapter 1 Introduction
This manual is designed to give you information on the TI6NB
motherboard. It is divided into the following sections:
•
••
•
Introduction
•
••
•
Specifications
•
••
•
Hardware Description
•
••
•
Configuring the Motherboard
•
••
•
Installation
•
••
•
BIOS and System Setup
•
••
•
System Monitor Utility User’s Guide
•
••
•
LANDesk User’s Guide
Checklist
Please check that your package is complete and contains the items below.
If you discover damaged or missing items, please contact your dealer.
•
••
•
The TI6NB Motherboard
•
••
•
1 IDE ribbon cable
•
••
•
1 floppy ribbon cable
•
••
•
1 CD containing System Monitor utility, PIIX4 Bus Master IDE
driver and utilities. Intel’s LANDesk software is optional.

Chapter 2 Specifications
2 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
Chapter 2 Specifications
The TI6NB is a high-performance ATX 440BX motherboard with a Slot
1 connector for PentiumII processors. It offers flexibility in terms of
CPU frequencyand main memorytype and size. The main features of the
motherboard consist of the following:
CPU Socket
Slot 1
Processor
Intel Pentium II 233/266/300MHz (66MHz / Klamath)
Intel Pentium II 333MHz (66MHz / Deschutes)
Intel Pentium II 300/350/400/450MHz (100MHz / Deschutes)
L2 Cache
CPU integrated L2 cache
CPU Voltage
Switching voltage regulator on board supporting multiple voltage
ranging 1.8V-3.5V
Main Memory
Four 168-pin DIMM sockets
Memory types: SDRAM (Synchronous DRAM)
NOTE: 1. Only use SDRAM modules that support SPD (Serial
Presence Detect).
2. Use PC100 modules when running 100MHz CPU bus speed
and use PC66 modules when running 66MHz CPU bus speed.
Chipset
Intel 82440BX with built-in PCI-IDE
BIOS
Award BIOS with ISA Plug and Play (PnP) extension, DMI, bootable
CD-ROM and power-management features
Power Connector
ATX power supply connector (Use an ATX power supply with 3.3V
power.)
DMI BIOS Support
Desktop Management Interface (DMI) allows users to download
system hardware-level information such as CPU type, CPU speed,
internal/external frequencies and memory size.

Chapter 2 Specifications
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 3
PCI Bus Master IDE Controller (Ultra DMA/33)
Onboard PCI Bus Master IDE (Ultra DMA/33) controller with two
connectors for up to four IDE devices in two channels, supporting
enhanced IDE devices such as Tape Backup and CD-ROM drives,
PIO Mode 3/4 and Bus Mastering Ultra DMA/33 (You have to install
the Bus Master IDE driver to enable this feature.)
Super I/O
Onboard super I/O is an Winbond W83977TF that provides:
z
Two 16550 UART compatible serial ports
z
One parallel port (ECP/EPP compatible)
z
One floppy controller (2.88MB compatible)
z
One IrDA port
z
Keyboard Controller
Keyboard and Mouse Connectors
PS/2 type
USB Connector
2 ports onboard
Win95-shut-off
Allows shut-off control from within Windows 95
Modem-ring-on
Supports PC powering on through an external modem.
Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
bus specification that enables 3D graphics capabilities including
support for z-buffering, alpha blending and faster texture mapping.
Year 2000 Compliant BIOS
The onboard Award BIOS is Year 2000 Compliant and will pass
software applications that have the tendency to invoke INT1AH
function 04H such as year2000.exe utility released by NSTL.
Expansion Slots
Five PCI 32-bit slots
Two ISA 16-bit slots
One AGP slot
Form Factor
ATX, 12.” x 7.28” (30.5cm x 18.5cm)

Chapter 3 Hardware Description
4 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
Chapter 3 Hardware Description
This chapter briefly describes each of the major features of the TI6NB
motherboard. The layout of the board in Figure 1 shows the location of
the key components. The topics covered in this chapter are as follows:
3.1 Processor....................................................................................6
3.2 L2 Cache....................................................................................6
3.3 Main Memory............................................................................6
3.4 BIOS..........................................................................................9
3.5 I/O Port Address Map................................................................9
3.6 DMA Channels........................................................................10
3.7 Interrupt Request (IRQ) Lines.................................................10
3.8 Onboard PCI-IDE....................................................................10
3.9 Onboard Multi-I/O...................................................................11
3.10 Onboard AGP Slot.................................................................11
3.11 Hardware Monitoring IC ........................................................11

Chapter 3 Hardware Description
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 5

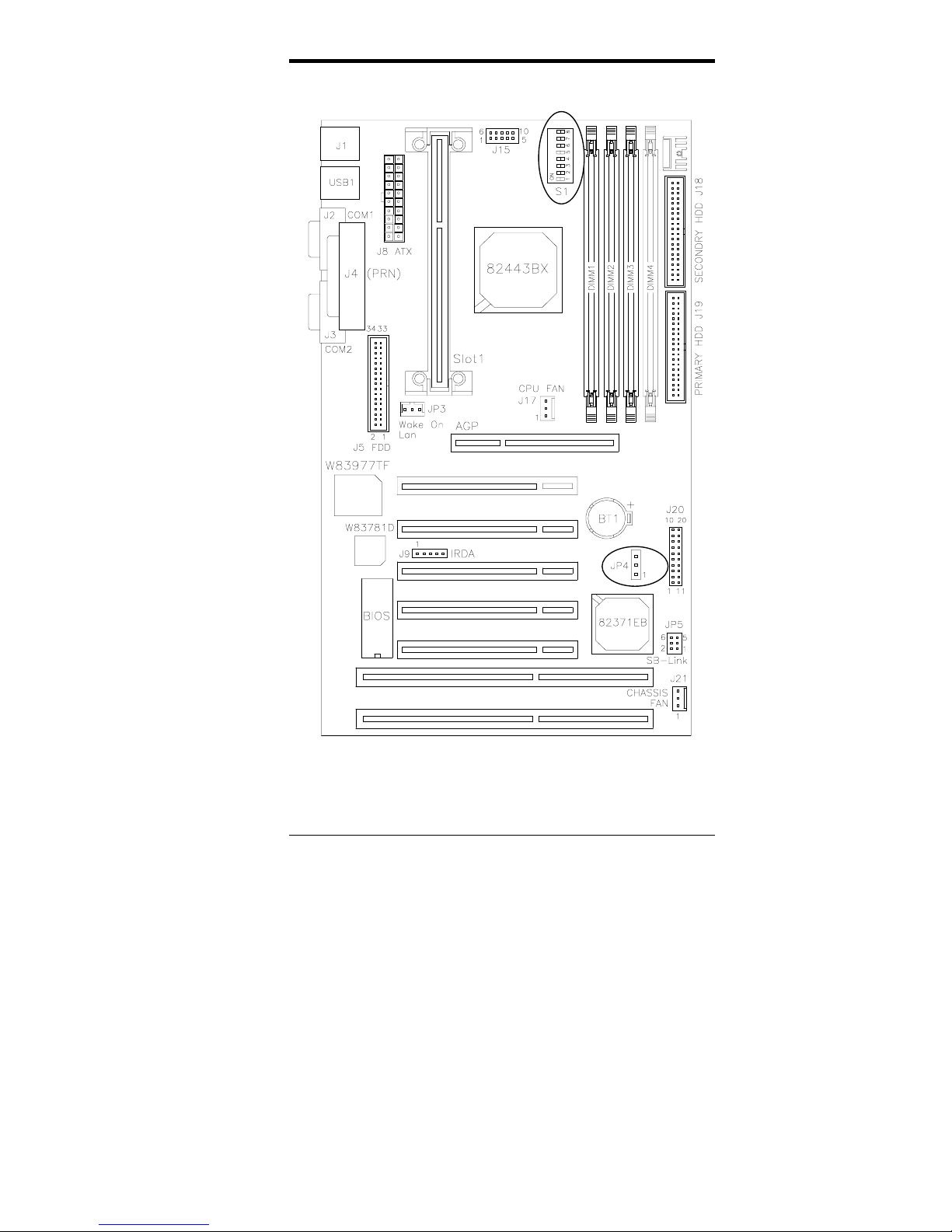

Figure 1: Layout of the TI6NB Motherboard

Chapter 3 Hardware Description
6 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
3.1 Processor
The TI6NB motherboard is designed to take a Pentium II processor
running 233MHz/266MHz/300/333MHz at 66MHz CPU bus speed or
300/350/400/450MHz at 100MHz CPU bus speed with its Slot 1
processor connector.
3.2 L2 Cache
The L2 cache is integrated in the Pentium II processor. The private L2
cache bus is not connected to package pins, rather its signals are routed
between the two cavities using standard package techniques.
3.3 Main Memory
The TI6NB motherboard supports four 168-pin DIMM (Dual In-line
Memory Module) sockets to form a memory configuration from 8MB to
512MB. DIMM modules canbe 8MB, 16MB, 32MB, 64MB and 128MB
in SDRAMDRAM. Inpopulatingthe DIMM sockets, DIMM1, DIMM2,
DIMM3 and DIMM4 bank can be populated first. Refer to the following
table on how to configure the memory.
NOTE: Use SDRAM modules with PC100 specification when running
100MHz CPU bus speed. With 66MHz CPU bus speed, SDRAM modules
with PC66 or PC100 specification can be used.
168-pin DIMM (3.3V) SDRAM
Bank0
(DIMM4) Bank1 (DIMM3) Bank2 (DIMM2) Bank3 (DIMM1) Total Memory
8MB ----- ----- ----- 8MB
16MB ----- ----- ----- 16MB
32MB ----- ----- ----- 32MB
64MB ----- ----- ----- 64MB
128MB ----- ----- ----- 128MB
8MB 8MB ----- ----- 16MB
16MB 8MB ----- ----- 24MB
32MB 8MB ----- ----- 40MB
64MB 8MB ----- ----- 72MB
128MB 8MB ----- ----- 136MB
8MB 8MB 8MB ----- 24MB
8MB 8MB 8MB ----- 24MB
16MB 8MB 8MB ----- 32MB
32MB 8MB 8MB ----- 48MB
64MB 8MB 8MB ----- 80MB
128MB 8MB 8MB ----- 144MB
8MB 8MB 8MB 8MB 32MB
16MB 8MB 8MB 8MB 40MB

Chapter 3 Hardware Description
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 7
168-pin DIMM (3.3V) SDRAM (continued)
Bank0
(DIMM4) Bank1 (DIMM3) Bank2 (DIMM2) Bank3 (DIMM1) Total Memory
32MB 8MB 8MB 8MB 56MB
64MB 8MB 8MB 8MB 88MB
128MB 8MB 8MB 8MB 152MB
16MB 16MB ----- ----- 32MB
32MB 16MB ----- ----- 48MB
64MB 16MB ----- ----- 80MB
128MB 16MB ----- ----- 144MB
16MB 16MB 8MB ----- 40MB
32MB 16MB 8MB ----- 56MB
64MB 16MB 8MB ----- 88MB
128MB 16MB 8MB ----- 152MB
16MB 16MB 8MB 8MB 48MB
32MB 16MB 8MB 8MB 64MB
64MB 16MB 8MB 8MB 96MB
128MB 16MB 8MB 8MB 160MB
16MB 16MB 16MB ----- 48MB
32MB 16MB 16MB ----- 64MB
64MB 16MB 16MB ----- 96MB
128MB 16MB 16MB ----- 160MB
16MB 16MB 16MB 8MB 56MB
32MB 16MB 16MB 8MB 72MB
64MB 16MB 16MB 8MB 104MB
128MB 16MB 16MB 8MB 168MB
16MB 16MB 16MB 16MB 64MB
32MB 16MB 16MB 16MB 80MB
64MB 16MB 16MB 16MB 112MB
128MB 16MB 16MB 16MB 176MB
32MB 32MB ----- ----- 64MB
64MB 32MB ----- ----- 96MB
128MB 32MB ----- ----- 160MB
32MB 32MB 8MB ----- 72MB
64MB 32MB 8MB ----- 104MB
128MB 32MB 8MB ----- 168MB
32MB 32MB 8MB 8MB 80MB
64MB 32MB 8MB 8MB 112MB
128MB 32MB 8MB 8MB 176MB
32MB 32MB 16MB ----- 80MB
64MB 32MB 16MB ----- 112MB
128MB 32MB 16MB ----- 176MB

Chapter 3 Hardware Description
8 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
168-pin DIMM (3.3V) SDRAM (continued)
Bank0
(DIMM4) Bank1 (DIMM3) Bank2 (DIMM2) Bank3 (DIMM1) Total Memory
32MB 32MB 16MB 16MB 96MB
64MB 32MB 16MB 16MB 128MB
128MB 32MB 16MB 16MB 192MB
32MB 32MB 32MB ----- 96MB
64MB 32MB 32MB ----- 128MB
128MB 32MB 32MB ----- 192MB
32MB 32MB 32MB 32MB 128MB
64MB 32MB 32MB 32MB 160MB
128MB 32MB 32MB 32MB 224MB
64MB 64MB ----- ----- 128MB
128MB 64MB ----- ----- 192MB
64MB 64MB 8MB ----- 136MB
128MB 64MB 8MB ----- 200MB
64MB 64MB 8MB 8MB 144MB
128MB 64MB 8MB 8MB 208MB
64MB 64MB 16MB ----- 144MB
128MB 64MB 16MB ----- 208MB
64MB 64MB 16MB 16MB 160MB
128MB 64MB 16MB 16MB 224MB
64MB 64MB 32MB ----- 160MB
128MB 64MB 32MB ----- 224MB
64MB 64MB 32MB 32MB 192MB
128MB 64MB 32MB 32MB 256MB
64MB 64MB 64MB ----- 192MB
128MB 64MB 64MB ----- 256MB
64MB 64MB 64MB 64MB 256MB
128MB 64MB 64MB 64MB 320MB
128MB 128MB 128MB ----- 384MB
128MB 128MB 128MB 128MB 512MB

Chapter 3 Hardware Description
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 9
3.4 BIOS
The BIOS on the TI6NB motherboard provides the standard BIOS
functions plus the following additional features:
1. ISA Plug and Play (PnP) Extension
Unlike PCI cards that are Plug and Play, ISA cards require setting
jumpers to resolve hardware conflicts. To make a computer system
PnP, an ISA PnP standard is established and supported by new
operating systems, such as Windows 95. Under Windows 95, the
motherboard BIOS must have an ISA PnP extension to support new
ISA PnP cards.
2. Power Management
The power management feature provides power savings by slowing
down the CPU clock, turning off the monitor screen and stopping the
HDD spindle motor. The BIOS fully conforms to ACPI (Advanced
Configuration and Power Interface) specification.
3.5 I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. There is a total
of 1K port address space available. The following table lists the I/O port
addresses used on the motherboard.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock,, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
2F8h - 2FFh Serial Port #2(COM2)
378h - 3FFh Parallel Port #1(LPT1)
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)

Chapter 3 Hardware Description
10 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
3.6 DMA Channels
There are seven DMA channels available on the motherboard. Only
DMA2 is used by the floppycontroller. Inthe case that ECP mode on the
parallel port is utilized, DMA1 or DMA3 will be used.
3.7 Interrupt Request (IRQ) Lines
There is a total of 15 IRQ lines available on the motherboard. Peripheral
devices use an interrupt request to notify the CPU for the service
required. The following table shows the IRQ lines used by the devices on
the motherboard:
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ8 Real Time Clock
IRQ9 Software Redirected to Int 0Ah or PCI Slot Int#
IRQ10 Reserved or PCI Slot Int#
IRQ11 Reserved or PCI Slot Int#
IRQ12 PS/2 Mouse or PCI Slot Int#
IRQ13 Co-Processor
IRQ14 Primary IDE
IRQ15 Secondary IDE
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Parallel Port #2 or PCI Slot Int#
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
3.8 Onboard PCI-IDE
The PCI-IDE controller is a part of the 82440BX PCIset. It supports PIO
mode 3/4 and bus mastering Ultra DMA/33. The peak transfer rate of
PIO mode 3/4 can be as high as 17MB/sec. Using HDDs that support
Ultra DMA/33, the peak transfer rate can reach 33MB/sec. There are two
IDE connectors - primary IDE and secondary IDE. With two devices per
connector, up to four IDE devices can be supported.

Chapter 3 Hardware Description
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 11
3.9 Onboard Multi-I/O
The onboard multi-I/O chip, W83977TF, supports a keyboard controller
(AMIcopyright),two serial ports, one parallel port, one floppy controller
and one IrDA port. The serial ports are 16550 UART compatible. The
parallel port features high-speed EPP/ECP mode. The floppy controller
supports up to 2.88 MB format.
3.10 Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
platform bus specification that enables 3D graphics capabilities including
support for z-buffering, alpha blending and faster texture mapping.
3.11 Hardware Monitoring IC
The TI6NB comes with the Winbond W83781D hardware monitoring
IC. It monitors several hardware parameters including power supply
voltages, fan speeds, and temperatures, which are very important for a
high-end computer system to work stable and properly.

Chapter 4 Configuring the Motherboard
12 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
Chapter 4 Configuring the Motherboard
The following sections describe the necessary procedures and proper
jumper settingsto configure the TI6NB motherboard. For the locations of
the jumpers, refer to Figure 2.
4.1 CPU Frequency Select: S1(1-8)...............................................14
4.2 Clear CMOS Select: JP4..........................................................15

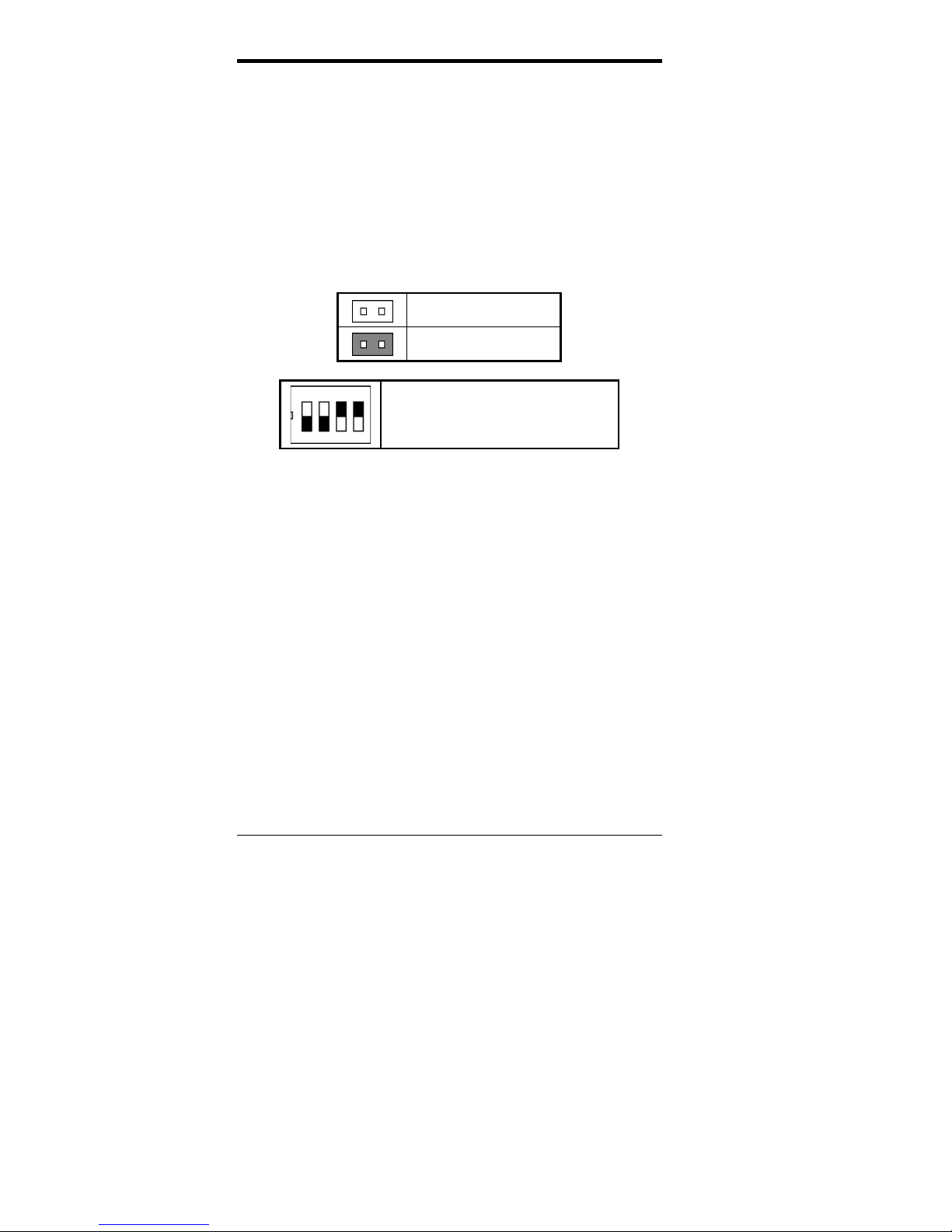

The following examples show the conventions used in this chapter.
Jumper Open
Jumper Closed/Short
Switch 1 and switch 2 are set to OFF.
Switch 3 and switch 4 are set to ON.
1 2 3 4
DIP
ON

Chapter 4 Configuring the Motherboard
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 13
Figure 2: Jumper Location on the TI6NB

Chapter 4 Configuring the Motherboard
14 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
4.1 CPU Frequency Select: S1(1-8)
Refer to the following table for the correct setting to match the CPU
frequency.
CPU
Type CPU Frequency S1(1-8)
3.5 x 66MHz
233MHz
off off off off on off off on
4 x 66MHz
266MHz
off off off off off on on on
Klamath
66MHz
Host Clock
CPU 4.5 x 66MHz
300MHz
off off off off off on off on
Deschutes
66MHz
Host Clock
CPU
5x 66MHz
333MHz
off off off off off off on on
3 x 100MHz
300MHz
off off off off on off on on
3.5 x 100MHz
350MHz
off off off off on off off on
4 x 100MHz
400MHz
off off off off off on on on
Deschutes
100MHz
Host Clock
CPU
4.5 x 100MHz
450MHz
off off off off off on off on
NOTE: Switches S1(2), S1(3) and S1(4) should be left to its default
setting of OFF. Do not reset these switches. For ‘engineering sample’
CPU, S1(1) can be used to set the CPU bus speed. For 66MHz, set this
switch to ON; for 100MHz, this switch is OFF. For ‘mass produced’
CPU, S1(3) should be set to OFF for auto-detection of the CPU bus
speed.

Chapter 4 Configuring the Motherboard
TI6NB Pentium II 440BX ATX Motherboard User’s Manual 15
TI6NB Host Clock (FSB) Multiplier Jumper Guide
TI6NB SW1-5 SW1-6 SW1-7 SW1-8 66/100MHz
X3.0 ON OFF ON ON 200/300
X3.5 ON OFF OFF ON 233/350
X4.0 OFF ON ON ON 266/400
X4.5 OFF ON OFF ON 300/450
X5.0 OFF OFF ON ON 333/500
X5.5 OFF OFF OFF ON 366/550
X6.0 ON ON ON OFF 400/600
X6.5 ON ON OFF OFF 433/650
X7.0 ON OFF ON OFF 466/700
X7.5 ON OFF OFF OFF 500/750
X8.0 OFF ON ON OFF 533/800
4.2 Clear CMOS Select: JP4
Use JP4, a 3-pin header, to clear the contents of the CMOS RAM.
Do not clear the CMOS RAM unless it is absolutelynecessary. You
will lose your password, etc.

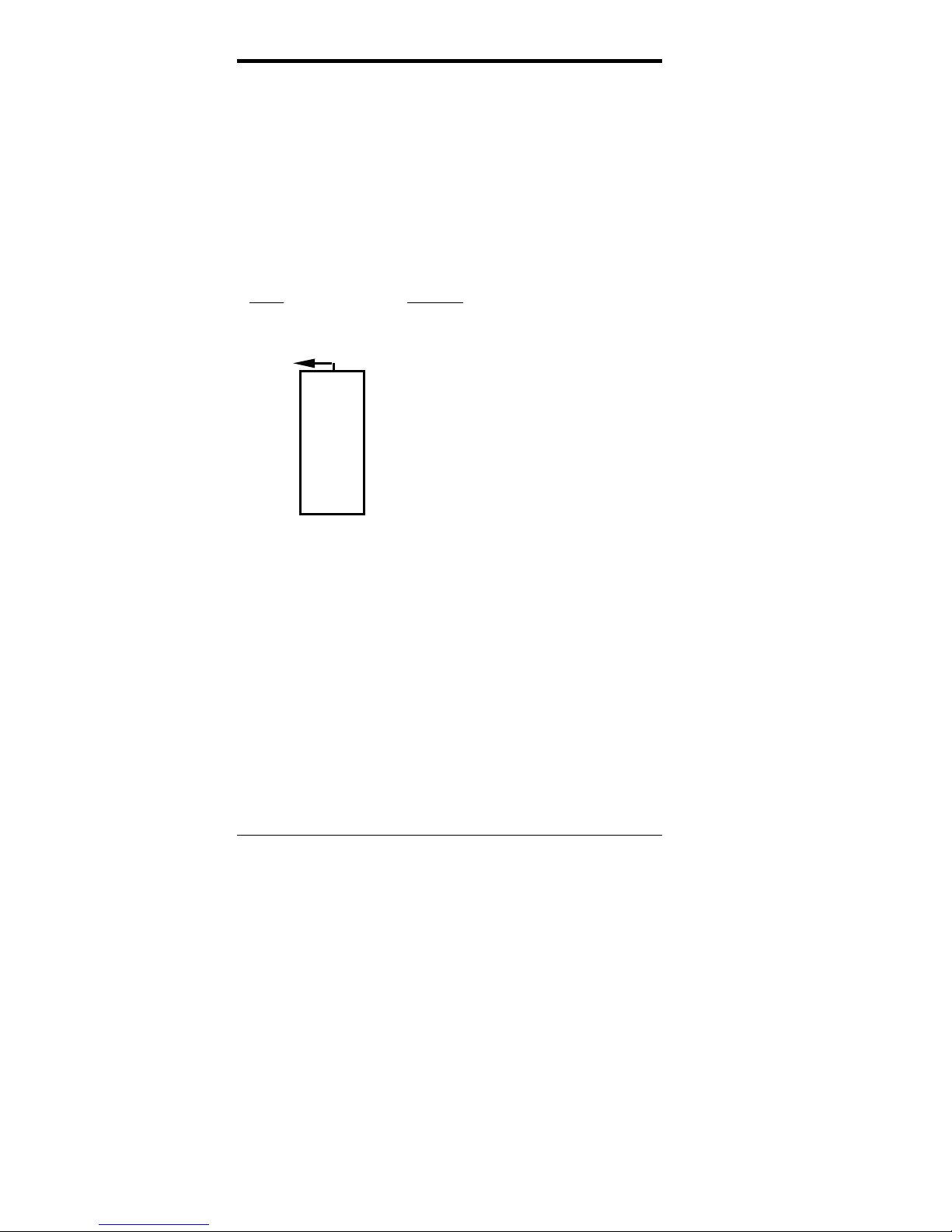

JP4 Jumper Setting Function
1 2 3
pin 1-2: short Normal
1 2 3 pin 2-3: short Clear CMOS
NOTE: To clear CMOS, the ATX-power connector should be
disconnected from the motherboard.

Chapter 5 Installation
16 TI6NB Pentium II 440BX ATX Motherboard User’s Manual
Chapter 5 Installation
This chapter describes the interface that the TI6NB provides for creating
a working system. Refer to Figure 3 for the location of the connectors.
The following items are covered in this chapter:
5.1 I/O Connectors.........................................................................18
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.....................18
5.3 J8: ATX Power Supply Connector ..........................................19
5.4 J17: CPU Fan Power Connector..............................................19
5.5 USB1: USB Connector............................................................19
5.6 J2, J3: Serial Ports ...................................................................20
5.7 J4: Parallel Port Connector......................................................21
5.8 J9: IrDA Connector..................................................................21
5.9 J5: Floppy Drive Connector.....................................................22
5.10 J19, J18: EIDE Connectors....................................................23
5.11 J20: Front Bezel Connectors..................................................24
5.12 J21: Chassis Fan Power Connector........................................26
5.13 JP3: Wake on LAN Connector ..............................................26
5.14 JP5: SB-Link Connector........................................................27
