TMC TI7NBA User manual

TI7NBA
Socket 370 ATX Motherboard
User's Manual
Version 1.0B

ii TI7NBA Socket 370 ATX Motherboard User’s Manual
The brand names, product names and trade names in this manual
are trademarks or registered trademarks of their respective
holders.
This publication is protected by copyright and all rights are
reserved. No part of it may be reproduced or transmitted by any
means or in any form, without prior consent in writing from the
manufacturer.
The information in this document has been carefully checked and
is believed to be accurate. However, the manufacturer assumes
no responsibility for any inaccuracies that may appear in this
manual. In no event will the manufacturer be liable for direct,
indirect, special, exemplary, incidental or consequential damages
resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The material contained
herein is for informational purposes only.

TI7NBA Socket 370 ATX Motherboard User’s Manual iii
README FIRST
If your motherboard has a VIA 82C693 (Apollo Pro Plus)
chipset, please do the following.
1. For Windows 95.
a. Install Windows 95 OSR2 or later version.
b. Install USB supplement to OSR2. You may download
the supplement from Microsoft’s web site.
c. Install VIA VXD Driver (VIA_GART table driver) V2.6 or
later version. The driver can be found in the enclosed
CD. Refer to the following figure.
d. Install the VGA driver as supplied by the VGA vendor.
e. Install the VIA IDE driver version V2.1.26 or later
version from the enclosed CD.
2. For Windows 98
a. Install the VIA Chipset Functions’ Registry Driver V1.1
or later version. It is imperative that this driver is
installed first, even if you don’t have an AGP card in your
system.
b. Install the VIA VXD Driver (VIA_GART table driver) V2.6
or later version. The driver can be found in the enclosed
CD.
c. Install the VGA driver as supplied by the VGA vendor.
d. Install the VIA IDE driver version V2.1.26 or later
version. The driver can be found in the enclosed CD.

Contents
TI7NBA Socket 370 ATX Motherboard User’s Manual iv
Contents
Chapter 1 Introduction....................................................1
Chapter 2 Specifications..................................................2
Chapter 3 Hardware Description ...................................5
3.1 Processor....................................................................................7
3.2 L2 Cache....................................................................................7
3.3 Main Memory............................................................................7
3.4 BIOS..........................................................................................9
3.5 I/O Port Address Map................................................................9
3.6 DMA Channels........................................................................10
3.7 Interrupt Request (IRQ) Lines.................................................10
3.8 Onboard PCI-IDE....................................................................10
3.9 Onboard Multi-I/O...................................................................11
3.10 Onboard AGP Slot.................................................................11
3.11 Hardware Monitoring IC ........................................................11
3.12 Onboard Audio......................................................................11
Chapter 4 Configuring the Motherboard ....................13
4.1 CPU Frequency/Speed Setting.................................................15
4.2 Clear CMOS Select: JP10........................................................15
4.3 Bus Speed Select: JP8..............................................................16
Chapter 5 Installation....................................................17
5.1 I/O Connectors.........................................................................19
5.2 JP1: PS/2 Keyboard and PS/2 Mouse Connectors...................19
5.3 J1, J2: Serial Ports ...................................................................20
5.4 J4: Parallel Port Connector......................................................20
5.5 P1: Line Out/Line In/ Microphone, Game Port .......................21
5.6 JP3: IrDA Connector ...............................................................21
5.7 JP5, JP6: CD-ROM Audio In Connectors ...............................21
5.8 JP7: Wake on LAN Connector ................................................22
5.9 J7: CPU Fan Power Connector................................................22
5.10 J13: Chassis Fan Power Connector........................................22
5.11 J19: AGP Fan Power Connector............................................22
5.12 J14: ATX Power Supply Connector ......................................23
5.13 J16: Floppy Drive Connector.................................................23
5.14 J17, J15: EIDE Connectors....................................................23
5.15 J18: Front Bezel Connectors..................................................25

Contents
TI7NBA Socket 370 ATX Motherboard User’s Manual v
Chapter 6 BIOS and System Setup...............................29
6.1 BIOS Introduction...................................................................32
6.2 BIOS Setup..............................................................................32
6.3 Standard CMOS Setup ............................................................34
6.4 BIOS Features Setup...............................................................37
6.5 Chipset Features Setup............................................................41
6.6 Power Management Setup.......................................................46
6.7 PNP/PCI Configuration...........................................................50
6.8 Load BIOS Defaults................................................................53
6.9 Load Setup Defaults................................................................53
6.10 CPU Speed Setting................................................................54
6.11 Integrated Peripherals............................................................56
6.12 Supervisor / User Password...................................................59
6.13 IDE HDD Auto Detection.....................................................60
6.14 Save & Exit Setup .................................................................61
6.15 Exit Without Saving..............................................................61
Chapter 7 Audio Driver Installation Guide.................62
Chapter 8 System Monitor Utility User’s Guide.........72
Chapter 9 LANDesk User’s Guide ...............................80
9.1 Introduction.............................................................................81
9.2 Installation...............................................................................82
9.2.1 Installing the Local Version of LDCM.........................83
9.2.2 Installing the Administrative Version of LDCM ..........85
.

Chapter 1 Introduction
TI7NBA Socket 370 ATX Motherboard User’s Manual 1
Chapter 1 Introduction
This manual is designed to give you information on the TI7NBA
motherboard. It is divided into the following sections:
•
••
•
Introduction
•
••
•
Specifications
•
••
•
Hardware Description
•
••
•
Configuring the Motherboard
•
••
•
Installation
•
••
•
BIOS and System Setup
•
••
•
Audio Driver Installation Guide
•
••
•
System Monitor Utility User’s Guide
•
••
•
LANDesk User’s Guide
Checklist
Please check that your package is complete and contains the items below.
If you discover damaged or missing items, please contact your dealer.
•
••
•
The TI7NBA Motherboard
•
••
•
1 IDE ribbon cable
•
••
•
1 floppy ribbon cable
•
••
•
1 CD containing System Monitor, PIIX4 Bus Master IDE driver
and utilities. The Intel LANDesk Client Manager software is
optional.

Chapter 2 Specifications
2 TI7NBA Socket 370 ATX Motherboard User’s Manual
Chapter 2 Specifications
The TI7NBA is a high-performance ATX motherboard with a Socket
370 connector for PPGA 370-type PentiumII processors. It offers
flexibility in terms of CPU frequency and main memory type and size.
The main features of the motherboard consist of the following:
CPU Socket
Socket 370
Processor
Intel Celeron
300~600MHz CPU frequency
Bus Speed
66~150MHz
L2 Cache
CPU integrated L2 cache
CPU Voltage
Switching voltage regulator on board supporting multiple voltage
ranging 1.3V-2.0V
Main Memory
Three 168-pin DIMM sockets
NOTE: For 440ZX chipset-based motherboard, there are only two
DIMM memory sockets.
Memory types: SDRAM (Synchronous DRAM)
NOTE: Use only SDRAM modules that support SPD (Serial
Presence Detect). Install PC100 modules when running
100MHz CPU bus speed and PC66 modules when running
66MHz CPU bus speed.
Chipset
Intel 82440BX /ZX/GX or VIA 82C693 with built-in PCI-IDE
Onboard Audio
The onboard audio consists of the Creative ES1373 Chip + AC97.
With a PCI Bus Mastering interface with DOS compatibility, it
supports 32 voices wavetable, surround sound, 3D audio, and audio
effects such as reverb and chorus. Creative ES1373 uses single,
shareable PCI interrupt and is PC97/PC98 compliant.

Chapter 2 Specifications
TI7NBA Socket 370 ATX Motherboard User’s Manual 3
BIOS
Y2K compliant Award BIOS featuring ISA PnP extension, DMI,
bootable CD-ROM and power-management features
Power Connector
ATX power supply connector (Use an ATX power supply with 3.3V
power.)
DMI BIOS Support
Desktop Management Interface (DMI) allows users to download
system hardware-level information such as CPU type, CPU speed,
internal/external frequencies and memory size.
PCI Bus Master IDE Controller (Ultra DMA/33)
Onboard PCI Bus Master IDE (Ultra DMA/33) controller with two
connectors for up to four IDE devices in two channels, supporting
enhanced IDE devices such as Tape Backup and CD-ROM drives,
PIO Mode 3/4 and Bus Mastering Ultra DMA/33 (You have to install
the Bus Master IDE driver to enable this feature.)
Super I/O
Onboard super I/O is a Winbond W83977TF that provides:
z
Two 16550 UART compatible serial ports
z
One parallel port (ECP/EPP compatible)
z
One floppy controller (2.88MB compatible)
z
One IrDA port
z
Keyboard Controller
Keyboard and Mouse Connectors
PS/2 type
USB Connector
2 ports onboard
Win95-shut-off
Allows shut-off control from within Windows 95
Modem-ring-on
Supports PC powering on through an external modem.

Chapter 2 Specifications
4 TI7NBA Socket 370 ATX Motherboard User’s Manual
Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
bus specification that enables 3D graphics capabilities including
support for z-buffering, alpha blending and faster texture mapping.
Expansion Slots
Four PCI 32-bit slots
Two ISA 16-bit slots
One AGP slot
NOTE: For 440ZX chipset-based motherboard, there are three PCI
Master 32-bit slots and one PCI slave 32-bit slot. The PCI
slave slot is PCI4.
Form Factor
ATX, 12.05” x 7.09” (30.6cm x 18cm)

Chapter 3 Hardware Description
TI7NBA Socket 370 ATX Motherboard User’s Manual 5
Chapter 3 Hardware Description
This chapter briefly describes each of the major features of the TI7NBA

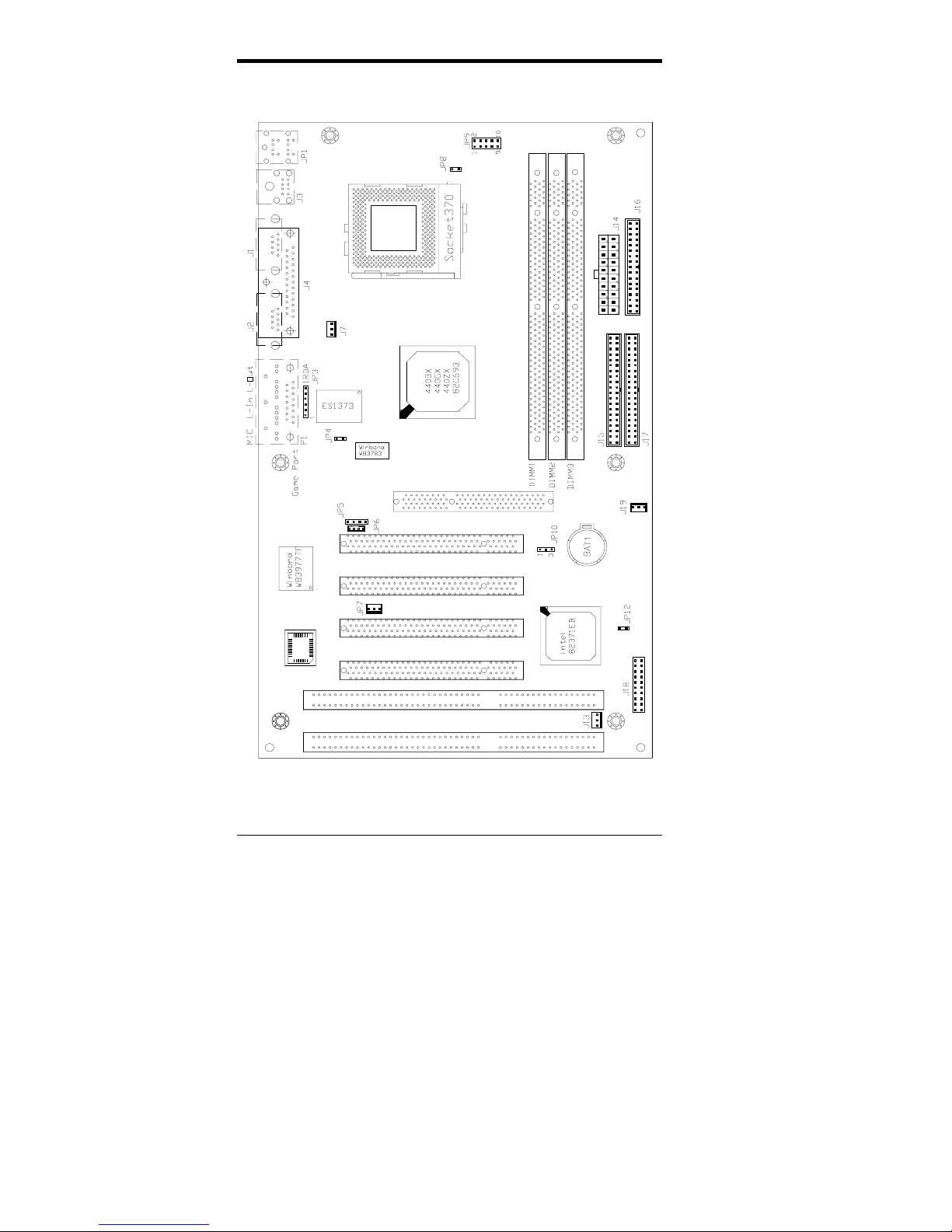

motherboard. The layout of the board in Figure 1 shows the location of
the key components. The topics covered in this chapter are as follows:
3.1 Processor ...................................................................................7
3.2 L2 Cache ...................................................................................7
3.3 Main Memory............................................................................7
3.4 BIOS..........................................................................................9
3.5 I/O Port Address Map................................................................9
3.6 DMA Channels........................................................................10
3.7 Interrupt Request (IRQ) Lines.................................................10
3.8 Onboard PCI-IDE....................................................................10
3.9 Onboard Multi-I/O ..................................................................11
3.10 Onboard AGP Slot.................................................................11
3.11 Hardware Monitoring IC ........................................................11
3.12 Onboard Audio......................................................................11

Chapter 3 Hardware Description
6 TI7NBA Socket 370 ATX Motherboard User’s Manual

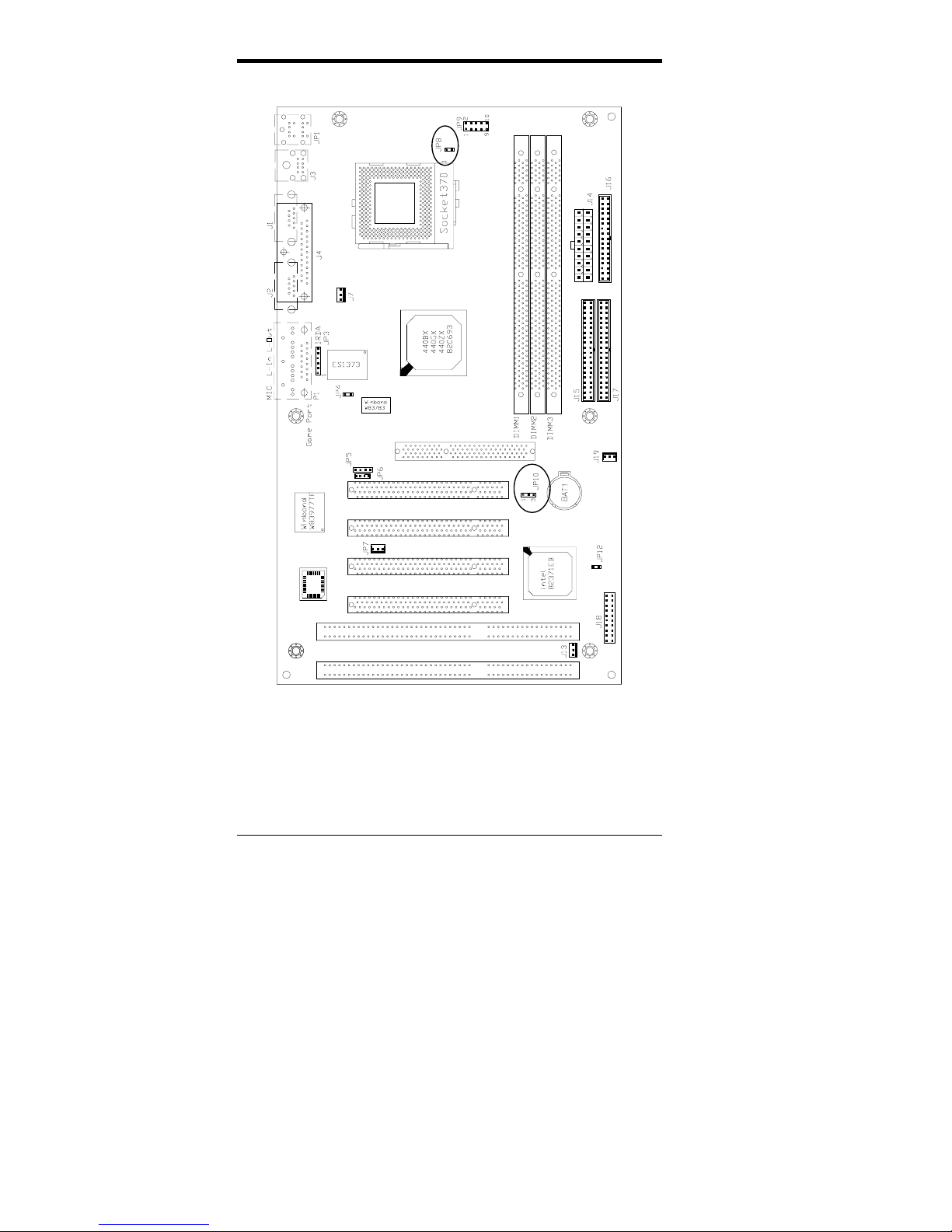

Figure 1: Layout of the TI7NBA Motherboard

Chapter 3 Hardware Description
TI7NBA Socket 370 ATX Motherboard User’s Manual 7
3.1 Processor
The TI7NBA motherboard is designed to take an Intel
Celeron/Mendocino processors running 333~533MHz at 66MHz CPU
bus speed or 300/350/400/600MHz at 100MHz CPU host frequency with
its Socket 370 processor connector.
3.2 L2 Cache
The L2 cache is integrated in the Pentium II processor. The private L2
cache bus is not connected to package pins; rather its signals are routed
between the two cavities using standard package techniques.
3.3 Main Memory
The TI7NBA motherboard supports three 168-pin DIMM (Dual In-line
Memory Module) sockets to form a memory configuration from 8MB to
384MB. DIMM modulescan be 8MB, 16MB, 32MB, 64MB and 128MB
in SDRAM DRAM. In populating the DIMM sockets, DIMM1, DIMM2
and DIMM3 bank can be populated first. Refer to the following table on
how to configure the memory.
NOTE: Use SDRAM modules with PC100 specification when running
100MHz CPU bus speed. With 66MHz CPU bus speed, SDRAM modules
with PC66 or PC100 specification can be used.
168-pin DIMM (3.3V) Unbuffer SDRAM
(DIMM3) (DIMM2) (DIMM1) Total Memory
8MB ----- ----- 8MB
16MB ----- ----- 16MB
32MB ----- ----- 32MB
64MB ----- ----- 64MB
128MB ----- ----- 128MB
8MB 8MB ----- 16MB
16MB 8MB ----- 24MB
32MB 8MB ----- 40MB
64MB 8MB ----- 72MB
128MB 8MB ----- 136MB
8MB 8MB 8MB 24MB
16MB 8MB 8MB 32MB
32MB 8MB 8MB 48MB
64MB 8MB 8MB 80MB
128MB 8MB 8MB 144MB
16MB 16MB ----- 32MB
32MB 16MB ----- 48MB

Chapter 3 Hardware Description
8 TI7NBA Socket 370 ATX Motherboard User’s Manual
(DIMM3) (DIMM2) (DIMM1) Total Memory
64MB 16MB ----- 80MB
128MB 16MB ----- 144MB
16MB 16MB 8MB 40MB
32MB 16MB 8MB 56MB
64MB 16MB 8MB 88MB
128MB 16MB 8MB 152MB
16MB 16MB 16MB 48MB
32MB 16MB 16MB 64MB
64MB 16MB 16MB 96MB
128MB 16MB 16MB 160MB
32MB 32MB ----- 64MB
64MB 32MB ----- 96MB
128MB 32MB ----- 160MB
32MB 32MB 8MB 72MB
64MB 32MB 8MB 104MB
128MB 32MB 8MB 168MB
32MB 32MB 16MB 80MB
64MB 32MB 16MB 112MB
128MB 32MB 16MB 176MB
32MB 32MB 32MB 96MB
64MB 32MB 32MB 128MB
128MB 32MB 32MB 192MB
64MB 64MB ----- 128MB
128MB 64MB ----- 192MB
64MB 64MB 8MB 136MB
128MB 64MB 8MB 200MB
64MB 64MB 16MB 144MB
128MB 64MB 16MB 208MB
64MB 64MB 32MB 160MB
128MB 64MB 32MB 224MB
64MB 64MB 64MB 192MB
128MB 64MB 64MB 256MB
128MB 128MB ----- 320MB
128MB 128MB 8MB 264MB
128MB 128MB 16MB 272MB
128MB 128MB 32MB 288MB
128MB 128MB 64MB 320MB
128MB 128MB 128MB 384MB

Chapter 3 Hardware Description
TI7NBA Socket 370 ATX Motherboard User’s Manual 9
3.4 BIOS
The BIOS on the TI7NBA motherboard provides the standard BIOS
functions plus the following additional features:
1. ISA Plug and Play (PnP) Extension
Unlike PCI cards that are Plug and Play, ISA cards require setting
jumpers to resolve hardware conflicts. To make a computer system
PnP, an ISA PnP standard is established and supported by new
operating systems, such as Windows 95. Under Windows 95, the
motherboard BIOS must have an ISA PnP extension to support new
ISA PnP cards.
2. Power Management
The power management feature provides power savings by slowing
down the CPU clock, turning off the monitor screen and stopping the
HDD spindle motor. The BIOS fully conforms to ACPI (Advanced
Configuration and Power Interface) specification.
3.5 I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses, which also becomes the identity of the device. There is a total
of 1K port address space available. The following table lists the I/O port
addresses used on the motherboard.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock,, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
2F8h - 2FFh Serial Port #2(COM2)
378h - 3FFh Parallel Port #1(LPT1)
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)

Chapter 3 Hardware Description
10 TI7NBA Socket 370 ATX Motherboard User’s Manual
3.6 DMA Channels
There are seven DMA channels available on the motherboard. Only
DMA2 is used by the floppycontroller. In the case that ECP mode on the
parallel port is utilized, DMA1 or DMA3 will be used.
3.7 Interrupt Request (IRQ) Lines
There are a total of 15 IRQ lines available on the motherboard. Peripheral
devices use an interrupt request to notify the CPU for the service
required. The following table shows the IRQ lines used bythe devices on
the motherboard:
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ8 Real Time Clock
IRQ9 Software Redirected to Int 0Ah or PCI Slot Int#
IRQ10 Reserved or PCI Slot Int#
IRQ11 Reserved or PCI Slot Int#
IRQ12 PS/2 Mouse or PCI Slot Int#
IRQ13 Co-Processor
IRQ14 Primary IDE
IRQ15 Secondary IDE
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Parallel Port #2 or PCI Slot Int#
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
3.8 Onboard PCI-IDE
The PCI-IDE controller is a part ofthe 82440BX or VIA 82C693 chipset.
It supports PIO mode 3/4 and bus mastering Ultra DMA/33. The peak
transfer rate of PIO mode 3/4 can be as high as 17MB/sec. Using HDDs
that support Ultra DMA/33, the peak transfer rate can reach 33MB/sec.
There are two IDE connectors - primary IDE and secondary IDE. With
two devices per connector, up to four IDE devices can be supported.

Chapter 3 Hardware Description
TI7NBA Socket 370 ATX Motherboard User’s Manual 11
3.9 Onboard Multi-I/O
The onboard multi-I/O chip, W83977TF, supports a keyboard controller
(AMIcopyright), two serial ports, one parallel port, one floppycontroller
and one IrDA port. The serial ports are 16550 UART compatible. The
parallel port features high-speed EPP/ECP mode. The floppy controller
supports up to 2.88MB format.
3.10 Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
platform bus specification that enables 3D graphics capabilities including
support for z-buffering, alpha blending and faster texture mapping.
3.11 Hardware Monitoring IC
The TI7NBA comes with the Winbond W83783 hardware monitoring
IC. It monitors several hardware parameters including power supply
voltages, fan speeds, and temperatures, which are very important for a
high-end computer system to work stable and properly.
3.12 Onboard Audio
The onboard audio consists ofthe Creative ES1373 Chip + AC97. With a
PCI Bus Mastering interface with DOS compatibility, it supports 32
voices wavetable, surround sound, 3D audio, and audio effects such as
reverb and chorus. Creative ES1373 uses single, shareable PCI interrupt
and is PC97/PC98 compliant. The onboard audio shares the same
interrupt with PCI2 slot, INTB#.

Chapter 3 Hardware Description
12 TI7NBA Socket 370 ATX Motherboard User’s Manual
This page was intentionally left blank.

Chapter 4 Configuring the Motherboard
TI7NBA Socket 370 ATX Motherboard User’s Manual 13
Chapter 4 Configuring the Motherboard
The following sections describe the necessary procedures and proper
jumper settings to configure the TI7NBA motherboard. For the locations
of the jumpers, refer to Figure 2.
4.1 CPU Frequency/Speed Setting ................................................15
4.2 Clear CMOS Select: JP10 .......................................................15
4.3 Bus Speed Select: JP8 .............................................................16
The following examples show the conventions used in this chapter.
Jumper Open
Jumper Closed/Short

Chapter 4 Configuring the Motherboard
14 TI7NBA Socket 370 ATX Motherboard User’s Manual
Figure 2: Jumper Location on the TI7NBA
