TMC TI6NL User manual
TI6NL
Pentium II 440LX ATX Motherboard
User's Manual
Version 2.0A
Contents
TI6NL User’s Manual i
Contents
Chapter 1 Introduction....................................................1
Chapter 2 Specifications..................................................2
Chapter 3 Hardware Description ...................................4
3.1 Processor...................................................................................6
3.2 L2 Cache ...................................................................................6
3.3 Main Memory............................................................................6
3.4 BIOS..........................................................................................9
3.5 Onboard AGP Slot.....................................................................9
3.6 Optional Winbond W83781D Hardware Monitoring IC...........9
3.7 Onboard Multi-I/O ..................................................................10
3.8 Interrupt Request (IRQ) Lines.................................................10
3.9 Onboard PCI-IDE....................................................................11
3.10 DMA Channels......................................................................11
3.11 I/O Port Address Map............................................................11
Chapter 4 Configuring the Motherboard ....................12
4.1 CPU Frequency Select: SW1(1-8)...........................................14
4.2 Clear CMOS Select: JP7 .........................................................14
Chapter 5 Installation....................................................15
5.1 I/O Connectors ........................................................................17
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.....................17
5.3 J2, J3: Serial Ports...................................................................18
5.4 J5: Parallel Port Connector......................................................18
5.5 J4: USB Connector..................................................................19
5.6 J6: Floppy Drive Connector ....................................................19
5.7 J9: ATX Power Supply Connector..........................................20
5.8 J10: IrDA Connector...............................................................20
5.9 J16: CPU Fan Power Connector..............................................20
5.10 J18, J17: EIDE Connectors ...................................................21
5.11 J19: Chassis Fan Power Connector........................................23
5.12 J20: Front Bezel Connectors .................................................23
5.13 JP2: Wake on LAN Connector..............................................25
5.14 JP5: CPU Voltage Testing Connector...................................25
5.15 JP6: SB-Link Connector........................................................26
Contents
ii TI6NL User’s Manual
Chapter 6 BIOS Configuration.....................................27
6.1 BIOS Introduction ...................................................................30
6.2 BIOS Setup..............................................................................30
6.3 Standard CMOS Setup.............................................................32
6.4 BIOS Features Setup................................................................35
6.5 Chipset Features Setup.............................................................38
6.6 Power Management Setup .......................................................41
6.7 PNP/PCI Configuration...........................................................44
6.8 Load BIOS Defaults ................................................................46
6.9 Load Setup Defaults.................................................................46
6.10 Integrated Peripherals............................................................47
6.11 Supervisor / User Password...................................................49
6.12 IDE HDD Auto Detection......................................................50
6.13 HDD Low Level Format........................................................50
6.14 Save & Exit Setup..................................................................51
6.15 Exit Without Saving...............................................................51
Chapter 7 LANDesk User’s Guide ...............................52
7.1 Introduction .............................................................................53
7.2 Installation...............................................................................54
Appendix..........................................................................59
A. Slot 1 Retention Mechanism......................................................59
Chapter 1 Introduction
TI6NL User’s Manual 1
Chapter 1 Introduction
This manual is designed to give you information on the TI6NL
motherboard. It is divided into the following sections:
•
••
•
Introduction
•
••
•
Specifications
•
••
•
Hardware Description
•
••
•
Configuring the Motherboard
•
••
•
Installation
•
••
•
BIOS Configuration
•
••
•
LANDesk User’s Guide
Checklist
Please check that your package is complete and contains the items below.
If you discover damaged or missing items, please contact your dealer.
The TI6NL Motherboard
1 IDE ribbon cable
1 floppy ribbon cable
1 CD containing Intel LANDesk or System Monitor software,
PIIX4 Bus Master IDE driver and utilities, or 1 diskette
containing PIIX4 Bus Master IDE driver and flash utility. Your
package comes with Intel’s LANDesk or System Monitor
software if your motherboard supports the onboard hardware
monitoring IC.
Chapter 2 Specifications
2 TI6NL User’s Manual
Chapter 2 Specifications
The TI6NL is a high-performance ATX 440LX motherboard with a Slot
1 connector for PentiumII processors. It offers flexibility in terms of
CPU frequencyand main memory type and size. The main features of the
motherboard consist of the following:
CPU Socket
Slot 1
Processor
Intel Pentium II 233/266/300/333MHz
L2 Cache
CPU integrated L2 cache
Main Memory
Four 168-pin DIMM sockets
Memory types: Extended Data Output (EDO) DRAM, SDRAM
(Synchronous DRAM)
Memory size: 8MB, 16MB, 32MB, 64MB, 128MB
Chipset
Intel 82440LX with built-in PCI-IDE
Super I/O
Onboard super I/O is an Winbond W83977TF that provides:
z
Two 16550 UART compatible serial ports
z
One parallel port (ECP/EPP compatible)
z
One floppy controller (2.88MB compatible)
z
One IrDA port
z
Keyboard Controller
PCI Bus Master IDE Controller (Ultra DMA/33)
Onboard PCI Bus Master IDE (Ultra DMA/33) controller with two
connectors for up to four IDE devices in two channels, supporting
faster data transfer rates, enhanced IDE devices such as Tape Backup
and CD-ROM drives, PIO Mode 3/4 and Bus Mastering Ultra
DMA/33 (You have to install the Bus Master IDE driver to enable this
feature.)
Chapter 2 Specifications
TI6NL User’s Manual 3
BIOS
Award BIOS with ISA Plug and Play (PnP) extension, DMI, bootable
CD-ROM and power-management features
Mouse Connector
PS/2 type
Keyboard Connector
PS/2 type
USB Connector
2 ports onboard
Win95-shut-off
Allows shut-off control from within Windows 95
Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
platform bus specification that enables 3D graphics capabilities
including support for z-buffering, alpha blending and faster texture
mapping.
Expansion Slots
Five PCI 32-bit slots
Two ISA 16-bit slots
One AGP slot
Form Factor
ATX, 12” x 6.9” (30.5cm x 17.5cm)
Chapter 3 Hardware Description
4 TI6NL User’s Manual
Chapter 3 Hardware Description
This chapter briefly describes each of the major features of the TI6NL
motherboard. The layout of the board in Figure 1 shows the location of
the key components. The topics covered in this chapter are as follows:
3.1 Processor....................................................................................6
3.2 L2 Cache....................................................................................6
3.3 Main Memory............................................................................6
3.4 BIOS..........................................................................................9
3.5 Onboard AGP Slot.....................................................................9
3.6 Optional Winbond W83781D Hardware Monitoring IC...........9
3.7 Onboard Multi-I/O...................................................................10
3.8 Interrupt Request (IRQ) Lines.................................................10
3.9 Onboard PCI-IDE....................................................................11
3.10 DMA Channels......................................................................11
3.11 I/O Port Address Map............................................................11
Chapter 3 Hardware Description
TI6NL User’s Manual 5

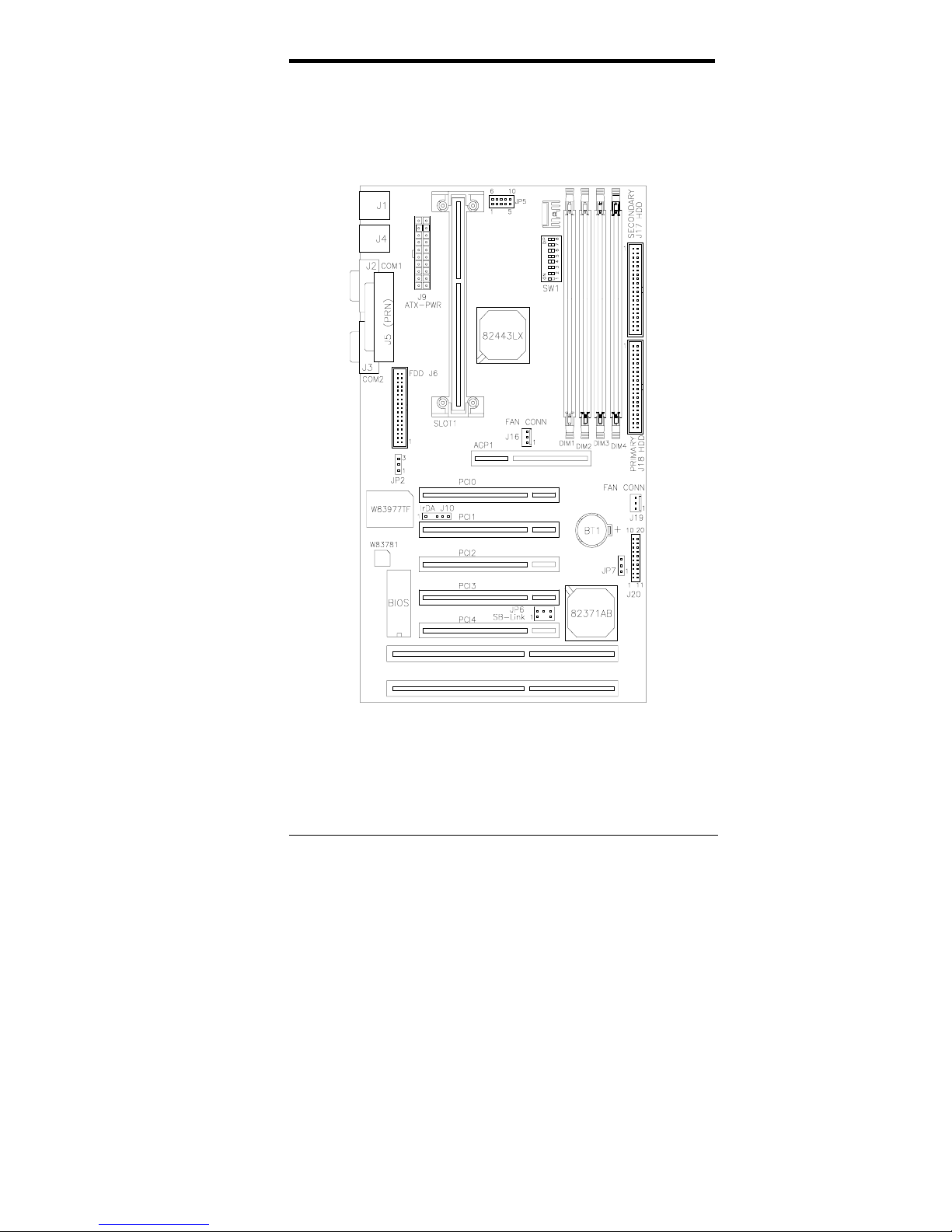

Figure 1: Layout of the TI6NL Motherboard
Chapter 3 Hardware Description
6TI6NL User’s Manual
3.1 Processor
The TI6NL motherboard is designed to take a Pentium II processor
running 233MHz/266MHz/300MHz/333MHz with its Slot 1 processor
connector.
3.2 L2 Cache
The L2 cache is integrated in the Pentium II processor.
3.3 Main Memory
The TI6NL motherboard supports four 168-pin DIMM (Dual In-line
Memory Module) sockets to form a memory configuration from 8MB to
512MB. DIMM modules canbe 8MB, 16MB, 32MB, 64MB and 128MB
in SDRAM or EDO DRAM. In populating the DIMM sockets, DIMM1,
DIMM2, DIMM3 and DIMM4 bank can be populated first. Refer to the
following table on how to configure the memory.
168-pin DIMM (3.3V)：
：：
：SDRAM or EDO DRAM
Bank0
(DIMM4) Bank1
(DIMM3) Bank2
(DIMM2) Bank3
(DIMM1) Total Memory
8MB ----- ----- ----- 8MB
16MB ----- ----- ----- 16MB
32MB ----- ----- ----- 32MB
64MB ----- ----- ----- 64MB
128MB ----- ----- ----- 128MB
8MB 8MB ----- ----- 16MB
16MB 8MB ----- ----- 24MB
32MB 8MB ----- ----- 40MB
64MB 8MB ----- ----- 72MB
128MB 8MB ----- ----- 136MB
8MB 8MB 8MB ----- 24MB
8MB 8MB 8MB ----- 24MB
16MB 8MB 8MB ----- 32MB
32MB 8MB 8MB ----- 48MB
64MB 8MB 8MB ----- 80MB
128MB 8MB 8MB ----- 144MB
8MB 8MB 8MB 8MB 32MB
16MB 8MB 8MB 8MB 40MB
32MB 8MB 8MB 8MB 56MB
64MB 8MB 8MB 8MB 88MB
128MB 8MB 8MB 8MB 152MB
Chapter 3 Hardware Description
TI6NL User’s Manual 7
168-pin DIMM (3.3V) SDRAM or EDO DRAM (continued)
Bank0
(DIMM4) Bank1
(DIMM3) Bank2
(DIMM2) Bank3
(DIMM1) Total Memory
16MB 16MB ----- ----- 32MB
32MB 16MB ----- ----- 48MB
64MB 16MB ----- ----- 80MB
128MB 16MB ----- ----- 144MB
16MB 16MB 8MB ----- 40MB
32MB 16MB 8MB ----- 56MB
64MB 16MB 8MB ----- 88MB
128MB 16MB 8MB ----- 152MB
16MB 16MB 8MB 8MB 48MB
32MB 16MB 8MB 8MB 64MB
64MB 16MB 8MB 8MB 96MB
128MB 16MB 8MB 8MB 160MB
16MB 16MB 16MB ----- 48MB
32MB 16MB 16MB ----- 64MB
64MB 16MB 16MB ----- 96MB
128MB 16MB 16MB ----- 160MB
16MB 16MB 16MB 8MB 56MB
32MB 16MB 16MB 8MB 72MB
64MB 16MB 16MB 8MB 104MB
128MB 16MB 16MB 8MB 168MB
16MB 16MB 16MB 16MB 64MB
32MB 16MB 16MB 16MB 80MB
64MB 16MB 16MB 16MB 112MB
128MB 16MB 16MB 16MB 176MB
32MB 32MB ----- ----- 64MB
64MB 32MB ----- ----- 96MB
64MB 32MB ----- ----- 96MB
128MB 32MB ----- ----- 160MB
32MB 32MB 8MB ----- 72MB
64MB 32MB 8MB ----- 104MB
128MB 32MB 8MB ----- 168MB
32MB 32MB 8MB 8MB 80MB
64MB 32MB 8MB 8MB 112MB
128MB 32MB 8MB 8MB 176MB
32MB 32MB 16MB ----- 80MB
64MB 32MB 16MB ----- 112MB
128MB 32MB 16MB ----- 176MB
Chapter 3 Hardware Description
8TI6NL User’s Manual
168-pin DIMM (3.3V) SDRAM or EDO DRAM (continued)
Bank0
(DIMM4) Bank1
(DIMM3) Bank2
(DIMM2) Bank3
(DIMM1) Total Memory
32MB 32MB 16MB 16MB 96MB
64MB 32MB 16MB 16MB 128MB
128MB 32MB 16MB 16MB 192MB
32MB 32MB 32MB ----- 96MB
64MB 32MB 32MB ----- 128MB
128MB 32MB 32MB ----- 192MB
32MB 32MB 32MB 32MB 128MB
64MB 32MB 32MB 32MB 160MB
128MB 32MB 32MB 32MB 224MB
64MB 64MB ----- ----- 128MB
128MB 64MB ----- ----- 192MB
64MB 64MB 8MB ----- 136MB
128MB 64MB 8MB ----- 200MB
64MB 64MB 8MB 8MB 144MB
128MB 64MB 8MB 8MB 208MB
64MB 64MB 16MB ----- 144MB
128MB 64MB 16MB ----- 208MB
64MB 64MB 16MB 16MB 160MB
128MB 64MB 16MB 16MB 224MB
64MB 64MB 32MB ----- 160MB
128MB 64MB 32MB ----- 224MB
64MB 64MB 32MB 32MB 192MB
128MB 64MB 32MB 32MB 256MB
64MB 64MB 64MB ----- 192MB
128MB 64MB 64MB ----- 256MB
64MB 64MB 64MB 64MB 256MB
128MB 64MB 64MB 64MB 320MB
128MB 128MB 128MB ----- 384MB
128MB 128MB 128MB 128MB 512MB
Chapter 3 Hardware Description
TI6NL User’s Manual 9
3.4 BIOS
The BIOS on the TI6NL motherboard provides the standard BIOS
functions plus the following additional features:
1. ISA Plug and Play (PnP) Extension
Unlike PCI cards that are Plug and Play, ISA cards require setting
jumpers to resolve hardware conflicts. To make a computer system
PnP, an ISA PnP standard is established and supported by new
operating systems, such as Windows 95. Under Windows 95, the
motherboard BIOS must have an ISA PnP extension to support new
ISA PnP cards.
2. Power Management
The power management feature provides power savings by slowing
down the CPU clock, turning off the monitor screen and stopping the
HDD spindle motor. The BIOS fully conforms to ACPI (Advanced
Configuration and Power Interface) specification.
3.5 Onboard AGP Slot
The AGP (Accelerated Graphics Port) slot supports AGP compliant
VGA cards to achieve rich 3D and video graphics display. AGP is a
platform bus specification that enables 3D graphics capabilities including
support for z-buffering, alpha blending and faster texture mapping.
3.6 Optional Winbond W83781D Hardware Monitoring IC
The W83781D is a hardware status monitoring IC that is used to monitor
several hardware parameters including power supply voltages, fan
speeds, and temperatures, which are very important for a high-end
computer systemto work stable and properly. The 48-pin LQFP-package
IC is fully software compatible with Intel LDCM.
Chapter 3 Hardware Description
10 TI6NL User’s Manual
3.7 Onboard Multi-I/O
The onboard multi-I/O chip, W83977TF, supports a keyboard controller
(AMIcopyright), two serial ports, one parallel port, one floppy controller
and one IrDA port. The serial ports are 16550 UART compatible. The
parallel port features high-speed EPP/ECP mode. The floppy controller
supports up to 2.88 MB format.
3.8 Interrupt Request (IRQ) Lines
There is a total of 15 IRQ lines available on the motherboard. Peripheral
devices use an interrupt request to notify the CPU for the service
required. The following table shows the IRQ lines used bythe devices on
the motherboard:
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ8 Real Time Clock
IRQ9 Software Redirected to Int 0Ah
IRQ10 Reserved
IRQ11 Reserved
IRQ12 Reserved
IRQ13 Co-Processor
IRQ14 Primary IDE
IRQ15 Secondary IDE
IRQ3 INTERRUPT
IRQ4 Serial Port #1
IRQ5 INTERRUPT
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
Chapter 3 Hardware Description
TI6NL User’s Manual 11
3.9 Onboard PCI-IDE
The PCI-IDE controller is a part of the 82440LX PCIset. It supports PIO
mode 3/4 and bus mastering Ultra DMA/33. The peak transfer rate of
PIO mode 3/4 can be as high as 17MB/sec. Using HDDs that support
Ultra DMA/33, the peak transfer rate can reach 33MB/sec. There are two
IDE connectors - primary IDE and secondary IDE. With two devices per
connector, up to four IDE devices can be supported.
3.10 DMA Channels
There are seven DMA channels available on the motherboard. Only
DMA2 is used by the floppycontroller. In the case that ECP mode on the
parallel port is utilized, DMA1 or DMA3 will be used.
3.11 I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. There is a total
of 1K port address space available. The following table lists the I/O port
addresses used on the motherboard.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock,, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
2F8h - 2FFh Serial Port #2(COM2)
378h - 3FFh Parallel Port #1(LPT1)
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)
Chapter 4 Configuring the Motherboard
12 TI6NL User’s Manual
Chapter 4 Configuring the Motherboard
The following sections describe the necessary procedures and proper
jumper settings toconfigure the TI6NL motherboard. For the locations of
the jumpers, refer to Figure 2.
4.1 CPU Frequency Select: SW1(1-8)...........................................14
4.2 Clear CMOS Select: JP7..........................................................14
The following examples show the conventions used in this chapter.
Jumper Open
Jumper Closed/Short
Switch 1 and switch 2 are set to OFF.
Switch 3 and switch 4 are set to ON.
1 2 3 4
DIP
ON
Chapter 4 Configuring the Motherboard
TI6NL User’s Manual 13
Figure 2: Jumper Location on the TI6NL
Chapter 4 Configuring the Motherboard
14 TI6NL User’s Manual
4.1 CPU Frequency Select: SW1(1-8)
Refer to the following table for the correct setting to match the CPU
frequency.
Pentium II
CPU FREQ. SW1(1-8) Switch Settings
Pentium II
233MHz
1 2 3 4 5 6 7 8
off off off off on off off on
Pentium II
266MHz
1 2 3 4 5 6 7 8
off off off off off on on on
Pentium II
300MHz
1 2 3 4 5 6 7 8
off off off off off on off on
Pentium II
333MHz
1 2 3 4 5 6 7 8
off off off off off off on on
4.2 Clear CMOS Select: JP7
Use JP7, a 3-pin header, to clear the contents of the CMOS RAM.
Do not clear the CMOS RAM unless it is absolutelynecessary. You
will lose your password, etc.
JP7 Jumper Setting Function
1 2 3
pin 1-2: short Normal
1 2 3 pin 2-3: short Clear CMOS
NOTE: To clear CMOS, the ATX-power connector should be
disconnected from the motherboard.
Chapter 5 Installation
TI6NL User’s Manual 15
Chapter 5 Installation
This chapter describes the interface that the TI6NL provides for creating
a working system. Refer to Figure 3 for the location of the connectors.
The following items are covered in this chapter:
5.1 I/O Connectors ........................................................................17
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.....................17
5.3 J2, J3: Serial Ports...................................................................18
5.4 J5: Parallel Port Connector......................................................18
5.5 J4: USB Connector..................................................................19
5.6 J6: Floppy Drive Connector ....................................................19
5.7 J9: ATX Power Supply Connector..........................................20
5.8 J10: IrDA Connector...............................................................20
5.9 J16: CPU Fan Power Connector..............................................20
5.10 J18, J17: EIDE Connectors ...................................................21
5.11 J19: Chassis Fan Power Connector........................................23
5.12 J20: Front Bezel Connectors .................................................23
Speaker: Pins 1 - 4
Power LED and Keylock: Pins 11 - 15
ATX Power ON Switch: Pins 7 and 17
Turbo LED Connector: Pins 8 and 18
Reset Switch: Pins 9 and 19
Hard Disk Drive LED Connector: Pins 10 and 20
5.13 JP2: Wake on LAN Connector..............................................25
5.14 JP5: CPU Voltage Testing Connector...................................25
5.15 JP6: SB-Link Connector........................................................26
Chapter 5 Installation
16 TI6NL User’s Manual

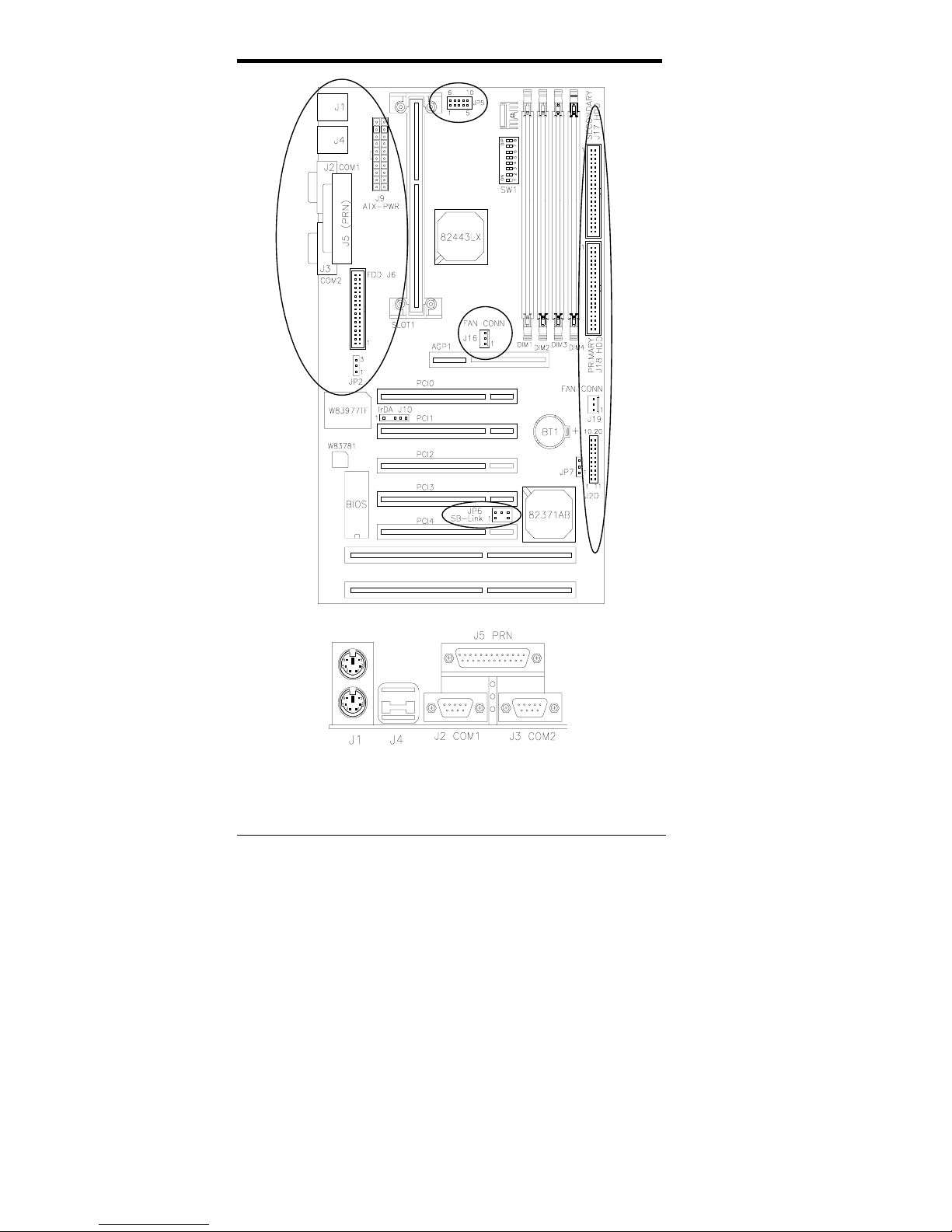

Figure 3: Connector Location on the TI6NL
Table of contents
Other TMC Motherboard manuals
