Toa N-SP80 Series User manual

INSTRUCTION MANUAL
SIP VIDEO INTERCOM
Thank you for purchasing TOA’s SIP Video Intercom.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
SIP MULTIMEDIA STATION
SIP VIDEO DOOR STATION
SIP AUDIO DOOR STATION
4 SIZE BACK BOX
N-SP80MS1
N-SP80VS1
N-SP80AS1
YC-400
N-SP80 Series
N-SP80MS1
N-SP80VS1 N-SP80AS1

2
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................. 4
2. GENERAL DESCRIPTION .......................................................................... 4
4. HANDLING PRECAUTIONS ...................................................................... 5
5. USAGE MODE .................................................................................................... 6
5.1. SIP Server Mode ................................................................................................... 6
5.2. Peer-to-Peer Mode ............................................................................................... 6
6. NOMENCLATURE AND FUNCTIONS ................................................. 7
6.1. N-SP80MS1 ........................................................................................................... 7
Front ...................................................................................................................... 7
Rear ...................................................................................................................... 8
Right side .............................................................................................................. 8
6.2. N-SP80VS1, N-SP80AS1 ...................................................................................... 9
Front ...................................................................................................................... 9
Rear ...................................................................................................................... 9
7. LIST OF SYSTEM FUNCTIONS ............................................................. 10
7.1. Basic Functions ................................................................................................... 10
8. SUMMARY OF THE PAGING FUNCTION ...................................... 12
8.1. Paging Configuration ........................................................................................... 12
8.2. Priority Setting of Paging and Conversation ....................................................... 12
9. MULTIMEDIA STATION'S FUNCTIONS AND OPERATIONS ... 13
9.1. Basic Usage ........................................................................................................ 13
9.2. Conversation's Functions and Operations .......................................................... 15
9.3. Paging Call Operation ......................................................................................... 23
9.4. Other Functions and Operations ......................................................................... 24
10. DOOR STATION'S FUNCTIONS AND OPERATIONS .......... 27
10.1 Functions for Conversations and Operations ..................................................... 27
10.2. Paging Function ................................................................................................ 27
10.3. Other Functions and Operations ....................................................................... 28
11. INSTALLATION ............................................................................................. 29
11.1. Safety Precautions for The Multimedia Station .................................................. 29
11.2 Installation of Door Station ................................................................................. 30
12. CONNECTION ................................................................................................ 31
12.1. N-SP80MS1 ....................................................................................................... 31
12.2. N-SP80VS1, N-SP80AS1 .................................................................................. 33
13. SYSTEM SETTING USING A WEB BROWSER ....................... 35
13.1. Before Performing System Setting .................................................................... 35
13.2. Confirming the IP Address of Each Device ....................................................... 35
13.3. N-SP80MS1 Setting .......................................................................................... 36
13.4. N-SP80VS1 and N-SP80AS1 Settings .............................................................. 55

3
14. TROUBLE SHOOTING .............................................................................. 72
15. SPECIFICATION ............................................................................................ 73
15.1. N-SP80MS1 SIP Multimedia Station ............................................................... 73
15.2. N-SP80VS1 SIP Video Door Station ............................................................... 74
15.3. N-SP80AS1 SIP Audio Door Station ............................................................... 75
15.4. YC-400 4 Size Back Box ................................................................................. 76

4
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual rst and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
• Use the specied AC adapter and PoE switching hub for the unit. Note that the use of another adapter and
PoE switching hub may cause a re. (N-SP80MS1 only)
• Avoid touching the unit’s sharp metal edge to prevent injury. (N-SP80VS1, N-SP80AS1, and YC-400)
• Use the 12 V DC power supply and PoE switching hub for the unit. Note that the use of another adapter and
PoE switching hub may cause a re. (N-SP80VS1 and N-SP80AS1 only)
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
2. GENERAL DESCRIPTION
The N-SP80 series intercom system is designed for use in combination with the SIP (Session Initiation Protocol)
Intercom system.
This system consists of the Android based touch panel multimedia stations and the door stations. The door
station is available in 2 models: the one with camera and the one without camera.
The system can be used not only in SIP server mode but also in peer-to-peer mode: the former enables the
system to work by connecting to the SIP server and the latter enables it to work without using the SIP server.
In this manual, the N-SP80MS1 is described as the multimedia station, and the N-SP80VS1 and the N-SP80AS1
are collectively described as the door station.
Note: Android is a trademark of Google LLC.
CAUTION

5
3. FEATURES
• Fully compliant with SIP.
• Connected to the network via Ethernet.
• The door station with camera is compatible with ONVIF.
• Supports 2 ways of connection: Connection to the SIP server using SIP and peer-to-peer connection.
• Supports the following audio codecs: G.711, G.722, and G.729.
(Audio codec is xed to G.722 when in peer-to-peer connection.)
• Can be powered by means of PoE or from the DC power supply unit.
• The camera incorporated in the door station with camera has 3 mega pixels, featuring the built-in infrared light
that allows images to be taken at night.
• The built-in acoustic echo canceller ensures full duplex conversation for the door stations.
• The door stations are equipped with a relay output function. Relay control can be performed from a multimedia
station or other SIP telephones.
• The door stations are equipped with an external control input function. Different types of calling can be made
when an external control switch is connected.
• The multimedia station is easy to operate on the screen thanks to a touch panel and GUI (Graphical User
Interface) design, and in addition, usable as a telephone by intuitive dial operation with a ten-key pad.
• The multimedia station is selectable one of 3 conversation methods: handset conversation, hands-free
conversation, and headset conversation.
• Compatibility with CUCM obtained by Cisco systems.
• Easy conversations between stations even under high noise environment.
Note: Cisco Systems is a registered trademark of Cisco Systems, Inc. in the United States and certain other
countries.
4. HANDLING PRECAUTIONS
The transmission quality of the internet is not always guaranteed.
Therefore, when this system is connected via the internet, the following symptoms may happen when the
network is congested.
• Packet loss
• Interruption of speech voice
• Generation of noise

6
5. USAGE MODE
5.1. SIP Server Mode
Each equipment of this system is in full conformity with SIP and can be used in connection to the SIP server
(Telephone system). The SIP server mode refers to the system when connecting to the SIP server. The
connection to CUCM by Cisco Systems and Asterisk by Digium is conrmed for the N-SP80 series. Since the
supporting version and the SIP server need to be updated, check for the latest information on the TOA product
data download site (https://www.toa-products.com/international/).
Note: Asterisk is a trademark of Digium, Inc.
[Features of SIP server mode communication]
• Audio signals are directly communicated between stations.
(They may be communicated via the server.)
• The maximum number of the stations to be connected
depends on the SIP server's specication.
• Communications are centrally controlled by the server.
• Transfer function can be used depending on the SIP server's
specication.
• Connection to the outside line is possible depending on the
SIP server's specication.
[SIP server mode]
SIP server
5.2. Peer-to-Peer Mode
The devices of this system can be directly connected with each other without using the SIP server. Peer-to-Peer
mode refers to the system or the state where the stations are directly connected with each other without using
a SIP server.
[Features of Peer-to-peer mode communication]
• Multiple one-to-one communications can be made
simultaneously, enabling the number of the connectable
stations within the system to be unlimited.
• SIP server is not used, allowing suppression of introduction
costs.
• A 3 party conversation can be made.
• Audio codec is xed to G.722.
[Peer-to-peer mode]

7
1. Power ON/OFF button
Press this button to turn on the power and pressing
it again will place the unit in sleep state.
Holding it down for 1 second or more allows the
selection of either restarting the unit or setting the
manner mode.
2. Indicators
Indicate the following operation states.
: Indicates the unit’s power ON or OFF state.
The unit is operating when the indicator is
lit, and not operating when it is unlit.
: Indicates the network connection state.
Connection to a LAN is established when
the indicator is lit, and not established
when it is unlit.
: Indicates the absence incoming call/
unread message state.
The absence incoming call or unread
messages are present when the indicator
is ashing, and not present when it is unlit.
3. Camera
A built-in camera with 2 mega pixels.
Used when making conversation between multimedia
stations.
4. Handset
Used for handset conversation.
5. Touch panel
A 7" touch panel screen.
6. Home button
Returns the display to the home screen.
7. Menu button
Indicates the setting items on the screen.
8. Back button
Returns the display to the last screen you viewed,
or the home screen.
9. Speaker button
Press this button to start hands-free conversation.
10. Sleep button
Press this button to place the unit in sleep state.
Holding it down for 1 second or more allows the
selection of either restarting the unit or setting the
manner mode.
11. Volume control button
Adjusts the volume level of the built-in speaker.
12. Numerical keypad
Used to enter the numbers.
13. Delete button
Deletes one by one the dial numbers entered
when making a call or the characters entered
when registering.
14. Message button
Press this button to read or write the short message.
(Only when in the SIP server mode)
6. NOMENCLATURE AND FUNCTIONS
6.1. N-SP80MS1
• Desktop design
• Handset, Hands-free (with AEC function), Headset connectable
• Built-in touch panel
• PoE-compatible (IEEE802.3af compliant)
• Built-in camera
[Front]
1
2
3
45
6
7
8
9
10 11 12
13
14
15
16
17
18
19
20

8
15. Conference button
Starts the three-party conversation function.
16. Transfer button
Starts the transfer function during conversation.
(Only when in the SIP server mode)
17. OK button
Conrms the selection on the screen while in the
touch panel operation.
18. Contact button
Press this button when registering or selecting
the telephone book.
19. Hold button
Starts the hold function during conversation.
20. Mute button
Mutes the hands-free microphone and the
handset microphone.
[Rear] [Right side]
21. LAN connection terminal
Connect the LAN cable to this terminal.
This terminal can be connected to PoE switching
hub.
22. PC connection terminal
Connect a PC to this terminal.
23. DC input terminal
Connect the AC adapter* to this terminal.
* Use the optional AD-1215P or its equivalent.
24. Security slot
Used to connect the security wire such as a theft
preventing wire.
This is a Kensington lock slot.
25. Handset connection terminal
Connect the handset to this terminal.
26. USB connection terminal
Connect a USB device to this terminal.
27. Headset connection terminal
Connect a headset to this terminal.
20 mW, 16 Ω/32 Ω, ø3.5 mm mini jack (3P)
21 22 23
24
25
26
27

9
6.2. N-SP80VS1, N-SP80AS1
• Designed for wall-recessed installation (YC-400 is required.)
• Hands-free (with AEC function) type
• Call button x 1, Relay output x 2, External control input x 2
• PoE compatible (IEEE802.3af compliant)
• Equipped with a camera, luminance sensor, and infrared light (N-SP80VS1 only)
[Front]
1
2
3
4
5
6
7
8
9
10 11 12
1. Speaker
O u t p u t s s p e e c h v o i c e f r o m t h e p a r t n e r s t a t i o n d u r i n g c o n v e r s a t i o n .
2. Camera (N-SP80VS1 only)
A built-in camera with 3 mega pixels.
Used when making conversation with a multimedia station.
3. Call button
Press this button to start conversation.
Pressing this button will call the preset partner station.
4. Operation indicator
Lights or ashes during conversation or during a call from this
door station.
( The indication color and when the indicator lights or ashes can
be changed by the setting.)
5. Microphone
Picks up the speaker’s voice during conversation, which is then
sent to the partner station.
6. Reset button
Press this button to restart the station.
Holding down this button for 5 seconds or more restarts the door
station in the default state. (The settings data will be initialized.)
7. External control inputs 1 and 2
A special calling can be performed by connecting an external
control switch or sensor output to this terminal.
8. Relay 1 connection terminal
The relay output can be controlled by the specic dial code
from the partner station during conversation. Used to unlock the
nearby door. (An appropriate dial code can be set.)
9. Relay 2 connection terminal
Has the same function as the Relay 1 connection terminal (8).
10. DC power input terminal
The door station can be operated by inputting 12 V DC to this
terminal.
11. Ethernet connection terminal
Used when connecting to the network.
12. Ethernet connection terminal (PoE compatible)
Used when connecting to the network.
Power can be supplied when this terminal is connected to the
PoE switching hub.
[Rear]
The gure shows the N-SP80VS1.
The gure shows the N-SP80VS1.

10
Function General description Reference page
Operation Setting
Call Making a call
(Call by direct dialing)
You can make a call by directly pressing the
other party's phone number (or IP address)
using the numerical keypad (or touching
the ten keys on the touch panel).
p. 15
Making a call
(Call from the phone
book)
Call can be made from the phone book
registered in advance. p. 16 p. 49
Receiving a call You can select either "Response only with
audio " or "Response using video" for a call
reception.
p. 17
Rejecting an incoming
call
You can reject an incoming call. p. 18
Call option Operation of such as holding, microphone
muting, and video switching can be made
during conversation.
p. 18
Video option Operation of such as screen resizing, self-
view display, and other party view display
can be made during video conversation.
p. 18 p. 44
Call log You can check call logs and make a call
from the call history, too. p. 19 p. 51
Transfer
(Blind transfer)
A method to transfer a call without
conrming with the transfer destination
party. Can be used when in SIP server
mode.
p. 21
Transfer
(Attended transfer)
A method to transfer a call after conrming
with the transfer destination party in
advance. Can be used when in SIP server
mode.
p. 22
Paging Paging Call You can make a paging call. Paging is
performed using Multicast audio from a
multimedia station.
p. 23
Others 3 party conference Conversation among 3 parties can be
made. Can be used when in SIP server
mode.
p. 24
Connecting to a third-
party VoIP
Can be connected to a third-party VoIP. p. 26
Connection with
outside line
Connection with outside line can be made.
Can be used when in SIP server mode. p. 26
Door remote control The relay output can be controlled by
entering the preset dial code during
conversation with the door station. Can be
used to unlock the nearby door.
p. 26
7. LIST OF SYSTEM FUNCTIONS
7.1. Basic Functions
7.1.1. List of the N-SP80MS1's functions

11
7.1.2. List of the N-SP80VS1's and N-SP80AS1's functions
Function General description Reference page
Operation Setting
Call Making a call You can make a call by pressing the Call
button. p. 27 p. 57
Receiving a call Call reception is automatically responded. p. 27
Cancelling a call and
conversations
Pressing the Call button during a call or
conversation cancels the current operation. p. 27 p. 57
Paging Paging function Paging call is received automatically. Audio
signals are output when the preset multicast
address receives the audio stream.
p. 27 p. 68
Others No answer forward
function
Up to 3 call destinations can be assigned
to the Call button by setting the order. If the
rst called station is absent, then the 2nd
one will be called. When the 2nd one is
also absent, then the 3rd one will be called.
p. 28 p. 57
Time limit Maximum duration of calling time and
conversation time can be set. p. 28 p. 57
Door remote control The relay output built in the door station can
be controlled from the multimedia station.
Can be used to unlock the nearby door.
p. 28 p. 59
Call activation from
an external device
A different call can be made when inputting
signals from the external device to the door
station's external control input.
p. 29 p. 59
Change in various
function sounds
Call transmission sound, call reception
sound, and door remote control sound can
be changed. Can be changed by updating
the sound le.
p. 29 p. 67

12
(N-SP80MS1)
N-SP80VS1(1) N-SP80VS1(2)N-SP80AS1(1)
8. SUMMARY OF THE PAGING FUNCTION
8.1. Paging Configuration
Multicast port opens.
Multicast’s address and port are matched.
Audio signals are output.
(Example)
N-SP80MS1 Transmission address/Port
239.0.0.0:5004
N-SP80VS1 (1) Reception address/Port
239.0.0.0:5010
N-SP80AS1 (1) Reception address/Port
239.0.0.0:5004
N-SP80VS1 (2) Reception address/Port
239.0.0.0:5004
The N-SP80MS1’s audio signals are
output from the N-SP80AS1 (1) and
N-SP80VS1 (2).
Multicast audio stream transmission.
8.2. Priority Setting of Paging and Conversation
Paging call made from the multimedia station can be received through each station's speaker.
The priority level of paging call and conversation can be set for each station. (See p. 68.)

13
1. Status bar
Located at the upper most of the screen and displays the system status information.
2. Accounts
The multimedia station supports 6 accounts. The Account list displays the most recent account statuses.
3. Expanded screen prompt
Displays the location of the current screen page and how many pages the screens are expanded.
4. Shortcuts
Up to 4 shortcuts can be arranged in the dock area. Any number of shortcuts can be arranged in the main
area.
You can replace the arranged shortcut by dragging a new one to any region as shown above.
(2)
(3)
(4)
(1)
Dock area
Main area
9. MULTIMEDIA STATION'S FUNCTIONS AND OPERATIONS
9.1. Basic Usage
Tip
This device runs on Android OS. Perform settings such as clock by clicking the Setting icon.
9.1.1. Main screen

14
9.1.2. Status and notification display
1. Status area
Icon Description
Connection to network has been established.
Connection to network is not established.
Mute mode
Alarm clock setting has been completed.
Connection by PPPoE has been established.
PPPoE connection has failed.
2.Noticationarea
Icon Description
SIP account has been registered.
Unconrmed incoming calls exist.
Note: You can check the number of unconrmed incoming calls by swiping down on the
notication area. (See p. 19.)
Downloading
Uploading
A new mail has been received.
An incoming event are being received.
(2) (1)

15
2 -1
2 -2
Handset
Speaker button
Step 1. Enter the call destination number using the ten keys on the dial screen or the station's ten keys.
Tips
• To delete the number, press on the dial screen or the station's Delete button directly.
The number is deleted one by one.
• Period can be entered by holding down for one second or more.
[When multiple SIP accounts have been registered in SIP server mode]
The accounts can be switched and used.
Touch on the dial screen, then select the account number to be switched to on the displayed
screen.
Step 2. Make a call.
2-1. When making an audio call, touch on the dial screen.
2-2. When making a video call, touch on the dial screen.
9.2. Conversation's Functions and Operations

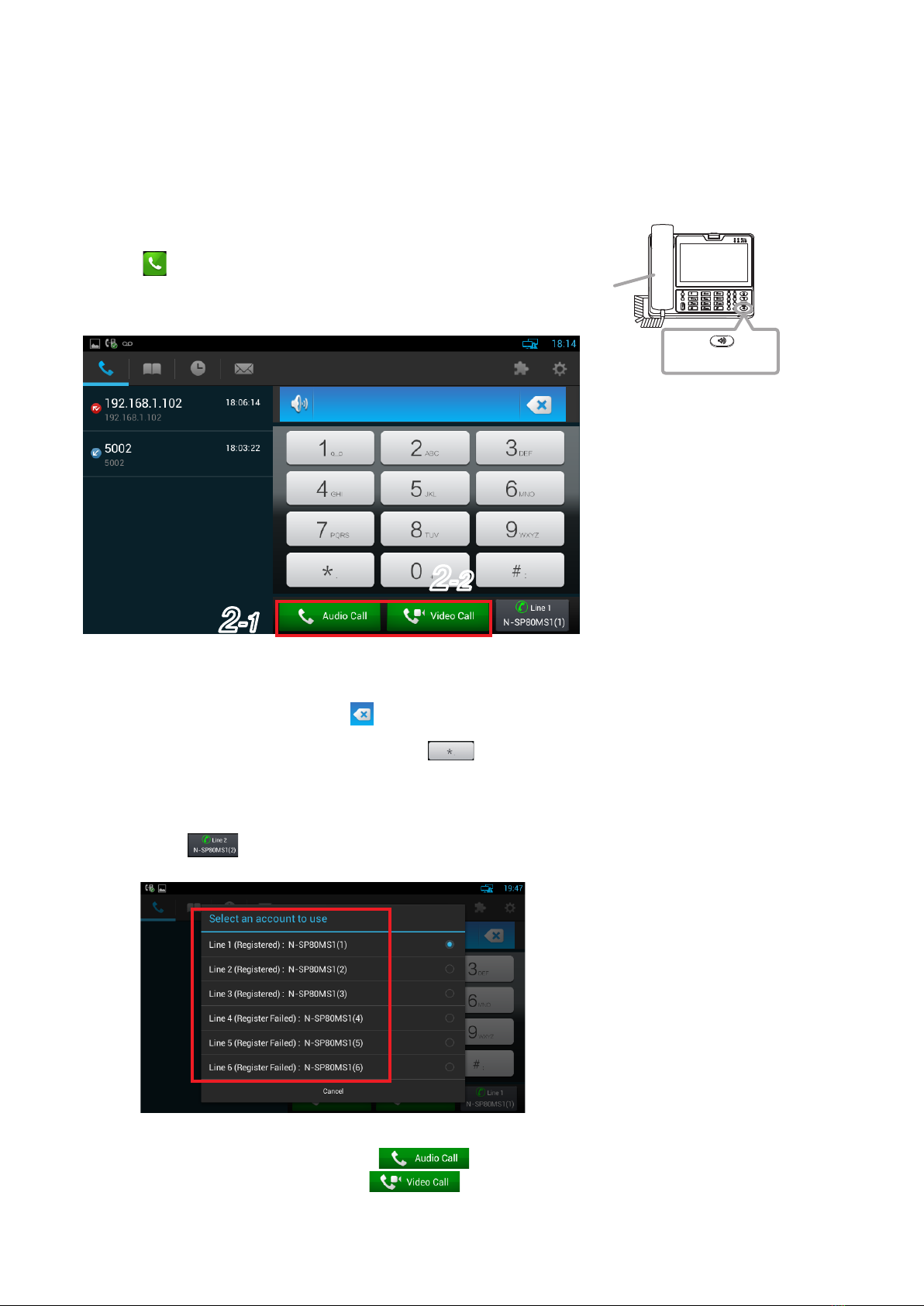

9.2.1. Making a call (Call by direct dialing)
You can make a call directly using the station’s ten keys or using the ten keys, contact list, or call history on the
dial screen.
The dial screen can be displayed by one of the following operations.
• Lift the handset.
• Press the station's Speaker button.
• Touch on the main screen.
(Dial screen)

16
9.2.2. Making a call (Call from the phone book)
You can make a call to the contact on the dial screen.
Step 1. Touch [ => Local Phone Book => All Contacts…] on the dial screen.
The contact list appears on the left side of the dial screen.
Tip
The contact can be searched promptly with the rst character you enter.
Step 2. Touch the desired contact to talk in the Contact list.
Details can be viewed in the window on the right side of the screen.
Step 3. Call the contact you touched.
3-1. To make an audio call, touch .
3-2. To make a video call, touch .
Tip
is not used.
Contact list

17
9.2.3. Receiving a call

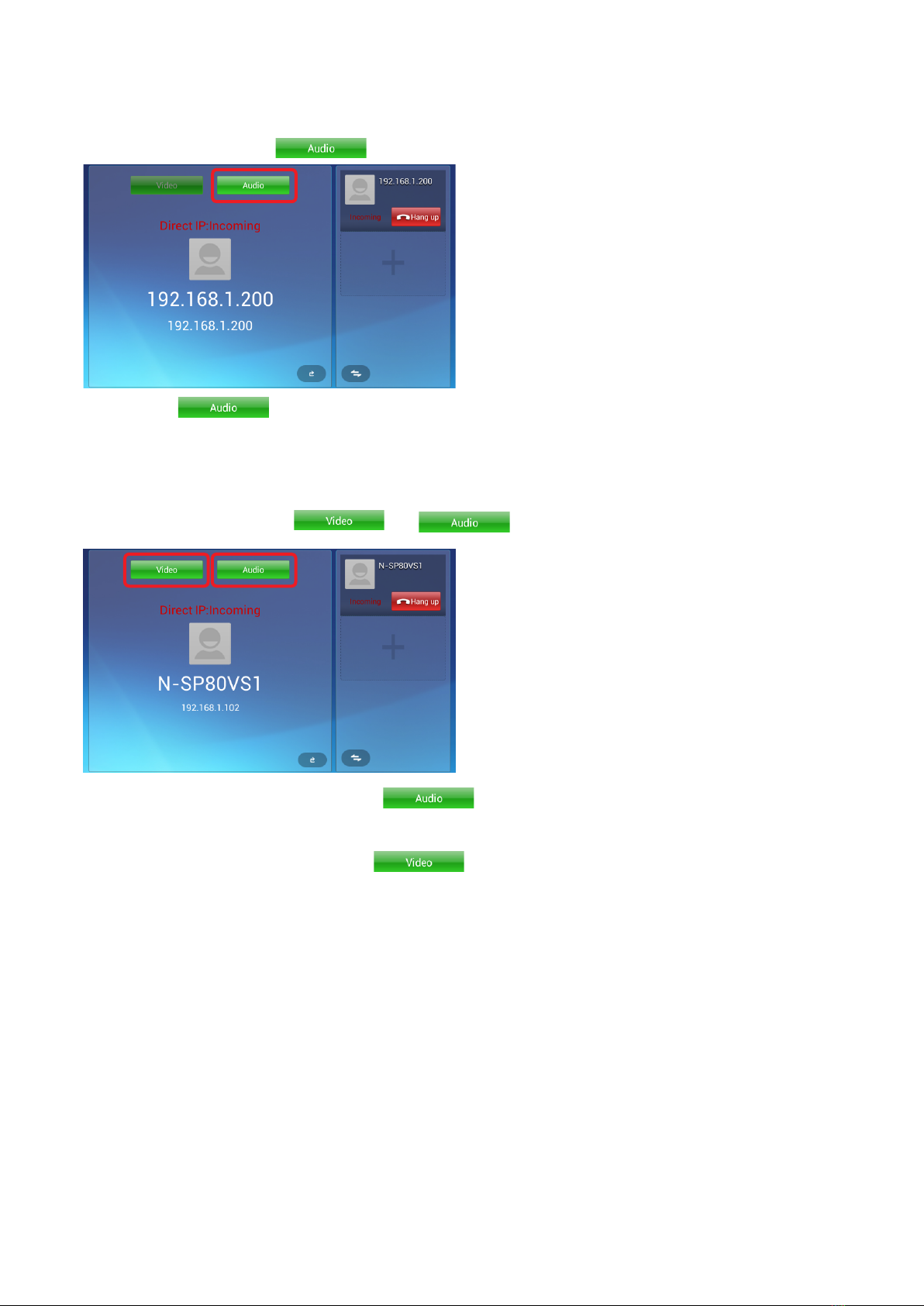

[When receiving an audio call]
When an audio is received, becomes active.
Step: Touch or lift the handset to answer the call.
[When receiving a video call]
When a video call is received, and become active.
Step 1. To make an audio response, touch .
Note: Images cannot be viewed.
Step 2. To make a video response, touch .
Images can be viewed.
Then, you can start handsfree conversation. You can also make conversation with the caller by using
the headset or lifting the handset.

18
9.2.6. Video option
Images can be switched by the icon operation on the video screen during video conversation.
Icon Description
Switches to the full screen.
Displays the local video.
Displays the image of the conversation partner.
Icon Description
Switches the current call between Hold and Restart each time the icon is touched and the
display of the icon changes as well.
Activates the transfer function.
Mutes the microphone.
Switches between Video call and Audio call each time the icon is touched and the display of
the icon changes as well.
Switches between speaker (handsfree) and handset conversations each time the icon is
touched and the display of the icon changes as well.
Extended function.
2 icons below appear when this icon is touched.
: Activates the 3 party conference function.
: Starts recording of conversations.
9.2.4. Rejecting an incoming call
To reject an incoming call, touch on the call screen.
9.2.5. Call option
Call options are displayed by the icons as shown below.
The table below shows the descriptions of the call options.

19
9.2.7. Call log
You can make the following 4 actions using the call logs.
• Checking the unconrmed incoming call information notication displayed on the status bar
• Checking the call logs from the call history
• Registering a new contact from the call history
• Adding the phone number to the existing Contact list
Shown below is operation.
[Checking the unconfirmed incoming call information notification displayed on the status bar]
Step 1. Swipe down on the status bar.
The Notication screen opens.
Step 2. Touch .
You can view the call history.
[Checking the call logs from the call history]
Step 1. Touch on the main screen, or touch
on the main screen and select .
A Dial screen opens.
Step 2. Touch the call log icon .
and the call history appear.
Step 3. Touch triangle mark of .
Types of call logs appear in a pull-down
menu.
You can select the type of call logs to
be conrmed from All Call, Missed Call,
Received Call, Dialed Call, and Forwarded
Call.
2
3
2
Unconrmed incoming call information notication

20
[Registering a new contact from the call history]
Step 1. Touch the number to be registered from the
call history.
Step 2. Touch .
A registration page for a new contact
appears.
Step 3. Input the necessary items through a touch
panel.
Step 4. Touch .
A new contact list is created, saving the
contact.
Step 4. Touch the type of call logs to be conrmed
from the pull-down menu.
Touching it causes the call history to appear
on the left side of the screen, displaying the
total number of the logs in parentheses.
Step 5. Touch the phone number or contact to be
conrmed.
The touched phone number or details of all
call logs remained in the contact history can
be viewed in the window on the right side of
the screen.
4
3
4
When you want to check
the history of Missed call
2
1
