Top Gun Mobility EVEREST User manual

EVEREST
MUSTANG
AVENGER
SAFARI
USER MANUAL

AUTHORISED TOP GUN MOBILITY AFTER SALES SERVICE
We have ensured that your new Top Gun Mobility Scooter is ready to deliver! Every member of our Team is
dedicated to Customer Satisfaction. By making contact with the following personnel, you will be assured of
Prompt and Efficient After Sales Service.
Sales : _____________________________
Service : _____________________________
Spare Parts : _____________________________
WARNING
Please read the Owner’s Manual carefully before operation. If you do not fully understand any part of the Manual, please contact your
dealer so as to avoid any injury or damage from misuse. Electromagnetic Interference (“EMI”) can cause powered vehicles to behave
erratically, which can be dangerous to the user. For your Safety & Protection, it is IMPERATIVE that you take the time to read the
Chapter on EMI prior to operating your Top Gun Mobility Scooter.
PLEASE NOTE : All details contained within this owner’s manual are correct as at time of print. Specifications/Recommendations are
subject to change without prior notice.
DEALER STAMP
:

RETAIL ADVICE & BUYERS WARRANTY REGISTRATION
Selling Dealer to complete at time of sale in order to Register Warranty with Top Gun Mobility
Customers Email Address: ____________________________________________________________________
Customer: __________________________________
Model:
____________________________________
Address: ___________________________________
Serial Number: ______________________________
___________________________________________
Colour: ____________________________________
State:
______________ Postcode: ______________
Date of Sale: ________________________________
Phone: _____________________________________
Type of Purchase: Consumer / Rental / Other
SELLING DEALER:
___________________________________________
__________________________________________
___________________________________________
Customer Signature
___________________________________________
___________________________________________
_________________________________________
___________________________________________
Dealership Representative Signature

RETAIL ADVICE & BUYERS WARRANTY REGISTRATION
Selling Dealer to complete at time of sale in order to Register Warranty with Top Gun Mobility
Customers Email Address: ____________________________________________________________________
Customer: __________________________________
Model: ____________________________________
Address: ___________________________________
Serial Number: ______________________________
______
_____
_______________________________
_
Colour: ____________________________________
State: ______________
Postcode: ______________
Date of Sale: ________________________________
Phone: ______
_______________________________
Type of Purchase: Consumer / Rental / Other
SELLING DEALER:
____________
_______________________________
____________
______________________________
____________
_______________________________
Customer Signature
____________
_______________________________
____________
_______________________________
__________
_______________________________
___________________________________________
Dealership Representative Signature

Table of Contents
INTRODUCTION ........................................................................................................................................................ 1
SPECIFICATION COMPARISON TABLE ....................................................................................................................... 6
SAFETY SYMBOLS ..................................................................................................................................................... 7
SAFETY OPERATIONAL INSTRUCTIONS ................................................................................................................... 12
General.............................................................................................................................................. 12
Modifications .................................................................................................................................... 13
Removable Parts ............................................................................................................................... 13
Weight Restrictions ........................................................................................................................... 13
Pre-Drive Safety Check ...................................................................................................................... 14
Tyre Inflation ..................................................................................................................................... 14
Incline Information ............................................................................................................................ 16
Cornering Information ...................................................................................................................... 18
Braking Information .......................................................................................................................... 19
Outdoor Driving Surfaces .................................................................................................................. 19
Public Streets and Roadways ............................................................................................................ 19
Stationary Obstacles (Steps & Curbs) ................................................................................................ 20
Precautions during Unusual Weather ............................................................................................... 20
Freewheel Mode ............................................................................................................................... 21
Stairs & Escalators ............................................................................................................................. 22
Lifts/Elevation Products .................................................................................................................... 22
Batteries (also see Storage Instructions) ........................................................................................... 23
Preventing Unintended Travel .......................................................................................................... 23
Getting Onto and OFF Your Mobility Scooter .................................................................................... 24
Reaching and Bending ....................................................................................................................... 25

Prescription Drugs/Physical Limitations ............................................................................................ 25
Smoking ............................................................................................................................................. 25
Alcohol .............................................................................................................................................. 26
Adjustments ...................................................................................................................................... 26
Mode Button ..................................................................................................................................... 28
ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI) ............................................................. 29
SAFETY INFORMATION SUMMARY ........................................................................................................................ 30
Battery Charging ............................................................................................................................... 31
MAINTENANCE SCHEDULE .................................................................................................................................... 33
TROUBLESHOOTING and REPAIRS ......................................................................................................................... 34
WARRANTY............................................................................................................................................................ 35
CHANGE OF DETAILS / CHANGE OF OWNER ......................................................................................................... 37
SERVICE RECORD ................................................................................................................................................... 38

1 | P a g e
INTRODUCTION
CONGRATULATIONS on the purchase of your new Top Gun Mobility Scooter. We are excited to provide you one of our
Innovative Mobility Scooters. Our Scooters are designed to provide personal freedom, as well as Convenience, Comfort
and the Assuredly High Performance levels combined with a long life cycle.
This Owner’s Manual contains important information concerning the proper maintenance and safe operation of your
Mobility Scooter. Please read this manual thoroughly and carefully prior to operating your new Mobility Scooter to
familiarise yourself with all operation instructions.
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the model
scooter chosen to suit the user and has assisted in prescribing health care professional and/or authorised provider
instructions for the safe use of this mobility scooter.
There are several situations, including some medical conditions, where the scooter user will need to practice operating the
scooter in the presence of a trained attendant. A trained attendant can be defined as a family member or care professional
specially trained in assisting a scooter user in various daily living activities.
As you begin using your scooter during daily activities you will probably encounter situations in which you will need some
practice. Simply take your time and you will soon be in full and confident control as you manoeuvre through doorways, on
and off elevators, up and down ramps, and over moderate terrain.
This manual covers the use of various models, you will note that many of the operations and adjustments are similar and as
such images may depict a different model to that which you have purchased.

2 | P a g e
EVEREST
1. Industry leading High Torque motor and Gearbox
2. Safety Turning Sensor
3. USB Charging Port
4. Up To 203kg Weight Capacity
5. Super Comfort Pillow To Seat With High Back
6. Rider Comfort Seat Post Suspension
7. High Ground Clearance
8. Safety Park Brake
9. Digital Dash Display
10. Industry Leading Turning Circle
11. Front and Rear adjustable suspension
Simply the #1 Choice for the go anywhere driver. The Everest cruises up difficult inclines with ease,
navigates over rough terrain with clearance to spare. Dominate the streets with class leading turning
circle and a powerful high torque motor. Rounding of this robust go anywhere scooter is an
unequalled array of safety and comfort features. With an amazing load carrying capacity the Everest
is streets ahead of the competition and commands respect with its proud looks and modern finish.

3 | P a g e

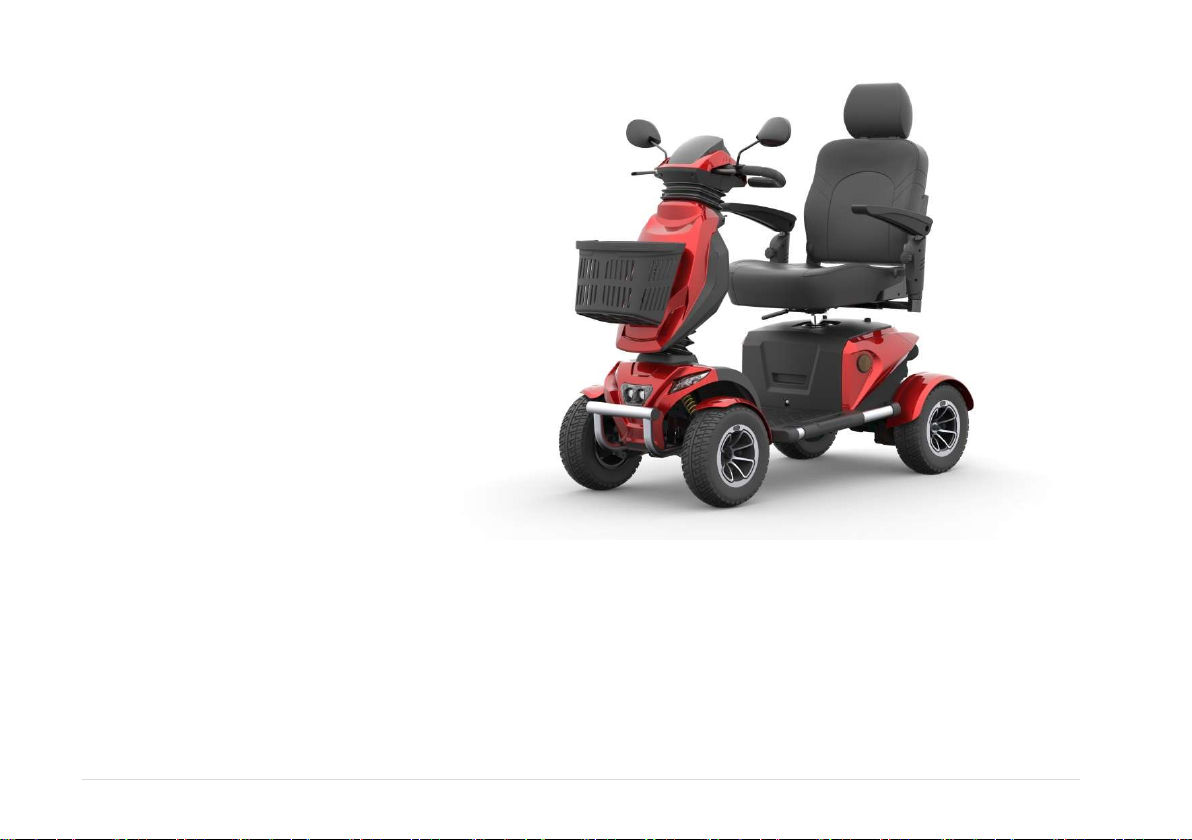

MUSTANG
1. High Performance 1600w 4 Pole Motor
2. Safety Turning Sensor
3. USB Charging Port
4. Up To 180kg Weight Capacity
5. Luxury High Back Seat with Lumbar Support
6. Rider Comfort Seat Post Suspension
7. Dual Tiller Operation for Ultimate Ride Comfort
8. Safety Park Brake
9. Digital Dash Display
10. This Is Australia’s Rolls Royce in Mobility Scooters
11. Front and Rear Suspension Double Sprung Suspension
Luxury, Power, Comfort. Along with an array of safety features the Mustang is the most comfortable
ride to date. All round double sprung suspension, seat post suspension, luxury seat with adjustable
lumbar support and multiple driver adjustment options. Completing the Mustang is the most
powerful motor and battery combination on the Top Gun range. Go where you want in comfort and
style - Mustang.

4 | P a g e
AVENGER
1. Powerful 1100W 4 Pole Motor
2. Safety Turning Sensor
3. USB Charging Port
4. Up to 180kg Weight Capacity
5. Luxury High Back Captains Seat
6. Shock Absorbing Adjustable Tiller
7. Safety Park Brake
8. Digital Dash Display
9. Full Suspension Kit
10. Long Range Batteries
This scooter hero is ready for action!
Thanks to a powerful motor and battery combo you are always in safe hands. With a load of comfort coupled
with the very latest technology and modern styling, Avenger will take you out on the town and bring you home
safely.

5 | P a g e
SAFARI
1. High Performance 1650W 4 Pol, 2.2HP Motor
2. Clear vision impact resistant weather canopy
3. Up to 203kg weight capacity
4. Deluxe Captain Seat with comfort lumbar support
5. 14” front and rear sporty alloy rims
6. Seat Post suspension
Top Gun Safari offers all the comfort of a luxury scooter with the added protection of our Clear Vision , Impact
Resistant Weather Canopy.
Powering the Safari is an unbeatable high torque motor and high capacity battery combination. When only the
best will do!
Safari – Ready to take on the elements.

6 | P a g e
SPECIFICATION COMPARISON TABLE
MODEL
EVEREST
MUSTANG
AVENGER
SAFARI
Charger
24V 8A
24V 8A
24V 8A
24V 8A
Controller
PG
S
-
140A
PG
S
-
200A
PGS
-
140A
PGS
-
200A
Electro
Brake
8NM
10NM
8NM
10NM
Freewheel Mode
Yes
Yes
Yes
Yes
Ground Clearance
20
.
5
c
m
(+ /
-
2
.
5
c
m)
17
.
5
c
m
(+ /
-
2
.
5
c
m)
20
.
5
c
m (+ /
-
2
.
5
c
m)
21
.
5
c
m (+ /
-
2
.
5
c
m)
LCD Display
Yes
Yes
Yes
Yes
Lights
Head/Tail/Turning
/
Emergency
Head/Tail/Turning
/
Emergency
Head/Tail/Turning/Emergency
Head/Tail/Turning/Emergency
Max battery size
12V75Ah*2
12V100Ah*2
12V75Ah*2
12V120Ah*2
Max climbing ability
12°
12°
12°
12°
Max speed
10 km/h
10 km/h
10km/h
10km/h
Motor (rated power)
Gear Ratio
1000 watts(4 poles)
21.06:1
1650 watts(4 poles)
18.9:1
RA14(1100W:CR
-
8065D24(4
poles)|19.84:1)
1650 watts (4 poles)21.06:1
Operation range
＞49 km ＞45 km ＞49 km/h ＞60 km
Overall Dimensions
145x71x134
.
2
c
m
146
.
1x69x131
.
7
c
m
140
x
71
x
127
.
6
cm
153
.
5
x
81
x
172
.
5
cm
Parking brake
Yes
Yes
Yes
Yes
Safety Turning
Sensor
Yes
Yes
Yes
Yes
Seat
18" Top Pillow Seat,
High Back
18" Captain,high back
Lumbar Support
18" captain, low back
18" deluxe captain with
lumbar support
Seat Post Suspension
Yes
Yes
No
Yes
Suspension
Front &
Rear
Front &
Rear
Front & Rear
Front & Rear
Turning Radius
160cm
200cm
170
c
m
220
c
m
USB Charger Port
24V 8A
24V 8A
Yes
Yes
Weight
102kg
90kg
94kgs
127kgs
Weight Capacity
203kg
180kg
180kg
203kg
Wheels
–
Front &
Rear
13"
pneumatic
13"
Front
-
14” Rear
13” pneumatic
14” pneumatic
** Specifications are correct at time of print and are subject to change without notification

7 | P a g e
SAFETY SYMBOLS
WARNING! An authorised supplier or qualified technician must perform the initial setup of this scooter, and
must perform all of the procedures in this manual.
The symbols below are used throughout this Owner’s Manual and on the scooter to identify warnings and important
information. It is very important for you to read and understand them.
WARNING! This indicates a potentially hazardous condition/situation. Failure to follow designated procedures
can cause personal injury, component damage or malfunction.
MANDATORY! These actions must be performed as specified. Failure to perform “Mandatory” actions can
cause personal injury and/or equipment damage.
PROHIBITED! This indicates that the action is prohibited. These actions must NOT be performed at any time or
under any circumstance. Performing a prohibited action can cause personal injury and/or equipment damage.
PLEASE NOTE and strictly adhere to the following Safety Instructions. Additional Warnings and Notices are
printed in this Owner’s Manual; it is Imperative that you carefully read all chapters of this manual before
operation. It is also advisable to refresh your memory by re-reading this manual periodically.
GET ACQUAINTED with your Mobility Scooter and its operational features before driving it. Drive slowly (speed
limit dial set to MIN) until you get used to your scooter, its’ various functions, safety features as well as it’s
braking capabilities and limitations.

8 | P a g e
PEDESTRIANS! Watch carefully for pedestrians and drive your Mobility Scooter accordingly. In crowded areas,
always drive with the speed limit dial set to MIN. Drive only where permitted according to all applicable local
laws. Be mindful of the width of your particular mobility scooter and take care not to hit persons or objects
around the vehicle.
NEVER remove any of the Mobility Scooter safety parts such as bumpers, plastic covers or emergency braking
lever. Never remove any of the Warning Labels.
NEVER put your hands, fingers, feet or legs into any moving part or under any protective cover as moving parts
and hot surfaces are generally secured under these covers.
When making adjustments (folding the seat back, adjusting armrest, moving seat forward/backward, adjusting
tiller etc.) as well as when squeezing the throttle control lever, always take care that your hands and fingers are
not trapped between any of the moving parts. When moving the tiller forward or backward, be careful not to
trap your fingers in the mechanism.
LOAD RESTRICTIONS – The load in the rear basket must not exceed 8kg. This load in the front basket must not
exceed 5kg. Your Top Gun Mobility scooter is designed to carry ONE person only (unless a dual seat model has
been purchased). Never operate it with an additional person on board, including carrying a child.
TYRE INFLATION – Never inflate the tyres on your Mobility Scooter more than the manufacture’s
recommended pressure shown on the tyres and within this owner’s manual.
STAIRS – Never use your Mobility Scooter on STAIRS. Do not try to go over obstacles that are more than the
maximum recommended slope angle and obstacle heights given in the specification sheets for your Mobility
Scooter. When driving over an obstacle, always drive so that the front the scooter is facing the obstacle.

9 | P a g e
If for any reason your Mobility Scooter does not stop when you release the throttle control lever, or takes
longer to stop than it should (3 meters on a level surface), turn the key switch to OFF and immediately contact
your selling dealer.
WEATHER – Do not use your Mobility Scooter in Heavy Rain or Extreme Humidity, or at temperatures below -
30°C (-22°F) or above +45°C (+113°F).
The seat weights 21kgs. Each battery weights a minimum of 14kg. Be careful when lifting the seat and
batteries. See instructions for lifting the seat and the batteries in the Maintenance Chapter. Always lift using
your knees and legs, not your back.
BATTERIES – Only use batteries as recommended by an authorised dealer (lead acid maintenance-free sealed
batteries or lithium depending on the model scooter you have purchased).
ACCIDENTS/DAMAGE – If your Mobility Scooter is involved in any kind of accident in which parts are damaged,
you must arrange for a qualified technician to examine it before continuing use.
CHILDREN – Special Care must be taken to prevent children from operating your Mobility Scooter or riding as a
passenger. Do not allow unsupervised children to play near your Mobility Scooter, especially when charging
batteries.
Always drive carefully. Adjust your speed according to road conditions. When turning at high speed, your
Mobility Scooter can become unstable. Before making sharp turns, reduce speed to a minimum to prevent
roll-over.

10 | P a g e
Your Mobility Scooter is able to go up slopes higher than the recommended safe slope. HOWEVER, do not drive
on slopes whose incline you do not know. Always drive very slowly and do not drive on the side of such slopes.
Before starting to drive, make sure your emergency brake operates correctly.
Do NOT release the manual release lever of the electromagnetic brake (EMB) when your Mobility Scooter is on
a slope. When on any sort of an incline, never place the Mobility Scooter in freewheel mode (whilst seated on
or standing next to it)
The lights on your Mobility Scooter (if fitted), should be turned on when visibility is reduced, regardless of day
or night.
As your seat upholstery is fire resistant, do not cover it or replace with any upholstery other than upholstery of
the same kind. When removing the battery cover, watch out for hot parts. The motor, axel, EMB, electronic
cards and electronic controller might be hot! DO NOT TOUCH them until you have ensured temperature is not
dangerous.
Do NOT operate a mobile phone, walkie-talkie, laptop or other radio transmitter whilst operating your Mobility
Scooter
Removal of the grounding prong can create an electrical hazard. If it is necessary to use a 2-pronged electrical
outlet, properly install an approved 3-prong adapter.
Do NOT connect an extension cord to the AC/DC converter or to the battery charger

11 | P a g e
Keep tools and other metal objects away from the battery terminals. Contact with tools can cause an electrical
shock. Do not sit on the Mobility Scooter when it is on any type of lift/elevation product.
This symbol indicates that Explosive conditions exist
Disposal and Recycling. Contact your authorised dealer for information on proper disposal of your Mobility
packaging and components
Always wear safety glasses when working on the Mobility Scooter
Contains Lead
Battery Charger is for INDOOR use only
At the rear of your Mobility Scooter is the manual release lever of the EMB. When using this lever, be careful
not to touch the internal surface of the motor as it could be very hot and cause injury. See the warning label at
the rear of the Mobility Scooter near the lever.

12 | P a g e
SAFETY OPERATIONAL INSTRUCTIONS
General
MANDATORY! Do not operate your new Mobility Scooter for the first time without reading and
understanding this user manual completely.
Your Mobility Scooter is a state-of-the-art life-enhancement device designed to increase mobility. We
provide an extensive range of products to best fit the individual needs of the user. Please be aware that
the final selection and purchasing decision regarding the type of Mobility Scooter to be used is the
responsibility of a user who is capable of making such a decision and of his or her healthcare
professional (i.e., medical doctor, physical therapist, etc.)
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the appropriate model scooter to the user.
Healthcare Professionals and/or the authorize dealer to give instructions for the use of the product.
There are certain situations, including some medical conditions, where the user will need to practice
operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a
family member or care professional specially trained in assisting a user in various daily living activities.
