C.T.M. HS-588 5 series User manual

5-Series Instruction Booklet
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
HS-588
HS-589

Instruction Booklet5-Series
TABLE OF CONTENTS
Introduction
Important Precautions
Electromagnetic Interference and Warnings
Identification of Parts
Operating Your Scooter
Disassembling Your Scooter
Re-assembling Your Scooter
Charging the Batteries
Care and Maintenance
Troubleshooting
Technical Specifications
--------------------------------------------------------------1
-------------------------------------------------2
----------------------3
--------------------------------------------------6
---------------------------------------------10
---------------------------------------12
---------------------------------------15
----------------------------------------------16
----------------------------------------------18
-------------------------------------------------------19
--------------------------------------------21

Instruction Booklet5-Series
If you have any questions, please contact your local dealer or:
CHIEN TI ENTERPRISE CO., LTD.
No.13, Lane 227, Fu Ying Rd., Hsin Chuang,Taipei, Taiwan,
Tel : [phone] Fax : [phone]
E-Mail : [email protected] http : //www.chienti.com.tw
or your local dealer:
INTRODUCTION
1
Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter.
It is designed to provide you with transportation indoors and outdoors.
Chien Ti Enterprise Co., Ltd. is the manufacturer for the C.T.M. mobility scooter. We pride
ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction with our product. We are certain that you will enjoy your C.T.M.
mobility scooter.
Please read and observe all warnings and instructions given in the owner's manual
before operating this scooter. Also, retain this booklet for future reference.

Instruction Booklet5-Series
IMPORTANT PRECAUTIONS
2
•Only one person at a time can ride a C.T.M. Mobility Scooter.
•Maximum load is 135 kg / 300 lbs.
•Turn the key off before getting on or off your scooter.
•Always drive carefully with your feet on the floorboard and be aware of others in
your area.
•Always use pedestrian crossings where possible. Take extreme care crossing roads.
•Do not drive on slopes exceeding 12 degrees, and take extreme care when turning
on slopes.
•Do not use full power when turning sharp corners.
•Do not drive the scooter unless the seat and the tiller are locked and secured in the
driving position.
•Do not use the scooter if the rear anti-tip wheels are damaged or removed.
•Take great care and use low speeds for backing up, riding downhill, over uneven
surfaces and curb climbing.
•The scooter may not operate well in high humidity.
•Never put your scooter in neutral on slopes.
•Follow all traffic laws when you ride in the vicinity of public roads.
•It is NOT recommended to use your scooter in wet environments as it may cause
damage. Electronic equipment damaged by any liquid form is not covered under
the warranty.

Instruction Booklet5-Series
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios,
and cellular phones. The interference (from radio wave sources) can cause the motorized
scooter to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the motorized scooter control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each motorized scooter can resist
EMI up to a certain intensity. This is called its "immunity level." The higher the immunity
level, the greater the protection will be. At this time, current technology is capable of
achieving at least a 20 V/m immunity level, which would provide useful protection from the
more common sources of radiated EMI. The immunity level of this motorized scooter model
is 10 v/m.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe that by following the warnings
listed below, your risk to EMI will be minimized.
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
"walkie talkie," security, fire, and police transceivers, cellular telephones, and other
personal communication devices.
2.Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside
of the vehicle.
ELECTROMAGNETIC INTERFERENCE
AND WARNINGS
3
CAUTION: It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your motorized scooter.
Some cellular telephones and similar devices transmit signals while
they are ON, even when not being used.
The sources of radiated EMI can be broadly classified into three types：

Instruction Booklet5-Series
4
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
Because EM energy rapidly becomes more intense as one moves closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are
of special concern. It is possible to unintentionally bring high levels of EM energy very
close to the motorized scooter control system while using these devices. This can affect
motorized scooter movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the motorized
scooter.
Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players,
and small appliances, such as electric shavers and hair dryers, so far
as we know, are not likely to cause EMI problems to your motorized
scooter.
Motorized Scooter Electromagnetic Interference：
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized
scooters. Following the warnings listed below should reduce the chance of unintended
brake release or motorized scooter movement, which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as cellular phones, while
the motorized scooter is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the motorized scooter OFF as
soon as it is safe;
Warnings：

Instruction Booklet5-Series
5
4.Be aware that adding accessories or components, or modifying the motorized scooter,
may make it more susceptible to EMI; and.
5.Report all incidents of unintended movement or brake release to the distributor listed
on the inside front cover of this manual. Note whether there is a source of EMI nearby.
1.20 volts per meter (V/m) is a generally achievable and useful immunity level against
EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is at least 20/Vm.
There is no easy way to evaluate their effect on the overall immunity
of the motorized scooter.
Important Information：

Instruction Booklet5-Series

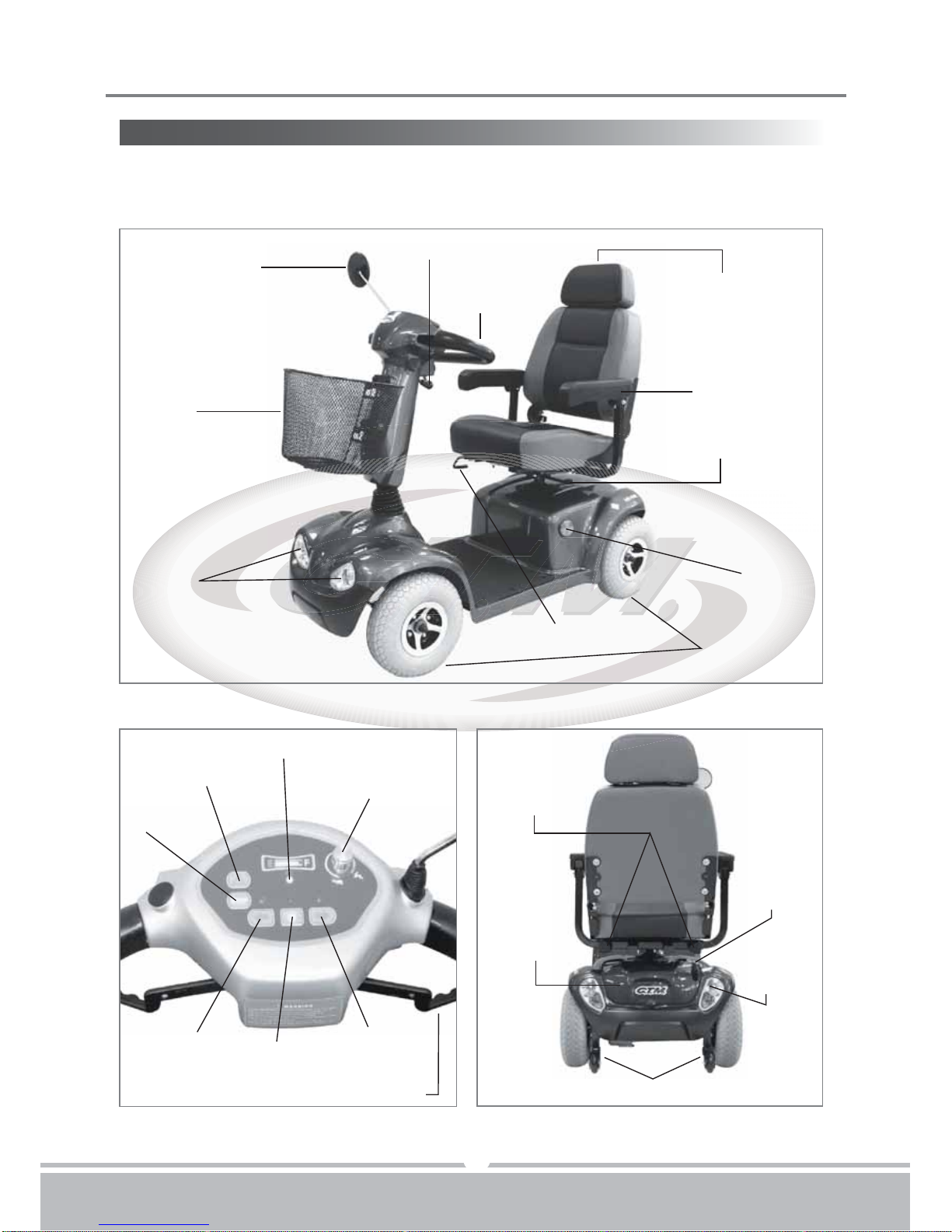

Figure 1 - HS-588 / HS-589 Front View
Figure 2 -
HS-588/589 TOP CONTROL PANEL
Figure 3
HS-588/589 BACK VIEW
IDENTIFICATION OF PARTS
6
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls and how they operate.
Anti-Tip Wheels
Storage Cover Rear Turn
Signal and
Tail Lights
Free-
wheeling
Lever
Armrest Width
Adjustment
Thumbscrews
Optical Headlights
& Turn Signals
Front
Basket
Rearview Mirror Tiller Angle Adjustment
Delta
Handle Bar Mid-Back W/Headrest
Swivel Seat
Tilting Armrest
Seat Rotation Lever
Seat Sliding Lever
Side Reflectors
11" Front and
Rear Wheels
Self-Diagnostic Warning Light
Speed Control Knob
Hazard Light Button
Horn
Button
Left Turn
Signal Button Headlight
Button
Right Turn
Signal Button
Throttle Control Lever

Instruction Booklet5-Series
Figure 5
Figure 5
Figure 6
Figure 6

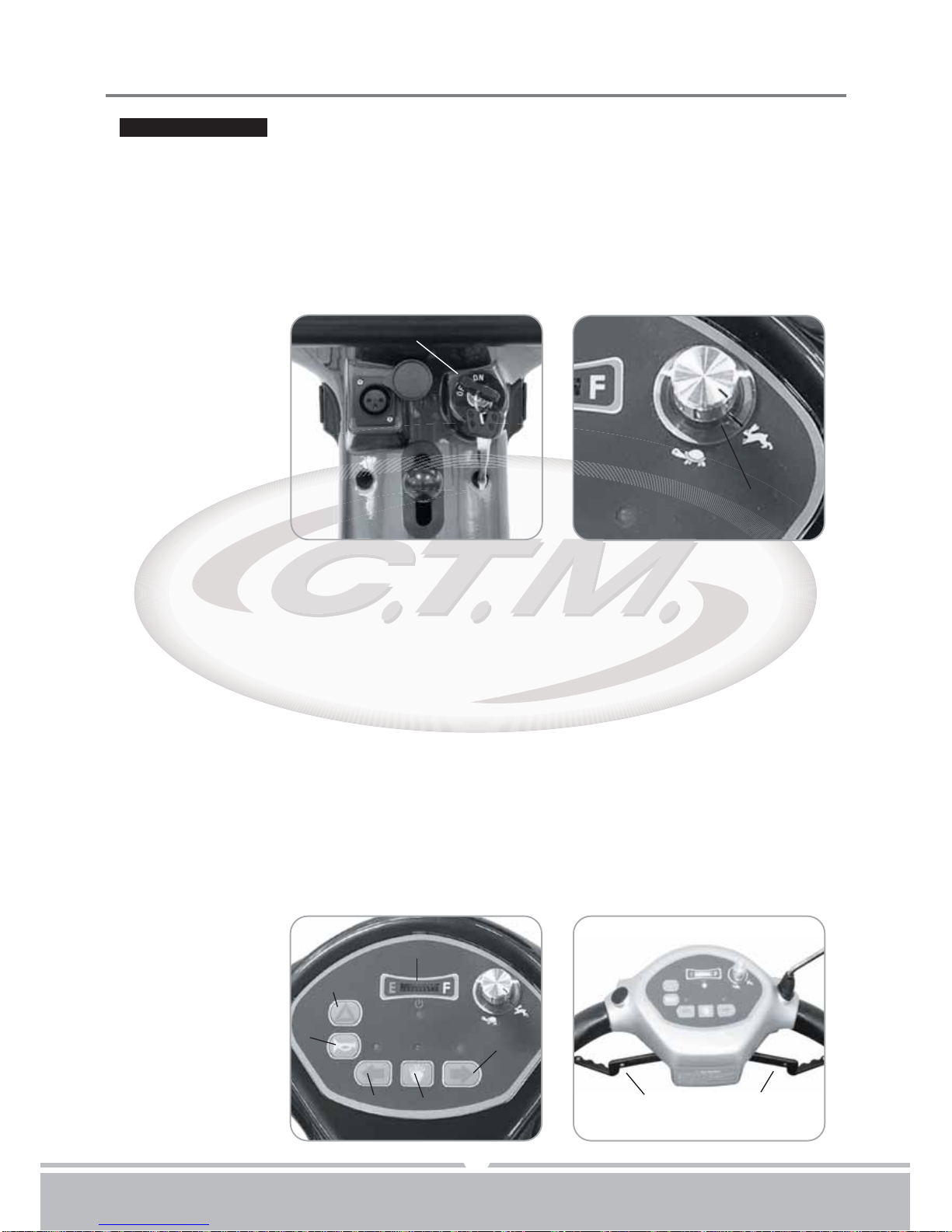

Function Of Parts：
•MAIN SWITCH (A) (See Fig. 4)
1.Turn the key clockwise to ON to switch power on status.
2.Turn the key counterclockwise to OFF to switch power off status.
•SPEED CONTROL KNOB (B) (See Fig. 5)
1.Turn the speed control knob clockwise for faster speed.
2.Turn the speed control knob counterclockwise for slower speed.
•TOP CONTROL PANEL BUTTONS (See Fig. 6)
1.Left/Right Turn Signal-Press Right Turn Signal (1) button for turning right, press
Left Turn Signal (2) button for turning left.
2.Hazard Light Button-Press Hazard Light Button (3) to switch on Hazard Light, press
the button again to switch off the Hazard Light.
3.Horn Button-Press Horn Button (4) will buzz warning sound, stop horning by
release it.
4.Power Reserve Indicator (5)-Displays batteries electricity carrying capacity.
5.Headlight Button-Press Headlight Button (6), headlight will light up.
•THROTTLE CONTROL (See Fig. 7)
1.Lightly push on the right side throttle control lever (C) to moving forward.
2.Lightly push on the left side throttle control lever (D) to moving backward.
3.Release the throttle control lever and the powered scooter will quickly slow down
to an immediate stop and the brake will engage.
4.The throttle control lever can also be operated by fingers in opposite direction.
7
Figure 4
Figure 4
(A)
(B)
(5)
(3)
(4)
(2) (6)
(1)
Figure 7
Figure 7
(C)
(D)

Instruction Booklet5-Series
Figure 10
Figure 10
Figure 8
Figure 8
(E)
(H)
(I)
(G)
•ARMREST ADJUSTMENT (See Fig. 8)
1.Release Thumbscrew (E), to adjust the armrest's width; tighten to lock in the
comfortable desired position.
•ARM PAD ADJUSTMENT (See Fig. 9)
1.Adjust the handrail bolt's (F) height, to control the armrest's horizontal angle.
•SEAT ADJUSTMENT (See Fig. 10)
1.Pull the seat rotation lever (G) up to adjust seat's turning angle, also can lift up
the seat .
2.Pull the seat sliding lever (H) up to adjust the seat to either go forward or
backward to an appropriate position.
Figure 9
Figure 9
Figure 11
Figure 11
(J)
(F)
Its extremely dangerous and forbidden to drive on the scooter when
free-wheeling lever is disengaged and declining a slope.
•FREE-WHEELING LEVER (See Fig. 11)
1.Before driving, to engage the free-wheeling lever (J) by pressing down button (I)
then pushing the lever (J) downward.
2.While stopping or system malfunction could not operate scooter, by pressing down
button (I) then pushing free-wheeling lever (J) upward to N position, then scooter
can be moved manually.
8

Instruction Booklet5-Series
Figure 13
Figure 13
Figure 12
Figure 12
(K)
(L)
9

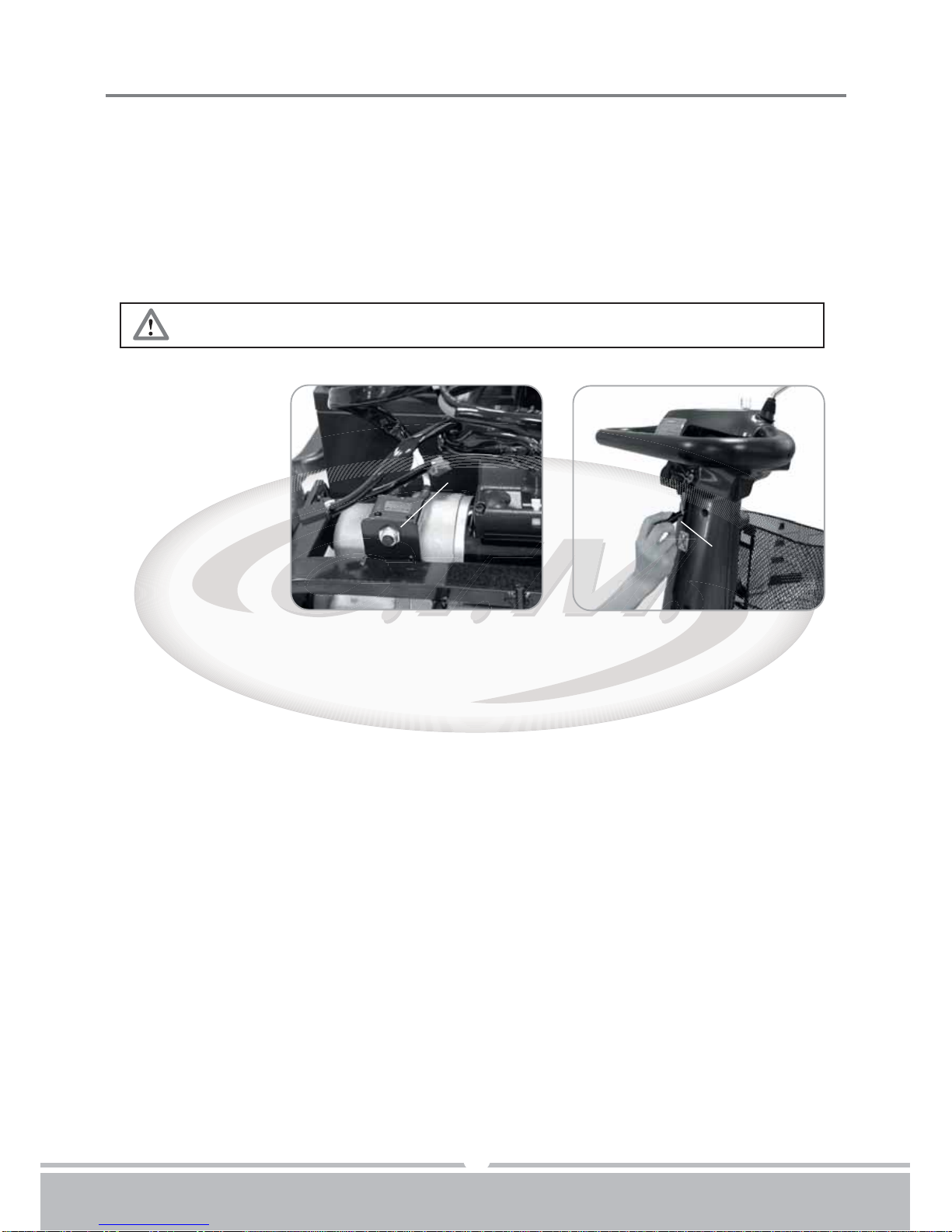

•CIRCUIT BREAKER (See Fig. 12)
1.If the scooter's circuit system malfunction or over loaded, the circuit breaker (K)
will automatically switch off the power to ensure safety.
2.After automatically power switch off by press the circuit breaker can be reset.
•TILLER ANGLE ADJUSTMENT (See Fig. 13)
1.To adjust tiller angle by pushing down the tiller angle adjustment (L).
Tiller angle adjustment forbidden to hang any objects.

Instruction Booklet5-Series
Figure 14
Figure 14

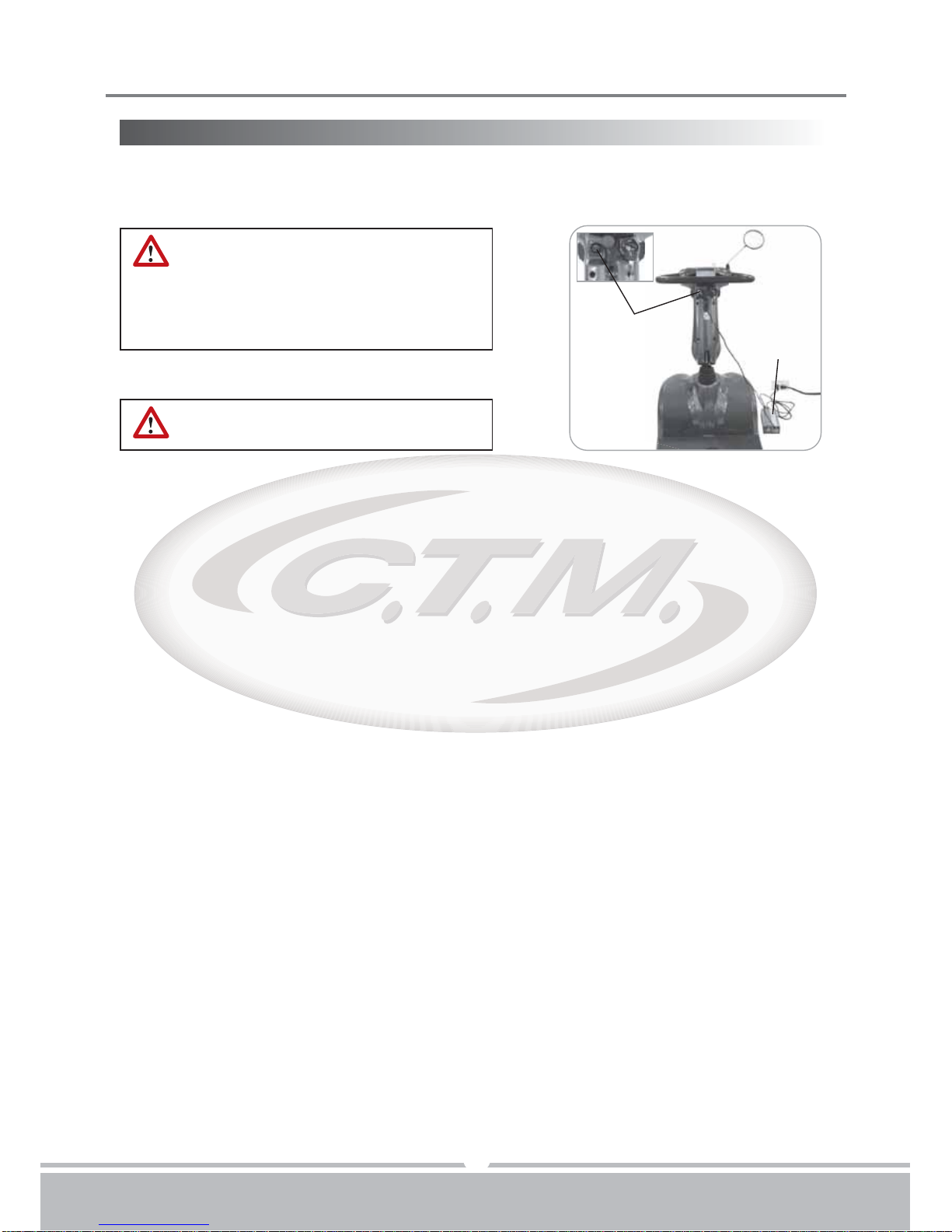

OPERATING YOUR SCOOTER
10
This scooter has an automatic braking system. Release the thumb
control and the brakes will engage.
You can make the following adjustments to increase your comfort when driving：
Before beginning your journey with your new scooter, make sure that the scooter is on
alevel surface and clear of any obstacles. Although your scooter is able to climb slopes
it is safer to practice on a leveled surface.
•adjust the seat height and location.
•adjust the armrest width.
•adjust the tiller to a comfortable position.
1.Before operating your scooter, check the following:
•the free-wheeling lever is engaged.
•the speed dial is at the picture of the turtle.
2.Sit on the scooter and turn on the key. All battery gauge LED lights should be lit.
The Self-Diagnostic Warning Light should not be blinking.
3.When your hands rest comfortably on the handle bar, the thumb control levers should
be within reach. The right lever moves the scooter forward; the left one moves it in
reverse. When you release the thumb lever, the scooter will stop.
4.Steer the scooter by turning the whole tiller in the direction you want to go.
5.Practice driving where there are no obstacles. Start at the slowest speed and drive
forward and backward; make some turns. As you get more comfortable you can
increase the speed by turning the speed dial toward the picture of the rabbit.
6.If only two-battery gauge LED lights are lit, you should plan to recharge the batteries
very soon.

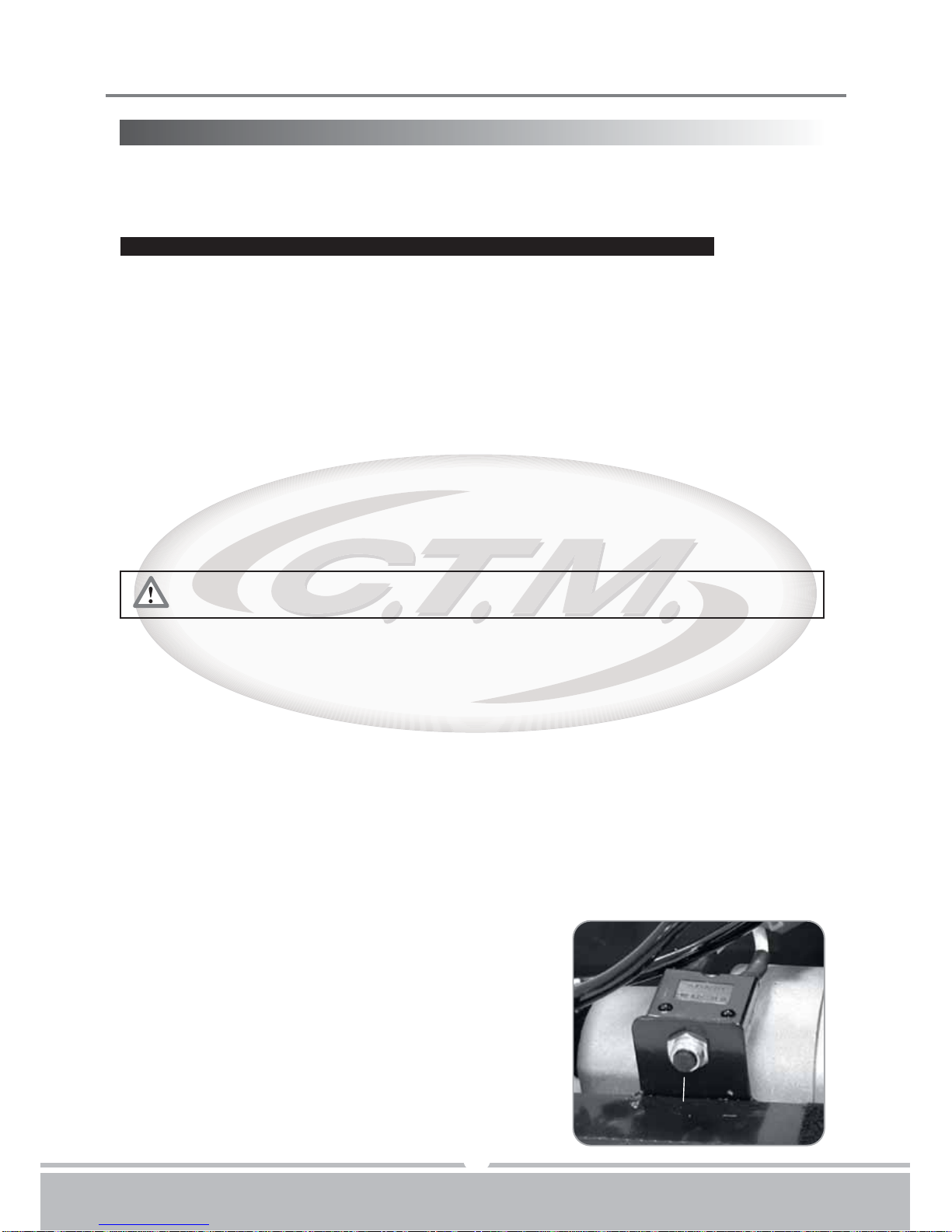

7.If the scooter stops and does not function, locate the circuit breaker (M) in the storage
area. Push it and try the scooter again.
8.When you are finished riding, turn off the key before getting off.
9.If you are finished riding for the day, immediately
recharge the batteries.
See CHARGING THE BATTERIES on page 15.
(M)

Instruction Booklet5-Series
Figure 16
Figure 16
Figure 15
Figure 15
Keep in mind these rules：
Other Operating Information：
•Release the thumb levers and allow the scooter to stop completely before changing
from forward to reverse, or reverse to forward.
•When turning a corner, swing the front wheels wide, because the back wheels will
turn more tightly.
•Use the scooter only where it would be safe to walk.
•Use low speeds for reverse, downhill, ramps, curbs, or uneven surfaces.
As a safety feature, an automatic speed reducer engages if the scooter
is pushed quickly when the Free-Wheeling Lever is disengaged. This
standard feature is specifically created for down slopes.
When driving, proceed straight forward slowly pass through the gap.
Hill Climbing:You may need to use a higher speed going up on slopes. For a higher
speed, set the speed control knob in the proximity of the rabbit.
Down Slopes:To proceed down steep slopes slowly, set the speed control in the
proximity of the turtle. This enables driver control, as the closer the
speed control is set toward the turtle, the slower the scooter will travel.
However, this scooter will not self accelerate down hills due to the
automatic braking taking effect should you attempt to drive too fast.
Curb Climbing:
Approach slowly at right angles to the curb. A slight angle is permissible
with a 4-wheel scooter. Do not attempt curb climbing greater than a
50mm curb. If the Self-Diagnostic Warning Lights start to blink, identify
the problem from the chart on page 18 and take action.
Vertical limit approach approximately : 5cm
Acceptable gap width approximately : 22cm
If the scooter breaks down and must be moved, get off the scooter, pull the free-wheeling
lever, move the scooter slowly to a safe location, and push the free-wheeling lever
back downward to engage.
11

Instruction Booklet5-Series
12

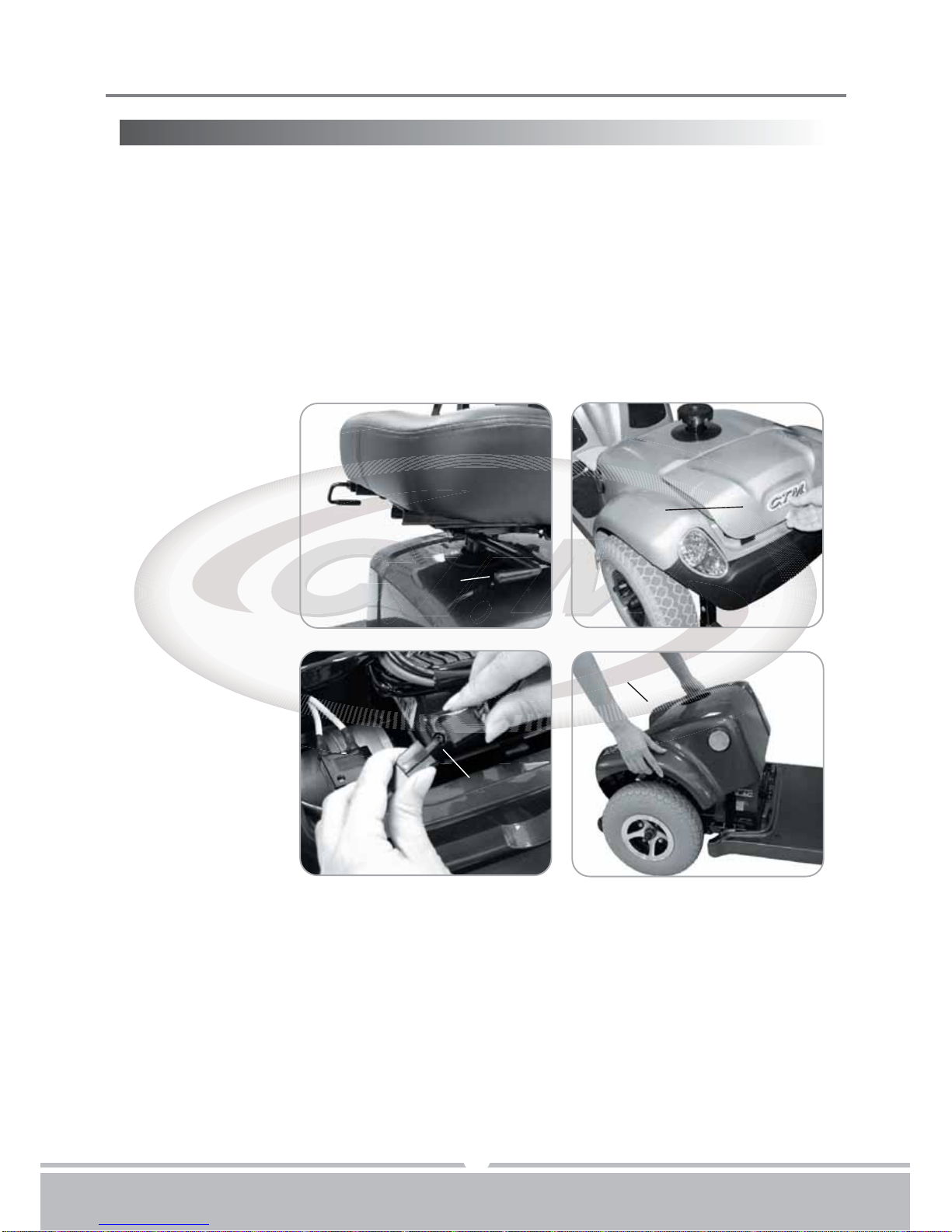

DISASSEMBLING YOUR SCOOTER
Taking apart your scooter enables you to save space when keeping it in storage or to
carry it along in your vehicle when going away from home. Having the scooter disassembled
is easier than ever since no tools are required. Please follow these steps
Remove the seat by pull the Seat Rotation Lever (N) up and then lift off. (See Fig. 17)
Life up the Storage Cover (O). (See Fig. 18) and detach the Rear Lighting Wiring
Harnesses (P). (See Fig. 19) Remove the Rear Shroud (Q) gently which is held by
Velcro.(See Fig. 20)
Figure 17
Figure 17
(N)
Figure 18
Figure 18
(O)
Figure 20
Figure 20
(Q)
Figure 19
Figure 19
(P)

Instruction Booklet5-Series
13

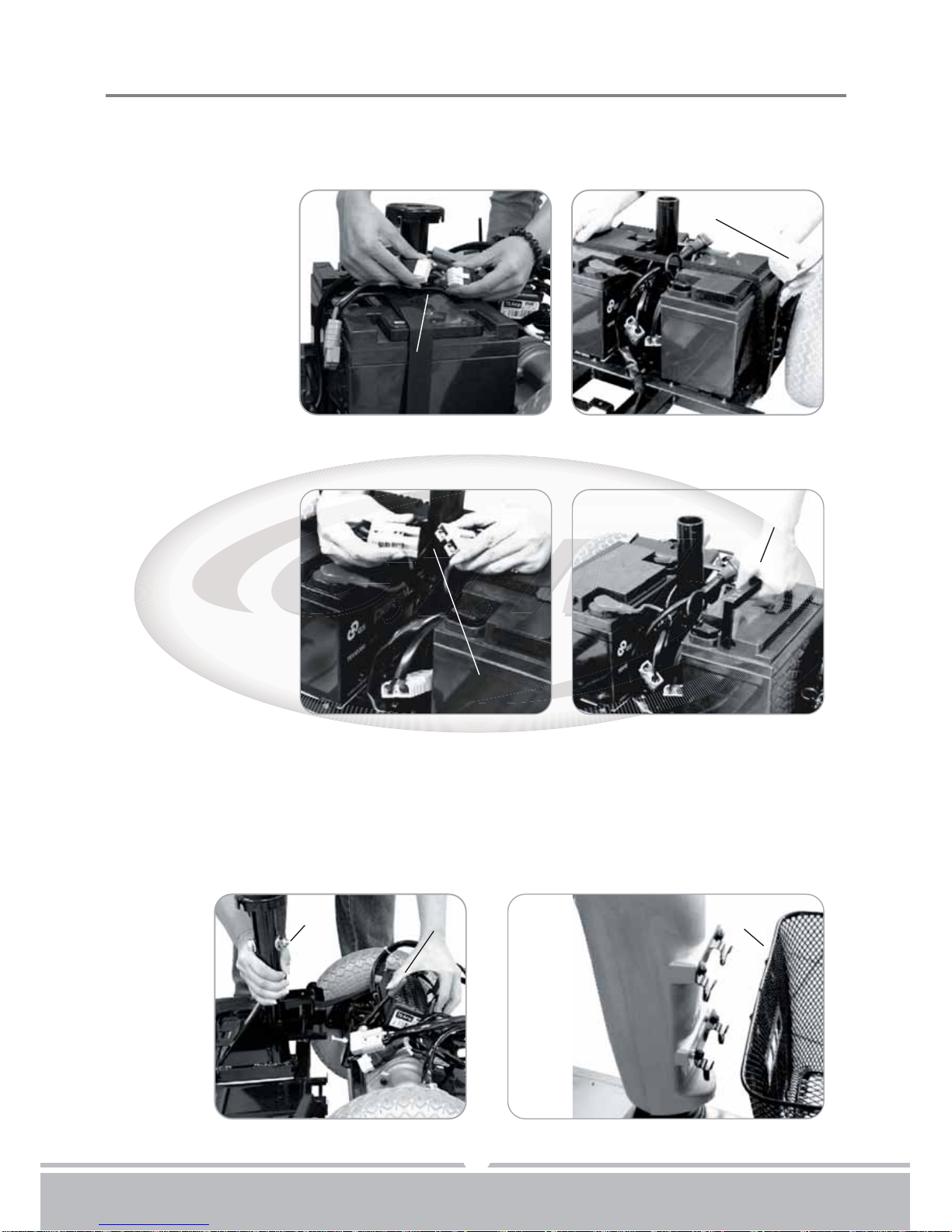

Detach the front and rear sections by holding the Seat Post (V) with one hand and the
other hand pushing the release lever to the rear of the scooter. Lift the seat post to
separate the Front Frame Assembly (W) from the rear frame assembly. (See Fig. 25)
Disassemble Front Basket (X). (See Fig. 26)
Figure 25
Figure 25
Figure 26
Figure 26
Figure 23
Figure 23
Figure 24
Figure 24
Unplug both Battery Cables (T) and remove the Batteries (U).(See Fig. 23 & 24)
(U)
(T)
(V) (W) (X)
Figure 21
Figure 21
Figure 22
Figure 22
Detach the Main Wiring Harnesse (R) from the scooter. (See Fig. 21)
Unstrap the Velcro Band (S) that holds the batteries. (See Fig. 22)
(S)
(R)

Instruction Booklet5-Series
14

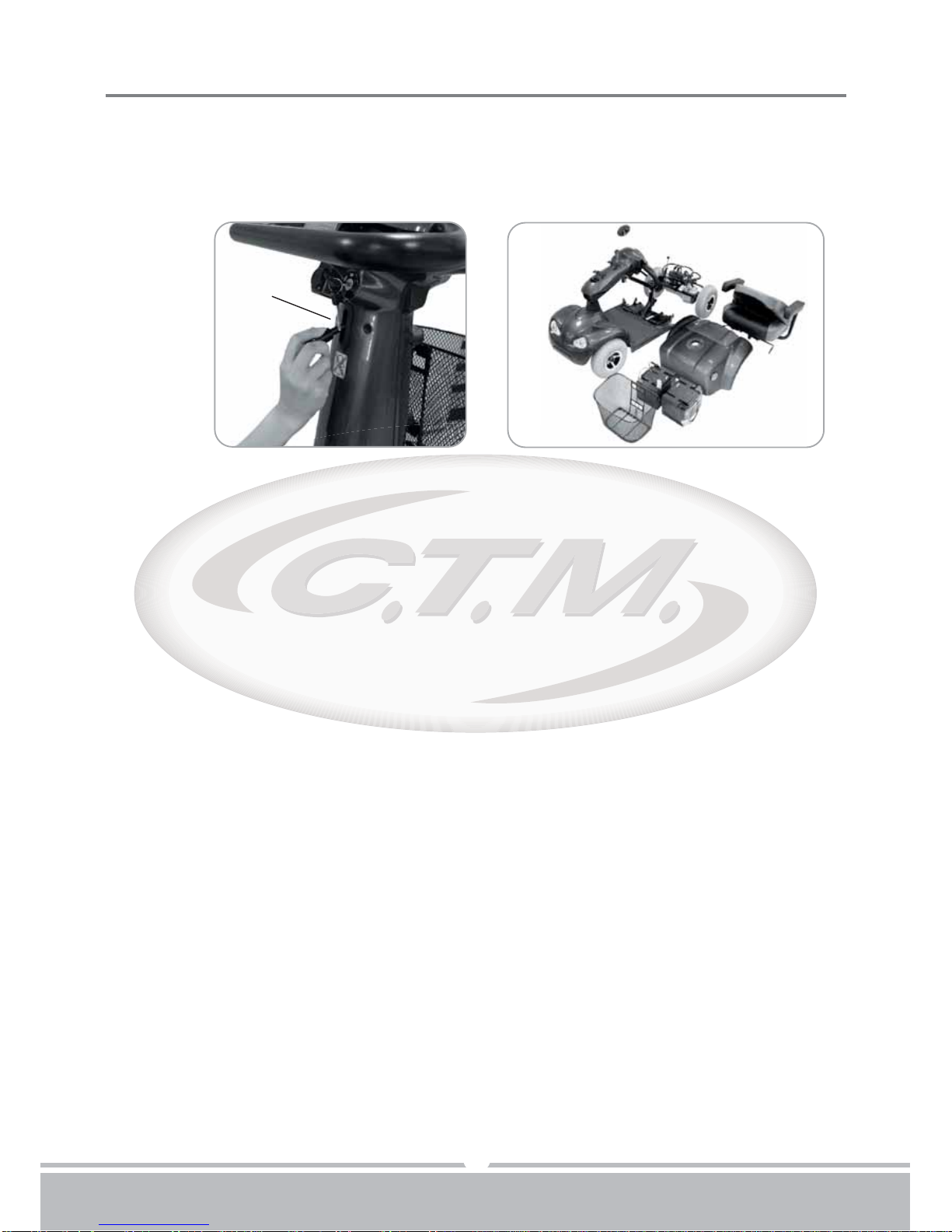

Push down the Tiller Angle Adjustment (Y) to fold the tiller in a lower position. (See Fig. 27)
Once all the parts have been disassembled, you are now able to put the pieces in storage
or in a vehicle for transportation. (See Fig. 28)
Figure 27
Figure 27
Figure 28
Figure 28
(Y)

Instruction Booklet5-Series
Figure 29
Figure 29
15
RE-ASSEMBLING YOUR SCOOTER
To assemble the scooter, you can repeat the disassembly directions in reverse.
Abbreviated directions are given below. Refer to the figures on pages 12-13 to
locate the parts.
1.Using the tiller angle adjustment, unfold the tiller in an upright position. Place the front
basket on the tiller.
2.Hold the seat post and align the Curved Locking Brackets (Z) on the front frame
assembly with the bar on the rear frame assembly.
3.
While holding the seat post, slowly pivot the rear frame assemby forward until the release
lever locks.
4.Attach the main wire harness.
5.Place the two batteries and use the Velcro strap to secure them in place.
6.Attach the battery cable plugs.
7.Place the rear shroud on.
8.Attach all rear lighting harnesses.
9.Place the storage cover on.
10.Install the seat by pulling the seat rotation lever up to allow the seat to drop into the
locked position.
(Z)

Instruction Booklet5-Series
16
CHARGING THE BATTERIES
Batteries must be charged before using the scooter for the first time and should be
recharged after each day use. You will need the scooter and the battery charger.
1.Insert battery charger cord into the charger connector on the charger output. Refer to
above figure for correct position
2.Plug the other end of the battery charger cable into a standard electrical outlet.
3.Turn the power on. Normally, The LED (Power) Light will turn on when electric current
passes.
4.Charging starts. During charging, LED (Charge) will indicate orange light, when it turns
to green light, that means well-charged.
5.LED indication
•LED(POWER) - GREEN LIGHT ON : Power On.
•LED(CHARGE) - ORANGE LIGHT ON : Charging / GREEN LIGHT ON : Fully Charged
6.Charger Trouble Shooting
(A)If LED (POWER) light is off
•Check the input voltage (115V/230V) is the same as you adjust.
•If light is still off, please check and repair the battery charger.
(B)If LED (CHARGE) light is off
•Check to see clips connection is correct.
•If the battery is fully charged, the LED (CHARGE) light will be off.
•If light is still off, the battery may be defective.
(C)If ORANGE light can turn to GREEN
•The battery can not be charged. Please check and recover it.
(D)If ORANGE light turns to GREEN immediately
•Check to see the battery is fully charged, if not, The battery may be defective
Check and recover it.
Each country may supply different
charger. The charging procedure
may be different from below.
If you require more details, please
contact your authorized dealer.
Be sure the scooter key is in the
OFF position
Figure 30
Figure 30
(B) (A)

Instruction Booklet5-Series
•Fully charge batteries at least once a month, more if you use the scooter regularly.
Charge after each trip exceeding 3 kilometers / 1.86 miles.
•If storing your scooter for some time (one month or more) make sure that the batteries
are fully charged, and on returning, charge them again before using the scooter.
Batteries will only give the maximum performance after the scooter has been used, and
the batteries have been recharged up to 10 times.
For safety, please follow the guidelines below.
1.DO NOT use the charger if the power cord is damaged.
2.DO NOT use an extension cord when charging your batteries. A risk of fire and/or
electric shock could be encountered.
3.DO NOT take apart the charger, as this will void the warranty.
Keep in mind these rules：
17
The time needed to recharge will vary depending on the depletion of
the batteries. Charging for longer than necessary will not harm the
batteries. They cannot be overcharged.

Instruction Booklet5-Series
18
CARE AND MAINTENANCE
Taking care of your scooter will keep it in top-notch condition. It is recommended that
you have your dealer to provide preventative maintenance service of your scooter on a
regularly basis. Here are a few maintenance guidelines:
BODY COVER: If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down.
Do not use running water to wash or rinse the scooter in order to protect
the electrical parts. Polish with an automotive liquid polish.
SEAT AND ARMREST: Using a damp cloth helps clean the upholstery. Please note that
using the scooter outdoors can lead to sun damage of the
upholstery material. Since this is a normal wear and tear condition,
it is not covered under the warranty.
An authorized dealer should do all maintenance and repair of your scooter that relates
to electronics, batteries, motor parts, and tires.
Also between uses, your scooter is best stored in a dry location at room temperature.
