Toro Reelmaster 2000-D User manual

Part No. 02103SL (Rev. A)
Service Manual
ReelmasterR2000--D
Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Reelmaster 2000--D.
REFER TO THE TRACTION UNIT AND CUTTING
UNIT OPERATOR’S MANUALS FOR OPERATING,
MAINTENANCE, AND ADJUSTMENT INSTRUC-
TIONS. Space is provided in Chapter 2 of this book to
insert the Operator’s Manuals and Parts Catalogs for
your machine. Additional copies of the Operator’s
Manual and Parts Catalog are available on the internet
at www.Toro.com.
The Toro Company reserves the right to change product
specifications or this publication without notice.
This safety symbol means DANGER, WARNING,
or CAUTION, PERSONAL SAFETY INSTRUC-
TION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
NOTE: ANOTE will give general information about the
correct operation, maintenance, service, testing, or re-
pair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructions which must be followed to pre-
vent damage to systems or components on the
machine.
EThe Toro Company -- 2002, 2009

This page is intentionally blank.
Reelmaster 2000–D

Rev. A
Reelmaster 2000--D
Table Of Contents
Chapter 1 -- Safety
Safety Instructions 1 -- 2..........................
Jacking Instructions 1 -- 4.........................
Safety and Instruction Decals 1 -- 4................
Chapter 2 -- Product Records and Maintenance
Product Records 2 -- 1...........................
Maintenance 2 -- 1...............................
Equivalents and Conversions 2 -- 2................
Torque Specifications 2 -- 3.......................
Chapter 3 -- Engine
Introduction 3 -- 2................................
Specifications 3 -- 3..............................
General Information 3 -- 4........................
Adjustments 3 -- 5...............................
Service and Repairs 3 -- 6........................
BRIGGS & STRATTON/DIAHATSU ENGINE REPAIR
MANUAL
Chapter 4 -- Hydraulic System
Specifications 4 -- 2..............................
General Information 4 -- 4........................
Hydraulic Schematic 4 -- 7........................
Hydraulic Flow Diagrams 4 -- 8....................
Special Tools 4 -- 14.............................
Troubleshooting 4 -- 16...........................
Testing 4 -- 1 9...................................
Service and Repairs 4 -- 40.......................
EATON MEDIUM DUTY PISTON PUMP REPAIR IN-
FORMATION MODEL 70160 VARIABLE DISPLACE-
MENT PISTON PUMP
ROSS TORQMOTOR TM MG, MF, ME, AND MJ SE-
RIES SERVICE PROCEDURE
Chapter 5 -- Electrical System
Electrical Schematics and Electrical Harness
and Connector Drawings 5 -- 2..................
Special Tools 5 -- 3..............................
Troubleshooting 5 -- 4............................
Electrical System Quick Checks 5 -- 8..............
Adjustments 5 -- 10..............................
Component Testing 5 -- 11........................
Service and Repairs 5 -- 25.......................
Chapter 6 -- Chassis
Specifications 6 -- 2..............................
Service and Repairs 6 -- 4........................
Chapter 7 -- Cutting Units
Specifications 7 -- 2..............................
Special Tools 7 -- 4..............................
Troubleshooting 7 -- 6............................
Adjustments 7 -- 8...............................
Service and Repairs 7 -- 9........................
Chapter 8 -- Electrical Diagrams
Electrical Schematics 8 -- 3.......................
Circuit Diagrams 8 -- 5...........................
Wire Harness Drawings 8 -- 10....................
SafetyProduct Records
and Maintenance
Engine
Hydraulic
System
Electrical
System
ChassisCutting UnitsElectrical
Diagrams

This page is intentionally blank.
Reelmaster 2000–D

Chapter 1
Safety
Table of Contents
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 2 JACKING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 4
Before Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SAFETY AND INSTRUCTION DECALS . . . . . . . . . . 4
While Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Maintenance and Service . . . . . . . . . . . . . . . . . . . . 3
Safety
Reelmaster 2000–D Page 1 – 1 Safety

Rev. A Reelmaster 2000--D
Page 1 -- 2
Safety
Safety Instructions
The Reelmaster 2000--D has been tested and certified
by TORO for compliance with existing safety standards
and specifications as specified in the Traction Unit Op-
erator’s Manual. Although hazard control and accident
prevention partially are dependent upon the design and
configuration of the machine, these factors are also de-
pendent upon the awareness, concern, and proper
training of the personnel involved in the operation, trans-
port, maintenance, and storage of the machine. Improp-
er use or maintenance of the machine can result in injury
or death. To reduce the potential for injury or death,
comply with the following safety instructions.
WARNING
To reduce the potential for injury or death,
comply with the following safety instructions.
Before Operating
1. Read and understand the contents of the Operator’s
Manual before starting and operating the machine. Be-
come familiar with the controls and know how to stop the
machine and engine quickly. Additional copies of the
Operator’s Manual are available on the internet at
www.Toro.com.
2. Keep all shields, safety devices, and decals in place.
If a shield, safety device, or decal is defective, illegible
or damaged, repair or replace it before operating the
machine. Also tighten any loose nuts, bolts or screws to
ensure machine is in safe operating condition.
3. Assure interlock switches are adjusted correctly so
engine cannot be started unless traction pedal is in
NEUTRAL and cutting units are DISENGAGED.
4. Since diesel fuel is highly flammable, handle it care-
fully:
A. Store fuel in containers specifically designed for
this purpose.
B. Do not remove machine fuel tank cap while en-
gine is hot or running.
C. Do not smoke while handling fuel.
D. Fill fuel tank outdoors and only to within an inch of
the top of the tank, not the filler neck. Do not overfill.
E. Wipe up any spilled fuel.
While Operating
1. Sit on the seat when starting and operating the ma-
chine.
2. Before starting the engine:
A. Engage the parking brake.
B. Make sure traction pedal is in neutral and the
PTO switch is OFF (disengaged).
C. After engine is started, release parking brake and
keep foot off traction pedal. Machine must not move.
If movement is evident, the traction pedal linkage is
adjusted incorrectly; therefore, shut engine off and
adjust traction pedal linkage until machine does not
move when traction pedal is released.
3. Do not run engine in a confined area without ade-
quate ventilation. Exhaust fumes are hazardous and
could possibly be deadly.
4. Do not touch engine, muffler or exhaust pipe while
engine is running or soon after it is stopped. These
areas could be hot enough to cause burns.
5. Before getting off the seat:
A. Ensure that traction pedal is in neutral.
B. Set parking brake.
C. Disengage cutting units and wait for blades to
stop.
D. Stop engine and remove key from ignition switch.
E. Anytime the machine is parked (short or long
term), the cutting units should be lowered to the
ground. This relieves pressure from the lift circuit
and eliminates the risk of cutting units accidentally
lowering to the ground.
F. Do not park on slopes unless wheels are chocked
or blocked.

D. Stop engine and remove key from ignition switch. F. Do not park on slopes unless wheels are chocked
or blocked.
E. Anytime the machine is parked (short or long
term), the cutting units should be lowered to the
ground. This relieves pressure from the lift circuit
and eliminates the risk of cutting units accidentally
lowering to the ground.
Safety
Maintenance and Service
1. Before servicing or making adjustments, lower
decks, stop engine, set parking brake, and remove key
from the switch.
2. Make sure machine is in safe operating condition by
keeping all nuts, bolts and screws tight.
3. Never store the machine or fuel container inside
where there is an open flame, such as near a water heat-
er or furnace.
4. Make sure all hydraulic line connectors are tight, and
all hydraulic hoses and lines are in good condition be-
fore applying pressure to the system.
5. Keep body and hands away from pin hole leaks in hy-
draulic lines that eject high pressure hydraulic fluid. Use
cardboard or paper to find hydraulic leaks. Hydraulic
fluid escaping under pressure can penetrate skin and
cause injury. Fluid accidentally injected into the skin
must be surgically removed within a few hours by a doc-
tor familiar with this form of injury or gangrene may re-
sult.
6. Before disconnecting or performing any work on the
hydraulic system, all pressure in system must be re-
lieved by stopping engine and lowering cutting units to
the ground.
7. If major repairs are ever needed or assistance is de-
sired, contact an Authorized Toro Distributor.
8. Use care when checking the cutting reels. Wear
gloves and use caution when servicing them.
9. To reduce potential fire hazard, keep engine area
free of excessive grease, grass, leaves and dirt. Clean
protective screen on machine frequently.
10.If engine must be running to perform maintenance or
an adjustment, keep hands, feet, clothing, and other
parts of the body away from cutting units and other mov-
ing parts. Keep bystanders away.
11. Do not overspeed the engine by changing governor
setting. To assure safety and accuracy, check maximum
engine speed.
12.Shut engine off before checking or adding oil to the
crankcase.
13.Disconnect battery before servicing the machine.
Disconnect negative battery cable first and positive
cable last. If battery voltage is required for troubleshoot-
ing or test procedures, temporarily connect the battery.
Reconnect positive cable first and negative cable last.
14.Battery acid is poisonous and can cause burns.
Avoid contact with skin, eyes, and clothing. Protect your
face, eyes, and clothing when working with a battery.
15.Battery gases can explode. Keep cigarettes, sparks,
and flames away from the battery.
16.At the time of manufacture, the machine conformed
to the safety standards for riding mowers. To assure op-
timum performance and continued safety certification of
the machine, use genuine Toro replacement parts and
accessories. Replacement parts and accessories made
by other manufacturers may result in non-conformance
with the safety standards, and the warranty may be
voided.
17.When changing attachments, tires, or performing
other service, use correct blocks, hoists, and jacks.
Make sure machine is parked on a solid level floor such
as a concrete floor. Prior to raising the machine, remove
any attachments that may interfere with the safe and
proper raising of the machine. Always chock or block
wheels. Use jack stands or solid wood blocks to support
the raised machine. If the machine is not properly sup-
ported by blocks or jack stands, the machine may move
or fall, which may result in personal injury (see Jacking
Instructions).
Reelmaster 2000–D Page 1 – 3 Safety

Jacking Instructions
CAUTION
er
jack stands, the machine may move or fall,
When changing attachments, tires, or perform-
ing other service, use correct blocks, hoists,
and jacks. Make sure machine is parked on a
solid level surface such as a concrete floor.
Prior to raising machine, remove any attach-
ments that may interfere with the safe and prop-
raising of the machine. Always chock or
block wheels. Use jack stands or solid wood
blocks to support the raised machine. If the ma-
chine is not properly supported by blocks or
which may result in personal injury.
Jacking the Front End
1. Set parking brake and chock rear tire to prevent the
machine from moving.
2. Position jack securely under the frame, just to the in-
side of the front tire.
3. Jack front of machine off the ground.
4. Position jack stands or hardwood blocks under the
frame as close to the wheel as possible to support the
machine.
Safety and Instruction Decals
Numerous safety and instruction decals are affixed to
the traction unit and the cutting units of the Reelmaster
2000–D. If any decal becomes illegible or damaged, in-
Jacking the Rear End
1. Set parking brake and chock both front tires to pre-
vent the machine from moving.
2. Place jack securely under the frame directly in front
of the castor fork/rear wheel.
3. Jack rear of machine off the ground.
4. Position jack stands or hardwood blocks under the
frame to support the machine.
stall a new decal. Part numbers are listed in your Parts
Catalog. Order replacement decals from your Autho-
rized Toro Distributor.
Safety Page 1 – 4 Reelmaster 2000–D

Rev. A
Reelmaster 2000--D Page 2 -- 1 Product Records and Maintenance
Chapter 2
Product Records and Maintenance
Table of Contents
PRODUCT RECORDS 1.........................
MAINTENANCE 1...............................
EQUIVALENTS AND CONVERSIONS 2...........
Decimal and Millimeter Equivalents 2............
U.S. to Metric Conversions 2...................
TORQUE SPECIFICATIONS 3....................
Fastener Identification 3.......................
Standard Torque for Dry, Zinc Plated, and
Steel Fasteners (Inch Series) 4...............
Standard Torque for Dry, Zinc Plated, and
Steel Fasteners (Metric Fasteners) 5...........
Other Torque Specifications 6..................
Conversion Factors 6..........................
Product Records
Insert Operator’s Manual and Parts Catalog for your Re-
elmaster at the end of this chapter. Refer to Operator’s
Manual for recommended maintenance intervals. Addi-
tionally, insert Installation Instructions, Operator’s
Manuals and Parts Catalogs for any accessories that
have been installed on your Reelmaster at the end of
this section.
Maintenance
Maintenance procedures and recommended service in-
tervals for your Reelmaster are covered in the Opera-
tor’s Manual. Refer to that publication when performing
regular equipment maintenance. Several maintenance
procedures have break--in intervals identified in the Op-
erator’s Manual. Refer to the Engine Operator’s Manual
for additional engine specific maintenance procedures.
Product Records
and Maintenance

Rev. A
0.09375
Reelmaster 2000--DPage 2 -- 2Product Records and Maintenance

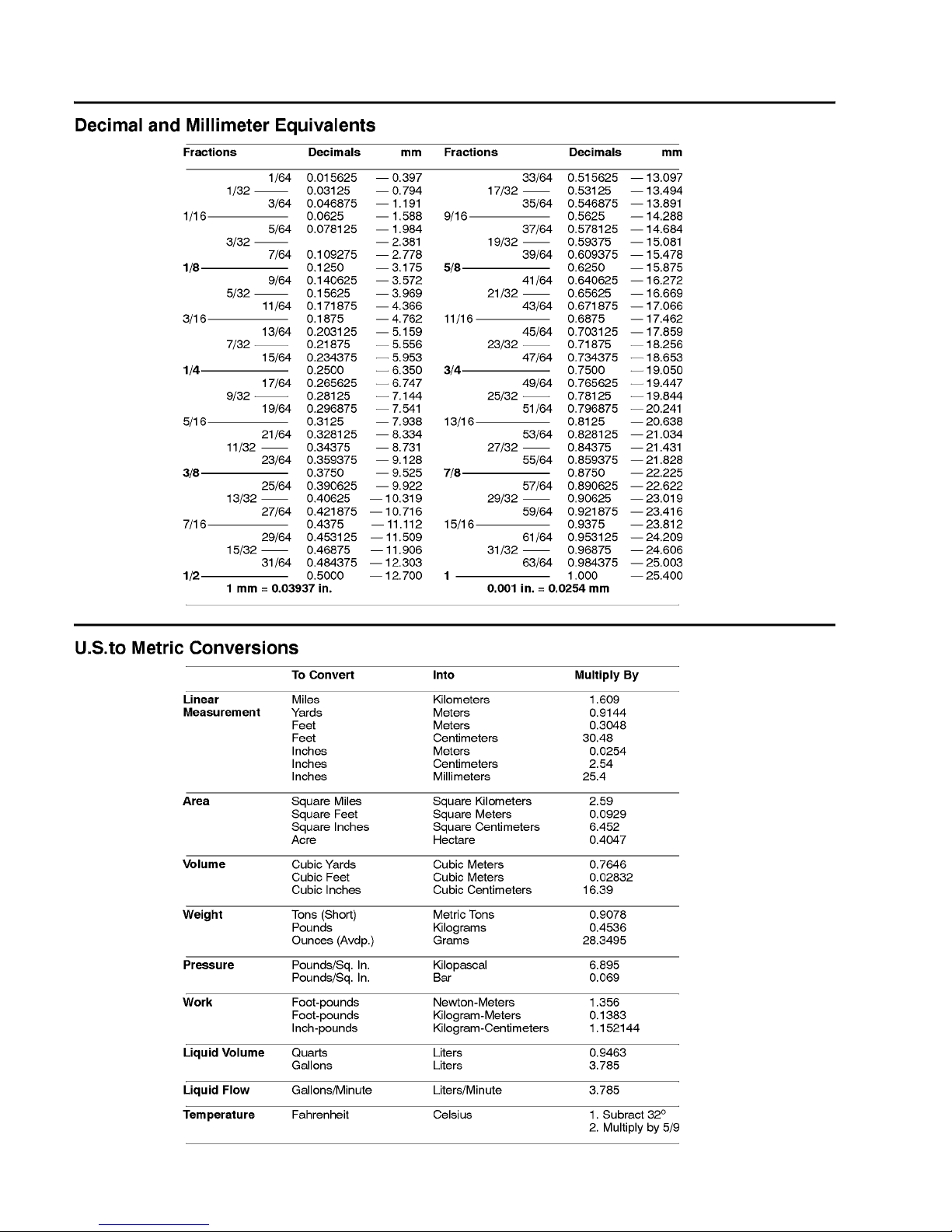

Equivalents and Conversions

Torque Specifications
Recommended fastener torque values are listed in the
following tables. For critical applications, as determined
by Toro, either the recommended torque or a torque that
is unique to the application is clearly identified and spe-
cified in this Service Manual.
These Torque Specifications for the installation and
tightening of fasteners shall apply to all fasteners which
do not have a specific requirement identified in this Ser-
vice Manual. The following factors shall be considered
when applying torque: cleanliness of the fastener, use
of a thread sealant (e.g. Loctite), degree of lubrication
on the fastener, presence of a prevailing torque feature,
hardness of the surface underneath the fastener’s head,
or similar condition which affects the installation.
As noted in the following tables, torque values should be
reduced by 25% for lubricated fasteners to achieve
the similar stress as a dry fastener. Torque values may
also have to be reduced when the fastener is threaded
into aluminum or brass. The specific torque value
should be determined based on the aluminum or brass
material strength, fastener size, length of thread en-
gagement, etc.
The standard method of verifying torque shall be per-
formed by marking a line on the fastener (head or nut)
and mating part, then back off fastener 1/4 of a turn.
Measure the torque required to tighten the fastener until
the lines match up.
Product Records
and Maintenance
Fastener Identification
Grade 1
Inch Series Bolts and Screws
Class 8.8 Class 10.9
Metric Bolts and Screws
Grade 5 Grade 8
Figure 1 Figure 2
Reelmaster 2000–D Page 2 – 3 Product Records and Maintenance

Standard Torque for Dry, Zinc Plated, and Steel Fasteners (Inch Series)
Grade 1, 5, & SAE Grade 1 Bolts, Screws, Studs, & SAE Grade 5 Bolts, Screws, Studs, & SAE Grade 8 Bolts, Screws, Studs, &
Thread Size 8 with Thin Sems with Regular Height Nuts Sems with Regular Height Nuts Sems with Regular Height Nuts
Height Nuts (SAE J995 Grade 2 or Stronger Nuts) (SAE J995 Grade 2 or Stronger Nuts) (SAE J995 Grade 5 or Stronger Nuts)
in–lb in–lb N–cm in–lb N–cm in–lb N–cm
# 6 – 32 UNC 15 + 2 170 + 20 23 + 2 260 + 20
# 6 – 40 UNF
10 + 2
10
+ 2 13 + 2
13
+ 2 147 + 23
147
+ 23
17 + 2 190 + 20 25 + 2 280 + 20
# 8 – 32 UNC 29 + 3 330 + 30 41 + 4 460 + 45
# 8 – 36 UNF
13 + 2
13
+ 2 25 + 5
25
+ 5 282 + 30
282
+ 30
31 + 3 350 + 30 43 + 4 485 + 45
# 10 – 24 UNC 42 + 4 475 + 45 60 + 6 675 + 70
# 10 – 32 UNF
18 + 2
18
+ 2 30 + 5
30
+ 5 339 + 56
339
+ 56
48 + 4 540 + 45 68 + 6 765 + 70
1/4 – 20 UNC 48 + 7 53 + 7 599 + 79 100 + 10 1125 + 100 140 + 15 1580 + 170
1/4 – 28 UNF 53 + 7 65 + 10 734 + 113 115 + 10 1300 + 100 160 + 15 1800 + 170
5/16 – 18 UNC 115 + 15 105 + 17 1186 + 169 200 + 25 2250 + 280 300 + 30 3390 + 340
5/16 – 24 UNF 138 + 17 128 + 17 1446 + 192 225 + 25 2540 + 280 325 + 30 3670 + 340
ft–lb ft–lb N–m ft–lb N–m ft–lb N–m
3/8 – 16 UNC 16 + 2 16 + 2 22 + 3 30 + 3 41 + 4 43 + 4 58 + 5
3/8 – 24 UNF 17 + 2 18 + 2 24 + 3 35 + 3 47 + 4 50 + 4 68 + 5
7/16 – 14 UNC 27 + 3 27 + 3 37 + 4 50 + 5 68 + 7 70 + 7 95 + 9
7/16 – 20 UNF 29 + 3 29 + 3 39 + 4 55 + 5 75 + 7 77 + 7 104 + 9
1/2 – 13 UNC 30 + 3 48 + 7 65 + 9 75 + 8 102 + 11 105 + 10 142 + 14
1/2 – 20 UNF 32 + 3 53 + 7 72 + 9 85 + 8 115 + 11 120 + 10 163 + 14
5/8 – 11 UNC 65 + 10 88 + 12 119 + 16 150 + 15 203 + 20 210 + 20 285 + 27
5/8 – 18 UNF 75 + 10 95 + 15 129 + 20 170 + 15 230 + 20 240 + 20 325 + 27
3/4 – 10 UNC 93 + 12 140 + 20 190 + 27 265 + 25 359 + 34 375 + 35 508 + 47
3/4 – 16 UNF 115 + 15 165 + 25 224 + 34 300 + 25 407 + 34 420 + 35 569 + 47
7/8 – 9 UNC 140 + 20 225 + 25 305 + 34 430 + 45 583 + 61 600 + 60 813 + 81
7/8 – 14 UNF 155 + 25 260 + 30 353 + 41 475 + 45 644 + 61 660 + 60 895 + 81
NOTE: Reduce torque values listed in the table above
by 25% for lubricated fasteners. Lubricated fasteners
are defined as threads coated with a lubricant such as
oil, graphite, or thread sealant such as Loctite.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
NOTE: The nominal torque values listed above for
Grade 5 and 8 fasteners are based on 75% of the mini-
mum proof load specified in SAE J429. The tolerance is
approximately + 10% of the nominal torque value. Thin
height nuts include jam nuts.
Product Records and Maintenance Page 2 – 4 Reelmaster 2000–D

Standard Torque for Dry, Zinc Plated, and Steel Fasteners (Metric Fasteners)
Class 8.8 Bolts, Screws, and Studs with Class 10.9 Bolts, Screws, and Studs with
Thread
Size
Thread Size
Regular
Height Nuts
Regular Height Nuts
Regular
Height Nuts
Regular Height Nuts
(Class 8 or Stronger Nuts) (Class 10 or Stronger Nuts)
Product Records
and Maintenance
M5 X 0.8 57 + 5 in–lb
M6 X 1.0 96 + 9 in–lb
M8 X 1.25 19 + 2 ft–lb
M10 X 1.5 38 + 4 ft–lb
M12 X 1.75 66 + 7 ft–lb
M16 X 2.0 166 + 15 ft–lb
M20 X 2.5 325 + 33 ft–lb
640 + 60 N–cm
1018 + 100 N–cm
26 + 3 N–m
52 + 5 N–m
90 + 10 N–m
225 + 20 N–m
440 + 45 N–m
78 + 7 in–lb
133 + 13 in–lb
27 + 2 ft–lb
53 + 5 ft–lb
92 + 9 ft–lb
229 + 22 ft–lb
450 + 37 ft–lb
885 + 80 N–cm
1500 + 150 N–cm
36 + 3 N–m
72 + 7 N–m
125 + 12 N–m
310 + 30 N–m
610 + 50 N–m
NOTE: Reduce torque values listed in the table above NOTE: The nominal torque values listed above are
by 25% for lubricated fasteners. Lubricated fasteners based on 75% of the minimum proof load specified in
are defined as threads coated with a lubricant such as SAE J1199. The tolerance is approximately + 10% of the
oil, graphite, or thread sealant such as Loctite. nominal torque value.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
Reelmaster 2000–D Page 2 – 5 Product Records and Maintenance

Other Torque Specifications
SAE Grade 8 Steel Set Screws Wheel Bolts and Lug Nuts
Thread
SizeThread Size
Recommended Torque
Square Head Hex Socket
1/4 – 20 UNC 140 + 20 in–lb 73 + 12 in–lb
5/16 – 18 UNC 215 + 35 in–lb 145 + 20 in–lb
3/8 – 16 UNC 35 + 10 ft–lb 18 + 3 ft–lb
1/2 – 13 UNC 75 + 15 ft–lb 50 + 10 ft–lb
Thread Size Recommended Torque**
7/16 – 20 UNF
Grade 5
65 + 10 ft–lb 88 + 14 N–m
1/2 – 20 UNF
Grade 5
80 + 10 ft–lb 108 + 14 N–m
M12 X 1.25
Class 8.8
80 + 10 ft–lb 108 + 14 N–m
M12 X 1.5
Class 8.8
80 + 10 ft–lb 108 + 14 N–m
** For steel wheels and non–lubricated fasteners.
Thread Cutting Screws Thread Cutting Screws
(Zinc Plated Steel) (Zinc Plated Steel)
Type 1, Type 23, or Type F
Thread Size Baseline Torque*
No. 6 – 32 UNC 20 + 5 in–lb
No. 8 – 32 UNC 30 + 5 in–lb
No. 10 – 24 UNC 38 + 7 in–lb
1/4 – 20 UNC 85 + 15 in–lb
5/16 – 18 UNC 110 + 20 in–lb
3/8 – 16 UNC 200 + 100 in–lb
Thread
Size
Size
Threads per Inch
Baseline
Torque*Baseline Torque*
Type A Type B
No. 6 18 20 20 + 5 in–lb
No. 8 15 18 30 + 5 in–lb
No. 10 12 16 38 + 7 in–lb
No. 12 11 14 85 + 15 in–lb
* Hole size, material strength, material thickness & finish
must be considered when determining specific torque
values. All torque values are based on non–lubricated
fasteners.
Conversion Factors
in–lb X 11.2985 = N–cm N–cm X 0.08851 = in–lb
ft–lb X 1.3558 = N–m N–m X 0.7376 = ft–lb
Product Records and Maintenance Page 2 – 6 Reelmaster 2000–D

Maintenance
Maintenance procedures and recommended service in- tion when performing regular equipment maintenance.
tervals for the Reelmaster 2000–D are covered in the Refer to the Engine Operator’s Manual for additional en-
Traction Unit Operator’s Manual. Refer to that publica- gine specific maintenance procedures.
Product Records
and Maintenance
Reelmaster 2000–D Page 2 – 7 Product Records and Maintenance

________________________________ ________________________________ ________________________________ ________________________________ ________________________________
_______________________________ _______________________________ _______________________________ _______________________________ _______________________________
________________________________ ________________________________
_______________________________ _______________________________ _______________________________
________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________
________________________________ ________________________________ ________________________________
Date: ________________
A, B, and C – Service Required
(See Operator’s Manual for Specifications and Procedures)
Drain and Flush Fuel Tank Drain and Flush Hydraulic Tank
REELMASTER R
Unit Designation: Hours:
__________________–__________________
Service to perform (circle):
A B C D Other
Remarks:
B – Service (every 100 hours) C – Service (every 200 hours)
D – Service (every 400 hours) Every 1000 hours or 2 years Additional Service Items
Change Engine Oil Filter
Replace Hydraulic Fluid Check Battery Level/Connections
Replace Moving Hoses Replace Safety Switches Flush Cooling System & Replace Hoses Replace Thermostat
Replace Hydraulic Filter
(Duplicate this page for routine use.)
Change Engine Oil
Reelmaster 2000–D
Page 2 – 8
Product Records and Maintenance
2000–D Maintenance Supervisor’s Worksheet
Technician:
TORO I.D. #:
A – Service (every 50 hours)
Inspect Air Filter, Dust Cup, & Burp Valve Lubricate All Grease Fittings Check Engine Belt Tension
Check Traction Belt Tension A – Service required
Inspect Traction Linkage Movement
Service Air Filter Replace Fuel Filter/Water Separator Torque Wheel Lug Nuts A and B – Service Required
Check Engine RPM (Idle & Full Throttle)

Chapter 3
Engine
Table of Contents
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS 3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . 4
Fuel Shutoff Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Adding Oil to Engine . . . . . . . . . . . . . . . . . . . . . . . . . 4
ADJUSTMENTS 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust Throttle Control . . . . . . . . . . . . . . . . . . . . . . . 5
Adjust Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . 5
SERVICE AND REPAIRS . . . . . . . . . . . . . . . . . . . . . . 6
Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exhaust System . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Radiator 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Engine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Engine PTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
BRIGGS & STRATTON/DAIHATSU ENGINE REPAIR
MANUAL
Engine
Reelmaster 2000–D Page 3 – 1 Engine

Introduction
This Chapter gives information about specifications,
troubleshooting, testing, and repair of the Briggs &
Stratton/Daihatsu diesel engine used in the Reelmaster
2000–D.
Most repairs and adjustments require tools which are
commonly available in many service shops. Special
tools are described in the Special Tools section. The use
of some specialized test equipment is explained. How-
ever, the cost of the test equipment and the specialized
nature of some repairs may dictate that the work be
done at an engine repair facility.
Service and repair parts for Briggs & Stratton/Daihatsu
diesel engines are supplied through your local Toro Dis-
tributor. If no parts list is available, be sure to provide
your distributor with the Toro model and serial number.
Engine Page 3 – 2 Reelmaster 2000–D

Specifications
Item Description
Make / Designation Briggs & Stratton/Daihatsu, 4–stroke,
Liquid Cooled, OHV Diesel
Number of Cylinders 3
Bore x Stroke mm (in.) 68 x 78 (2.68 x 3.07)
Total Displacement cc (cu. in.) 850 (51.9)
Compression Ratio 24.5:1
Firing Order 1 – 2 – 3
Dry Weight (approximate) kg (lb.) 72 (159)
Fuel Grade No. 2 diesel fuel (ASTM specification)
Fuel Injection Pump VE (Bosch) type
Fuel Injector Nozzle Bosch throttle type
Fuel Tank Capacity liter (U.S. gal.) 25 (6.5)
Governor Mechanical
Idle Speed (no load) 1540 + 50 RPM
High Idle (no load) 3200 + 50 RPM
Engine Oil SAE 10W30, API CF or better
Oil Pump Gear driven trochoid type
Crankcase Oil Capacity liter (U.S. qt.) 3.3 (3.5) with filter
Water Pump Belt driven centrifugal type
Cooling System Capacity liter (U.S. qt.) 4.7 (5.0)
Starter 12 VDC 1.2 KW
Alternator/Regulator 12 VDC 40 AMP
Engine
Reelmaster 2000–D Page 3 – 3 Engine

General Information
Fuel Shutoff Valve
This valve (Fig. 1) should be shut when removing the
fuel tank or engine from the machine or when placing the
unit in long term storage.
1
Figure 1
1. Fuel shutoff valve (under the fuel tank)
Adding Oil to Engine
When adding oil to the engine, maintain clearance be-
tween the oil fill device and the oil fill opening in the valve
cover (Fig. 2). This clearance is necessary to allow vent-
ing when adding engine oil which will prevent oil from
running into the breather tube and intake system.
Figure 2
Engine Page 3 – 4 Reelmaster 2000–D
