Toshiba RAC-WK0511CMU User manual

Safety Precautions
Operating Instructions
Installation Instructions
Care and Cleaning
RAC-WK0511CMU
RAC-WK0611CRU
RAC-WK0811ESCWU
RAC-WK1011ESCWU
RAC-WK1211ESCWU
RAC-WK1511ESCRU
RAC-WK1821ESCRU
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference.
The design and specications are subject to
change without prior notice for product
improvement. Consult with your dealer or
the manufacturer for details.
version B - 10 - 2017
Sa
f
ety P
O
Op
eratin
st
al
la
t
Ins
Ca
Op
In
s
Window Type
Room Air Conditioner
USER MANUAL
Troubleshooting TipsTr
o
Remote Control Operating
Instructions
us.toshiba-lifestyle.com

Page 2 User Manual
Read This Manual
Inside you’ll nd many helpful hints on how to use and maintain your air conditioner properly. Just
alittle preventive care on your partcan save you a great deal of time and money over the life of
yourairconditioner. You’ll nd many answers to common problems in the troubleshooting tips -
you should be able to x most of them quickly before calling service. These instructions may not
coverevery possible condition of use, so common sense and attention to safety is required when
installing, operating and maintaining this product.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or people who cannot
operate the air conditioning independently without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• If the power cord needs to be replaced, please contact our consumer service and look
for an authorized technician.
• Electrical installation must be performed in accordance to national regulation standards
ed personnel only.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
• Appliances with electric heaters should be positioned at least 3 feet (1 m) away from
combustible materials.
Owner’s Manual
Safety Precautions ...................................................................................................... 3
Operating Instructions .............................................................................................. 7
Installation Instructions ......................................................................................... 12
Care and Cleaning ................................................................................................... 30
Troubleshooting Tips .............................................................................................. 31
Remote Control Operating Instructions .......................................................... 32
CAUTION

User Manual Page 3
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the instructions shown here must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk
is shown by the following indications.
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or re due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it may
cause electric shock or re due to overheating.
• Always ensure eective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit you notice unusual sounds or smells, or smoke comes from it.
A damaged product may cause re and electric shock.
• Keep rearms away from the unit.
• Ventilate room before operating the air conditioner if there is a gas leakage from
another appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid enviroments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause re and electric shock.
• Do not use or keep the power cord close to heating appliances.
It may cause re and electric shock.
• Do not disassemble or modify unit.
It may cause failure and electric shock.
• Do not damage or use an alternate power cord.
It may cause re and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly qualied person in order to avoid a hazard.
• Do not direct airow straight into persons to avoid possible health hazard.
• Always install a circuit breaker and a dedicated power circuit.
Incorrect installation may cause re and electric shock.
WARNING
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Safety
Precautions

Page 4 User Manual
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near ammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or re.
• When the air lter is to be removed, do not touch the metal parts of the unit.
It may cause injury.
• When the unit needs cleaning, switch o, and turn o the circuit breaker.
Do not clean unit when power is on as it may cause re, electric shock or injury.
WARNING
• Stop operation and close the window during a storm or hurricane.
Operation with windows open may cause water leakage into the room.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Do not use strong detergents that contain wax or thinners as it may damage the
product. Clean with a soft clothe only.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to electric shock.
• Do not put a pet or house plant where it will be exposed to direct air ow.
This could injure the pet or harm the plant.
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from
potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not compressed.
Otherwise, there is danger of re or electric shock.
• If water enters the unit, turn off the unit and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a qualified service technician.
• When used near a stove or other gas burning device, be sure the room is properly
ventilated.
Otherwise an oxygen shortage may occur.
• Do not use for any purpose other than room comfort.
Do not use this air conditioner to preserve precision devices, food, pets, plants, and art
objects. It may cause deterioration.
• Disconnect the product from power if the unit is not to be used for an extended time.
• Always insert the lters securely. Clean lter once every two weeks.
Operation without lters may cause failure.
• Do not drink water drained from the air conditioner.
CAUTION
Safety
Precautions

User Manual Page 5

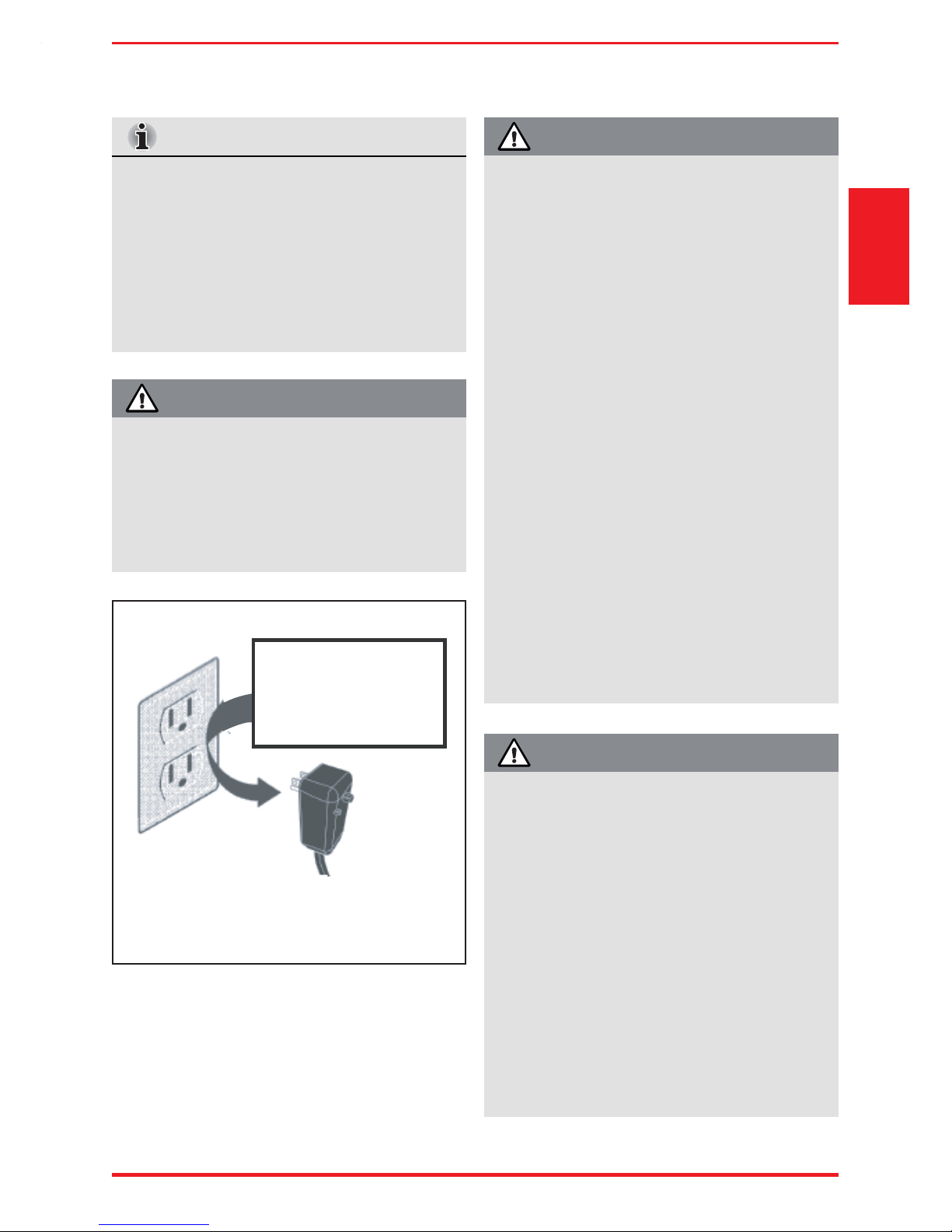

Power supply cord with 3-prong
grounding plug and current
detection device
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Grounding type wall receptacle
WARNING - For your safety
• Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
• Avoid re hazard or electric shock. Do not use
an extension cord or an adaptor plug. Do not
remove any prong from the power cord.
WARNING - Prevent Accidents
To reduce the risk of re, electrical shock,
or injury to persons when using your air
conditioner, follow basic precautions, including
the following:
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass rst. If the window
is a triple-track type with a screen panel
included, remove the screen completely
before installation.
• Be sure the air conditioner has been securely
and correctly installed according to the
installation instructions in this manual.
Save this manual for possible future use in
removing or installing this unit.
The complete electrical rating of your new room
air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical
requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and fire
hazards, proper grounding is important.
The power cord is equipped with a three-
prong grounding plug for protection
against shock hazards.
• Your air conditioner must be used in a
properly grounded wall receptacle. If the
wall receptacle you intend to use is not
adequately grounded or protected by a time
delay fuse or circuit breaker, have a qualied
electrician install the proper receptacle.
• Ensure the receptacle is accessible after the
unit installation.
• Do not run air conditioner without outside
protective cover in place. This could result
in mechanical damage within the air
conditioner.
• Do not use an extension cord or an adapter
plug.
WARNING - Electrical Information
NOTE
The power supply cord with this air conditioner
contains a current detection device designed to
reduce the risk of re.
Please refer to the section Operation of Current
Device for details.
In the event that the power supply cord is
damaged, it can not be repaired. It must be
replaced with a cord from the manufacturer.
Safety
Precautions

Page 6 User Manual
NOTES
The power supply cord contains a current device that senses damage to the power cord. Test your
power supply cord as follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is also
indicated by a light on the plug head.)
Operation of Current Device
• Do not use this device to turn the unit on or o.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply must be replaced if it fails to reset when either the TEST button is pushed, or it
can not be reset. Please contact Customer Service.
• If power supply cord is damaged, it can not be repaired. It MUST be replaced with a new cord.
Please contact Customer Service.
Safety
Precautions

Normal Sounds
OPERATING INSTRUCTIONS
NOTE
All the pictures in this manual are for illustrative purposes only. The actual shape of the air conditioner
you purchased may be slightly dierent, but its operation and functions will be similar.
Operating
Instructions

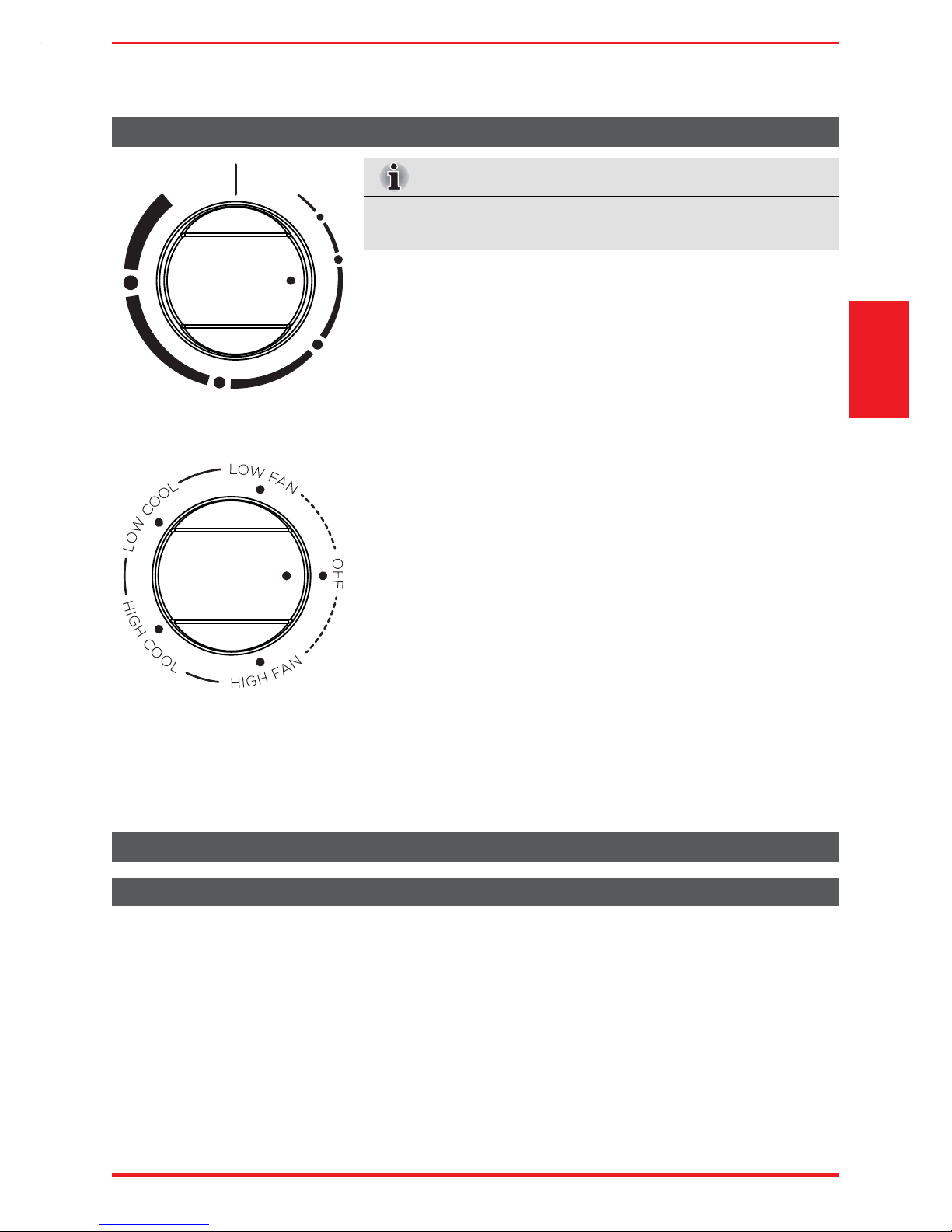

RAC-WK05 Models
RAC-WK06 / RAC-WK08 / RAC-WK10 / RAC-WK12 / RAC-WK15 / RAC-WK18 Models
Gurgle/Hiss
Gurgling or hissing
noises may be heard due
to refrigerant owing
through evaporator
during normal operation.
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
High Pitched Sound
High eciency compressors
may have a high pitched sound
during cooling cycle.
Vibration
Unit may vibrate and
make noise because
of poor wall or window
construction or
incorrect installation.
Trickling Sound
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
Gurgle/Hiss
Gurgling or hissing
noises may be heard due
to refrigerant owing
through evaporator
during normal operation.
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
Vibration
Unit may vibrate and make
noise because of poor wall
or window construction or
incorrect installation.
Trickling Sound
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
High Pitched Sound
High eciency compressors may
have a high pitched sound during
cooling cycle.
User Manual Page 7

Operating
Instructions

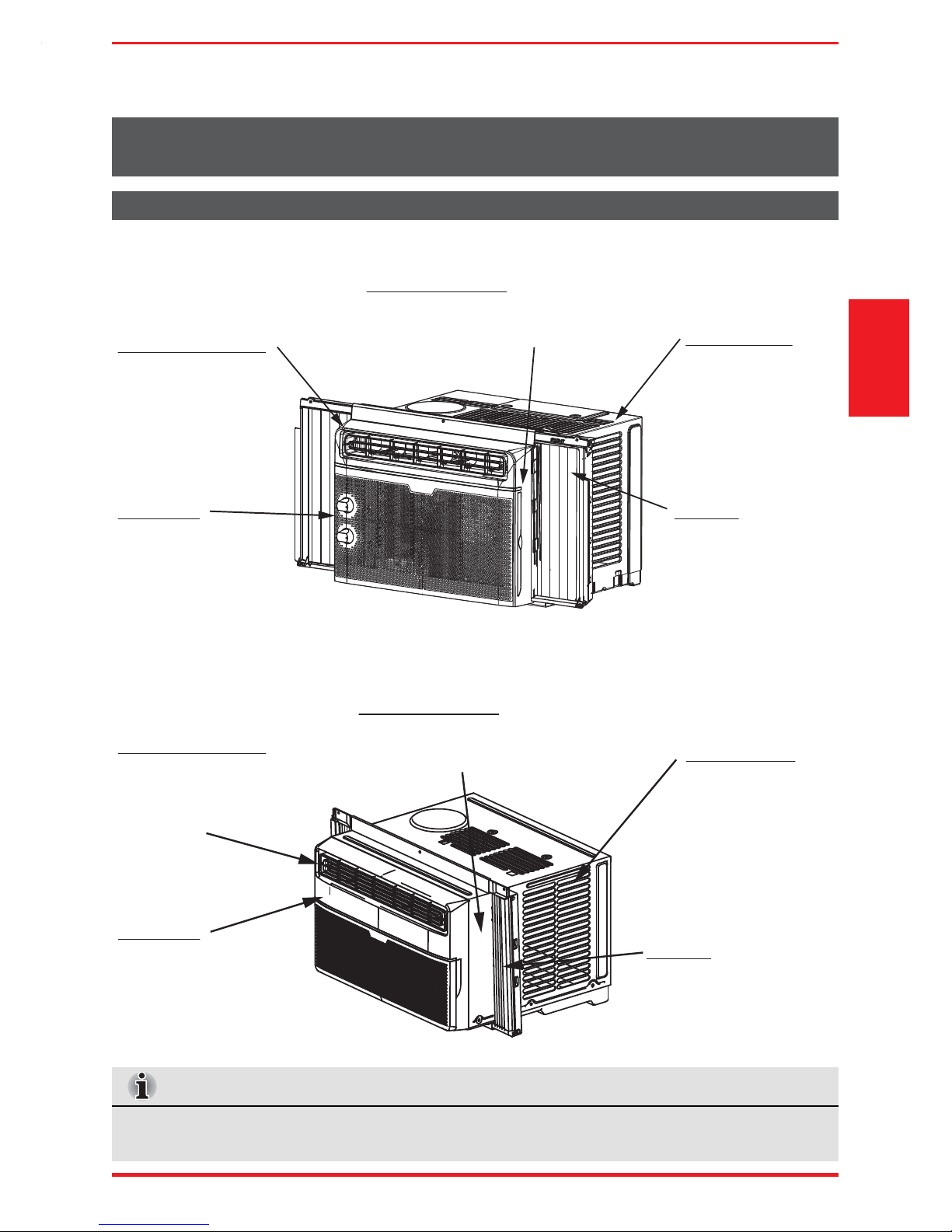

Air Conditioner Features (general)
Air Conditioner Features (RAC-WK05 only)
This air conditioner is designed to be operated under the following conditions:
Cooling Operation
Outdoor temp.: 64 ~ 109°F / 18 ~ 43°C
Indoor temp.: 62 ~ 90°F / 17 ~ 32°C
NOTES
• The relative humidity of room should be less than 80%. If the unit is used in a condition with a
relative humidity over 80%, there will be condensed water on the surface of the unit.
• Performance may be reduced outside of these operating temperatures.
WARNING
To reduce the risk of fire, electrical shock, or injury to people or property, read the
SAFETY PRECAUTIONS before operating this appliance.
To begin operating the air conditioner, follow these steps:
1. Set the thermostat to the highest number (coldest or cooler setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air ow (see Air Directional Louvers).
4. Once the room feels cooled, adjust the thermostat to the setting you nd most comfortable.
5. Make sure that the air ow inside and outside are not obstructed by anything.
NOTE
Always wait 3 minutes when turning unit and then on again, or when changing from cool to fan and
back to cool. This prevents compressor from overheating and possible tripping.
Air Directional Louvers
Page 8 User Manual
Leve r
Air Direction
Air Directional Louvers
The louvers will allow you to direct the air ow Left or Right, or Up
and Down throughout the room as needed.
Move the Levers from side to side until the desired LEFT/RIGHT
direction is obtained.
You can also move the LEFT lever to adjust air ow UP/DOWN as
needed.

Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit
control alone or with the remote.
COOL MODE
The desired cool setting is selected by rotating the knob to the right
to the desired position.
HIGH COOL has maximum cooling eect and airow.
LOW COOL has minimum cooling eect and airow.
FAN MODE
Rotate the knob to the left to select your choice of fan speeds for air
circulation.
NOTE: When selecting a fan speed, the compressor will not run.
THERMOSTAT
The thermostat is used to set the desired room temperature when
the unit is being operated in the COOL MODE.
To set the desired room temperature, rotate the thermostat switch
to the desired setting. After the set temperature is achieved the
thermostat will automatically start and stop the compressor in
order to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings.
Higher cool settings will provide lower room temperature. Rotate
the thermostat selector counter clockwise for lower cool settings.
Lower cool settings will provide higher room temperature.
Electronic Control Operating Instructions
Operating
Instructions
Air Conditioner Features (RAC-WK05 only)
Air Conditioner Features (Models RAC-WK06 / 08 / 10 / 12 / 15 / 18)
NOTE
The controls featured in this manual are representative of many
available models. Your model may oer slightly dierent features.
MODE
TEMP
MIN
COOL
MAX
COOL
User Manual Page 9

TO TURN UNIT ON OR OFF:
Press ON/OFF button to turn unit on or o.
NOTE: The unit will automatically initiate the Energy
Saver function under Cool, Dry, Auto (only Auto-
Cooling and Auto-Fan) modes.
TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change temperature setting.
NOTE: Press or hold either UP ( ) or DOWN ( ) button
until the desired temperature is seen on the display.
This temperature will be automatically maintained
anywhere between 62°F (17°C) and 86°F (30°C). If
you want to display the actual room temperature,
see To Operate on Fan Only section.
TO ADJUST FAN SPEEDS:
Press to select the Fan Speed in four steps - Auto,
Low, Med or High. Each time the button is pressed,
the fan speed mode is changed. On Dry mode, the
fan operates on Low speed automatically.
SLEEP FEATURE:
Press Sleep button to initiate the sleep mode.
In this mode the selected temperature will
increase by 2°F/ 1(or 2)°C 30 minutes after the
mode is selected.
The temperature will then increase by another
2°F/ 1(or 2)°C after an additional 30 minutes.
This new temperature will be maintained
for 6 hours before it returns to the originally
selected temperature. This ends the Sleep
Key Pad Features
Energy
Saver
LED
Display
Clean
Filter
Operating
Instructions
mode and the unit will continue to operate
as originally programmed. The Sleep mode
program can be cancelled at any time during
operation by pressing the Sleep button again.
CHECK FILTER FEATURE:
Press Check lter button to initiate this feature.
This feature is a reminder to clean the Air Filter
for more ecient operation. The LED (light) will
illuminate after 250 hours of operation. To reset
after cleaning the lter, press the Check Filter
button and the light will go o.
ENERGY SAVER FEATURE:
Press Energy Saver button to initiate this
function. This function is available on COOL,
DRY, AUTO (only AUTO-COOLING and AUTO-
FAN) modes. The fan will continue to run for
3 minutes after the compressor shuts off.
The fan then cycles on for 2 minutes at 10
minute intervals until the room temperature is
above the set temperature, at which time the
compressor turns back on and Cooling resumes.
TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is
selected in a sequence that goes from Auto,
Cool, Dry and Fan. The indicator light adjacent
will be illuminate and remain on once the mode
is selected.
The unit will automatically initiate the Energy
Saver function under Cool, Dry, Auto (only Auto-
Cooling and Auto-Fan) modes.
Timer
Button
Power
Button
Sleep
Button
Fan
Button
Up ( ) and Down ( )
Buttons
Mode
Button
Wi-Fi Indicator Light
(Wi-Fi models only)
Page 10 User Manual
CONNECT

To operate on Auto feature:
- When you set the air conditioner to AUTO mode,
it will automatically select cooling or fan only
operation depending on what temperature you
have selected and the current room temperature.
- The air conditioner will control room
temperature automatically according to
temperature you’ve set.
- In this mode, the fan speed cannot be adjusted
as it’s automatically controlled according to
temperature setting and room temperature.
To operate on Fan Only:
- Use this function only when cooling is not
desired, such as for room air circulation
or to exhaust stale air (on some models).
(Remember to open the vent during this
function, but keep it closed during cooling for
maximum cooling eciency.) You can choose
any fan speed you prefer.
- During this function, the display will show
the actual room temperature, not the set
temperature as in the cooling mode.
- In Fan Only mode, the temperature is not
adjusted.
To operate on Dry mode:
- In this mode, the air conditioner will generally
function as a dehumidier. Since the
conditioned space is a closed or sealed area,
some degree of cooling will occur.
TIMER: AUTO START/STOP FEATURE:
- When the unit is on or o, rst press the Timer
button. The TIMER ON indicator light illuminate
indicating the Auto Start program has initiated.
- When the time of TIMER ON is displayed,
press the Timer button again. The TIMER OFF
indicator light illuminates. It indicates the Auto
Stop program has initiated.
- Press or hold the UP or DOWN button to
change the Auto time by 0.5 hour increments,
up to 10 hours, then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
- The selected time will register in 5 seconds,
and the system will automatically revert back
to display the previous temperature setting or
room temperature when the unit is on. (when
the unit is o, there is no display.)
- Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop timed program.
Operating
Instructions
Displays
DISPLAYS:
Shows the set temperature in “°C” or“°F” and the
Auto-timer settings. While on Fan Only mode, it
shows the room temperature.
Error codes:
AS - Room temperature sensor error - Unplug the
unit and plug it back in. If error repeats, call
for service.
NOTE: In Fan Only mode, it will display“LO” or “HI.”
- Evaporator temperature sensor error -
Unplug the unit and plug it back in. If error
repeats, call for service.
NOTE: “ ”is shown in the display area.
NOTE
If the unit shuts off unexpectedly due to the
power outage, it will restart with the previous
function setting automatically when the
power resumes.
DISPLAYS
User Manual Page 11

Page 12 User Manual
Window Requirements
Tools You Will Need
Tools You May Use
INSTALLATION INSTRUCTIONS
WARNING - Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing codes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the consumer.
• Note to Consumer - Keep these instructions
for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Approximately 1 hour.
We recommend that two people install this
product.
Proper installation is the responsibility of the
installer.
Product failure due to improper installation is
not covered under the Warranty.
You MUST use all supplied parts and use proper
installation procedures as described in these
instructions when installing this air conditioner.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not change the plug on the power cord of
the air conditioner.
Aluminum house wiring may present special
problems - consult a qualied electrician.
When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum ns on
front and rear coils.
NOTE
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.
Installation
Instructions
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23” to 36” (584mm to 914mm).
Model 5000
BTU/h
6000~8000
BTU/h
10000~12000
BTU/h
H13”
(330mm)
14”
(356mm)
15-1/2”
(394mm)
Table 1
H
Wooden Windows
INTERIOR
WALL
OFFSET
WINDOW
SILL
INNER
EXTERIOR
WALL
Fig. D
Phillips
Screwdriver
Level
Flathead
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife

User Manual Page 13

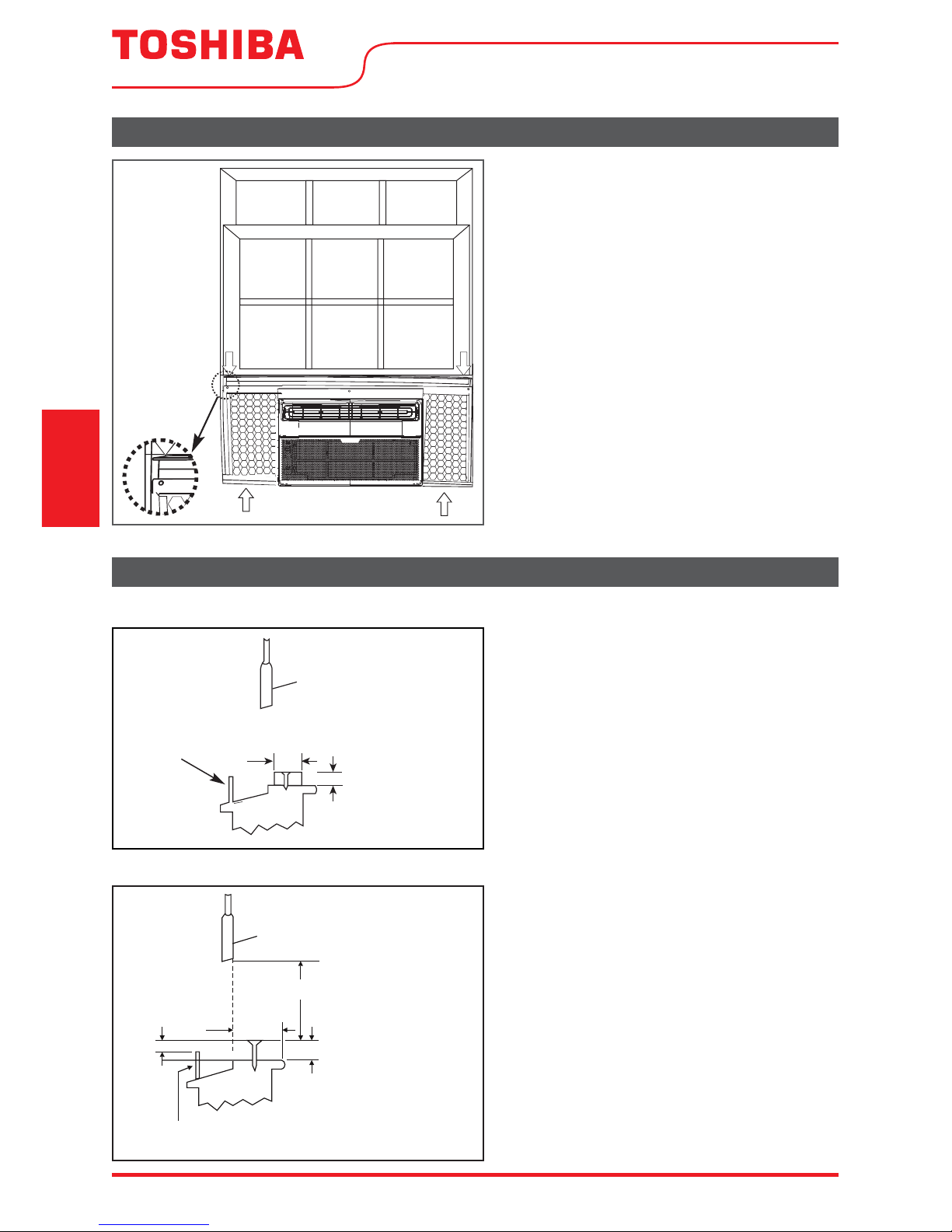

1. Prepare the Window

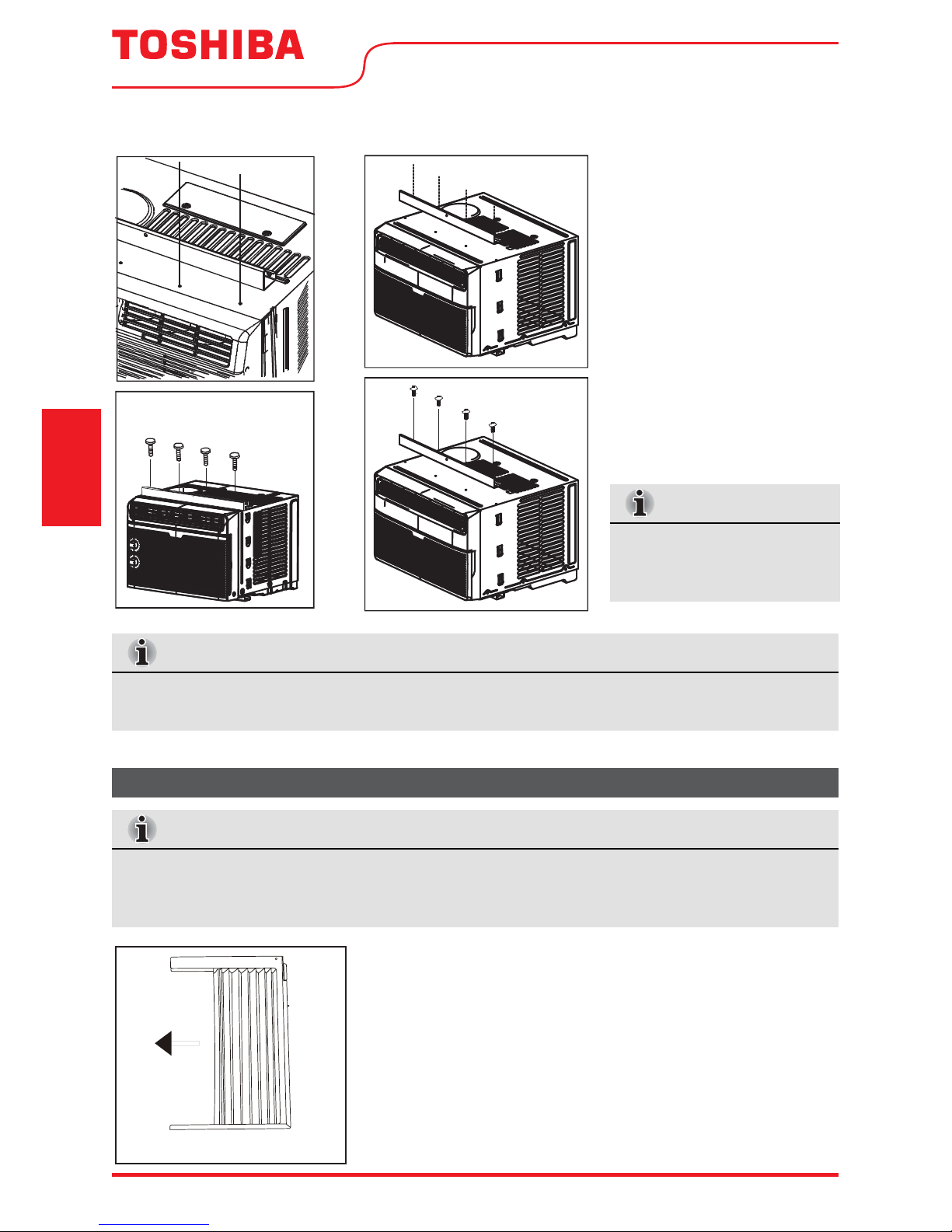

2. Prepare Air Conditioner
Installation
Instructions
Lower sash must open sufficiently to allow a clear vertical opening (see dimension H in Table 1).
Side louvers and the rear of the AC must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.

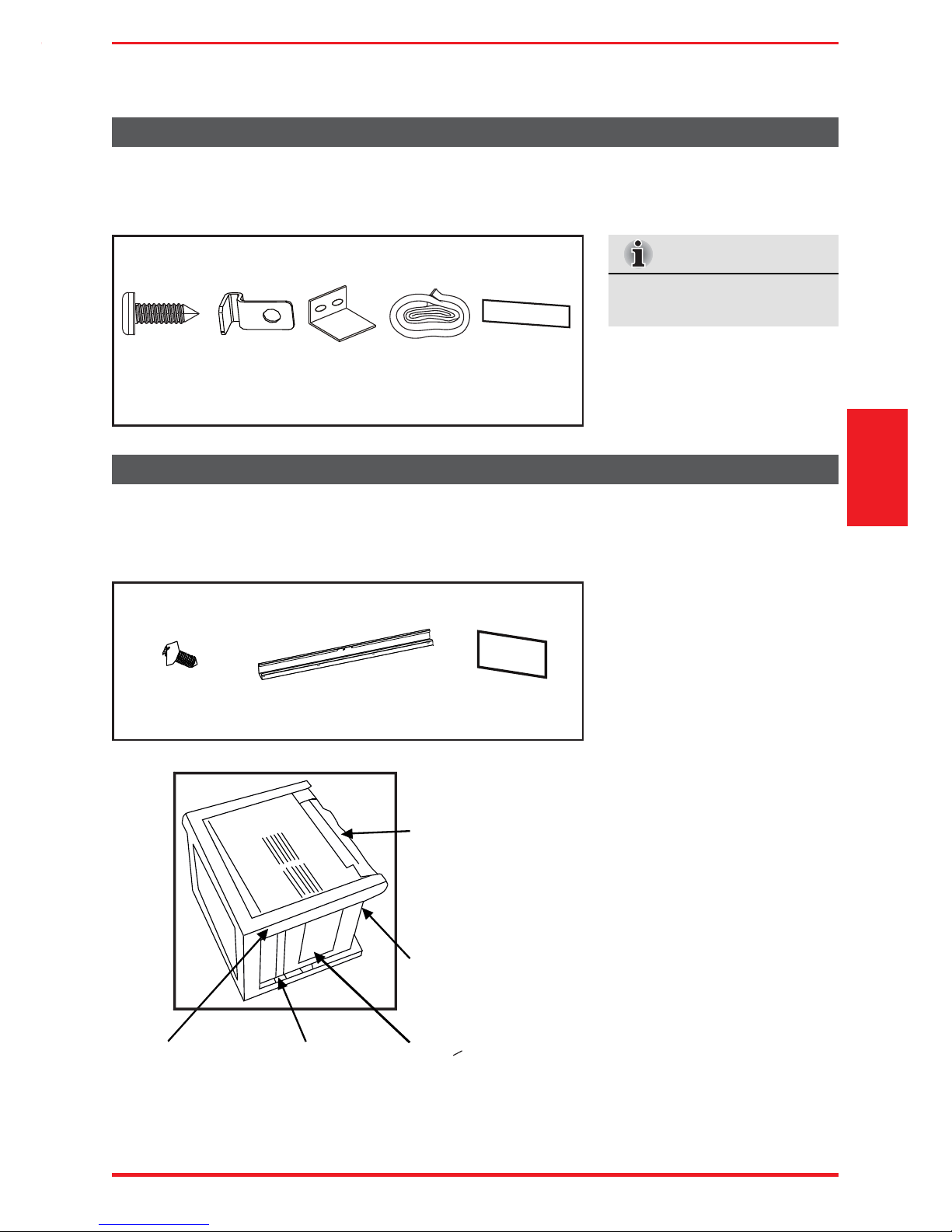

Mounting Hardware
3/4’’ (or 1/2”)
Screws
(7)
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Weather
stripping
10”*3/4”*1/12”
(5)
A: Remove the air conditioner from the carton and place on a at surface.
B: Remove top rail and R1 hardware (R1 hardware for ENERGY STAR models only) from the packaging
material as shown in Fig. A.
3/8” Screws
(4)
Top Rail
(1)
R1 Hardware
(2)
Top Rail Hardware
NOTE
Weather stripping is only for
ENERGY STAR models only.
Packaging
Fig. A
Top Rail
Top Rail
R1 hardware
(for < 10000 Btu/h
models only)
R1 hardware
(for > 10000 Btu/h
models only)
Fig. A

Page 14 User Manual
Installation
Instructions
C. Align the hole in the top rail
with those in the top of the
unit as shown in Fig. B.
D. Secure the top rail to the
unit with the 3/8” Screws as
shown in Fig. C.
Fig. 1
A. Place unit on floor, a bench or a table. Hold the Accordion
Panel in one hand and gently pull back the center to free the
open end. See Fig. 1.
Fig.B
Fig.C
NOTE
For safety reasons, all four
(4) screws MUST be securely
fastened.
RAC-WK05 Models RAC-WK06/08/10/12/15/18 Models
3. Install the Accordion Panels on Air Conditioner
NOTE
NOTE
The top rail hardware and the Fig. A, Fig. B and Fig. C are not applicable to the units with more than 10000 Btu/h.
Before installing unit, the top rail must be assembled on the unit (For < 10000 Btu/h models only).
Top rail and Sliding Panels at each side are oset to provide the proper pitch to the rear of (5/16”).
This is necessary for proper condensed water management and drainage. If you are not using the
Side Panels for any reason, this pitch to the rear must be maintained.
Fig. C
Fig. B
Fig. C
Fig. B

User Manual Page 15
NOTE
If storm window blocks AC, see Fig. 15.
Top Rail
Bottom Rail
Fig. 3
Fig. 3
“I” section
Fig 2
Fig. 2
B. Slide the free end “I“ section of the panel directly into the
cabinet as shown in Fig. 2. Slide the panel down. Be sure to
leave enough space to slip the top and bottom of the frame
into the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet,
make sure it sits securely inside the frame channel by making
slight adjustments.
Slide the top and bottom ends of the frame into the top and
bottom rails of the cabinet. Fig. 3.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
D. Slide the panel all the way in and repeat on
the other side.
4. Secure the Accordion Panels
NOTE
Check that air conditioner is tilted back per
dimension H (Fig. 5) (tilted about 3° to 4° downward
to the outside). After proper installation, condensate
should not drain from the overow drain hole
during normal use. Adjust the slope if otherwise.
A. Keep a rm grip on the air conditioner, carefully
place the unit into the window opening so the
bottom of the air conditioner frame is against
the window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 6K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1 /
for 10K to 12K)
8”
H
H:About 5/8” to 3/4”
for 5K)
Fig. 5
Installation
Instructions

Page 16 User Manual
window
frame
Fig. 5
Fig. 6
Fig.6
Fig. 7
Fig. 8
Fig. 9
Fig. 9
FOAM SEAL
Fig. 10
A. Place the frame lock between the frame extensions and the
window sill as shown (Fig. 7).
Drive 3/4” (19 mm) or 1/2” (12.7 mm) locking screws through
the frame lock and into the sill.
B. Drive 3/4”(19 mm) or 1/2”
(12.7 mm) locking screws
through frame holes into
window sash (Fig. 8).
C. To secure lower sash in place, attach right angle sash lock with
3/4” (19 mm) or 1/2” (12.7 mm) screw as shown (Fig. 9).
D. Cut Window sash seal foam and insert it in the space between
the upper and lower sashes (Fig. 10).
B. Extend the side panels out against the window frame (Fig. 6).
5. Install Support Bracket
NOTE
To prevent window sill from splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
Fig.8
Fig. 8 Fig.8 Fig. 8
Installation
Instructions
RAC-WK05 only Models RAC-WK06/08/10/12/15/18

User Manual Page 17
6. Install R1 Hardware (only by applicable to Energy Star models)
In order to minimize air leaks and ensure optimal insulation, it is
necessary to install the included R1 hardware to the side curtain.
Follow the instructions below.
Step 1.
After the unit is installed in the window, measure the inner width of
the side curtain as shown (Fig. 11).
Measure the inner width
of the sidecurtain
Fig.11
Fig. 11
Fig. 12
or
Fig. 13
Step 2.
Mark a line on the provided R1 insulation panel that is 1/8” (3 mm)
less than the measured width in step 1, then cut the R1 insulation
panel along the line (Fig. 12).
Step 3.
Slide the R1 insulation panel into the side curtain. The side with
the pattern should facing indoors. (Fig. 13).
Step 4.
Repeat on the other side.
Installation
Instructions

Page 18 User Manual
7. Install Weather Stripping (ENERGY STAR models only)
If AC is Blocked by Storm Window
Fig. 14
In order to minimize air leaks between the
room air conditoner and the window opening,
trim the weather stripping to the proper
length, peel off the protective backing and
plug any gaps if needed (Fig. 14).
SASH
1-1/2"min
(38 mm) Board thickness
as required, for
proper pitch to rear,
along entire
sill. Fasten with nails
or screws.
Storm window
frame or other
obstruction.
Fig. 15
Add wood as shown in Fig. 15, or remove
storm window before air conditioner is
installed.
If storm window frame must remain, be sure
the drain holes or slots are not caulked or
painted shut. Accumulated rain water or
condensation must be allowed to drain out.
Installation
Instructions
Check your storm windows - if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood
as shown in Fig. 15A, or by removing storm
window while room air conditioner is being
installed.
Models RAC-WK05/06/08/10/12
Models RAC-WK15/18
SASH
19” MIN.
Storm Window Frame
or Other Obstruction
Board Thickness as
Required, Along
Entire Sill. Fasten With
Two Nails Or Screws.
1/2” MIN.
1/2”MIN.
Fig. 15A

User Manual Page 19
Installation
Instructions
Do the following before beginning installation.
See illustrations below. Check dimensions of your
unit to determine model type:
Unit Height: 17-5/8”
Unit Width: 23-5/8”
Min. Window Opening: 18-1/2”
Min. Window Width: 28”
Max. Window Width: 40-1/2”
Preliminary Instructions
WARNING - Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing codes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of the
installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
CAUTION
• Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
• Do not change the plug on the power cord
of the air conditioner.
• Aluminum house wiring may present special
problems - consult a qualied electrician.
• When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum ns
on front and rear coils.
NOTE
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.
Window Sash Seal
Top RailFoam Gasket
3/4” Long Flat Head Bolt
Sill Angle Bracket
1 /2” Long
Screw and
Locknuts
Window
Support
Bracket
Frame
Assembly
(Right)
Side
Retainer
Washer Head
Locking
Screw
Bottom Rail
Seal to Unit
Frame
Assembly
(Left)
Safety Lock and
3/4” (or 1/2” ) Long
Hex Head Screw
Locknuts
Installation Instructions (WK15 / WK18 only)

Page 20 User Manual
Installation
Instructions
1. Check window opening size - the mounting parts furnished with
this air conditioner are made to install in a wooden sill double-
hung window. The standard parts are for window dimensions
listed above. Open sash to a minimum of 19”(483 mm). See Fig. D.
2. Check condition of window - all wood parts of window must be
in good shape and able to rmly hold the needed screws. If not,
make repairs before installing unit.
3. Check for anything that could block airow - check area outside
of window for things such as shrubs, trees, or awnings. Inside, be
sure furniture, drapes, or blinds will not stop proper airow.
4. Check the available electrical service - Power supply must be the
same as that shown on the unit serial nameplate. Power cord is 48
in long. Be sure you have an outlet nearby.
5. Carefully unpack air conditioner - Remove all packing material.
Protect oor or carpet from damage. Two people should be used
to move and install unit.
SASH
Storm Window Frame
or Other Obstruction
19” MIN.
1/2” MIN.
Fig. D
Preliminary Instructions (cont.)
Hardware (Packed with the unit)
7/16” Locking screw and Flat
washer for window
panels
2 ea.
3/4” (or 1/2”) Long
Hex-head Screw 7
Safety Lock 1
1/2” Long screw
and Locknut 4 ea.
3/4” Long Flathead Bolt
and Locknut 2 ea.
Sill Angle Bracket 2
Long hex-head locking screw
for top rail, side retainer
5/16” Length
10
Foam insert 2
Window sash seal foam 1
R1 hardware 2
Weather stripping
(10” *3/4” *1/12” ) 5
NOTE
R1 hardware and weather stripping is for
ENERGY STAR models only.
Tools Required
A large athead screwdriver, Tape measure,
Adjustable wrench or pliers, Pencil, Level, Socket
wrenches, Phillips screwdriver
