Digital Inverter Outdoor Unit Installation Manual
Contents
1 ACCESSORY PARTS AND REFRIGERANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 PRECAUTIONS FOR SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 INSTALLATION OF NEW REFRIGERANT AIR CONDITIONER . . . . . . . . . . . . . . . . . 4
4 SELECTION OF INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 REFRIGERANT PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 AIR PURGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7 ELECTRICAL WORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 EARTHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 FINISHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 TEST RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 ANNUAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12 FUNCTIONS TO BE IMPLEMENTED LOCALLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
13 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
14 APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Please read this Installation Manual carefully before installing the Air Conditioner.
• This Manual describes the installation method of the outdoor unit.
• For installation of the indoor unit, follow the Installation Manual attached to the indoor unit.
ADOPTION OF NEW REFRIGERANT
This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A) instead of the conventional
refrigerant R22 in order to prevent destruction of the ozone layer.
1-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 1 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–2–
EN
Digital Inverter Outdoor Unit Installation Manual
1ACCESSORY PARTS AND REFRIGERANT
Accessory parts
Refrigerant Piping
• Piping kit used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ø9.5 mm.
Use copper pipe with 1.0 mm or more thickness for Ø15.9 mm.
• Flare nut and flare works are also different from those of the conventional refrigerant.
Take out the flare nut attached to the air conditioner, and use it.
Part name Q’ty Shape Usage
Outdoor unit
Installation manual 1 (Hand this directly to the customer.)
Drain nipple 1
Waterproof rubber cap 5
Protective bush 1 For protecting wires (pipe cover)
Guard material for passage
part 1 For protecting passage part (pipe cover)
Ferrite core 1
For conforming to EMC standards for twin/triple systems
Color: White
(Used for indoor/outdoor connecting wires)
Clamp filter 1
For conforming to EMC standards for twin/triple systems
Color: Gray
(Used for outdoor fan motor lead wire)
Banding band 2 For conforming to EMC standards for twin/triple systems
(For clamping the clamp filter and ferrite core)
2-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 2 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–3–
Digital Inverter Outdoor Unit Installation Manual
2PRECAUTIONS FOR SAFETY
• Ensure that all Local, National and International regulations are satisfied.
• Read this “PRECAUTIONS FOR SAFETY” carefully before Installation.
• The precautions described below include the important items regarding safety.
Observe them without fail.
• After the installation work, perform a trial operation to check for any problem.
Follow the Owner’s Manual to explain how to use and maintain the unit to the customer.
• Turn off the main power supply switch (or breaker) before the unit maintenance.
• Ask the customer to keep the Installation Manual together with the Owner’s Manual.
WARNING
• Ask an authorized dealer or qualified installation professional to install/maintain the air conditioner.
Inappropriate installation may result in water leakage, electric shock or fire.
•Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water pipes, lightning rods or ground wires for telephone wires.
•Turn off the main power supply switch or breaker before attempting any electrical work.
Make sure all power switches are off. Failure to do so may cause electric shock.
Use an exclusive power circuit for the air conditioner. Use the rated voltage.
•Connect the connecting wire correctly.
If the connecting wire is connected in a wrong way, electric parts may be damaged.
•When moving the air conditioner for the installation into another place, be very careful not to enter
any gaseous matter other than the specified refrigerant into the refrigeration cycle.
If air or any other gas is mixed in the refrigerant, the gas pressure in the refrigeration cycle becomes
abnormally high and it may resultingly causes pipe burst and injuries on persons.
•Do not modify this unit by removing any of the safety guards or by by-passing any of the safety
interlock switches.
•After unpacking the unit, examine it carefully if there are possible damage.
•Do not install in a place that might increase the vibration of the unit.
•To avoid personal injury (with sharp edges), be careful when handling parts.
•Perform installation work properly according to the Installation Manual.
Inappropriate installation may result in water leakage, electric shock or fire.
•When the air conditioner indoor unit is installed in a small room, provide appropriate measures to
ensure that the concentration of refrigerant leakage occur in the room does not exceed the critical
level.
•Tighten the flare nut with a torque wrench in the specified manner.
Excessive tightening of the flare nut may cause a crack in the flare nut after a long period, which may result
in refrigerant leakage.
•Wear heavy gloves during the installation work to avoid injury.
•Install the air conditioner securely in a location where the base can sustain the weight adequately.
•Perform the specified installation work to guard against an earthquake.
If the air conditioner is not installed appropriately, accidents may occur due to the falling unit.
•If refrigerant gas has leaked during the installation work, ventilate the room immediately.
If the leaked refrigerant gas comes in contact with fire, noxious gas may generate.
•After the installation work, confirm that refrigerant gas does not leak.
If refrigerant gas leaks into the room and flows near a fire source, such as a cooking range, noxious gas
might generate.
•Electrical work must be performed by a qualified electrician in accordance with the Installation
Manual. Make sure the air conditioner uses an exclusive power supply.
An insufficient power supply capacity or inappropriate installation may cause fire.
•Use the specified wires for wiring connect the terminals securely fix.
To prevent external forces applied to the terminals from affecting the terminals.
3-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 3 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–4–
EN
Digital Inverter Outdoor Unit Installation Manual
WARNING
•When the air conditioner cannot cool or heat a room well, contact the dealer from whom you
purchased the air conditioner as refrigerant leakage is considered as the cause.
In the case of repair that requires refill of refrigerant, ask service personnel about details of the
repair.
The refrigerant used in the air conditioner is harmless.
Generally, the refrigerant does not leak. However, if the refrigerant leaks in a room and a heater or stove
burner in the room catches fire, it may generate toxic gas.
When you ask service personnel for repairing refrigerant leakage, confirm that the leakage portion has
been completely repaired.
•Conform to the regulations of the local electric company when wiring the power supply.
Inappropriate grounding may cause electric shock.
•Do not install the air conditioner in a location subject to a risk of exposure to a combustible gas.
If a combustible gas leaks, and stays around the unit, a fire may occur.
•Install the refrigerant pipe securely during the installation work before operating the air
conditioner.
If the compressor is operated with the valve open and without the refrigerant pipe, the compressor sucks
air and the refrigeration cycle is overpressurized, which may cause a burst or injury.
•For the refrigerant recovery work (collection of refrigerant from the pipe to the compressor), stop
the compressor before disconnecting the refrigerant pipe.
If the refrigerant pipe is disconnected while the compressor is working with the valve open, the compressor
sucks air and the refrigeration cycle is overpressurized, which may cause a burst or injury.
CAUTION
New Refrigerant Air Conditioner Installation
•THIS AIR CONDITIONER ADOPTS THE NEW HFC REFRIGERANT (R410A) WHICH DOES NOT
DESTROY OZONE LAYER.
• The characteristics of R410A refrigerant are ; easy to absorb water, oxidizing membrane or oil, and its
pressure is approx. 1.6 times higher than that of refrigerant R22. Accompanied with the new refrigerant,
refrigerating oil has also been changed. Therefore, during installation work, be sure that water, dust, former
refrigerant, or refrigerating oil does not enter the refrigerating cycle.
• To prevent charging an incorrect refrigerant and refrigerating oil, the sizes of connecting sections of
charging port of the main unit and installation tools are changed from those for the conventional refrigerant.
• Accordingly the exclusive tools are required for the new refrigerant (R410A).
• For connecting pipes, use new and clean piping designed for R410A, and please care so that water or dust
does not enter.
To Disconnect the Appliance from Main Power Supply
• This appliance must be connected to the main power supply by means of a switch with a contact separation
of at least 3 mm.
• The installation fuse 40 A (All type fuse can be used) must be used for the power supply line of this
conditioner.
3INSTALLATION OF NEW REFRIGERANT
AIR CONDITIONER
• The R410A refrigerant is more susceptible to impurities such as water, oxide membrane, oils, and fats.
With the adoption of the new refrigerant, refrigerating oil has also been changed.
Be careful so that water, dust, conventional refrigerant, and/or conventional refrigerating oil do not
enter the refrigerating cycle of the new refrigerant air conditioner.
• To prevent different refrigerant or refrigerating oil being mixed, the sizes of the charging port of the unit
and the installation tool connecting sections are different from the conventional refrigerant. Accordingly
the following exclusive tools are required for the new refrigerant R410A.
4-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 4 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–5–
Digital Inverter Outdoor Unit Installation Manual
Required Tools/Equipment and Precautions for Use
Prepare the tools and equipment listed in the following table before starting installation work.
Newly prepared tools and equipment must be used exclusively.
Legend
: Prepared newly (Use for R410A only. Do not use for refrigerant R22 or R407C etc..)
: Conventional tools/equipment are available
Refrigerant Piping
New refrigerant (R410A)
When using the conventional piping kit
• When using the conventional piping kit that has no indication of applicable refrigerant types, be sure to
use it with a wall thickness of 0.8 mm for Ø6.4 mm, Ø9.5 mm, and Ø12.7 mm, and with a wall thickness
of 1.0 mm for Ø15.9 mm. Never use the conventional piping kit with a wall thickness less than these
thicknesses due to insufficient pressure capacity.
When using general copper pipes
• Use general copper pipes with a wall thickness of 0.8 mm for Ø6.4 mm, Ø9.5 mm, and Ø12.7 mm, and
with a wall thickness of 1.0 mm for Ø15.9 mm.
Never use any copper pipes with a wall thickness less than these thicknesses.
Flare nuts and flare machining
• The flare nuts and flare machining are different from those for the conventional refrigerant.
Use the flare nuts supplied with the air conditioner or those for R410A.
• Before performing flare machining, carefully read “REFRIGERANT PIPING”
Tools/equipment Use How to use tools/equipment
Gauge manifold Vacuuming/charging
refrigerant and operation
check
Prepared newly for R410A only
Charging hose Prepared newly for R410A only
Charging cylinder Can not be used Unusable (Use the refrigerant charging measure
instead.)
Gas leak detector Gas leak check Prepared newly
Vacuum pump with backflow
prevention function Vacuum drying Unusable
Vacuum pump with backflow
prevention function Vacuum drying R22 (Conventional tools)
Flare tool Flare machining of pipes Usable if dimensions are adjusted.
Bender Bending pipes R22 (Conventional tools)
Refrigerant recovery equipment Refrigerant recovery For R410A only
Torque wrench Tightening flare nuts Exclusive for Ø12.7 mm and Ø15.9 mm
Pipe cutter Cutting pipes R22 (Conventional tools)
Refrigerant cylinder Charging refrigerant
For R410A only
Discriminated by the refrigerant name on the
cylinder.
Welding machine and nitrogen
cylinder Welding pipes R22 (Conventional tools)
Refrigerant charging measure Charging refrigerant R22 (Conventional tools)
5-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 5 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–6–
Digital Inverter Outdoor Unit Installation Manual
EN
4SELECTION OF INSTALLATION
Before installation
Be careful to the following items before
installation.
Length of refrigerant pipe
* Caution at addition of refrigerant
When the total length of refrigerant pipe
exceeds 30 m, add 40 g /m of refrigerant and
the maximum total length of pipe is 50 m. (Max.
amount of additional refrigerant is 800 g.)
Charge the refrigerant accurately. Overcharge
may cause a serious trouble of compressor.
* Do not connect a refrigerant pipe shorter than
5m.
This may cause a malfunction of the
compressor or other devices.
Airtight test
1. Before starting an airtight test, further tighten
the spindle valves on the gas side and liquid
side.
2. Pressurize the pipe with nitrogen gas charged
from the service port to the design pressure
(4.15 Mpa) to conduct the airtight test.
3. After the airtight test is completed, evacuate the
nitrogen gas.
Air purge
• For air purge, use a vacuum pump.
• Do not use refrigerant charged in the outdoor
unit for air purge. (The refrigerant for air purge
is not contained in the outdoor unit.)
Electrical wiring
• Be sure to fix the power wires and indoor/
outdoor connecting wires with clamps so that
they do not contact with the cabinet, etc.
Earthing
WARNING
Make sure that proper earthing is provided.
Improper earthing may cause electric shock. For
how to check earthing, contact the dealer who
installed the air conditioner or a professional
installation company.
• Proper earthing can prevent charging of
electricity on the outdoor unit surface due to
high frequency of the frequency converter
(inverter) in the outdoor unit, as well as prevent
electric shock. If the outdoor unit is not properly
earthed, you may feel electric shock.
• Be sure to connect earth wire. (grounding
work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water
pipes, lightning rods or ground wires for
telephone wires.
Test Run
Turn on the leakage breaker at least 12 hours
before starting a test run to protect the
compressor during startup.
CAUTION
Incorrect work may result in a malfunction or
complaints of customers.
Length of refrigerant
pipe connected to
indoor/outdoor unit Item
5 m to 30 m Addition of refrigerant is
unnecessary at the local site.
*31 m to 50 m
<Addition of refrigerant>
Add 40 g of refrigerant for
every 1m of pipe which
exceeds 30 m.
6-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 6 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–7–
Digital Inverter Outdoor Unit Installation Manual
Installation Place
WARNING
Install the outdoor unit properly at a place that
is durable enough to the weight of the outdoor
unit.
Insufficient durability may cause the outdoor unit
to fall, which may result in injury.
CAUTION
Do not install the outdoor unit at a place
subject to combustible gas leak.
Accumulation of combustible gas around the
outdoor unit may cause a fire.
Install the outdoor unit at a place that meets
the following conditions after customer’s
consent is obtained.
• A well-ventilated place free from obstacles near
the air inlets and air outlet
• A place that is not exposed to rain or direct
sunlight
• A place that does not increase the operating
noise or vibration of the outdoor unit
• A place that does not cause any drainage
problem with discharged water
Do not install the outdoor unit at the following
places.
• A place full of saline atmosphere (coastal area)
or sulfide gas (hot-spring area)
(Special maintenance is required.)
• A place subject to oil, vapor, oily smoke, or
corrosive gas
• A place where organic solvent is used
• A place where high-frequency equipment
(including inverter equipment, private power
generator, medical equipment, and
communication equipment) is used
(Installation in this place may cause malfunction
of the air conditioner, abnormal control or
problems due to noise to such equipment.)
• A place where the discharged air of the outdoor
unit blows against the window of the
neighboring house
• A place where the operating noise of the
outdoor unit is transmitted
• When the outdoor unit is installed in an elevated
position, be sure to secure its feet.
• A place where the drain water does not make
any problem.
CAUTION
1. Install the outdoor unit at a place where
discharge air is not blocked.
2. When an outdoor unit is installed in a place
that is always exposed to a strong wind like
a coast or on a high storey of a building,
secure a normal fan operation by using a
duct or a wind shield.
3. When installing the outdoor unit in a place
that is constantly exposed to a strong wind
such as the upper stairs or rooftop of a
building, apply the windproof measures
referring to the following examples.
1) Install the unit so that its discharge port
faces to the wall of the building.
Keep a distance 500 mm or more between
the unit and the wall surface.
2) Supposing the wind direction during the
operation season of the air conditioner,
install the unit so that the discharge port is
set at right angle to the wind direction.
• When using an air conditioner under low outside
temperature condition (Outside temp.:-5 °C or
lower) with COOL mode, prepare a duct or wind
shield so that it is not affected by the wind.
<Example>
500
Strong
wind
Strong
wind
Wind shield
Wind shield
Wind shield
7-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 7 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–8–
Digital Inverter Outdoor Unit Installation Manual
EN
Necessary Space for Installation (Unit:mm)
Obstacle at rear side
▼Upper side is free
1. Single unit installation
2. Obstacles at both right and left sides.
3. Serial installation of two or more units
▼Obstacle also at the upper side
Obstacle at front side
▼Upper side is free
1. Single unitIn installation
2. Serial installation of two or more units
▼Obstacle also at the upper side
Obstacles at both front and rear sides
Open the upper side and both right and left sides.
The height of obstacle at both front and rear side,
should be lower than the height of the outdoor
unit.
▼Standard installation
1. Single unit installation
150
or more
The height of the
obstacle should be
lower than the height
of the outdoor unit.
200
or more
150
or more 300 or more
The height of the obstacle should be lower
than the height of the outdoor unit.
200 or more
150
or more 300 or more 300 or more 300 or more
150
or more
500
or more
500
or more
1000
or more
1000
or more
1000
or more
150
or more
1000
or more
8-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 8 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–9–
Digital Inverter Outdoor Unit Installation Manual

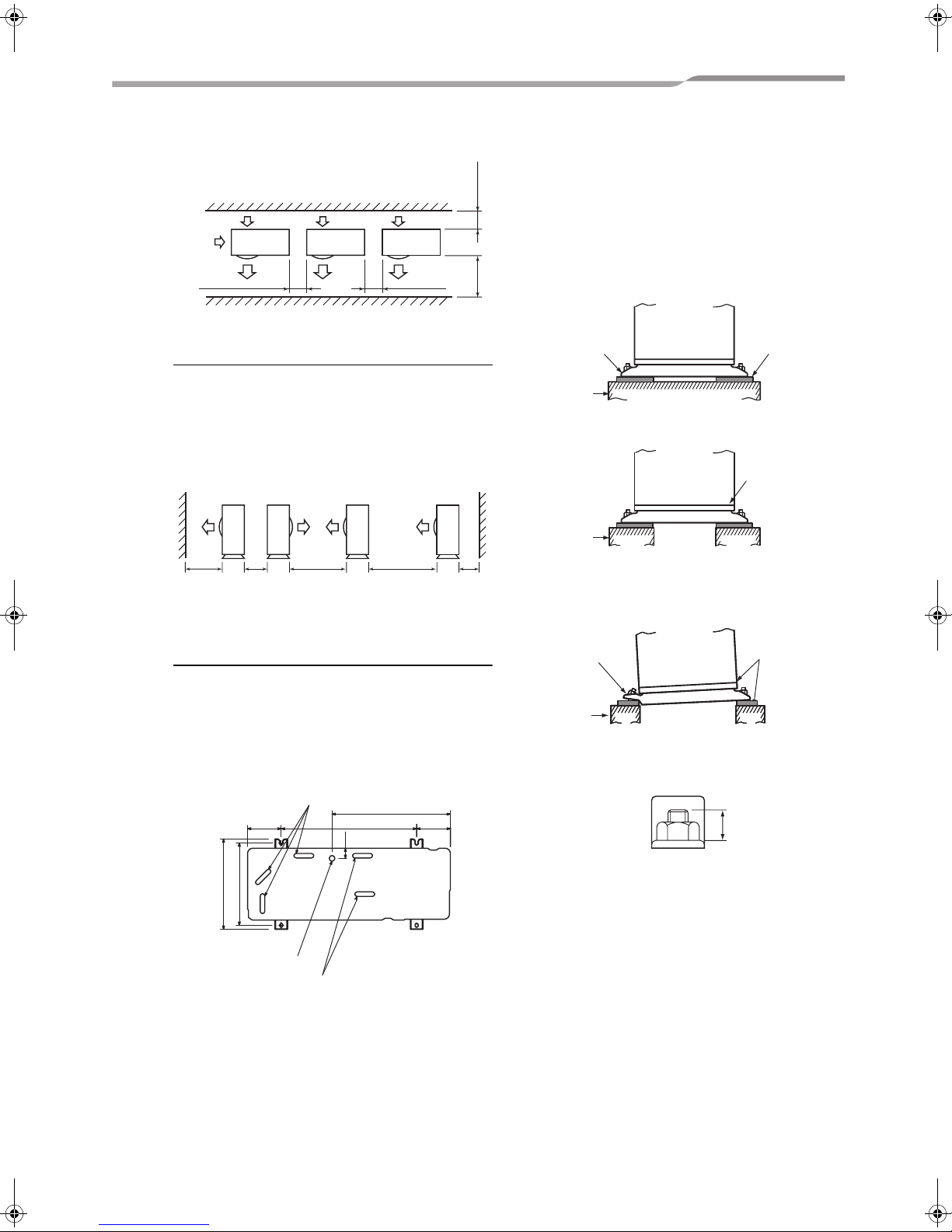

2. Serial installation of two or more units
Serial installation at front and rear sides
Open the upper side and both right and left sides.
The height of obstacle at both front and rear sides
should be lower than the height of the outdoor
unit.
▼Standard installation
Installation of Outdoor Unit
• Before installation, check strength and
horizontality of the base so that abnormal sound
does not generate.
• According to the following base diagram, fix the
base firmly with the anchor bolts.
(Anchor bolt, nut: M10 x 4 pairs)
• As shown in the figure below, install the
foundation and vibration-proof rubbers to
directly support the bottom surface of the fixing
leg that is in contact with the bottom plate of the
outdoor unit.
* When installing the foundation for an outdoor
unit with downward piping, consider the piping
work.
Set the out margin of the anchor bolt to 15 mm or
less.
200
or more
1000
or more
300
or more 300 or more
1000
or more 300 or more 1500 or more 2000 or more 200 or more
150
150 600
525
45
365
400
Drain hole
Drain
nipple mounting hole
Drain hole
GOOD
Fixing leg
Absorb vibration
with vibration-
proof rubbers
Foundation
GOOD
NO GOOD
Foundation
Foundation
If only the end of the
fixing leg is
supported, it may be
deformed.
Do not support
the outdoor unit
only with the
fixing leg.
Bottom plate
of outdoor unit
Support the bottom surface of
the fixing leg in contact with
the bottom plate of the outdoor
unit.
15 or less
9-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 9 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–10–
Digital Inverter Outdoor Unit Installation Manual
EN
• In case of drainning through the drain hose,
attach the following drain nipple and the
waterproof rubber cap, and use the drain hose
(Inner diam.: 16 mm) sold on the market. And
also seal the screws securely with silicone
material, etc. so that water does not drop down.
Some conditions may cause dewing or dripping
of water.
• When collectively draining discharged water
completely, a drain pan must be made locally.
For Reference
If a heating operation would be continuously
performed for a long time under the condition that
the outdoor temperature is 0 °C or lower, draining
of defrosted water may be difficult due to freezing
of the bottom plate, resulting in a trouble of the
cabinet or fan.
It is recommended to procure an anti-freeze
heater locally for a safety installation of the air
conditioner.
For details, contact the dealer.
Drain nipple Waterproof rubber cap
(5pcs.)
Waterproof rubber cap
Drain nipple
10-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 10 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–11–
Digital Inverter Outdoor Unit Installation Manual
5REFRIGERANT PIPING

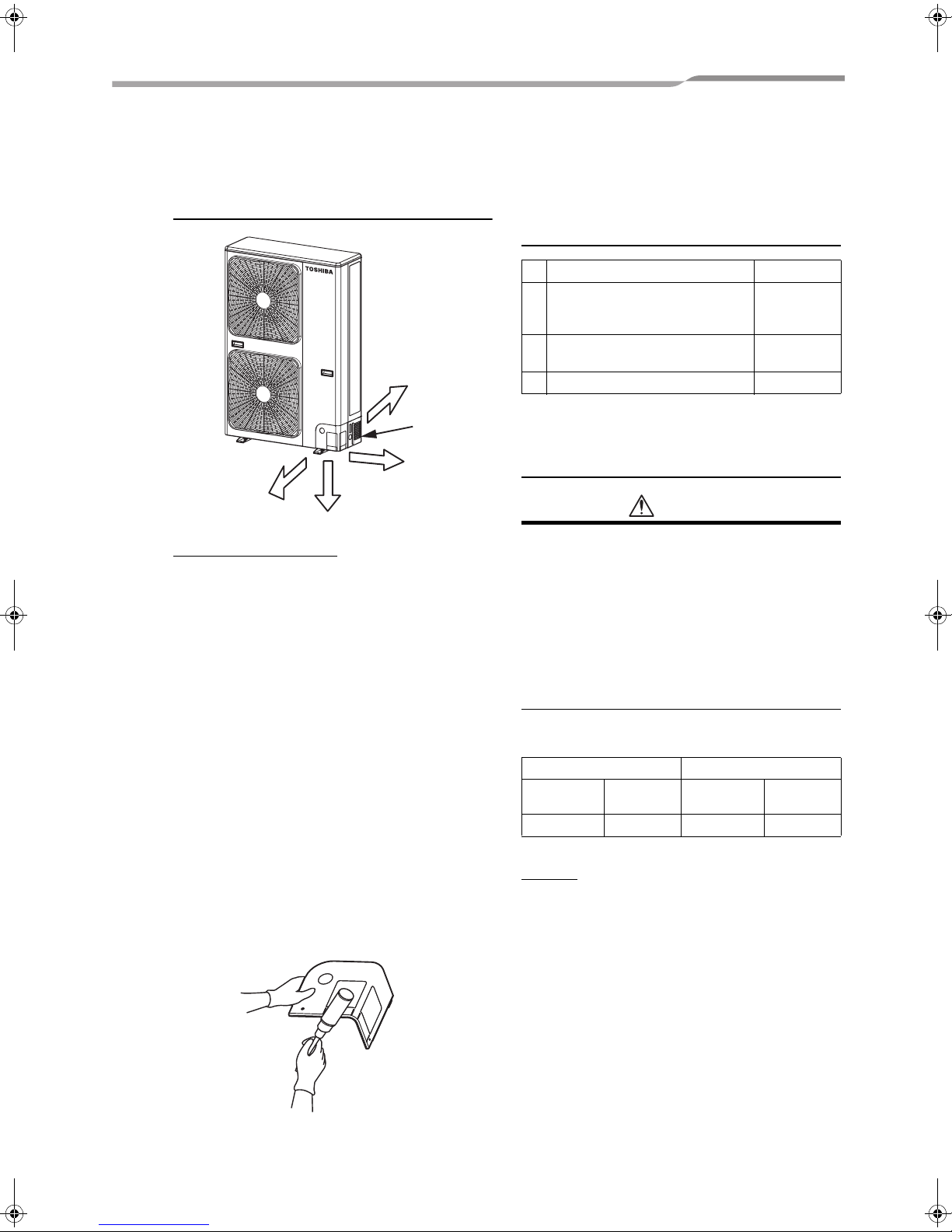

Knockout of Pipe Cover
Knockout procedure
• The indoor/outdoor connecting pipes can be
connected to 4 directions.
Take off the knockout part of the pipe cover in
which pipes or wires pass through the base
plate.
• Detach the piping cover and give an impact on
the knockout section a few times with the shank
of a screwdriver. A knockout hole can easily be
punched.
• After punching the knockout hole, remove burrs
of the hole and then install the supplied
protective bush and guard material for passage
part to protect wires and pipes.
Be sure to attach the pipe covers after pipes
have been connected. Cut the slits under the
pipe covers to facilitate the installation.
After connecting the pipes, be sure to mount the
pipe cover. The pipe cover is easily mounted by
cutting off the slit at the lower part of the pipe
cover.
* Be sure to wear heavy work gloves while
working.
Optional Installation Parts
(Local Procure)
Refrigerant Piping
Connection
CAUTION
TAKE NOTICE THESE IMPORTANT
4 POINTS BELOW FOR PIPING WORK
1. Keep dust and moisture away from inside
the connecting pipes.
2. Tightly connect the connection between
pipes and the unit.
3. Evacuate the air in the connecting pipes
using VACUUM PUMP.
4. Check gas leak at connected points.
▼Piping connection
Flaring
1. Cut the pipe with a pipe cutter.
Be sure to remove burrs that may cause gas
leak.
2. Insert a flare nut into the pipe, and then flare
the pipe.
Use the flare nuts supplied with the air
conditioner or those for R410A.
Insert a flare nut into the pipe, and flare the
pipe.
As the flaring sizes of R410A differ from those
of refrigerant R22, the flare tools newly
manufactured for R410A are recommended.
Rear direction
Pipe cover
Side direction
Down direction
Front direction
Parts name Q’ty
A
Refrigerant piping
Liquid side : Ø9.5 mm
Gas side : Ø15.9 mm
Each one
BPipe insulating material
(polyethylene foam, 10 mm thick) 1
CPutty, PVC tapes Each one
Liquid side Gas side
Outer
diameter Thickness Outer diameter Thickness
Ø9.5 mm 0.8 mm Ø15.9 mm 1.0 mm
11-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 11 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–12–
Digital Inverter Outdoor Unit Installation Manual
EN
However, the conventional
tools can be used by
adjusting projection margin
of the copper pipe.

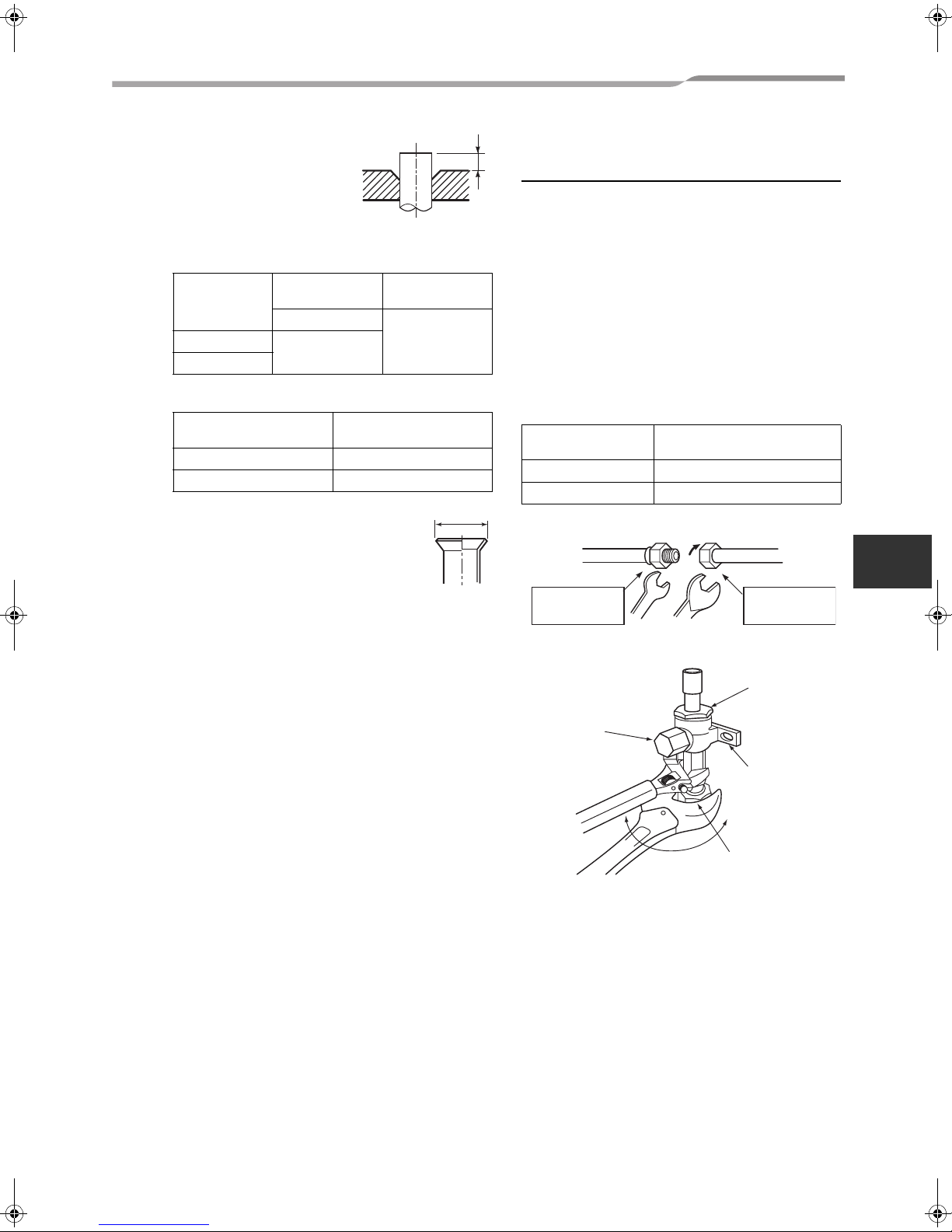

▼Projection margin in flaring : B (Unit : mm)
Rigid (Clutch type)
▼Flaring diam. meter size : A (Unit : mm)
* In case of flaring for R410A with the
conventional flare tool, pull it out
approx.
0.5 mm more than that for R22 to
adjust to the specified flare size.
The copper pipe gauge is useful for
adjusting projection margin size.
Tightening of Connecting
Part
1. Align the centers of the connecting pipes and
fully tighten the flare nut with fingers. Then fix
the nut with a spanner as shown in the figure
and tighten it with a torque wrench.
2. As shown in the figure, be sure to use two
spanners to loosen or tighten the flare nut of the
valve on the gas side. If you use a single
spanner, the flare nut cannot be tightened to
the required tightening torque.
On the other hand, use a single spanner to
loosen or tighten the flare nut of the valve on
the liquid side.
(Unit: N•m)
Outer diam. of
copper pipe
R410A tool
used Conventional tool used
R410A
1.0 to 1.59.5 0 to 0.5
15.9
Outer diam. of copper
pipe A+0 ~ A–0.4
9.5 13.2
15.9 19.7
B
A
Outer dia. of copper
pipe Tightening torque
9.5 mm (diam.) 33 to 42 (3.3 to 4.2 kgf•m)
15.9 mm (diam.) 68 to 82 (6.8 to 8.2 kgf•m)
Half union or packed valve Flare nut
Fix with spanner. Tighten with torque wrench.
Externally
threaded side Internally threaded side
Cover
Piping valve
Cap
Tightened
Flare nut
Loosened
Valve at gas side
12-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 12 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–13–
Digital Inverter Outdoor Unit Installation Manual
CAUTION
1. Do not put the spanner on the cap or cover.
The valve may be broken.
2. If applying excessive torque, the nut may
be broken according to some installation
conditions.
• After the installation work, be sure to check gas
leak of connecting part of the pipes with nitrogen.
• Pressure of R410A is higher than that of R22
(Approx. 1.6 times).
Therefore, using a torque wrench, tighten the
flare pipe connecting sections which connect
the indoor/outdoor units at the specified
tightening torque.
Incomplete connections may cause not only a
gas leak, but also a trouble of the refrigeration
cycle.

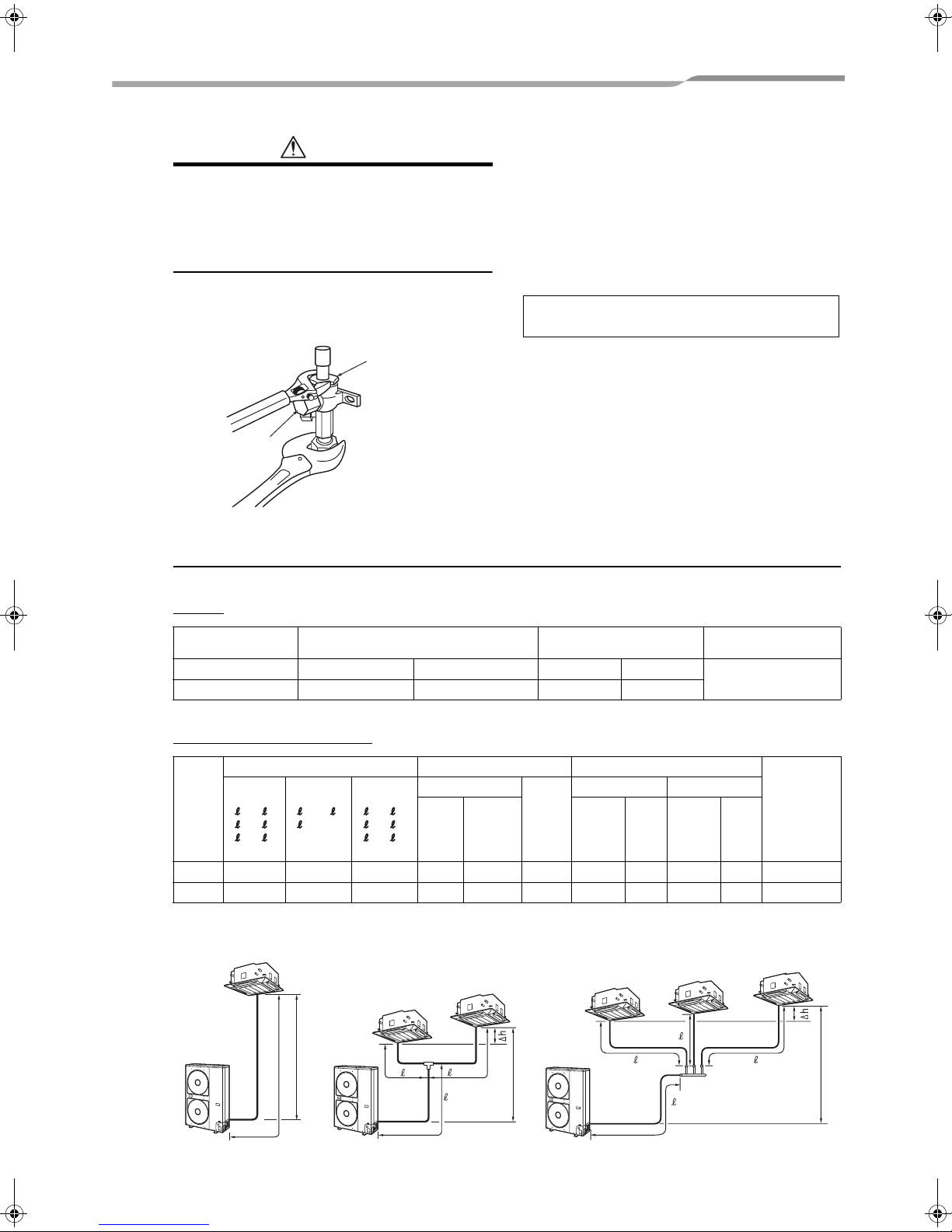

Refrigerant Pipe Length
Single
Simultaneous twin, triple
Cover
NO GOOD
Cap
Do not apply refrigerating machine oil to the
flared surface.
Allowable pipe
length (m) Height difference (Indoor-outdoor H) (m) Pipe diameter (mm) Number of bent portions
Total length L Indoor unit: Upper Outdoor unit: Lower Gas side Liquid side 10 or less
50 30 30 Ø15.9 Ø9.5
System
Allowable pipe length (m) Height difference (m) Pipe diameter (mm) Number of
bent
portions
Total
length
• 1+ 2
• 1+ 3
• 1+ 4
Maximum
Distributed
pipes
• 2• 4
• 3
Maximum
Distributed
pipes
• 3– 2
• 4– 3
• 4– 2
Maximum
Indoor-outdoor H Indoor-
indoor
(Δh)
Main pipe Branching pipe
Indoor
unit:
Upper
Outdoor
unit:
Upper
Gas side Liquid
side Gas side Liquid side
TWIN 50 15 10 30 30 0.5
Ø15.9 Ø9.5 Ø15.9 Ø9.5 10 or less
TRIPLE 50 15 10 30 30 0.5
Ø15.9 Ø9.5 Ø12.7 Ø6.4 10 or less
H
L
1
23
H
3
2
4
1
H
Figure of Single Figure of Simultaneous twin
Indoor Unit
Distributor
Indoor Unit
Indoor Unit
Figure of Simultaneous triple
Indoor Unit
Indoor Unit
Indoor Unit
Distributor Outdoor UnitOutdoor UnitOutdoor Unit
13-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 13 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–14–
Digital Inverter Outdoor Unit Installation Manual
EN

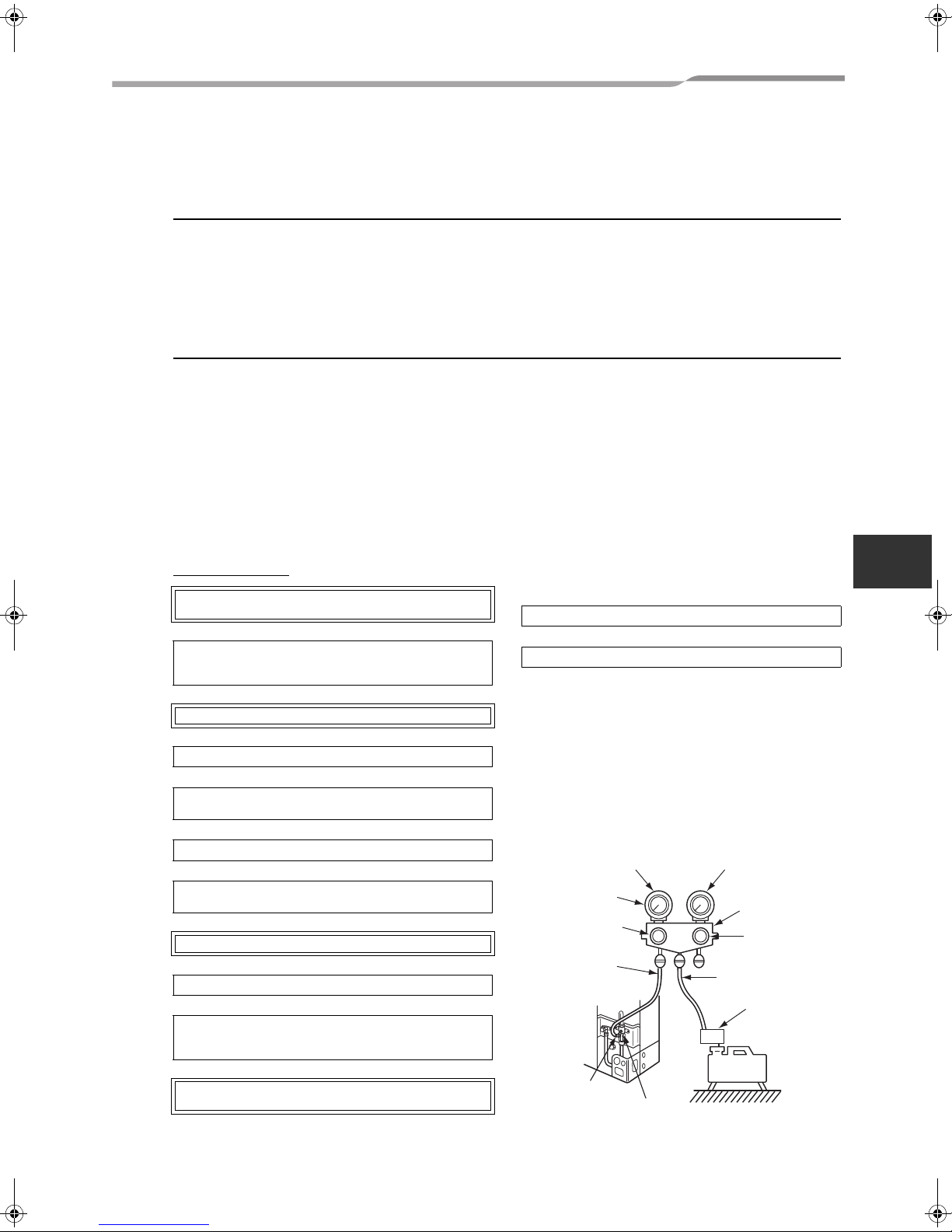

6AIR PURGING
Airtight test
Before starting an airtight test, further tighten the spindle valves on the gas side and liquid side.
Pressurize the pipe with nitrogen gas charged from the service port to the design pressure (4.15 Mpa) to
conduct the airtight test.
After the airtight test is completed, evacuate the nitrogen gas.
Air Purge
With respect to the preservation of terrestrial environment, adopt “Vacuum pump” for air purge
(Evacuate air in the connecting pipes) when installing the unit.
• Do not discharge the refrigerant gas to the atmosphere to preserve the terrestrial environment.
• Use a vacuum pump to discharge the air (nitrogen, etc.) remained in the set. If the air remains,
the capacity may decrease.
For the vacuum pump, be sure to use one with backflow preventer so that the oil in the pump
does not backflow into the pipe of the air conditioner when the pump stops.
(If oil in the vacuum pump is put in an air conditioner including R410A, it may cause trouble on the
refrigeration cycle.)
Vacuum pump
*1Use the vacuum pump, vacuum pump adapter,
and gauge manifold correctly referring to the
manuals supplied with each tool before using
them.
Check that the vacuum pump oil is filled up to
the specified line of the oil gauge.
*2When air is not charged, check again whether
the connecting port of the discharge hose,
which has a projection to push the valve core, is
firmly connected to the charge port.
As shown in the figure, connect the charge hose after the
manifold valve are closed completely.
È
Attach the connecting port of the charge hose with a
projection to push the valve core (setting pin) to the charge
port of the set.
È
Open handle Low fully.
È
Turn ON the vacuum pump (*1)
È
Loosen the flare nut of the packed valve (Gas side) a little to
check the air passes through. (*2)
È
Tighten the flare nut again.
È
Execute vacuuming until the compound pressure gauge
indicates –101kPa (–76cmHg). (*1)
È
Close handle Low completely.
È
Turn OFF the vacuum pump.
È
Leave the vacuum pump as it is for 1 or 2 minutes, and check
the indicator of the compound pressure gauge does not
return.
È
Open fully the valve stem or the valve handle. (First, at liquid
side, then gas side)
È
È
Disconnect the charge hose from the charge port.
È
Tighten valve and caps of the charge port surely.
Pressure gauge
Gauge manifold
valve
Compound pressure gauge
Handle Hi
(Keep fully
closed)
Handle Lo
–101 kPa
(–76 cmHg)
Charge hose
(For R410A only)
Charge port
(Valve core
(Setting pin)) Packed valve
at gas side
Charge hose
(For R410A only)
Vacuum pump
adapter for
counter-flow
prevention
(For R410A only)
Vacuum
pump
14-EN
(continued)
+00EH99861901_01EN_Outdoor6HP_IM.book Page 14 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–15–
Digital Inverter Outdoor Unit Installation Manual
How to open the valve
Confirm the structure surely and then open or
close the valve.
▼Liquid side
Open the valve with a 4-mm hexagon wrench.
▼Gas side
• While the valve is fully opened, after the
screwdriver has reached the stopper, do not
apply torque exceeding 5N•m. Applying
excessive torque may damage the valve.
Valve handling precautions
• Open the valve stem until it strikes the stopper.
It is unnecessary to apply further force.
• Securely tighten the cap with a torque wrench.
• Cap tightening torque
Replenishing refrigerant
This model is a 30 m chargeless type that does
not need to replenish refrigerant for refrigerant
pipes up to 30 m. When a refrigerant pipe longer
than 30 m is used, add the specified amount of
refrigerant.
Refrigerant replenishing procedure
1. After the vacuuming of the refrigerant pipe is
completed, close the valves and then charge
refrigerant while the air conditioner is not
working.
2. When the refrigerant cannot be charged to the
specified amount, charge the required amount
of refrigerant from the charge port of the valve
on the gas side during cooling.
Requirement for replenishing
refrigerant
Replenish liquid refrigerant.
When gaseous refrigerant is replenished, the
refrigerant composition varies, which disables
normal operation.
Additional amount of refrigerant
• L: Pipe length
• For additional amount of refrigerant for twin
system and triple system, refer to the
installation manual supplied with the branching
pipe (sold separately).
• The refrigerant need not be reduced for a
30 meter (or less) refrigerant pipe.
Valve size Ø9.5 mm 33 to 42 N•m (3.3 to 4.2 kgf•m)
Ø15.9 mm 20 to 25 N•m (2.0 to 2.5 kgf•m)
Charge port 14 to 18 N•m (1.4 to 1.8 kgf•m)
Valve unit
Charge port
Using a minus
screwdriver, turn it
counterclockwise by
90° until it hits the
stopper. (Full open)
Flare nut
Handle position
Closed completely Opened fully
Stopper pin
Main stopper Movable part of valve (Stem)
31~50m: L
40g×(L-30)
15-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 15 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–16–
Digital Inverter Outdoor Unit Installation Manual
EN
7ELECTRICAL WORK
WARNING
1. Using the specified wires, ensure to connect
the wires, and fix wires securely so that the
external tension to the wires do not affect the
connecting part of the terminals.
Incomplete connection or fixation may cause a
fire, etc.
2. Be sure to connect earth wire. (grounding
work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water
pipes, lightning rods or ground wires for
telephone wires.
3. Appliance shall be installed in accordance
with national wiring regulations.
Capacity shortage of power circuit or incomplete
installation may cause an electric shock or a fire.
CAUTION
• Wrong wiring may cause a burn-out to some
electrical parts.
• Be sure to use the cord clamps attached to the
product.
• Do not damage or scratch the conductive core
and inner insulator of power and inter-connecting
wires when peeling them.
• Use the power and Inter-connecting wires with
specified thickness, specified type and protective
devices required.
• Remove the panel, and you can see electric
parts on the front side.
• A metal pipe can be installed through the hole
for wiring. If the hole size does not fit the wiring
pipe to be used, drill the hole again to an
appropriate size.
• Be sure to clamp the power wires and indoor/
outdoor connecting wires with banding band
along the connecting pipe so that the wires do
not touch the compressor or discharge pipe.
(The compressor and the discharge pipe
become hot.)
Furthermore, be sure to secure these wires with
the pipe valve fixing plate and cord clamps stored
in the electric parts box.
Wiring between Indoor
Unit and Outdoor Unit
The dashed lines show on-site wiring.
• Connect the indoor/outdoor connecting wires to
the identical terminal numbers on the terminal
block of each unit.
Incorrect connection may cause a failure.
For the air conditioner, connect a power wire as
mentioned below.
Model RAV- SM160
Power supply 220-240 V~, 50 Hz
Maximum running
current 32 A
Installation fuse rating 40 A
(all types can be used)
Power wire H07 RN-F or 60245 IEC 66
(6.0 mm2or more)
Indoor/outdoor
connecting wires H07 RN-F or 60245 IEC 66 (1.5 mm2or more)
Earth wire H07 RN-F or 60245 IEC 66
(1.5 mm2or more)
Electric parts box
Pipe valve
fixing plate
Cord
clamp
Pipe hole
Panel
L
N
1
2
3
1
2
3
Input
power
(Main circuit) (Indoor/outdoor
connecting wires)
Earth
Outdoor unit
Earth
Indoor unit
Remote
controller
Leakage
breaker
220-240 V~,
50 Hz
16-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 16 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–17–
Digital Inverter Outdoor Unit Installation Manual
How to wire
1. Connect the connecting wire to the terminal as
identified with their respective numbers on the
terminal block of indoor and outdoor unit.
H07 RN-F or 60245 IEC 66 (1.5 mm2or more)
2. When connecting the connecting wire to the
outdoor unit terminal, prevent water coming in
the outdoor unit.
3. Insulate the unsheathed cords (conductors)
with electrical insulation tape. Process them so
that they do not touch any electrical or metal
parts.
4. For inter connecting wire, do not use a wire
jointed to another on the way.
Use wires long enough to cover the entire
length.
5. Wiring differs depending on single system,
twin system, and triple system to conform
to EMC standards. Connect wires according
to respective instructions.
CAUTION
• The installation fuse must be used for the power
supply line of this air conditioner.
• Incorrect/incomplete wiring might cause an
electrical fire or smoke.
• Prepare the exclusive power supply for the air
conditioner.
• This product can be connected to the mains.
Connection to the fixed wiring :
A switch which disconnects all poles and has a
contact separation of at least 3 mm must be
incorporated in the fixed wiring.
Wiring diagram
* For details of wiring/installation of the remote
controller, refer to the Installation Manual
enclosed to in the remote controller.
▼Single system
▼Synchronous twin system
▼Synchronous triple system
* Use 2-core shield wire (MVVS 0.5 to 2.0 mm² or more) for the remote controller wiring in the
synchronous twin and synchronous triple systems to prevent noise problems. Be sure to connect both
ends of the shield wire to the earth.
* Connect earth wire for each indoor unit in the synchronous twin and synchronous triple systems.
Indoor side
Indoor/Outdoor
connecting wires
Remote controller
Remote controller
wiring
Outdoor side
220-240V~
A B
1
1
L N
2
2
3
3
A B
1 2 3
A B
1
1
L N
2
2
3
3
Indoor side
Indoor/Outdoor
connecting wires
Remote controller
Remote controller
wiring
Outdoor side
Remote controller
inter-unit wiring
Indoor power
inter-unit wiring
Indoor
side
220-240V~
A B
1 2 3
A B
1
1
L N
2
2
3
3
A B
1 2 3
Indoor side
Indoor/Outdoor
connecting wires
Remote controller
Remote controller
wiring
Outdoor side
Remote controller
inter-unit wiring
Indoor power
inter-unit wiring
Indoor side
220-240V~
Remote controller
inter-unit wiring
Indoor power
inter-unit wiring
Indoor side
17-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 17 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–18–
Digital Inverter Outdoor Unit Installation Manual
EN
▼Twin system, Triple system
WARNING
For the synchronous twin and synchronous triple systems, perform the following to conform to EMC
standards.
1. Attach the supplied ferrite core (white) to indoor/outdoor connecting wires.
• Pass indoor/outdoor connecting wires Aand Bthrough the supplied ferrite core and wind them
making a single turn, and then connect them to the terminals of the outdoor unit. Connect the indoor/
outdoor connecting wire Cand the earth wire directly to the outdoor unit terminals.
2. Attach the supplied clamp filter (gray) to the outdoor fan motor lead wire.
• Attach the supplied clamp filter securely to the fan motor lead wire (lower) in the electric parts box of
the outdoor unit.
• For how to install the indoor unit, refer to the Installation Manual supplied with the indoor unit.
<1. Attaching the ferrite core>
* Clamp the indoor/outdoor connecting wire C
and the earth wire together with the ferrite core
with the supplied banding band.
Stripping length power cord and
connecting wire
▼Si
ng
l
e sys
t
em
LN
123
123
Power supply
terminal block
Power supply wire
Earth screw
To Indoor unit
terminal block
Earth screw
Connecting wire Pipe valve fixing
plate
St
r
i
pp
i
ng
l
eng
th
power cor
d
an
d
c
onnecting wire
(mm)
10
LN
60
10
50
10
30
10
40
LN
123
Power supply
wire
Earth line
Earth line
Connecting
wire
LN
123
123
Power supply
terminal block
Power supply
wire
Earth screw
To Indoor unit
terminal block
Earth screw
Connecting wire Pipe valve fixing
plate
Banding band
(mm)
10
170
10
110
LN
123
LN
10
50
10
40
160 10
Power supply
wire
Earth line
Earth line
Connecting
wire
18-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 18 Monday, June 2, 2008 6:00 PM

Toshiba XXXXXXX(<SanSerif1>X/X)
–19–
Digital Inverter Outdoor Unit Installation Manual

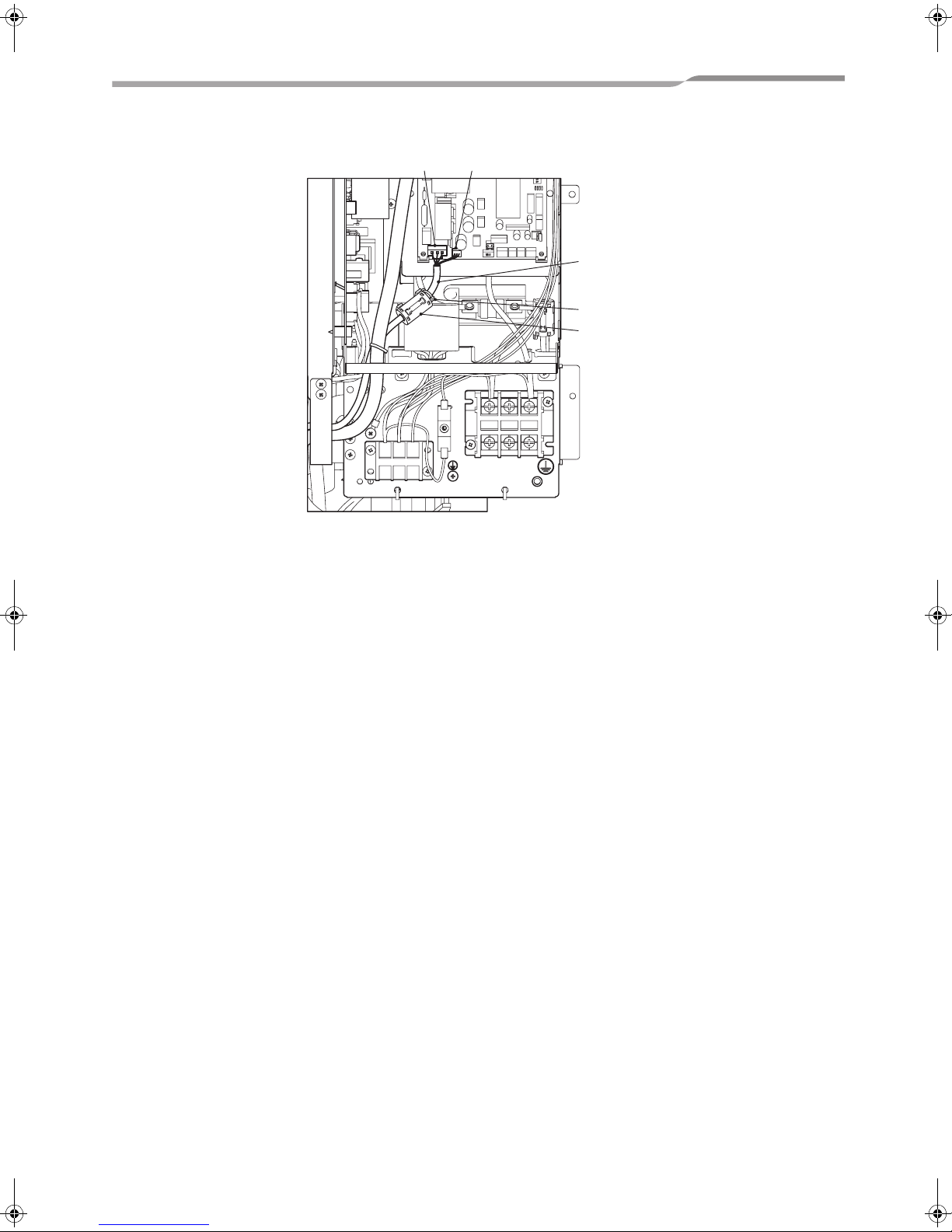

<2. Attaching the clamp filter>
Attach the supplied clamp filter to the lower outdoor fan motor lead wire.
• Make sure that the claw of the clamp filter is securely locked.
• Pass the supplied banding band through the upper hole of the clamp filter to clamp it together with the
fan motor lead wire.
• The fan motor lead wires are connected to the connectors CN301 and CN300 on the P.C. board of the
outdoor unit.
Fan motor lead wire
(Lower side)
Banding band
Clamp filter
CN301 CN300
19-EN
+00EH99861901_01EN_Outdoor6HP_IM.book Page 19 Monday, June 2, 2008 6:00 PM
