Toshiba Q7 Flow User manual

Q7 Adjustable Speed Drive Installation
and Operation Manual
Document Number: 57246-001
Date: June, 2005

Introduction
Congratulations on the purchase of the new Q7 Adjustable Speed Drive (ASD). The Q7 ASD is a solid-
state AC drive. The Q7 ASD is ideally suited to drive the variable torque load of an HVAC system.
Toshiba’s technology, quality, and reliability enables the motor to develop high torque and provide
compensation for motor slip, which results in smooth, quick starts and highly efficient operation. The Q7
ASD uses digitally-controlled pulse width modulation. The programmable functions may be accessed via
the easy-to-use menu. These features, combined with Toshiba’s high-performance software, delivers
unparalleled motor control and reliability.
The Q7 ASD is a very powerful tool, yet surprisingly simple to operate. The Q7 ASD has an easy-to-read
LCD screen that provides easy access to the many monitoring and programming features of the Q7 ASD.
The motor control software is menu-driven, which allows for easy access to the motor control parameters
and quick changes when required.
To maximize the abilities of your new Q7 ASD, a working familiarity with this manual will be required.
This manual has been prepared for the Q7 ASD installer, operator, and maintenance personnel.
Whether you are using the Q7 ASD Power Unit or the Q7 Flow, both are truly
Reliability in motion.
Important Notice
The instructions contained in this manual are not intended to cover all details or variations in equipment
types, nor may it provide for every possible contingency concerning the installation, operation, or
maintenance of this equipment. Should additional information be required contact your Toshiba
representative.
The contents of this manual shall not become a part of or modify any prior or existing agreement,
commitment, or relationship. The sales contract contains the entire obligation of Toshiba International
Corporation. The warranty contained in the contract between the parties is the sole warranty of Toshiba
International Corporation and any statements contained herein do not create new warranties or modify the
existing warranty.
Any electrical or mechanical modifications to this equipment without prior written consent of Toshiba
International Corporation will void all warranties and may void the UL/CUL listing or other safety
certifications. Unauthorized modifications may also result in a safety hazard or equipment damage.
Misuse of this equipment could result in injury and equipment damage. In no event will Toshiba
Corporation be responsible or liable for direct, indirect, special, or consequential damage or injury that
may result from the misuse of this equipment.

About This Manual
This manual was written by the Toshiba Technical Publications Group. This group is tasked with
providing technical documentation for the Q7 Adjustable Speed Drive. Every effort has been made to
provide accurate and concise information to you, our customer.
At Toshiba we’re continuously searching for better ways to meet the constantly changing needs of our
customers. Email your comments, questions, or concerns about this publication to
[e-mail].
Manual’s Purpose and Scope
This manual provides information on how to safely install, operate, maintain, and dispose of your
Q7Adjustable Speed Drive. The information provided in this manual is applicable to the Q7
Adjustable Speed Drive only.
This operation manual provides information on the various features and functions of this powerful cost-
saving device, including
• Installation,
• System operation,
• Configuration and menu options, and
• Mechanical and electrical specifications.
Included is a section on general safety instructions that describe the warning labels and symbols that are
used. Read themanual completely before installing, operating, performing maintenance, ordisposing of
this equipment.
This manual and the accompanying drawings should be considered a permanent part of the equipment
and should be readily available for reference and review. Dimensions shown in the manual are in metric
and/or the English equivalent.
Because of our commitmentto continuous improvement, Toshiba International Corporation reserves the
right, without prior notice, to update information, make product changes, or to discontinue any product
or service identified in this publication.
Toshiba International Corporation (TIC) shall not be liable for direct, indirect, special, or
consequential damages resulting from the use of the information contained within this manual.
This manual is copyrighted. No part of this manual may be photocopied or reproduced in any form
without the prior written consent of Toshiba International Corporation.
© Copyright 2005Toshiba International Corporation.
TOSHIBA is a registered trademark of the Toshiba Corporation. All other product or trade references
appearing in this manual are registered trademarks of their respective owners.
Reliability in motion™is a registered trademark of the Toshiba Corporation.
All rights reserved.
Printed in the U.S.A.

Contacting Toshiba’s Customer Support
Center
Toshiba’s Customer Support Center can be contacted to obtain help in resolving any Adjustable Speed
Drive system problem that you may experience or to provide application information.
The center is open from 8 a.m. to 5 p.m. (CST), Monday through Friday. The Support Center’s toll free
number is US [phone]/Fax [phone] — Canada [phone].
You may also contact Toshiba by writing to:
Toshiba International Corporation
13131 West Little York Road
Houston, Texas 77041-9990
Attn: ASD Product Manager.
For further information on Toshiba’s products and services, please visit our website at
www.tic.toshiba.com.
TOSHIBA INTERNATIONAL CORPORATION
Q7 Adjustable Speed Drive
Please complete the Warranty Card supplied with the ASD and return it to Toshiba by prepaid mail. This will
activate the 12 month warranty from the date of installation; but, shall not exceed 18 months from the shipping
date.
Complete the following information and retain for your records.
Model Number: ______________________________________________________________________
Serial Number:______________________________________________________________________
Project Number (if applicable):__________________________________________________________
Date of Installation: __________________________________________________________________
Inspected By:______________________________________________________________________
Name of Application:_________________________________________________________________

Table of Contents
Q7 ASD Installation and Operation Manual i
General Safety Information ....................................................................................................1
Safety Alert Symbol .................................................................................................... 1
Signal Words ............................................................................................................... 1
Special Symbols ................................................................................................................. 2
Electrical Hazard Symbol ........................................................................................... 2
Explosion Hazard Symbol .......................................................................................... 2
Equipment Warning Labels ................................................................................................ 2
Qualified Personnel ............................................................................................................3
Equipment Inspection .........................................................................................................3
Handling and Storage .........................................................................................................3
Disposal .............................................................................................................................. 4
Installation Precautions ...................................................................................................... 4
Location and Ambient Requirements ......................................................................... 4
Mounting Requirements .............................................................................................. 5
Conductor Requirements and Grounding ...................................................................5
Power Connections .....................................................................................................5
Protection .................................................................................................................... 6
System Integration Precautions .......................................................................................... 6
Personnel Protection ...................................................................................................7
System Setup Requirements ............................................................................................... 7
Operational and Maintenance Precautions ......................................................................... 8
Service Life Information .............................................................................................9
CE Compliance Requirements ............................................................................................. 10
EMC Installation Guidelines ............................................................................................ 10
General EMC Guidelines for Consideration ............................................................. 10
CE Compliant Installation Guidelines ...................................................................... 10
Motor Characteristics ........................................................................................................... 12
Pulse Width Modulation Operation ..................................................................................12
Overload Protection Adjustment ......................................................................................12
Power Factor Correction ..................................................................................................12
Light Load Conditions ..................................................................................................... 12
Load-produced Negative Torque ...................................................................................... 12
Motor Braking ..................................................................................................................13
ASD Characteristics .............................................................................................................. 13
Over-current Protection .................................................................................................... 13
ASD Capacity ...................................................................................................................13
Installation and Connections ................................................................................................ 14
Installation Notes .............................................................................................................. 14
Mounting the ASD ........................................................................................................... 16
Connecting the ASD ......................................................................................................... 16
System Grounding ..................................................................................................... 16
Power Connections ...................................................................................................17
Lead Length Specifications ....................................................................................... 18

ii Q7 ASD Installation and Operation Manual
Startup and Test ........................................................................................................ 18
I/O and Control .................................................................................................................19
I/O Terminal Descriptions ........................................................................................ 20
Q7 ASD Control ............................................................................................................... 23
CNU1 and CNU2 Pinout ...........................................................................................24
CNU3 Pinout ............................................................................................................. 24
CN7 Pinout ................................................................................................................ 24
I/O Circuit Configurations ........................................................................................ 25
Typical Connection Diagram ................................................................................................ 26
Q7 ASD Keypad ..................................................................................................................... 27
Q7 Keypad Features ......................................................................................................... 27
Keypad Operation ............................................................................................................ 28
Keypad Remote Mounting ............................................................................................... 29
Remote Keypad Required Hardware ........................................................................ 29
Keypad Installation Precautions ................................................................................ 29
Keypad Remote Mounting w/o the ASD-MTG-KIT ................................................ 30
Keypad Remote Mounting using the ASD-MTG-KIT ............................................. 30
System Operation .................................................................................................................. 32
Operation (Local) ............................................................................................................. 32
Default Setting Changes ................................................................................................... 32
Search (for default setting changes) ..........................................................................33
System Configuration and Menu Options ........................................................................... 34
Root Menus ...................................................................................................................... 34
Output Frequency Screen .......................................................................................... 34
Setup Screen .............................................................................................................. 34
Program Menu ........................................................................................................... 34
Monitor Mode ........................................................................................................... 35
Menu Navigation ...................................................................................................................36
Q7 Parameter Descriptions ..................................................................................................43
Q7 Communications Numbers ........................................................................................... 134
Alarms, Trips, and Troubleshooting .................................................................................. 144
Alarms and Trips ............................................................................................................ 144
Alarms ............................................................................................................................145
User Notification Codes ................................................................................................. 147
Trips/Faults .....................................................................................................................147
Viewing Trip Information ....................................................................................... 151
Clearing a Trip ........................................................................................................ 151
Enclosure Dimensions and Conduit Plate Information ................................................... 152
Enclosure Dimensions/Weight ....................................................................................... 153
Conduit Box Information ...............................................................................................158
Cable/Terminal Specifications ............................................................................................ 159
Current/Voltage Specifications ........................................................................................... 162

Q7 ASD Installation and Operation Manual 1
General Safety Information
DO NOT attempt to install, operate, maintain or dispose of this equipment until you have read and
understood all of the product safety information and directions that are contained in this manual.
Safety Alert Symbol
The Safety Alert Symbol indicates that a potential personal injury hazard exists. The symbol is
comprised of an equilateral triangle enclosing an exclamation mark.
Signal Words
Listed below are the signal words that are used throughout this manual followed by their descriptions
and associated symbols. When the words DANGER, WARNING and CAUTION are used in this
manual they will be followed by important safety information that must be carefully adhered to.
The word DANGER preceded by the safety alert symbol indicates that an imminently hazardous
situation exists that, if not avoided, will result in death or serious injury to personnel.
The word WARNING preceded by the safety alert symbol indicates that a potentially hazardous
situation exists that, if not avoided, could result in death or serious injury to personnel.
The word CAUTION preceded by the safety alert symbol indicates that a potentially hazardous
situation exists which, if not avoided, may result in minor or moderate injury.
The word CAUTION without the safety alert symbol indicates a potentially hazardous situation exists
which, if not avoided, may result in equipment and property damage.
DANGER
WARNING
CAUTION
CAUTION

2Q7 ASD Installation and Operation Manual
Special Symbols
To identify special hazards, other symbols may appear in conjunction with the DANGER, WARNING
and CAUTION signal words. These symbols indicate areas that require special and/or strict adherence
to the procedures to prevent serious injury to personnel or death.
Electrical Hazard Symbol
A symbol which indicates a hazard of injury from electrical
shock or burn. It is comprised of an equilateral triangle
enclosing a lightning bolt.
Explosion Hazard Symbol
A symbol which indicates a hazard of injury from exploding
parts. It is comprised of an equilateral triangle enclosing an
explosion image.
Equipment Warning Labels
DO NOT attempt to install, operate, perform maintenance, or dispose of this equipment until you have
read and understood all of the product labels and user directions that are contained in this manual.
Shown below are examples of safety labels that may be found attached to the equipment. DO NOT
remove or cover any of the labels. If the labels are damaged or if additional labels are required, contact
your Toshiba sales representative for additional labels.
Labels attached to the equipment are there to provide useful information or to indicate an imminently
hazardous situation that may result in serious injury, severe property and equipment damage, or death if
the instructions are not followed.
Figure 1. Examples of labels that may be found on the equipment.
CAUTION
Excessive Loading of Operating Shaft
Can Prevent Contactor From Closing
Properly Resulting In Major Damage.
Do Not Use Contactor Shaft To Drive
Accessories Such As Mechanical Interlocks
Which Require More Than 5 Kgf-cm Of
Torque To Operate.
!DANGER
DO NOT OPEN THIS DOOR WHILE THE UNIT IS RUNNING.
THIS DOOR IS INTERLOCKED WITH ASD OPERATION.
HAZARDOUS VOLTAGE MAY BE PRESENT.
Capacitors Are Charged. Wait
At Least 5 Minutes Before Entry.
Check For Charged Voltage
To Dissipate To A Safe Level
Before Opening The Equipment.
!
DANGER
DO NOT REMOVE, DESTROY, OR COVER THIS LABEL.
READ THE INSTRUCTION MANUAL CAREFULLY BEFORE
INSTALLING, OPERATING, OR SERVICING THIS EQUIPMENT.
HAZARDOUS VOLTAGE
Can Cause Severe Injury, Death,Explosion,
Fire, Or Property Damage.
Only Qualified Personnel Should Be Permitted
To Operarate orService This Equipment.
Disconnect And Lockout Primary And Control
Circuit Power Before Servicing.
Keep All Panels And Covers Securely In Place.
Never Defeat, Modify, OrBypass Safety
Interlocks.
Foreign Voltage MayBe Present At Interface
Terminals. Isolate BeforePerforming Service
Or Repairs.
Unauthorized Modifications To This Equipment
Will Void The Warranty.
!
DANGER
DO NOT REMOVE, DESTROY, OR COVER THIS LABEL.
READ THE INSTRUCTION MANUAL CAREFULLY BEFORE
ENTERING THIS COMPARTMENT.
HAZARDOUS VOLTAGE Behind These Panels.
Contact With Energized Main Bus Will Cause
Severe Injury, Death, Fire, Explosion, Or
Property Damage.
Turn Off And Lockout Primary And
Control Circuit Power Before Opening
These Panels.
Qualified Operators Only.
!

Q7 ASD Installation and Operation Manual 3
Qualified Personnel
Installation, operation, and maintenance shall be performed by Qualified Personnel Only. A Qualified
Person is one that has the skills and knowledge relating to the construction, installation, operation, and
maintenance of the electrical equipment and has received safety training on the hazards involved (Refer
to the latest edition of NFPA 70E for additional safety requirements).
Qualified Personnel shall:
• Have carefully read the entire operation manual.
• Be familiar with the construction and function of the ASD, the equipment being driven, and the
hazards involved.
• Able to recognize and properly address hazards associated with the application of motor-driven
equipment.
• Be trained and authorized to safely energize, de-energize, ground, lockout/tagout circuits and
equipment, and clear faults in accordance with established safety practices.
• Be trained in the proper care and use of protective equipment such as safety shoes, rubber gloves,
hard hats, safety glasses, face shields, flash clothing, etc., in accordance with established safety
practices.
• Be trained in rendering first aid.
For further information on workplace safety visit www.osha.gov.
Equipment Inspection
• Upon receipt of the equipment inspect the packaging and equipment for shipping damage.
• Carefully unpack the equipment and check for parts that may have been damaged during shipping,
missing parts, or concealed damage. If any discrepancies are discovered, it should be noted with the
carrier prior to accepting the shipment, if possible. File a claim with the carrier if necessary and
immediately notify your Toshiba sales representative.
•DO NOT install or energize equipment that has been damaged. Damaged equipment may fail
during operation resulting in equipment damage or personal injury.
• Check to see that the rated capacity and the model number specified on the nameplate conform to
the order specifications.
• Modification of this equipment is dangerous and must not be performed except by factory trained
representatives. When modifications are required contact your Toshiba sales representative.
• Inspections may be required before and after moving installed equipment.
• Keep the equipment in an upright position.
• Contact your Toshiba sales representative to report discrepancies or for assistance if required.
Handling and Storage
• Use proper lifting techniques when moving the ASD; including properly sizing up the load, getting
assistance, and using a forklift if required.
• Store in a well-ventilated covered location and preferably in the original carton if the equipment
will not be used upon receipt.
• Store in a cool, clean, and dry location. Avoid storage locations with extreme temperatures, rapid
temperature changes, high humidity, moisture, dust, corrosive gases, or metal particles.

4Q7 ASD Installation and Operation Manual
• The storage temperature range of the Q7 ASD is 14° to 104° F (-10 to 40° C).
• Do not store theunit in places that are exposed to outside weather conditions (i.e., wind, rain, snow,
etc.).
• Store in an upright position.
Disposal
Never dispose of electrical components via incineration. Contact your state environmental agency for
details on disposal of electrical components and packaging in your area.
Installation Precautions
Location and Ambient Requirements
• The Toshiba ASD is intended for permanent installations only.
• Installation should conform to the 2005 National Electrical Code — Article 110 (NEC)
(Requirements For Electrical Installations), all regulations of the Occupational Safety and
Health Administration, and any other applicable national, regional, or industry codes and
standards.
• Select a mounting location that is easily accessible, has adequate personnel working space, and
adequate illumination for adjustment, inspection, and maintenance of the equipment (refer to 2005
NEC Article 110-13).
• A noncombustible insulating floor or mat should be provided in the area immediately surrounding
the electrical system.
•Do Not mount the ASD in a location that would produce catastrophic results if it were to fall from
its mounting location (equipment damage or injury).
•Do Not mount the ASD in a location that would allow it to be exposed to flammable chemicals or
gasses, water, solvents, or other fluids.
• Avoid installation in areas where vibration, heat, humidity, dust, fibers, metal particles, explosive/
corrosive mists or gases, or sources of electrical noise are present.
• The installation location shall not be exposed to direct sunlight.
• Allow proper clearance spaces for installation. Do not obstruct the ventilation openings. Refer to
the section titled Installation and Connections on pg. 14 for further information on ventilation
requirements.
• The ambient operating temperature range of the Q7 ASD is 14° to 104° F (-10 to 40° C).
• See the section titled Installation and Connections on pg. 14 for additional information on installing
the drive.

Q7 ASD Installation and Operation Manual 5
Mounting Requirements
• Only Qualified Personnel should install this equipment.
• Install the unit in a secure and upright position in a well-ventilated area.
• A noncombustible insulating floor or mat should be provided in the area immediately surrounding
the electrical system at the place where maintenance operations are to be performed.
• As a minimum, the installation of the equipment should conform to the NEC Article 110
Requirements For Electrical Installations, OSHA, as well as any other applicable national, regional,
or industry codes and standards.
• Installation practices should conform to the latest revision of NFPA 70E Electrical Safety
Requirements for Employee Workplaces.
• It is the responsibility of the person installing the ASD or the electrical maintenance personnel to
ensure that the unit is installed into an enclosure that will protect personnel against electric shock.
Conductor Requirements and Grounding
• Use separate metal conduits for routing theinputpower, output power, and control circuits and each
shall have its own ground cable.
• A separate ground cable should be run inside the conduit with the input power, output power, and
and control circuits.
•DO NOT connect control terminal strip return marked CC to earth ground.
• Always ground the unit to prevent electrical shock and to help reduce electrical noise.
• It is the responsibility of the person installing the ASD or the electrical maintenance personnel to
provide proper grounding and branch circuit protection in accordance with the 2005 NEC and any
applicable local codes.
The Metal Of Conduit Is Not An Acceptable Ground.
Power Connections
Contact With Energized Wiring Will Cause Severe Injury Or Death.
• Turn off, lockout, and tagout all power sources before proceeding to connect the power wiring to
the equipment.
• After ensuring that all power sources are turned off and isolated in accordance with established
lockout/tagout procedures, connect three-phase power source wiring of the correct voltage to the
correct input terminals and connect the output terminals to a motor of the correct voltage and type
for the application (refer to NEC Article 300 – Wiring Methods and Article 310 – Conductors For
General Wiring). Size the branch circuit conductors in accordance with NEC Table 310.16.
• Adhere to the recommended conductor sizes listed in the section titled Cable/Terminal
Specifications on pg. 159. If multiple conductors are used in parallel for the input or output power,
each branch of the parallel set shall have its own conduit and not share its conduit with other
parallel sets (i.e., place U1, V1, and W1 in one conduit and U2, V2, and W2 in another) (refer to
NEC Article 300.20 and Article 310.4). National and local electrical codes should be referenced if
WARNING
DANGER

6Q7 ASD Installation and Operation Manual
three or more power conductors are run in the same conduit (refer to 2005 NEC Article 310
adjustment factors).
Note: National and local codes should be referenced when running more than three
conductors in the same conduit.
• Ensure that the 3-phase input power is Not connected to the output of the ASD. This will damage
the ASD and may cause injury to personnel.
• Do not install the ASD if it is damaged or if it is missing any component(s).
•Do Not connect resistors across terminals PA – PC or PO – PC. This may cause a fire.
• Ensure the correct phase sequence and the desired direction of motor rotation in the Bypass mode
(if applicable).
• Turn the power on only after attaching and/or securing the front cover.
Protection
• Ensure that primary protection exists for the input wiring to the equipment. This protection must be
able to interrupt the available fault current from the power line. The equipment may or may not be
equipped with an input disconnect (option).
• All cable entry openings must be sealed to reduce the risk of entry by vermin and to allow for
maximum cooling efficiency.
• Follow all warnings and precautions and do not exceed equipment ratings.
• If using multiple motors provide separate overload protection for each motor and use V/f control.
• External dynamic braking resistors must be thermally protected.
• It is the responsibility of the person installing the ASD or the electrical maintenance personnel to
setup the Emergency Off braking system of the ASD. The function of theEmergency Off braking
function is to remove output power from the drive in the event of an emergency. A supplemental
braking system may also be engaged in the event of an emergency. For further information on
braking systems, see DC Injection Braking Current on pg. 57 and Dynamic Braking Enable on pg.
60.
Note: A supplemental emergency stopping system should be used with the ASD. Emergency
stopping should not be a task of the ASD alone.
• Follow all warnings and precautions and do not exceed equipment ratings.
System Integration Precautions
The following precautions are provided as general guidelines for the setup of the ASD within the
system.
• The Toshiba ASD is a general-purpose product. It is a system component only and the system
design should take this into consideration. Please contact your Toshiba sales representative for
application-specific information or for training support.
• The Toshiba ASD is part of a larger system and the safe operation of the ASD will depend on
observing certain precautions and performing proper system integration.
• A detailed system analysis and job safety analysis should be performed by the systems designer
and/or systems integrator before the installation of theASD component.Contact your Toshiba sales
representative for options availability and for application-specific system integration information if
required.

Q7 ASD Installation and Operation Manual 7
Personnel Protection
• Installation, operation, and maintenance shall be performed by Qualified Personnel Only.
• A thorough understanding of the ASD will be required before the installation, operation, or
maintenance of the ASD.
• Rotating machinery and live conductors can be hazardous and shall not come into contact with
humans. Personnel should be protected from all rotating machinery and electrical hazards at all
times.
• Insulators, machine guards, and electrical safeguards may fail or be defeated by the purposeful or
inadvertent actions of workers. Insulators, machine guards, and electrical safeguards are to be
inspected (and tested where possible) at installation and periodically after installation for potential
hazardous conditions.
• Do not allow personnel near rotating machinery. Warning signs to this effect shall be posted at or
near the machinery.
• Do not allow personnel near electrical conductors. Human contact with electrical conductors can be
fatal. Warning signs to this effect shall be posted at or near the hazard.
• Personal protection equipment shall be provided and used to protect employees from any hazards
inherent to system operation.
• Follow all warnings and precautions and do not exceed equipment ratings.
System Setup Requirements
• When using the ASD as an integral part of a larger system, it is the responsibility of the ASD
installer or maintenance personnel to ensure that there is a fail-safe in place, i.e., an arrangement
designed to switch the system to a safe condition if there is a fault or failure.
• System safety features should be employed and designed into the integrated system in a manner
such that system operation, even in the event of system failure, will not cause harm or result in
personnel injury or system damage (i.e., E-Off, Auto-Restart settings, System Interlocks, etc.).
• The programming setup and system configuration of the ASD may allow it to start the motor
unexpectedly. A familiarity with the Auto-restart settings is a requirement to use this product.
• Improperly designed or improperly installed system interlocks may render the motor unable to start
or stop on command.
• The failure of external or ancillary components may cause intermittent system operation, i.e., the
system may start the motor without warning.
• There may be thermal or physical properties, or ancillary devices integrated into the overall system
that may allow for the ASD to start the motor without warning. Signs at the equipment installation
must be posted to this effect.
• If a secondary magnetic contactor (MC) is used between the ASD and the load, it should be
interlocked to halt the ASD before the secondary contact opens. If the output contactor is used for
bypass operation, it must be interlocked such that commercial power is never applied to the ASD
output terminals (U, V, W).
• Power factor improvement capacitors or surge absorbers must not be installed on the output of the
ASD.
WARNING

8Q7 ASD Installation and Operation Manual
• Use of the built-in system protective features is highly recommended (i.e., E-Off, Overload
Protection, etc.).
• The operating controls and system status indicators should be clearly readable and positioned
where the operator can see them without obstruction.
• Additional warnings and notifications shall be posted at the equipment installation location as
deemed required by Qualified Personnel.
• Follow all warnings and precautions and do not exceed equipment ratings.
Operational and Maintenance Precautions
• Turn off, lockout, and tagout the main power, the control power, and instrumentation connections
before inspecting or servicing the drive, or opening the door of the enclosure.
• Turn off, lockout, and tagout the main power, the control power, and instrumentation connections
before proceeding to disconnect or connect the power wiring to the equipment.
• The capacitors of the ASD maintain a residual charge for a period of time after turning the ASD off.
The required time for each ASD typeform is indicated with a cabinet label and a Charge LED.
Wait for at least the minimum time indicated on the enclosure-mounted label and ensure that the
Charge LED has gone out before opening the door of the ASD once the ASD power has been
turned off.
• Turn the power on only after attaching (or closing) the front cover and Do Not remove the front
cover of the ASD when the power is on.
•Do Not attempt to disassemble, modify, or repair the ASD. Call your Toshiba sales representative
for repair information.
• Do not place any objects inside of the ASD.
• If the ASD should emit smoke or an unusual odor or sound, turn the power off immediately.
• The heat sink and other components may become extremely hot to the touch. Allow the unit to cool
before coming in contact with these items.
• Remove power from the ASD during extended periods of non-use.
• The system should be inspected periodically for damaged or improperly functioning parts,
cleanliness, and to ensure that the connectors are tightened securely.
• Ensure that the Run functions (F, R, Preset Speed, etc.) of the ASD are off before performing a
Reset. The post-reset settings may allow the ASD to start unexpectedly.
•Retry or Reset settings may allow the motor to start unexpectedly. Warnings to this effect should
be clearly posted near the ASD and motor.
• In the event of a power failure, the motor may restart after power is restored.
• Follow all warnings and precautions and do not exceed equipment ratings.
DO NOT install, operate, perform maintenance, or dispose of this equipment until you have read and
understood all of the product warnings and user directions. Failure to do so may result in equipment
damage, operator injury, or loss of life.
WARNING

Q7 ASD Installation and Operation Manual 9
Service Life Information
Part Name Service Life Remarks
Large Capacity Electrolytic
Capacitor 5 Years When not used for long periods, charge semi-annually.
Cooling Fan 26,000 Hours
CN Connectors 100 Connects/Disconnects
On-board Relays 500,000 Actuations

10 Q7 ASD Installation and Operation Manual
CE Compliance Requirements
In addition to the local and regional safety requirements, this section describes additional criteria that
must be met to qualify for European Conformity (CE) certification. All relevant apparatus placed on
the European market is required to comply to the European Community directive on electromagnetic
compatibility (EMC). The following instructions provide a means of compliance for the Q7 ASD. A
Technical Construction File (TFC) indicates the rationale used to declare compliance and is on file at
Toshiba International Corporation, Houston, Texas U.S.A.
EMC Installation Guidelines
All systems placed on the European market are required to comply with the European Community
directive regarding electromagnet compatibility (EMC). Toshiba ensures that all systems deployed in
the European market have been screened and are in 100% compliance with the following standards:
• Radiated Interference: EN 55011 Group 1 Class A
• Mains Interference: EN 55011 Group 1 Class A
• Radiated Susceptibility: IEC 801-3 1984
• Conducted RFI Susceptibility: prEN55101-4 (prIEC801-6) Doc 90/30270
• Electrostatic Discharge: IEC801-2 1991
• Electrical Fast Transient: IEC 801-4 1988
• Surge: IEC1000-4-5 1995 2 KV line-to-line, 4 KV line-to-earth
• Voltage Interruption: IEC 1000-4-11
General EMC Guidelines for Consideration
• Input filters of the appropriate rating shall be used.
• Proper grounding is a requirement.
• Grounds shall be kept to the minimum length to accomplish the connection.
• Grounds shall have low RF impedance.
• A central ground shall employed in a complex system.
• Paint or corrosion can hamper good grounding; remove as required.
• Keep control and power cabling separated. Minimize exposed (unscreened) cable.
• Use 360° shielded connections where possible.
CE Compliant Installation Guidelines
ASDs should be installed in accordance with the following guidelines.
1. Filtering — An input filtershall be used withthe ASD. A Schaffner FN258 series input filterof the
appropriate rating shall be used and mounted next to the ASD.
2. Mechanical — The ASD and the associated equipment shall be mounted on a flat metallic
backplane. A minimum space of 5 cm (2 inches) shall exist between the ASD and the filter to allow
for ventilation. The filter output cable is to be connected from the bottom of the filter to the ASD
power input and is to be the minimum length required for a connection. See Table 1 on page 11 for
filter selection assistance.
Units received as an Open Chassis shall not be placed into operation until being placed into an
approved enclosure that will protect personnel against electrical shock.

Q7 ASD Installation and Operation Manual 11
Opening and closing of enclosures or barriers should be possible only with the use of a key or a
tool.
3. Cabling — The power, filter, and motor cables shall be of the appropriate current rating. The
cables shall be connected in accordance with the guidelines of the manufacturer and the applicable
local and national agencies. A 4-core screened cable (such as RS 379-384) is to be used for the
power and earth connections to minimize RF emissions. Control cabling must be screened using
P/N RS 367-347 or a similar component.
4. Grounding — The mains (input) ground shall be connected at the ground terminal provided on the
filter. The filter and motor shall be grounded at the ground terminals provided in the ASD.
5. Screening — The mains (input) screen is to be connected to the metallic back-plane at the filter;
remove any finish coating as required. The screen over the filter output cables, the motor cable
screen, and the control wire screens must be connected to the ASD case using glands or conduit
connectors. The motor cable screen shall be connected to the motor case. When using a braking
resistor, the cabling between the resistor and ASD shall also be screened. This screen shall connect
to both the ASD enclosure and the resistor enclosure.
See the Q7 Filter Selection below for the recommended input filters for a given typeform.
Table 1.
Q7 Filter Selection Table
230V Filter
Number 460V Filter Number 600V Filter Number
VT130Q7U2010B FN258-7 VT130Q7U4015B FN258-7 VT130Q7U6015B FN258-7
VT130Q7U2015B FN258-7 VT130Q7U4025B FN258-7 VT130Q7U6025B FN258-7
VT130Q7U2025B FN258-16 VT130Q7U4035B FN258-7 VT130Q7U6035B FN258-7
VT130Q7U2035B FN258-16 VT130Q7U4055B FN258-16 VT130Q7U6055B FN258-16
VT130Q7U2055B FN258-30 VT130Q7U4080B FN258-16 VT130Q7U6080B FN258-16
VT130Q7U2080B FN258-30 VT130Q7U4110B FN258-30 VT130Q7U6110B FN258-16
VT130Q7U2110B FN258-42 VT130Q7U4160B FN258-30 VT130Q7U6160B FN258-30
VT130Q7U2160B FN258-75 VT130Q7U4220B FN258-42 VT130Q7U6220B FN258-42
VT130Q7U2220B FN258-100 VT130Q7U4270B FN258-55 VT130Q7U6270B FN258-42
VT130Q7U2270B FN258-100 VT130Q7U4330B FN258-55 VT130Q7U6330B FN258-55
VT130Q7U2330B FN258-130 VT130Q7U4400B FN258-75 VT130Q7U6400B FN258-55
VT130Q7U2400B FN258-180 VT130Q7U4500B FN258-100 VT130Q7U6500B FN258-75
VT130Q7U2500B FS5236-180 VT130Q7U4600B FN258-100 VT130Q7U6600B FN258-100
VT130Q7U2600B FS5236-300 VT130Q7U4750B FS5236-130 VT130Q7U6750B FN258-100
VT130Q7U2750B FS5236-300 VT130Q7U410KB FS5236-180 VT130Q7U610KB FN258-130
VT130Q7U210KB FS5236-500 VT130Q7U412KB FS5236-300 VT130Q7U612KB FS5236-180
VT130Q7U212KB FS5236-500 VT130Q7U415KB FS5236-300 VT130Q7U615KB FS5236-180
VT130Q7U215KB FS5236-500 VT130Q7U420KB FS5236-300 VT130Q7U620KB FS5236-300
VT130Q7U425KB FS5236-500 VT130Q7U625KB FS5236-500
VT130Q7U430KB FS5236-500 VT130Q7U630KB FS5236-500
VT130Q7U435KB FS5236-500 VT130Q7U635KB FS5236-500
VT130Q7U440KB FS5236-500

12 Q7 ASD Installation and Operation Manual
Motor Characteristics
Listed below are some variable speed AC motor control concepts with which the user of the
Q7 Adjustable Speed Drive should become familiar.
Pulse Width Modulation Operation
The Q7 ASD uses a sinusoidal Pulse Width Modulation (PWM) control system. The output current
waveform generated by the ASD approaches that of a perfect sine wave; however, the output waveform
is slightly distorted. For this reason, the motor may produce more heat, noise, and vibration when
operated by an ASD, rather than directly from commercial power.
Overload Protection Adjustment
The Q7 ASD software monitors the output current of the system and determines when an overload
condition occurs. The overload current level is a percentage of the rating of the motor. This function
protects the motor from overload.
The default setting for the overload detection circuit is set to the maximum rated current of the ASD at
the factory. This setting will have to be adjusted to match the rating of the motor with which the ASD is
to be used. To change the overload reference level, see (Electronic) Thermal Protection #1 on pg. 62.
Power Factor Correction
DO NOT connect a power factor correction capacitor or surge absorber to the output of the ASD.
If the ASD is used with a motor that is equipped with a capacitor for power factor correction, remove
the capacitor from the motor.
Connecting either of these devices to theoutput of the ASD may cause the ASD to malfunction and trip,
or the output device may cause an over-current condition resulting in damage to the device or the ASD.
Light Load Conditions
When a motor is operated under a continuous light load (i.e., at a load of less than 50% of its rated
capacity) or it drives a load which produces a very small amount of inertia, it may become unstable and
produce abnormal vibration or trips because of an over-current condition. In such a case, the carrier
frequency may be lowered to compensate for this undesirable condition (see Program
⇒ Special
Control Parameters
⇒ PWM Carrier Frequency).
Note: For proper operation, the carrier frequency must be 2.2 kHz or above except when
operating in the Constant Torque or Variable Torque modes.
Load-produced Negative Torque
When the ASD is used with a load that produces negative torque (an overhauling load), the over-voltage
or over-current protective functions of the ASD may cause nuisance tripping.
To minimize the undesirable effects of negative torque the dynamic braking system may be used. The
dynamic braking system converts the regenerated energy into heat that is dissipated using a braking

Q7 ASD Installation and Operation Manual 13
resistor. The braking resistor must be suitably matched to the load. Dynamic braking is also effective in
reducing the DC bus voltage during a momentary over-voltage condition.
If under extreme conditions the dynamic braking system or a component of this system were to fail, the
dynamic braking resistor may experience an extended over-current condition. The DBR circuit was
designed to dissipate excessive amounts of heat and if the extended over-current condition were allowed
to exceed the circuit parameters, this condition could result in a fire hazard.
To combat this condition, the 3-phase input may be connected using contactors that are configured to
open in the event of an extended DBR over-current condition or an internal circuit failure. Using a
thermal sensor and/oroverload protection as the 3-phase input contactor drive signal, the contactors will
open and remove the 3-phase input power in the event of an extended DBR over-current or system over-
voltage condition.
Motor Braking
The motor may continue to rotate and coast to a stop after being shut off due to the inertia of the load. If
an immediate stop is required, a braking system should be used. The two most common types of motor
braking systems used with the Q7 ASD are DC Injection Braking and Dynamic Braking.
For further information on braking systems, see DC Injection Braking Current on pg. 57 and
Dynamic Braking Enable on pg. 60.
ASD Characteristics
Over-current Protection
Each Q7 ASD model was designed for a specified operating power range. The ASD will incur a trip if
the design specifications are exceeded.
However, the ASD may be operated at 100% of the specified output-current range continuously or at
110% for a limited time as indicated in the section titled Current/Voltage Specifications on pg. 162.
Also, the Overcurrent Stall Level setting may be adjusted to help with nuisance over-current trips.
When using the ASD for an application that controls a motor which is rated significantly less than the
maximum current rating of the ASD, the over-current limit (Thermal Overload Protection) setting will
have to be changed to match the application. For further information on this parameter, see (Electronic)
Thermal Protection #1 on pg. 62.
ASD Capacity
The Q7 ASD must not be used with a motor that has a significantly larger capacity, even if the motor is
operated under a small load. An ASD being used in this way will be susceptible to a high-output peak
current which may result in nuisance tripping.
Do not apply a level of input voltage to an ASD that is beyond that which the ASD is rated. The input
voltage may be stepped down if required with the use of a step-down transformer or some other type of
voltage-reduction system.
CAUTION

14 Q7 ASD Installation and Operation Manual
Installation and Connections
The Q7 Adjustable Speed Drive may be set up initially by performing a few simple configuration
settings. To operate properly, the ASD must be securely mounted and connected to a power source (3-
phase AC input at the L1/R, L2/S, and L3/T terminals). The control terminals of the ASD may be used
by connecting the terminals of the Control Terminal Strip to the proper sensors or signal input sources
(see the section titled I/O and Control on pg. 19).
The output terminals of the ASD (T1/U, T2/V, and T3/W) must be connected to the motor that is to be
controlled (see Figure 18 on pg. 26).
As a minimum, the installation of the ASD shall conform to Article 110 of the 2005 NEC, the
Occupational Safety and Health Administration requirements, and to any other local and regional
industry codes and standards.
Installation Notes
When a brake-equipped motor is connected to the ASD, it is possible that the brake may not release at
startup because of insufficient voltage. To avoid this, Do Not connect the brake or the brake contactor to
the output of the ASD.
If an output contactor is used for bypass operation, it must be interlocked such that commercial power is
never applied to the output terminals of the ASD (T1/U, T2/V, or T3/W).
If a secondary magnetic contactor (MC) is used between the output of the ASD and the motor, it should
be interlocked such that the ST – CC connection is disconnected before the output contactor is opened.
Do Not open and then close a secondary magnetic contactor between the ASD and the motor unless the
ASD is off and the motor is not rotating.
Note: Re-application of power via a secondary contact while the ASD is on or while the
motor is still turning may cause ASD damage.
On some devices the ST-to-CC connection is further enhanced by the operation of the MS1 AUX relay
circuit. The MS1 AUX relay circuit is normally open and closes the ST-to-CC connection (via ST1)
only after normal system power is available. The MS1 AUX relay circuit prohibits the ST-to-CC
connection in the event that the MS1 contactor fails to close during start up or if MS1 opens while the
ASD is running. For the 230 volt ASD this feature is available on the 40 HP and above systems, on the
460 volt ASD this feature is available on the 75 HP and above systems, and on the 600 volt ASD it is
available on the 60 HP and above systems.

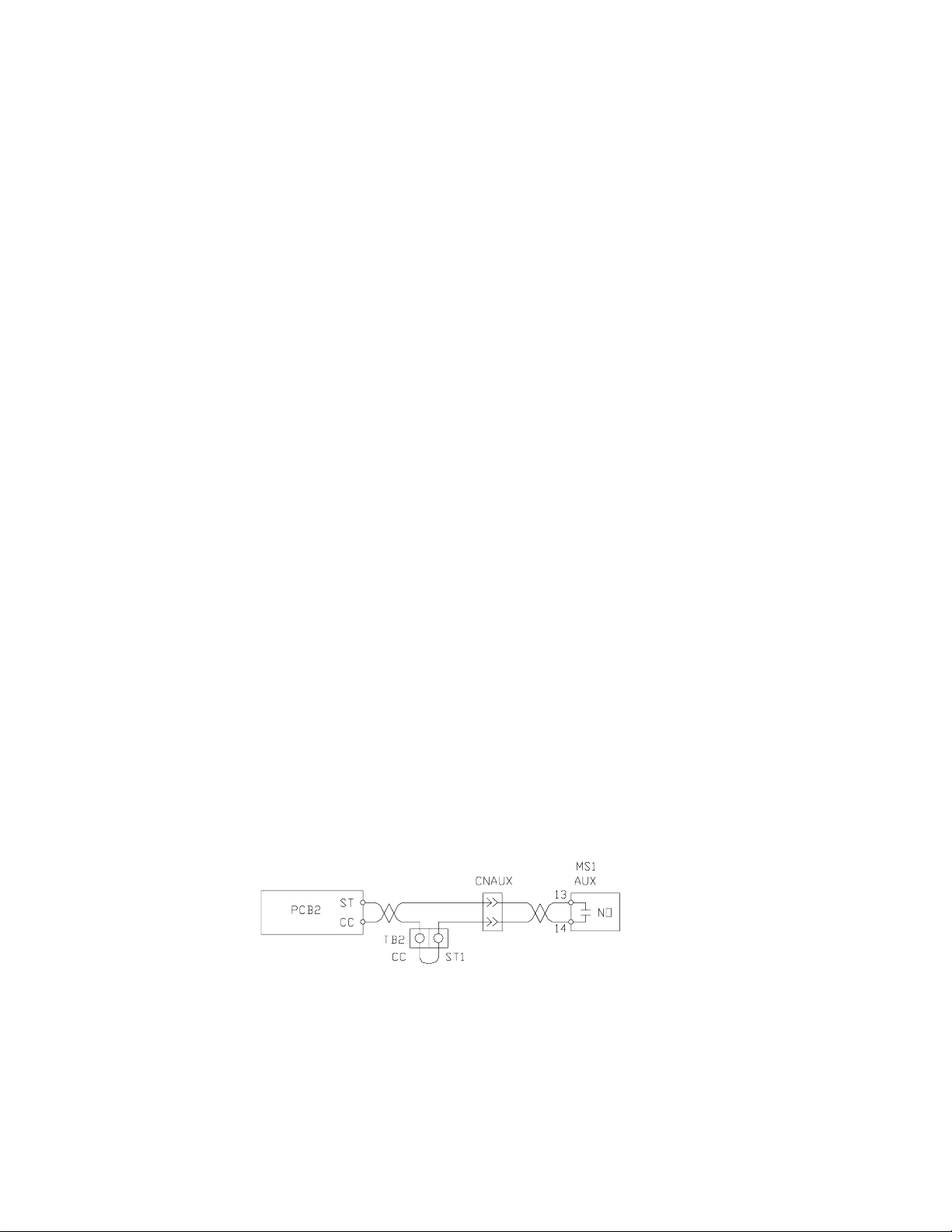

Figure 2. Alternative ST activation using the MS1 AUX circuit configuration.
The ASD input voltage should remain within 10% of the specified input voltage range. Input voltages
approaching the upper or lower limit settings may require that the overvoltage and undervoltage stall
protection level parameters be adjusted. Voltages outside of the permissible tolerance should be
avoided.
The frequency of the input power should be ±2 Hz of the specified input frequency.
Do not use an ASD with a motor that has a power rating that is higher than the rated output of the ASD.
