Total gym Xls User manual

DEDICATION TO QUALITY

We warrant this product to be free from all

defects in material and workmanship when used

according to the manufacturer’s instructions.

See Limited Warranty Card for details.

Save your sales receipt.

You may wish to staple into this manual.

Owner’s Manual

For maximum effectiveness and safety,

please read this owner’s manual and

view the video before using your

Total Gym XLS, XL, 3000 or 2000.

No part of this booklet may be reproduced in any form, by any means, electronic,

mechanical or otherwise, without the express written consent of the copyright holder.

BH7481

Bring your workouts to the next level with optional attachments.

Learn more at TotalGymDirect.com

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | PARTS OVERVIEW & LIST

To order optional accessories, please go to TotalGymDirect.com 16To order optional accessories, please go to TotalGymDirect.com

Table of Contents

EQUIPMENT WARNING/CAUTION LABELS & SAFETY INSTRUCTIONS .................................................... 3

PRODUCT SPECIFICATIONS ................................................................................................................... 4

SET UP ..............................................................................................................................................5-6

OPTIONAL ACCESSORIES ...................................................................................................................7-9

Hitch Pin Locations ..................................................................................................................................................... 7

Wing Attachment ......................................................................................................................................................... 7

Press Up Bars.............................................................................................................................................................. 7

Dip Bars ...................................................................................................................................................................... 7

Weight Bar .................................................................................................................................................................. 8

Leg Pull....................................................................................................................................................................... 8

AbCrunch .................................................................................................................................................................... 8

Pilates Kit .................................................................................................................................................................... 9

STARTING OUT ...................................................................................................................................... 9

INSPECTION AND MAINTENANCE ..................................................................................................10-11

LIMITED LIFETIME WARRANTY ............................................................................................................ 11

TOTAL GYM®STARTER PROGRAM...................................................................................................12-13

WORKOUT PROGRESS CHARTS......................................................................................................14-15

TOTAL GYM®PARTS LIST & OVERVIEW ............................................................................................... 16

XLS model shown on cover

1 21300 Tube Cap - 32mm 2

2 S250 Oval Squat Stand 1

3 15200 Tube Cap - 50mm 2

4 15600 Rubber Stop 3

5 14200 Tube Cap - 25mm x 50mm 6

6 12750 Tube Roller 2

7 16200 Eyebolt - 8mm x 93mm 2

8 17100 Washer - 8mm - Flat 6

9 17901 Nylock Nut - 8mm 2

10 17700 Tube Cap - 25mm Round 2

11 40950 Pulley Line Assembly 1

12 S350 Glideboard Assembly 1

13 363000 Wheel 4

14 WA2 Wing Attachment 1

15 40300 Accessory Hitch Pin (long) 2

KEY # PART # PART DESCRIPTION QTY

16 TDH1 Lanyard w/ Safety Hitch Pin 1

17 CT1488 Training Deck Cards 1

18 TFC3500 Training Deck Holder 1

19 40950H Nylon Strap Handles 2

20 41000 Quick Link 2

NOT SHOWN 16500 Accessory Hitch Pin (short) 3

NOT SHOWN (OPTIONAL)

PPB Press Up Bar Set 1

LPAR Leg Pull Accessory 1

DBS Dip Bar Set 1

28800 Weight Bar Kit 1

PILS Pilates Kit 1

S217 Pilates Toe Bar 1

PILS24 Pilates 24-inch Rope 1

ALBOT Water Bottle 1

KEY # PART # PART DESCRIPTION QTY

Total Gym®Parts List and Overview

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL

To order optional accessories, please go to TotalGymDirect.com 2

Congratulations on purchasing your new Total Gym®

With this product in your home, you have everything you need to start your own workout program, to tone and strengthen the important

muscle groups of your upper and lower body. This is vital for all of us, regardless of age, sex, or tness level, and regardless of whether

your primary goal is body sculpting, weight loss, health maintenance, or more energy for daily activities.

Strength training not only tones and conditions the muscles we use every day to stand, walk, lift, and turn; it can actually transform our

body composition. By reducing body fat and increasing the proportion of lean muscle in our bodies, strength training can effectively turn up

our metabolic thermostat, so that we burn calories all the time, no matter what we’re doing.

It’s easy - all you have to do is spend 15 to 20 minutes a day, 3 to 4 days per week on your Total Gym®to start realizing the benets.

Be sure to read through this Owner’s Manual carefully. It is the authoritative source of information about your Total Gym®.

CUSTOMER SERVICE QUESTIONS

If you have questions about your Total Gym®, please call Customer Service at 1.800.501.4621, Monday through Thursday, 8:30 am to

5:00 pm, EST.

ORDERING REPLACEMENT PARTS

When ordering parts, please contact our Parts Department, toll free at 1.800.501.4621, Monday through Thursday, 8:30 am to

5:00 pm, EST.

IMPORTANT: You must have your serial number and this manual ready when calling for parts.

Serial #: ____________________________

PLEASE ALSO PROVIDE THE FOLLOWING INFORMATION:

1. Name, Mailing Address and Telephone Number

2. Date of Purchase

3. Where Product was Purchased

4. Model Number

5. Part Order Number and Description

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | EQUIPMENT WARNINGS / CAUTION LABELS & SAFETY INSTRUCTIONS

3To order optional accessories, please go to TotalGymDirect.com

Safety Instructions

Before beginning this or any exercise program, consult a physician or health professional, who can assist you in planning a

program appropriate for your age and physical condition. This is especially important if you are over age 35 or have pre-existing health

problems.

Do not overexert yourself. Stop exercising immediately and consult your doctor if you experience pain or tightness in your chest, irregular

heart beat, shortness of breath, or if you feel faint, nauseous, or dizzy.

This product is designed for home use only. It is not intended for commercial or institutional use. Use only as instructed.

Do not stand on the product.

The Total Gym®is not intended for use by children. Keep this and all tness equipment out of the reach of children.

Keep ngers, loose clothing, and hair away from moving parts.

Inspect your exerciser before each use to ensure proper operation. Do not use this equipment unless all moving parts, including

cables and pulleys are working properly. See page 10 for details on Inspection and Maintenance.

The exerciser should only be used on a mat or carpeted surface to prevent unexpected movement of the unit.

Use only the accessory items recommended by the manufacturer.

To avoid serious injury, care should be taken at all times when getting on and off this or any exercise equipment.

Equipment Warning / Caution Labels

See page 4 for placement of the following warning/caution labels on your unit.

WARNING

FAILURE TO READ AND FOLLOW

THE SAFETY INSTRUCTIONS

STATED IN THE OWNER’S MANUAL

MAY RESULT IN POSSIBLE

SERIOUS INJURY OR DEATH. KEEP

CHILDREN AWAY. MAXIMUM USER

WEIGHT 400 LBS. REPLACE THIS

LABEL IF DAMAGED, ILLEGIBLE OR

REMOVED. FOR HOUSEHOLD USE

ONLY. CALL CUSTOMER SERVICE

AT 1.800.501.4621 FOR

REPLACEMENT LABEL, MANUAL

OR QUESTIONS.

WARNING

FAILURE TO INSTALL THE HITCH

PIN IN THE SAFETY HOLE (LOCATED

JUST TO THE LEFT OF THIS DECAL)

MAY CAUSE THE MACHINE TO

COLLAPSE, RESULTING IN SERIOUS

OR FATAL INJURY.

WARNING

BOTTOM HOLE IN SUPPORT COLUMN

IS FOR STORAGE ONLY. ATTEMPTING

TO EXERCISE WITH THE HEIGHT

ADJUSTMENT PIN IN THIS BOTTOM

POSITION WILL CAUSE THE SUPPORT

COLUMN TO COLLAPSE FORWARD AND

COULD RESULT IN SERIOUS INJURY.

WARNING

CRUSH HAZARD

KEEP HANDS CLEAR DURING FOLDING.

WARNING

CRUSH HAZARD

KEEP HANDS

CLEAR DURING

FOLDING.

KEEP HAIR, FINGERS, LOOSE CLOTHING, PETS, AND CHILDREN AWAY FROM HINGES AND OTHER

MOVING PARTS TO AVOID SERIOUS INJURY. ALSO, BE SURE TO HAVE ALL PINS LOCKED IN PLACE

BEFORE GETTING ON YOUR TOTAL GYM®TO AVOID SEVERE INJURY.

CAUTION

REMOVE SQUAT STAND FROM

FRAME WHEN NOT REQUIRED FOR

THE SPECIFIC EXERCISE.

CAUTION

REMOVE WING

ATTACHMENT

FROM FRAME

WHEN NOT

REQUIRED FOR

THE SPECIFIC

EXERCISE.

CAUTION

WARNING LABEL 1 WARNING LABEL 2 WARNING LABEL 3 WARNING LABEL 4

Two sizes, 3 locations

CAUTION

LABEL 1 CAUTION LABEL 2 CAUTION LABEL 3

Located on

Wing Attachment

Located on Squat Stand

WARNING LABEL 5

WARNING

TO AVOID SERIOUS INJURY FROM COLLAPSING SUPPORT COLUMN – DO NOT

USE BOTTOM HOLE IN SUPPORT COLUMN DURING EXERCISE. THIS HOLE IS

FOR STORAGE ONLY. MOVE THE HEIGHT ADJUSTMENT SLIDE MECHANISM UP

ONE OR MORE HOLES TO EXERCISE.

WHEN BOTTOM HOLE IS IN USE, SUPPORT COLUMN MUST BE FOLDED DOWN.

DO NOT PUT WEIGHT ON THE GLIDEBOARD WITH BOTTOM HOLE IN USE,

SUPPORT COLUMN WILL COLLAPSE.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | PRODUCT SPECIFICATIONS

To order optional accessories, please go to TotalGymDirect.com 4

Product Specications (XLS shown)

Hitch Pin

(Connected with a lanyard to

height adjustment column)

Handle

Inner Rail

Front Crossbar

Support Column

Squat Stand

(optional)

Back Crossbar

Rollers

Center Support Rail

Outer Rail

LEG PULL ACCESSORY

LENGTH

Folded................................. 51.5”

In Use .................................... 90”

HEIGHT

Folded............................... 8.875”

In Use .................................... 43”

Width .................................. 18.5”

Weight .............................. 68 lbs.

Maximum User Weight ..... 400 lbs.

Cable

Safety

Hole

Height Adjustment

Slide Mechanism

(Includes the Height

Adjustment Lever)

Leg Pull Bracket

Glideboard

Squat Stand

Receptacles

Storage Hole

Hole for optional Weight Bar

SAFETY HITCH PINS (SHORT) 2

• 1 in Literature Pack. Use in storage hole when storing unit.

• 1 connected with a lanyard to height adjustment slide

mechanism. Use in safety hole during exercise.

Total Gym

Training Deck

(optional)

Wing Attachment

(optional)

Requires 2 long

hitch pins

Optional Accessories Available for Purchase Weight Bar accessory also available.

Clip

O-ring

Pulley/D-Ring

Assembly

Foot Harness (2)

Rope

PRESS UP BARS

ABCRUNCH

DIP BARS

TOTAL GYM CYCLO TRAINER

Requires 2 short hitch pins

Requires

2 short

hitch pins

WARNING

LABEL 1

WARNING

LABEL 2

Pulley Assembly

WARNING

LABEL 3

WARNING

LABEL 4

WARNING

LABEL 4

WARNING

LABEL 5

CAUTION

LABEL 1

CAUTION

LABEL 2 CAUTION

LABEL 3

PILATES ACCESSORY KIT

Pilates Toe Bar

24-inch leg pulley

rope extension

Foot

Harness (2)

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | SET UP

5To order optional accessories, please go to TotalGymDirect.com

Set Up

FULLY ASSEMBLED! NO TOOLS REQUIRED!

Set up your Total Gym®in 5 easy steps.

KEEP HAIR, FINGERS, LOOSE CLOTHING, CHILDREN AND PETS AWAY FROM HINGES AND OTHER MOVING

PARTS TO AVOID SERIOUS INJURY. ALSO, BE SURE TO HAVE THE HEIGHT ADJUSTMENT LEVER PIN AND

SAFETY HITCH PIN LOCKED IN PLACE BEFORE GETTING ON YOUR TOTAL GYM TO AVOID SEVERE INJURY.

WARNING

STEP 1.

Lay shipping box at and open carton top.

STEP 2.

Remove corner tape from the carton bottom (as indicated by the

X’s). Remove all packaging materials, including cardboard inserts,

from your Total Gym®. Remove the squat stand (optional) from under

the gym (as shown to the right) and install on opposite end into

receptacles.

STEP 3.

Lift gym up from opposite end of squat stand. Make sure that it

rests solidly on the squat stand. Remove the two accessories from

under the bench.

STEP 4.

Extend Total Gym®out in the following manner:

4A. Place one hand on the edge

of the frame. With your

other hand, take hold of the

support column and begin to

pull it out until the frame is

lying at on the oor.

Be sure to support the frame

in the center to avoid having

the product drop suddenly

onto the oor.

4B. The spring-loaded pin on the

right rail will automatically

engage during set-up. This

pin prevents the support

column from collapsing when

the height adjustment pin

is locked into the bottom

storage hole.

Support Column

Back

Crossbar

Center Rail

Right Rail

Spring-

Loaded Pin

Hitch

Pin and

Lanyard

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | SET UP

To order optional accessories, please go to TotalGymDirect.com 6

STEP 5.

Raise the Total Gym®to the desired incline level by positioning one

foot on the back crossbar to keep the product from lifting off the oor.

5A. With one hand on a side rail, grasp the height adjustment lever

on the height adjustment slide mechanism and raise to one of

the lower levels.

Height

Adjustment

Lever

5B. Push the lever back to its original position (it should be at

against the support column). Slide the frame until you hear the

lever pin snap into place. Look on the inside of the support

column to make sure the lever pin is through the hole and

locked into place. Never sit or exercise on Total Gym®

without the adjustment lever and safety hitch pin securely

locked into place.

Height

Adjustment

Lever

5C. Insert the safety hitch pin connected to the lanyard through

the safety hole on the side of the height adjustment slide

mechanism until it is through the support column. Never sit or

exercise on Total Gym®without the adjustment lever and

safety hitch pin securely locked into place.

Hitch Pin

Connected with a

lanyard to height

adjustment column

Safety Hole

Height Adjustment

Slide Mechanism

5D. Insert the Training Deck holder into the two holes located on the

top of the support column.

Total Gym Training

Deck and Holder

BOTTOM HOLE IN THE SUPPORT COLUMN IS FOR STORAGE ONLY.

ATTEMPTING TO EXERCISE WITH THE HEIGHT ADJUSTMENT

LEVER PIN IN THIS BOTTOM HOLE POSITION WILL CAUSE THE

SUPPORT COLUMN TO COLLAPSE FORWARD AND COULD RESULT

IN SERIOUS INJURY.

FAILURE TO SECURELY LOCK THE HEIGHT ADJUSTMENT PIN AND

SAFETY HITCH PINS INTO PLACE MAY RESULT IN SERIOUS INJURY

OR EVEN DEATH.

WARNING

SET UP IS COMPLETE!

Begin using Total Gym®at a low incline. As your tness level

increases, raise the incline to increase the intensity of your workout

and improve your muscle strength.

If you have questions about your Total Gym®, please call

Customer Service at 1.800.501.4621.

Be sure to check out the instructional

video entitled “Total Gym: Start It Up!” on

tv.TotalGymDirect.com, which is full of

valuable tips to get the most out of your

new Total Gym®.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | ATTACHMENTS: HOW TO’S & OPTIONAL ACCESSORIES

7To order optional accessories, please go to TotalGymDirect.com

Optional Accessories

Follow the instructions below on how to attach the optional

accessories to your Total Gym®.

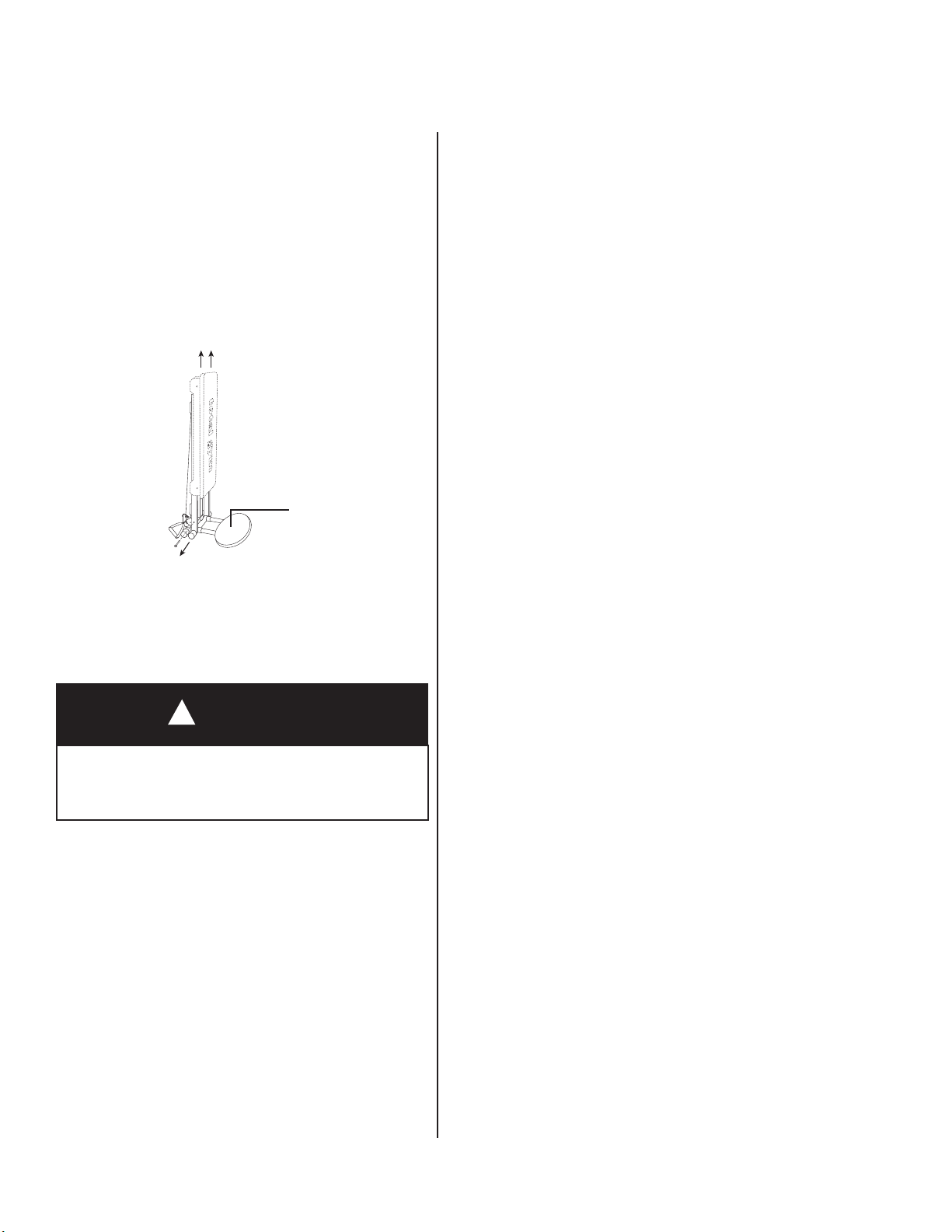

ALL HITCH PIN LOCATIONS

• One (1) short pin and two (2) long pins are held within the Total

Gym Training Deck holder.

• One (1) short pin is connected by a lanyard to the height

adjustment slide mechanism on the support column.

FAILURE TO SECURELY LOCK THE

SAFETY HITCH PINS INTO PLACE

MAY RESULT IN SERIOUS INJURY OR

EVEN DEATH.

WARNING

WING ATTACHMENT (OPTIONAL)

PULL UPS

1. Locate the holes at the top

of the right and left rails on

the support column end of

the unit.

2. With the attachment

angled toward the

glideboard, line up the

brackets on the attachment with the holes on the rails.

3. Insert the 2 long hitch pins through the holes on the attachment

brackets and the hole on the rails as indicated by arrows in

image.

4. You are now ready to perform pull up and chin up exercises to

work the arms, lats and back.

LEG PULL, CRUNCHES, AND SIT UPS

1. Locate the holes at the top of the right and left rails on the

support column end of the unit.

2. With the attachment angled away

from the glideboard, line up the

brackets on the attachment with

the holes on the rails.

3. Insert the 2 long hitch pins

through the holes on the

attachment brackets and the hole

on the rails, as indicated by arrow in image.

4. Insert feet under each angled “wing” of the attachment. You are

now ready to perform leg pulls, crunches and sit up exercises

to work the abdominals, waist and legs.

PRESS UP BARS (OPTIONAL)

Press Up Bars

Press Up Bars 2 short hitch pins

Press Up Bar hole

1. Attach each press up bar to the frame with the short hitch pins

included with your Total Gym®.

Note: Hitch pins are included with the press up bars.

Simply line up each bar with the holes at the bottom of

the frame.

2. Slide one short hitch pin through the hole of one of the press

up bars and through frame. Repeat Steps 1 and 2 for attaching

the other press up bar. Make sure to securely attach each

press up bar to each side of the frame before using.

See Total Gym: Start It Up! video on tv.TotalGymDirect.com for

tips on how to utilize the press up bars.

DIP BARS (OPTIONAL)

Dip Bars

2 short hitch pins

Dip Bar hole Hitch Pin

1. Attach each dip bar to the frame with the short hitch pins

included with your Total Gym®.

Note: Hitch pins are included with the dip bars. Simply

line up each bar with the holes in the upper portion of the

bottom frame.

2. Slide one short hitch pin through the hole of one of the dip bars

and through frame. Repeat Steps 1 and 2 for attaching the

other dip bar. Make sure to securely attach each dip bar to

each side of the frame before using.

Hitch Pin placement

Follow small arrows

REMOVE ALL ACCESSORIES WHEN YOU ARE NOT EXERCISING WITH THEM.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | OPTIONAL ACCESSORIES

To order optional accessories, please go to TotalGymDirect.com 8

WEIGHT BAR (OPTIONAL)

Slide through here

Weight Bar

1. Slide weight bar through the hole near the bottom of the Total

Gym glideboard rails.

2. Add free weights equally and evenly to both sides of the weight

bar when stacking weights. Weight clips must be installed

on each side to prevent the weights from slipping off the bar.

Weights and clips not included.

LEG PULL (OPTIONAL)

Clip

O-ring

Pulley/D-Ring

Assembly

Foot Harness (2)

Rope

1. Detach the pulley mechanism from the hook on the underside

of the glideboard.

2. Connect the D-ring/pulley combination of your leg pull

accessory to the leg pull bracket on the support column.

Leg Pull Bracket

D-ring / pulley combination

Rope

3. Next, connect the O-ring (the one that is connected to the rope)

to the hook on the underside of the glideboard.

4. Attach the foot harness to one of

your feet by placing your foot in

the harness so the sewn-in-ring

is on the bottom of your foot. Pull

tightly on the belt so the harness is

secure.

5. Position yourself on the glideboard

correctly for the specic exercise

you want to perform. See Total

Gym: Start It Up! video on

tv.TotalGymDirect.com for tips

on how to utilize the Leg Pull

accessory.

Connect the clip on the end of the rope to an O-ring on the

harness attached to your foot. Depending on the exercise you

are performing, connect the clip to the proper O-ring.

You are now ready to exercise using the leg pull accessory.

ABCRUNCH (OPTIONAL)

ASSEMBLY

1. Match AbCrunch Handle labeled ® to the

Elbow Pad labeled ®.

2. Insert Handle into Elbow Pad bracket and

attach by inserting short hitch pin.

3. Repeat for left side.

INSTALLATION – HOW TO INSTALL THE ABCRUNCH

1. Locate the holes at the top of the

right and left rails on the support

column end of the unit.

2. Install the AbCrunch arm labeled

® onto the right side rail with the

handle facing the support column.

3. Insert the short hitch pin through

the holes on the attachment bracket

and through the hole on the right rail as indicated by arrows in

image.

4. Repeat for left AbCrunch arm.

You are now ready to perform all of the AbCrunch exercises.

O-ring O-ring

Stirrup

Clip

O-ring

Bracket

REMOVE ALL ACCESSORIES WHEN YOU ARE NOT EXERCISING WITH THEM.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | OPTIONAL ACCESSORIES & STARTING OUT

9To order optional accessories, please go to TotalGymDirect.com

PILATES KIT (OPTIONAL)

Pulley/D-Ring

Assembly

Pilates Toe Bar

24-inch leg

pulley rope

extension

Foot

Harness (2)

To begin your Pilates Exercise Program carefully follow the

assembly instructions below.

1. Insert Pilates Toe Bar into squat stand receptacles

2. Assemble Pilates 24-inch leg pulley rope extension

A. Detach the pulley

mechanism from the hook

on the underside of the

glideboard.

B.Next, connect the D-ring/

pulley combination of your

leg pull accessory to the

leg pull bracket on the

support column.

C. Attach the foot harnesses

to your feet by placing

your foot in the harness so

the sewn-in-ring is on the

bottom of your foot. Pull

tightly on the belt so the

harness is secure.

D. Connect the clip on the

end of the leg pulley rope

to the O-ring on one of the

foot harnesses.

E. Connect one end of the

Pilates 24-inch rope to the

O-ring on the leg pulley

rope.

F. Next, connect the other

end of the Pilates 24-inch

rope to the O-ring on the

other foot harness.

You are now ready to begin your Pilates exercise program.

Starting Out

Wear athletic shoes and comfortable light clothing when exercising

on your Total Gym®. Do not exercise barefoot. Check your exerciser

before use to ensure that all the parts are in place and working

properly (see page 10 for details of the inspection process).

Adult supervision is required whenever a child is on or near

this exerciser.

Begin using the product at a low incline. As your tness level

progresses, increase the incline to increase the intensity and

improve your muscle strength. Don’t be in a hurry to exercise at a

high intensity level; start out easily and build gradually. Total Gym®

is as easy as 1-2-3 to use, so read on.

1. Important Things to Remember When Using Total Gym®

• Always have control of the glideboard before getting on and

off the exerciser.

• Keep your feet on the oor when getting on and off the

exerciser. Only remove them from the oor for the duration of

the exercise.

• If you are using the handles, hold onto them as you get on

and off the glideboard.

• Be sure to have plenty of free space - at least 2-3 feet of

clearance around the exerciser - so that performing on the

Total Gym, as well as getting on and off, is convenient and

safe.

2. Exercising with the Handles Only

Grasp the handles which are attached to the cable and slide the

glideboard to a position in which you can comfortably sit or lay

down on when performing the desired exercise. Be sure to keep

your feet on the oor until you are in the correct position for the

specic exercise. Then, if the exercise calls for your feet to be

off the oor, place your feet as specied in the instructions.

3. Exercising with the Squat Stand Only

Slide the glideboard to a position in which you can comfortably

sit or lay down on when performing the desired exercise. Keep

your feet on the ground until you are in the correct position and

feel comfortable. Then, place your feet in the proper position

and begin to exercise.

When starting your exercise program, begin with the basic

exercises in the Training Deck included with your Total Gym®to

familiarize yourself with the movements. Use the lowest incline

level to start with—you can work up to a higher incline level in the

weeks and months to come.

For the specic Total Gym®exercises and programs, follow the

exercises in the Total Gym Training Deck included with your

Total Gym®.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | INSPECTION AND MAINTENANCE

To order optional accessories, please go to TotalGymDirect.com 10

Inspection and Maintenance

INSPECT YOUR TOTAL GYM®PRIOR TO EACH USE

Before using your Total Gym®for your workout session, be sure to

make the following inspection:

• Make sure the equipment is fully opened and sitting on a solid

level surface with plenty of clearance on all sides.

• Check that the pulley is attached securely to the hook on the

front underside of the glideboard, as well as the uprights on the

support column.

• Make sure that the eyebolts are securely fastened to each

upright on the support column.

• Check that the cables are traveling correctly in the groove of

each pulley.

• Make sure the cable is securely fastened to each hand grip.

• Check the cable for signs of wear and tear.

• Check that the squat stand is installed correctly in the squat

stand receptacles.

• Make sure the glideboard is gliding smoothly along the frame.

• Make sure all the safety hitch pins and height adjustment pin

are securely in place and locked into position.

ROUTINE MAINTENANCE

• Wipe down your Total Gym®after each use with a clean, damp

(not wet) cloth. Do not leave towels or workout clothing laying or

hanging on the equipment.

• Periodically check the following parts for signs of fraying or

other wear: the cable, the pulleys, the wheels, the glideboard,

the squat stand and the frame. If a part needs replacement, do

not use the equipment until it is repaired or replaced.

• Periodically remove the glideboard to clean rails and glideboard

wheels. See “To Remove the Glideboard” (on page 11) for

details.

• Never user lubricant such as WD-40®or Armor All®to lubricate

or clean the unit. Use only 3-in-1 oil or machine oil to lubricate

the axles of the wheels or pulley, not the roller surface.

TO STORE YOUR

TOTAL GYM®

Follow these easy steps to

store your Total Gym®properly:

1. First, remove all

accessories and

attachments.

2. Install a safety hitch pin (short) into the storage hole on the

glideboard.

3. Position one foot on back crossbar to keep the product from

lifting off the oor. A. With one hand on the frame, grasp the

height adjustment lever and lower the frame until it rests on

the back crossbar. B. Then, push the lever back to its original

position. It should be at against the support column.

Support Column

Frame

Height

Adjustment

Lever

A. B.

Back Crossbar

4. Pull the spring-loaded pin (red knob) to disengage it and lower

the support column onto the center rail.

Support Column

Hitch Pin

and Lanyard

Center Rail

Spring-loaded Pin (red knob)

5. With caution, to avoid pinched ngers or hands, lift up at the

center of the frame and fold the exerciser together.

When it is completely folded, the exerciser should be at a 90

degree angle with the oor. The exerciser will rest on the squat

stand for support. Squat stand is an optional accessory.

Weight Bar Hole Squat Stand

(optional)

6. You can store the exerciser in a closet or against the wall. To

store it under a bed, simply lower the exerciser to the oor,

remove the squat stand, and roll under the bed.

USE CAUTION WHEN FOLDING THE

EXERCISER—SERIOUS INJURY

COULD RESULT FROM PINCHED

FINGERS OR HANDS.

CAUTION

Hitch Pin

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | INSPECTION AND MAINTENANCE & WARRANTY

11 To order optional accessories, please go to TotalGymDirect.com

TO REMOVE THE GLIDEBOARD

You can also remove the glideboard if you need to t the

exerciser under a narrow space (between 6” and 8”).

1. Remove the short safety hitch pin from the storage hole.

2. Disconnect the pulley from the hook on the underside of

the glideboard.

3. Next, lift up the glideboard and slide it off the frame of

the exerciser. When the bench is completely off the

exerciser, set it aside.

Squat Stand

(optional)

Short Safety Hitch Pin

4. Next, lower the exerciser to the oor, remove the squat

stand, and roll the exerciser under the desired area.

Squat stand is an optional accessory.

THE GLIDEBOARD WEIGHS APPROXIMATELY 22 LBS. USE

CAUTION WHEN LIFTING IT OFF OF THE EXERCISER. LIFTING

INCORRECTLY MAY RESULT IN USER INJURY.

CAUTION

Limited Lifetime Warranty

Total Gym Fitness, LLC warrants that under normal, personal, residential

use, Total Gym®is free from defects in material or workmanship. The

duration of coverage of this warranty varies depending on the part of

equipment that is determined to be defective (see chart below), at Total

Gym Fitness LLC’s sole discretion. This warranty is effective from the

date of original purchase. THIS WARRANTY IS VALID ONLY FOR THE

ORIGINAL OWNER OF THIS EXERCISER AND IS NOT TRANSFERABLE.

PART WARRANTY COVERAGE

Frame Lifetime Replace frame that is structurally defective

with a new frame or replace the entire unit.

All other parts 6 months Repair or replace defective part or product.

(includes wheels,

pulleys, cables)

(Optional Extended

2-Year Warranty)

The Total Gym Fitness, LLC obligation under this warranty is limited to

replacing the defective part(s); or, at its option, repairing or replacing (or

refund in its sole discretion) the product. For service on this equipment,

call 1-800-501-4621. Warranty coverage is void for defects or

damage caused by the use of unauthorized parts or service.

This warranty does not cover product damage attributable to misuse,

abuse, neglect, accidental damage, damage in return transit, unauthorized

alterations, failure to follow manufacturer’s directions for use or storage,

improper maintenance, vandalism, usage for commercial or rental

purposes, or “ordinary wear and tear”. Cost of return shipping must be

paid by you unless otherwise agreed upon by Total Gym Fitness, LLC. This

warranty does not cover any separately sold items, parts, or accessories.

Except for other written warranties issued by Total Gym Fitness, LLC

applicable to new Total Gym Fitness, LLC product or parts, no other

express warranty is given or authorized by Total Gym Fitness, LLC. Any

implied warranty of merchantability or tness for a particular

purpose is limited to the duration of this warranty. No agent or

retailer of Total Gym Fitness, LLC has authority to modify this warranty in

any respect.

TOTAL GYM FITNESS, LLC MAY NOT BE HELD LIABLE FOR

INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF USE

OR PERFORMANCE OF THIS PRODUCT. These include—but are

not necessarily limited to—loss of use of the product; loss of time,

enjoyment, or revenue; inconvenience; installation or removal costs; or

other incidental or consequential damages.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT

APPLY TO YOU. This warranty gives you specic legal rights; you may also

have other rights which vary from state to state. This warranty is valid in

the U.S. and Canada only.

To register your product online, go to TotalGymDirect.com/warranty.

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | STARTER PROGRAM

To order optional accessories, please go to TotalGymDirect.com 12

Total Gym®Starter Program

The following workout, for men and

women of all tness levels, will get

you acquainted with your new Total

Gym. You can view this workout in its

entirety as a work-along program in

the Total Gym: Start It Up! video on

tv.TotalGymDirect.com. Follow this

guide as you work-along or use it as

a reference when you can’t watch the

workout.

This starter program has been

designed as a circuit training program to maximize cardio and

strength training benets. Start off with 15 repetitions of each

exercise, moving from one to the other with little or no rest in

between. If you nd that 15 reps are too easy, increase the incline

level on your Total Gym. If you are struggling with 10-12 reps, then

decrease your incline level.

See Total Gym: Start It Up! video on tv.TotalGymDirect.com for

the work-along version of this program.

1. SQUATS

2. SINGLE LEG SQUATS

3. PULL UPS

4. LEG CURLS (SEATED OR LYING)

5. CROSS CABLE ROW

6. BICEP CURL

7. OUTER HIP & THIGH

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL | STARTER PROGRAM

13 To order optional accessories, please go to TotalGymDirect.com

8. OBLIQUE TWISTER

9. SEATED CHEST PRESS

10. PULLOVER

11. PULLOVER WITH CRUNCH

12. LYING TRICEPS EXTENSION

13. SHOULDER PRESS

14. CORE EXTENSION

15. TOE TOUCH STRETCH

To order optional accessories, please go to TotalGymDirect.com 14

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL

DATE

EXERCISE DATA PERSONAL DATA (Update weekly)

Workout Progress Chart

Use this sheet to keep a record of your workout progress over time. Before writing on it, make as many copies as you think you’ll need. We suggest you

keep these in a notebook. You will find it both informative and motivational to look back at what you’ve done. Plus, this data will help you to chart future

fitness goals as you progress.

WORKOUT

TIME

WARM

COOL

DOWN

INCLINE

LEVEL

REPS

15-25

SETS

1-3 DATE WEIGHT CHEST WAIST HIPSEXERCISE(S) PEFORMED

TOTAL GYM®XLS, XL, 3000 AND 2000 OWNER’S MANUAL

15 To order optional accessories, please go to TotalGymDirect.com

DATE

EXERCISE DATA PERSONAL DATA (Update weekly)

Workout Progress Chart

Use this sheet to keep a record of your workout progress over time. Before writing on it, make as many copies as you think you’ll need. We suggest you

keep these in a notebook. You will find it both informative and motivational to look back at what you’ve done. Plus, this data will help you to chart future

fitness goals as you progress.

WORKOUT

TIME

WARM

COOL

DOWN

INCLINE

LEVEL

REPS

15-25

SETS

1-3 DATE WEIGHT CHEST WAIST HIPSEXERCISE(S) PEFORMED
