Totally Wicked V-Pipe User manual

USER MANUAL / BEDIENUNGSANLEITUNG
ELECTRONIC CIGARETTE KIT
TW_V-Pipe_Manual.indd 1 30/11/2016 15:10

2
Congratulations on purchasing your Totally Wicked
V-Pipe Electronic Cigarette Kit.
The Totally Wicked V-Pipe is an e-cigarette which combines exceptional functionality, ergonomics and
style. Paired with the V-Pipe is the V-Pipe Tank, providing top filling capability, adjustable airflow and
the use of the popular BF atomizer heads. Adjustable modes allow for incremental settings in terms of
watts or temperature. The intelligent temperature control system allows the user to optimise their vaping
experience when using optionally available nickel, titanium and stainless steel atomizer heads. The
V-Pipe Kit combines all of its functionality and 18650 battery in a compact and simple to use package,
sure to be popular with a wide range of e-cigarette users.
TW_V-Pipe_Manual.indd 2 30/11/2016 15:10

3
OLED screen
Mouthpiece
Mouthpiece base
Atomizer base
Atomizer head
Atomizer tube
Airflow ring
Adjustment buttons
Power button
510 Thread and
spring connector
Battery cover
TW_V-Pipe_Manual.indd 3 30/11/2016 15:10

4

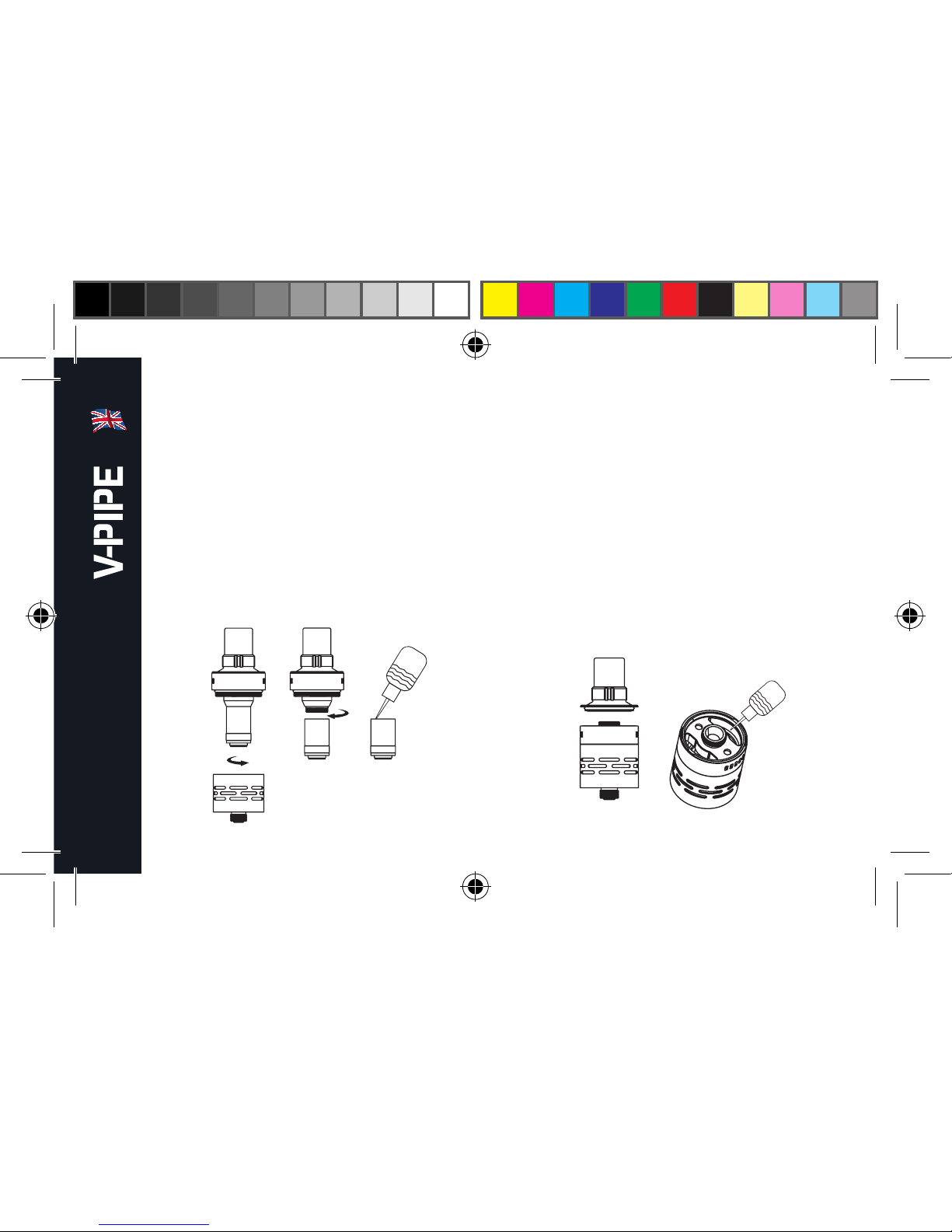

Using your Tank for the First Time:
Remove the atomizer base from the atomizer
tube by unscrewing in the anticlockwise direction,
unscrew the atomizer head, and drip in a few
drops of e-liquid. This will prime the atomizer
to ensure optimum operation and longevity.
Ensure the atomizer head is firmly tightened on
reassembly.
Filling the V-Pipe Tank:
To fill the tank, remove the mouthpiece base
from the atomizer base by turning anticlockwise
while firmly holding the airflow ring. Fill the tank
with e-liquid by inserting the nozzle into one of
the slots to the side of the central tube. Replace
the mouthpiece base onto the atomizer base by
turning clockwise until firmly seated. Maximum
refill nozzle diameter is 3.5mm.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 4 30/11/2016 15:10

5
Replacing the Atomizer Head:
Replace the atomizer head as shown in section
“Using your tank for the first time”. Remember
that any new atomizer head will need priming as
shown in that section. All of the wide range of
BF atomizer heads can be used with your V-Pipe
Tank – see the Totally Wicked website or contact
your local Totally Wicked stockist for details.
Power On and Off:
The V-Pipe uses a 5-click on/off function. To
switch the device on, press the power button 5
times in quick succession. The OLED screen will
illuminate, signifying that the device is powered
on. If the V-Pipe is powered on the user can press
the button 5 times to switch the device off.
Vaping:
Simply press the power button as you inhale.
Adjusting the Airflow:
To adjust the airflow, simply twist the airflow ring
in the clockwise direction to loosen the draw and
in the anticlockwise direction to tighten the draw.
Charging the Battery:
Charge the V-Pipe via the USB cable when
connected to a powered USB port or suitable wall
adapter. The indicator on the display will indicate
the battery status. Alternatively, the 18650 battery
can be removed and charged using a suitable
charger.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 5 30/11/2016 15:10

6
Shift between VW/Bypass/TC/TCR Modes:
When using the atomizer heads supplied with
the V-Pipe kit, only VW or Bypass modes can
be used. To switch between modes, ensure the
V-Pipe is powered on, press the power button 3
times consecutively; the mode symbol will flash,
use the right adjustment button to cycle through
the VW/Bypass/TC/TCR modes. Press the power
button to select the desired mode.
VW Mode:
When in VW mode, use the up or down
adjustment buttons to increase or decrease the
level of wattage respectively.
Bypass Mode:
When in bypass mode there is a direct output of
the voltage of the internal battery cell. The cell’s
operating voltage will be displayed when the
power button is pressed, and will be dependent
on the resistance of the atomizer used.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 6 30/11/2016 15:10

7
Atomizer heads and temperature control
The Totally Wicked V-Pipe is supplied as standard
with 1.5ohm Clapton MTL atomizer heads.
We believe these atomizers offer outstanding
performance, particularly to those new to vaping.
They work best using power in the range 8-12
watts, and higher power should be avoided,
especially if you experience a burnt taste from
your e-liquid. You may want to explore the
possibilities of the higher power capability of
alternative atomizer heads, and temperature
control using nickel, titanium and stainless steel
coil materials. A wide range of BF atomizer
heads is available from Totally Wicked and their
stockists.
Six modes of vaping operation are provided;
Variable Power (W); Bypass; Variable
Temperature with Nickel Coils (Ni); Variable
Temperature with Titanium Coils (Ti); Variable
Temperature with Stainless Steel Coils (SS316)
and Temperature Coefficient of Resistance (TCR).
These modes allow the V-Pipe’s full functionality
to be used with the wide range of atomizer heads
available.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 7 30/11/2016 15:10

8
Shift between TC-Ni/TC-Ti/TC-SS Modes:
To shift between the TC modes TC-Ni/TC-Ti/
TC-SS, press the power button 3 times
consecutively, and ensure TC mode is selected,
pressing the right button if necessary. Press the
left adjustment button, and the TC coil material
symbol will flash. Use the right adjustment button
to cycle through the TC-Ni/TC-Ti/TC-SS modes.
Press the power button to confirm your selection.
TC Mode (Ni/Ti/SS316):
When in TC mode, use the up or down
adjustment buttons to increase or decrease
the temperature respectively. The available
temperature range is 100-315C or 200-600F and
can be adjusted in increments of 5C and 10F.
To adjust the wattage level whilst in TC mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button twice, the wattage symbol will flash. Use
the right adjustment button to adjust the wattage
level.
To lock the atomizer resistance whilst in TC mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button 3 times, the atomizer value will flash. Press
the right adjustment button to lock the resistance.
When the resistance is locked, a lock symbol will
appear next to the resistance value. To unlock the
resistance, repeat the process.
Note: Only lock the atomizer when the coil is at
room temperature.
Note: If a coil with a resistance exceeding
1.5ohms is applied in VT mode, the device will
automatically switch to VW mode. Also, if a
standard kanthal or nichrome coil is used under
VT mode, the device will automatically switch to
VW mode.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 8 30/11/2016 15:10

9
TCR Mode (M1/M2/M3):
When in TCR mode, use the up or down
adjustment buttons to increase or decrease
the temperature respectively. The available
temperature range is 100-315C or 200-600F and
can be adjusted in increments of 5C and 10F.
To adjust the wattage level whilst in TCR mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button twice, the wattage symbol will flash. Use
the right adjustment button to adjust the wattage
level.
Configuring TCR Mode:
To set the temperature coefficient of resistance
to match a particular coil, when the device is
powered off simultaneously hold the power
button and the right adjustment button to enter
the TCR configuration menu.
Use the power button to select which to configure
from M1, M2 and M3 – this feature allows the
TCR values for 3 materials to be stored to the
device. Use the right and left adjustment buttons
to increase or decrease the value to your
preference, leave the device for 5 seconds to
confirm the selection.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 9 30/11/2016 15:10

10
TCR Value Range
Note: The TCR value displayed is 105(100,000)
times greater than the actual TCR value and is for
V-Pipe usage only.
Puff Counter/ Puff Timer/ Battery Current
Display:
Either one of the puff counter, puff timer or battery
current display can be displayed at one time at
the lower right side of the screen. To shift between
these options in any vaping mode, press the
power button 3 times consecutively to activate
the menu, single press the left adjustment button
until the Puff Counter/Puff Timer/Battery Current
Display symbol flashes. Use the right adjustment
button to shift between the Puff Counter/Puff
Timer/Battery Current Display modes.
Using your V-Pipe Kit
Material TCR Value Range
Nickel 600-700
NiFe 300-400
Titanium 300-400
SS (303, 304, 316, 317) 80-200
TW_V-Pipe_Manual.indd 10 30/11/2016 15:10

11
Stealth Mode:
When powered on, simultaneously hold the
power button and the left adjustment button to
activate stealth mode. Repeat the process to
deactivate stealth mode.
Temperature Protection:
When in TC mode, if the actual temperature of the
coil is above the set temperature then ‘Protection’
will be displayed on the screen. This is normal
operation of the device and the user many
continue to vape.
Temperature Alert:
If the temperature of the device exceeds 70°C,
the output will cease and ‘Device Too Hot’ will
be displayed on the screen. If this occurs, allow
the device to cool to room temperature before
resuming vaping.
Short Circuit Protection:
If a short circuit occurs when the power button
is pressed, ‘atomizer short’ will be displayed on
the screen. If this occurs, remove and reinstall
the tank and atomizer, if this does not resolve the
issue then a new atomizer may be required. If
replacing the atomizer does not resolve the issue,
please contact customer services.
Low Voltage Protection:
When the battery voltage is below 3.3V, ‘Battery
Low’ will be displayed on the screen. If following
this message, the button is continually pressed,
the message ‘Battery Low Lock’ will be displayed
and the device will not operate. To unlock
and activate the device the battery must be
recharged.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 11 30/11/2016 15:10

12
10 Second Protection:
If the power button is pressed for longer than
10 seconds, the output will automatically cease
and the message ‘Over 10s Protection’ will be
displayed.
Display Modes:
When powered off, hold both adjustment buttons
to turn the display through 180°. Two display
states are available.
Key Lock Mode:
When powered on, simultaneously hold both
adjustment buttons for 3 seconds to activate key
lock mode. Repeat the process to deactivate the
key lock mode.
Kit Contents
1 x V-Pipe Body
1 x V-Pipe Tank
2 x BF Clapton 1.5ohm MTL Atomizer Head
1 x USB Cable
1 x User Manual
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 12 30/11/2016 15:10

13
V-Pipe Battery Dimensions: 105mm x 38mm x 36.5mm
Display: 0.66” OLED
Wattage Range in VW Mode and TC Mode: 1W – 75W
Temperature Range in TC Mode: 100-315C / 200-600F
Temperature Coefficient of Resistance Range in TCR Mode: 1-1000
Resistance Range: 0.05-1.5ohm in TC Mode, 0.1-3.5ohm in VW/Bypass Mode
Tank Connector: 510 Connector
Battery: 18650 – Removable
V-Pipe Tank Dimensions: 46.5mm x 22mm
Capacity: 2ml
Connector: 510 Connector
Atomizer Type: BF
Maximum Refill Nozzle Diameter: 3.5mm
Specications
TW_V-Pipe_Manual.indd 13 30/11/2016 15:10

14
• Store the V-Pipe and its accessories away from children when not in use.
• Ensure the V-Pipe is powered off when not in use.
• Avoid accidentally pressing the V-Pipe power button when not in use.
• Please only use the charging cable provided.
• Please dispose of dead batteries in accordance with your country’s appropriate legislation.
• Use only a maximum of 1.5ohm when in VT mode. The mode will automatically be switched to VW
mode when the coil is larger than 1.5ohm or a normal coil is used.
• Do not charge the batteries in a damp environment.
• Do not use the device when temperatures are outside the range -10 - 60C.
• Do not charge the battery when temperatures are outside the range 0 - 45C.
• Do not attempt to repair a faulty V-Pipe as these are sealed units with no serviceable parts. Attempted
repairs will void the warranty.
Product Storage and Battery Precautions
TW_V-Pipe_Manual.indd 14 30/11/2016 15:10

15
There are no reported medical side effects with
this product. If you believe you experience a side
effect, please contact the manufacturer.
The V-Pipe Kit components have a 28-day parts
warranty with the exception of the atomizer
heads, which are consumable items and covered
by our ‘dead on arrival’ warranty only. The USB
cable supplied has a 12-month warranty. If any
parts are found to be faulty within this time please
contact our customer service team, whose
details are on the back of this booklet and we will
arrange for a replacement. We may require the
goods to be returned for further inspection.
Additional product information / Warranty
TW_V-Pipe_Manual.indd 15 30/11/2016 15:10

16
Glückwunsch zum Kauf Ihres Totallly Wicked V-Pipe E-Zig Kits.
Die Totally Wicked V-Pipe ist eine außergewöhnliche E-Zigarette, die gekonnt Funktionalität, Ergonomie
und Stil miteinander vereint. Der V-Pipe Tank ist perfekt auf die V-Pipe abgestimmt. Der Tank verfügt
über eine Top-Füllvorrichtung, eine einstellbare Luftmengenregulierung und das äußerst beliebte
BF-Verdampferkopf-System. Einstellbare Modi ermöglichen eine schrittweise Einstellung der Watt- und
Temperaturparameter. Das intelligente Temperaturregelsystem erlaubt es dem Anwender, seine Dampf-
Erfahrung mit den optional erhältlichen Nickel-, Titan- oder Edelstahl-Verdampferköpfen noch weiter zu
optimieren. Das V-Pipe Kit kombiniert all seine Funktionalität - inklusive 18650 Akku - in einem kompakten
und einfach zu bedienenden Paket.
TW_V-Pipe_Manual.indd 16 30/11/2016 15:10

17
OLED Display
Mundstück
Mundstückbasis
Verdampferbasis
Verdampferkopf
Tank
Luftzugring
Einstelltaster
Powertaster
510er Anschluss mit
gefedertem Pluspol
Akkudeckel
TW_V-Pipe_Manual.indd 17 30/11/2016 15:10

18
Tank-Erstbenutzung:
Drehen Sie die Verdampferbasis gegen den
Uhrzeigersinn bis die komplette Einheit aus dem
Tank entnommen werden kann und schrauben Sie
anschließend den Verdampferkopf ab. Träufeln Sie
- für optimale Dampfergebnisse und Langlebigkeit
- ein wenig E-Liquid direkt in den Verdampferkopf
und setzen Sie alle Komponenten in umgekehrter
Reihenfolge wieder zusammen.
V-Pipe Tank befüllen:
Schrauben Sie zum Befüllen die Mundstückbasis
gegen den Uhrzeigersinn vom Tank ab und
halten Sie dabei den Luftzugring. Setzen Sie den
Einfüllstutzen Ihrer E-Liquidflasche in eine der
beiden Füllöffnungen und träufeln Sie E-Liquid
in den Tank. Schrauben Sie anschließend
die Mundstückbasis an den Tank. Maximaler
Durchmesser für Einfüllstutzen: 3,5mm.
Bedienung Ihrer V-Pipe
TW_V-Pipe_Manual.indd 18 30/11/2016 15:10

19
Verdampferkopf wechseln:
Ersetzen Sie den Verdampferkopf wie im
Abschnitt “Tank-Erstbenutzung” beschrieben.
Beachten Sie bitte, dass jeder neue
Verdampferkopf zunächst mit E-Liquid
benetzt werden muss. Es können alle BF-
Verdampferköpfe mit dem V-Pipe Tank genutzt
werden, die auf der Totally Wicked Webseite oder
bei Ihrem Totally Wicked Händler verfügbar sind.
Power Ein/Aus:
Drücken Sie den Powertaster 5-mal in Folge;
das OLED-Display leuchtet auf und signalisiert,
dass die V-Pipe an und zur Nutzung bereit ist.
Zum Ausschalten, Power-Taster ebenfalls 5-mal in
Folge drücken.
Dampfen:
Drücken Sie beim Inhalieren den Powertaster.
Luftzug einstellen:
Durch Drehen des Luftzugringes an der
Verdampferbasis variiert die Öffnungsgröße
des Lufteinlasses und somit die Menge an
Luft, die zum Verdampferkopf angesaugt wird.
Die Luftzugregulierung erlaubt eine perfekte
Abstimmung des Zugwiderstandes.
Akku aufladen:
Laden Sie Ihre V-Pipe einfach mit dem USB-Kabel
an einem geeigneten USB-Port oder USB-
Netzstecker auf. Der Ladefortschritt kann hierbei
auf dem Display verfolgt werden. Alternativ kann
der 18650 Akku aus dem Gerät entnommen und
mit einem geeigneten Ladegerät aufgeladen
werden.
Bedienung Ihrer V-Pipe
TW_V-Pipe_Manual.indd 19 30/11/2016 15:10

20
Modus wechseln - VW/Bypass/TC/TCR:
Die Mitgelieferten BF Verdampferköpfe können
nur im VW- oder Bypass-Modus genutzt werden.
Wenn die V-Pipe eingeschaltet ist, drücken Sie
den Power-Taster 3-mal in Folge und das Modus-
Symbol blinkt auf - jetzt kann mit dem rechten
Taster rotierend in die verschiedenen Modi
(VW/Bypass/TC/TCR) gewechselt und mit dem
Powertaster die Auswahl bestätigt werden.
VW-Modus:
Im VW-Modus kann mit den Rauf- und Runter-
Taster die Ausgangsleistung schrittweise erhöht
oder verringert werden.
Bypass-Modus:
Im Bypass-Modus erfolgt eine ungeregelte
und direkte Stromabgabe an den Verdampfer.
Leistungswerte sind abhängig von der
anliegenden Akku-(Rest)Spannung – die am
Display angezeigt wird - und Verdampfer(Kopf)
widerstand.
Bedienung Ihrer V-Pipe
TW_V-Pipe_Manual.indd 20 30/11/2016 15:10
