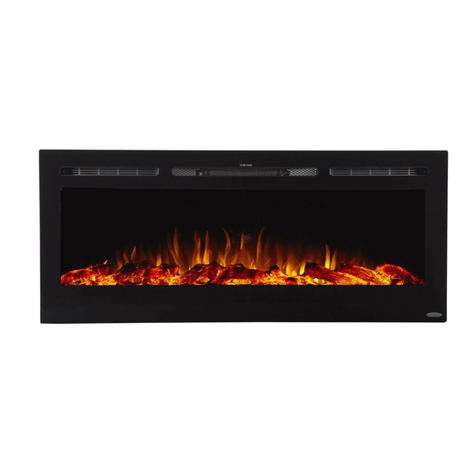

SIDELINE SERIES ELECTRIC FIREPLACE HEATER
Model # : 80004, 80011, 80013, 80014, 80015
OWNER’S MANUAL
36"/50"/60”/72"
Sideline Series
Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
2

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
3
Table of Contents
Contents
General Information ................................................................................................................................................... 5
CSA Approval Listing Information ........................................................................................................................... 5
Fireplace Specifications ............................................................................................................................................ 5
Dimensional Drawings ............................................................................................................................................. 6
80004 – Sideline 50” Dimensions............................................................................................................................. 6
80011 – Sideline 60” Dimensions............................................................................................................................. 7
80013 – Sideline Steel 50” Dimensions.................................................................................................................... 8
80014 – Sideline 36” Dimensions............................................................................................................................. 9
80015 – Sideline 72” Dimensions........................................................................................................................... 10
Unpacking Your Fireplace ....................................................................................................................................... 11
Parts and Hardware ............................................................................................................................................... 11
Tools Required .................................................................................................................................................... 11
What’s in the Box ............................................................................................................................................... 11
Unpacking and Setup .............................................................................................................................................. 11
Unpacking Instructions: ...................................................................................................................................... 11
Wiring ..................................................................................................................................................................... 12
Testing the Fireplace Prior to Installation ........................................................................................................... 12
3-prong Outlet Installation .................................................................................................................................. 12
Hard Wire Connection ........................................................................................................................................ 13
Installation ................................................................................................................................................................. 14
WARNINGS ....................................................................................................................................................... 14
Choosing Installation Location............................................................................................................................... 14
Removing The Glass Panel ..................................................................................................................................... 15
Recessed Installation .............................................................................................................................................. 16
a. Crystal Ember Installation............................................................................................................................... 17
Recessed Installation – cont. ............................................................................................................................... 18
b. Fire log Installation ......................................................................................................................................... 18
Wall Mounted Installation ...................................................................................................................................... 19
Operating Fireplace .................................................................................................................................................. 22
Power ...................................................................................................................................................................... 22
Methods of Operation ............................................................................................................................................. 22
Control Panel and Remote Control Functions .................................................................................................... 22
Remote Control Operation ...................................................................................................................................... 23
Temperature Limiting Control ................................................................................................................................ 23
Care and Maintenance ............................................................................................................................................. 24
Cleaning .................................................................................................................................................................. 24
Maintenance ............................................................................................................................................................ 24
Warranty ................................................................................................................................................................... 25

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
4
IMPORTANT SAFETY INFORMATION
WARNING!
 THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS
 Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
 Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace
should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the
fireplace, turn controls to off, then remove plug from outlet.
 Do not install damaged, incomplete, or substitute components.
 Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to the fireplace, install an
adjustable safety gate to keep toddlers, young children and other at risk individuals away from the fireplace
and hot surfaces.
 Clothing and other flammable material should not be placed on or near the fireplace.
 Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
 Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
 It is imperative that that the control compartments, circulating blower, and its passageway is the fireplace is
kept clean.
 Under no circumstances should this fireplace be modified.
 Do not use the fireplace if any part has been under water.
 Do not operate the fireplace with the glass panel removed, cracked or broken.
 Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and
should be kept away from children and infants.
 Servicing should only be done while the fireplace is disconnected from the power outlet.
 Unplug fireplace if not being used for an extended period of time.
 Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
 Do not use outdoors.
 Never locate fireplace where it may fall into a bathtub or other water container.
 Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
 Connect to properly grounded outlets only.
 Do not insert foreign objects into any ventilation or exhaust opening as this may cause and electric shock,
fire, or damage to the fireplace.
 To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
 Ensure clearances to combustibles are maintained when building a mantel or shelves above the fireplace.
Elevated temperatures on the wall or in the air above the fireplace can cause melting, discoloration or
damage to the decorations, a TV or other electronic components.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
5
General Information
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
appliances in the United States and Canada. If you need assistance during installation, please contact our technical
support department at 800-215-1990 option 2.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number 80004 80011 80013
Description Sideline50 Sideline60 Sideline50
Voltage 120v AC 120v AC 120v AC
Watts Max 1500W Max 1500W Max 1500W
Amps 15 AMP Grounded
Circuit
15 AMP Grounded
Circuit
15 AMP Grounded
Circuit
Fireplace Width 50” 60” 50”
Fireplace Height 21.5” 21.5” 24
Fireplace Depth 5.5” 5.5” 5.5”
Net Weight 60 lbs 70 lbs 60 lbs
Gross Weight 65 lbs 100 lbs 65 lbs
Model Number 80014 80015
Description Sideline36 Sideline72
Voltage 120v AC 120v AC
Watts Max 1500W Max 1500W
Amps 15 AMP Grounded
Circuit
15 AMP Grounded
Circuit
Fireplace Width 36” 72”
Fireplace Height 21.5” 21.5”
Fireplace Depth 5.5” 5.5”
Net Weight 50 lbs 110 lbs
Gross Weight 54 lbs 150 lbs

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
6
Dimensional Drawings
80004 – Sideline 50” Dimensions

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
7
80011 – Sideline 60” Dimensions

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
8
80013 – Sideline Steel 50” Dimensions

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
9
80014 – Sideline 36” Dimensions

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
10
80015 – Sideline 72” Dimensions

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
11
Unpacking Your Fireplace
Parts and Hardware
Tools Required
 Phillips screwdriver
 Stud finder
 Level
 Tape measure
 Electric drill
 1/4” wood drill bit
What’s in the Box
Wall Bracket
Wood Screws
Drywall anchors
B – Wood Screws C – Drywall anchors
Remote Control Metal Bracket
Crystal Embers
Plastic Tray
Fire Log
Unpacking and Setup
Unpacking Instructions:
 Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts
list to make sure no parts are missing. If parts are missing, please contact technical support at 610-884-4134
for replacement.
NOTE: Dispose of plastic bag, as it may cause choking hazard with young children. Do not let children play
with plastic bag.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
12
Wiring
The Sideline series recessed fireplace can either be plugged into a grounded 3-prong outlet or hard wire connection.
Testing the Fireplace Prior to Installation
 Before installing the fireplace, test the fireplace to make sure that it operates properly.
 Plug fireplace into approved outlet and power on fireplace. Once fireplace is tested, continue with
installation.
 If you have any problems, please contact technical support at 800-215-1990 opt 2.
3-prong Outlet Installation
 Only use this fireplace on a 120V AC, 15-Amp grounded circuit. Never overload the circuit. If this
fireplace trips the circuit breaker, unplug all other appliances on the same circuit before the next use. Avoid
plugging other appliances into the same circuit as this fireplace.
 Always check the fireplace plug and connections before each use.
 Never plug this fireplace into an outlet that is cracked or has any loose wires or connections. Plugging this
fireplace into a faulty outlet could result in the outlet overheating or catching fire.
 Make sure this plug fits securely into the outlet. Faulty wall outlet connections or loose plugs can cause the
outlet to overheat. If the outlet or faceplate is hot, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlet.
 The power cord supplied with the heater has three prongs: two flat blades (live and neutral) and one round
pin (ground). If a 3-slot receptacle is not available, an adapter MUST be used. The adapter MUST be
properly grounded to the outlet box (see figure below).
NOTE: Adapter NOT INCLUDED.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
13
Hard Wire Connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire
the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In
the absence of local codes, use the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States
or the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada.
A. Remove the cover plate from the right side B. Remove the wire connectors from the power
bottom of the appliance by removing the three cord. Keep power cord, in case needed in future.
screws, as shown above. Save screws for
Installation of new cover plate.
C. Remove the power cable and wires from the cover plate. Thread your wiring through the hole in the cover
plate for connecting to the wires in the Sideline fireplace.
D. Using the wire connectors, connect the ground green wires (G), the common white wires (N)
together, then the hot black wires (L) and then the refer to Figure 3.
E. Reinstall the cover plate using the three screws, as shown in Figure 1.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
14
Installation
WARNINGS
 Due to high temperatures, keep the fireplace out of high traffic locations.
 Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36”
away from the front of the fireplace.
 Never install the fireplace where it may fall into a bathtub or other body of water.
 Wear safety gloves and safety glasses for protection during installation. Broken glass may cause injury or
harm.
 Prevent contact with loose insulation. Do not install the fireplace against a vapor barrier or exposed
insulation.
 Do not expose the fireplace to the elements (rain, etc).
Choosing Installation Location
Choosing Wall Location
 Measure wall location to ensure that fireplace will fit on desired wall location.
 Minimum clearances (measurements taken from front of glass panel):
Bottom of Fireplace to Floor: 6” Top of Fireplace: 12” to mantel
Sides of Fireplace: 12” Top of Fireplace: 12” to TV
Back of Fireplace: 0” Top of Fireplace: 12” to ceiling
 Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
 See Safety Information on pages 3 for warnings about safe placement, safe installation, and proper use of
this product.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
15
Removing The Glass Panel
Prior to installation, it is best to remove the glass panel. Please remove glass panel as per instructions below:
Instructions
1. There are 2 screws in the top vent opening, one on the far left and one on the far right. Remove both screws from
the glass panel.
2. After removing screws, lift glass panel UP and STRAIGHT OUT toward you to remove from fireplace. Place
glass panel in a soft, dry place.
CAUTION: It is recommended that 2 people remove the glass panel to minimize change of breakage.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
16
Recessed Installation
 Due to many different finish materials use on walls, it is highly recommended that you consult your local
builder before you install this fireplace in the wall.
 Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
 In order to avoid the possibility of exposed insulation or vapor barrier coming in contact with the fireplace,
it is recommended that the walls of the fireplace enclosure be “finished” (ie. Sheetrock, drywall, etc) as you
would finish any other outside wall of your home. This will ensure that clearance to combustibles is
maintained within the wall cavity.
 Never install fireplace into load-bearing walls. When recessing fireplace in a wall, recess into non-load
bearing walls ONLY!
Instructions:
1. Choose a location in the wall to install fireplace.
2. Create opening in the wall that is no more than ¼” larger than metal firebox portion of fireplace.
Firebox Dimensions
Model A
(Width)
B
(Height)
C
(Depth)
80004 46.85” 20.2” 5.2”
80011 46.85” 20.2” 5.2”
80014 32.5” 20.2” 5.2”
80015 68.4” 20.2” 5.2”

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
17
Recessed Installation – cont.
3. With the help of a second person, insert fireplace into wall opening and secure with mounting screws provided.
4. Once the fireplace is installed in the wall, place crystal embers or fire log in the fireplace.
a. Crystal Ember Installation
1. Place plastic tray strip in fireplace
above the LED lights as shown in the
diagram to the right.
2. Carefully, place crystal embers on
plastic strip as illustrated in the picture to
the right. Apply an even layer from side
to side.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
18
Recessed Installation – cont.
b. Fire log Installation
1. Place fire log in fireplace as illustrated below.
5. Once completed installing crystal embers or fire log, reinstall glass panel. The hooks on the back of the glass
panels fit into the slots on the side of the firebox. Once in the slots, the glass panel goes down and locks into place.
Once in place, reinstall 2 locking screws to hold glass securely in place.

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
19
Wall Mounted Installation
 Due to many different finish materials use on walls, it is highly recommended that you consult your local
builder before you install this fireplace on the wall.
 Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
Instructions
1. Select a location that is not prone to moisture and is located at least 36” away from combustible materials, such
as curtains, drapes, furniture, bedding, paper, etc.
2. With glass panel removed (see p.13 for instructions on removing glass panel), have two people hold the fireplace
against the wall to determine the final location.
3. Place the unit face down on a soft, non-abrasive surface. Remove the bracket from the back of the unit by
removing the screws holding the bracket to the back of the fireplace.
80004/80011/80014 Wall Bracket Removal (1 bracket)
80015 Wall Bracket Removal (2 brackets)

Recessed Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
20
Wall Mounted Installation – cont.
4. Mark location of bracket on wall and then mount the bracket to the wall using the supplied screws and dry wall
anchors. The hooks in the bracket MUST be pointed away from the wall, upward, and level.
Note: Mount bracket to at least 2 studs. If 2 studs cannot be used, ensure that the supplied dry wall anchors are
used to affix the bracket to the wall and the bracket is adequately secured before moving to the next step.
