FURY SERIES
ELECTRIC FIREPLACE MANTEL
Model #
80040 –Fury 50”Mantel
OWNER’S MANUAL
AC 110-120V 60Hz 1500W
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
2

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
3
Table of Contents
Table of Contents
General Information................................................................................................................................................... 5
CSA Approval Listing Information ........................................................................................................................... 5
Fireplace Specifications............................................................................................................................................ 5
Dimensional Drawings ............................................................................................................................................. 6
Unpacking Your Fireplace......................................................................................................................................... 7
Parts and Hardware ................................................................................................................................................. 7
Tools Required...................................................................................................................................................... 7
What’s in the Box ................................................................................................................................................. 7
Unpacking and Setup................................................................................................................................................ 7
Testing the Fireplace Prior to Installation............................................................................................................. 8
3-prong Outlet Installation.................................................................................................................................... 8
Hard Wire Connection.......................................................................................................................................... 9
Installation................................................................................................................................................................. 10
Choosing Installation Location............................................................................................................................... 10
Choosing Wall Location..................................................................................................................................... 10
Wall Mounted Installation ...................................................................................................................................... 11

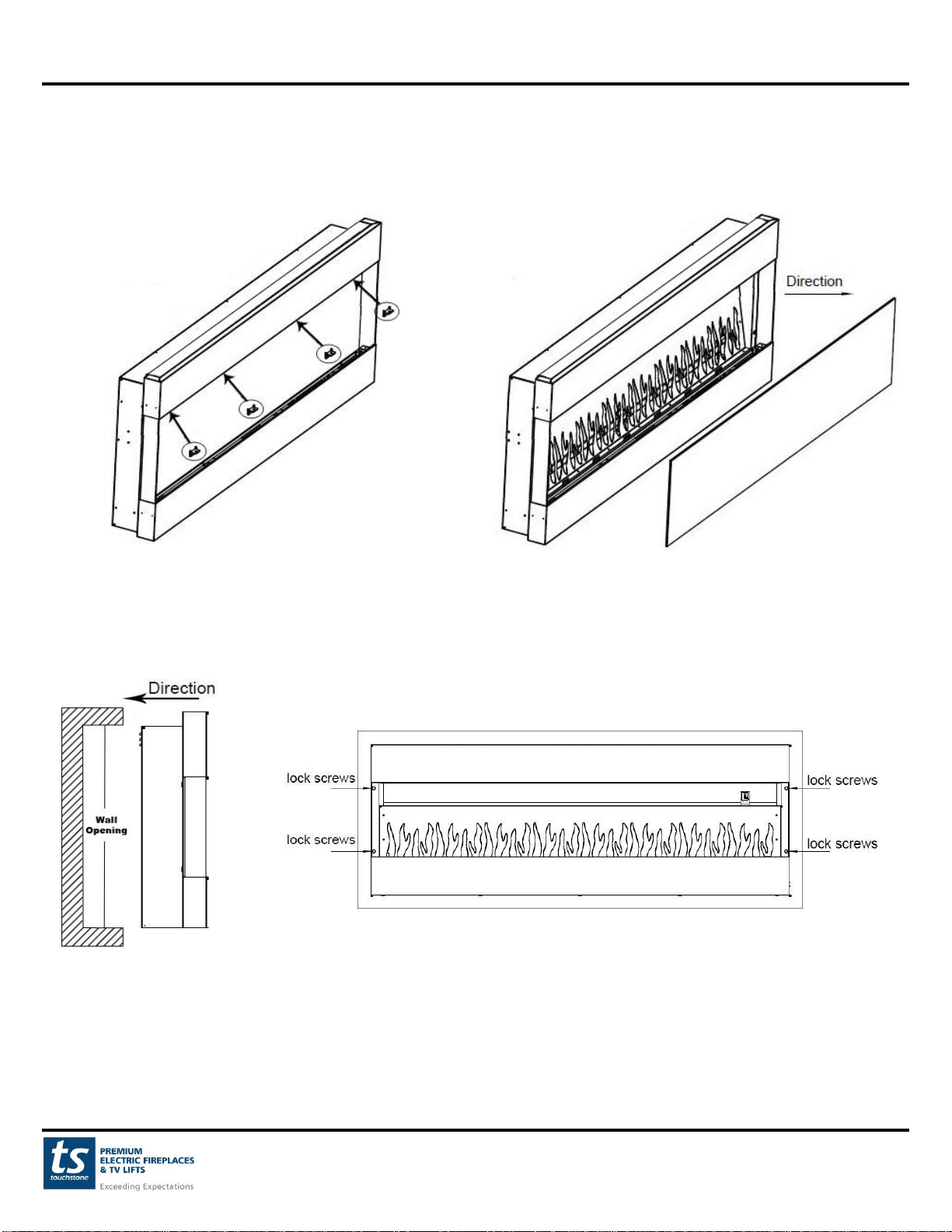

Recessed Installation .............................................................................................................................................. 13
Install Rock or Glass Crystal Media....................................................................................................................... 15
Operating Fireplace.................................................................................................................................................. 16
Main Power Switch................................................................................................................................................. 16
Methods of Operation............................................................................................................................................. 17

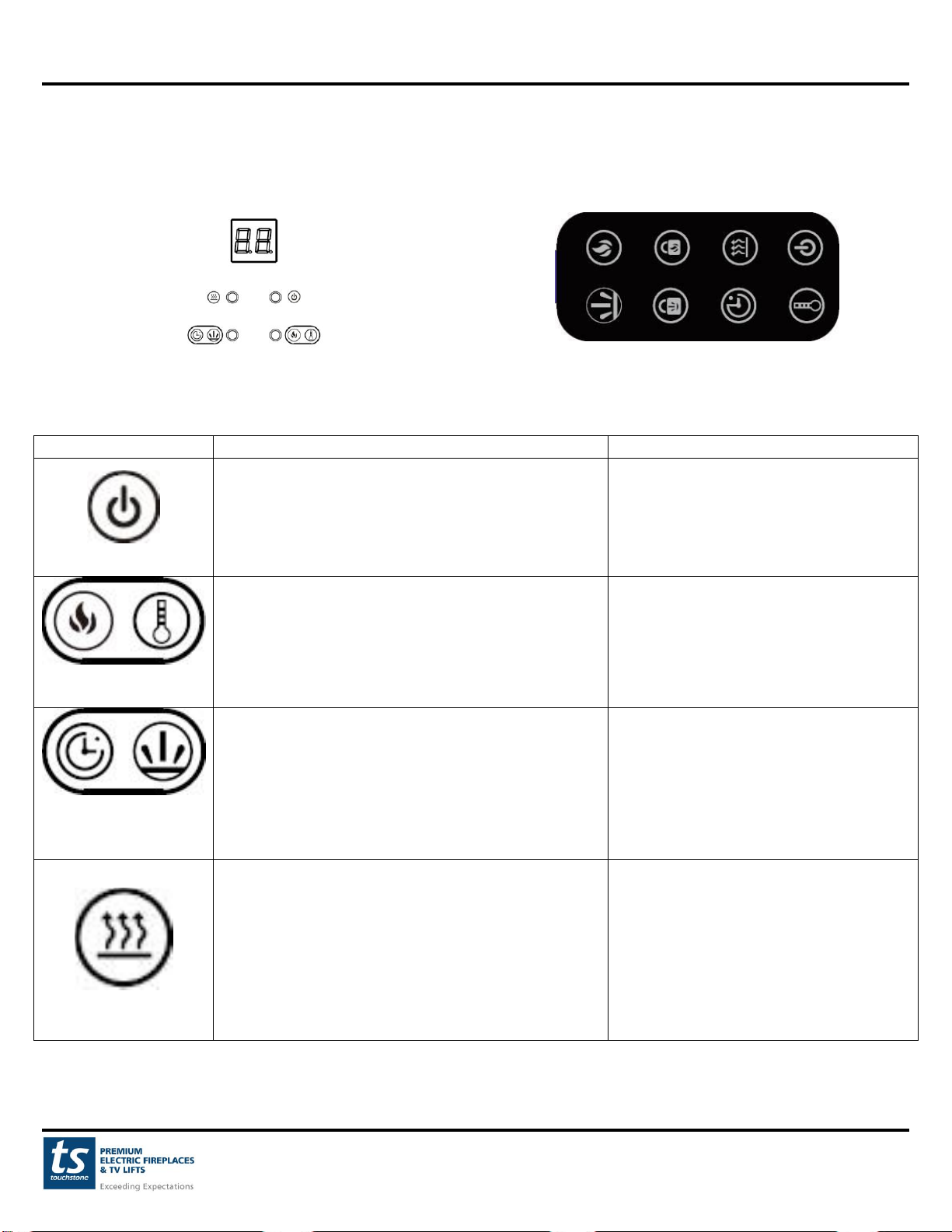

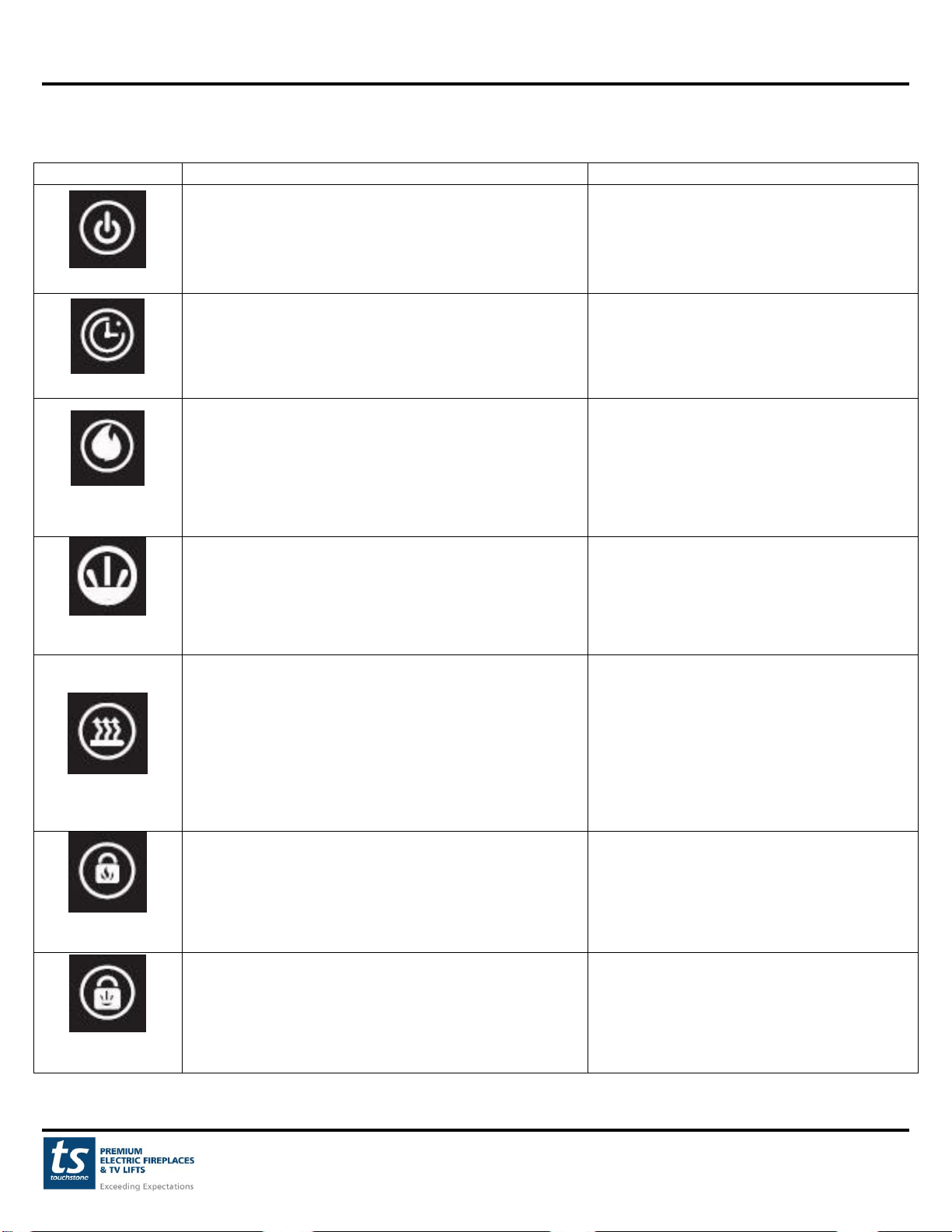

Control Panel Functions...................................................................................................................................... 17
Remote Control Functions.................................................................................................................................. 18
Remote Control Operation...................................................................................................................................... 19
Temperature Limiting Control................................................................................................................................ 19
Care and Maintenance ............................................................................................................................................. 20
Cleaning.................................................................................................................................................................. 20
Maintenance............................................................................................................................................................ 20
Warranty ................................................................................................................................................................... 21
Touchstone Home Products Limited Warranty....................................................................................................... 21
Conditions and Limitations..................................................................................................................................... 21

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
4
IMPORTANT SAFETY INFORMATION
WARNING!
•THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS
•Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
•Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace
should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the
fireplace, turn controls to off, then remove plug from outlet.
•Do not install damaged, incomplete, or substitute components.
•Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at-risk individuals in the house. To restrict access to the fireplace, install an
adjustable safety gate to keep toddlers, young children and other at-risk individuals away from the fireplace
and hot surfaces.
•Clothing and other flammable material should not be placed on or near the fireplace.
•Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
•Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
•It is imperative that the control compartments, circulating blower, and its passageway in the fireplace is
kept clean.
•Under no circumstances should this fireplace be modified.
•Do not use the fireplace if any part has been under water.
•Do not operate the fireplace with the glass panel removed, cracked or broken.
•Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and
should be kept away from children and infants.
•Servicing should only be done while the fireplace is disconnected from the power outlet.
•Unplug fireplace if not being used for an extended period of time.
•Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
•Do not use outdoors.
•Never locate fireplace where it may fall into a bathtub or other water container.
•Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
•Connect to properly grounded outlets only.
•Do not insert foreign objects into any ventilation or exhaust opening as this may cause and electric shock,
fire, or damage to the fireplace.
•To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
•Ensure clearances to combustibles are maintained when building a mantel or shelves above the fireplace.
Elevated temperatures on the wall or in the air above the fireplace can cause melting, discoloration or
damage to the decorations, a TV or other electronic components.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
5
General Information
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
appliances in the United States and Canada. If you need assistance during installation, please contact our technical
support department at 800-215-1990 option 3.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number
80040
Description
Fury
Voltage
120v AC
Watts
Max 1500W
Amps
15 AMP Grounded
Circuit
Fireplace Width
50”
Fireplace Height
22 9/32”
Fireplace Depth
7”
Net Weight
50 lbs.
Shipping Weight
56 lbs.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
6

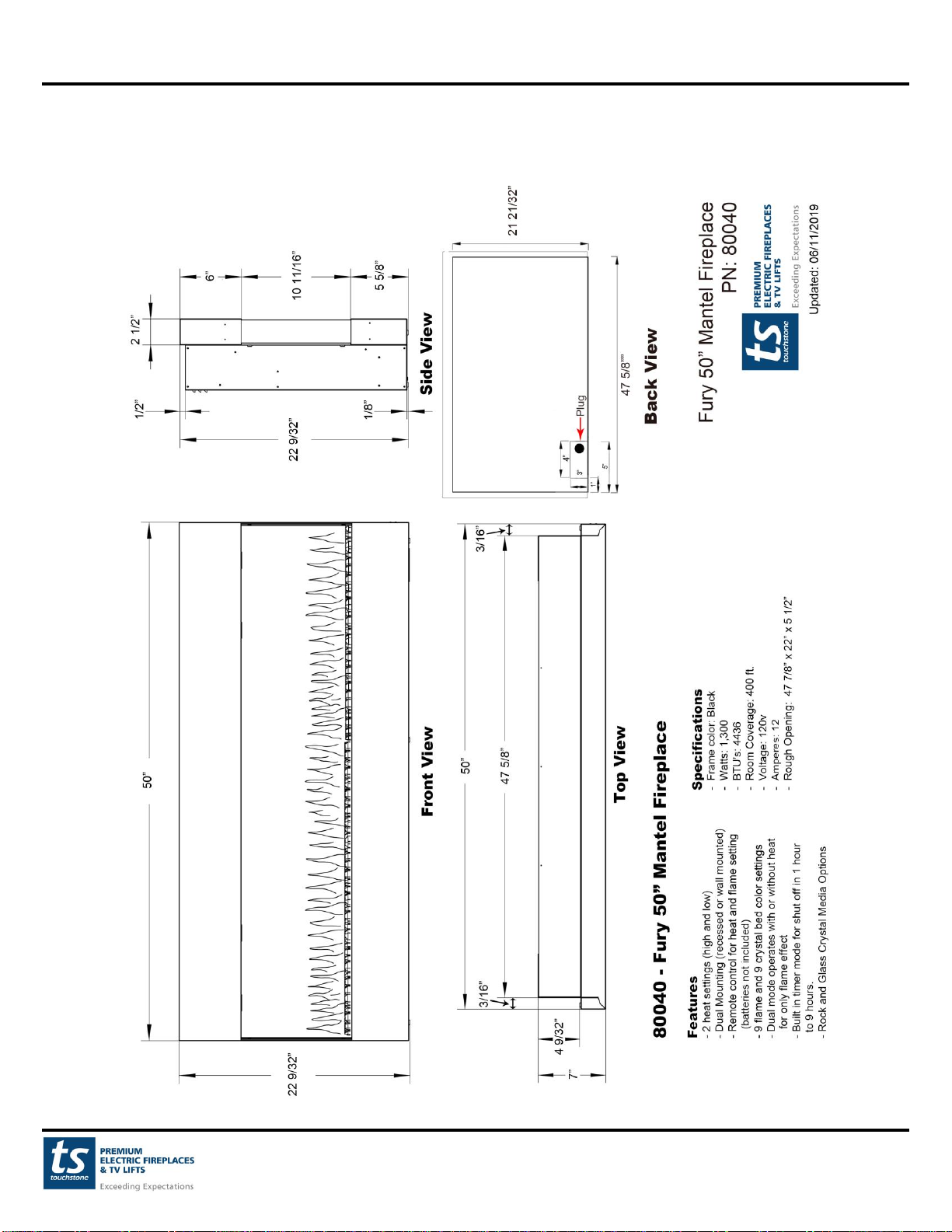

Dimensional Drawings
80040 –Fury 50”Mantel Fireplace Dimensions

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
7
Unpacking Your Fireplace
Parts and Hardware
Tools Required
•Phillips-head screwdriver
•Stud finder
•Level
•Tape measure
•Electric drill
•1/4”wood drill bit
What’s in the Box
Fury Fireplace Mantel
Wall Mount Bracket
1 Bag of Clear Crystals
1 Bag of White Stones
Mounting Screws
Remote Control
Plastic Strip for Crystals or Rocks
Unpacking and Setup
Unpacking Instructions:
•Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts
list to make sure no parts are missing. If parts are missing, please contact technical support at
800-215-1990 opt 2. for replacement parts.
NOTE: Dispose of plastic bag, as it may cause choking hazard with young children. Do not let children play
with plastic bag.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
8
Wiring
Touchstone Wall Mounted Electric Fireplaces come with a 3-prong plug which plugs into any standard 110v outlet.
Testing the Fireplace Prior to Installation
•Before installing the fireplace, test the fireplace to make sure that it operates properly.
•Plug fireplace into approved outlet and power on fireplace. Once fireplace is tested, continue with
installation.
•If you have any problems, please contact technical support at 800-215-1990 opt 2.
3-prong Outlet Installation
•Only use this fireplace on a 120V AC, 15-Amp grounded circuit. Never overload the circuit. If this
fireplace trips the circuit breaker, unplug all other appliances on the same circuit before the next use. Avoid
plugging other appliances into the same circuit as this fireplace.
•Always check the fireplace plug and connections before each use.
•Never plug this fireplace into an outlet that is cracked or has any loose wires or connections. Plugging this
fireplace into a faulty outlet could result in the outlet overheating or catching fire.
•Make sure this plug fits securely into the outlet. Faulty wall outlet connections or loose plugs can cause the
outlet to overheat. If the outlet or faceplate is hot, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlet.

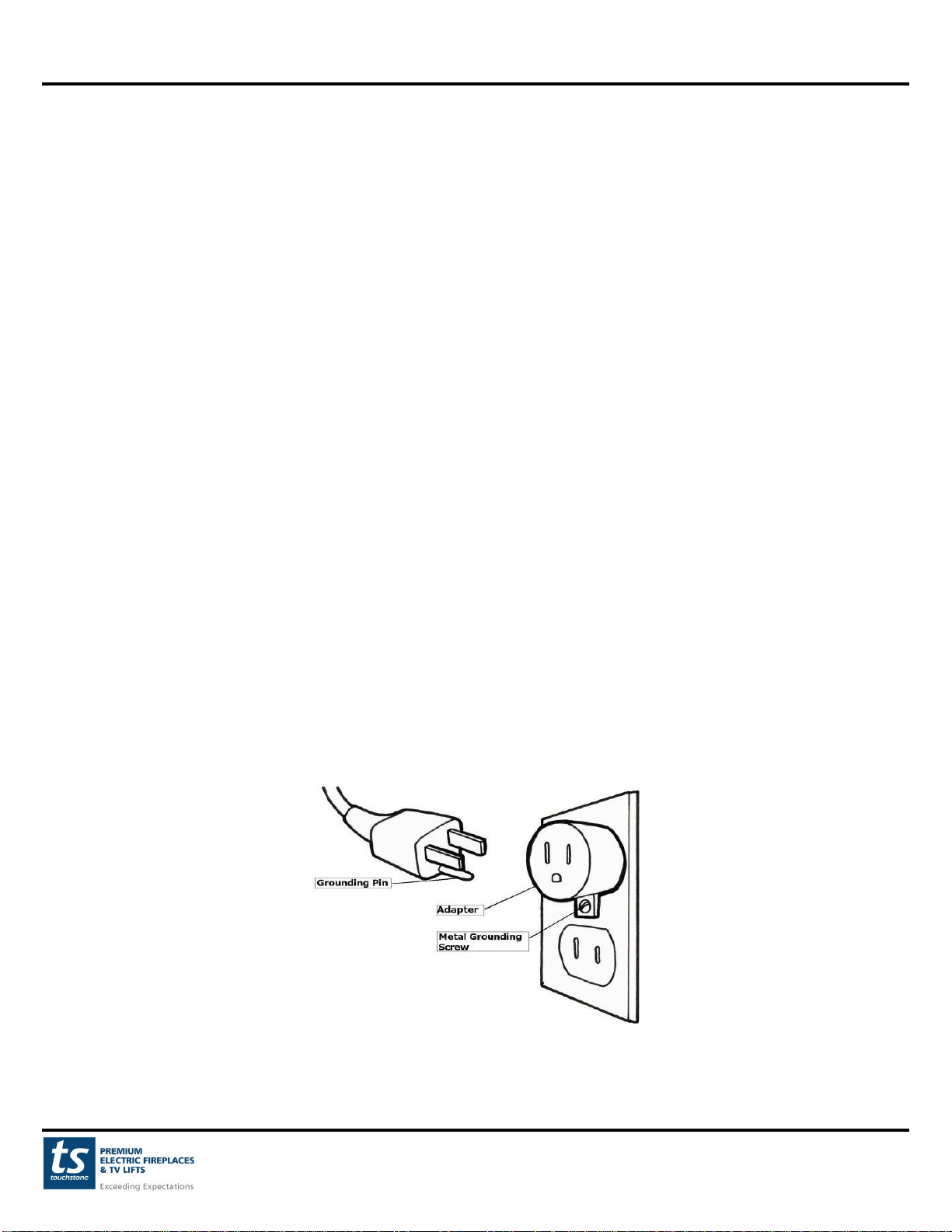

•The power cord supplied with the heater has three prongs: two flat blades (live and neutral) and one round
pin (ground). If a 3-slot receptacle is not available, an adapter MUST be used. The adapter MUST be
properly grounded to the outlet box (see figure below).
NOTE: Adapter NOT INCLUDED.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
9
Hard Wire Connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire
the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In
the absence of local codes, use the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States
or the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada.
Instructions:
1. Remove the power cord (A), power cord locking
buckle (B). screws (C), protective ring (D) and
terminal cover plate (E).
3. Attach the electric wire to the fireplace
according to the terminal wiring label on the back
of the fireplace.
2. Insert the protective ring (F) into the cover
plate (G) and insert electric wire through cover
place opening (H).
4. Reinstall the cover plate using the screws
removed in step 1.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
10
Installation
WARNINGS
•Due to high temperatures, keep the fireplace out of high traffic locations.
•Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36”
away from the front of the fireplace.
•Never install the fireplace where it may fall into a bathtub or other body of water.
•Wear safety gloves and safety glasses for protection during installation. Broken glass may cause injury or
harm.
•Prevent contact with loose insulation. Do not install the fireplace against a vapor barrier or exposed
insulation.
•Do not expose the fireplace to the elements (rain, etc).
Choosing Installation Location
Choosing Wall Location
•Measure wall location to ensure that fireplace will fit on desired wall location.

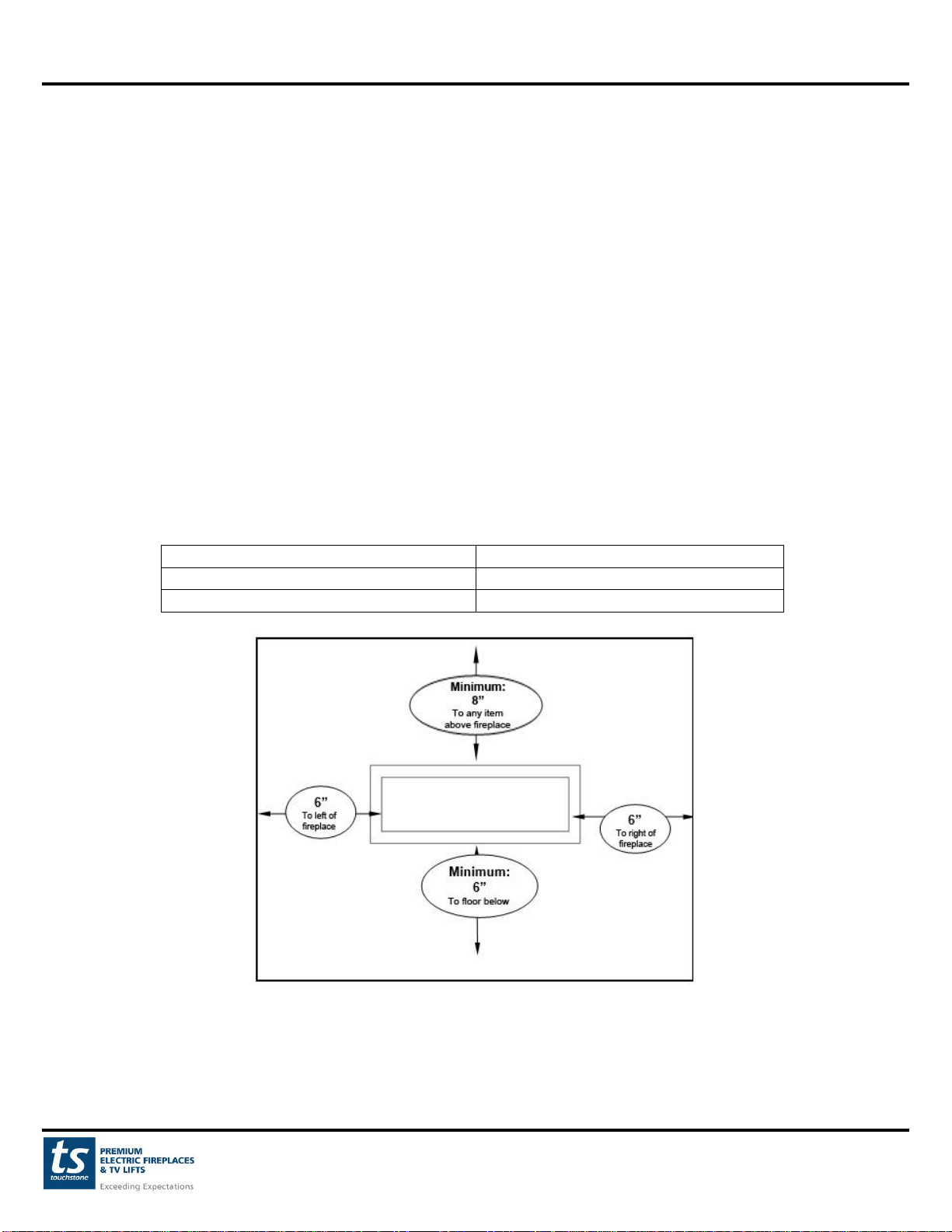

•Minimum clearances (measurements taken from front of glass panel):
Bottom of Fireplace to Floor: 6”
Top of Fireplace: 8” to mantel
Sides of Fireplace: 6”
Top of Fireplace: 8” to TV
Back of Fireplace: 0”
Top of Fireplace: 8” to ceiling
•Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
•See Safety Information on pages 3 for warnings about safe placement, safe installation, and proper use of
this product.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
11
Wall Mounted Installation
•Due to many different finish materials use on walls, it is highly recommended that you consult your local
builder before you install this fireplace on the wall.
•Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, papers, clothes, etc.
Instructions
1. Select a location that is not prone to moisture and is located at least 36” away from combustible materials, such
as curtains, drapes, furniture, bedding, paper, clothes, etc.
2. Place the unit face down on a soft, non-abrasive surface. Remove the bracket from the back of the unit by
removing the 3 screws holding the bracket to the fireplace (shown below).
Wall Mounting Bracket

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
12
Wall Mounted Installation –cont.
3. Mark location of bracket on wall and then mount the bracket to the wall using the supplied screws and dry wall
anchors. Mount bracket to at least 2 studs, inserting 1 screw in each of the 6 mounting points shown below. If 2
studs cannot be used, ensure that the supplied dry wall anchors are used to affix the bracket to the wall and the
bracket is adequately secured before moving to the next step. Check the wall mount bracket for stability, ensuring
that the bracket will not pull free from the wall.
Mark location of mounting bracket on wall Mount H bracket to wall using 6 screws
4. With the wall mounting bracket installed, have 2 people lift the fireplace up and insert the fireplace into the
mounting bracket so that the hooks on the back of the fireplace align with the hook on the mounting bracket. Once
lined up, push the fireplace back into place and secure with screws on top of the bracket.
1. Line up the bottom bracket
on the back of the fireplace
with the bottom of the
fireplace.
2. Once the bracket is
hooked onto the fireplace,
push the top of the fireplace
back to line up with the top
of the mounting bracket
3. Once the fireplace is
mounted on the bracket,
reinstall the 3 screws to
secure the fireplace to
the wall bracket

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
13
Recessed Installation
•Due to many different finish materials use on walls, it is highly recommended that you consult your local
builder before you install this fireplace in the wall.
•Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
•In order to avoid the possibility of exposed insulation or vapor barrier coming in contact with the fireplace,
it is recommended that the walls of the fireplace enclosure be “finished” (ie. Sheetrock, drywall, etc) as you
would finish any other outside wall of your home. This will ensure that clearance to combustibles is
maintained within the wall cavity.
•Never install fireplace into load-bearing walls. When recessing fireplace in a wall, recess into non-load
bearing walls ONLY!
•Prior to recessing the fireplace into the wall opening, follow the instructions on p. 11 to remove the wall
mount bracket from the back of the fireplace. This bracket will not be used during a recessed install.
Instructions:
1. Choose a location in the wall to install fireplace.
2. Create opening in the wall that is no more than ¼” larger than metal firebox portion of fireplace.
Firebox Dimensions
Model
Width
Height
Depth
80040
47 5/8”
21 21/32”
4 9/32”
Rough Opening Dimensions
Model
A
(Width)
B
(Height)
C
(Depth)
80040
47 7/8”
22”
5 ½”

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
14
Recessed Installation –cont.
3. Remove the mirror glass panel from the fireplace. To remove the panel, remove the 4 clips holding the panel in
place and pull the glass panel out of the fireplace.
A. Remove glass panel clips
B. Remove glass panel from firebox
4. Once the glass panel is removed, recess the firebox in the wall opening. The mounting holes in the face of the
fireplace will line up with the vertical mounting studs in the wall opening. Use the mounting screws to fasten the
fireplace to the vertical framing studs in the wall opening.
A. Slide fireplace into
wall opening
B. Using the mounting screws, fasten the fireplace
to the vertical framing studs of the wall opening.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
15
Recessed Installation –cont.
5. Once the fireplace is mounted in the wall and secure, reinstall the glass panel.
A. Reinstall the glass panel in the fireplace.
B. Reinstall the clips holding the glass panel.
Install Rock or Glass Crystal Media
The 80040 Fury Fireplace ships with both rocks and clear glass crystals. The customer can arrange the supplied
media options in a manner that fits their style.
Instructions:
1. Install the plastic strip in the fireplace.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
16
Install Rock and Glass Crystal Media –cont.
2. Once the crystal strip is installed, layer the rocks or glass crystal media on the plastic strip.
Operating Fireplace
Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that
the house circuit breakers for the power supply are turned on.
Main Power Switch
This electric fireplace has a MAIN ON/OFF Power
Switch which needs to be set to the ON (1) position
before the fireplace can be operated via either the
control panel or the remote control. Please be sure the
switch is moved to the ON position prior to operating
the fireplace.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
17
Methods of Operation
This electric fireplace can be operated by the CONTROL PANEL, located on the lower right side of the fireplace,
or by the REMOTE CONTROL. The operation and functions of both methods are the same
Control Panel
Remote Control
Control Panel Functions
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and remote
control. Turns on the flame effect.
OFF: Disables control panel functions and remove
control. Turns off the flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off.
Unit goes to standby. All functions turn
off.
FLAME COLOR -
TEMPERATURE
Adjusts flame color and temperature of the heater
1. Short Press. Cycles through the flame
colors.
2. Long Press. Changes the temperature
of the heater.
TIMER –
FLAME BED
COLOR
Adjusts the timer and flame bed color
1. Short Press. Cycles through the flame
bed colors.
2. Long Press. Changes the length of the
shutoff timer.
HEATER
Heater button: Turns heater on and off.
NOTE: The heater only works when the flame effect
is on.
NOTE: To prevent overheating, the heater fan will
blow cool air for 8-10 seconds before the heater turns
on, and after the heater turns off.
1. Press once. Display reads LO. Heater
is turned on low setting. Fan blows cool
air for 10 seconds and 750W heater turns
on and blows warm air.
2. Press again: Display reads HI. Heater
is turned on high setting. 1500W heater
turns on and blows hot air.
3. Press again. Heater turns off.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
18
Methods of Operation –cont.
Remote Control Functions
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and remote control.
Turns on the flame effect.
OFF: Disables control panel functions and remove
control. Turns off the flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.
TIMER
Timer button: Control time settings to turn off fireplace
at selected time.
Settings range from 1 hour to 9 hours.
1. Press once. Indicator light turns on.
Timer is set to 1 hour.
2. Press again until desired setting is
reached. Display shows timer setting.
FLAME
COLOR
Flame Color button: Changes the color of the flame.
There are 9 different flame color options and an option
to cycle through all of the color options.
NOTE: Flame effect stays on until power button is
turned off. Flame effect must be on for heater to turn
on.
1. Press once: Each press of the flame button
changes the flame brightness.
2. Press again until desired setting is
reached. Flame effect continues to get
brighter each time button is pressed.
FLAME BED
COLOR
Flame Bed Color button: Changes the color of the
flame bed. There are 9 different flame bed color options
and an option to cycle through all of the color options.
1. Press once. Each press of the button
changes the flame bed color.
HEATER
Heater button: Turns heater on and off.
NOTE: The heater only works when the flame effect is
on.
NOTE: To prevent overheating, the heater fan will blow
cool air for 8-10 seconds before the heater turns on, and
after the heater turns off.
1. Press once. Display reads LO. Heater is
turned on low setting. Fan blows cool air for
10 seconds and 750W heater turns on and
blows warm air.
2. Press again: Display reads HI. Heater is
turned on high setting. 1500W heater turns
on and blows hot air.
3. Press again. Heater turns off.
FLAME COLOR
LOCK BUTTON
Flame Color Lock button: When in automatic color
changing mode, a press of the button locks the current
flame color setting.
1. Press once. Locks the current color from
changing when on automatic color changing
mode.
2. Press again. Turns off lock setting.
FLAME BED
LOCK BUTTON
Flame Bed Lock button: When in automatic color
changing mode, a press of the button locks the current
flame bed color setting.
1. Press once. Locks the current color from
changing when on automatic color changing
mode.
2. Press again. Turns off lock setting.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
19
Remote Control Functions –cont.
TEMPERATURE
SETTING
TEMPERATURE button: Changes the temperature of
the heater.
NOTE: The heater only works when the flame effect is
on.
NOTE: To prevent overheating, the heater fan will blow
cool air for 8-10 seconds before the heater turns on, and
after the heater turns off.
1. Press once. Temperature indicator lights
up. Temperature range is 62ºF to 86ºF
2. Press again: To change to the desired
temperature.
Remote Control Operation
•This remote control uses one CR-2025 battery (included).
•Instructions for battery installation are located on the back of the remote control.
•To improve operation of the remote control, aim the remote control at the front of the fireplace. DO NOT
PRESS the buttons too quickly. Give the unit time to respond to each command.
•NOTICE: NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the
heater will automatically TURN OFF. To reset, please do the following:
1. Unplug the power cord from the outlet.
2. Turn ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes for fireplace to cool down.
3. Inspect the fireplace to make sure no vents are blocked or clogged with dust or lint. If they are, use a vacuum to
clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional. If the outlet is OK, please
contact our customer support department at 800-215-1990.

Fury Series Electric Fireplace Mantel
www.touchstonehomeproducts.com 800.215.1990
Rev. 190604
20
Care and Maintenance
Cleaning
•ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
•NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal
injury.
Metal:
•Buff using a soft cloth, slightly dampened with citrus oil-based product.
•DO NOT use brass polish or household cleaners, as these products will damage the metal trim.
Glass:
•Use a good quality glass cleaner sprayed onto a cloth or towel. Dry thoroughly with a paper towel or lint-
free cloth.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
•Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
•Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
•RISK OF ELECTRIC SHOCK! DO NOT OPEN any panels. No user-serviceable parts inside!
•ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
Electrical and Moving Parts:
•The fan motors are lubricated at the factory and will not require lubrication.
•Electrical components are integrated in the fireplace and are not serviceable by the customer.
Storage:
•Store fireplace in a clean, dry place when not in use.
