Touchstone 80019 User manual

Installation and Operation Instructions
ELECTRIC FIREPLACE
80019
CONSUMER SAFETY INSTRUCTIONS
Read this manual before installing and operating this appliance.
Failure to follow these instructions may result in electrical shock, property damage, personal injury and
will void the warranty.
Do not store or use gasoline or other flammable liquids or vapours in the vicinity of this appliance.
INSTALLER: Leave this manual with the appliance.
Consumer: Retain this manual for further reference.
PET OWNERS WARNING:
The health of some small pets including birds are extremely sensitive to the fumes produced
during the first-time use of many appliances. These fumes are not harmful to humans but we
recommended that you do not use your heater around birds and small pets during its initial use
until the manufacturing corrosion coatings burn off.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock or personal injury, the following must be read before using or
plugging this electric fireplace into an electrical outlet.
1. Read all instructions before installation or use.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 m) away the front of heater and keep them away from the sides and rear of heater.
3. Extreme caution is necessary when any heater is used by or near children and whenever the heater
is left operating and unattended.
4. Do not operate any heater with a damaged cord or plug, or after the heater has malfunctioned or
has been dropped or damaged in any manner. Return heater to an authorized service facility for repair.

5. Do not use outdoors.
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never
locate heaters where it may fall into a bathtub or other water container.
7 Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord
away from traffic areas and where it will not be tripped over.
8. To disconnect heater, turn control to off, then removing plug from outlet. Always unplug the heater
when not in use.
9. Connect to properly grounded outlet only.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock, fire, or damage the heater.
11. To prevent a possible fire do not block air intakes or exhaust in any manner.
12. Do not use on soft surfaces, like a bed, where openings may become blocked.
13. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or
flammable liquids are used or stored.
14. Avoid the use of an extension cord because it may overheat and cause a risk of fire.
15. Always disconnect power before performing any cleaning or maintenance.
16. When transporting or storing the heater keep in a dry place, keep from excessive vibration in order
to avoid damage.
17. Use this heater only as described in manual. Any other use is not recommended by the
manufacture may cause fire, electric shock, or injury to persons.
18. The flame effect is powered by a motor; it is normal for the motor to make some noise as it slowly
rotates to create the beautiful flame effect. Some rooms with more or less furnishings may result in
varying noise amplification.
19. Every effort is made to ensure packing materials are kept outside of the plastic bag which
covers your heater in the box; there is a slight chance that some packing may lodge itself in the heater
part of the unit. If you notice this on close inspection, please remove it. When turning your heater on for
the first time it is normal for the heater to emit a little "new heater" smell which quickly pass.

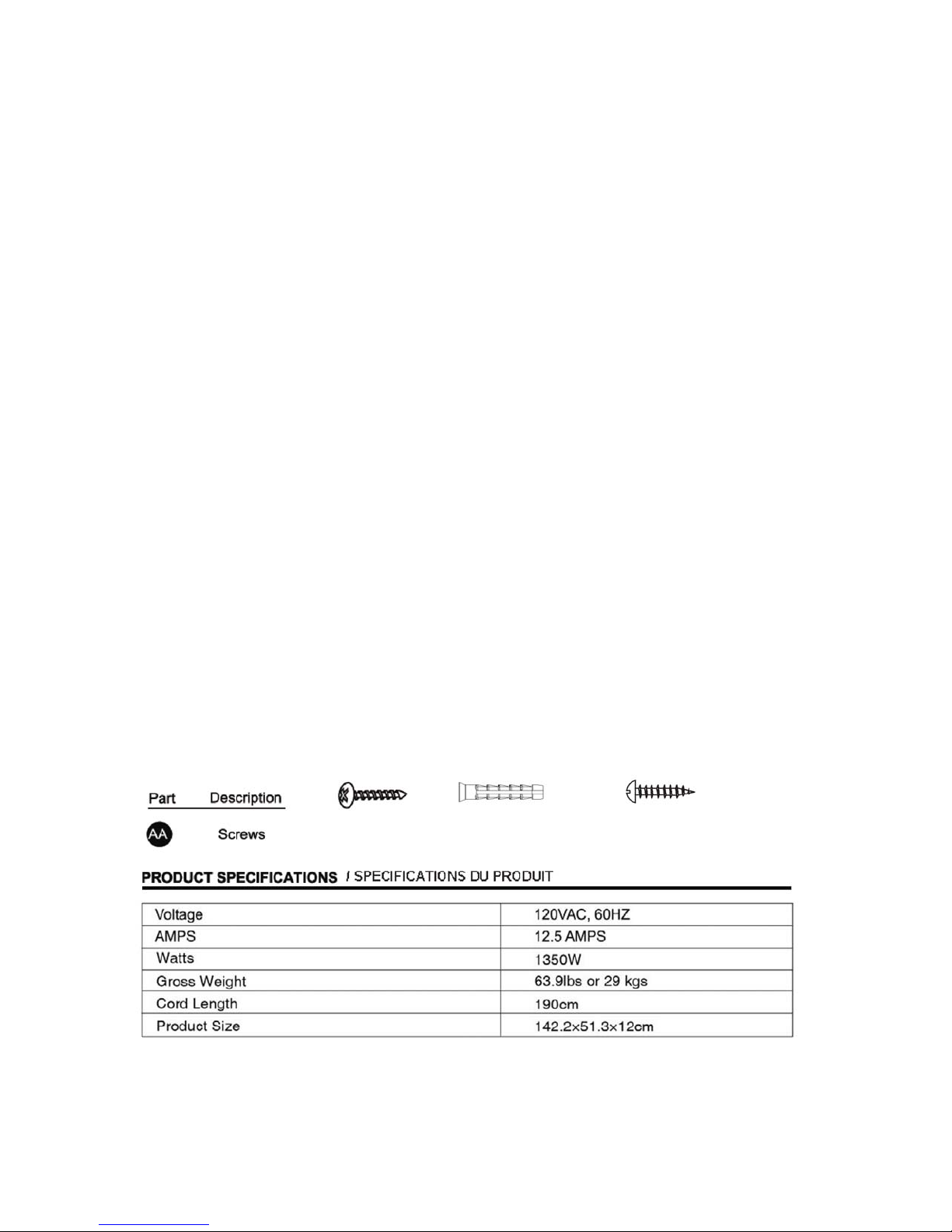

HARDWARE CONTENTS
20 20 15

INSTALLATION OVERVIEW
Site Selection
Your new fireplace may be wall mounted, installed into existing framing or built into a wall.
Review and consider all of the following conditions for installation:
-Fireplace dimensions.
-Unit requires a minimum of two wall studs in order to ensure a secure installation.
There are two possible installation methods: built-in or wall-mounted.
Note: A 15 Amp, 120 Volt circuit is required. A dedicated circuit is preferred but not essential in
most cases.
Before you install
1. Select a location that is not susceptible to moisture or dust, and is away from high traffic locations
and objects that many catch fire or block openings such as drapes, pillows, furniture etc.
2. For the best effect, install the fireplace out of direct sunlight and away from overhead lighting.
3. As much as possible, select a location near an existing electrical outlet. Do not use an extension
cord with this appliance.
4. Remove appliance, glass panel, pebbles and all hardware from box and remove all packaging
related materials prior to installation.
5. Plug the unit in, then press the power key on the unit or remote control (ensure the batteries are
installed to remote control). After this, ensure the LED lights are working correctly.
6. Press On/off key to turn off the unit, then pull the plug from the socket. Store the fireplace in a safe,
dry and dust free location until you are ready to proceed with the installation.
BUILT-IN INSTALLATION
For new constructions or renovated areas
Two people may be needed to perform this installation.
1. Select a location that is not prone to moisture and is located at least 3 ft (0.9 m) away from
combustible materials such as curtains or drapes, furniture, bedding, paper, etc.
2. Place the appliance in selected location to see how it will look in the future.
3. Mark the desired location on the floor and store appliance in a safe, dry and dust free location.
4. Prepare a wall with a framed opening to accommodate the size of your unit. Leave a gap of at least
1/4” (6cm) around the edge of the appliance. Any new wiring must be done in compliance with local
and national codes, and any other applicable regulations.
WARNING - To prevent contact with sagging or loose insulation, the electric appliance must not be
installed against vapor barrier or exposed insulation. Overheating could occur and fire may result.
WARNING - Do not attempt to wire your own new outlets or circuits. To reduce the risk of injury,
electric shock or fire, call a licensed electrician.
BUILT-IN INSTALLATION
Wall opening size = W63”x H17.5” x D5”
INSTALLATION OF THE APPLIANCE
Note: It is recommended to have the unit stand out of the wall by a minimum of 1/2” or 1.5cm (Plan A).
If you prefer the appliance to be flush with the wall, please refer to Plan B.

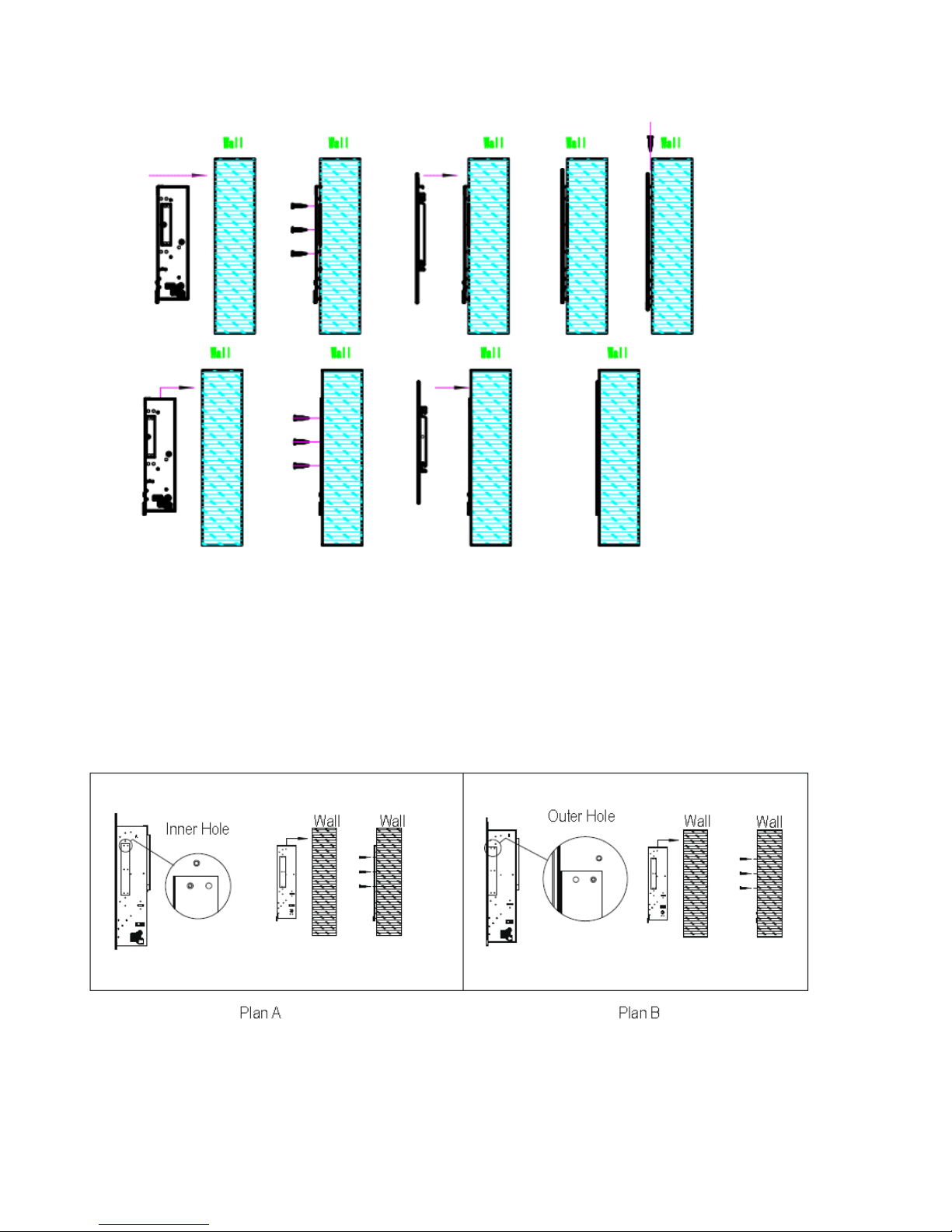

PLAN A
PLAN B
1. Attach the built-in mount bracket to both sides of the appliance.
(Plan A: Inner Hole; Plan B: Outer Hole; as shown below).
2. Lift fireplace carefully with the help of another person and insert into opening.
3. Make sure that the power supply port is not behind the wall.
4. Level the fireplace.
5. Secure the fireplace to the wall with the built-in mounting bracket (as shown below).
WALL MOUNT INSTALALTION
1. Attach the provided wall mounting bracket to the wall. Make sure it is level.
2. Lift appliance unit and insert the stakes for hanging into keyholes on the back of the unit.
3. Check the appliance for stability, ensuring that the appliance will not pull free from the wall.

GLASS PEBBLES INSTALLATION
Cleaning the glass pebbles: the pebbles may be covered with a fine white dust that needs to be
cleaned prior to installation. Clean the pebbles with soapy water, rinse thoroughly and dry before
placing into the tray.
Spread glass pebbles into the fireplace tray as shown below.

GLASS PANEL INSTALLATION
To avoid any risk of injury, it is recommended that two people install the glass onto the appliance.
Always wear safety glasses and gloves when handling glass.
7. Lift glass panel and line up with the top bracket (figure 1). Fasten panel to the appliance as shown
below.
8. Lock the side brackets (figure 1) with appliance body as shown below.
9. Screw the top bracket to appliance for both wall-mount installation and built-in installation (Plan A).
OPERATING INSTRUCTIONS
Control panel/Functions
DISPLAY
6 5 4 3 2 1
LOCATION

The master power switch is located on the right side of the appliance. The control panel is on the right
corner of the glass.
MASTER SWITCH
The master switch controls the power supply to the appliance. Turn the switch to “I” to connect power
and turn the switch to “O” to cut the power. There will be a chiming sound when turning to “I”.
1.POWER ON/OFF
Touch the button once (flame will light up) to turn power on for all functions ，keep the last flame color
once appliance off. Touch the button once more to turn all functions off and flame off.
2.FLAMEADJUSTMENT
Touch the button to turn flame on. There are 10 levels in total for change colors as press button times.
The display will show F1(the orange color),F2(the orange and green color),F3(green color),F4（green
and blue color）F5(blue color),F6(blue and orange color),F7(blue and orange and green color),F8(blue
and red color),F9(red color),F0 (all colors loop) to changes the different flame color .
3.CHARCOAL FIRE COLOR
Touch the button to turn charcoal fire on. There also have10 levels in total for change colors as press
this button times. The display will show C1(the orange color),C2(the orange and green color),C3(green
color),C4（green and blue color）C5(blue color),C6(blue and orange color),C7(blue and orange and
green color),C8(blue and red color),C9(red color),C0 (all colors loop) to changes the different charcoal
fire as same as flame color .
4.HEAT SETTINGS
This fireplace consists of a fan forced electric heater with two heat settings: 700W (“LO” shown in
display) and 1350 W (“HI” shown in display). Touch the button once (the icon will light up) to activate
the heater at its low level (700W). Touch the button once more to active the heater at its high level
(1350W). When set in high level, touch the button once again to deactivate the heater.
Note: The fan will continue to run for a short time and turns off automatically after the heater is turned
off.
5.TIMER
This fireplace is equipped with a timer ranging from 1hr to 9hrs, in 1-hour increments (1H, 2H....9H is
shown in display). Touch the button once for every 1hr increment.
Do not leave heater unattended.
6.This machine has two kinds of temperature display.they were degrees Celsius and Fahrenheit .the
display shows C and F.Default F degrees once turn the machine on,Temperature Range dsaplay
shows from (86ºF,84ºF,82ºF......to 62ºF),if you want to change F to C just long press 10
seconds .And the C temperature range display shows from (30ºC,29ºC,28ºC....to 17ºC).After setting
finish temperature ,the display will disappear automatically
0
50
一
食
物
REMOTE CONTROL FEATURES
-Install the CR025 3V battery (included) in the remote control before use.
The master switch must be turned to “I” to operate the remote control. 1 2
All almost functions are the same as on the control panel as listed on previous
page.But you will notict that No.1 and NO.2 lock button .They were lock color
of flame and charcoal fire .You can press NO.2 button to lock any changing color
during display shows F0 loop as you like .Also you can press NO.1 lock button
To choose any charcoal fire as you like during display shows C0 .

TROUBLESHOOTING
Disconnect power before performing any maintenance and allow the fireplace to cool before servicing.
Only a qualified service person should service and repair this electric fireplace.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
Fireplace Fireplace inner components Reset switch b
y
turnin
g
doesn't work. are overheating or the home master switch off and waiting
circuit breaker has tripped. for 5mins, then turning it back
on.
Flame is not Wirin
g
ma
y
be loose or the Call customer service fo
r
moving. flame motor may be instructions.
defective.
Dim or poorl
y
LED li
g
hts are burnt out or Call customer service fo
r
visible flame or the wiring is loose. instructions.
glass pebbles
aren’t glowing.
Flame sputters. Flame motor is defective. Call customer service fo
r
instructions.
Remote control Low batter
y
. Chan
g
e the batter
y
fo
r
does not work. Master switch is in “OFF” remote control. Check to
position. make sure the master switch
is turned on.
Circuit breake
r
Improper circuit current Call customer service fo
r
trips or fuse rating. instructions.
blows when the
unit is on.
Heater does not Thermal switch has been Turn the unit off and unplu
g
provide heat tripped. Circuit breaker has the unit for 5mins. Plug back
when turned been tripped. in and turn on the unit.
on. Turn off circuit breaker that
supplies electricity to the unit,
wait 5mins, then flip circuit
breaker back on.
A
ppliance turns
A
ppliance has overheated Unplu
g
the appliance, allow
off and will not and its safety device has to cool for 15mins, then plug
turn on. caused the thermal switch to back in.
disconnect. Reset the house circuit
House circuit breaker has breaker.
tripped.
Temperature Limiting Control
This fireplace is equipped with a temperature limiting control device. Should the fireplace reach an
unsafe temperature, the fireplace will automatically turn off. To reset, turn off and unplug unit, wait
5mins, plug it back in and continue use.
