Touchstone 80024 User manual

Stainless steel 50 inch Electric Fireplace w/3
colors&Sound Bar
Model Numbers: 80024
OWNER’S MANUAL
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.

2
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of
the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used by or near children and whenever the
heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or return to authorized service
facility for examination and/or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners,
or similar coverings. DO NOT route power cord under furniture or appliances. Arrange power
cord away from traffic area, and where it will not be tripped over.
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire.DO NOT use on soft surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside.DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub or pool,become damp, or come in contact with water.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.
NEVER hang this unit on a wall directly below an electrical outlet.
NEVER permanently install in a recessed area of the wall. This may result in blocked air
flow, overheating, or fire.
ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
NEVER use a wall mount bracket from another manufacturer.

3
WARNING
For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
ALWAYS turn this heater off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
ONLY use this heater on a 110-120V AC 15-Amp grounded circuit.NEVER overload the
circuit. If this heater trips the circuit breaker, unplug all other appliances on the same circuit
before the next use. Avoid plugging other appliances into the same circuit as this heater.
NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT,discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
Preparation
This product includes a GLASS panel! Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grouped for free-standing or wall-hanging use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, hammer.

4

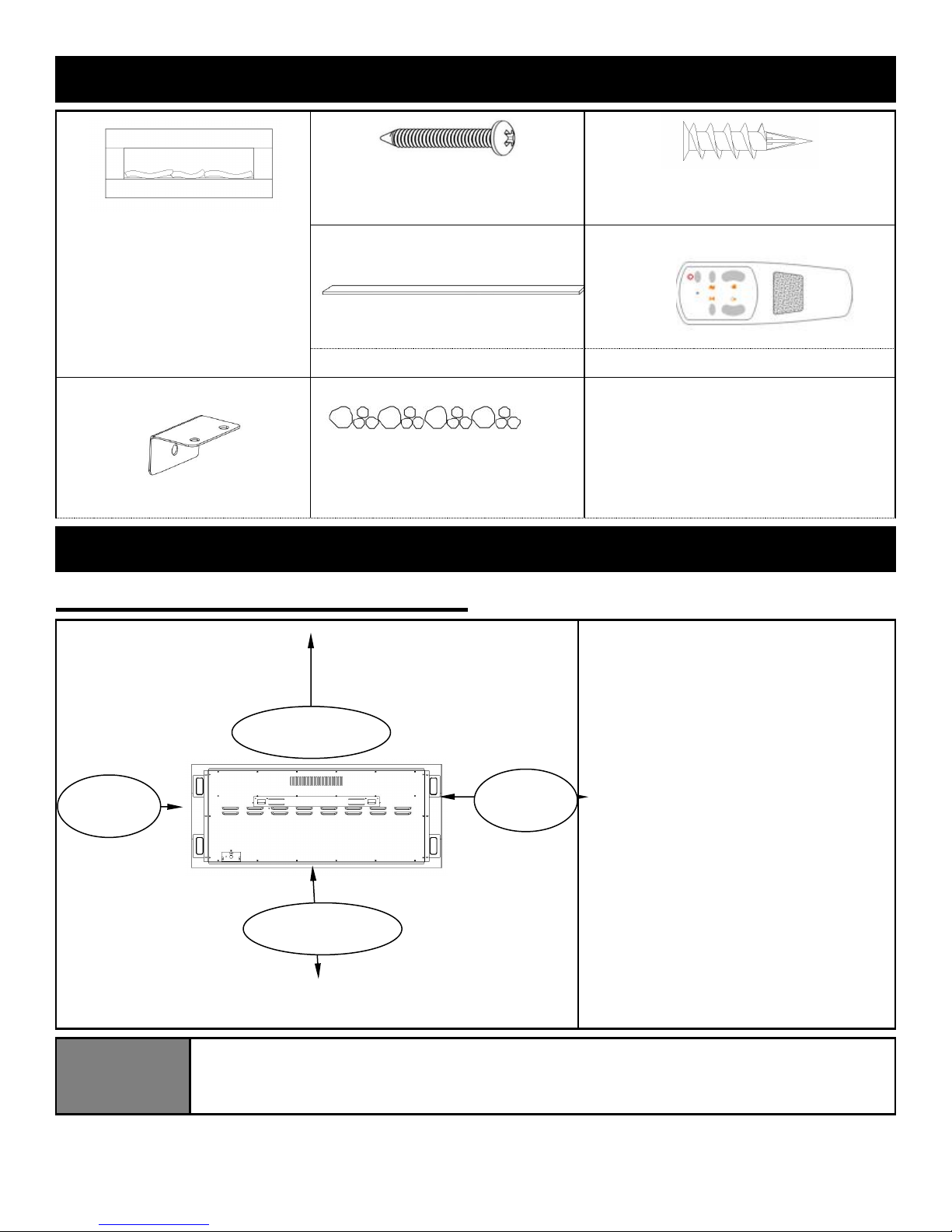

Parts and Hardware
A– Fireplace ( 1 )
B-Wood Screws(7)
C-Drywall anchors(7)
G-Plastic Tray(1)
RC – Remote Control (1)
D-Fixing part
F- Decorative Crystals
Installation and Assembly
Wall Mounted Installation
Rear View of Fireplace
Step 1. Find a safe location.
Minimum clearance on each side:
12” (30 cm).
Minimum clearance below: 6”
(15 cm).
Minimum clearance above: 12”
(30 cm).
Minimum clearance from the front
and sides: 3 feet (90 cm).
Choose a location near an outlet so
an extension cord is not required.
DO NOT position the unit directly
below a power outlet.
See Safety Information on pages
2 and 3 for warnings about safe
placement, safe installation, and
proper use of this product.
NOTICE
The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.
12”
(30 cm)
12”
(30 cm)
Minimum 12”
(30 cm)
Minimum 6”
(15cm)

5
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock,fire, or personal injury.
STEP 2. A. Locate the wall studs using an electronic stud-finder. Mark the hole locations with a
pencil. The holes should be 8” (20.3 cm) apart, and level. The minimum height from the surface
below must be 6” (30 cm). B. Three screws should be screwed directly into wall studs. Then, four
drywall anchors are needed.
AVOID INJURY and DAMAGE! Three screws should be screwed directly into wall
studs. and additional screws must also be screwed into the drywall anchors.
Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you install this appliance on the wall.
A.Select a location that is not prone to moisture and is located at least 36" (914mm)
away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
B.Have two people hold the appliance against the wall to determine the final location.
C.Place unit face down on a soft, non abrasive surface. Remove the bracket from the
back of the unit by removing the screws, refer to Figure 1.
D.Mark out location, then mount the bracket(s) onto the wall using the supplied screws.
This bracket MUST have the hooks facing upward and be level.
NOTE: It is strongly recommended that the mounting bracket be Screwed into
the wall studs
Where possible. If the wall
Studs cannot be used, ensure
That the supplied plastic anchors are used to affix the bracket to the wall and the
bracket is adequately secured.
E. With the wall mounting bracket installed have two people lift the appliance up and
Drywall
Studs
C
C
C
C
C
C
C

6

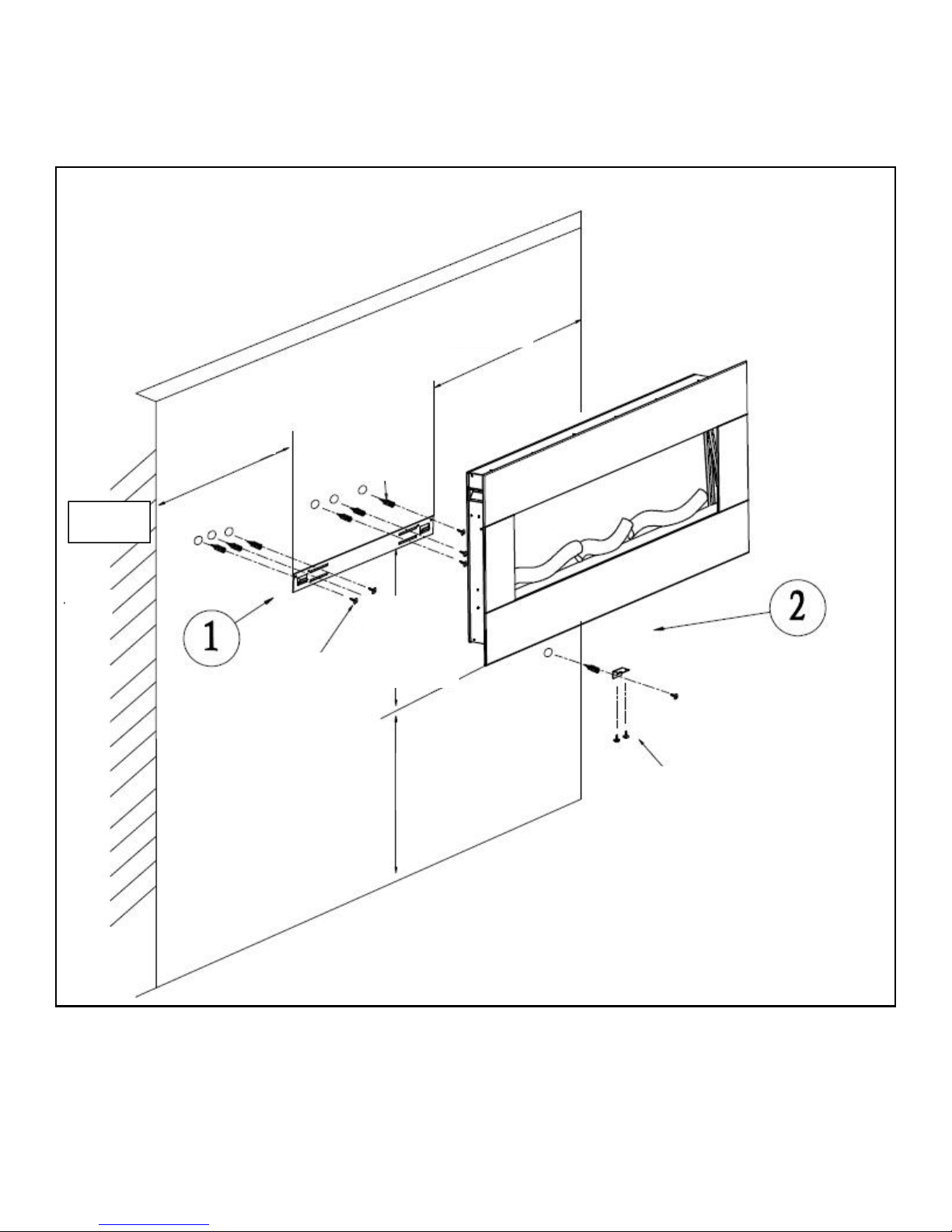

insert the two hooks on the bracket into the two slots on the back of the appliance.
F. Check the appliance for stability ensuring that the bracket will not pull free from the
wall.
wall
13”
(33cm)
13”
(30cm)
Wood
screws
Minimum
6”(15cm)
12.8”
(32.5cm)
High

7
RECESSED TO WALL INSTALLATION
(A)
(B)
STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart
Figure ( A )
Model Number
W
H
80024
43.9”
19”
STEP B. Fix the three wall anchors in each side of the fireplace box according to the
dimensions showed on the drawing. Figure (B)

8
Fixed glass parts

9

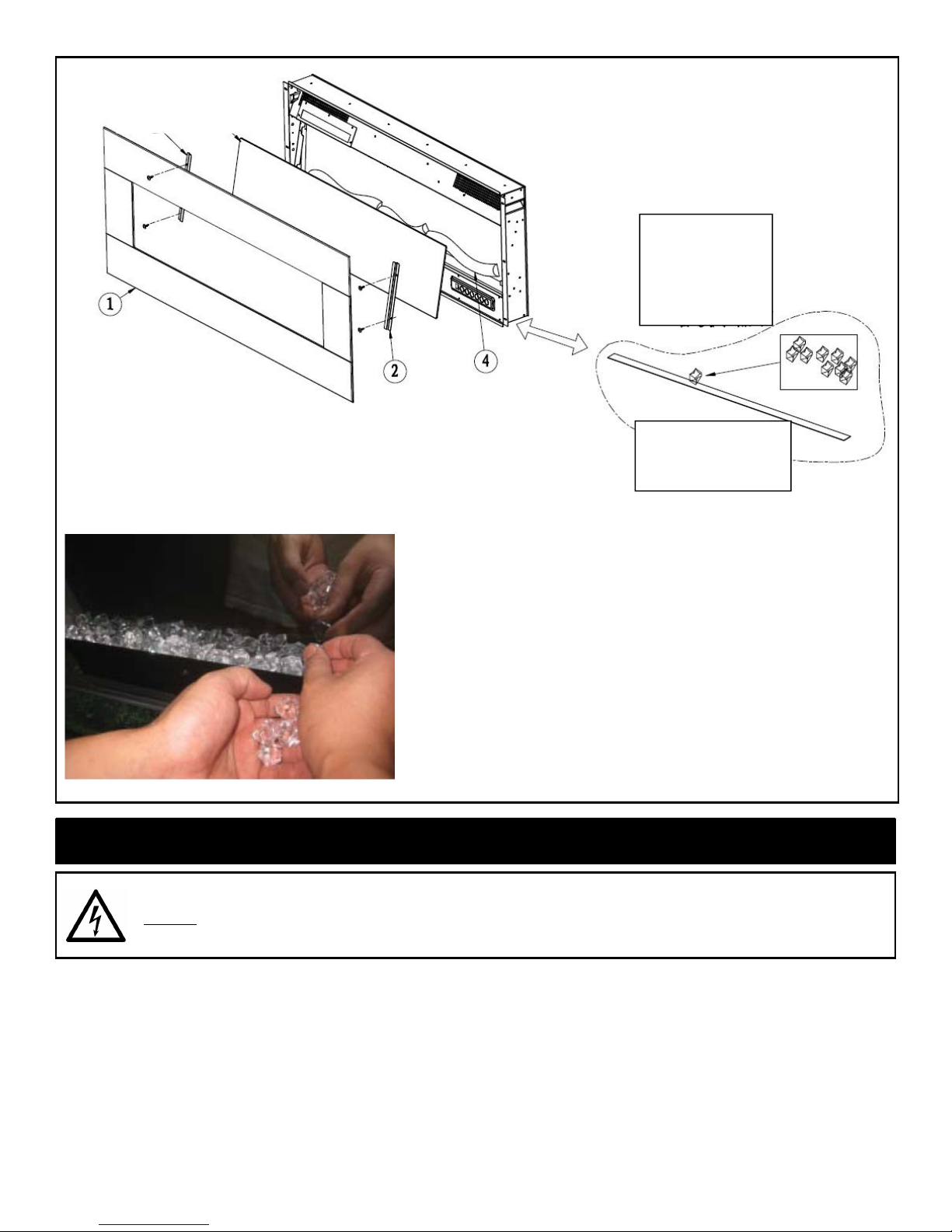

Logset / Crystal / Pebble Ember Installation
(NOTE:Please make the installation according to the embers which you bought or selected.)
A. Glass/Stainless steel front must be removed and the appliance must be mounted in its final
location
before the logset / crystal / pebble embers are installed.
B. If your fireplace come with logset, remove the logset from the package, put it to the fireplace
designed place.
C. If your fireplace come with CLEAR CRYSTAL or PEBBLE MEDIA: Crystal or pebbles media
may have a fine oil residue that needs to be cleaned prior to installation. Clean the them with
mild dish soap, drain, rinse thoroughly and dry before placing into the tray.
D. Place the plastic tray ( G ) to the fireplace designed place.Then carefully place crystal
embers into the bottom tray on the front of the appliance as illustrated. Apply an even layer
from side to side.
1.Take off the
screws
2.Take off the
glass/stainless steel
front upward

10
Crystal medias
Operation
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Methods of Operation
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.
6.Replace to
crystal
glass(F)
5.Put the Plastic
tray(G) inside
1.Take off the
glass/stainless
steel front
2.Take off
the metal
strips
4.Take out
the log if
have
3.Take off the
inside glass

11
Front View
Top View
Rear View
Left Side View
OPERATING INSTRUCTIONS
1.Operating panel switch and remote control
BUTTON
FUNCTION
ACTION & INDICATION
POWER
Turns the appliance ON/OFF.
TIMER
Controls the Timer.
9 Settings: (0.5h, 1h, 1.5h, 2h, 2.5h, 3h, 3.5h, 4h, 4.5h、5h, 5.5h, 6h、6.5h, 7h, 7.5h)
Press button
until reach desired setting.

12
COLOR
COLOR button: Makes the color flame effect changing.
NOTE: color effect stays on until power button is turned off.
Color flame effect must be on for heater to turn on.
FLAME
FLAME button: Makes flame effect dimmer and brighter.
NOTE: Flame effect stays on until power button is turned off.
Flame effect must be on for heater to turn on.
HEATER
Co Controls the Heater.
Press button to initiate the heater.
(H0) no heater or blower.
(H1), heater blows warm air (750W)
(H2), heater blows hot air (1500W)
(H (H0) no heater,blower will be off after10s.
NOTE: Heater functions cycle from H0-H1-H2-H0, Press
and hold the heater button for 5s, the heater and
temperature setting will be locked onto the selected
setting. Hold the button for 5s again, the heater will be
unlocked.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.

13

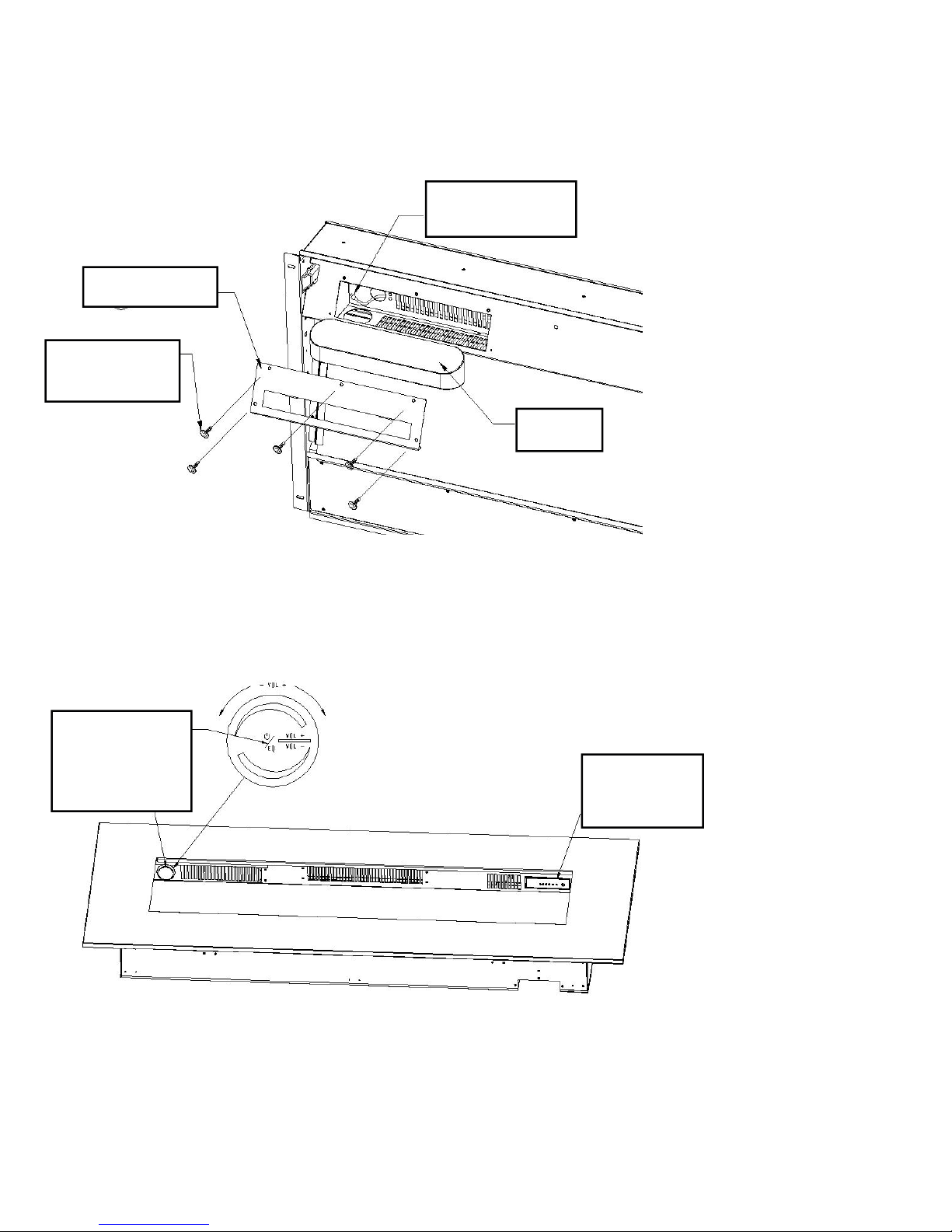

2.Speaker installation and removal
Tear down the screws on the speaker cover,Take out the speaker,Plug out the speaker cable, and
cover the speaker
3.Bluetooth operation
3.1 Long press the speaker boot and connect the speaker with a Bluetooth device
3.2 Volume increases when rotate to the right,and decrease when rotate to the left
NOTE: This speaker does not contain batteries, it can not work independently, it
need to access 5V charger
Tear down the
screws
Speaker cover
Speaker
Speaker cable
Bluetooth
switch
Panel
switch

14
4. Bluetooth playback
Long press the button to boot - the default Bluetooth mode (voice prompts to wait for connection)
Phone Bluetooth On - Automatically searches for Bluetooth devices
Locate the name "MX-LY" Bluetooth device - Select Connect
Bluetooth audio voice prompt "Connection successful"
Note: Bluetooth connection default without password, if prompted for a password, enter 0000 to
connect
The phone can be operated to play music
5. LED lights prompt
(Bluetooth on) red and blue light flashing alternately, waiting for connection; blue light, the
connection is successful
(Audio charging) a long red light, charging in progress
NOTE:Please store the product under normal temperature. Do not cover it
Remote Control Battery Information
This remote control uses TWO AAA batteries (Not included).
Instructions for battery installation are on the Remote Control battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the power switch on the touch display PANEL to off, Wait 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional.
Care and Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.

15
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock!DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:Store heater in a clean dry place when not in use.
WARNING! Other than replacing the light bulb, NO SERVICING of the internal or
electrical parts should be performed by the consumer. Do not service the unit yourself.
