TOYOTOMI
PORTABLE AIR CONDITIONER
ACONDICIONADOR DE AIRE
PORTATIL
CONDITIONNEUR D'AIR
DEPLACABLE
AR-CONDICIONADO MOVEL
TID-2400
(Type A&B)
US
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MODE D'EMPLOI
MANUAL DE INSTRUQOES
ENGLISH P. 1
ESPANOL P. 5
FRANCAIS P. 9
PORTUGUES P.14

REF #PART *PART NAME
120456228 Louvet motor
220456264 Screw D5
320456677 Screw D12
420456076 Operatipn Panel
520456601 Top plate
620456610 Filter case
720456240 Filter
820456604 Carrying handle
92045666b Front cover
10 20456627 Front panel assembly
11 20456012 Main circuit boaid
12 20456690 Compressor capacitor IType A
13 20460128 Compressor capacitor [Type B
14 20456317 franslorrrier
15 20456391 Fan motor capacitor
15 20456670 Caster
17 20456206 Full tank switch
18 20456673 Screw D9
19 20456622 Drain tank
20 20456335 Power supply cord
21 20456046 Cabinet assembly
22 20456613 Compressor ITyoe A;
23 20456663 Compressor IType B)
24 20456318 Front fan motor assembly
25 20456520 Rear 'an motor assembly
26 i145639; Rear fan motor capacitor
27 20456675 Screw Di 1
a20456260 Screw D1
29 20456262 Screw 03
30 20456630 Tank base
31 20474052 Screw E
32 20456272 Screw 07
33 204566"'! Screw D6
34 20456664 Screw 015
35 20456666 Nut D1
36 20456614 Washer Dl
37 20456347 Screw D18
38 20456615 Tank base spring
39 20456373 Thermistor 'ront
40 20456379 Thermistor rear
41 20456651 Exhaust duct set
42 70456654 Air outlet nozzle
43 20456649 Exhaust duct hose
44 20466650 Exhaust duct 'A*
45 20456681 Plastic window panel kit IS)
46 20456652 Exhaust duct rover
47 20456653 Noz/le fitting
48 20466257 Screw 09
49 20466074 Room temp thermistor
50 20456095 Instructions manual
51 20456099 Carton

ENGLISH

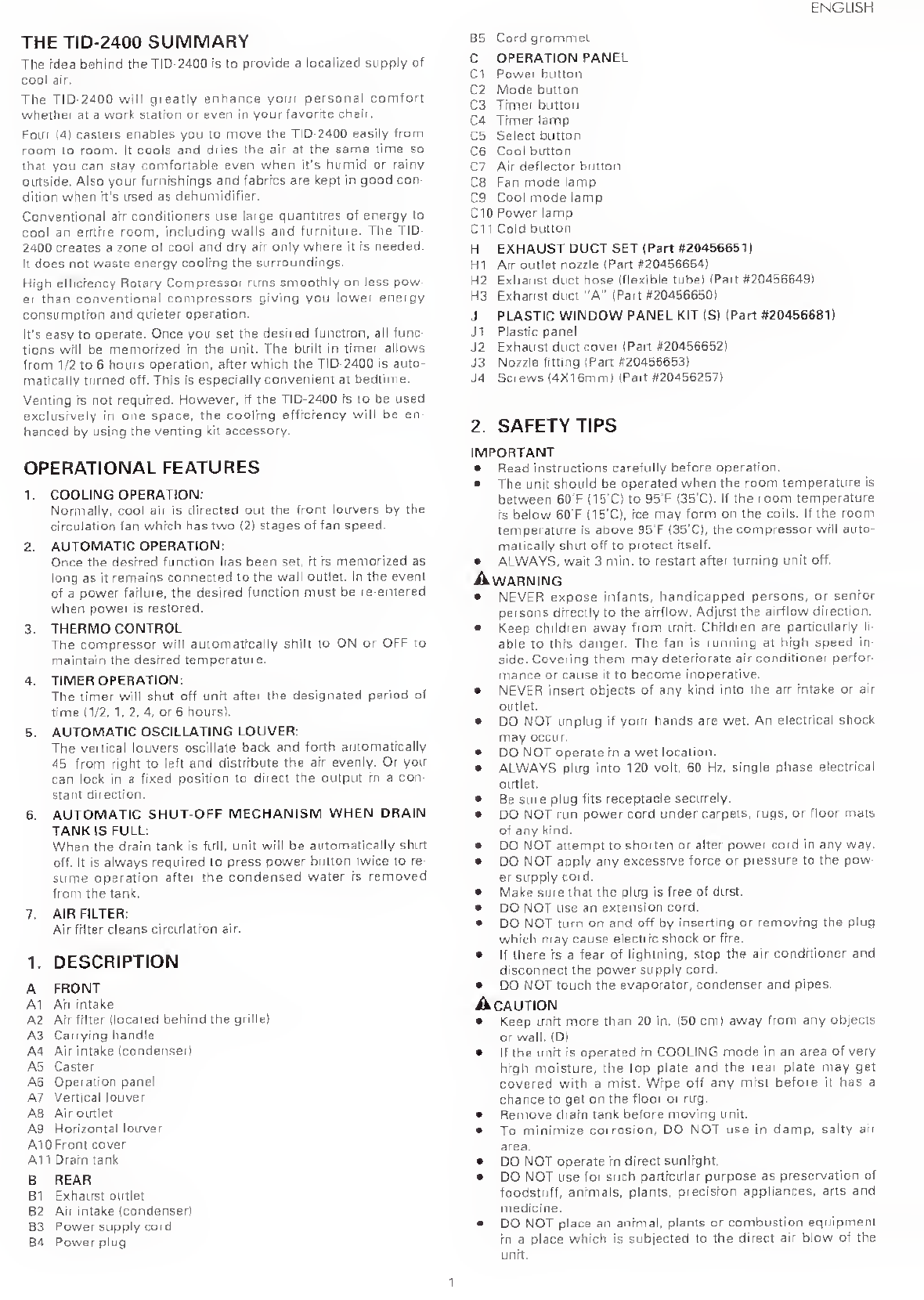

THE TID-2400 SUMMARY
The idea behind the TID-2400 is io provide alocalized supply of
cool air.
The TID-2400 will greatly enhance your personal comfort
whether at awork station or even in your favorite chair.
Four (4) casters enables you to move the TID-2400 easily from
room to room. It cools and dries the air at the same time so
that you can stay comfortable even when it's humid or rainy
outside. Also your furnishings and fabrics are kept in good con-
dition when it's used as dehumidifier.
Conventional air conditioners use large quantities of energy to
cool an entire room, including walls and furniture. The TID-
2400 creates azone of cool and dry air only where it is needed.
It does not waste energy cooling the surroundings.
High efficiency Rotary Compressor runs smoothly on less pow-
er than conventional compressors giving you lower energy
consumption and quieter operation.
It's easy to operate. Once you set the desired function, all func-
tions will be memorized in the unit. The built-in timer allows
from 1/2 to 6hours operation, after which the TID-2400 is auto-
matically turned off. This is especially convenient at bedtime.
Venting is not required. However, if the TID-2400 is to be used
exclusively in one space, the cooling efficiency will be en-
hanced by using the venting kit accessory.
OPERATIONAL FEATURES
1. COOLING OPERATION:
Normally, cool air is directed out the front louvers by the
circulation fan which has two (2) stages of fan speed.
2. AUTOMATIC OPERATION:
Once the desired function has been set, it is memorized as
long as it remains connected to the wall outlet. In the event
of apower failure, the desired function must be re-entered
when power is restored.
3. THERMO CONTROL
The compressor will automatically shift to ON or OFF to
maintain the desired temperature.
4. TIMER OPERATION:
The timer will shut off unit after the designated period of
time (1/2, 1, 2, 4, or 6hours).
5. AUTOMATIC OSCILLATING LOUVER:
The vertical louvers oscillate back and forth automatically
45 from right to left and distribute the air evenly. Or you
can lock in afixed position to direct the output in acon-
stant direction.
6. AUTOMATIC SHUT-OFF MECHANISM WHEN DRAIN
TANK IS FULL:
When the drain tank is full, unit will be automatically shut
off. It is always required to press power button twice to re-
sume operation after the condensed water is removed
from the tank.
7. AIR FILTER:
Air filter cleans circulation air.
1. DESCRIPTION
AFRONT
A1 Air intake
A2 Air filter (located behind the grille)
A3 Carrying handle
A4 Air intake (condenser)
A5 Caster
A6 Operation panel
A7 Vertical louver
A8 Air outlet
A9 Horizontal louver
A10 Front cover
A11 Drain tank
BREAR
B1 Exhaust outlet
B2 Air intake (condenser)
B3 Power supply cord
B4 Power plug
B5 Cord grommet
COPERATION PANEL
C1 Power button
C2 Mode button
C3 Timer button
C4 Timer lamp
C5 Select button
C6 Cool button
C7 Air deflector button
C8 Fan mode lamp
C9 Cool mode lamp
C10 Power lamp
C11 Cold button
HEXHAUST DUCT SET (Part #20456651
)
H1 Air outlet nozzle (Part #20456654)
H2 Exhaust duct hose (flexible tube) (Part #20456649)
H3 Exhaust duct "A" (Part #20456650)
JPLASTIC WINDOW PANEL KIT (S) (Part #20456681
)
J1 Plastic panel
J2 Exhaust duct cover (Part #20456652)
J3 Nozzle fitting (Part #20456653)
J4 Screws (4X16mm) (Part #20456257)
2. SAFETY TIPS
IMPORTANT
•Read instructions carefully before operation.
•The unit should be operated when the room temperature is
between 60 F(15 C) to 95 F(35 C). If the room temperature
is below 60 F(15"C), ice may form on the coils. If the room
temperature is above 95 F(35'C), the compressor will auto-
matically shut off to protect itself.
•ALWAYS, wait 3min. to restart after turning unit off.
AWARNING
•NEVER expose infants, handicapped persons, or senior
persons directly to the airflow. Adjust the airflow direction.
•Keep children away from unit. Children are particularly li-
able to this danger. The fan is running at high speed in-
side. Covering them may deteriorate air conditioner perfor
mance or cause it to become inoperative.
•NEVER insert objects of any kind into the air intake or air
outlet.
•DO NOT unplug if your hands are wet. An electrical shock
may occur.
•DO NOT operate in awet location.
•ALWAYS plug into 120 volt, 60 Hz, single phase electrical
outlet.
•Be sure plug fits receptacle securely.
•DO NOT run power cord under carpets, rugs, or floor mats
of any kind.
•DO NOT attempt to shorten or alter power cord in any way.
•DO NOT apply any excessive force or pressure to the pow-
er supply cord.
•Make sure that the plug is free of dust.
•DO NOT use an extension cord.
•DO NOT turn on and off by inserting or removing the plug
which may cause electric shock or fire.
•If there is afear of lightning, stop the air conditioner and
disconnect the power supply cord.
•DO NOT touch the evaporator, condenser and pipes.
ACAUTION
•Keep unit more than 20 in. (50 cm) away from any objects
or wall. (D)
•If the unit is operated in COOLING mode in an area of very
high moisture, the lop plate and the rear plate may get
covered with amist. Wipe off any mist before it has a
chance to get on the floor or rug.
•Remove drain tank before moving unit.
•To minimize corrosion, DO NOT use in damp, salty air
area.
•DO NOT operate in direct sunlight.
•DO NOT use for such particular purpose as preservation of
foodstuff, animals, plants, precision appliances, arts and
medicine.
•DO NOT place an animal, plants or combustion equipment
in aplace which is subjected to the direct air blow of the
unit.
1

The original shipping carton is the best place to store your
unit. If you do not have the original packing materials, cov-
er unit with alarge plastic bag and store in acool dry
place.
ACAUTION
•ALWAYS store the unit in the vertical position.
•DO NOT put heavy objects on top of the unit.
7. TRANSPORTATION
Preferably keep the unit in the vertical position during trans-
portation. If this is not possible then lay it on its rear side, when
at destination put the unit back in the vertical position and wait
at least 10 (ten) minutes before using it. Before
transporting/moving the unit make sure the drain tank is emp-
ty-
8. TROUBLESHOOTING
SYMPTOM CAUSE SOLUTION
Unit does
not work.
-Disconnected power
plug
-Power failure
-Power button is in
OFF position
-Drain tank is full
(Power lamp is flash-
ing)
-Plug into outlet.
-Check circuit breaker
or fuse.
-Check the power but-
ton.
-Empty drain tank and
replace it.
Capacity di-
minished.
-Mode button in the
incorrect position.
-Air filter is obstructed
by dirt or dust.
-Obstruction in the
discharge grill.
-"COLD" or "COOL"
button in the incor-
rect position.
-Check the mode but-
ton.
-Clean the air filter.
-Remove the obstruc-
tion.
-Check the indicator
on the thermo con-
trol.
BEFORE CALLING FOR SERVICE
The followings are not defects.
Ahissing noise or hollow
sound :
This sound is generated from
Othe refrigerant flowing within
pipes.
Asqueaking noise :
This noise is generated from the
Ounit when it is expands or con-
tracts with temperature changes.
Odor
:
Such noise as tobacco, cosmetics,
cj* or foods may accumulate in the
unit.
The unit does not start nor
change operation mode
immediately
:
To prevent overloading the com-
c> pressor motor, the unit will be
stopped for more than 3minutes.
The fan speed of the front
fan motor changes front or
the rear fan motor stops :
To prevent overloading the unit,
the unit may change the fan
"speed and operate the rear fan
intermittently.
ENGLISH
9. SPECIFICATIONS
MODEL TID-2400
COOLING CAPACITY 8,000 BTU/H
DEHUMIDIFYING CAPACITY 3.04 pints/Hr.:
(73 pints/Day) Max.
POWER SOURCE Single Phase 120V (60Hz)
POWER CONSUMPTION 830 W
DIMENSIONS 11-1/2"(W) x14-3/4"(D) x34-5/8"(H)
(290 (W) x375 (D) x880 (H) mm)
WEIGHT 58 LBS. (26 kg)
RDTARV
REFRIGERANT R-22 (1.21 lbs.) (440 g)
TANK CAPACITY 0.9 GAL. (3.5 liters)
TOTAL CONDITIONS:
COOLING ROOM TEMPERATURE 86T (30"C)
RELATIVE HUMIDITY 70%
DEHUMIDIFYING ROOM TEMPERATURE 81 F(27 -C)
RELATIVE HUMIDITY 60%
NOTE: Cooling air capacity will vary according to temper-
ature and humidity of the room.
10. VENTING KIT ACCESSORIES
If the TID-2400 is to be used exclusively in one space, the cool-
ing efficiency will be enhanced by using the following venting
kit accessories.
EXHAUST DUCT SET (FLEXIBLE TUBE) (H)
MAX. 39-3/8 in. (1000 mm)
PLASTIC WINDOW PANEL KIT (S) (J)
For sliding and double-hung
windows
MAX. 36 in. (915 mm),
MIN. 24-3/4 in. (630 mm)
USING EXHAUST DUCT SET
1. Insert ends of Exhaust duct hose (flexible tube) (H2) into
Air outlet nozzle (H1) and Exhaust duct "A" (H3) by twist-
ing until it stops.
2. Fix the Exhaust duct "A" (H3) to the exhaust outlet (B1) on
the rear of the unit. This is achieved by sliding the appro-
priate connector downwards over the exhaust outlet ensur-
ing that the lugs on the outlet are engaged with the
grooves on the connector.
3. Extend the Exhaust duct hose (H2) and close the window
as far as possible trapping the Air outlet nozzle (H1).
NOTE: Place the unit as close as possible to the window.
USING WINDOW PANEL KIT
NOTE: Window installations are possible by the use of
the exhaust duct set and window planel kit. Plastic
window panel kit (S) provides aweather-tight
adapter for double-hung windows 24-3/4 in. (630
mm) to 36 in. (915 mm) in height.
1. Fix Nozzle fitting (J3) to Plastic Panel (J1) by four (4)
Screws (J4).
2. Hook Exhaust duct cover (J2) onto Nozzle fitting (J3).
NOTE: When using the panel for sliding windows, cut the
both edges of Exhaust duct cover (J2) with scis-
sors.
3. Install the panel in the window and adjust the length of the
panel by lengthening or shortening.
4. Side Air outlet nozzle (H1) into Nozzle fitting (J3) until it
locks.
5. Fix Exhaust duct "A" (H3) into the exhaust outlet on the
rear of the unit.
NOTE: The same procedure can be adapted for vertical
installation in sliding windows.
3

ENGLISH
The original shipping carton is the best place to store your
unit. If you do not have the original packing materials, cov-
er unit with alarge plastic bag and store in acool dry
place.
ACAUTION
•ALWAYS store the unit in the vertical position.
•DO NOT put heavy objects on top of the unit.
7. TRANSPORTATION
Preferably keep the unit in the vertical position during trans-
portation. If this is not possible then lay it on its rear side, when
at destination put the unit back in the vertical position and wait
at least 10 (ten) minutes before using it. Before
transporting/moving the unit make sure the drain tank is emp-
ty.
8. TROUBLESHOOTING
9. SPECIFICATIONS
SYMPTOM CAUSE SOLUTION
Unit does
not work.
-Disconnected power
plug
-Power failure
-Power button is in
OFF position
-Drain tank is full
(Power lamp is flash-
ing)
-Plug into outlet.
-Check circuit breaker
or fuse.
-Check the power but-
ton.
-Empty drain tank and
replace it.
Capacity di-
minished.
-Mode button in the
incorrect position.
-Air filter is obstructed
by dirt or dust.
-Obstruction in the
discharge grill.
-"COLD" or "COOL"
button in the incor-
rect position.
-Check the mode but-
ton.
-Clean the air filter.
-Remove the obstruc-
tion.
-Check the indicator
on the thermo con-
trol.
BEFORE CALLING FOR SERVICE
The fallowings are not defects.
Ahissing noise or hollow
sound :
This sound is generated from
<=J>the refrigerant flowing within
pipes.
Asqueaking noise :
This noise is generated from the
c£> unit when it is expands or con-
tracts with temperature changes.
Odor
:
Such noise as tobacco, cosmetics,
ci> or foods may accumulate in the
unit.
The unit does not start nor To prevent overloading the corn-
change operation mode rwpressor motor, the unit will be
immediately :stopped for more than 3minutes.
The fan speed of the front
fan motor changes front or r;
the rear fan motor stops :
To prevent overloading the unit,
the unit may change the fan
speed and operate the rear fan
intermittently.
MODEL TID-2400
COOLING CAPACITY 8,000 BTU/H
DEHUMIDIFYING CAPACITY 3.04 pints/Hr.:
(73 pints/Day) Max.
POWER SOURCE Single Phase 120V (60Hz)
POWER CONSUMPTION 830 W
DIMENSIONS 11-1/2"(W) x14-3/4"(D) x34-5/8"(H)
(290 (W) x375 (D) x880 (H) mm)
WEIGHT 58 LBS. (26 kg)
LUIVIrrttooUn nU IMn T
REFRIGERANT R-22(1.21 lbs.) (440 g)
TANK CAPACITY 0.9 GAL. (3.5 liters)
TOTAL CONDITIONS:
COOLING ROOM TEMPERATURE 86"F (30 C)
RELATIVE HUMIDITY 70%
DEHUMIDIFYING ROOM TEMPERATURE 81'F (27'C)
RELATIVE HUMIDITY 60%
NOTE: Cooling air capacity will vary according to temper-
ature and humidity of the room.
10. VENTING KIT ACCESSORIES
If the TID-2400 is to be used exclusively in one space, the cool-
ing efficiency will be enhanced by using the following venting
kit accessories.
EXHAUST DUCT SET (FLEXIBLE TUBE) (H)
MAX. 39-3/8 in. (1000 mm)
PLASTIC WINDOW PANEL KIT (S) (J)
For sliding and double-hung
windows
MAX. 36 in. (915 mm),
MIN. 24-3/4 in. (630 mm)
USING EXHAUST DUCT SET
1. Insert ends of Exhaust duct hose (flexible tube) (H2) into
Air outlet nozzle (HI) and Exhaust duct "A" (H3) by twist-
ing until it stops.
2. Fix the Exhaust duct "A" (H3) to the exhaust outlet (B1) on
the rear of the unit. This is achieved by sliding the appro-
priate connector downwards over the exhaust outlet ensur-
ing that the lugs on the outlet are engaged with the
grooves on the connector.
3. Extend the Exhaust duct hose (H2) and close the window
as far as possible trapping the Air outlet nozzle (H1).
NOTE: Place the unit as close as possible to the window.
USING WINDOW PANEL KIT
NOTE: Window installations are possible by the use of
the exhaust duct set and window planel kit. Plastic
window panel kit (S) provides aweather-tight
adapter for double-hung windows 24-3/4 in. (630
mm) to 36 in. (915 mm) in height.
1. Fix Nozzle fitting (J3) to Plastic Panel (J1) by four (4)
Screws (J4).
2. Hook Exhaust duct cover (J2) onto Nozzle fitting (J3).
NOTE: When using the panel for sliding windows, cut the
both edges of Exhaust duct cover (J2) with scis-
sors.
3. Install the panel in the window and adjust the length of the
panel by lengthening or shortening.
4. Side Air outlet nozzle (H1) into Nozzle fitting (J3) until it
locks.
5. Fix Exhaust duct "A" (H3) into the exhaust outlet on the
rear of the unit.
NOTE: The same procedure can be adapted for vertical
installation in sliding windows.
3

ENGLISH
OPTIONAL ACCESSORIES
the extension window pane
window panel "A".
Part #20456682
"B" and use it with the original
Part #20456683
Part #20456686
Part #20456688
PLASTIC WINDOW PANEL KIT (M)
34-1/4 -55 in. (850 -1400 mm)
PLASTIC WINDOW PANEL KIT (L)
47-1/4- 75-1/2 in. (1180- 1920 mm)
EXTENSION WINDOW PANEL "B" (M)
37-1/4 in. (945 mm)
EXTENSION WINDOW PANEL B" (L)
57-1/4 in. (1455 mm)
^LIMITED WARRANTY
TOYOTOMI U.S.A., INCC'TOYOTOMI") warrants each prod-
uct and any parts thereof sold by it to be free from defects in
materials or workmanship under normal use and service for
TWELVE (12) MONTHS from the date of delivery to the origi-
nal purchaser at retail subject to the following terms and
conditions :
WHAT IS COVERED :Product or any parts thereof which are
defective in materials of workmanship
WHAT IS NOT COVERED :
This warranty does not extend to any defect due to the neg-
ligence of others: failure to install, operate or maintain unit
in accordance with installation instructions (operating and
maintenance instructions are furnished with each new unit)
:
unreasonable use, accidents, alteration, use of unauthorized
or non-standardized TOYOTOMI parts and accessories; elec-
trical malfunction, i.e., as resulting from large power surges,
short circuit, etc.; incorrect installation; or repair by anyone
other than aservice facility specified by TOYOTOMI.
WHO IS COVERED :The ordinal purchaser at retail.
WHAT WE WILL DO :TOYOTOMI will either repair or re-
place, at its option, all defective parts free of charge that are
covered by this limited warranty on acarry-in basis, to your
nearest authorized dealer or distributor of TOYOTOMI.
WHAT YOU MUST DO FOR WARRANTY SERVICE :You
must return the defective Product or part to any authorized
dealer or distributor of TOYOTOMI with this LIMITED WAR-
RANTY and acopy of your bill of sale or credit card charge
receipt or other documents evidencing the date of the
Product's delivery, if service is not available locally, please
contact our CUSTOMER RELATIONS DEPARTMENT at
:
TOYOTOMI U.S.A., INC.
604 Federal Road, Brookfield, CT 06804
[phone]
THE FOREGOING EXPRESSES ALL OF TOYOTOMI'S OBLIG-
ATIONS AND LIABILITIES WITH RESPECT TO THE QUALITY
OF PRODUCT FURNISHED BY IT. ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR APARTICULAR PUR-
POSE ARE DISCLAIMED. TOYOTOMI SHALL NOT BE LIABLE
FOR THE LOSS OF USE OF THE PRODUCT. INCONVE-
NIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL ARISING OUT OF, THE USE OF, OR IN-
ABILITY TO USE, THE PRODUCT OR DAMAGES RESULTING
FROM OR ATTRIBUTABLE TO DEFECTS IN THE PRODUCT.
No other than TOYOTOMI has authority to extend or modify
the terms of this Limited Warranty in any manner whatsoever.
Some states do not allow the exclusion or limitation of inci-
dental or consequential damages or limitations on how long
an implied warranty lasts, so these limitations or exclusions
may not apply to you. This Limited Warranty gives you spe-
cific legal rights and you may also have other rights which
vary from state to state.
*In addition to the warranty period stated above, an extend-
ed warranty period is offered as follows:
-Compressor :5years
-Cooling cycle :3years
NOTE 'THE EXTENDED WARRANTY POLICY IS APPLICABLE
ONLY FOR THE REPLACEMENT OF THE ORIGINAL
FACTORY-INSTALLED PARTS THAT HAVE FAILED
WITHIN THE TIME LIMITATIONS AS INDICATED. RE-
PLACEMENT ARE WARRANTED FOR THE REMAIN-
DER OF THE ORIGINAL PART WARRANTY PERIOD.
4
