Toyotomi IZURU Series User manual

WiFi User’s manual
SERIES: Hiro / Izuru / Kuro
App: Ewpe Smart
@m
WiFi User’s manual
SERIES: Hiro / Izuru / Kuro
App: Ewpe Smart
INTRODUCTION
WIFI COMPATIBILITY / CONNECTIVITY
TOYOTOMI Hiro Split Wall Mounted Air Conditioner are fitted with built-in WiFi
connectivity. Using the Ewpe Smart App (available from Apple App Store or Google Play) it
is then possible to use a smart phone or tablet to operate these appliance remotely.
A WiFi router (paired with the appliance via Ewpe Smart App) is used to control the Air
Conditioner.
The Air Conditioner MUST BE installed in a location that has WiFi router coverage.
If the controlling mobile device is outside of the WiFi router's coverage i.e. operating
remotely, then the WiFi router will require an internet connection to communicate
with the controlling mobile device.

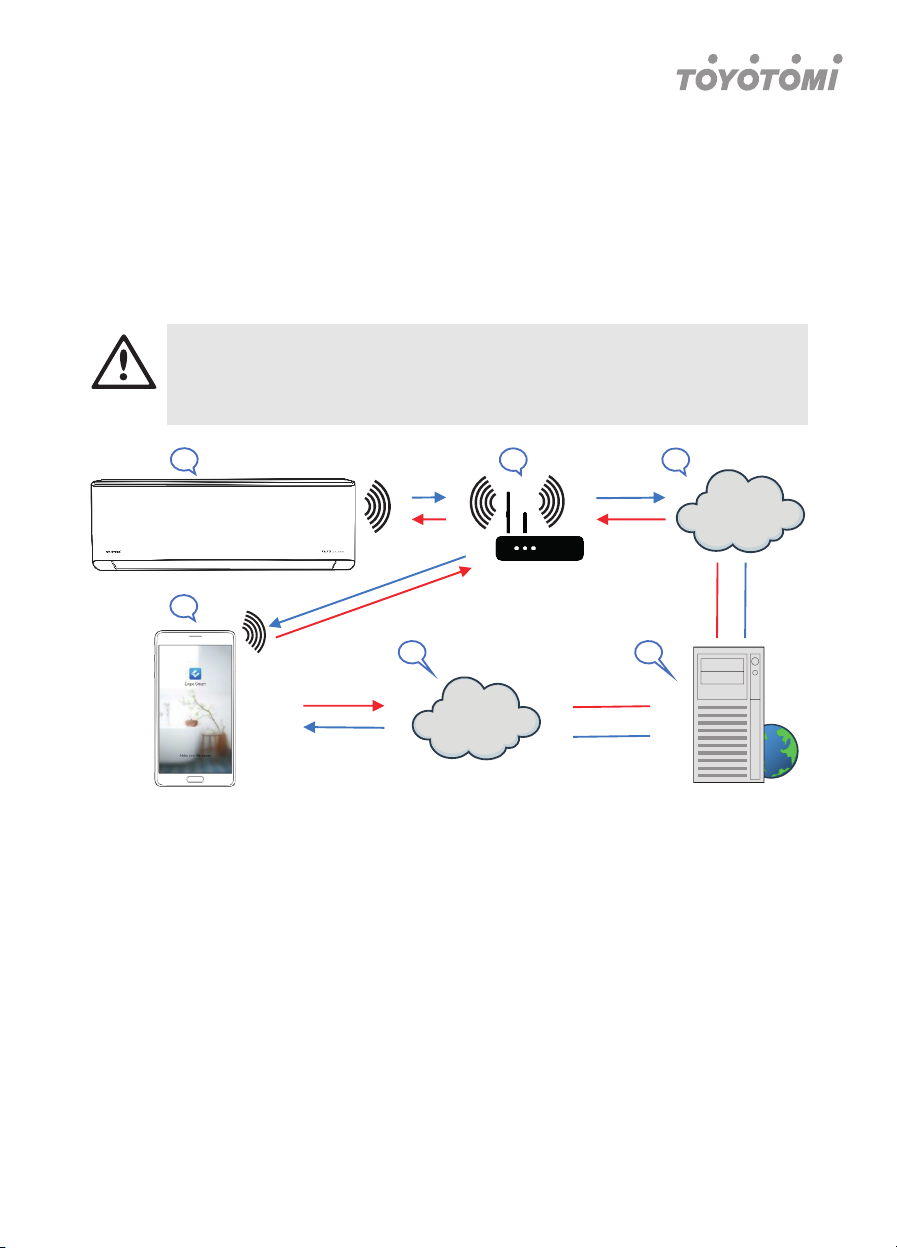

1. Indoor air conditioning unit (AC Device TOYOTOMI)
2. Smart phone or tablet (using WiFi)
3. WiFi Router
4. Factory web Server
5. Internet cloud
6. Smart phone or tablet (using internet cloud)
MINIMUM REQUIREMENTS
Split Type Wall Mounted Air ConditionerTOYOTOMI Hiro / Izuru / Kuro
WiFi Router, 2.4G frequency range supporting 802.11b/g/n mode, with coverage of the
Appliance(s) location. (5GHz Wi-Fi is not supported)
For remote cloud based operation WiFi router / modem with active internet connection
Smart phone / Tablet (Android 4.4+ ήApple iOS 7.0+) with Ewpe Smart App installed
1
2
4
5
5
3
Internet
Internet
Wi-Fi User’s manual
Manual de usuario para Wi-Fi
Manual do Utilizador do Wi-Fi
SERIES / SERIE / SÉRIE: IZURU
APP: Ewpe SMART
WiFi User’s manual
SERIES: Hiro / Izuru / Kuro
App: Ewpe Smart
@m
WiFi User’s manual
SERIES: Hiro / Izuru / Kuro
App: Ewpe Smart
INTRODUCTION
WIFI COMPATIBILITY / CONNECTIVITY
TOYOTOMI Hiro Split Wall Mounted Air Conditioner are fitted with built-in WiFi
connectivity. Using the Ewpe Smart App (available from Apple App Store or Google Play) it
is then possible to use a smart phone or tablet to operate these appliance remotely.
A WiFi router (paired with the appliance via Ewpe Smart App) is used to control the Air
Conditioner.
The Air Conditioner MUST BE installed in a location that has WiFi router coverage.
If the controlling mobile device is outside of the WiFi router's coverage i.e. operating
remotely, then the WiFi router will require an internet connection to communicate
with the controlling mobile device.
1. Indoor air conditioning unit (AC Device TOYOTOMI)
2. Smart phone or tablet (using WiFi)
3. WiFi Router
4. Factory web Server
5. Internet cloud
6. Smart phone or tablet (using internet cloud)
MINIMUM REQUIREMENTS
Split Type Wall Mounted Air ConditionerTOYOTOMI Hiro / Izuru / Kuro
WiFi Router, 2.4G frequency range supporting 802.11b/g/n mode, with coverage of the
Appliance(s) location. (5GHz Wi-Fi is not supported)
For remote cloud based operation WiFi router / modem with active internet connection
Smart phone / Tablet (Android 4.4+ ήApple iOS 7.0+) with Ewpe Smart App installed
1
2
4
5
5
3
Internet
Internet
English
Español
Português

GB
2
Introduction
WiFi compatibility / connectivity
TOYOTOMI IZURU Split Wall Mounted Air Conditioner are fitted with built-in WiFi
connectivity. Using the Ewpe Smart App (available from Apple App Store or Google Play) it
is then possible to use a smart phone or tablet to operate these appliance remotely.
A WiFi router (paired with the appliance via Ewpe Smart App) is used to control the Air
Conditioner.
1. Indoor air conditioning unit (AC Device TOYOTOMI)
2. Smart phone or tablet (using WiFi)
3. WiFi Router
4. Factory web Server
5. Internet cloud
6. Smart phone or tablet (using internet cloud)
Minimum requirements
• Split Type Wall Mounted Air ConditionerTOYOTOMI IZURU
• WiFi Router, 2.4G frequency range supporting 802.11b/g/n mode, with coverage of the
Appliance(s) location. (5GHz Wi-Fi is not supported)
• For remote cloud based operation WiFi router / modem with active internet connection
• Smart phone / Tablet (Android 4.4+ ή Apple iOS 7.0+) with Ewpe Smart App installed
The Air Conditioner MUST BE installed in a location that has WiFi router coverage.
If the controlling mobile device is outside of the WiFi router’s coverage i.e. operating
remotely, then the WiFi router will require an internet connection to communicate
with the controlling mobile device.
1
2
3 5
internet
internet
45

GB
3
Settings

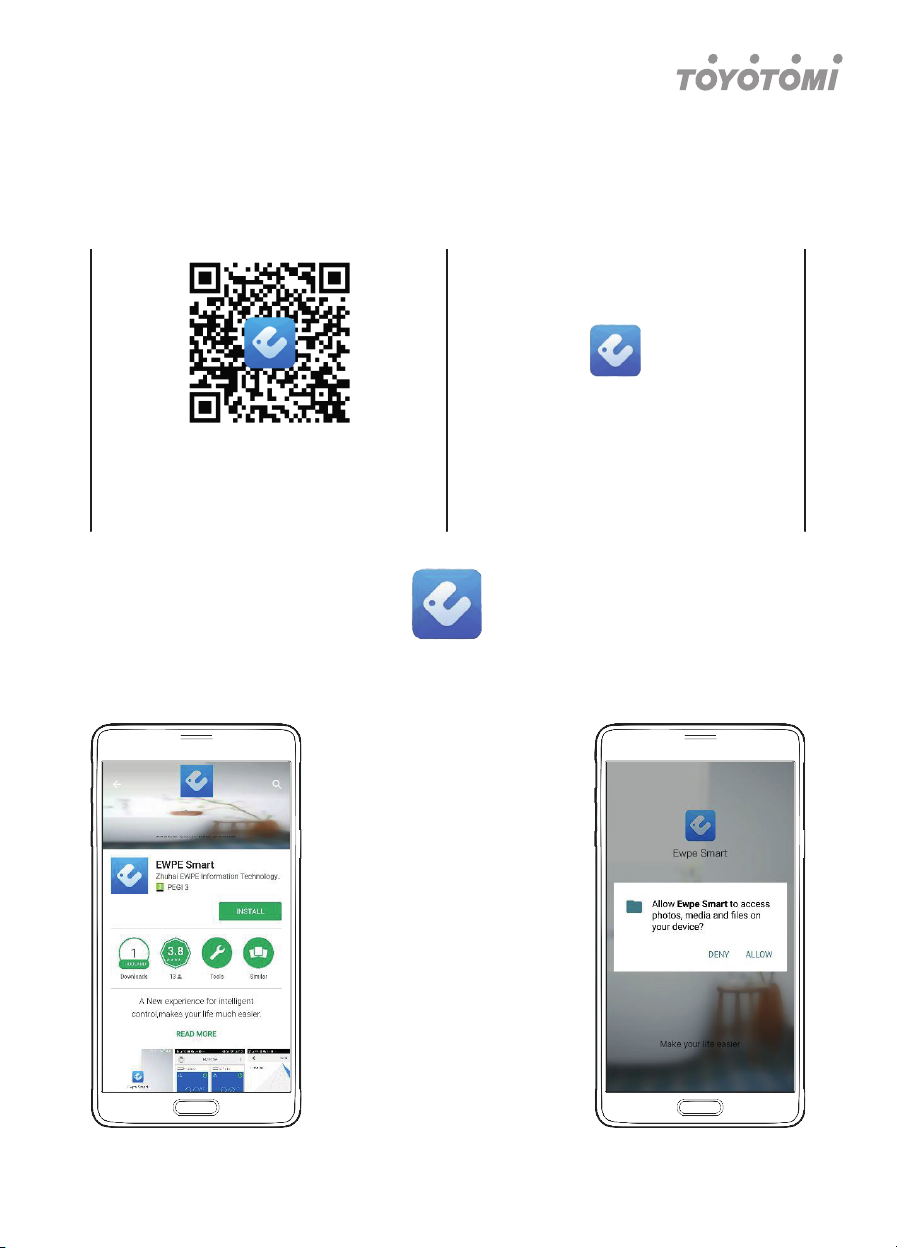

Downloading and installing the application
Scan the QR code with your smartphone in order to download Ewpe Smart apllication.
The [ EWPE Smart ]
application on
Google Play
Install the application based on the instructions. Provided the application has
been installed properly, the following
icon will appear on your
smart phone’s homepage.
Android QR code
or search Ewpe Smart
in Google Play
IOS: Search the“ Ewpe Smart“
application on the apple store and
download the apple version.

GB
4
Information
Appendix A: << Failed Configuration - Causes - Check >>
• Make sure the mobile phone is connected to the local WiFi Router: Close the mobile 3G / 4G
data connection when configuring to connect to your local Router WiFi.
• Check if the reset of the unit has been successfully completed. Press and hold the Mode &
Turbo buttons on the remote control to reset. A“beep”sound at the beginning, and a second
“beep”sound after 10‘’ indicates that the reset was successful.
• Check the name of the WiFi Router, it is recommended that there are no gaps and not others
Alphanumeric characters.
• Check the password of your WiFi router, no more than 32 digits allowed, it is recommended
that there are no spaces and special symbols other than letters and numbers.
• Check whether the WiFi Router password is correct when configuring the application. You can
display the code to confirm the correct entry.
More informations:
• The software provides a help desk through which users can check the operating instructions
of the software and other information.
• As the functionality and the software are continually improving, you will be informed of the
subsequent upgrades for your information.
• As the function can change due to improvements and continuous upgrades, the illustrations
in this manual are for reference, so please rely on the actual operating environment.
NOTE: You can control an air conditioner by max. 4, smartphone at the same time.
Note: images (networks) are examples for the needs of the user guide

GB
5
Information
Appendix B: << Failed Configuration - Causes - Check >>
Adding failed!
Arrange troubleshooting according to following steps and then try again
• Make sure your appliance has entered distribution network mode;
• Make sure the mobile is connected to the 2.4GHz network of wireless router;
• Make sure the wireless router has closed black list and white list (mac address filtration)
• Please try to set wireless router to 11 bg or 20Mhz bandwidth before network distribution;
when network distribution is done, set the router to previous configuration;
Please select your home wireless router (5GHz Wi-Fi is not
supported) Choose other Wi-Fi
NOTE: Images (networks) are examples for the needs of the user guide

GB
6
Settings

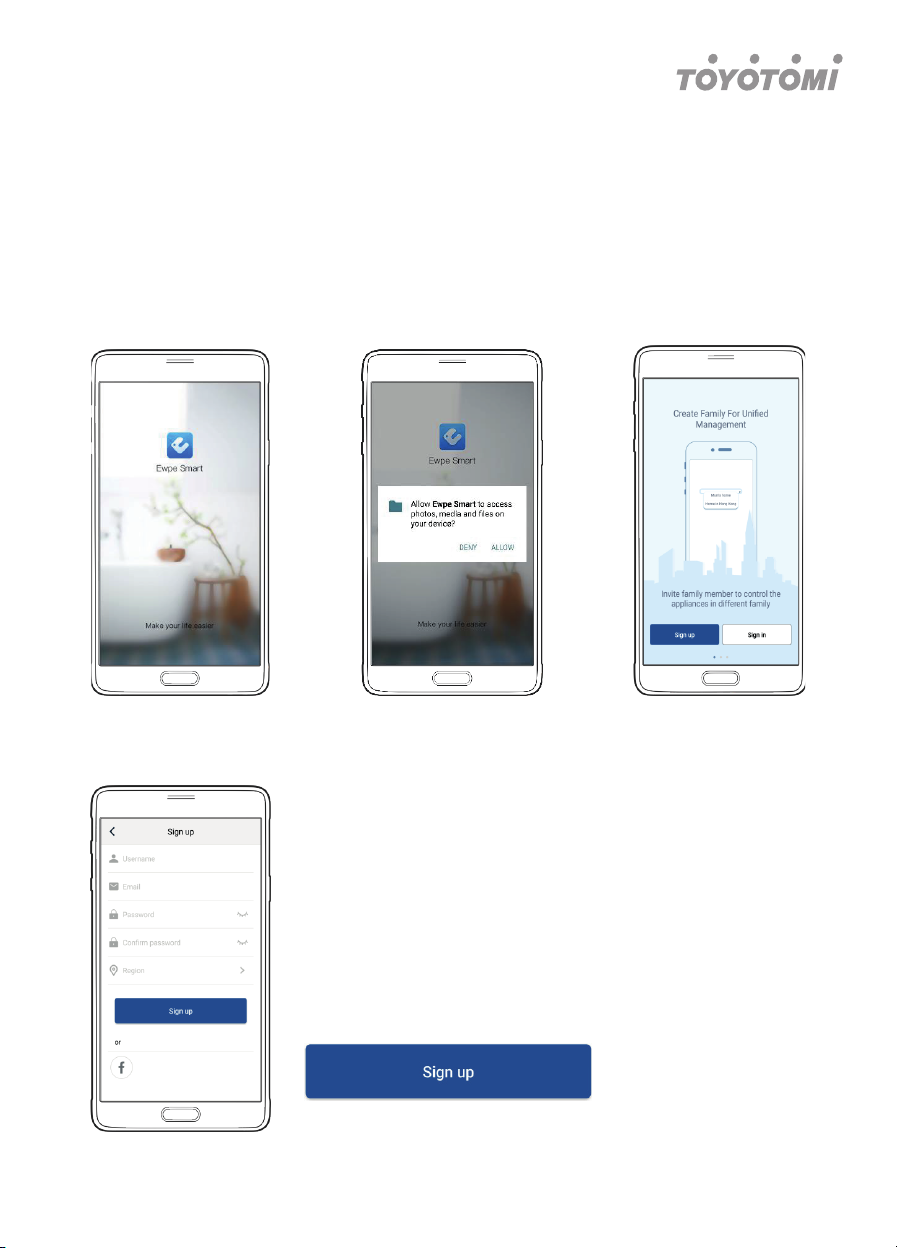

Step 1: (Sign up ) Creating new account
The first time you will try to log in you will have to create a new account/username.
If you already have a username, skip the sign-up step and log in by entering your e-mail and
password in the“Sign in”page. If you have forgotten your password you can reset it.
Landing page
Create new account
Fill in your email
Fill in a username
Choose a Password
Confirm the Password
Choose server - (Europe)
Press the following button
Accept the terms of use Sign-up/Sign-In

GB
7
Settings

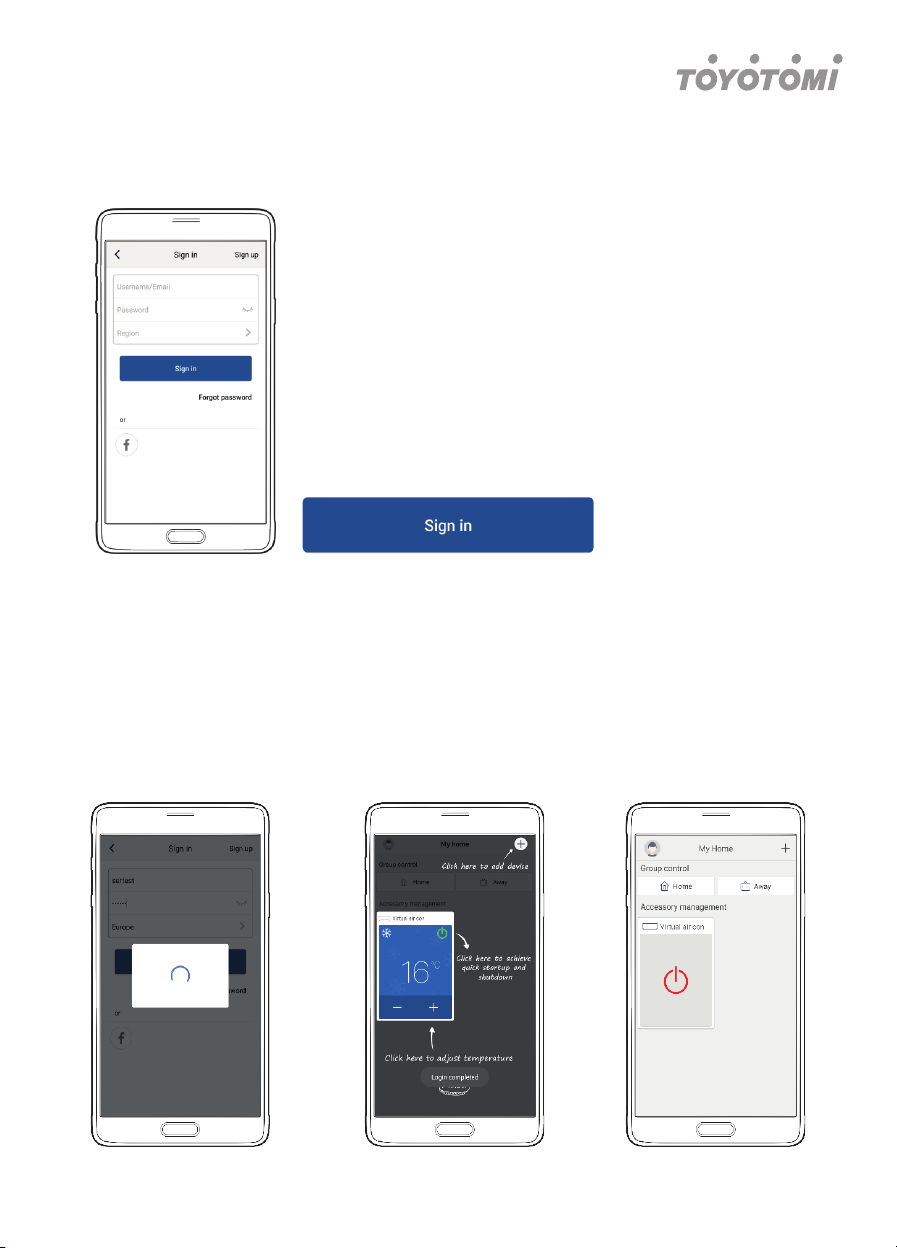

Step 2: Sign in
The application
is loading……………
The application is on the
“Sign in”
Info page
Homepage
(my home)
A virtual a/c device
will appear
Fill in your username and email
Fill in your password
Enter the server
you chose during the
“Sign up”.
Press the following button

GB
8
Settings

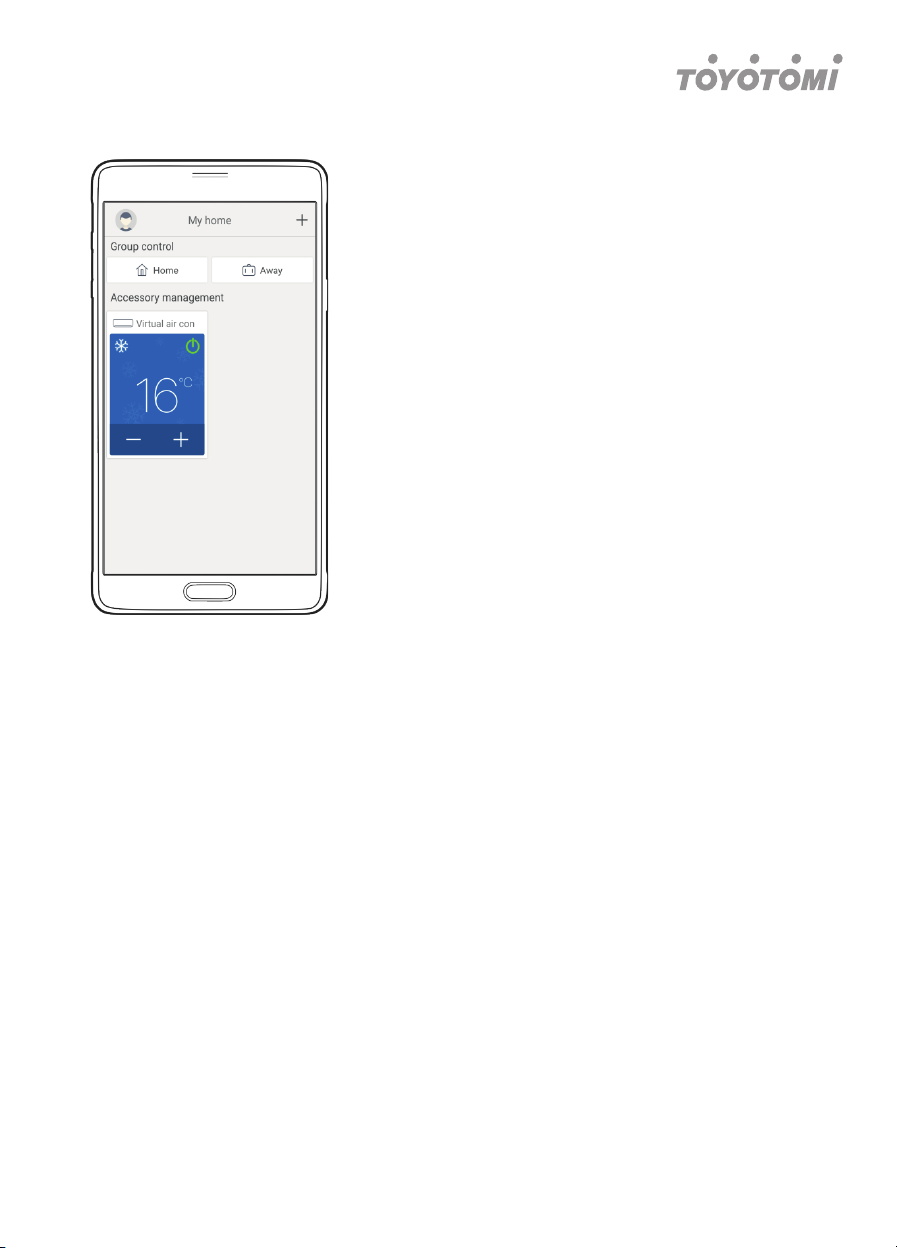

NOTE:
On the group control page a virtual a/c device will appear in
order to be familiarized with the application before adding
an actual device.
This virtual application will not appear as long as at least
one actual device has been connected.

GB
9
Settings
WiFi Network check (1)
Choose from your mobile’s menu : settings
Chose >> Wi-Fi
and then : Wi-Fi networks
1) Connected router
2) The a/c device
3) Different Network
4) Different Network
(ADM wifi network in this guide is our home router)
NOTE!!
When choosing the Wi-Fi networks on your smart phone
There will probably appear more than one Wi-Fi networks according to the area you are
located
The smartphone is connected to the ADM network
NOTE: Images (networks) are examples for the needs of the user guide

GB
10
Settings
WiFi Network check (2)
Choose from your mobile’s menu :
settings, then
WiFi in order to see the Wi-Fi networks.
A few seconds after the reset the device (1e04ba57)
will not appear on the Wi-Fi networks
1) Connected router
3) Different Network
4) Different Network
NOTE:
The a / c number (1e04ba57) is the 8 last digits of
the Mac address of the WiFi spot (module) of the
device and is unique to each one of them.
After a few seconds the Wi-Fi networks will
appear Along with your
2) Device a/c
NOTE:
After you start the process of adding an air conditioner
to the application you will need the WiFi spot of the
air conditioner (1e04ba57) to appear on the Wi-Fi networks
NOTE: Images (networks) are examples for the needs of the user guide

GB
11
Settings

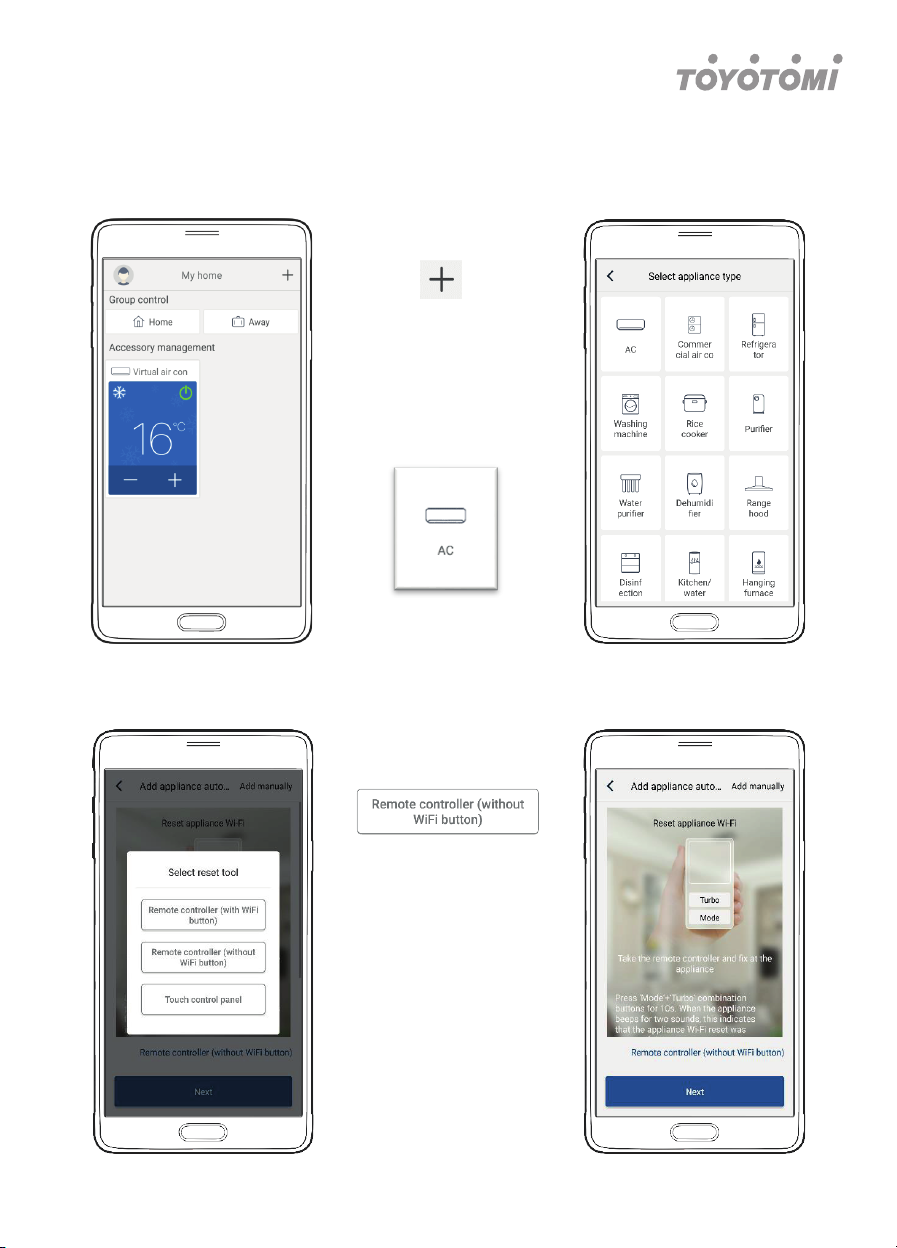

Step 3: Add an additional device on the App (manual mode)
Press
Press
Press
Press
... Add manually
At this point you will
have to reset the air
condition – the process
of reset is following on
the next page

GB
12
Settings

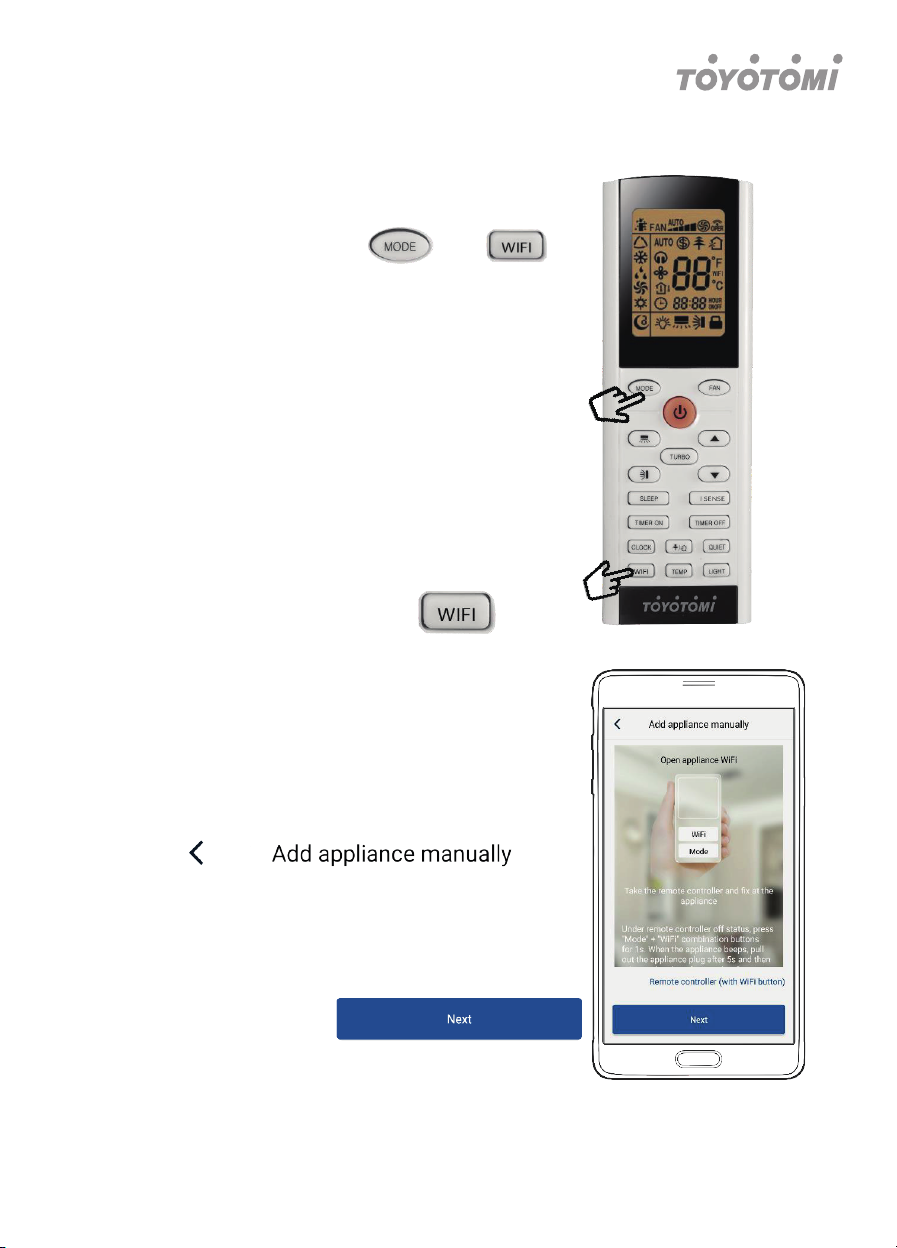

Step 4: Reset the a / c
Reset you’re a/c by pressing the following buttons simultaneously:
You will hear a (((beep))) sound at first following on the next
“3”seconds: you can now stop pressing the buttons.
The reset has been successfully done
Be careful! On the display the WiFi symbol should be visible.
You can activate and deactivate the WiFi by pressing
the following button:
Step 5: (manual mode)
Return to the app. Be careful, the following sign should
be visible
&
Press

GB
13
Settings
Step 5: Connect an additional a/c on the application
(manual mode)
Press
Press
Accept the
terms and
press next
In the next field the Router
(ADM) must be displayed,
insert the Router password
below
The process starts and the
following message will appear:
Connected to WiFi network
1e04ba57
(WiFi spot of the a/c)
a (((beep))) sound will be
heard
The 1e04ba57
number should
appear on the
a/c field
NOTE: Images (networks) are examples for the needs of the user guide

GB
14
Settings

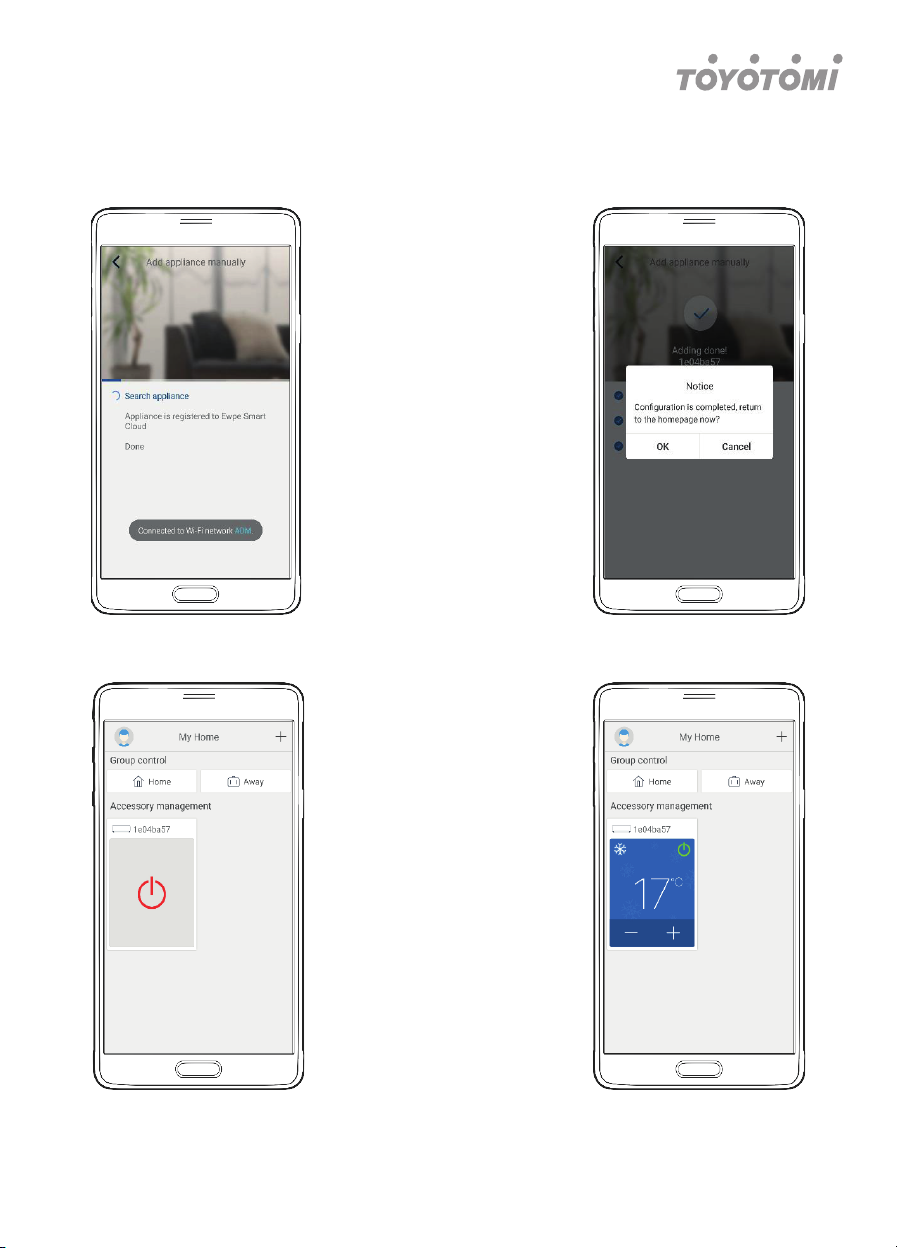

Connect an additional a/c on the application (manual mode)
The following mes-
sage will appear:
Configuration
complete – return
to home page
On the Home page (My
Home) the device that we
have connected will appear
from now on 1e04ba57
The following message
will appear : Connected
on WiFi network ADM
(Home router)
NOTE: Images (networks) are examples for the needs of the user guide

GB
15
Settings

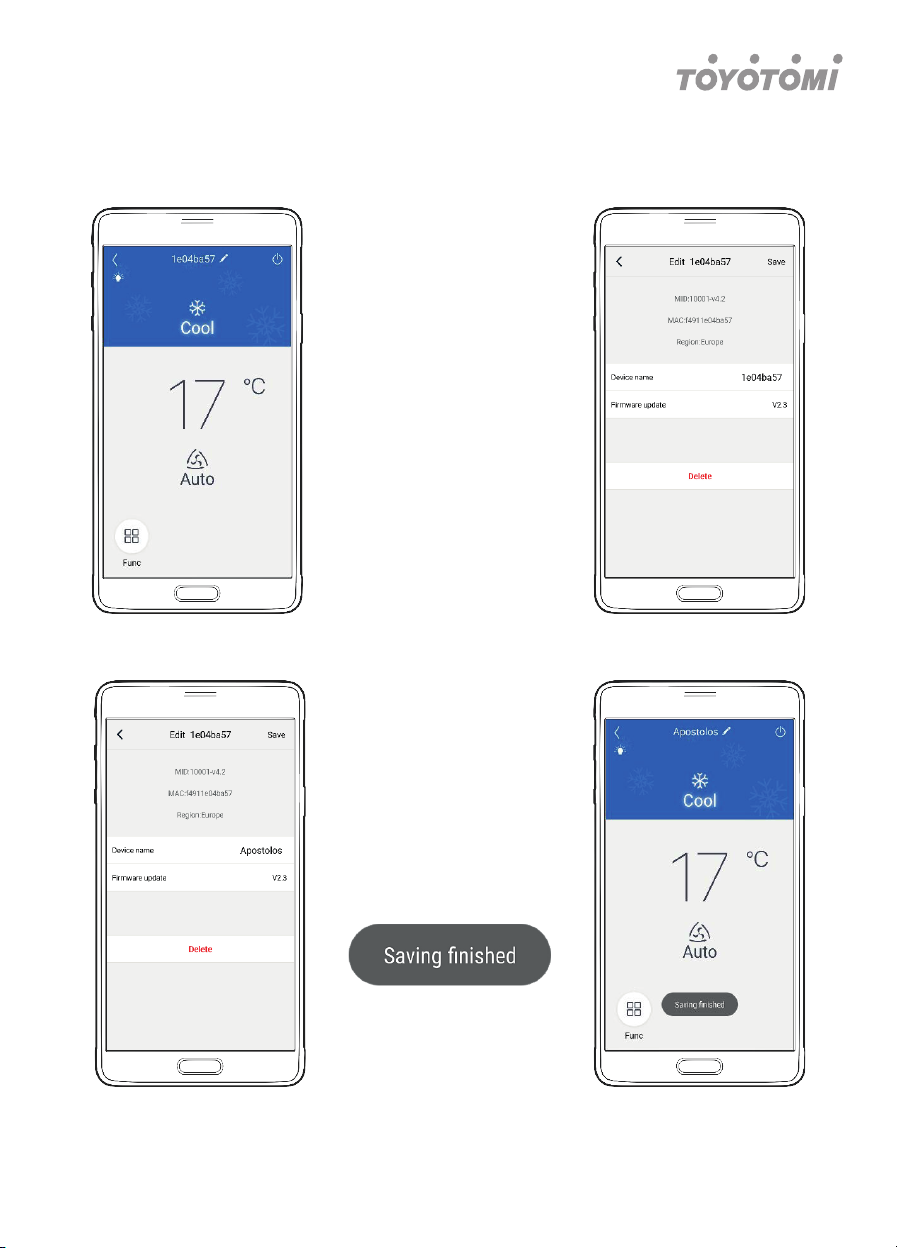

Step 6: Changing the name of the a/c
On the next page you will
find next to the Device
name the current name of
the a / c.
Insert the new name and
press save
The name has changed
The following message will
appear:
Press on the name of the a /c
on the menu page
NOTE: Images (networks) are examples for the needs of the user guide

GB
16

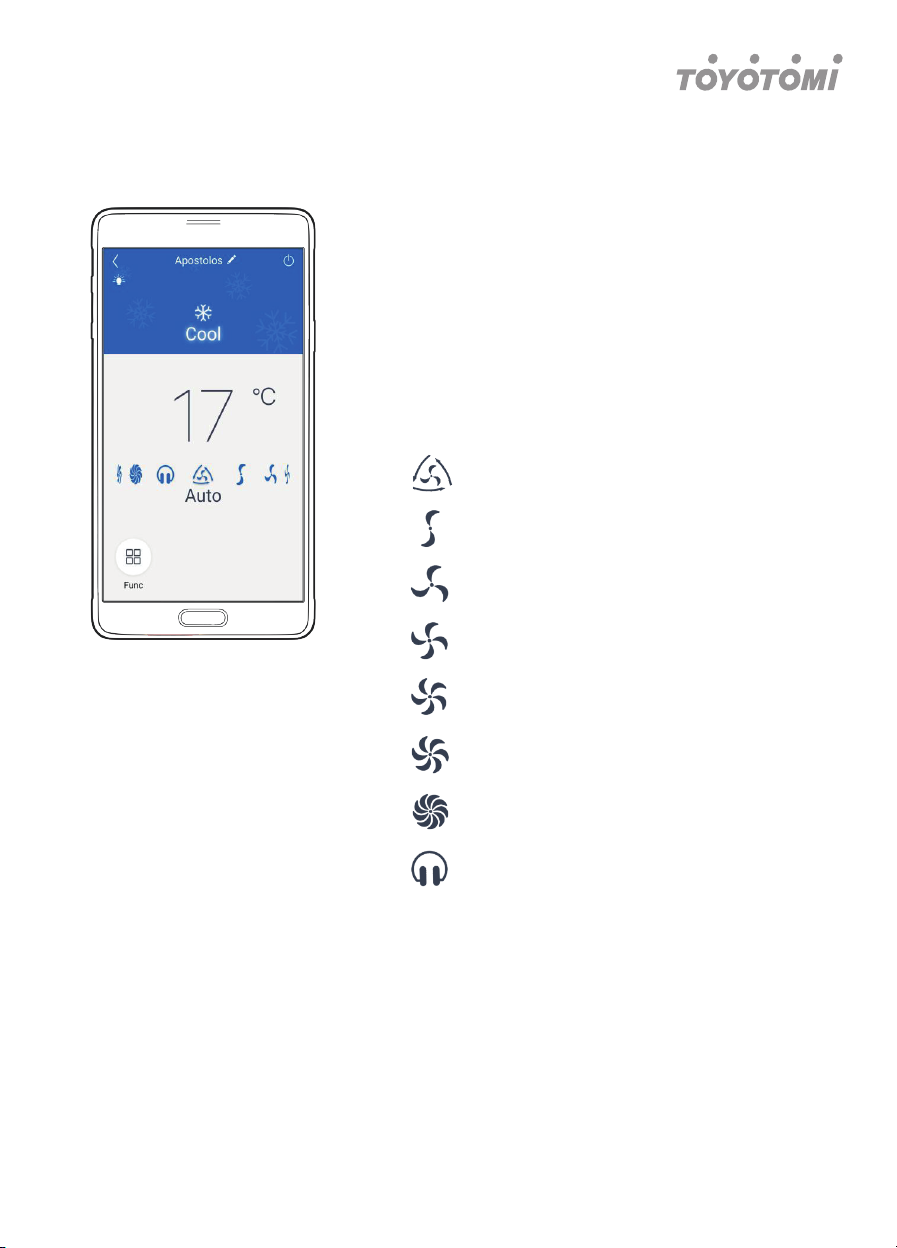

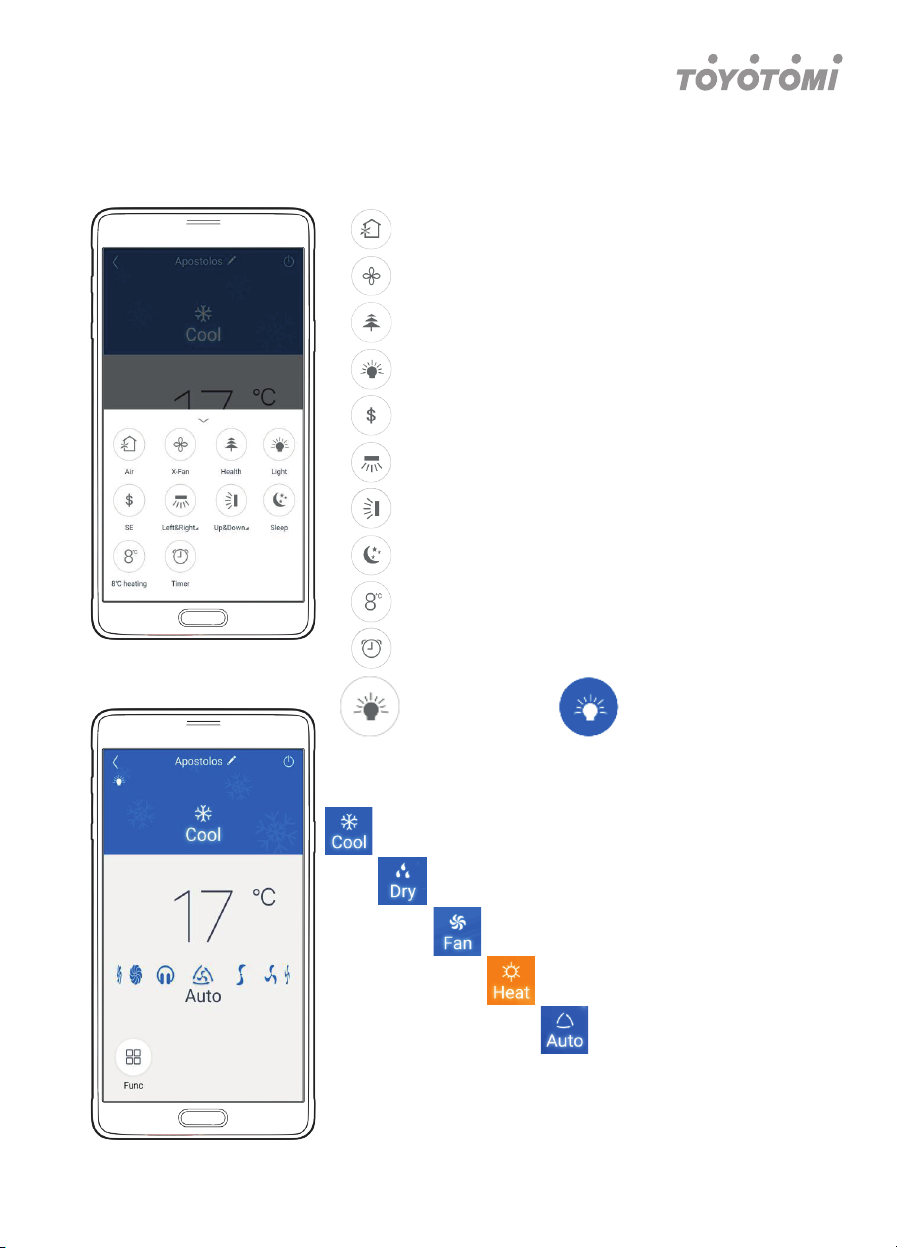

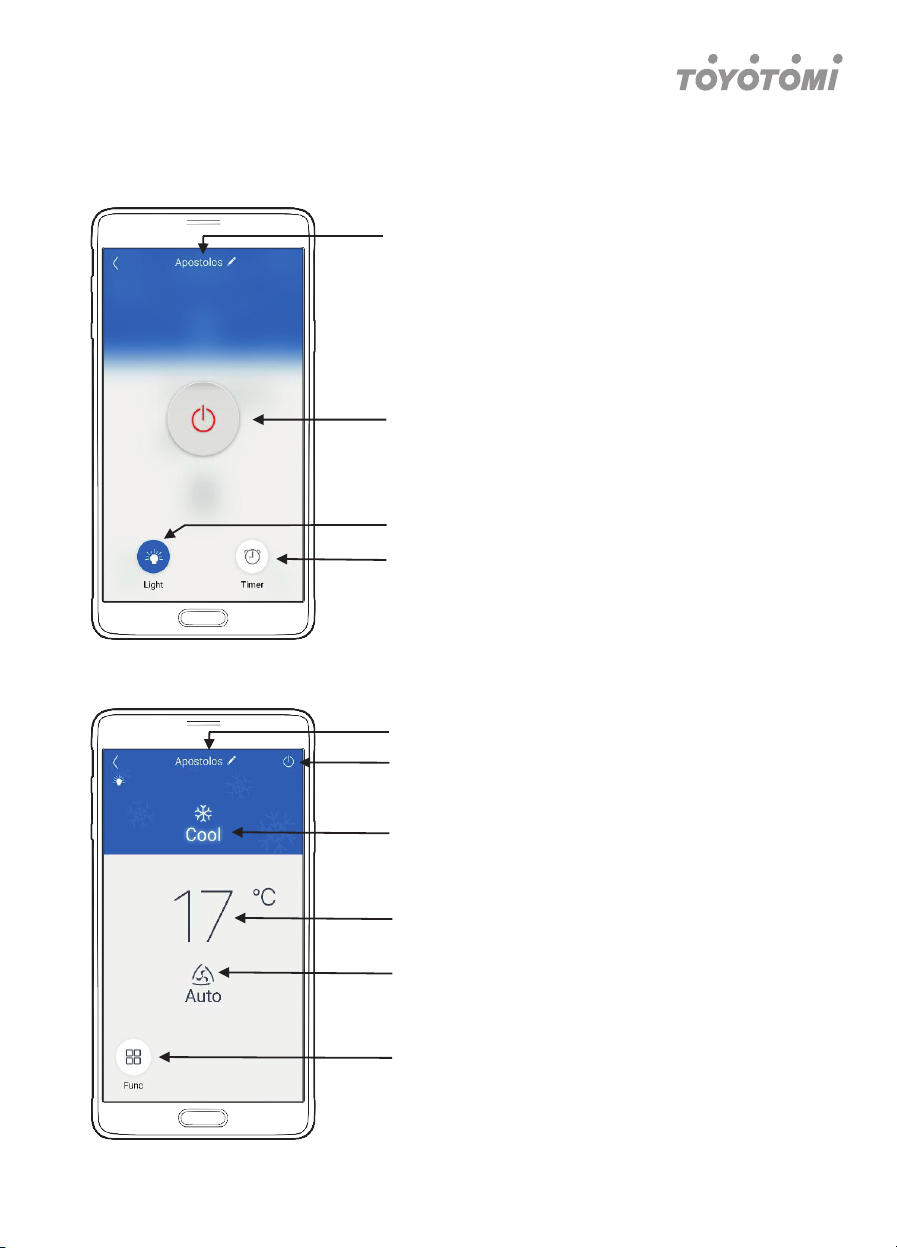

Now you can control the device through the “ Ewpe Smart“ application
• In case the configuration is unsuccessful, confirm that the WiFi network is active.
• If the WiFi network is working properly, repeat steps 3,4 and 5.
• If the configuration continues to fail, please contact TOYOTOMI.
• Repeat steps 3 to 5 to connect additional mobile devices.
• After the configuration is complete, click on the corresponding AC name to enter the control
fields for further operation.

GB
17
Basic Operation
Name of the a / c device
Activate the a / c device
a / c display mode - On/off
Timer
Name of the a / c device
Deactivate the a / c device
Mode
Tempetature
Auto mode
Menu

GB
18
Basic Operation
Menu
Air from outside (not available)
X-Fan (Self clean)
Health (Ionizer)
Light (Display mode (on/off)
SE (Save energy)
Left & Right (Louver Adjustment)
Up & Down (Louver Adjustment)
Sleep (Sleep mode)
8 °C heating
Timer
Off On
Choose operation mode

GB
19
Basic Operation
Menu
NOTE:
The software provides a help service through which the user can find operating instructions for
the application as well as other useful information.
Auto
Low
Medium-Low
Medium
Medium-High
High
Turbo
Quiet
Choose fan speed

ES
20
Introducción
Compatibilidad / conectividad Wi-Fi
Los aires acondicionados de montaje en pared tipo split TOYOTOMI IZURU vienen equipados
con conectividad Wi-Fi integrada. Mediante la aplicación Ewpe Smart (disponible en la App
Store o Google Play), puede controlar este aparato a distancia mediante teléfono inteligente o
tableta.
Se empleará un router de Wi-Fi (vinculado con el aparato mediante la aplicación Ewpe Smart)
para controlar el aire acondicionado.
1. Unidad interior del aire acondicionado (aparato de AC TOYOTOMI)
2. Teléfono inteligente o tableta (con uso de Wi-Fi)
3. Router de Wi-Fi
4. Servidor de web de la fábrica
5. Nube de Internet
6. Teléfono inteligente o tableta (con uso de conexión de nube de Internet)
Requisitos mínimos
• Aire acondicionado de montaje en pared tipo split TOYOTOMI IZURU
• Router de Wi-Fi, rango de frecuencia 2,4G con soporte de modo 802.11b/g/n, con cobertura
en la ubicación del aparato. (Wi-Fi de 5GHz no soportado)
• Para control mediante conexión de nube router de Wi-Fi / módem con conexión a Internet activa
• Teléfono inteligente / Tableta (Android 4.4+ o Apple iOS 7.0+) con aplicación Ewpe
Smart instalada
El aire acondicionado deberá estar instalado en un lugar con cobertura Wi-Fi
mediante router. En caso de que el dispositivo de control móvil se encuentre fuera
del rango de cobertura del router de Wi-Fi, el router de Wi-Fi requerirá conexión a
Internet para poder comunicarse con el dispositivo de control móvil.
1
2
3 5
internet
internet
45
