1
Power down all your network devices, including your computer(s) and the
Modem Router. If you currently use a modem, disconnect it now - the
Modem Router will replace your current modem.

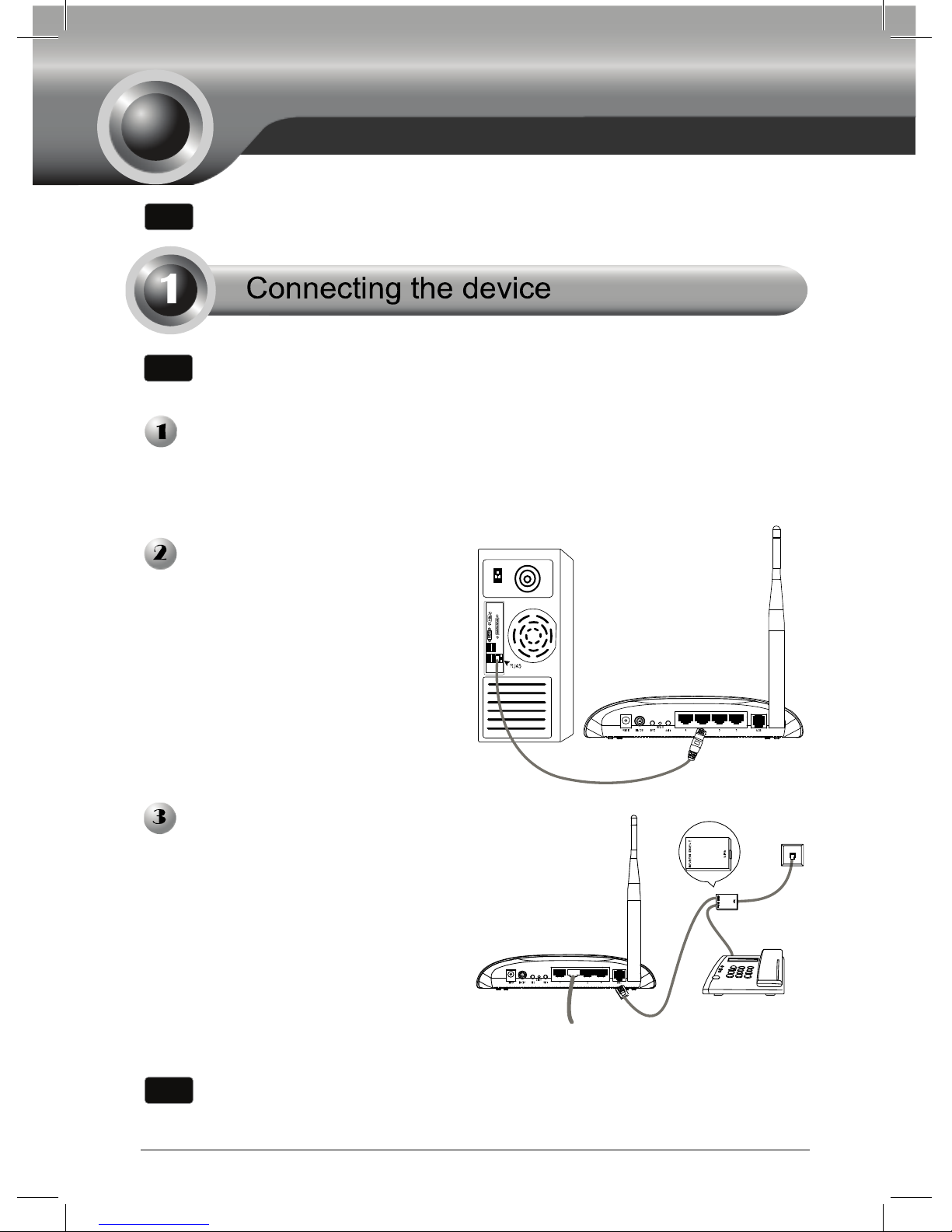

Connect your computer to the
Port labeled “1~4” on the Router
with an Ethernet cable.
Connect the splitter to the wall
jack using a telephone line, then
use the other telephone line to
connect to the ADSL port on the
Router and the MODEM port of
the splitter, also have the
PHONE port of the splitter
connected to a telephone.
If no telephone is needed, please connect the ADSL port of the Router to
the wall jack using the telephone line directly.
Note Please use only wired network connections to configure the router.
Installation
Note
The product model shown in this QIG is TD-W8951ND, as an example.
Note

2

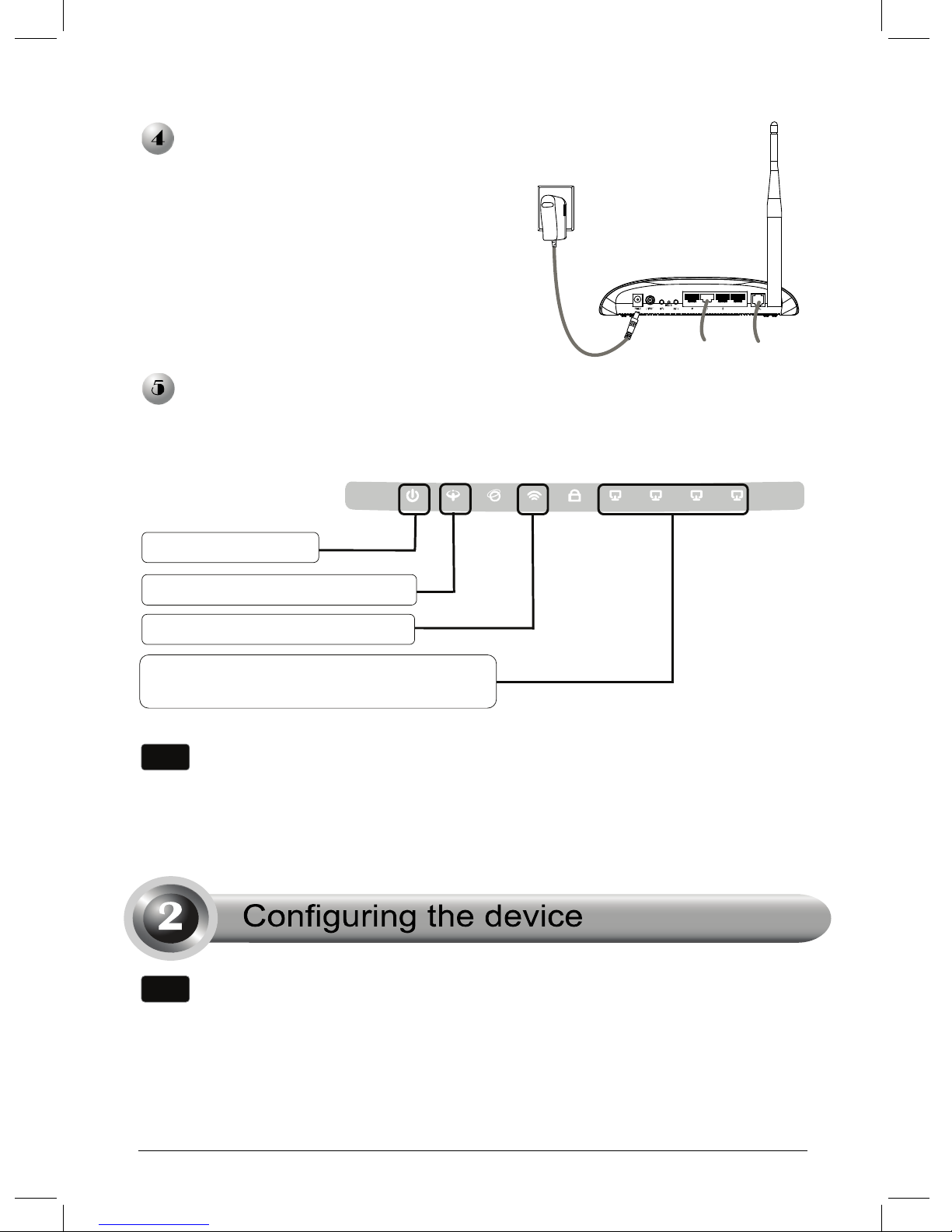

Plug the provided Power Adapter into
the Power jack on the back of the Router
and the other end to a standard
electrical wall socket.
Power on all your network devices and then check to see if the LEDs of the
Router display normally as the diagram below describes.
If the LEDs display abnormally, please check to see if all the cable
connectors (power adapter, phone line and Ethernet cable) are well
connected to your device. With the phone line well connected, if the ADSL
LED turns off after flashing, please contact your ISP to ensure that you
r
internet connection is active.
Note
To configure the device, you can either run the setup CD-ROM (method one),
or run the Web based Quick Setup Wizard (method two). TP-LINK strongly
recommends that you run the setup CD-ROM.
Note
LAN: Solid light if the corresponding
port is connected
Power: Solid light
ADSL: Solid light or flashing
WLAN: Solid light or flashing

3
The configuration has now been completed. Please skip to Step 3 “Testing the
Internet Connection”.

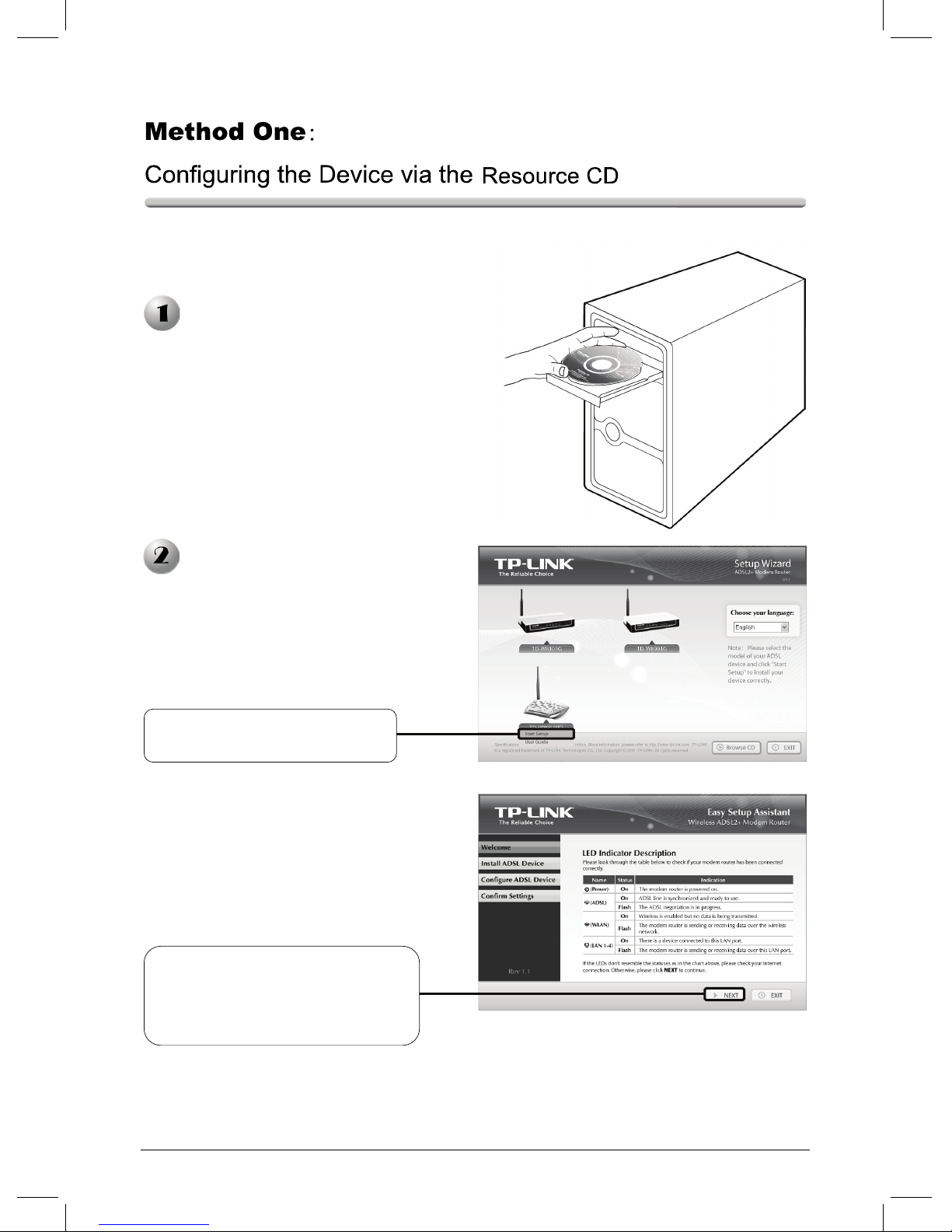

Insert the provided Resource
CD into your CD-ROM drive.
The Setup Wizard will
automatically pop up on
your computer’s screen.
Then a flash video will pop up and
show you how to connect you
r
devices. After that, the Easy Setup
Assistant will start.
Click NEXT, and then follow
the step-by-step instructions
until you complete the
confi
g
uration
Please select your product
model and click Start Setup

4
Login
A
dialog box will prompt you for the
User name and Password. Enter
the default values and click OK.
Note
The web management page will
display after a successful login.
If the dialog box does not pop up, please refer to T3 in the Troubleshooting
guide and T2 will give you some help if you forget the password.
Click OK
User name: admin
Password: admin

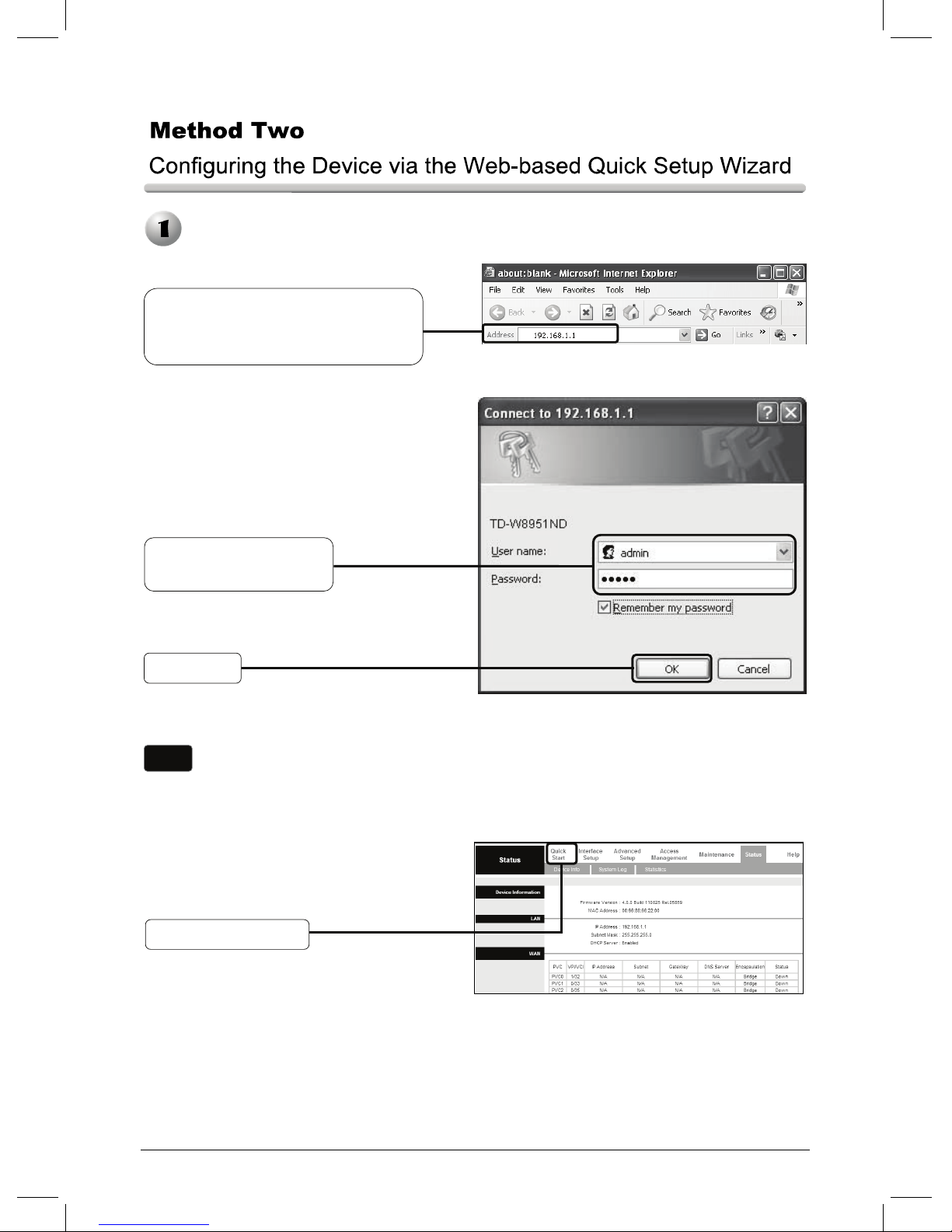

Open your web browser and
type 192.168.1.1 in the address
bar and press Enter
Click Quick Start

5
Internet Parameters Configuration
This page will then display.
Bridge mode is not recommended because multiple computers are not
permitted to share Internet access in this mode.
Note
Select the appropriate Time
Zone for your location from
the drop-down list
Choose the Connection Type
given by your ISP.
If PPPoE/PPPoA is selected,
please proceed to A;
If Dynamic IP is selected,
please skip to B;
If Static IP is selectedLjplease
skip to C;
If Bridge Mode is selected,
please skip to D.
Click RUN WIZARD
Click NEXT
Click NEXT
Click NEXT

6

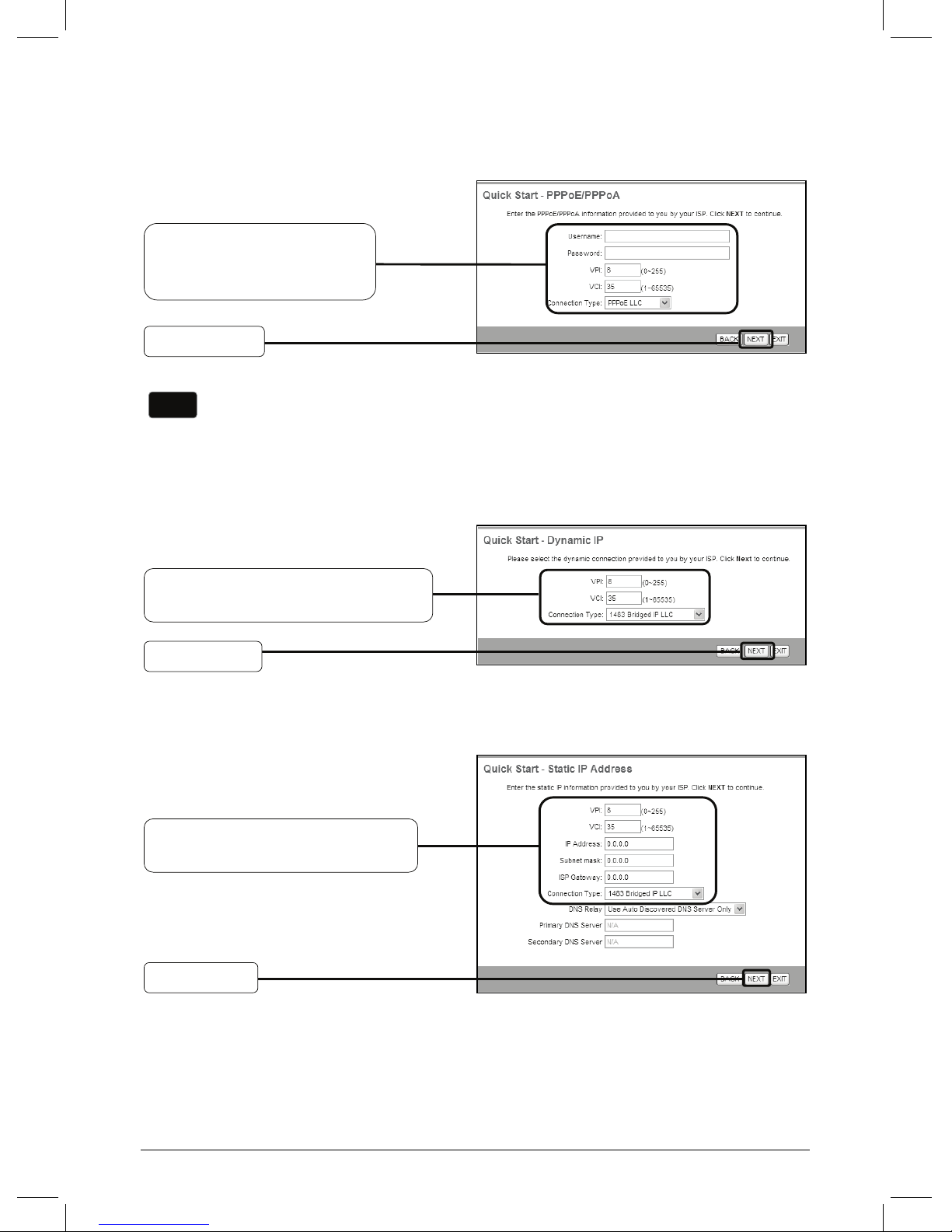

A. Configuration for PPPoE/PPPoA
B. Configuration for Dynamic IP
C. Configuration for Static IP
This page will then display.
This page will then display.
If you did not get the VPI, VCI and Connection Type information,
please contact your ISP for this information.
Note
This page will then display.
Enter the PPPoE/PPPoA
information provided by
your ISP
Click NEXT
Select the dynamic connection
provided by your ISP
Click NEXT
Enter the Static IP information
provided by your ISP manuall
y
Click NEXT

7
D. Configuration for Bridge Mode
Wireless Settings Configuration
This page will then display.
A
fter completing the above configuration, please proceed to Wireless
Settings Configuration
Click NEXT
Enter the Bridge information
provided by your ISP
Note
This page will then display.
Keep the default setting: Activated.
If you want to disable Access Point,
please select Deactivated
Select an Authentication Type
Select an Encryption type
Enter a Security Key using
8-63 characters
Click NEXT
The wireless security is Disabled by default. You are suggested to select
an Authentication Type for security settings. WPA2-PSK is recommended.
A
fter completing the above configuration, please proceed to Quick Start
Complete.
Create a unique and
easy-to-remember name for your
wireless network. You can also keep
default settings without the device
being affected

8

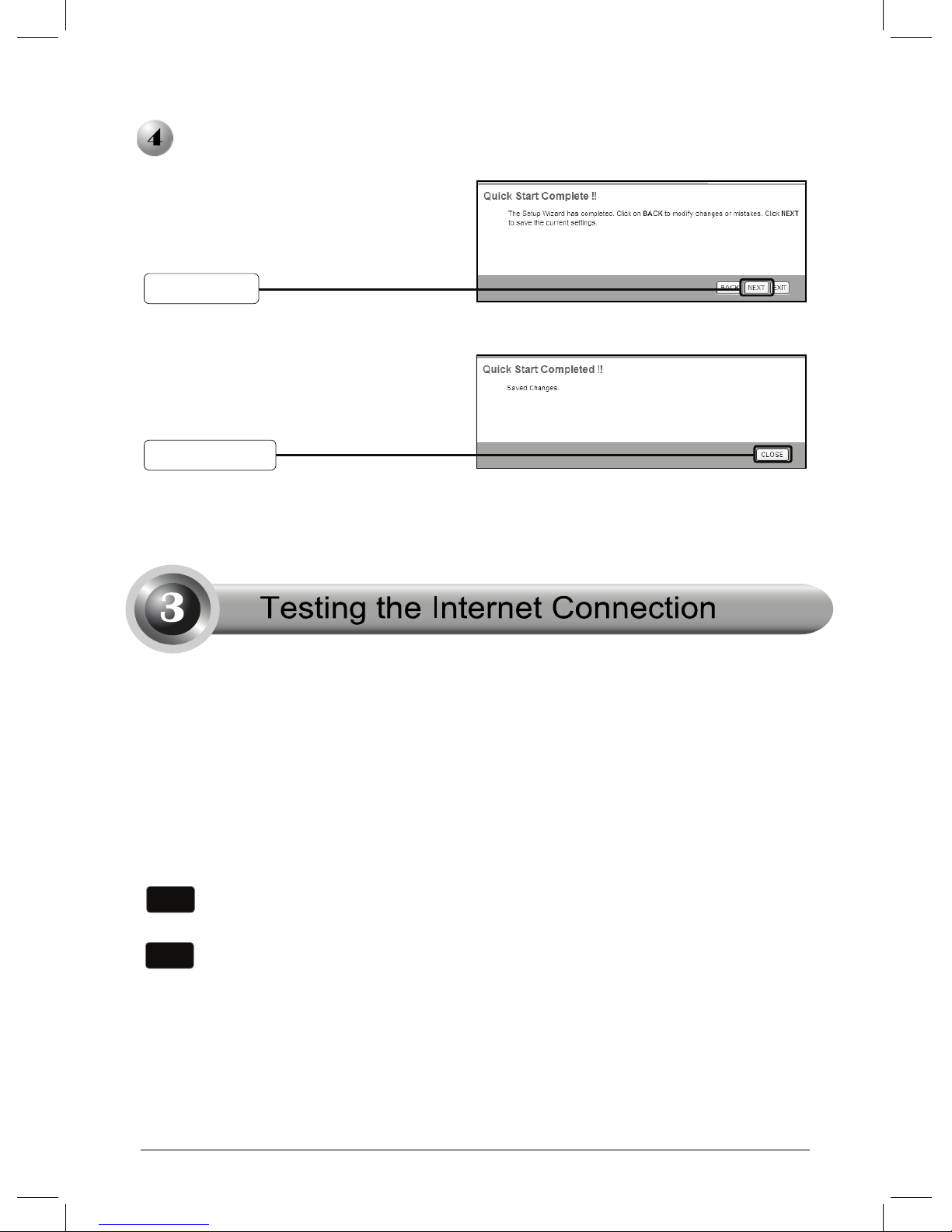

Quick Start Complete
The basic settings for your Router are completed. Please open the web browser
and log on to the following websites:
http://www.tp-link.com
http://www.google.com
If the above websites can be accessed, it indicates that your Router has been
configured successfully and you can start to enjoy the Internet. If the websites
cannot be accessed, please refer to “T4. What can I do if I cannot access the
Internet?” in the Troubleshooting guide.
To continue, the following page will
display.
Now, your Modem Router has been configured and is rebooting. Please do not turn
off the Modem Router while it’s rebooting.
For the advanced configurations, please refer to the User Guide on the
CD-ROM provided.
Note
Click CLOSE
Click NEXT
Note The above configurations only need to be set once. If you want other
computers in your LAN to access the Internet, please connect the desired
computer to the ADSL Router directly. If the additional computer can not
access the Internet, please set that computer referring to “T3. What can I
do if I cannot access the web-based configuration page?” in the
Troubleshooting guide.

9
Note
T1. How do I restore my Router’s configuration to its factory default settings?
T2. What can I do if I don’t know or forgot my password?
1) Restore the Router’s configuration to its factory default settings. If you don’t
know how to do that, please refer to section T1.
2) Use the default user name and password: admin, admin.
3) Try to configure your Router once again by following the instructions in the
previous steps of the QIG.
T3. What can I do if I cannot access the web-based configuration page?
1) Configure your computer’s IP Address.
For Windows XP OS
Once the Router is reset, the current configuration settings will be lost and
you will need to re-configure the router.
With the Router powered on, press
and hold the RESET button on the
rear panel for 8 to 10 seconds
before releasing it.
Press it for 8 to 10 seconds
Troubleshooting

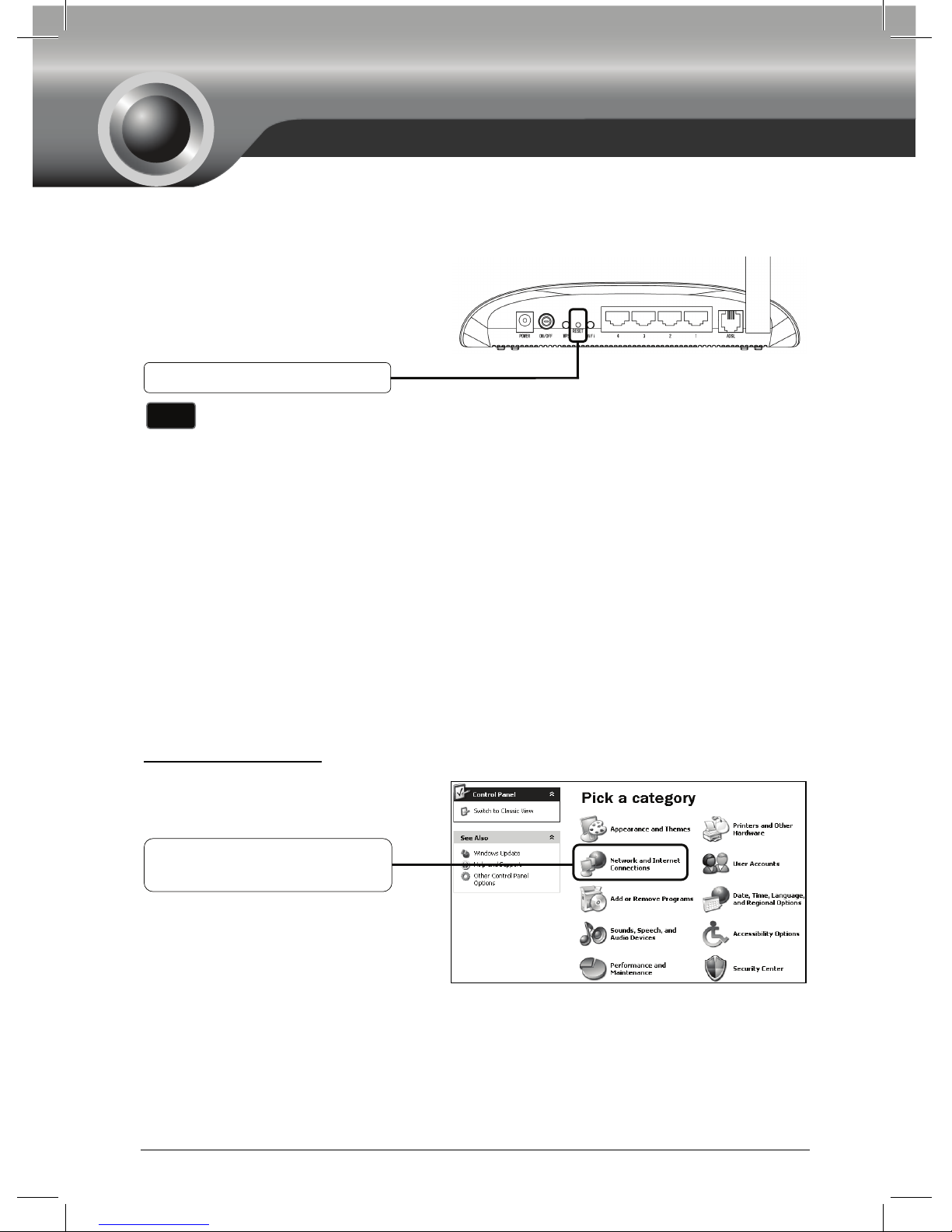

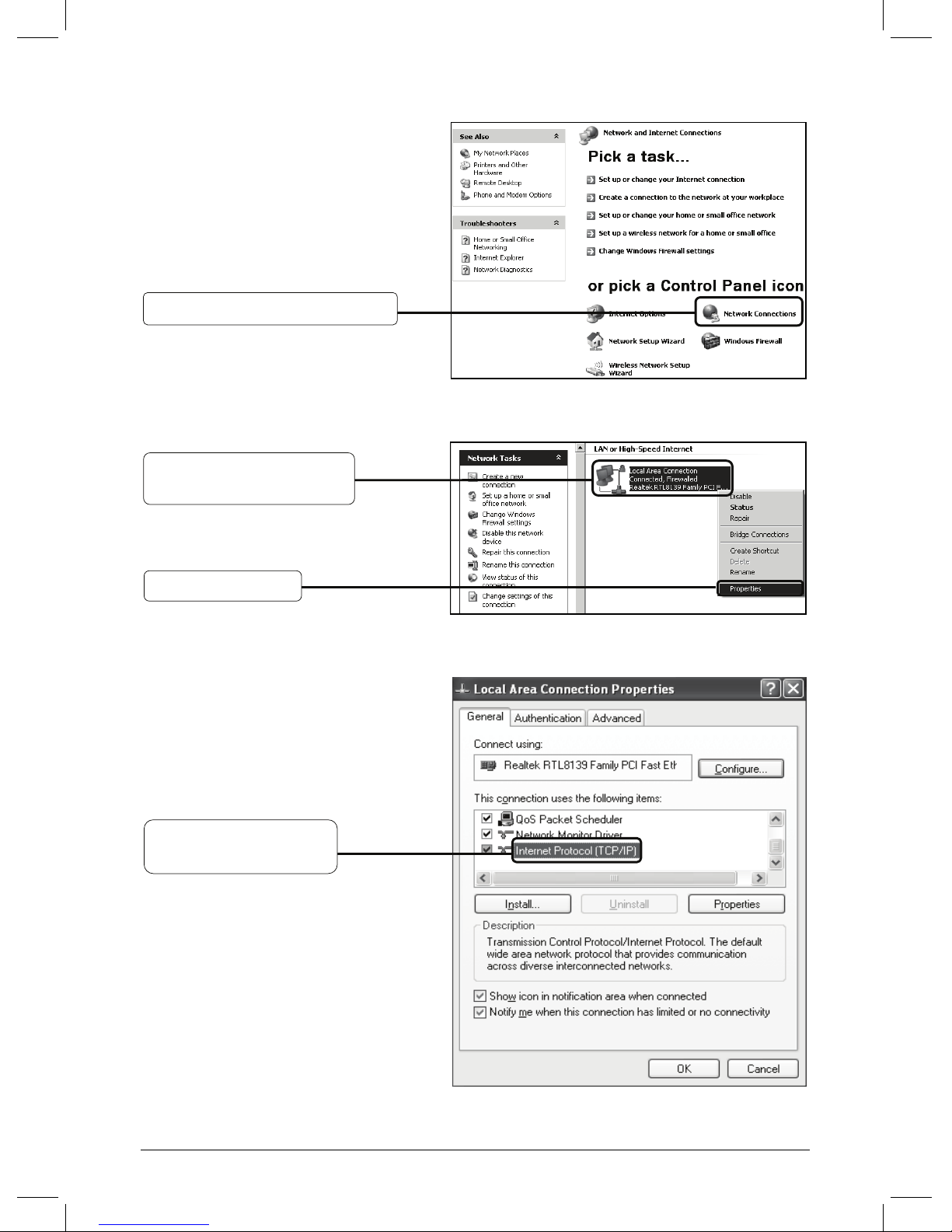

Go to Start > Control Panel, you
will then see the following page.
Click Network and Internet
Connections

10
Click Network Connections
Right-click Local Area
Connection
Click Properties
Double-click Internet
Protocol (TCP/IP)

11

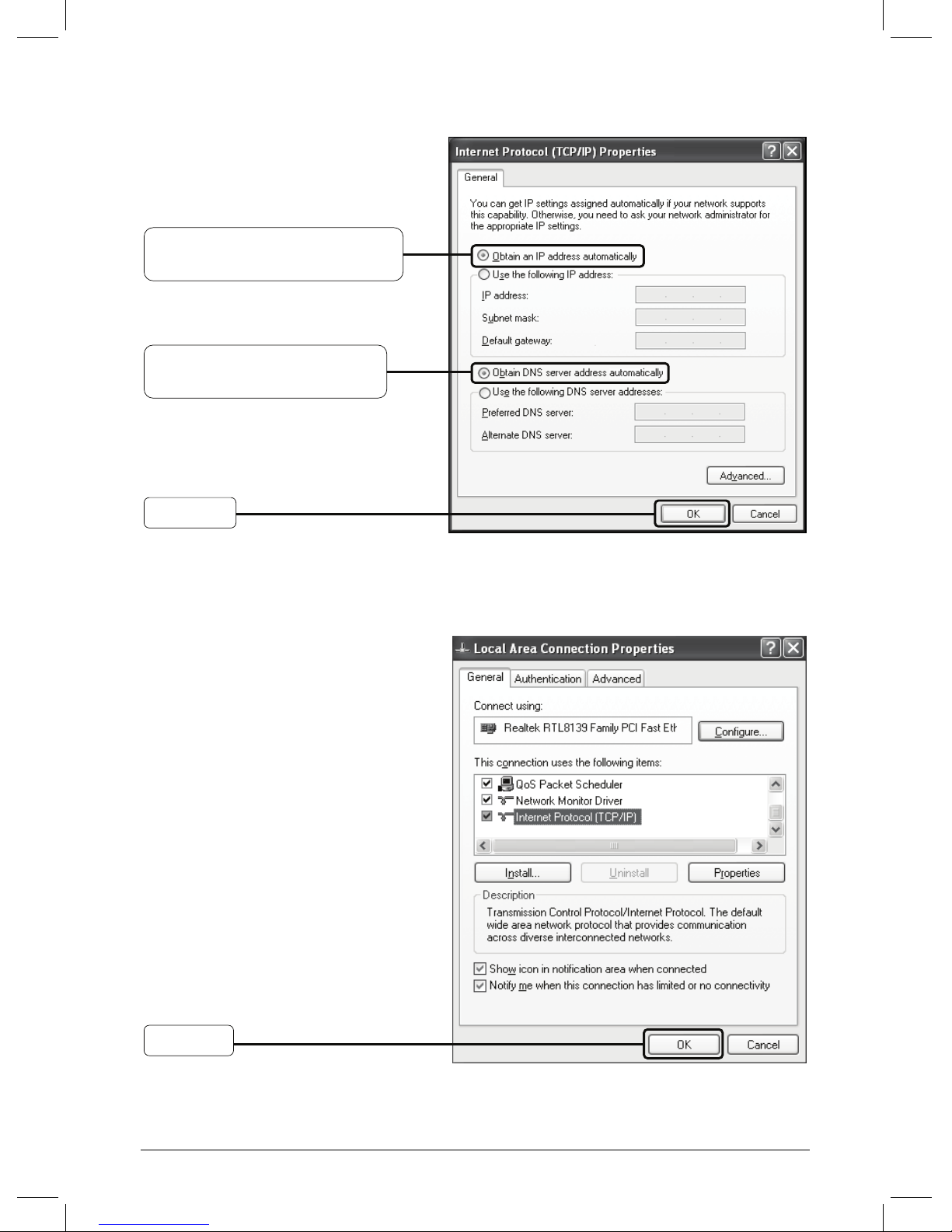

Select Obtain DNS server
address automatically
Click OK
Select Obtain an IP address
automatically
Click OK

12
For Windows Vista OS
Go to Start > Settings >Control
Panel, and then you will see the
following page.
Click View status
Click View network
status and tasks
Click Properties

13
Double-click Internet Protocol
V
ersion 4 (TCP/IPv4)
Select Obtain an IP address
automatically
Select Obtain DNS server
address automatically
Click OK

14
For Windows 7 OS

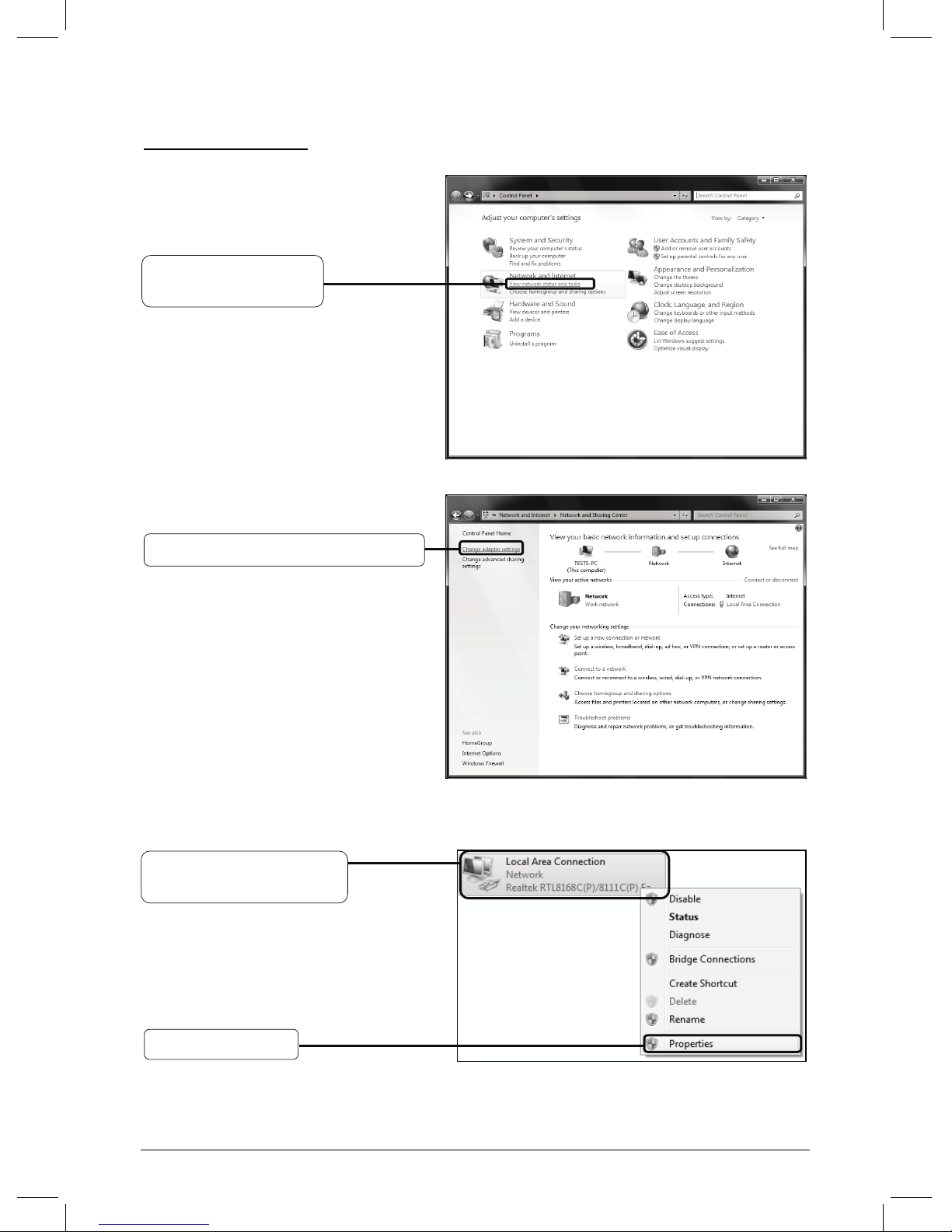

Go to Start > Settings > Control
Panel, and then you will see the
following page.
Click View network
status and tasks
Right-click Local Area
Connection
Click Properties
Click Change adapter settings

15
Select Obtain an IP
address automatically
Select Obtain DNS server
address automatically
Click OK
Double-click Internet Protocol
V
ersion 4 (TCP/IPv4)

16
2) Configure your IE browser
Now, try to log on to the Web-based configuration page again after the above
settings have been configured. If you still cannot access the configuration page,
please restore your Router’s factory default settings and reconfigure your Router
following the instructions of this QIG. Please feel free to contact our Technical
Support if the problem persists.

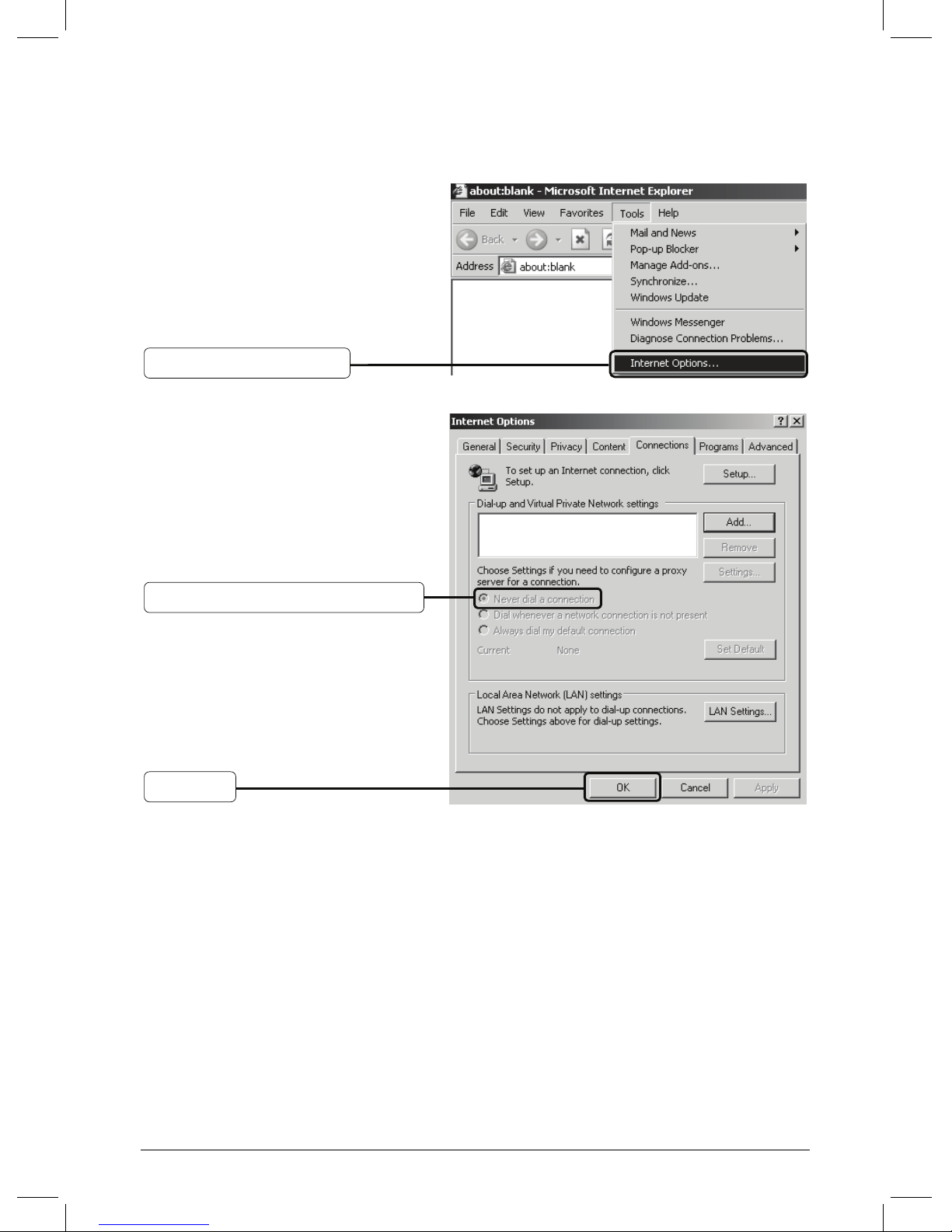

Open your IE browser, click
Tools tab and you will see the
following screen.
Click Internet Options
Select Never dial a connection
Click OK

17
Note
T4. What can I do if I cannot access the Internet?
1) Check to see if all the connectors are connected well, including the telephone
line, Ethernet cables and power adapter.
2) Check to see if you can log on to the web management page of the Modem
Router. If you can, try the following steps. If you cannot, please set your
computer referring to T3 then try to see if you can access the Internet. If the
problem persists, please go to the next step.
3) Consult your ISP and make sure all the VPI/VCI, Connection Type, account
username and password are correct. If there are any mistakes, please correct
the settings and try again.
4) If you still cannot access the Internet, please restore your Router to its factory
default settings and reconfigure your Router by following the instructions of
this QIG.
5) Please feel free to contact our Technical Support if the problem still exists.
For more details about Troubleshooting and Technical Support contact
information, please log on to our Technical Support Website:
http://www.tp-link.com/support/Support.asp

Technical Support
For more troubleshooting help, go to:
www.tp-link.com/support/faq.asp
To download the latest Firmware, Driver, Utility and User Guide, go to:
www.tp-link.com/support/download.asp
For all other technical support, please contact us by using the following
details:
Global
Tel: [phone]
E-mail: [e-mail]
Service time: 24hrs, 7 days a week
