TrailFX A7013S User manual

www.FX-Products.com
CAN FIT IN DIESEL TRUCKS
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE.STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
60-180 min
[e-mail]
1 866 638 4870
POLISHED STAINLESS STEEL –LIMITED LIFETIME
POWDER COATED BLACK –3 YEARS
Cutting Not
Required
PARTS LIST:
Qty
Part Description
Qty
Part Description
1
Driver/Left Side Bar
10
8mm Deep Clip Nuts
1
Passenger/Right Side Bar
10
8-1.25mm x 30mm Hex Bolts
2
Driver/Left Front-Passenger/Right Rear Mounting
Brackets
22
8-1.25mm x 25mm Hex Bolts
2
Passenger/Right-Driver/Left Rear Front Mounting
Brackets
10
8mm x 28mm OD x 3mm Large Flat Washers
1
Driver/Left Center Mounting Bracket
32
8mm x 24mm OD x 2mm STD Flat Washers
1
Passenger/Right Center Mounting Bracket
32
8mm Lock Washers
10
8mm Hex Nuts
INSTALLATION PROCEDURE:
1. Starting on the driver side of the vehicle, locate the (2) holes in the pinch weld to find the factory mounting holes in the inner side
panel, (Figure 1). NOTE: The inner holes may be covered with sealing tape or insulation. Slide the 8mm Clip Nuts into the
opening with the nut towards the inside. Line up the threaded nut on the clip with the round holes, (Figure 1).
2. Partially attach the driver side Mounting Bracket to the Clip Nuts with the included (2) 8mm x 30mm Hex Bolts, (2) 8mm Lock
Washers and (2) 8mm x 28mm Large Flat Washers, (Figure 2). Depending on model and year, the brake cable may be run on
the inside or outside of the Bracket. Do not tighten hardware at this time. NOTE: The Cradle on the Front Mounting Bracket
should face to the rear of the vehicle.
Page 1of 4 Rev061517
`
5" Oval Nerf Bar
Part No. A7013S/B
2 0 1 4 Fits: 2009 - 2014 Ford F150 Super Crew Cab
Drilling Not
Required
Driver/Left Rear
Mounting Bracket
Driver/Left Center
Mounting Bracket
Driver/Left Front
Mounting Bracket
Passenger/Right Rear
Mounting Bracket
Passenger/Right
Center Mounting
Bracket
Passenger/Right
Front Mounting
Bracket
Front

www.FX-Products.com
Page 2 of 4 Rev 061517
3. Align the bottom holes in the front Mounting Bracket with the (2) holes in the pinch weld. Bolt the Bracket to the pinch weld using
the included (2) 8mm x 25mm Hex Bolts, (2) 8mm Lock Washers, (4) 8mm STD Flat Washers and (2) 8mm Hex Nuts, (Figure
2). NOTE: Insert the bolts up from the bottom of the pinch weld and through the Bracket.
4. Repeat Steps 1 –3 for Rear Mounting Bracket installation. NOTE: The cradle on the Rear Mounting Bracket should face the
front of the vehicle, (Figure 3). The mounting holes will be the last set towards the back of the cab.
5. Select the driver side Center Mounting Bracket. Locate the mounting location and insert (1) 8mm Nut Clip as per Step 1, (Figure
4). Secure the Center Bracket to the Clip Nut with (1) 8mm x 30mm Hex Bolt, (1) 8mm Lock Washer and (1) 8mm x 28mm
Large Flat Washer, (Figure 5). Line up the (1) bottom hole with the hole in the pinch weld and bolt together with (1) 8mm x
25mm Hex Bolt, (1) 8mm Lock Washer, (2) 8mm STD Flat Washers and (1) 8mm Hex Nut. Do not tighten hardware at this time.
NOTE: The cradle on the Center Mounting Bracket should face the front of the vehicle.
Rear
(Fig 3) Driver side-rear Mounting Bracket location
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washer
(4) 8mm STD Flat Washers
(2) 8mm Hex Nuts
(2) 8mm Clip Nuts
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm x 28mm Large Flat Washers
(Fig 1) 8mm Clip Nuts (hole in body panel shown for
example only
-
location and shape may differ slightly)
(Fig 2) Driver side-front Mounting Bracket location
(2) 8mm Clip Nuts
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm x 28mm Large Flat Washers
Front

Page 3 of 4 Rev 061517
6. Carefully position the Sidebar onto the Mounting Bracket cradles and attach it using the included (6) 8mm x 25mm Hex Bolts, (6)
8mm Lock Washers and (6) 8mm STD Flat Washers, (Figures 5 & 6). Do not tighten hardware at this time.
7. Level and adjust the Sidebar properly and tighten all hardware.
8. Repeat Steps 1 – 7 for passenger Sidebar installation.
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
Front
(Fig 4) Driver side-center Mounting Bracket location
(1) 8mm Clip Nut
Front
(Fig 5) Driver Side Center Mounting Bracket location
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washer
(2) 8mm STD Flat Washers
8mm Clip Nut
8mm x 30mm Hex Bolt
8mm Lock Washer
8mm x 28mm Large Flat Washer
8mm x 25mm Hex Bolt
8mm Lock Washer
(2) 8mm STD Flat Washers
8mm Hex Nut
Fig 6
Rear
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washer
(2) 8mm STD Flat Washers
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washer
(4) 8mm STD Flat Washers
(2) 8mm Hex Nuts
(2) 8mm Clip Nuts
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm x 28mm Large Flat Washers
www.FX-Products.com

www.FX-Products.com
Page 4 of 4 Rev 061517
1. Hardware’s are not of correct size.
In GMC / Chevrolet truck model 2006 & up, customer needs to reuse the factory body bolts to install the bracket. If your vehicle is not
GMC / Chevrolet 2006 & up, ensure that holes are not partially covered with any plastic grommet or rust? If it is, remove the plastic
grommet & rust from the thread holes & re-try the installation.
2. Mounting Bracket are not getting Installed properly.
In some cases Illustration images shown in Installation manual may not be the exactly same as per actual vehicle images ,also if Driver /
Passenger side mounting brackets are very identical in the design, suggest referring Parts Identification guide to avoid fitment issue.
3. Products are thumping / rattling after installation.
Ensure that all required mounting brackets / hardware’s are installed & tighten correctly. Suggest using white lithium / regular grease
between the metal to metal contact surfaces.
4. Side Bar is not aligning with vehicle / Step Pads are not aligning with vehicle doors.
Side bar may be interchanged or mounting brackets are not installed at the correct position in the vehicle. Refer Parts identification guide.
5. Missing / Excess Hardware.
Recheck hardware count as per the part list.
6. Product not installing properly.
Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly.

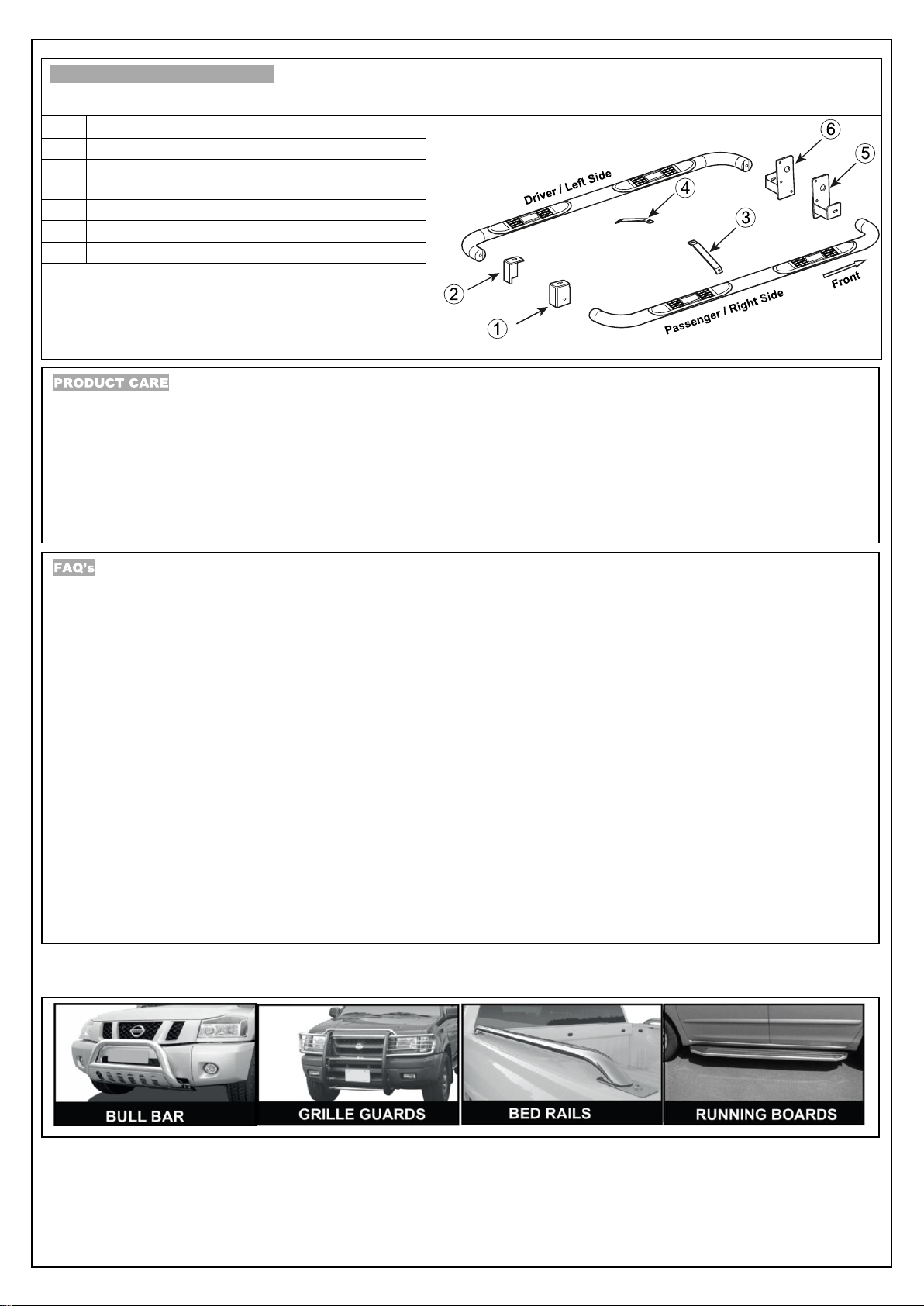

PARTS IDENTIFICATION GUIDE
Driver Side tube packed using “Green” color foam sheet. Passenger Side tube packed using “White” color foam sheet
No.
Parts Identification
1
Passenger / Right ‘Rear’ Bracket marked “PR”
2
Driver / Left ‘Rear’ Bracket marked “DR”
3
Passenger / Right ‘Center’ Bracket marked “PC”
4
Driver / Left ‘Center’ Bracket marked “DC”
5
Passenger / Right ‘Front’ Bracket marked “PF”
6
Driver / Left ‘Front’ Bracket marked “DF”
Note:
This guide is to identify the parts and not a reference for part count.
For part count, refer Parts List.
Product / Bracket image is representative and actual design may vary.
Check out these other TrailFX
Products!! www.FX-Products.com
Periodically check the product to ensure all fasteners are tight and components are intact.
Regular waxing is recommended to protect the finish of the product.
Use ONLY Non-Abrasive automotive wax. Use of any soap, polish or wax that contains an abrasive is detrimental and can scratch the
finish leading to corrosion.
Aluminum polish may be used to polish small scratches and scuffs for Stainless Steel finish.
Mild soap may be used to clean the product for both Stainless Steel and Black finish.
Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the
original retail consumer. KAO disclaims any other warranties, express or implied, including the warranty of fitness for a particular purpose or an
intended use. If the product is found to be defective, KAO may replace or repair the product at our option, when the product is returned prepaid,
with proof of purchase. Alteration to, improper installation, or misuse of this product voids the warranty. KAO’s liability is limited to repair or
replacement of products found to be defective, and specifically excludes liability for any incidental or consequential loss or damage.
