Tramigo T22 User manual

Tramigo T22
Find, guide and protect your family and assets!

Getting Started
•Power on the unit
– The green power LED will flash every 5 seconds
– Charge the unit for 3.5 hours – plug into vehicle Cigar lighter plug or wall outlet –
power LED is on solid when charging
•Insert SIM card
– Ensure there is no PIN code
– SIM must be able to send and receive SMS
– SIM account must have credit (pre-paid)
– Use new SIM card
•Send OWNER,0000 command to the unit
•Set the unit Name – NAME,My car
•Add other users – AU,+555555,Friend
– 3 levels of security Owner, Friend, Guest
•Turn on the reports you want
–Trip
–Alarm
– Speed
–Power

Unit Controls
•Buttons
–Power shuts down GPS and GSM
–Phone
•Answers incoming call
•Initiates outgoing call
–SOS triggers assistance report
–All buttons must be pressed for 2
seconds to activate
•Press time can be configured
–Buttons can be configured off
•LED
–Power (green)
•Flash every 5 seconds indicates
unit is awake
•Solid when charging
–GPS (red) right side
•On indcates problem getting a
GPS fix
•Off indicates GPS fix
–GSM (red) left side
•On indcates problem connecting
to the GSM network
•Off indicates connected
•Flashing indicates trouble sending
a SMS
–No load fore pre-paid account
–Network busy
–GSM and GPS LED flash when
call is incoming

Commands
•3 main types of commands
– Automatic Reports – Requests that the T22 inform you of an
event – Example: Trip, Zone, Alarm, Speed, Auto Find, Power.
T22 responds with a confirmation that the report is active. ST will
show which reports you have activated.
– Status – Provides the current status of the unit – Example: Find,
Find,Near, Status, Settings, Get
– Configuration – Sets up how the unit operates – Example: Name,
AddUser, Coord, Metric, Time, Language, Set
•Commands can be upper or lower case
•Up to 5 commands can be sent at once. Ex: T>P>A>F
•User must have the correct authority to send a command

Reporting
•Each user controls their own reporting
•STATUS shows which reports are active
– T22: Status, GPS: 80%, GSM: 100%, battery: charging, reports:
Power, Trip (15), 13:46 Sep 26
•SETTINGS shows which reports are active for all users
– T22: Settings, Alarm:-, Ignition:-, Power:1/2, Trip:2, Speed:-,
Zone:-, user locations:5, Metric:on, 16:33 Aug 21
•Reports can be longer than 1 SMS
•Automatic reports do not impact sleep mode
•Report language is the same for all users
•METRIC,OFF will display miles in all reports
•COORD,ON will add coordinates to all reports
– DMS is default, use COORD,DEC for decimal degrees

Security
•Owner sets password (alpha-numeric)
– Unit shipped with code 0000
– Up to 20 digits can be used
– Password,oldPassword,newPassword
•Only authorized users will get response from unit
– ADDUSER command used to add users
– If the phone number already exists then it is replaced
•Up to 10 users can be authorized to access the unit
•3 Authorization Levels
– Owner – can configure the system and as well as Friend and
Guest commands
– Friend – can subscribe to automatic reports as well as Guest
commands
– Guest – can only use Find and Help commands.
•SMS are protected by GSM security
•OWNER,password command is used if owner loses their phone

Find Report
•T22: moving 0.31 km NE from San Antonio Village/Santol Street,
Makati, NCR, RP, E with speed 24 km/h, 21:31 Sep 22
•T22: parked 0.18 km N from Tramigo Office, Belair, Makati City, PH,
14'33"36N, 121'01"08E, old position, 17:26 Sep 19
•F, Find, blank SMS all create FIND report
•F,x,y for automatic reports, x is minutes, y is km - F,OFF to turn off
– FIND report will be sent every x minutes
– FIND report will be sent when the vehicle has moved y kilometers
•FIND,near shows 3 closest locations – F,near,5 show 5 nearest
•T22: parked at Walter Mart Don Bosco, San Lorenzo, Makati City, PH,
13:58 Sep 26
– Indicates that unit is at a location when within 50m of location
– Uses closest point from either pre-loaded or user location directory
– Time stamp is from GPS, time zone is from GSM operator
– Location is 4 parts first 3 contain information about the location and the
4th is the country code.

Find Report
•Unit state is based on Trip Status only
– Parked - a trip has not been detected
– Stopped - a trip has started but the unit is not moving
– Moving – A trip has started and the unit is moving
– When a trip has just started the unit state can report parked,
even if the vehicle is moving. See TRIP command for the trip
parameters
•Old Position is reported if last GPS fix is older than 3 minutes
•Date is Jan 1 until first GPS fix, Time is set after unit receives
its first SMS.
– If operator time is wrong use TIME,gmtOffset to get the correct
time

Trip Report
•T22: trip report, start at Arnaiz Avenue-Pasong Tamo, end at Tramigo Office,
trip time 0:20, distance 2.06 km, max speed 64 km/h, avg speed 5.9 km/h, idle
time 0:03, 20:32 Sep 25
•T,ON turns on reporting
•Trip is started when
– Ignition on is detected (UseIgnition) and
– Speed is greater than 6 kmh (MovingSpeed) and/or unit has moved more than
300m (MinTripDistance), and been 1 or more minutes in length.
•Trip is ended when
– Vehicle has been idle longer than trip end time (portable use)
– In cities with slow traffic increase the end time for trip reporting (Default 15 min)
– Example SET,TripEndTime,20
•Distance travelled is accumulated and can be impacted by poor GPS reception
•Only the first part of the loacation name is used when the report exceeds 160
characters - 1 SMS (TripMaxReportLength)
•Reports longer than 1 SMS are chained. Most mobile phones will combine the
SMS into one.

Trip Report
•Trip start location is set to the last trip end location if
the distance is less than TripStartLockDistance
(default 500m)
•Trip Start reports can be turned on with a parameter
setting – SET,TripStart,1
– T22: Trip started, at Arnaiz Avenue-Pasong Tamo,
Makati, NCR, RP, 20:32 Sep 25
•If unit is powered off Trip report will be sent when
unit is powered on
•Trip will persist through a BOOT

Alarm Report
•Tramigo: motion alarm detected, parked at Tramigo Office, Bel Air,
Makati City, PH, N14'33"30, E121'01"10, 17:07 Sep 15
•Tramigo: shield alarm detected, stopped at Makati Medical Center,
Makati, NCR, RP, N14'33"31, E121'00"52, 19:56 Aug 23
•Sends report when motion is detected.
•Controlled with 2 SET parameters, ShockCount and ShockTimeout
between shocks
– Each shock must occur within the timeout period, number of shocks
must me reached to trigger the alarm
– Disabled once TRIP is started
– Motion detector designed to operate in any orientation
•As backup T22 will report if the vehicle has moved more than 100m
(ShieldRadius) from where the Alarm was set
•Alarm is turned off after an Alarm report to prevent excess messages.
To re-arm send A command
•If the motion detector is turned off only the Shield alarm will report
– SET,DisableShockSensor,1
– SET,ShieldRadius,100 is default in meters and can be changed

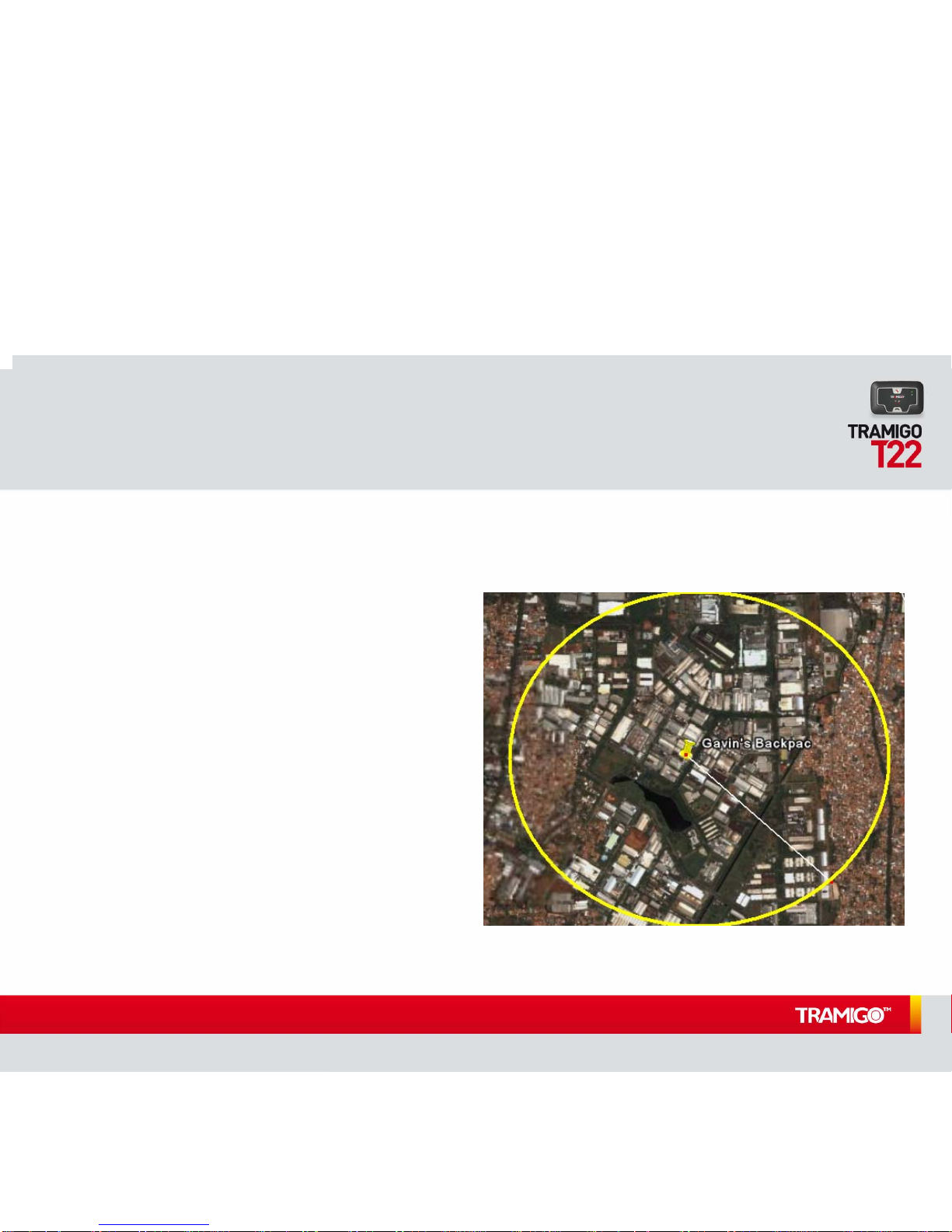

Zone Report
•T22: zone crossing detected, stopped at
Makati Avenue-Kalayaan Avenue, Makati,
NCR, RP, 21:36 Sep 22
•Reports when vehicle crosses a boundry
that is a circle with radius of x km from the
location selected.
•Z,on would report when the unit is 1 km
(default) from the current location
•Z,2,Home – this would create a report when
the unit is 2km from Home
•Z reports can only occur every 10 minutes to
prevent excessive reporting if you are
driving on the boundry. Change with
ZoneArmTimeout
•Distance can be 0.1 to 999 km
•The place name can be a partial string and
the closest match will be used. Both the
system and user LD’s are searched
•Only 1 zone can be active at a time per user
•Z,off turns off the Zone report
•Key Uses
–Know when T22 is approaching a specific
location
–Know when T22 is leaving an area

Speed Report
•T22: speed limit detected, moving at Makati Avenue-
Kalayaan Avenue, Makati, NCR, RP, NW at 121 km/h
21:36 Sep 22
• Reports when vehicle exceeds a user defined speed.
SPEED,120
• After a Speed report T22 will not report again until the
speed is decreased by 50 kmh (SpeedLimitFilter)
• S,off turns of Speed reporting
• Speed limit can be set from 50 to 300kmh.
– Lower is possible if you reduce the SpeedLimitFilter
• MaxSpeed parameter limits the highest speed T22 will
report – default 200kmh. Raise this for special situations
such as Racing or Helicopter use.

User Location Directory
•Users can add minimum 250 (actually many
hundreds) of their own locations with ADDPLACE
command
•Uses current coordinates of the vehicle
•Place name can be 40 characters
– Letters and numbers only
– Commas end the command and other special
characters are subsituted with blanks
•Duplicate place names are replaced
•DELPLACE,ALL removes all the user locations

Listen
•LISTEN command instructs the T22 to call your
number
•You answer the call and can then listen to see what
is happening in the vehicle
•T22 does not make any sounds
•Owner authority needed
•Designed for installation with a microphone
•SET,MicrophoneGain,7 will turn the volume to the
highest value. O-7 are valid settings

Speed Dial
•SPEEDIAL (SD) command is used to configure up to
3 phone numbers
– SD,1,[phone]
– SD will disply the numbers
– SD,1 deletes the entry
•User makes a call by pressing the phone button 1,2,
or 3 times. First press must be for 2 seconds, after
that shorter
•To hang up press the phone button
•Incoming calls make ring sound on speaker and
flash the GPS and GSM lights
– Press the phone button to answer
•Requires optional earpiece/microphone

Low Balance
•LB can be used to forward incoming SMS from a
number to the Owner
– Example LB,77 – all SMS from that number are sent
to the Owner, useful if the Operator sends low
balance warnings to their Pre-Paid customers.
•LB,off turns off the forwarding
•If the warnings are not automatic, but require a SMS
to activate then the SMS command can be used
•SMS forwards a message to a number via your T22
– Example SMS,77,Balance – sends a SMS containing
the text Balance to 77. 77 responds with your
balance to the T22 and the LB command forwards the
response to the Owner

Language
•T22 can be configured to support other languages
•LF file must be loaded to the system first
– Contains all the literals in the system
•LANGUAGE,ON turns on the alternate language
•LANGUAGE,OFF turns the unit back to English
•Unicode characters are supported
– Requires mobile phone with unicode support
•All user commands and reports use the local
language
•English commands will still work for support
purposes, but the reports will be in the local
language

Parameters
•GET command to find parameter values
•SET command to change the values
– SET,DisableShockSensor,1
•See User Manual for list
•Can also use numeric values
– SET,13,1 // Turns on TRIP start reporting
•Saved during boot, battery removal
•SET,Defaults restores all SET parameters to default
or reload the firmware to restore the settings

WhereIs
•T22: Parked, 2.60 km E of Arion Mall Rawamangun,
Pulo Gadung, Jakarta, ID, 06 12'05"S, 106 54'46"E,
16:43 May 22
•Used to find out how far you are from a location.
•Location can be user or system directory
•Only partial string is needed to search for locations.
Closed location that matches the sting is returned
