Travis Industries 35 CB Australian User manual

35 Custom Builder
(CB) Owner’s Manual
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton,Oregon-Report#028-5-35-5
ANSIZ21.88,CSA2.33M98,CAN/CGA2.17-M91
•Direct Vent Fireplace
• Natural Gas or Propane
• Standard Residential
• Mobile Home Approved
WARNING: If the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service mustbe performed by a qualified installer,service agency or the gas
supplier.
This appliance shall be installed in accordance with the manufacturer's installation
instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations,
AS5601 - 2000 (AG601) Gas Installations and any other relevant statutory regulations.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
Installer: After installation give this manual to the home-
owner and explain operation of this fireplace.
$10.00 Copyright 2002, T.I. Part # 93508134
Dragon Wholesaling
Unit 2, 23 Victoria Ave - Castle Hill, NSW, 2154
Tel: [phone] - Fax: [phone]

Introduction 1
Travis Industries 93508134 4030624
Introduction
We welcome you as a new owner of a Fireplace Xtrordinair gas fireplace. In purchasing a Fireplace
Xtrordinair you have joined the growing ranks of concerned individuals whose selection of an energy
system reflects both a concern for the environment and aesthetics. The Fireplace Xtrordinair is one of
the finest fireplaces the world over. This manual will explain the installation, operation, and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating
your fireplace and save the manual for future reference. Included are helpful hints and suggestions
that will make the operation and maintenance of your new fireplace an easier and more enjoyable
experience. We offer our continual support and guidance to help you achieve the maximum benefit
and enjoyment from your fireplace.
Important Information
No other Fireplace Xtrordinair gas fireplace has the
same serial number as yours. The serial number is
below and to the left of the gas control valve.
This serial number will be needed in case you require
service of any type.
Model: 35 CB Australian
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
fireplace. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

2Safety Precautions
Travis Industries 93508134 4030624
• IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire
department
• This unit must be installed by a qualified installer to prevent the
possibility of an explosion. Your dealer will know the requirements in
your area and can inform you of those people considered qualified. The
fireplace should be inspected before use and at least annually by a
qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the warranty and
safety listing.
For LPG only | Pout 11” W.C.
Look for this label:
If the label is present, the
heater is equipped for LP
(propane). If the label is
absent, the heater is equipped
for NG (natural gas).
•This fireplace is either approved for natural
gas (NG) or for propane (LP or LPG).
Burning the incorrect fuel will void the
warranty and safety listing and may cause
an extreme safety hazard. Direct
questions about the type of fuel used to
your dealer. Check for the label shown to
the right.
Ok
•Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements in
your area. Notify your
insurance company of this
fireplace as well.
•If the flame becomes sooty,
dark orange in color, or
extremely tall, do not
operate the fireplace. Call
your dealer and arrange for
proper servicing.
AAA
AA
AA
•Do not place articles on or
against this appliance.
•Control compartments,
screens, & circulating air
passageways must be kept
clean & free of obstructions.
These areas provide the air
necessary for safe
operation. ?•Do not operate the fireplace
if it is not operating properly
in any fashion or if you are
uncertain. Call your dealer
for a full explanation of your
fireplace and what to expect
Gas
•Do not use or store
flammable materials near this
appliance.
•Do not spray aerosols in the
vicinity of this appliance
while it is in operation.
AAA
AA
AA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
A
A
•Do not use this appliance if
any part has been under
water. Immediately call a
qualified service technician
to inspect the appliance and
to replace any part of the
control system and any gas
control which has been
under water.

Safety Precautions 3
Travis Industries 93508134 4030624
AAA
AA
AA
•Do not place clothing or
other flammable items on or
near the fireplace. Because
this fireplace can be
controlled by a thermostat
there is a possibility of the
fireplace turning on and
igniting any items placed on
or near it.
AA
AA
AA
AA
A
•Light the fireplace using the
built-in piezo igniter. Do not
use matches or any other
external device to light your
fireplace.
•Never remove, replace,
modify or substitute any part
of the fireplace unless
AAA
AA
AA
AA
AA
•The viewing glass should be
opened only for lighting the
pilot or conducting service.
•Any safety screen or guard
removed for servicing must
be replaced prior to
operating the fireplace.
•Do not operate with the
glass removed or damaged.
instructions are given in this
manual. All other work must
be done by a trained
technician. Don't modify or
replace orifices.
•Allow the fireplace to cool
before carrying out any
maintenance or cleaning.
•Operate the fireplace
according to the instructions
included in this manual.
•If the main burners do not
start correctly turn the gas
off at the gas control valve
and call your dealer for
service.
•The pilot flame must contact
the thermopile and
thermocouple (see the
illustration to the left). If it
does not, turn the gas
control valve to "OFF" and
call your dealer.
AAA
AA
AA
A
A
A
A
•This unit is not for use with
solid fuel
•Do not place anything inside
the firebox (except the
included fiber logs).
•If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
•Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
AAA
AA
AA
•Do not touch the hot
surfaces of the fireplace.
Educate all children of the
danger of a high-
temperature fireplace.
Young children should be
supervised when they are in
the same room as the
fireplace.
AAA
AA
AA
36"
•Keep all furniture or other
combustible items at least
36" (914 mm) away from the
front of the fireplace (this
includes drapes or doors
that may swing within 36"
(914 mm) of the front of the
fireplace).
•Instruct everyone in the
house how to shut gas off to
the appliance and at the gas
main shutoff valve. The gas
main shutoff valve is usually
next to the gas meter or
propane tank and requires a
wrench to shut off.
•Dragon Wholesaling
grants no warranty,
implied or stated, for
the installation or
maintenance of your
fireplace, and assumes
no responsibility of any
consequential
damage(s).

4Table of Contents
Travis Industries 93508134 4030624
Introduction
Introduction & Important Information................1
Safety Precautions
Safety Precautions......................................2
Features & Specifications
Features ....................................................5
Installation Options......................................5
Heating Specifications..................................5
Dimensions.................................................5
Installation
Installation Warning......................................6
Packing List................................................6
Additional Items Required for Installation..........6
Installation Overview....................................6
Fireplace Placement Requirements..................7

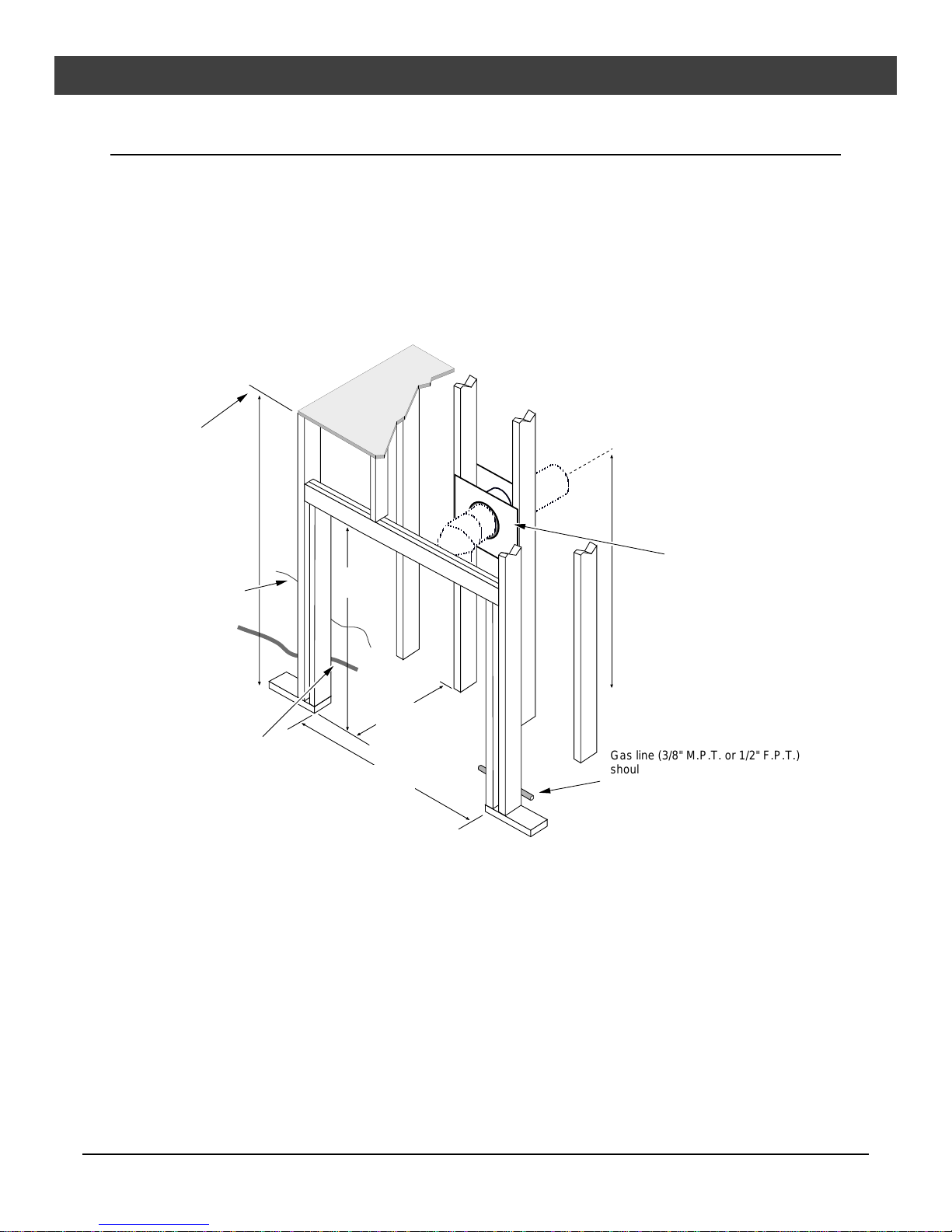

Minimum Framing Dimensions ....................7
Clearances ............................................7

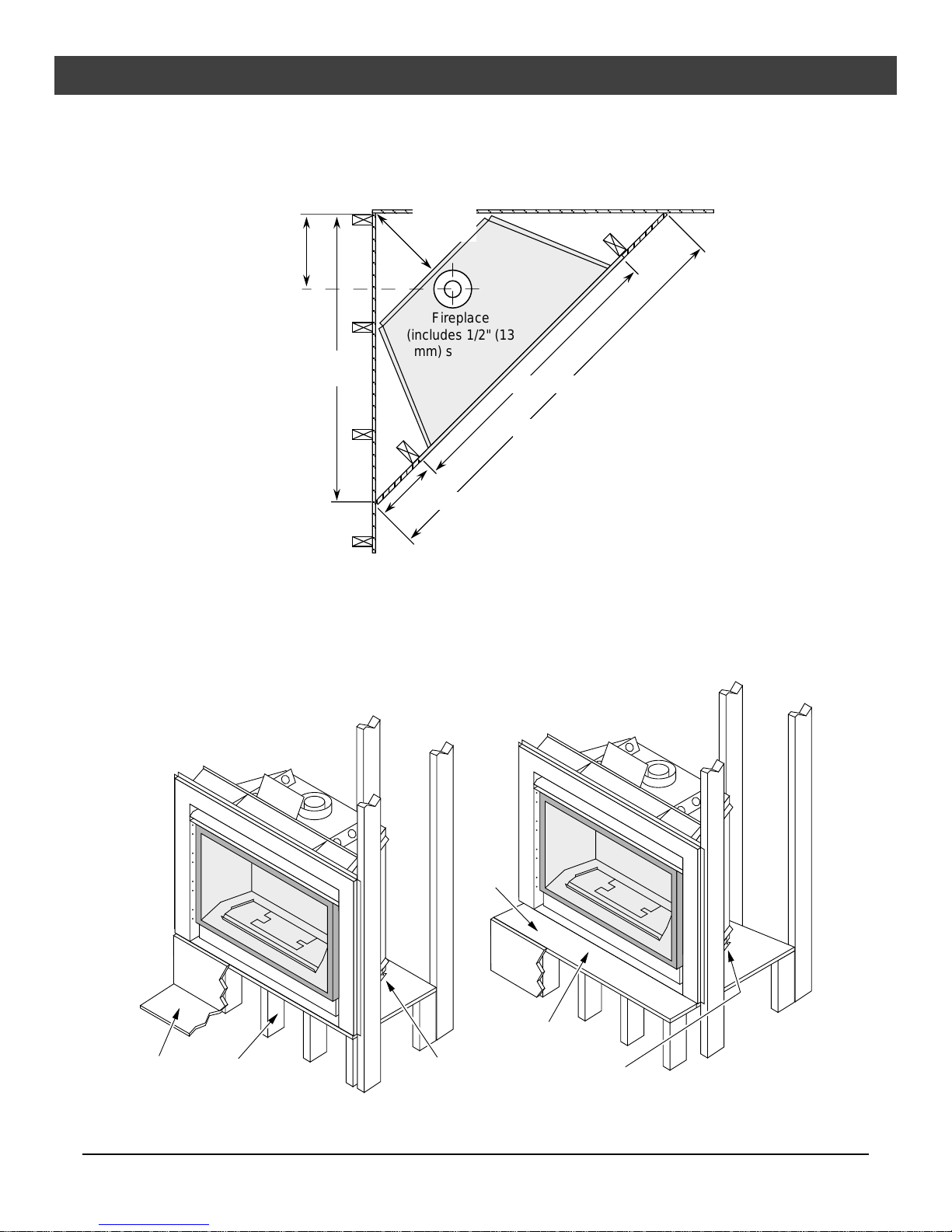

Corner Installations .................................8
Raised Fireplaces....................................8

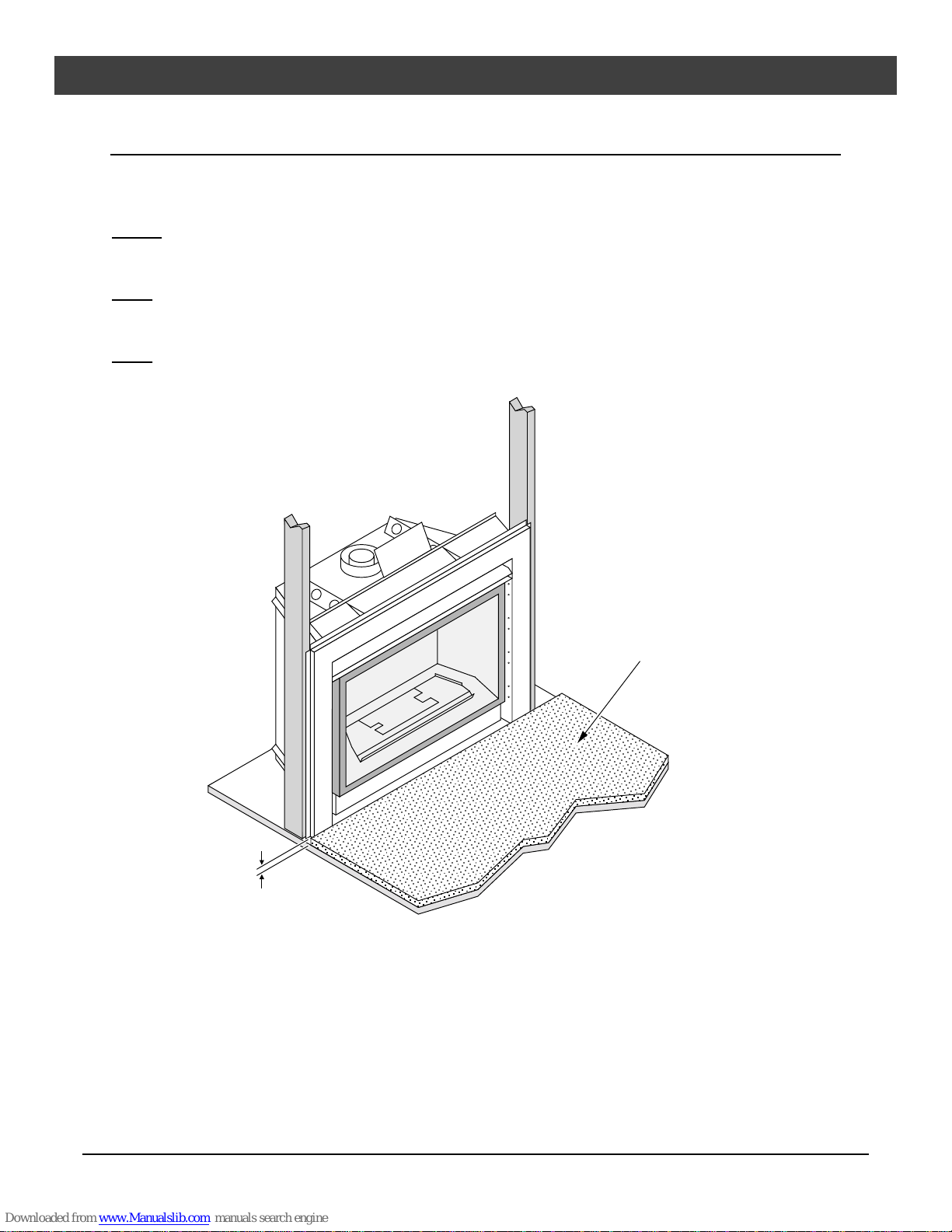

Hearth Requirements....................................9

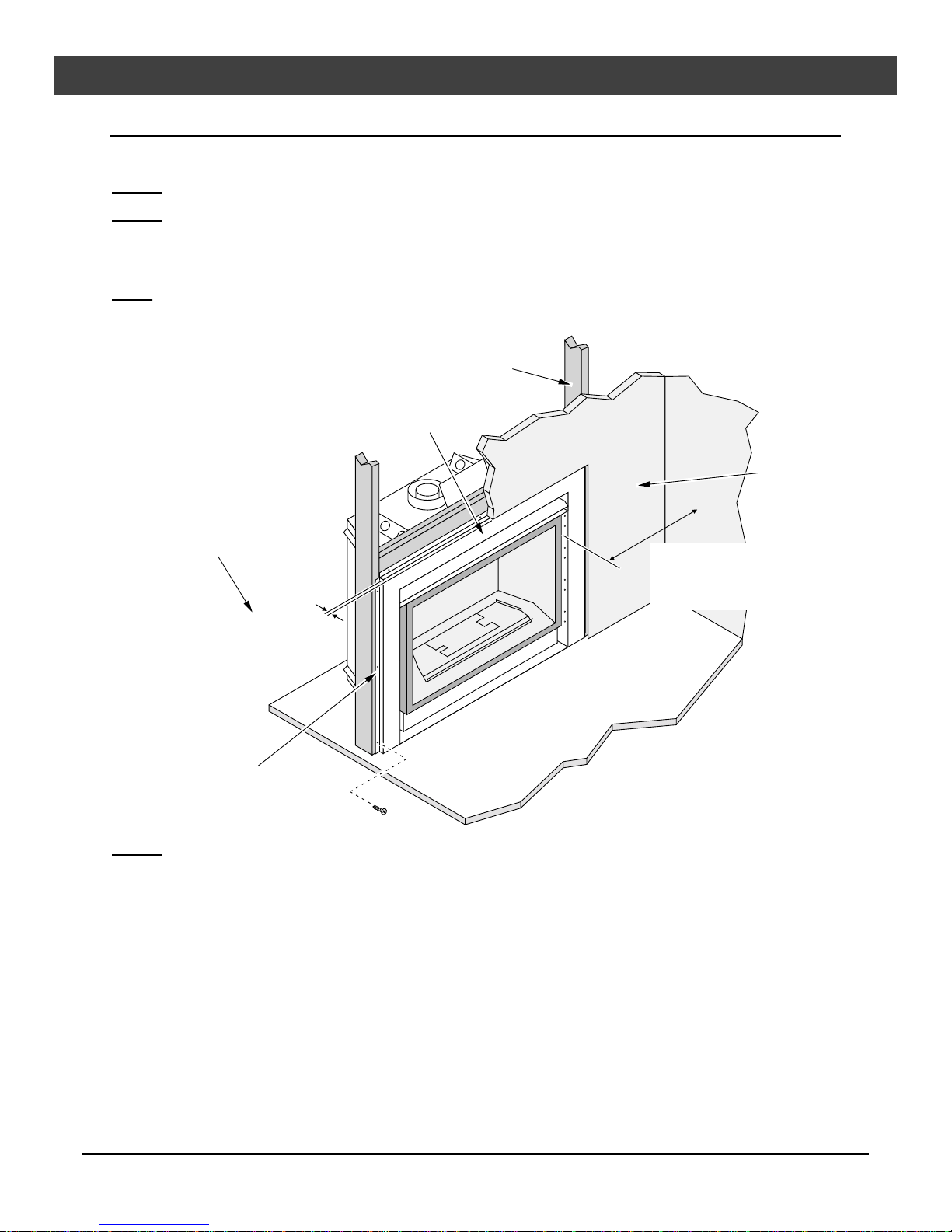

Facing Requirements....................................10

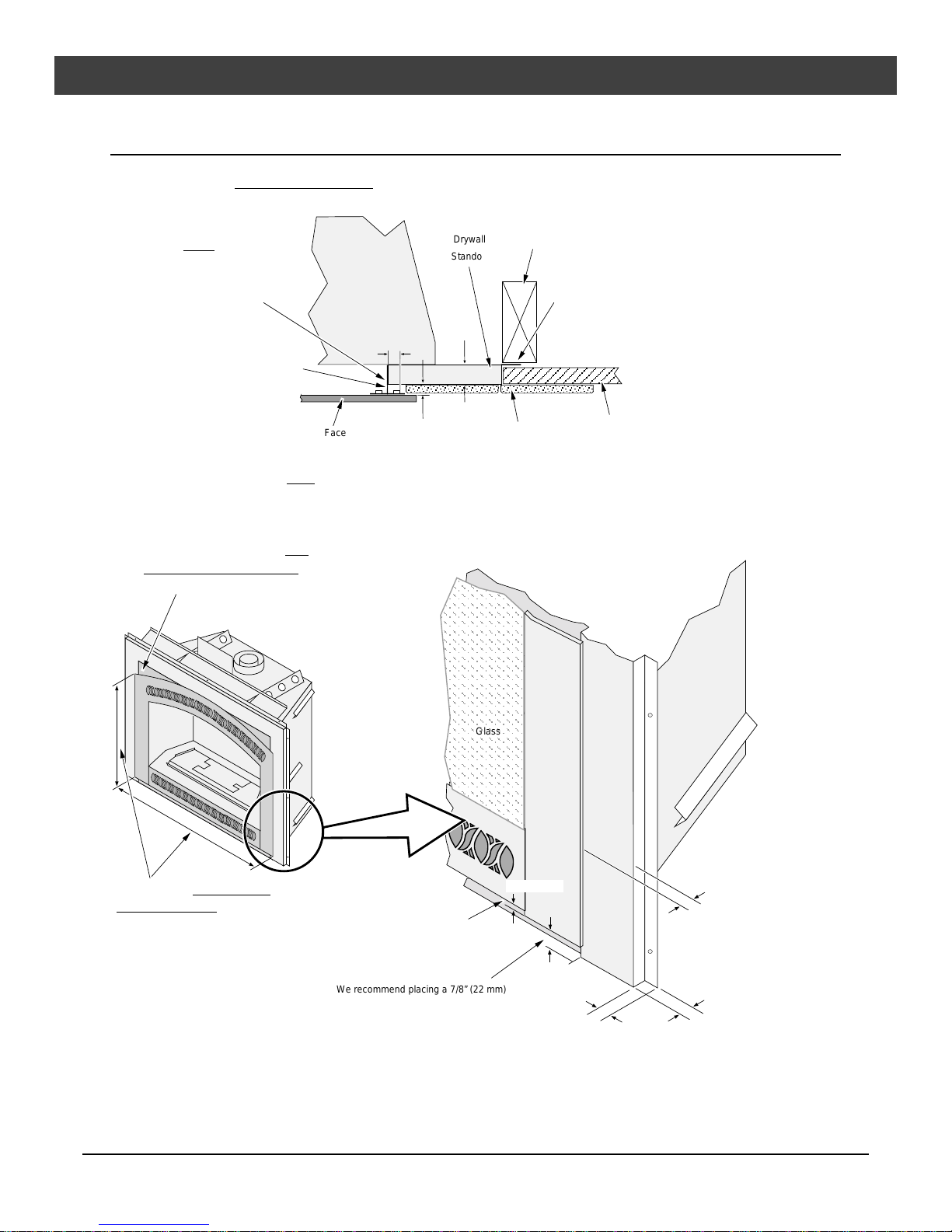

Facing Detail for 35 CB Faces.........................11
Facing Detail for 36 DV Faces.........................12

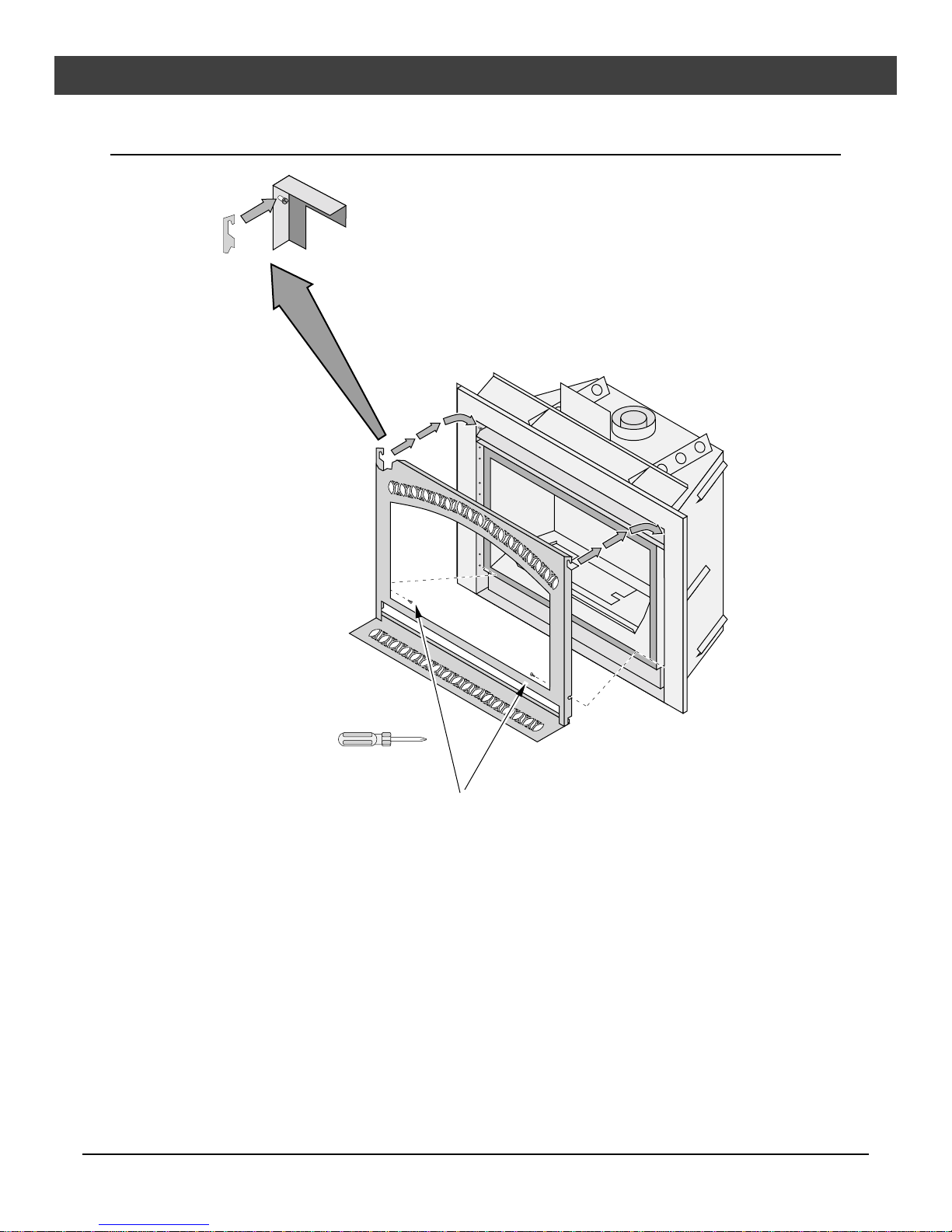

Face Installation - 35 CB Face ........................13
Face Installation & Sizing - 36 DV Face.............14
Mantel Requirements....................................15
Vent Requirements.......................................16
Altitude Considerations ............................16
Clearances ............................................16
Part Numbers (6-5/8" 168 mm Dia. Vent).......16

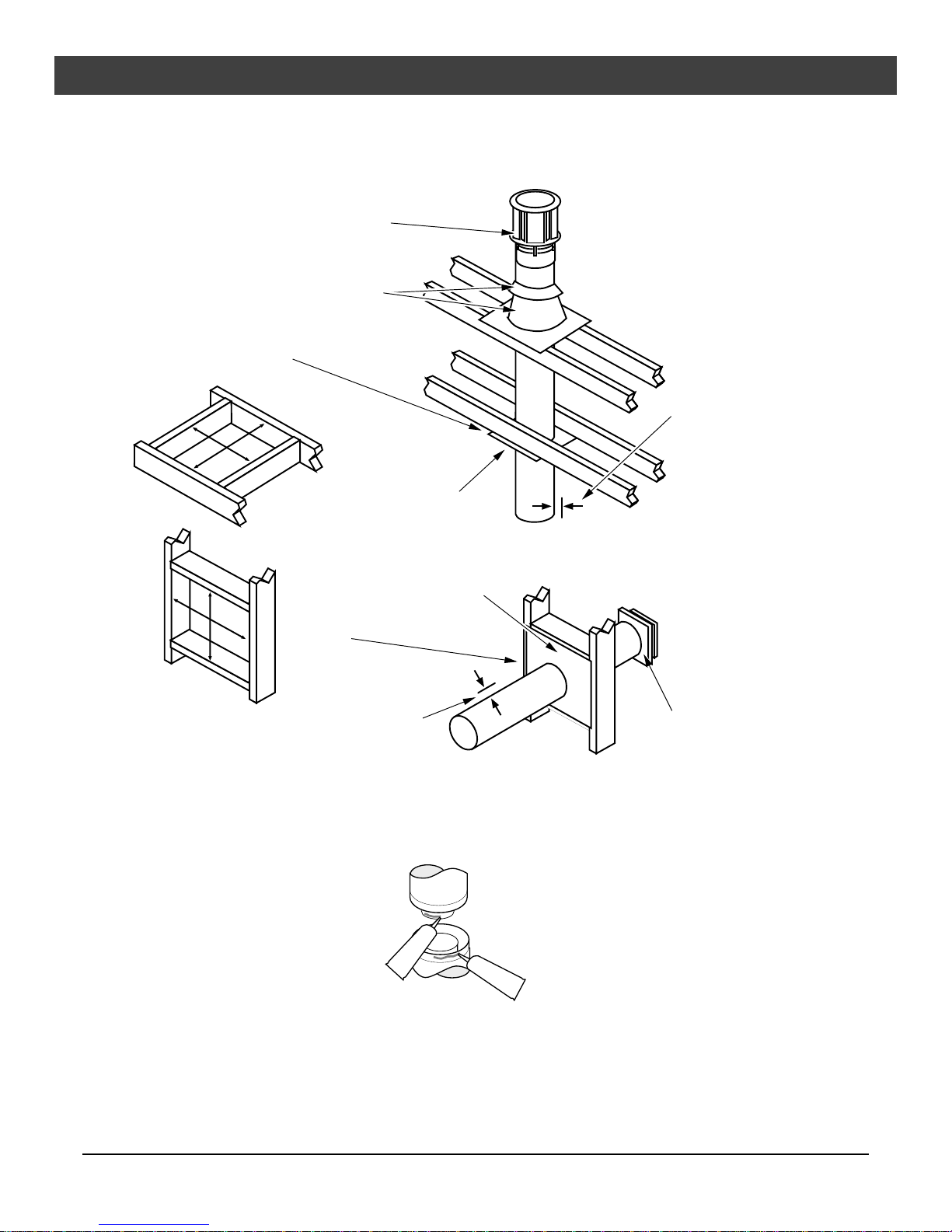

Vent Installation......................................17
Approved Vent Configurations........................18
Restrictor Position...................................18
Elbows..................................................18
Measuring Vent Lengths...........................18
Vertical Term. 0, 2, or 4 45°Offsets.............19
Horizontal Term. with One Elbow.................20
Vertical Term. with Two Elbows...................21
Vent Termination Requirements ......................22
Gas Line Requirements.................................23
Fuel......................................................23
Gas Line Connection................................23
Gas Inlet Pressure ..................................23
Finalizing the Installation
Glass Removal (& installation)........................24
Log Installation............................................25
Leak Test...................................................26
Pilot Adjustment (if necessary).......................26
Air Shutter Adjustment (if necessary)...............26
Check Flame...............................................27
Explain Operation to Home-Owner...................27
Operation
Before You Begin.........................................28
Location of Controls .....................................28
Starting The Pilot .........................................29
Starting the Fireplace for the First Time.............30
Turning the Fireplace On and Off.....................30
Adjusting the Flame Height.............................30
Normal Operating Sounds..............................31
Maintenance
Maintaining Your Fireplace's Appearance..........32
Yearly Service Procedure..............................32
Troubleshooting Table...................................33
How this Fireplace Works...............................34
What Turns the Main Burners On and Off......34
What Prevents Gas Buildup.......................34
Wiring Diagram ............................................35
Replacement Parts List.................................35
Safety Label
Safety (Listing) Label....................................36
Warranty
Warranty....................................................37
Optional Equipment
LP Conversion Kit ........................................38
Thermostat.................................................42
Remote Control Thermostat............................43
Index
Index.........................................................46

Features and Specifications 5
Travis Industries 93508134 4030624
Features:
- Works During Power Outages (millivolt system)
- High Efficiency
- Optional Thermostat or Remote Control
- Realistic "Wood Fire" Look
- Convenient Operating Controls
- Variable-Rate Heat Output
- Low Maintenance
Installation Options:
- Residential or Mobile Home
- Straight or Corner Placement
- Flush or Recessed Face
- Raised or Floor Hearth
- Internal or External Chase
- Horizontal or Vertical Vent
Heating Specifications: Natural Gas Propane
Approximate Heating Capacity 37- 125 m337 - 125 m3
Input 25 MJ/h 25 MJ/h
Efficiency** 76.7 78.6
AFUE (Annual Fuel Utilization Efficiency) 67.5 68.6
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation independent of
installed system.
1/2" Stand-offs
(13 mm)
* Includes the
1/2" (13 mm)
stand-offs
Vent has an
external diameter
of 6-5/8" (168 mm)
D
imensions:
40-3/8"
(1026 mm)
16-7/8"*
(429 mm)*
1/2" (13 mm)
34-1/4"*
(619 mm)*
29-1/8"
(740 mm)
35-1/4"
(895 mm)
7-1/8"*
(181 mm)*
31-1/2"
(800 mm)
31-1/2"
(800 mm)
Make sure to bend this heat shield up (it must be
perpendicular to the floor).
1-3/4"
(44 mm)
2-1/2"
(64 mm)

6Installation(for qualified installers only)
Travis Industries 93508134 4030624
Installation Warnings:
! This appliance shall be installed in accordance with the manufacturer's installation
instructions, local gas fitting regulations, municipal building codes, electrical wiring
regulations, the AGA gas installation code and any other relevant statutory
regulations.
! Failure to follow all of the requirements may result in property damage, bodily
injury, or even death.
! This fireplace must be installed by a qualified installer who has gone through a
training program for the installation of direct vent gas appliances.
! This appliance must be installed in accordance with all local codes, if any; if not, in
U.S.A. follow ANSI Z223.1 and NFPA 54(88), in Canada follow B-149.
! The 35 CB is designed to operate on natural gas or propane (LP).
! All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
! The requirements listed below are divided into sections. All requirements must be
met simultaneously. The order of installation is not rigid – the qualified installer
should follow the procedure best suited for the installation.
Packing List
• Propane Conversion Kit
• Log Set (Log Set, Coals, & Glowing Embers)
• Flex Tube with Pipe Adapter
• Glass Latch Tool (to un-latch glass frame)
• Black 35 CB Face (with touch-up paint)
• Cove Covers
Additional Items Required
• Direct Vent (Simpson Dura-Vent Ph. # 800 835-4429)
• Gas Line Equipment (shutoff valve, pipe, etc.)
• Electrical Equipment (min. 18 gauge, grounded line)
Installation Overview
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
See the
section
"Acceptable
Vent Lengths"
See the section
"Gas Line Installation"
See the section
"Electrical
Connection"
See the section
"Mantel Requirements"
Insulation must not fill
the spaces between
the stand-offs
8-1/2" Min.
(216 mm)
(fr. glass frame)
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
Drywall

Installation(for qualified installers only) 7
Travis Industries 93508134 4030624
Fireplace Placement Requirements
Minimum Framing Dimensions
The 1/2”(13 mm) stand-offs along the sides and back, and the 2-1/2" (64 mm) stand-offs on top of the
fireplace separate the fireplace from combustible materials (e.g.: combustible framing members,
plywood, sheetrock, paper-backed insulation). The stand-offs may contact the framing members but
no material may be placed between the stand-offs.
This fireplace may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
AAA
AAA
A
A
AAA
AAA
A
AA
AA
AA
AA
A
AA
A
A
A
A
AA
AA
AA
A
A
AA
AA
A
Gas line (3/8" M.P.T. or 1/2" F.P.T.)
should be routed 4-1/2" (114 mm)
behind the framing opening and 3-1/4"
(83 mm) above the base of the
fireplace on the right side (see "Gas
Line Connection" for details).
39-7/8"
(1013 mm)
16-7/8"
(429 mm)
32"
(813 mm)
Route the electrical line to a
position at the left front of
the fireplace.
If using a remote
control or thermostat,
route the wire to a
location near the gas
line (include an extra 3'
(1 Meter) length for
hookup).
With an elbow directly off the top of the
fireplace, the vent is centerd 36" (914
mm) above the base of the fireplace.
The fireplace enclosure
must not be less than
42" (1067 mm) above
the base of the
fireplace.
42" Min.
(1067 mm)
Wall Thimble (required when
passing through a wall)
•Fireplace must be installed on a level surface capable of supporting the fireplace and vent
•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
•Due to the high temperature of the fireplace, it should be located out of traffic and away from furniture
and draperies.
Clearances
•When installed, walls in front of the fireplace must be a minimum 8-1/2" (216 mm) to the side of the
fireplace facing (drywall standoff).
•Fireplace must be placed so that no combustibles are within, or can swing within 36" (914 mm) of the
front of the fireplace (e.g. drapes, doors)
•Fireplace must be placed so the vents below and above the glass do not become blocked

8Installation(for qualified installers only)
Travis Industries 93508134 4030624
Corner Installations
A typical 45°installation uses the minimum framing dimensions shown in the illustration below (NOTE:
all clearances still apply).
AAA
AAA
AAA
AA
AA
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAA
Fireplace
(includes 1/2" (13
mm) standoffs)
13-1/2"
(343 mm)
12-3/8"
(314 mm)
40-1/2"
(1029 mm)
8-3/4" (222 mm)
57-3/8" (1457 mm)
39-7/8" (1013 mm)
Raised Fireplaces
•The fireplace (and hearth, if desired) may be placed on a platform designed to 300 lbs. (136 kg).
•The fireplace may not be raised so as to place the base of the fireplace within 42" (1067 mm) of ceiling
or to reduce the fireplace enclosure to less than 42”(1067 mm).
Raised fireplace Raised fireplace with
raised hearth.
Raised
Platform Nail the nail down plates to the floor
(or raised platform)
Raised Hearth
Hearth
Raised
Platform

Installation(for qualified installers only) 9
Travis Industries 93508134 4030624
Hearth Requirements
•The fireplace must be placed on a wood or non-combustible sub-floor.
•No hearth is required.
NOTE: Carpeting or other floor covering (e.g. linoleum, wood flooring) must not protrude 3/4" (19
mm) above the base of the fireplace. The fireplace must be raised to accommodate any
flooring thicker than 3/4" (19 mm).
HINT : We strongly suggest using a tile or non-combustible hearth in front of the fireplace. This
protects the area in front of the fireplace from heat dis-coloration or off-gassing. Dragon
Wholesaling can not be responsible for floor discoloration in front of the fireplace.
HINT : If using a 36-DV Face, please be aware that a 1-1/8" (29 mm) gap will appear below the face.
We suggest a non-combustible hearth in front of the face to conceal this area.
Maximum 3/4”
(19 mm)
Carpeting or other floor covering
(e.g. linoleum, wood flooring) must
not protrude 3/4" (19 mm) above
the base of the fireplace. The
fireplace must be raised to
accommodate any flooring thicker
than 3/4" (19 mm).
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA

10 Installation(for qualified installers only)
Travis Industries 93508134 4030624
Facing Requirements
•Drywall may be butted up to the drywall standoff.
NOTE: Drywall or other combustibles may not be placed over the drywall standoff.
NOTE: No drywall or other combustible may protrude farther than 3/4" (19 mm) in front of the drywall
standoff. Any material that protrudes 3/4" (19 mm) or more from the drywall standoff must
meet the mantel clearance (if located above the fireplace) or sidewall clearance (if located to
the side of the fireplace.
HINT : Holes are provided in the drywall standoff to attach the standoff to the framing members. This
stabilizes the standoff and allows the drywall to be anchored to the framing members.
Maximum 3/4”
(19 mm)
Drywall
Use the holes in the drywall standoff to
secure the standoff to the framing.
Drywall
Standoff
No drywall or other combustible material
may protrude farther than 3/4" (19 mm)
in front of the drywall standoff. Any
material that protrudes 3/4" (19 mm) or
more from the drywall standoff must
meet the mantel clearance (if located
above the fireplace) or sidewall
clearance (if located to the side of the
fireplace.
Framing
Min. 8-1/2”(216 mm) Clearance to
Combustibles (from edge of glass
frame)
NOTE: Mask off the front of the fireplace to keep drywall dust from entering the fireplace. These
particles, when heated, may cause odors or cause other problems.

Installation(for qualified installers only) 11
Travis Industries 93508134 4030624
Facing Detail for 35 CB Face
Flush Facing - Top View
NOTE: The framing must line up with the flange on the drywall
standoff - this provides staibility for the standoff and the drywall.
Fireplace
1/2" (13 mm)
Drywall
AAA
Framing
Standard 35B Face
(removable)
Drywall Standoff
1/2"
(13 mm)
Flange on
Drywall
Standoff
Tile Facing - Top View
3/8" Tile
(10 mm)
Fireplace
1/2" (13 mm)
Drywall
AAA
Framing
Standard 35B Face
(removable)
Drywall Standoff
Flange on
Drywall
Standoff
Recessed Tile Facing - Top View
3/8" Tile
(10 mm)
Fireplace
1/2" (13 mm)
Drywall
AAA
Framing
Standard 35B Face
(removable)
Drywall Standoff
Flange on
Drywall
Standoff
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
Glass
40-3/8"
(1026 mm)
31-1/2"
(800 mm)
DIMENSIONS OF
DRYWALL STANDOFF:
1/2"
(13 mm) 1/2"
(13 mm)
1/2"
(13 mm)
1/2"
(13 mm)
1/2"
(13 mm)

12 Installation(for qualified installers only)
Travis Industries 93508134 4030624
Facing Detail for 36 DV Faces
Do not tuck tile into the 1/8" (3 mm)
air space below the access door.
This space is required to open the
access door. 1"
(25 mm)
1/2"
(13 mm)
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
Glass
We recommend placing a 7/8”(22 mm)
thick hearth in front of the face to conceal
this opening.
1/8" (3 mm) 1/4" (6 mm) to 3/4”(19 mm)
(this allows different tile
thicknesses)
Tile Facing - Top View
NOTE: The framing must line up with the flange on the drywall
standoff - this provides staibility for the standoff and the drywall.
AAAA
AAAAA
AAAAA
AAAAA
Fireplace
1/2" Drywall
(13 mm)
Framing
36 DV Face
Drywall
Standoff
1/2"
(13 mm)
Flange on Drywall
Standoff
36 DV Face
Mounting Bracket
1/4" to 3/4”adjustable
(6mm to 19 mm)
3/8" Tile
(10 mm)
See the section “Face Installation
& Sizing 36 DV Faces”for details.
Facing Cover - see the section “Face
Installation & Sizing 36 DV Faces”for
details.
5/8”
NOTE: The press-nut on
the mounting bracket
protrudes behind the
bracket and interferes
with tile placement.
1/2"
(13 mm)

Installation(for qualified installers only) 13
Travis Industries 93508134 4030624
Face Installation - 35 CB Face
Hang the 35 CB Face on the screws
and bushings at the top inside of the
drywall standoff.
Secure the face with these two screws (the
screws are attached to the fireplace).
Phillips
Screwdriver
!Do not use the heater without the primary safety guard fitted. The primary safety guard instructions
are supplied with the primary safety guard (shipped with the unit or supplied separately).

14 Installation(for qualified installers only)
Travis Industries 93508134 4030624
Face Installation & Sizing - 36 DV Faces (requires part # 98500536)
1/4" Nutdriver
Right Side Face
Mounting Bracket
Left Side Face
Mounting Bracket
With the fireplace in place and glass removed, install the tile stop for the type of
face used (see illustration to the right) - included with kit # 98500536.
Install the face mounting brackets (included with kit # 98500536).
Install the tile (or other non-combustible facin). Make sure tile does not interfere
with the press-nuts on back of the mounting brackets (see page 12).
Slide the mounting brackets all the way back against the facing.
Install the face using the instructions included with the face, disregarding any
bracket instructions. Refer to the illustration of the bracket (below right) to
determine the correct hole or slot for attaching the face to the brackets.
Steps for installing 36 DV Faces
a)
b)
c)
d)
e)
Rectangular
Bevel Faces
Classic Arched
Faces (except
artisan)
Architectural
Faces
Artisan Faces
These holes in the mounting brackets are
slotted to allow for different thicknesses of tile
(or other non-combustible facing).
Detail of Mounting Bracket
Tile Stop for
Arched Faces
Tile Stop for Rectangular
and Architectural Faces
The tile stops
attach to
these holes
Arched Faces
Attach the center bracket through
the key-hole slots.
Tighten the nuts
on the bracket to
secure.
3/8" Wrench
Rectangular Bevel Face
(Black or Gold)
Access Door
38”
(965 mm)
27-1/2”(699 mm)
Classic Arched
(Gold, Black, or Artisan*)
29"
(737 mm)
5" (127 mm)
36”(914 mm)
Access Door
Radius = 35”(889 mm)
* Artisan faces may vary slightly in size
due to the forging process.
29-3/8”
(746 mm)
36-1/4”
(921 mm)
Access Door
Architectural Faces
(French Country,
Arts & Crafts,
Art Deco, or Neo-Classical)

Installation(for qualified installers only) 15
Travis Industries 93508134 4030624
Mantel Requirements
•Any combustible material above the face must not protrude more than 3/4" (19 mm). If it does, it is
considered a mantel and must meet the mantel requirements listed below.
Min. 42”(1067 mm)
(from base of fireplace)
Max. 12”(305 mm)
(from faceplate)
Combustible or
Non-Combustible Mantel

16 Installation(for qualified installers only)
Travis Industries 93508134 4030624
Vent Requirements
!The vent must maintain the required clearance to combustible materials to prevent a fire (see
“Clearances”below). Do not fill air spaces with insulation.
!The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas
appliance must use it's own separate vent system.
Altitude Considerations
This fireplace has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we have
found that the fireplace, with its standard orifice, burns correctly with just an air shutter adjustment.
!Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Clearances
A
A
A
A
A
A
A
A
2-1/2" (64 mm)
Clearance
AAA
A
1" (26 mm)
Clearance When using an elbow directly off the top of the fireplace, the
following requirements apply:
AAA
•A wall thimble is required when the vent passes through the
first wall (frame 9" (229 mm) tall by 10" (254 mm) wide).
•Minimum 2-1/2" (64 mm) clearance above the vent before
the wall thimble (1" (26 mm) clearance to the sides and
bottom of the vent).
•Mimimum 1" (26 mm) clearance (in all directions) to the vent
after the thimble.
With vertical vent (or a 45°offset) directly off th top of the
fireplace, the following requirements apply:
•Firestops or other non-combustible means of support may
be used when passing through a wall
•Mimimum 1" (26 mm) clearance (in all directions) to the
vent.
1" (26 mm)
Clearance
Vent Part Numbers
•Use Model GS Direct Vent manufactured by Simpson Dura-Vent only . Follow the installation
instructions included with the vent. For the nearest Simpson Dura-Vent supplier, call [phone].
Vent part numbers and descriptions are listed below.
Straight Lengths
908B 6" (152 mm) Pipe Length, Black (interior)
907B 9" (229 mm) Pipe Length, Black (interior)
906 12" (305 mm) Pipe Length, Galvanized
906B 12" (305 mm) Pipe Length, Black (interior)
904 24" (610 mm) Pipe Length, Galvanized
904B 24" (610 mm) Pipe Length, Black (interior)
903 36" (914 mm) Pipe Length, Galvanized
903B 36" (914 mm) Pipe Length, Black (interior)
902 48" (1219 mm) Pipe Length, Galvanized
902B 48" (1219 mm) Pipe Length, Black (interior)
911B 11" (279 mm) to 14 5/8" (356 mm)
Adjustable, Black (interior)
Vent Terminations
981 Snorkel Termination (36" rise)
(914 mm) (for basement or
raised termination
installations)
982 Snorkel Termination 14" (356
mm) rise
(for basement or raised
termination installations)
984 Horizontal Square Termination
950 Vinyl Siding Stand-off
991 High Wind Vertical
Termination
Elbows
990 90•Elbow
990B 90•Elbow, Black (interior)
Penetration, Support
942 Wall Thimble
941 Cathedral Ceiling Support Box
943 Flashing, 0/12 to 6/12 Roof Pitch
943S Flashing, 7/12 to 12/12 Roof Pitch
953 Storm Collar
963 Ceiling Fire-stop
988 Wall Strap

Installation(for qualified installers only) 17
Travis Industries 93508134 4030624
Vent Installation
•In addition to the requirements below, follow the requirements provided with the vent.
Use a firestop whenever
passing through a ceiling
Vertical Termination
Use a roof flashing and storm collar
whenever passing through the roof
Use a support box
on exposed vent
Vertical Vent
Requirements
Use a wall thimble
whenever passing
through a wall
Horizontal Termination
Maintain a minimum 1" (26 mm) clearance (2-1/2"
(64 mm) in some cases - see "Clearances") from
vent to any combustible
Minimum
Framing
Horizontal Vent
Requirements
Minimum framing
for fire stop
Maintain a minimum 1"
(26 mm) clearance from
vent to any combustible
8-5/8"
(219 mm) 8-5/8"
(219 mm)
8-5/8"
(219 mm)
or
9"
(229 mm)
8-5/8" (219 mm)
or 10" (254 mm)
•Apply high-temperature silicone to the inner and outer pipe before assembling the sections (on the
male, upper section). This seals the inner pipe from the outer pipe. Slide the sections together and
turn 1/4 turn until the sections lock in place. Install three metal screws through each joint to lock the
outer section in place (see the instructions included with the vent for further details).
Apply a 1/8" (3 mm)
bead of high-
temperature silicone
to the inner and
outer pipe. The
silicone must seal
the inner pipe from
the outer pipe.
Silicone
Silicone
•Horizontal sections require a 1/4" (6 mm) rise every 12" (305 mm) of travel
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

18 Installation(for qualified installers only)
Travis Industries 93508134 4030624
Approved Vent Configurations
Restrictor Position
•A vent and intake restrictor is built into the appliance to adjust the flow rate of exhaust gases.
Depending upon the vent configuration, you may be required to adjust the restrictor position. The
charts for acceptable vent configurations detail the correct vent restrictor position.
TO CHANGE THE RESTRICTOR (both intake & vent restrictor must be set to the correct position):
1) Remove the baffle
2) Remove the two screws holding the vent restrictor plate.
3) Move the vent restrictor plate so the correct hole lines up with the holes in the back of the firebox.
4) Replace the two screws. Replace the baffle.
5) Remove the two screws holding the intake restrictor plate.
6) Move the intake restrictor plate so the correct hole lines up with the holes in the back of the firebox.
7) Replace the two screws.
5/16" Nutdriver
VENT RESTRICTOR
The restrictor is shipped
like this (position # 1).
1/4" Nutdriver
Position # 10
etc...
Position # 3
Position # 2
This restrictor is in
position # 4.
INTAKE RESTRICTOR
Baffle
(remove to access the vent restrictor)
1/4" Nutdriver
The restrictor is shipped
like this (position # 1).
Position # 10
etc...
Position # 3
Position # 2
This restrictor is in
position # 4.
Elbows
•See the vent
configurations for
details on how
many elbows may
be used and in
what manner.
Measuring Vent
Lengths
Vent
Horizontal
Run
Vent
Height 30-7/8"
(784 mm)
Vent Height is calculated to
the top of the vent on
horizontal terminations and
to the top of the termination
on vertical terminations.
Elbows add 3" (76
mm) to the length
of the vent
system.
Side
View
9-5/8"
(245 mm)
3" (76 mm)
1-1/2" (38 mm)
Vent Length
3' (915 mm),
4' (1219 mm),
etc.
Vent sections overlap each
other by 1-1/2" (38 mm)
1-1/2"
(38 mm)
8-3/4" (223 mm)
wide with 1-1/2"
(38 mm) to 3-3/8"
(86 mm) of
overlap
12-3/8" (315 mm) tall
with 1-1/2" (38 mm) of
overlap
