Travis Industries 4237 User manual

4237 Fireplace
Installation Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Report # 0028GF104S
ANSI Z21.88-2014
CSA 2.33-2014
“Vented Gas Fireplace Heater”
Built-In Direct-Vent Fireplace
Natural Gas
LP (Propane)
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2016, T.I. $10.00 4160429 100-01406


2 Introduction
© Travis Industries 4160429 100-01406
Overview
This manual details the installation requirements for
the 4237 fireplace. For operating and maintenance
instructions, refer to the Owner's Manual (part #
100-01407).
Listing Details
This appliance was listed by OMNI-Test
Laboratories, Inc. to ANSI Z21.88-2014 / CSA 2.33-
2014. The listing label is chained to the appliance
near the glass frame. A copy is shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute
Dealer Information
Please record your dealer information here for
future reference:
Dealer Name: ____________________
Dealer Address: ____________________
Dealer E-Mail: ____________________
Dealer Phone #: ____________________
Report No. 0028GF104S
Certified for USA and Canada
Portland
Oregon USA
Tested & Listed By
Vented Gas Fireplace Heater
4237 CF
Tested to: ANSI Z21.88-2014/CSA2.33-2014 “Vented Gas Fireplace Heater”, CGA 2.17-M91 (R2009) “Gas Burning Heating Appliances for Manufactured Homes”, and CSAP.4.1-09 Testing method for measuring annual fireplace efficiency. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSAB149.1. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the UnitedStates, orwhen sucha standardis notapplicable,ANSI/NCSBCS A225.1/NFPA501A, ManufacturedHome Installation Standard. Thisvented gas fireplaceheater isequipped at thefactory foruse with naturalgas. Ifconversionto propane(LP) is desired, the optional factory conversion kit must be used. Part No. 250-04048 register kit may be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket,permanently located, manufacturedhome (USAonly)or mobile home,where notprohibited bylocal codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. If the vent-air intake system is disconnected for servicing or any other reason, it must be resealed and / or reinstalled. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
Minimum Clearances to Combustibles
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
0” (0mm) 0” (0mm)
0.625” (16mm)
Base of Fireplace to Enclosure Top Sides to Enclosure Base of Fireplace to a Mantel
89” (2261mm)
0.625” (16mm)
See Owner’s Manual
FAN TYPE VENTED CIRCULATOR
Blower Electrical Rating: 120V., 4.5 Amps, 60 Hz, 540 Watts
Part No. 250-04053, 250-04055 fan or blower assembly may be used.
DANGER! Risk of Electric Shock. Disconnect power before servicing unit.
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
L.P.
11”
13”
11”
N.G.
5.5”
7”
3.8”
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) Orifice Size - Front (DMS) Orifice Size - Rear (DMS)
L.P.
60,000 30,887
#55 #49
N.G.
60,000 32,089
#45 #30
This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2017 2018 2016
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
12521 Harbour Reach Drive
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
CAUTION:
Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
XXXX
4237 CF
OWNER’S MANUAL

Table of Contents 3
© Travis Industries 4160429 100-01406
Installation Options .........................................................................................................................................6
Heating Specifications ....................................................................................................................................6
Dimensions.....................................................................................................................................................6
Packing List ....................................................................................................................................................7
Recommended Installation Procedure............................................................................................................7
Fireplace Unboxing and Moving Into Position.................................................................................................8
Massachusetts Requirements.........................................................................................................................9
Fireplace Placement Requirements................................................................................................................10
Clearances...........................................................................................................................................10
Raised Fireplaces................................................................................................................................10
Televisions Placed Above the Fireplace.........................................................................................................11
Minimum Framing Dimensions........................................................................................................................13
Minimum Enclosure Height – Minimum Vent Configurations or Any System Height Under 10’...........13
Minimum Enclosure Height –Vent Configurations with System Height 10’ or Higher...........................13
Nailing Brackets – Flush Install.......................................................................................................................14
Nailing Brackets – Extended Install.................................................................................................................15
Corner Installations.........................................................................................................................................16
Outdoor fireplace installations.........................................................................................................................17
Gas Line Requirements..................................................................................................................................18
Fuel......................................................................................................................................................18
Gas Line Connection ...........................................................................................................................18
Gas Inlet Pressure...............................................................................................................................18
Gas Line Location................................................................................................................................18
Directions for Connecting a Gas Pressure Test Gauge.......................................................................19
Electrical Connection......................................................................................................................................20
Vent Requirements.........................................................................................................................................21
Vent Clearances ..................................................................................................................................21
Vertical Penetrations Require Vent Firestop........................................................................................21
Horizontal Penetrations Require Thimble ............................................................................................21
Altitude Considerations........................................................................................................................21
Approved Vent.....................................................................................................................................21
Approved Vent Terminations ...............................................................................................................21
Vent Installation...................................................................................................................................21
Vertical Pipe Shield..............................................................................................................................22
Horizontal Terminations Require Vinyl Standoff and Termination Shield.............................................22
Exhaust Restrictor...........................................................................................................................................23
Minimum Vent Configuration...........................................................................................................................24
Vent Configuration: Horizontal Terminations using NG...................................................................................25
Vent Configuration: Horizontal Terminations using LP....................................................................................26
Vent Configuration: Vertical Terminations using NG.......................................................................................27
Vent Configuration: Vertical Terminations using LP........................................................................................28
Termination Requirements...................................................................................................................29
Hearth Requirements......................................................................................................................................30
Facing Requirements......................................................................................................................................30
Facing Example – Standard (Tile Over) Install ...............................................................................................31
Facing Example – Flush Install.......................................................................................................................31
Adjustable Tile Stop........................................................................................................................................32
Mantel Requirements......................................................................................................................................33
Steps for Finalizing the Installation .................................................................................................................34
Air Shutter Adjustment.........................................................................................................................34
Glass Frame Removal and Installation...........................................................................................................35
Installing the Firebacks...................................................................................................................................38
Grate Installation and Removal.......................................................................................................................38
Log Set Installation .........................................................................................................................................39
LP Conversion Instructions.............................................................................................................................47
LP Conversion Parts............................................................................................................................47
Wiring Diagram...............................................................................................................................................51

4 Safety Precautions
© Travis Industries 4160429 100-01406
Safety Warnings:
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

Safety Precautions 5
© Travis Industries 4160429 100-01406
Safety Warnings (continued)
Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
Clothing or other flammable material should not be placed on or near the appliance.
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).
Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of combustion of such fuels,
contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Travis Gas Fireplaces. Stoves and Inserts are protected by one or more of the following patents; U.S. 8,469,021,
7,066,170, 6,602,068, 6,443,726, 6,953,037; Canada 2755517 as well as other U.S. and Foreign Patents pending.

6 Features and Specifications
© Travis Industries 4160429 100-01406
Installation Options
Raised or Floor Placement
Internal or External Chase

Horizontal or Vertical Vent
Bedroom Approved
Heating Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 60,000 60,000
Approximate Heating Capacity (in square feet)* Up to 3,000 Up to 3,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
(a) 8” x 5” Co-Axial Vent (b) Gas Inlet (1/2” MPT) (c) Electrical Junction Box (d) Vertical Pipe Shield (e) Power Heat Duct
37.25"
947mm
29.25"*
743mm*
17.25"
439mm
Front
avant
Right
droit
Rear
arrie're
Left
a' gauche
43.75"
1112mm
59.25"*
1505mm*


53.75"
1366mm
1"
25mm
39"
991mm
51.125"
1299mm
a
b
c
11.375"
289mm
WEIGHT:
555 lbs.
252 Kg
10.75"
274mm
d
e
15.625"
397mm
* Includes 0.625" (16mm) Standoffs

Installation (for qualified installers only) 7
© Travis Industries 4160429 100-01406
Packing List
Included Hardware
Log Set
Screen Box (shipped on front of fireplace, includes screen, trim, and optional tile stop)
Owner’s Pack (includes stainless mesh, ember chunks, rockwool)
Exhaust Restrictor
Remote Control
Horizontal Termination Shield
Addtitional Equipment Required
Firebacks
LP Installations require GSR stepper motor (4-pack = 94400999, single = 250-01463)
Optional Equipment
Andirons
Power Heat Duct (1 or 2)
Trim
Ironwork Doors
Recommended Installation Procedure

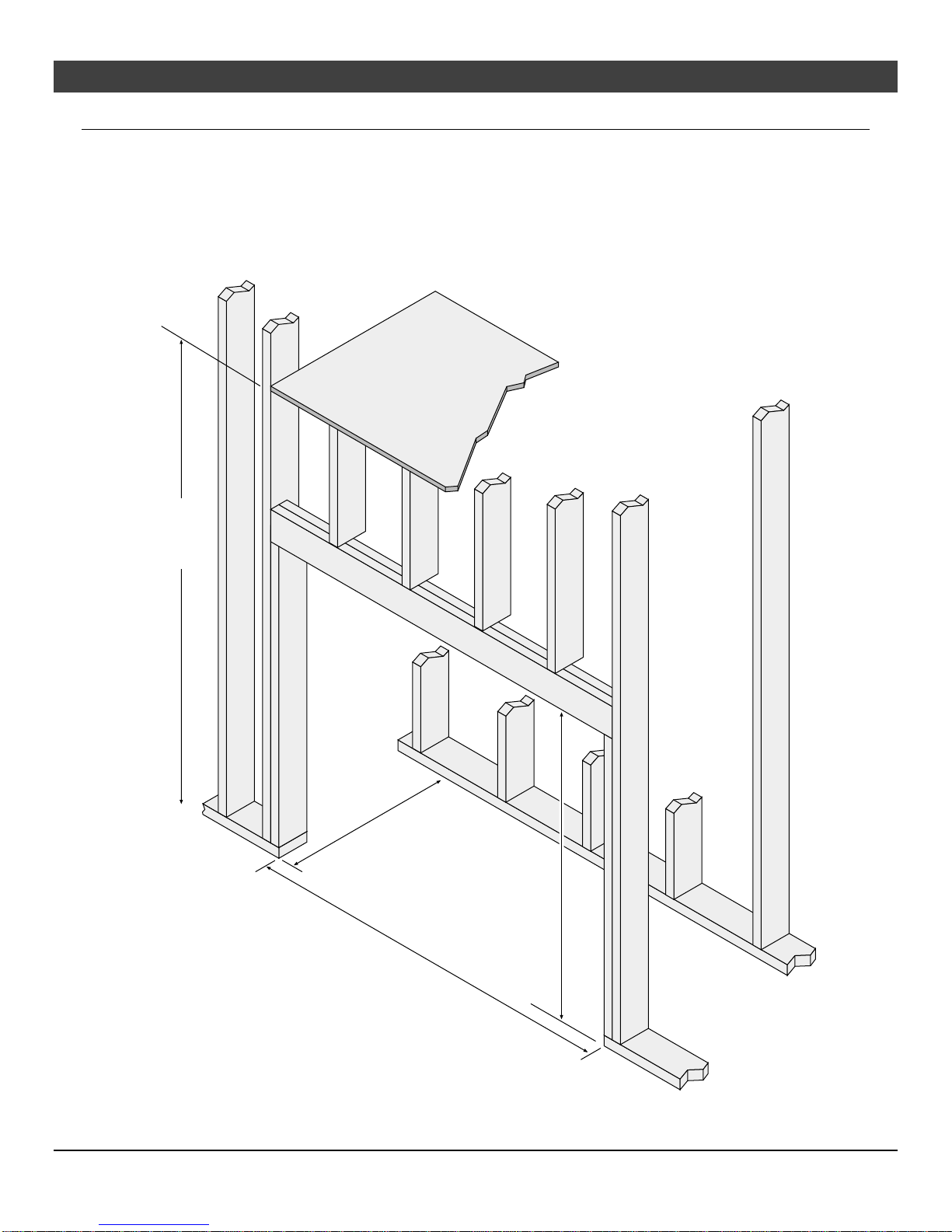

Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) drywall. Drywall may be mounted to the
side of the fireplace (standard) or flush with the facing (flush) . See "Nailing Brackets" on page 14
for details). Secure the fireplace to the framing.
Install the vent, gas line and electrical hook-up. We recommend you test operation of the
fireplace at this point.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 34).

8 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406
Fireplace Unboxing and Moving Into Position
This fireplace is larger than most fireplaces and requires special attention when moving into position. The
directions below are intended as a guideline for this process.
Do not lift the fireplace from below with lifting forks. This may cause the base to bend and warp.
Always use proper lifting techniques when moving heavy objects (bend your knees, not your back).
We recommend using the Travis Industries lifting handles (sku 98500711) for moving the fireplace.
See the instructions included with the brackets for installation instructions.
1. Unpack the fireplace.
2. Remove the screen box in front of the firebox opening and place it aside.
3. Remove the glass frame and place it aside (the glass tool is located inside the fireplace to the
right).
4. Remove the log box and place it aside. Remove the log stand (it may recycled or discarded).
5. Remove the grate and place it aside (2 screws hold it in place).
6. The fireplace may now be moved into location once the internal components have been removed.
We recommend using the Travis Industries lifting handles (sku 98500711) for this process. The
handles attach to the two brackets attached to the side of the fireplace.
7. Unscrew the bolts on the side of the fireplace that secures the brackets to the pallet.
8. Move the fireplace into position, taking care not to damage the fireplace or surrounding area. If
you do wish to move the fireplace with a forked stove-lift (e.g. Escalara), we recommend lifting
from the firebox roof (place 2x4’s into the firebox to distribute the load).
9. Once the fireplace is near its final position, remove the shipping brackets from the side of the
fireplace and slide it into place.

Installation (for qualified installers only) 9
© Travis Industries 4160429 100-01406
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

10 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406
Fireplace Placement Requirements
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
Fireplace should be located out of traffic and away from furniture and draperies.
Fireplace may be placed in a bedroom (be aware of the large amount of heat from this fireplace).
Clearances
(a) Clearance to Sides of Fireplace: 5/8” (16mm) – 0” to standoffs – see “e” below for exception
(b) Clearance to Adjacent Walls in Front of Fireplace: 0”
(c) Clearance to Back of Fireplace: 5/8” (16mm) – 0” to standoffs
(d) Clearance to Bottom of Fireplace: 0” (may be placed directly on subfloor)
(e) Drywall (or other combustibles) may contact the front 1/2” (13mm) of the fireplace along the top and sides
(f) The base of the fireplace must be a minimum 61” (1550mm) below the room ceiling
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
and vent.
The base of the fireplace must be a minimum 61” (1550mm) below the room ceiling.
The firebox opening is 1” (26mm) above the base of the fireplace. For a typical raised fireplace of
10” (254mm), place the fireplace on a platform 9” (229mm) tall.






c
a
3.5" (89mm) Maximum
Side of
Fireplace

b




d
e
e

f

Installation (for qualified installers only) 11
© Travis Industries 4160429 100-01406
Televisions Placed Above the Fireplace
The following section details three methods to allow for television installation above the fireplace.
Using a Mantel Between the Fireplace and Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the
fireplace, please be aware of the large amount of heat generated by the fireplace and consider placing the television
above a mantel to reduce the amount of heat that reaches the television. The homeowner must understand that
Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace.

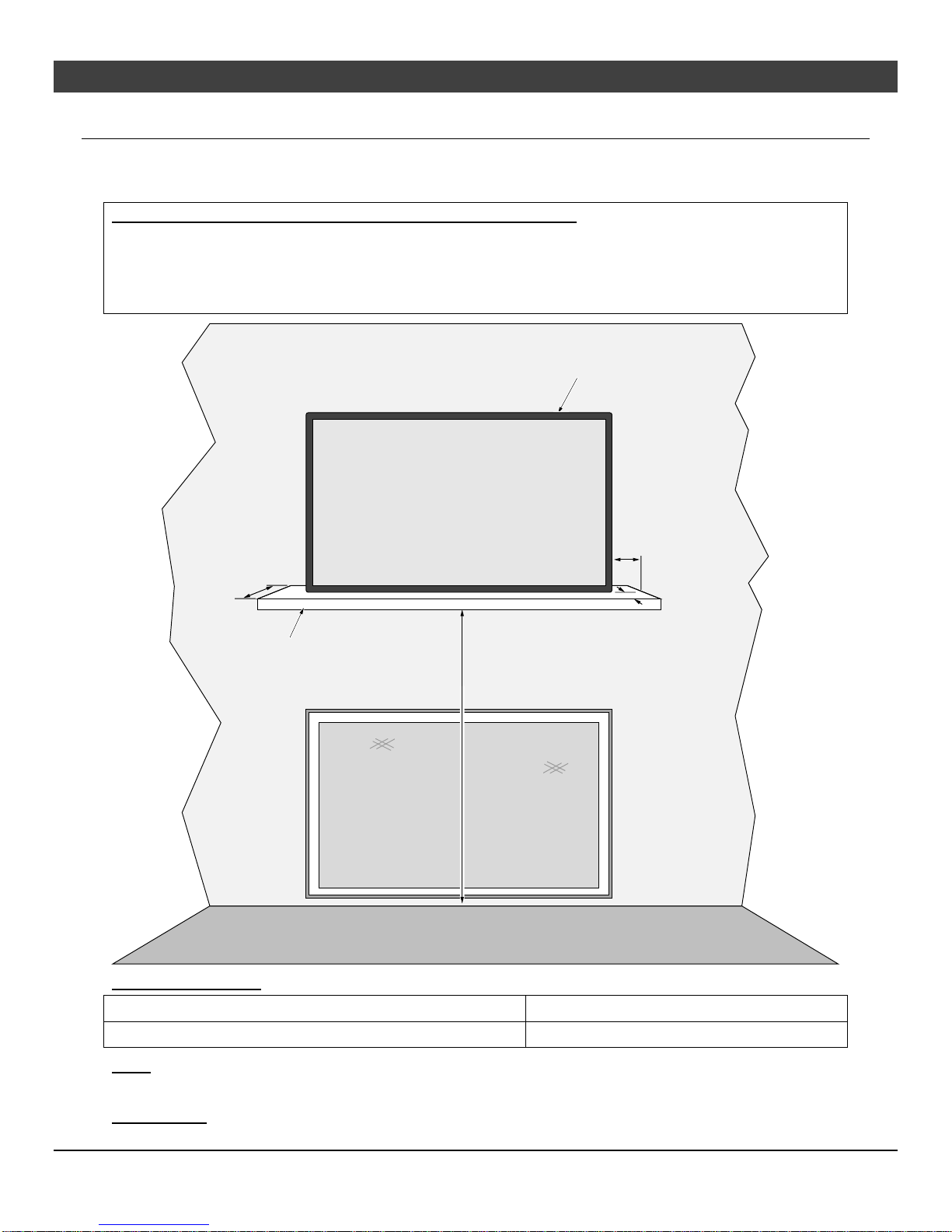

Minimum Dimensions:
Minimum Mantel Height above Base of Fireplace 57” (1448mm)
Maximum Mantel Depth 12” (306mm)
NOTE: The mantel
must extend 5” in front of the TV and 3” to both sides.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring
to protect from contact with hot surfaces.
Fireplace
Mantel Must be
Min. 1" (26mm) Thick
Min. 1" (26mm) Air Gap Behind TV
(typically provided by wall mount)
Min. 3" (77mm)
Television (TV)
Min. 5" (127mm)
From Front of TV
Min. 57" (1448mm)
From Base of Fireplace
Max. 12"
(305mm)

12 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406
Using a Buildout Below a Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the
fireplace, please be aware of the large amount of heat generated by the fireplace and consider placing the television
above a mantel to reduce the amount of heat that reaches the television. The homeowner must understand that
Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace.
Minimum Dimensions:
(a) Minimum Buildout Height above Base of Fireplace 57” (1448mm)
(b) Maximum Buildout Depth 12” (306mm)
(c) Minimum Fireplace Buildout Width 59.25” (1575mm)
NOTE: The buildout must extend 5” in front of the TV and 3” to both sides.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring
to protect from contact with hot surfaces.
Fireplace
b
Min. 1" (26mm) Air Gap Behind TV
(typically provided by wall mount)
Television (TV)
Min. 6"
(152mm)
a
Min. 5" (127mm)
From Front of TV
c
Min. 6"
(152mm)
Min. 3" (77mm)

Installation (for qualified installers only) 13
© Travis Industries 4160429 100-01406
Minimum Framing Dimensions
Minimum Enclosure Height – Minimum Vent Configurations or Any System Height Under 10’
-- Minimum enclosure height is 89” (2261mm)
Minimum Enclosure Height –Vent Configurations with System Height 10’ or Higher
-- Minimum enclosure height is 61” (1550mm)
-- Vent must pass vertically through the enclosure before an elbow is placed on the vent.
Standard 28.75" (731mm)
Flush 29.25" (743mm)
53.75"
(1366mm)
59.25" (1505mm)
Minimum
Enclosure
Height

14 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406

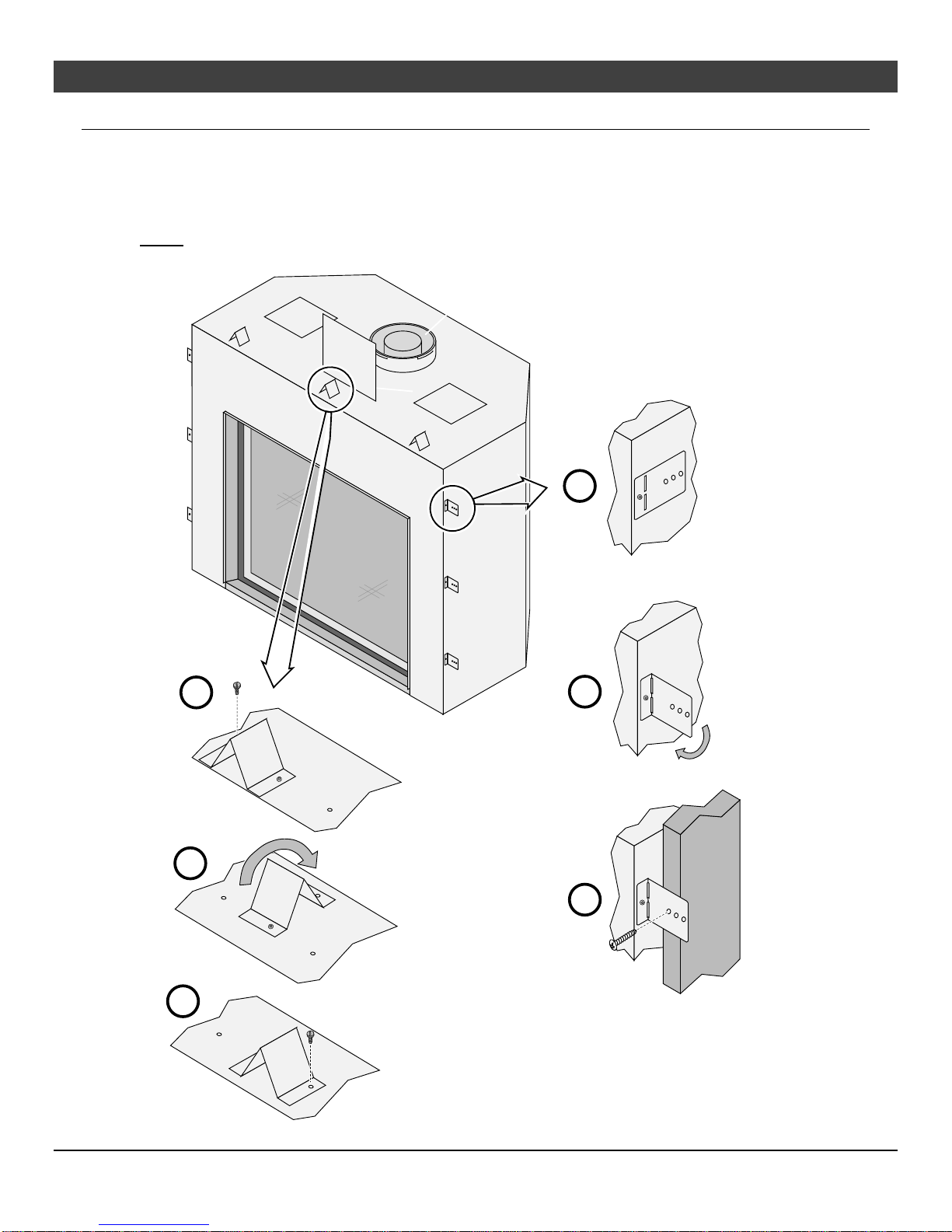

Nailing Brackets – Flush Install
The fireplace has three (3) nailing brackets on each side. In the flush position, the brackets are flush
with the front edge of the fireplace (see illustration below). This allows for the facing underlayment
(such as HardieBacker® cement board other non-combustible) to butt up to the drywall (see “Facing
Requirements” for details). Once the fireplace is properly placed, secure the fireplace to the framing
(see illustration below).
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-
to-corner the fireplace should be square. Use shims to insure the fireplace is square.
a
b
d
c

Installation (for qualified installers only) 15
© Travis Industries 4160429 100-01406
Nailing Brackets – Extended Install
The fireplace has three (3) nailing brackets on each side. In the standard position, the brackets are
0.5” (13mm) from the front edge of the fireplace (see illustration below). This allows for tile (or other
non-combustible) to be placed over the fireplace and surrounding drywall (see “Facing Requirements”
for details). Once the fireplace is properly placed, secure the fireplace to the framing (rotate the
nailing brackets as shown below).
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-
to-corner the fireplace should be square. Use shims to insure the fireplace is square.
a
b
c
a
b
c

16 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406
Corner Installations

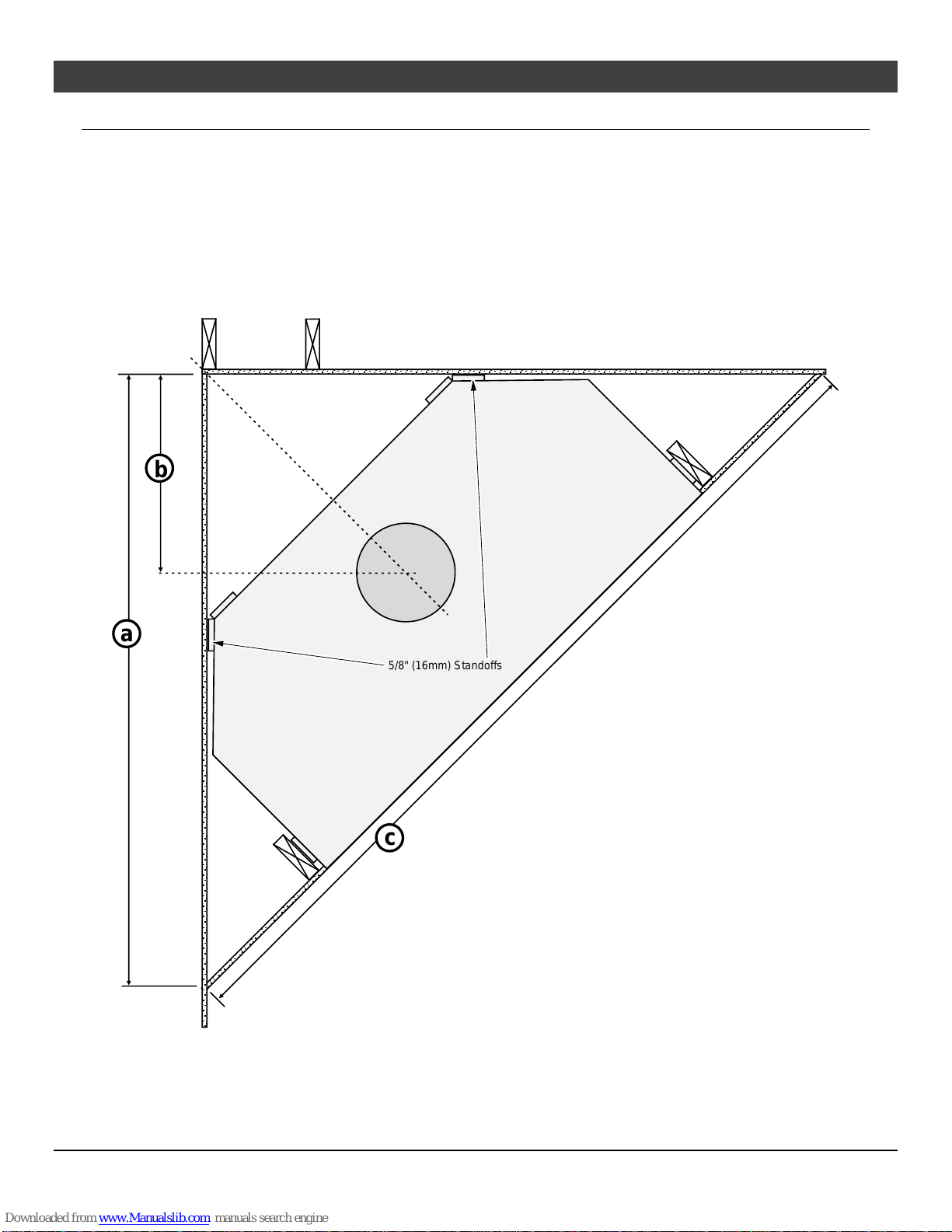

Approximate framing dimensions for 45° installations are shown below. Additional space may be required
for vent installation.
(a) 68.75” (1747mm)*
(b) 22.25” (566mm)
(c) 97.25” (2471mm)
* These dimensions are for flush installations.











































c

a
b
5/8" (16mm) Standoffs

Installation (for qualified installers only) 17
© Travis Industries 4160429 100-01406
Outdoor fireplace installations
Travis Industries Inc. gas-fired fireplaces are
suitable for installation into outdoor areas
protected from direct water impingement. In
addition to maintaining listed mantel and
combustibles clearances, a rain protection
overhang factor of 1/2 shall be constructed to
the front and to each side of installed
appliances (see the illustration to the right). All
wiring connections to line power shall be in
accordance with outdoor requirements of
NECA NFPA 70.
Warnings Regarding Tempered Glass
This fireplace uses tempered glass which is
susceptible to thermal shock. Take care to
prevent water from contacting the fireplace,
especially if it is hot.



































AB
Side of
Fireplace

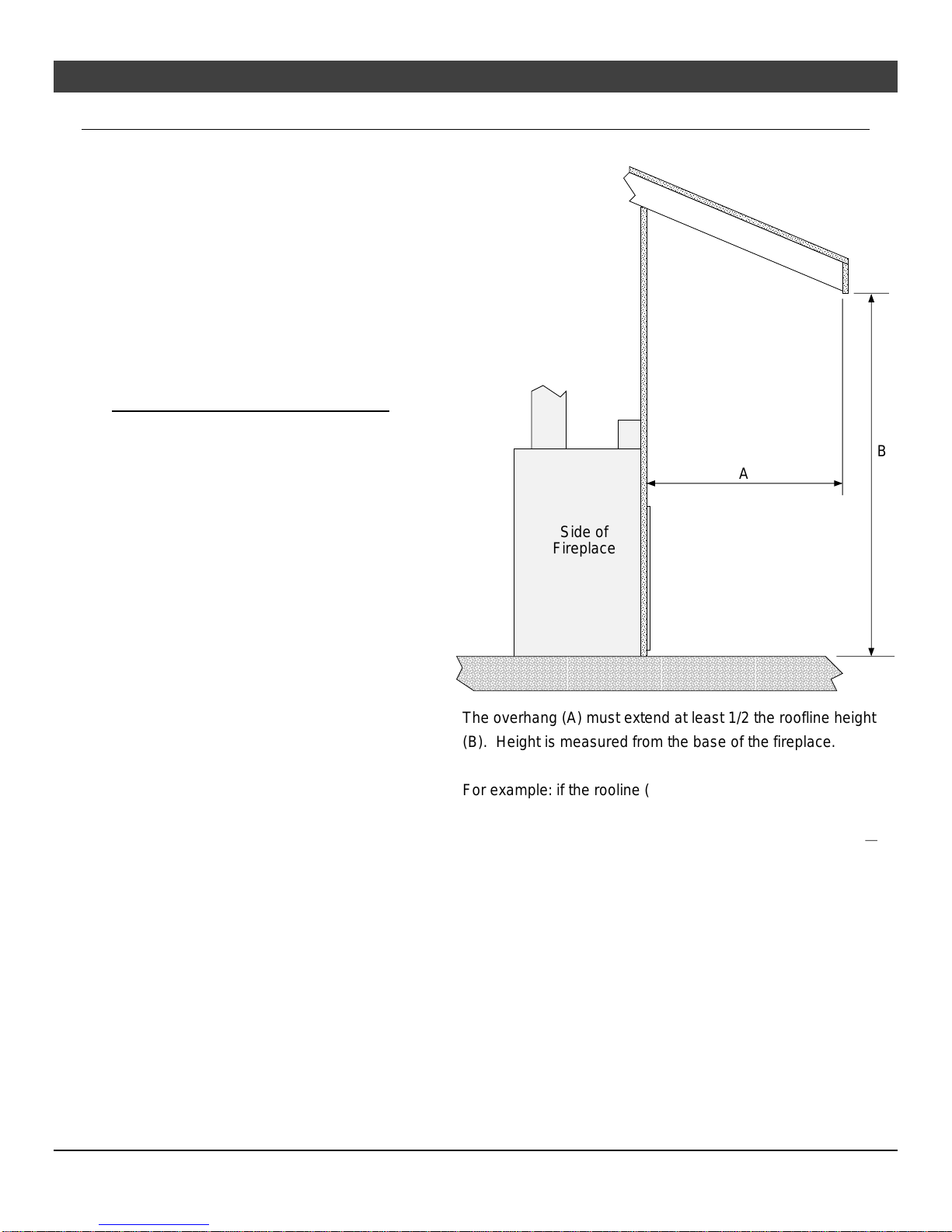

The overhang (A) must extend at least 1/2 the roofline height
(B). Height is measured from the base of the fireplace.
For example: if the rooline (B) is 8' above the base of the
fireplace, the overhang (A) must be at least 4'.











18 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under
1/2 psig (3.5 kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
The fireplace has an internal shutoff valve. An additional shutoff valve is required. It must be
accessible and within 6’ of the fireplace.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper
pressure.
Gas Line Location
The gas line is located on the left side of the appliance in the location shown below. The gas inlet
accepts a 1/2” FPT.
10.75" (274mm)
15.625" (397mm)


Installation (for qualified installers only) 19
© Travis Industries 4160429 100-01406
Directions for Connecting a Gas
Pressure Test Gauge
The gas control valve (shown to the left)
has two accessible ports for testing line
pressure and output pressure. Loosen the
brass screw on either test port and place a
5/16” i.d. rubber or plastic tubing over the
tapered test port. Connect the tubing to the
test gauge.
WARNING: The brass screw must be
tightened after testing to prevent gas
leakage.
Input pressure
Output pressure

20 Installation (for qualified installers only)
© Travis Industries 4160429 100-01406

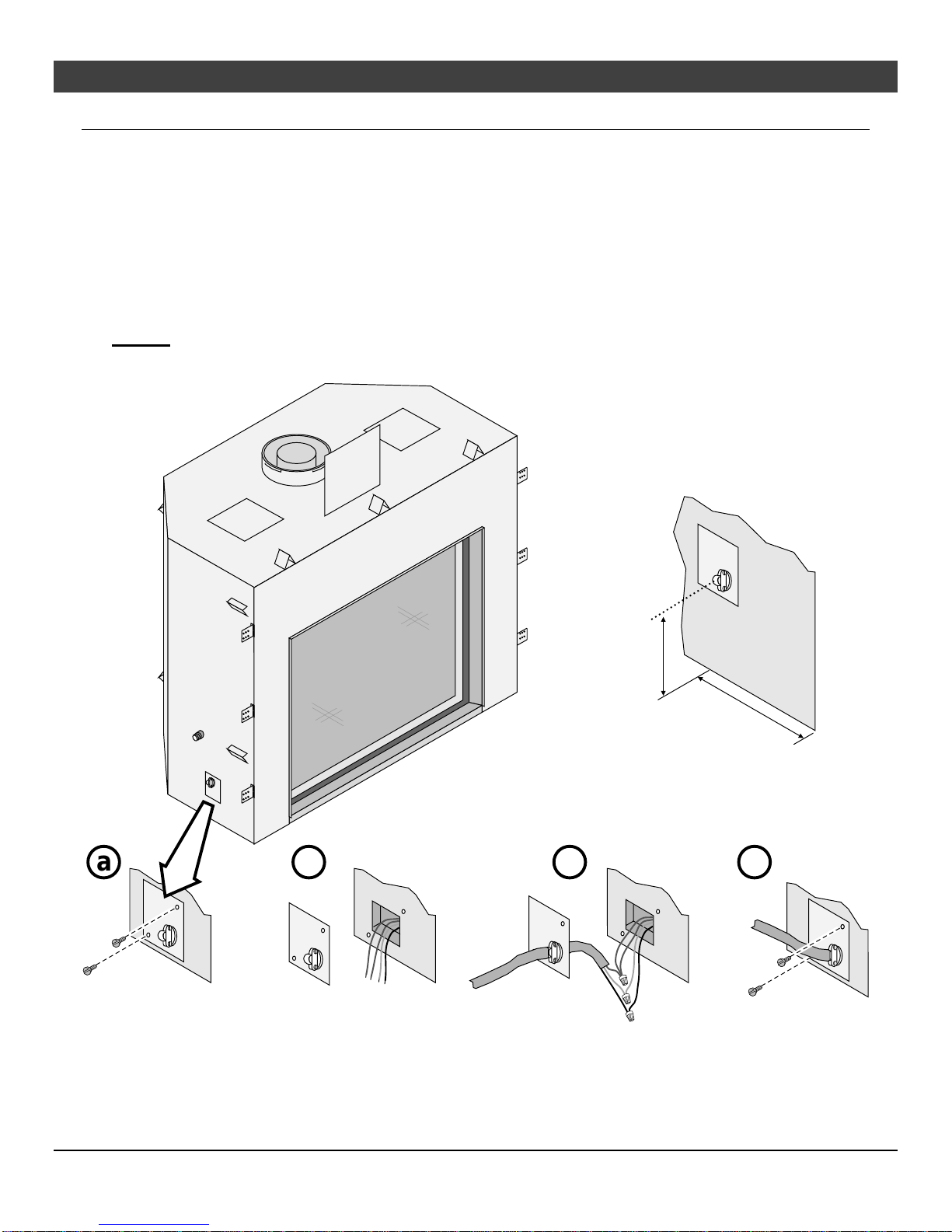

Electrical Connection
The electrical line must be connected to the wires inside the junction box (hot, common, and 2 ground
wires) by a qualified installer or electrician and must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
The electrical line must supply 120 Volts, 60 Hz, and minimum 7 Amps.
Route the electrical connection through the zc cover plate and junction box cover plate and attach to
the hookup wires pictured below.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.

abcd
7.125" (181mm)
5.375"
(137mm)
