Travis Industries 864 HO GS User manual

864 HO GS Fireplace
Featuring the Burner
• Direct Vent Fireplace
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
Report # 100162735PRT-001 - ANSIZ21.88
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Owner’s Manual
Installer: After installation give this manual to
the home-owner and explain operation
of this heater.
©Copyright 2010, T.I. $10.00 100-01246
_
000
4100716
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Table of Contents
© Travis Industries 4100716 100-01254_000
BTU Specifications................................................................................... 5
Dimensions .............................................................................................. 5
Fireplace Placement Requirements ......................................................... 6
Clearances ............................................................................................... 6
Raised Fireplaces .................................................................................... 6
Min. Framing Dimensions......................................................................... 7
Nailing Brackets ....................................................................................... 8
Gas Line Requirements............................................................................ 9
Fuel .......................................................................................................... 9
Gas Line Connection................................................................................ 9
Gas Inlet Pressure ................................................................................... 9
Gas Line Location .................................................................................... 9
Electrical Connection ............................................................................... 10
Vent Requirements .................................................................................. 11
Vent Clearances....................................................................................... 11
Vent Firestop............................................................................................ 11
Altitude Considerations ............................................................................ 11
Approved Vent ......................................................................................... 11
Vent Installation........................................................................................ 11

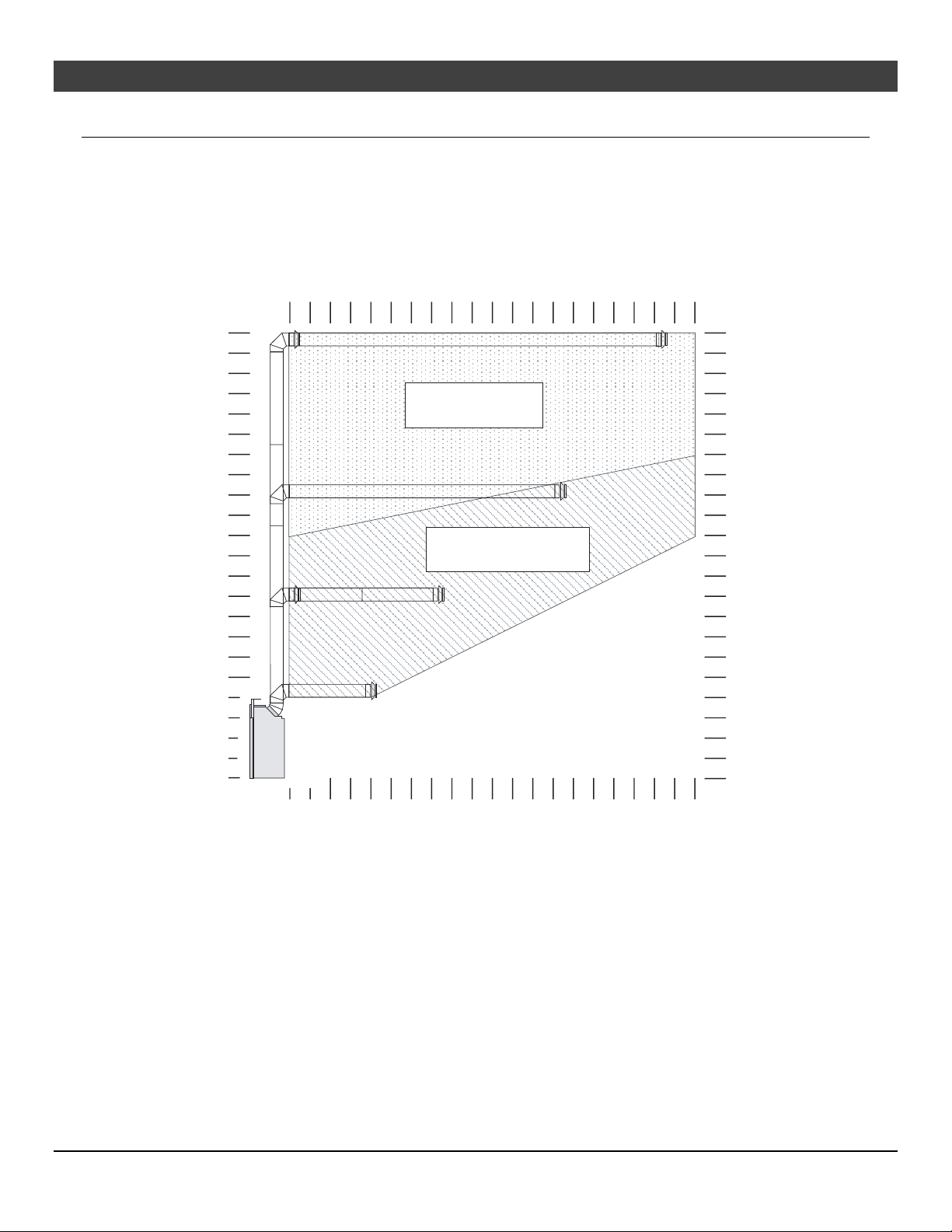

Approved Vent Configurations ................................................................. 12
Restrictor Position .................................................................................... 12
Exhaust Restrictor.................................................................................... 12
Intake Restrictor ....................................................................................... 13
Vent Configuration: Horizontal Termination (no vertical rise) ................... 14
Vent Configuration: Horizontal Termination (with vertical rise)................. 15
Vent Configuration: Vertical Termination.................................................. 16
Termination Requirements ....................................................................... 17
Hearth Requirements ............................................................................... 18
Floor Mounted Fireplaces......................................................................... 18
Raised Fireplaces .................................................................................... 18

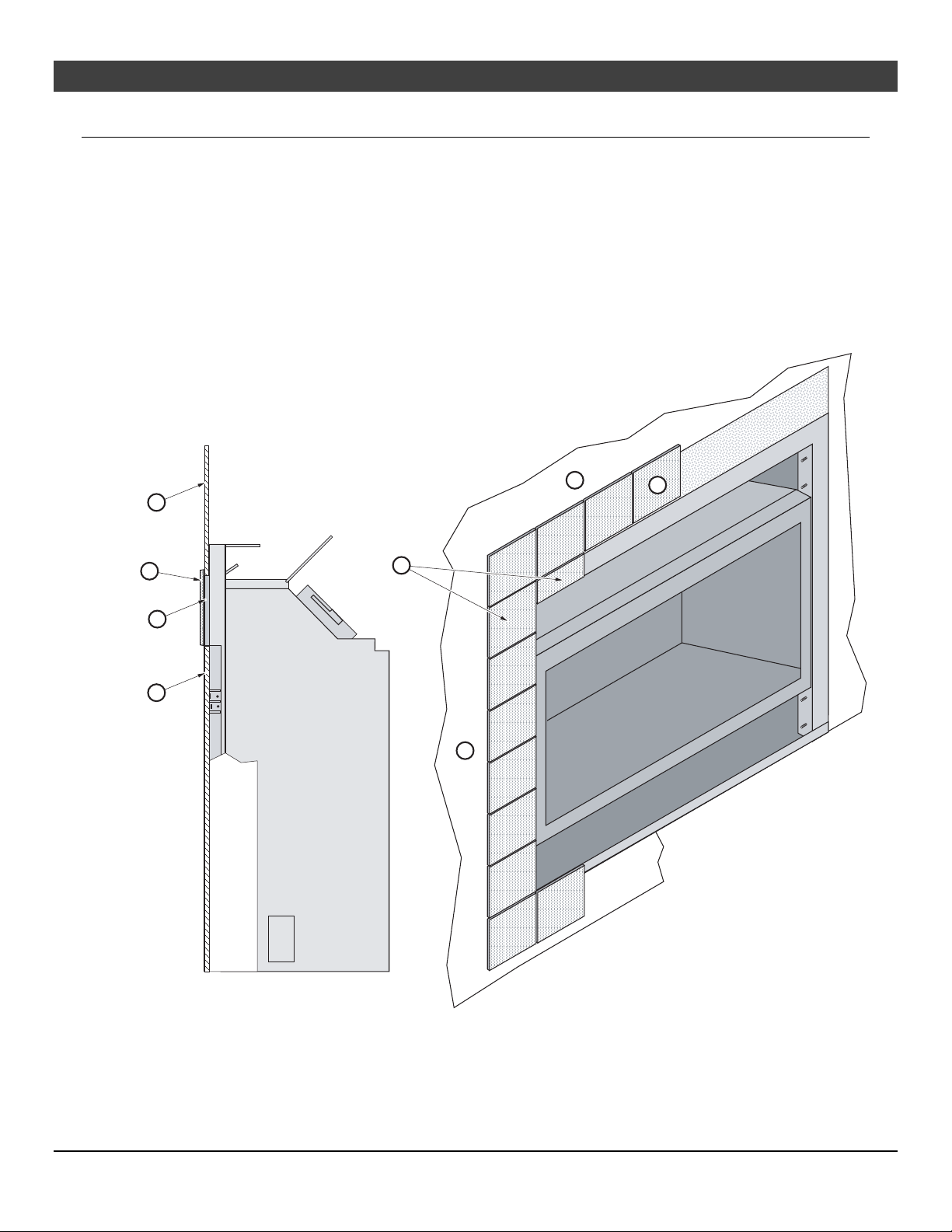

Facing Requirements ............................................................................... 19

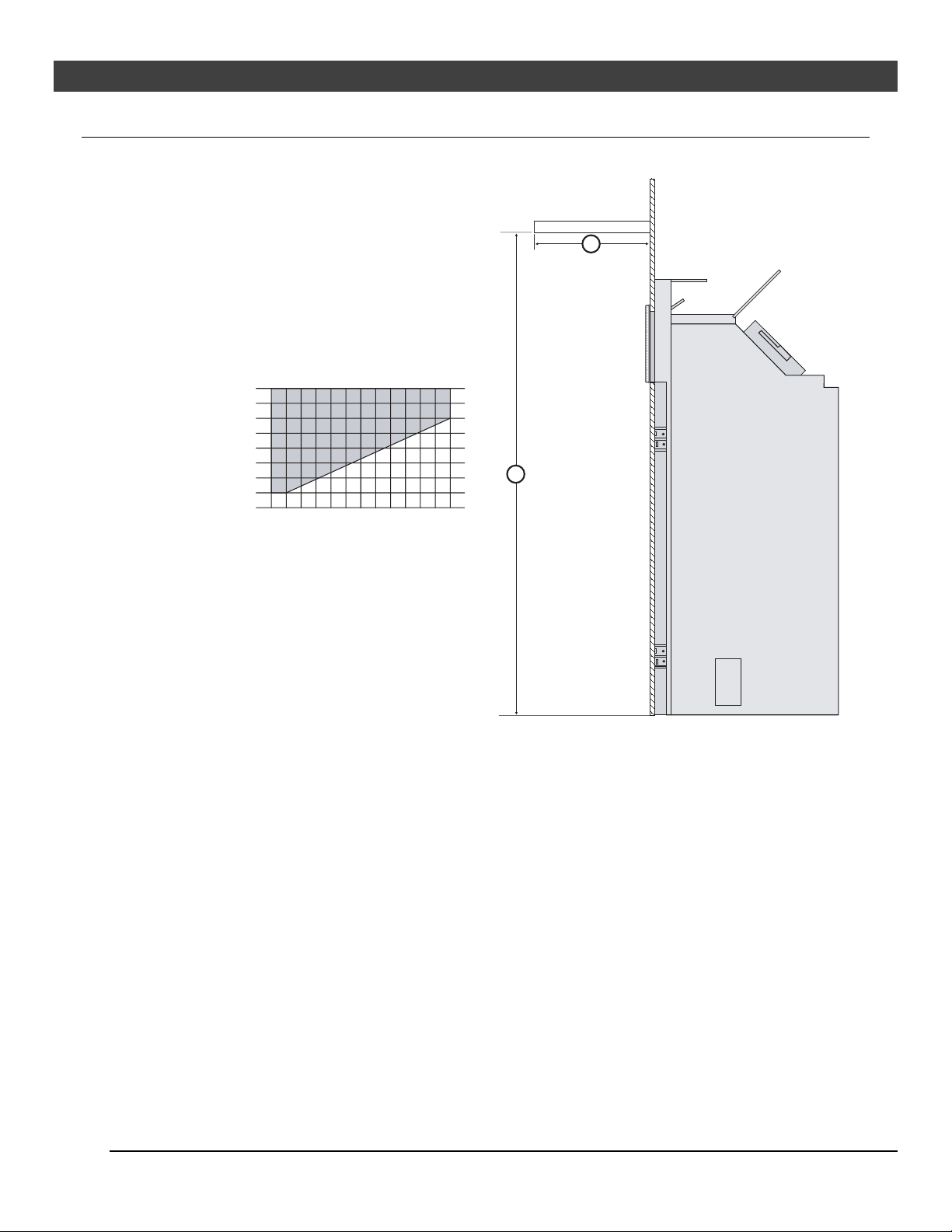

Mantel Requirements ............................................................................... 20
Steps for Finalizing the Installation........................................................... 21
Air Shutter Adjustment ............................................................................. 21
Glass Frame Removal and Installation..................................................... 21
Log Installation ......................................................................................... 23
Before You Begin ..................................................................................... 24
Location of Controls ................................................................................. 24
Continuous Pilot / GreenSmart™ Pilot Switch.......................................... 25
Yearly Service Procedure......................................................................... 26
Glass Cleaning......................................................................................... 26
Accent Light Bulb Replacement ............................................................... 26
Replacement Parts List ............................................................................ 27
Wiring Diagram ........................................................................................ 28
LP Conversion Instructions ...................................................................... 29

Safety Precautions 3
© Travis Industries 4100716 100-01254_000
Safety Warnings:
•Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
•This unit must be installed by a qualified installer to prevent the possibility of an explosion.
•This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow
ANSI Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
•All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
•Notify your insurance company before hooking up this fireplace.
•The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
•The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
•This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
•Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
•If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
•It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
•Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
•Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
•Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
•Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
•Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
•Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
•The viewing glass should be opened only for conducting service.
•Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

4 Safety Precautions
© Travis Industries 4100716 100-01254_000
Safety Warnings (continued):
•Allow the heater to cool before carrying out any maintenance or cleaning.
•Operate the heater according to the instructions included in this manual.
•If the main burners do not start correctly turn the gas off and call your dealer for service.
•This unit is not for use with solid fuel.
•Do not place anything inside the firebox (except the optional artwork).
•Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
•Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
•Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition. Do not touch the hot surfaces of the heater. Educate all
children of the danger of a high-temperature heater.
•Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
•Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
•Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

Features and Specifications 5
© Travis Industries 4100716 100-01254_000
BTU Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 46,700 46,700
Dimensions
36-3/4"
933mm
41"
1041mm
19-3/4"
502mm
44-1/2"
1130mm
29-1/4"
743mm
225 Lbs. (102 Kg)
37"
940mm
35-1/4"
895mm
1"
25mm
8" (203mm) 
a
48"
1219mm
1/2"
12mm
40-3/4"
1035mm
14"
356mm
Left
 gauche
Front
avant
Right
droit
Rear
arriŁre
(a) Includes ½” Clearance

6 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Fireplace Placement Requirements
•Fireplace must be installed on a level surface capable of supporting the fireplace and vent
•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
•Fireplace should be located out of traffic and away from furniture and draperies.
•Fireplace must be placed so the gaps below and above the glass frame do not become blocked.
•Fireplace may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
Clearances
(a) Clearance to Side and Rear of Fireplace 0” (0mm)
(b) When installed, walls in front of the fireplace must be a minimum 5” (127mm) to the side of the
fireplace. Do not place insulation in this space.
(c) Clearance to Angled Sides of Fireplace ½” (12mm)
b
ac
Raised Fireplaces
•The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
and vent.

Installation (for qualified installers only) 7
© Travis Industries 4100716 100-01254_000
Min. Framing Dimensions
41-1/4"
1048mm
48"
1219mm
20-3/4"
(527mm)
56-3/8"
1432mm

8 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000

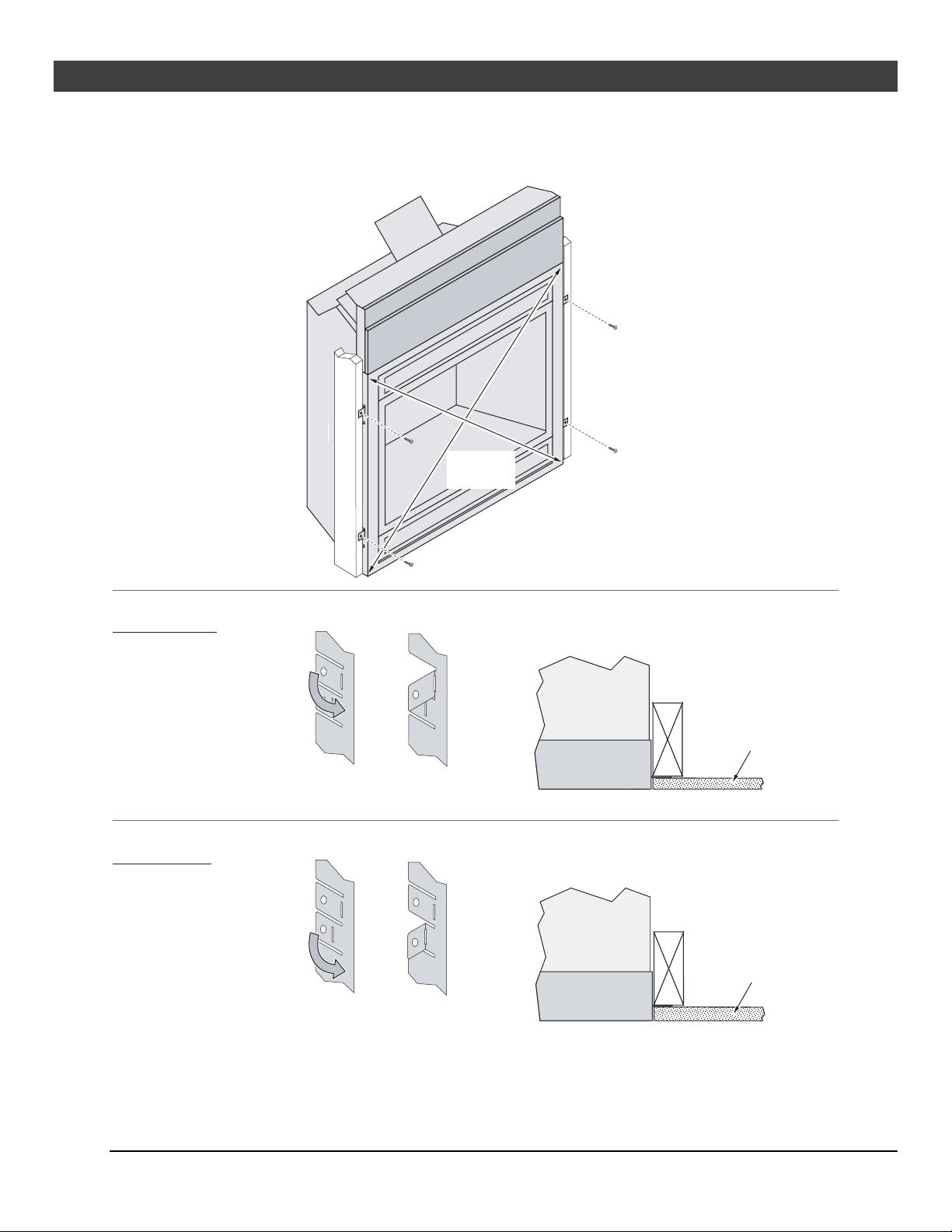

Nailing Brackets
The fireplace has nailing brackets on both sides. Secure the fireplace to the framing.
1/2''(13mm)
5/8''(16mm)
5/8" (16mm)
54-7/8’’
(1394mm)
1/2" (13mm)

Installation (for qualified installers only) 9
© Travis Industries 4100716 100-01254_000
Gas Line Requirements
•The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
NFPA 54(88), in Canada follow CSA B149.1 and the requirements listed below.
•The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures
under 1/2 psig (3.5 kPA), isolate the gas supply piping by closing the manual shutoff valve.
•Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
•The fireplace has an internal shutoff valve. An additional shutoff valve is required. It must be
accessible and within 6’ of the fireplace.
Fuel
•This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
•Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
•If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
•The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper
pressure.
Gas Line Location
The gas line is located on the left side of the appliance in the location shown below. The gas inlet
accepts a ½” FPT.
6-1/4"
159mm
10-3/4"
273mm
6-1/4"
159mm
10-3/4"
273mm

10 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Electrical Connection
•The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified
installer and must meet all local codes.
•Make sure the household breaker is shut off prior to working on any electrical lines.
•The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
•The electrical line must be a min. 14 gauge, and supply 120 Volts, 60 Hz, and 5.7 Amps.
•Route the electrical connection through the junction box cover plate and attach to the hookup wires
pictured below.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.
abcd

Installation (for qualified installers only) 11
© Travis Industries 4100716 100-01254_000
Vent Requirements
•The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent
gas appliance must use it's own separate vent system.
•In addition to the requirements listed here, follow the requirements provided with the vent.
Vent Clearances
•The vent must maintain the required clearance to combustible materials to prevent a fire. Do not fill
air spaces with insulation.
Minimum Clearance to Vent 1" (25mm)
Vent Firestop
•A firestop is required whenever the vent penetrates a wall, floor, or ceiling (passes through framing
members). It may be provided by the vent manufacturer (1” clearance).
NOTE: A Wall thimble (part #58DVA-WTU) is required when venting directly to the rear (no rise).
Altitude Considerations
•This heater has been tested at altitudes ranging from sea level to 6,000 feet (1800 M). In this testing we have
found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
•Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Approved Vent
•Use 8" (203mm) diameter Simpson Dura-Vent Model Direct-Vent Pro (or GS)*.
•Always use the high-wind cap (or high-wind sconce cap, part # 58DVA-HSCH).
•Installation instructions for Simpson Dura-Vent may be found at www.duravent.com
Vent Installation
•Slide the vent sections together and turn 1/4 turn until the sections lock in place.
•Screws are not required to secure the vent. However, three screws may be used to secure vent
sections together if desired.
•High temperature sealant is recommended at the appliance starter section connection (use high-
temperature silicone or Mill-Pac®).
•If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does
not, apply high temperature sealant to the joints of the affected sections.
•Horizontal sections require a 1/4" (6mm) rise every 12" (305mm) of travel.
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing strap).

12 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Approved Vent Configurations
Restrictor Position
•Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and
exhaust gases. Depending upon the vent configuration, you may be required to adjust the restrictor
positions. The charts for acceptable vent configurations detail the correct vent restrictor positions.
Exhaust Restrictor
Position 3
(closed) #8
#7
#6
# 5
# 4
# 3
# 2
(open - stock position) # 1
b
b
a
c
Position 3

Installation (for qualified installers only) 13
© Travis Industries 4100716 100-01254_000
Intake Restrictor
(closed) # 5
# 4
# 3
# 2
(open - stock position) # 1
b
a
Position 3
3/8" Wrench
c

14 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Vent Configuration: Horizontal Termination (no vertical rise)
•NOTE: A Wall thimble (part #58DVA-WTU) is required.
•The termination must fall within the shaded area shown in the chart. Use the indicated restrictor
positions.
45Elbows
T
erm
i
na
ti
on
3 feet (0.915m)
0 feet
0 feet
4’ max (1.22m)
 Exhaust Restrictor # 1 (stock)
 Intake Restrictor # 1 (stock)
Vent with No 45˚ Elbow
3 feet (0.915m)
0 feet
0 feet
2’ max (0.61m)
Vent with 1 45˚ Elbow
 Min. 4" (102mm) Horizontal Section
 Max. 24" (610mm) Horizontal
Section(s)
 Min. 4" (102mm) Horizontal Section
 Max.48" (1219mm) Horizontal
Section(s)
 Exhaust Restrictor # 1 (stock)
 Intake Restrictor # 1 (stock)

Installation (for qualified installers only) 15
© Travis Industries 4100716 100-01254_000
Vent Configuration: Horizontal Termination (with vertical rise)
•The termination must fall within the shaded area shown in the chart. Use the indicated restrictor
positions.
Exhaust Restrictor # 5
Intake Restrictor # 2
Exhaust Restrictor # 3
Intake Restrictor # 1 (stock)
5 feet (1.5 m)
0 feet
20 feet (6 m)
5 feet (1.5 m)
10 feet (3 m)
0 feet
15 feet (4.5 m)
20’ max (6 m)
10 feet (3 m)
15 feet (4.5 m)
22’ max (6.7 m)
5 feet (1.5 m)
0 feet
0 feet
20 feet (6 m)
5 feet (1.5 m)
10 feet (3 m)
10 feet (3 m)
15 feet (4.5 m)
15 feet (4.5 m)
20’ max (6 m)
22’ max (6.7 m)

16 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Vent Configuration: Vertical Termination
•The termination must fall within the shaded area shown in the chart. Use the indicated restrictor
positions.
Exhaust Restrictor # 4
Intake Restrictor # 2
5 feet (1.5m)
0 feet
0 feet
5 feet (1.5m)
0 feet
20 feet (6m) 20 feet (6m)
5 feet (1.5m)
10 feet (3m)
5 feet (1.5m)
10 feet (3m)
0 feet
15 feet (4.5m)
20’ (6m) max
10 feet (3m)
15 feet (4.5m)
15 feet (4.5m)
20’ (6m) max
10 feet (3m)
15 feet (4.5m)
40’ (12m) max
25 feet (7.5m)
30 feet (9m)
35 feet (10.5m)
40’ (12m) max
25 feet (7.5m)
30 feet (9m)
35 feet (10.5m)

Installation (for qualified installers only) 17
© Travis Industries 4100716 100-01254_000
Termination Requirements
! Venting terminals shall not be recessed into a wall or siding.
A Minimum 9" (229mm) clearance from any door or window
B Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony
C Minimum 1" (25mm) from outside corner walls
NOTE: Clearance in accordance with local installation codes and the requirements
of the gas supplier.
D Minimum 1" (25mm) from inside corner walls
NOTE: Clearance in accordance with local installation codes and the requirements
of the gas supplier.
11" Min.
(279mm) 6" Min.
(152mm)
Roof
Surface
Roof
Eaves
E Minimum 11" (279mm) clearance below unventilated soffits or roof surfaces
Minimum 18" (457mm) clearance below ventilated soffits
Minimum 6" (152mm) clearance below roof eaves
NOTE: Vinyl surfaces require 24" (610mm)
NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.
F Minimum 12" (305mm) clearance below a veranda, porch, deck or balcony
NOTE: Permitted only if veranda, porch, deck, or balcony is fully open on a minumum of two sides beneath the floor.
NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.
G Minimum 48" (1219mm) clearance from any adjacent building
H Minimum 84" (2134mm) clearance above any grade when adjacent to public walkways or driveways
NOTE: may not be used over a walkway or driveway shared by an adjacent building
I Minimum 9" (229mm) clearance to any nonmechanical air supply inlet to the building or the combustion air inlet
to any other appliance.
J Minimum 36" (914mm) clearance above any mechanical air supply inlet if within 10’ (3M) horizontally
K Minimum 36" (914mm) from the area above the meter/regulator (vent outlet) - this extends 15’ (4.5M) above the regulator
NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.
L Minimum 36" (914mm) from the meter/regulator (vent outlet)
NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.
M Minimum 12” (305mm) above the roof line (for vertical terminations)
N Minimum 24” (610mm) horizontal clearance to any surface (such as an exterior wall) – for vertical terminations
C
B
H
E
GA
D
F
L
KJ
I
NOTE: Measure clearances to the nearest edge of the exhaust hood.
A
E
E
M
N

18 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Hearth Requirements
Floor Mounted Fireplaces
Do not build a hearth more than 1" (25mm) above the baseplate (this area must remain clear for the
access door).
Max. 1"
(25mm)
Fireplace
Hearth
If installed near carpet or other combustible flooring, the fireplace must be raised so the base of the unit is
above the carpet surface or flooring material.
WARNING:
A non-combustible hearth is not required. However, if the heater is installed next to the floor, we
recommend a hearth to protect the flooring surface from discoloration or other negative impact from the
heater.
Raised Fireplaces
A hearth is not required when the fireplace is raised above the flooring surface.

Installation (for qualified installers only) 19
© Travis Industries 4100716 100-01254_000
Facing Requirements
•The included fiber board is required and must remain attached to the fireplace (see “a” below).
•Non-combustible facing must extend 7-3/4” (197mm) above the face of the fireplace (see “c” below).
Drywall or other combustible may not be place on top of this non-combustible area.
•Drywall (or other combustible) may be placed above the non-combustible facing (see “a” below) and
to the sides and below the fireplace face. This combustible facing must be a minimum 7-3/4”
(197mm) above the face of the fireplace (see “b” below).
•Tile or other non-combustible facing may be placed along the perimeter of the fireplace face, but
must not extend over it (see “d”). This area must remain open to allow for glass frame removal and
air flow.
c
c
b
d
b
c
a
b

20 Installation (for qualified installers only)
© Travis Industries 4100716 100-01254_000
Mantel Requirements
•A combustible or non-combustible mantel must meet the clearances listed below.
Maximum Mantel Depth (b)
Mantel
Height
Above
Base (a)
52-3/4" (1340mm)
0" (0mm)
1" (25mm)
2" (51mm)
8" (203mm)
7" (178mm)
6" (152mm)
5" (127mm)
4" (102mm)
3" (76mm)
9" (229mm)
10" (254mm)
11" (279mm)
12" (305mm)
51-3/4" (1314mm)
50-3/4" (1289mm)
49-3/4" (1264mm)
48-3/4" (1238mm)
47-3/4" (1213mm)
46-3/4" (1187mm)
53-3/4" (1365mm)
a
b
