Travis Industries 564 HO User manual

564 HO GS
Fireplace
Tested and Listed by
ANSI Z21.88
Built-In Direct Vent Fireplace
Natural Gas or Propane
Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Installation Manual
Installer: After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2011, T.I. $10.00 100-01263_000 4110505
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4110505 100-01263_000
Overview
This manual details the installation requirements for
the 564 HO GS fireplace. For operating and
maintenance instructions, refer to the 564 HO GS
Owner's Manual (part # 100-01264).
Listing Details
This appliance was listed by Intertek Test Labs to
ANSI Z21.88. The listing label is attached to the
appliance near the gas control valve. A copy is
shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters.
National Fireplace Institute
Report No. B100307498PRT-001
Control No. 4000515
Certified for USA and Canada
Tested to: ANSI Z21.88-2009/CSA 2.33-2009 “Vented Gas Fireplace Heaters”, CGA 2.17-M91, UL 307b-2006 “Gas Burning Heating Appliances for Manufactured Homes”, and CSA P.4.1-09. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installation Standard. This vented gas fireplace heater is equipped at the factory for use with natural gas. If conversion to propane (LP) is desired, the optional factory conversion kit must be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured home (USA only) where not prohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
CAUTION: Hot while in operation. Do Not Touch. Severe burns may result. Keep children,
clothing, furniture, gasoline and other liquids having flammable vapors away. Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
MINIMUM CLEARANCES TO COMBUSTIBLES
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
12” (305 mm)
0” (0 mm) 0” (0 mm)
Base of Fireplace to Enclosure Top Sides to Enclosure Base of Fireplace to a 12” Mantel* (*See manual for other mantel depths)
56” (1423 mm)
0.5” (13 mm)
48.75” (1239 mm)
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr)
35,000
7,500
35,000 10,400
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
11”
13” 10”
5.5”
7”
3.5”
For natural gas when equipped with the following drill size orifice: DMS 50 Front - DMS 44 Back For propane when equipped with the following drill size orifice: 1.10mm Front - DMS 55 Back This appliance is equipped for use only at altitudes 0-2000 feet (0-610m) in the USA. In Canada, 0-4500 feet (0-1370m). For altitudes above 2000 feet, the vent configuration, orifice, or combination of both may need to be changed. See the owner’s manual for information on making these changes. Electrical Rating: 115V., 60 Hz, 1.5 Amps
L.P. N.G. L.P. N.G.
2011 2012 2013
Jan. Feb. Mar.
Apr. May Jun.
Jul. Aug. Sep.
Oct. Nov. Dec.
Manufacture Date:
www.travisproducts.com
0962

Table of Contents 3
© Travis Industries 4110505 100-01263_000
Overview ...........................................................2
Listing Details...................................................2
Installation Options..........................................6
Heating Specifications.....................................6
Dimensions.......................................................6
Packing List......................................................7
Additional Items Required...............................7
Installation Overview .......................................7
Recommended Installation Procedure ..........8
Massachusetts Requirements ........................9
Requirements for the Commonwealth of
Massachusetts................................................9
MANUFACTURER REQUIREMENTS...........9
Fireplace Placement Requirements.............10
Clearances ...................................................10
Raised Fireplaces.........................................10
Minimum Framing Dimensions.....................11
Nailing Brackets............................................12
Corner Installations.......................................13
Gas Line Requirements.................................14
Fuel...............................................................14
Gas Line Connection....................................14
Gas Inlet Pressure........................................14
Gas Line Location.........................................15
Electrical Connection (required) ..................16
Optional Wall Switch or Thermostat
Installation ......................................................17
Parallel ConnectionSeries Connection 17
Vent Requirements ........................................18
Vent Clearances...........................................18
Altitude Considerations.................................18
Approved Vent..............................................19
Vent Installation............................................19
Approved Vent Configurations.....................20
Restrictor Position........................................20
Exhaust Restrictor Adjustment.....................20
Intake Restrictor Adjustment........................21
Diffuser Plate Adjustment.............................22
Vent Configurations with Horizontal
Termination (EmberFyre Burner only).........23
Vent Configurations with Vertical
Termination (EmberFyre Burner only).........24
Vent Configurations with Horizontal
Termination (Dancing/DiamondFyre)...........25
Vent Configurations with Vertical
Termination (Dancing/DiamondFyre)...........26
Hearth Requirements ....................................28
Facing Requirements ....................................29
Drywall Installation .......................................29
Facing Overview...........................................30
Optional Faceplates – Sizing Chart..............30
Thin Facing Installation (tile, marble, or other
non-combustible under 1" (25mm) thick).....31
Thin Facing Installation (tile, marble, under 1"
(25mm) thick) — Side View..........................32
Thick Facing Installation (stone, brick, or other
non-combustible over 1" (25mm) thick) .......33
Thick Facing with Fireplace Xtrordinair (FPX)
Arched Faces...............................................34
Thick Facing Installation — Side View.........35
Mantel Requirements ....................................36
Combustible Mantels....................................36
Steps for Finalizing the Installation.............36
Air Shutter Adjustment.................................38
Glass Frame Removal and Installation........39
Glass Frame Removal and Installation
(continued) .....................................................40
LP Conversion Instructions..........................41
Installation ..................................................41
Index.............................................................58

4 Safety Precautions
© Travis Industries 4110505 100-01263_000
Safety Warnings:
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4110505 100-01263_000
Safety Warnings (continued):
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition. Do not touch the hot surfaces of the heater. Educate all
children of the danger of a high-temperature heater.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Installation (for qualified installers only) 6
© Travis Industries 4110505 100-01263_000
Installation Options
Residential or Mobile Home
Straight or Corner Placement
Flush or Recessed Face
Raised or Floor Placement
Internal or External Chase
Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 1,700 Up to 1,700
Maximum BTU Input Per Hour 35,000 35,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.
Dimensions
(a) Center Location of Vent
(b) Heat Shield (must be bent vertically after fireplace is in location)
30"
762mm
Left
a' gauche
Front
avant
Right
droit
Rear
arrie're
36.25"
921mm
30-1/4"
768mm
33-1/4"
845mm
28-3/4"
730mm
1” 25mm
32.5"
826mm
18.75"
476mm
36-1/2”
928mm
31-3/4”
807mm
6-1/4”
159mm
16-1/2”
420mm
a
b

Installation ( for qualified installers only) 7
© Travis Industries 4110505 100-01263_000
Packing List
Propane Conversion Kit
564 HO Thimble (250-02318)
Additional Items Required Direct Vent
Gas Line Equipment
Electrical Equipment
This Fireplace Requires a Burner Kit, Firebacks, Logs/Media, and Face/Grill
This fireplace is shipped without a burner. This allows the fireplace to be configured in one of three
unique designs. See the table below to verify you have all of the items required.
Burner Style EmberFyre™ Burner
96900116 DiamondFyre™
Burner
96900115
DancingFyre™ Burner
96900114
Firebacks Requires 564 Ceramic
Firebacks:
96100179
96100181
96100182
96100183
96100270
96100271
Requires one of the
following:
Stainless 96100249
Enamel Black 96100250
Painted Black 96100251
Included w Burner
(Black Painted)
NOTE: You may use
ceramic or 564 HO
DiamondFyre firebacks,
but they are only installed
on the firebox walls (floor
firebacks are discarded).
Logs/Media Included w Burner Use 564 HO (31 DVI)
Media
Driftwood (94500548)
Other Media To Follow
Included w Burner
Face/Grill Use any 564 Face or Grill Use any 564 Face or Grill Use any 564 Face or Grill

8 Installation (for qualified installers only) 8
© Travis Industries 4110505 100-01263_000
Installation Overview
All requirements below must be met.
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) or 5/8" (16mm) drywall (see "Nailing
Brackets" on page 12 for details). Secure the fireplace to the framing.
Install the vent, gas line and electrical hook-up.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 36) and install the grill or face.
Drywall
See the section
“Mantel Requirements”
Drywall
Side
Wall 12” min.
305mm
See “Optional Non-
Combustible Facing” See “Optional Non-
Combustible Hearth”
See the section
“Electrical Connection”
See the section
“Vent Requirements”
See the section
“Approved Vent
Configurations”
Nailing brackets
See the section
“Minimum Framing
Dimensions”
See the section
“Gas Line Installation”

Installation (for qualified installers only) 9
© Travis Industries 4110505 100-01263_000
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2) (a) 1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

10 Installation (for qualified installers only) 10
© Travis Industries 4110505 100-01263_000
Fireplace Placement Requirements
The fireplace requires a 1/2" (13mm) clearance from the angled sides of the fireplace to the framing
members. No material (insulation, framing, etc.) may be placed into this area.
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
Clearances
When installed, walls in front of the fireplace must be a minimum 12" (305mm) to the side of the
fireplace.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Fireplace must be placed so the vents below and above the glass do not become blocked.
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(155 lbs., 70Kg) and vent.

Installation (for qualified installers only) 11
© Travis Industries 4110505 100-01263_000
Minimum Framing Dimensions
Minimum enclosure height = 56” (1422.4 mm)
36.75”
936mm
WARNING: A cut-out for the gas line
may be required on the framing. See
the dimensions under “Gas Line
Connection” for details.
The on/off switch/thermostat wire
(if used) should be routed to a location
near the left front of the fireplace.
Route the electrical line to a position
to the left rear of the fireplace.
36.5”
928mm 16.5”
420mm

12 Installation (for qualified installers only) 12
© Travis Industries 4110505 100-01263_000

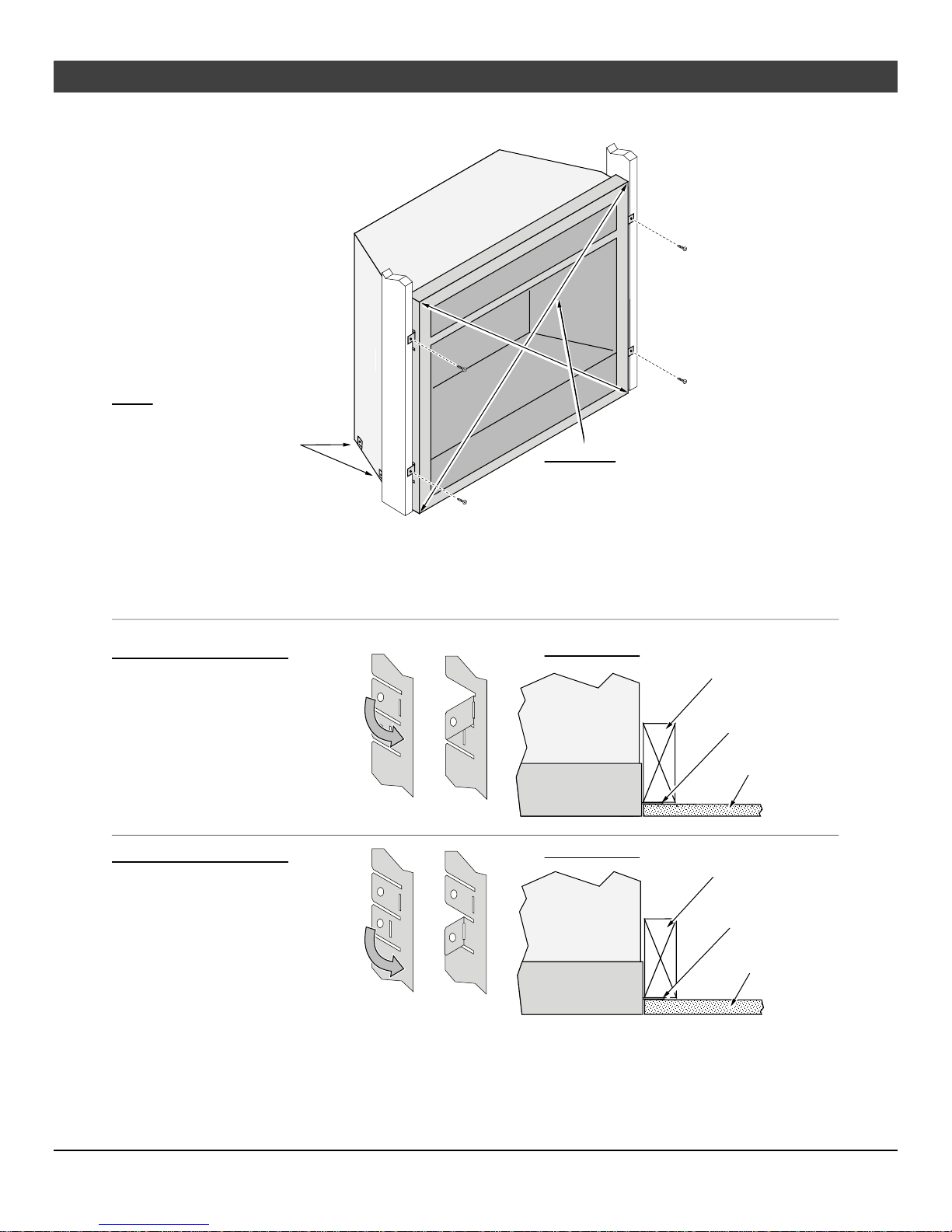

Nailing Brackets
There are 4 nailing brackets
on the front of the fireplace.
Follow the directions below to
prepare the nailing brackets.
Once in place, nail or screw the
nailing brackets to the framing.
NOTE: Additional nailing
brackets are provided along
the base of the fireplace. Use
these brackets if not using
the front brackets. WARNING:
Make sure the fireplace is
square and plumb when
placed in the framing.
Measured corner-to-corner,
the fireplace should be square
(approx. 47-1/8” / 1197mm) for
each dimension. Use shims to
ensure the fireplace is square.
1/2” (13mm) Drywall
For installations using 1/2” (13mm)
facing, fold the larger tab out
90 degrees. Use a screwdriver if
necessary.
5/8” (16mm) Drywall
For installations using 5/8” (625mm)
facing, fold the shorter tab out
90 degrees. Use a screwdriver if
necessary.
TOP VIEW
TOP VIEW
Fireplace
Fireplace
Framing
Nailing Bracket
Drywall
Framing
Nailing Bracket
Drywall

Installation (for qualified installers only) 13
© Travis Industries 4110505 100-01263_000
Corner Installations
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).
14-1/4"
362mm
44-1/2" Min.
1130mm
Minimum 1/2" (13mm)
Clearance

14 Installation (for qualified installers only) 14
© Travis Industries 4110505 100-01263_000
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
NFPA 54(88), in Canada follow CSA B149.1 and the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under
1/2 psig (kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an
improper pressure.

Installation (for qualified installers only) 15
© Travis Industries 4110505 100-01263_000

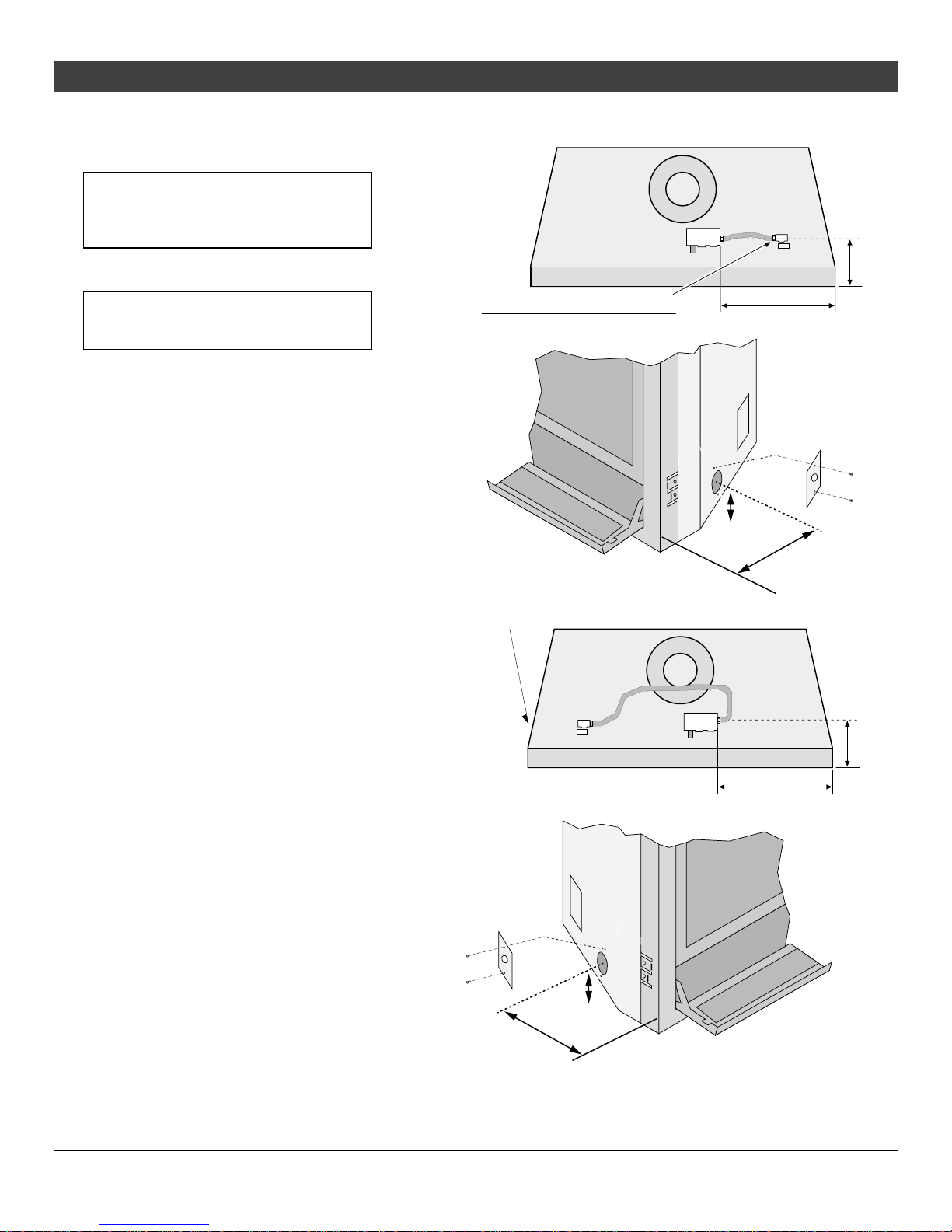

Gas Line Location
13-3/4"
349mm
8-3/4"
222mm
Right Side Gas Inlet (preferred)
Left Side Gas Inlet
8-3/4”
222mm
13-3/4” (349mm)
1-3/4”
(44mm)
7-3/4”
(197mm)
4-3/4”
(121mm)
1-3/4”
(44mm)
A 6” (152mm) flex tube and shutoff
valve are included with the fireplace.
The shutoff valve accepts a ½” MPT.
The gas valve inlet is located 2-½”
above the base of the fireplace.

16 Installation (for qualified installers only) 16
© Travis Industries 4110505 100-01263_000
Electrical Connection (required)
The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified
installer and must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
The electrical line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps).
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
abcd

Installation (for qualified installers only) 17
© Travis Industries 4110505 100-01263_000
Optional Wall Switch or Thermostat Installation
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch and
wiring must be installed by a qualified installer.
This fireplace includes an optional wall switch (with wire) to
operate the fireplace burner without accessing the internal
on/off switch. A thermostat may be used instead.
Route the wire from inside the fireplace, through the grommet
on either side of the fireplace near the gas inlet (see at right)
to the switch. The wall switch (or thermostat) may bypass the
fireplace on/off switch or be installed in parallel or series
configuration (see below).
Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Note: When using a GreenSmart™ remote, use the
receiver for on/off operation (do not use a wall
switch or thermostat).
Warning: Make sure all wiring is secure and does not
contact hot or moving components.
Parallel Connection Series Connection
On / Off Switch
ON On / Off Switch OFF On / Off Switch ON On / Off Switch OFF
Thermostat / External
Switch ON Heater is ON Heater is ON Thermostat / External Switch ON Heater is ON Heater is OFF
Thermostat / External
Switch OFF Heater is ON Heater is OFF Thermostat / External Switch OFF Heater is OFF Heater is OFF
To wire the heater in parallel, follow the directions below: To wire the heater in series, follow the directions below:
OPTIONAL WALL SWITCH
(included with fireplace)
Place "WARNING"
label on switch cover.
Thermostat
(or External Switch) Wires
ab
c
On / Off Switch
a
On / Off Switch
c
b
Thermostat
(or External Switch) Wires

18 Installation (for qualified installers only) 18
© Travis Industries 4110505 100-01263_000
Vent Requirements
The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent
gas appliance must use its own separate vent system.
In addition to the requirements listed here, follow the requirements provided with the vent.
The fireplace must use the Travis Thimble (sku 250-02318) whenever the vent penetrates a wall.
Other penetrations only require a 1" (25mm) clearance and may use a standard firestop (make sure
the required 1" (25mm) clearance is met).
Vent Clearances
The vent must maintain the required clearance to combustible materials to prevent a fire. Do not fill
air spaces with insulation.
Sides 1" (25mm)
Above 4" (102mm)
Below 1" (25mm)
Altitude Considerations
This heater has been tested at altitudes ranging from sea level to 6,000 feet (1800 M). In this testing we have
found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Horizontal
T ermina tion
S ee C learances Above
Use a restop whenever
pas s ing through a ceiling
V ertica l T ermina tion
Us e a roof flas hing and storm collar
whenever pas s ing through the roof
U s e a s upport box
on exposed vent
S ee C learances Above
S ee C learances Above
S ee C learances Above
Required Thimble

Installation (for qualified installers only) 19
© Travis Industries 4110505 100-01263_000
Approved Vent
May use 6-5/8” if terminated vertically.
Horizontal termination configurations use 8" (203mm) diameter Simpson Dura-Vent Model Direct-
Vent Pro (or GS)*.
* Other vent may be approved with this fireplace. Check with the vent manufacturer for details.
Vertical termination configurations use 8" (203mm) or 6-5/8" (168mm) diameter Simpson Dura-Vent
Direct-Vent Pro (or GS)*.
NOTE: When using 6-5/8” (168mm) diameter vent, make sure to accommodate the 4” (102mm)
clearance above the vent. Standard firestops do not include this clearance.
Always use the high-wind cap (58DVA-HC, 58DVA-VCH, or 46DVA-VCH).
Installation instructions for Simpson Dura-Vent may be found at www.duravent.com.
Other vents may be approved.
Vent Installation
Slide the vent sections together and turn 1/4 turn until the sections lock in
place.
Screws are not required to secure the vent. However, three screws may be
used to secure vent sections together if desired.
High temperature sealant is recommended at the appliance starter section
connection (use high-temperature silicone or Mill-Pac®).
If disassembly is required, at time of re-assembly check to see if the vent
creates a tight fit. If it does not, apply high temperature sealant to the joints
of the affected sections.
Horizontal sections require a 1/4" (6mm) rise every 12" (305mm) of travel
Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)
NOTE: Travis Industries strongly recommends using a 6-5/8” diameter vent when terminating
verticall
y
.

20 Installation (for qualified installers only) 20
© Travis Industries 4110505 100-01263_000
Approved Vent Configurations
Restrictor Position
Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and
exhaust gases. Depending upon the vent configuration, you may be required to adjust the restrictor
positions. The charts for acceptable vent configurations detail the correct restrictor positions.
Exhaust Restrictor Adjustment
The exhaust restrictor is shipped in position “1”. If the restrictor is required in a different position, remove the
screws, re-position the restrictor (see “A” below), and replace the screws.
In the example “B” below, the restrictor is set in position #3.
Back Wall of Firebox
Firebox Roof
# 1 (open - stock position)
# 5 (closed)
# 2
# 3
# 4
This example is Position # 3
Back Wall of Firebox
Firebox Roof
a
b
