Trek Bicycle Computer User manual
This manual explains the installa-
tion and use of the Trek Incite ACH
and ACH Digital bicycle computers.
Please read this manual carefully
and save it for future reference.
If you do not understand the
information in this manual, or you
have a question about your Incite
ACH computer that this manual
does not cover, consult your Trek
dealer. If you have a question or
problem that your Trek dealer can’t
handle, contact us at:
© Copyright Trek Bicycle Corporation
2006 All rights reserved
06 Incite ACH 07_13.indd 1 7/14/06 7:25:51 AM
Safety and general guidelines ......................................................... 1
Functions ......................................................................................... 2
Installation....................................................................................... 5
Placing the computer on the handlebar...................................... 6
Placing the magnet and sensors ................................................. 8
Positioning of the heart rate strap ........................................... 11
Easy setup (ReSet)..................................................................... 12
ReStart- Getting ready to ride....................................................... 17
Additional information................................................................... 18
Troubleshooting............................................................................. 19
Replacing the battery .................................................................... 20
Advanced features.......................................................................... 22
Units .......................................................................................... 23
Clock .......................................................................................... 24
Stopwatch .................................................................................. 25
Wheel size and setting a second wheel ..................................... 26
Speed.......................................................................................... 30
Odometer ................................................................................... 31
Cadence...................................................................................... 32
Altitude ...................................................................................... 33
Grade ......................................................................................... 35
Heart rate .................................................................................. 36
Heart rate zone.......................................................................... 37
Limited Warranty........................................................................... 38
06 Incite ACH 07_13.indd 2 7/14/06 7:25:52 AM

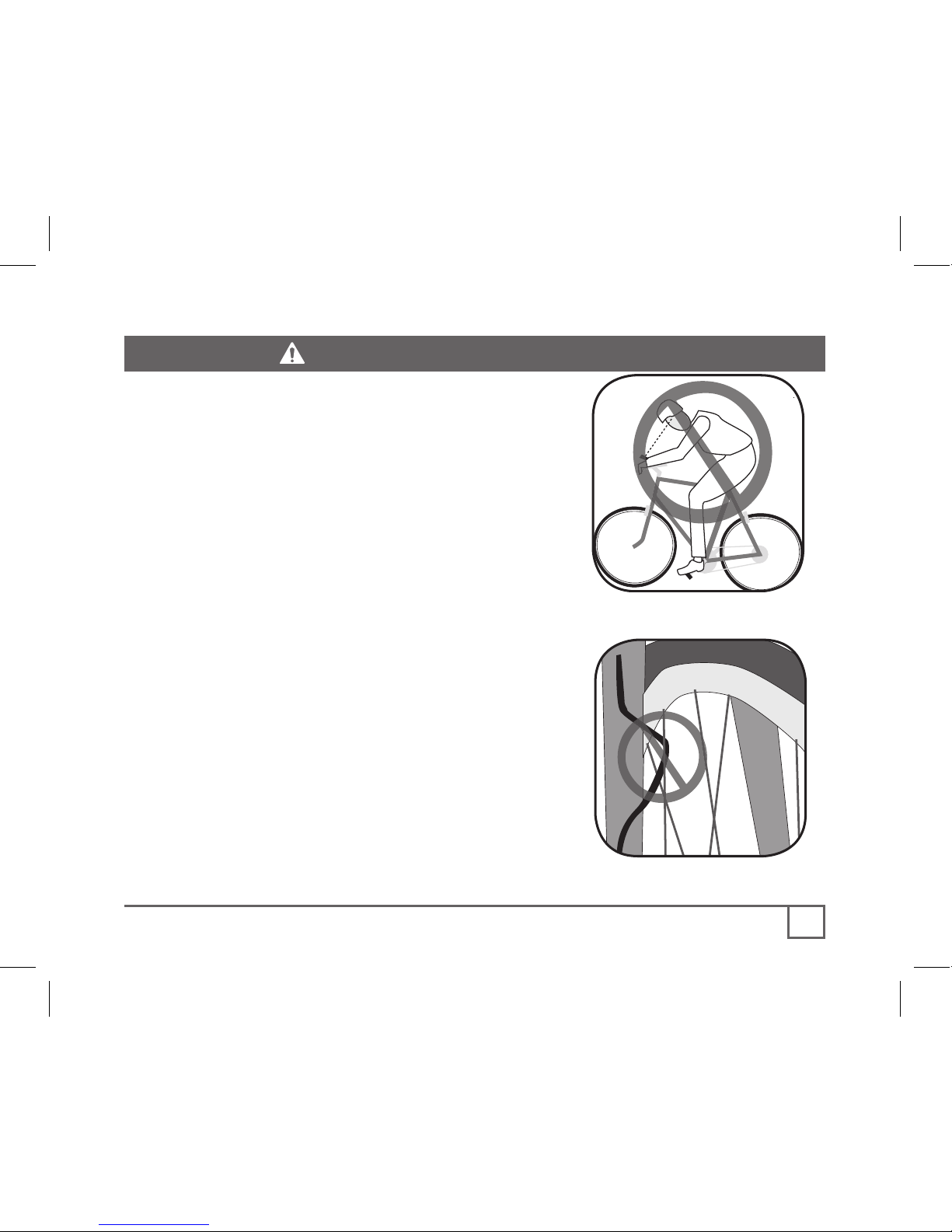

While riding your bicycle, do not stare
at the computer for long periods of time
(Figure 1). If you do not watch the road,
you could hit an obstacle, which may
cause you to lose control and fall.
Make sure the computer wire cannot
contact the tire or wheel spokes (Figure
2). The wire could be damaged causing
the computer to malfunction. Also, the
wire could get caught, causing you to lose
control and fall.
06 Incite ACH 07_13.indd 1 7/14/06 7:25:52 AM

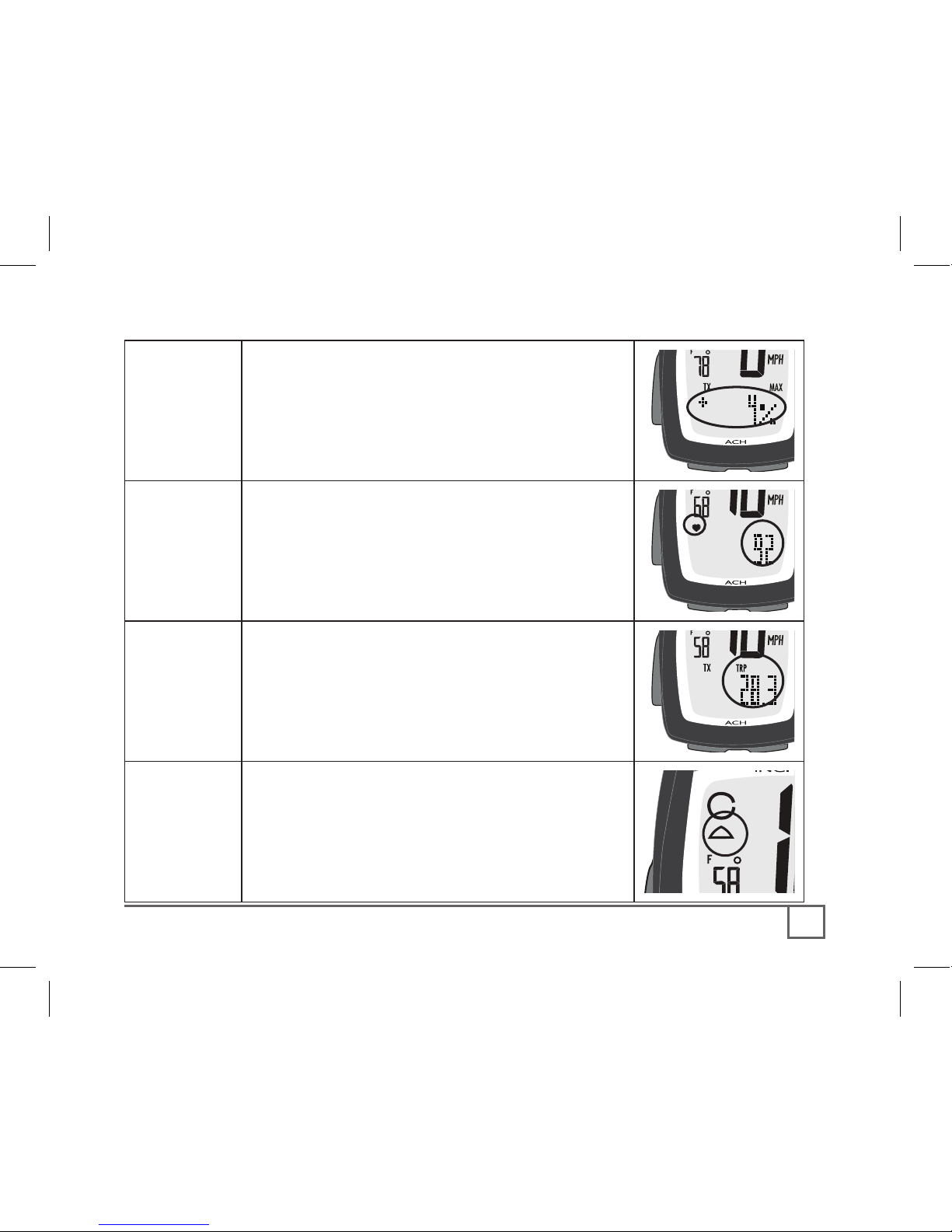

06 Incite ACH 07_13.indd 2 7/14/06 7:25:53 AM
06 Incite ACH 07_13.indd 3 7/14/06 7:25:54 AM
06 Incite ACH 07_13.indd 4 7/14/06 7:25:55 AM

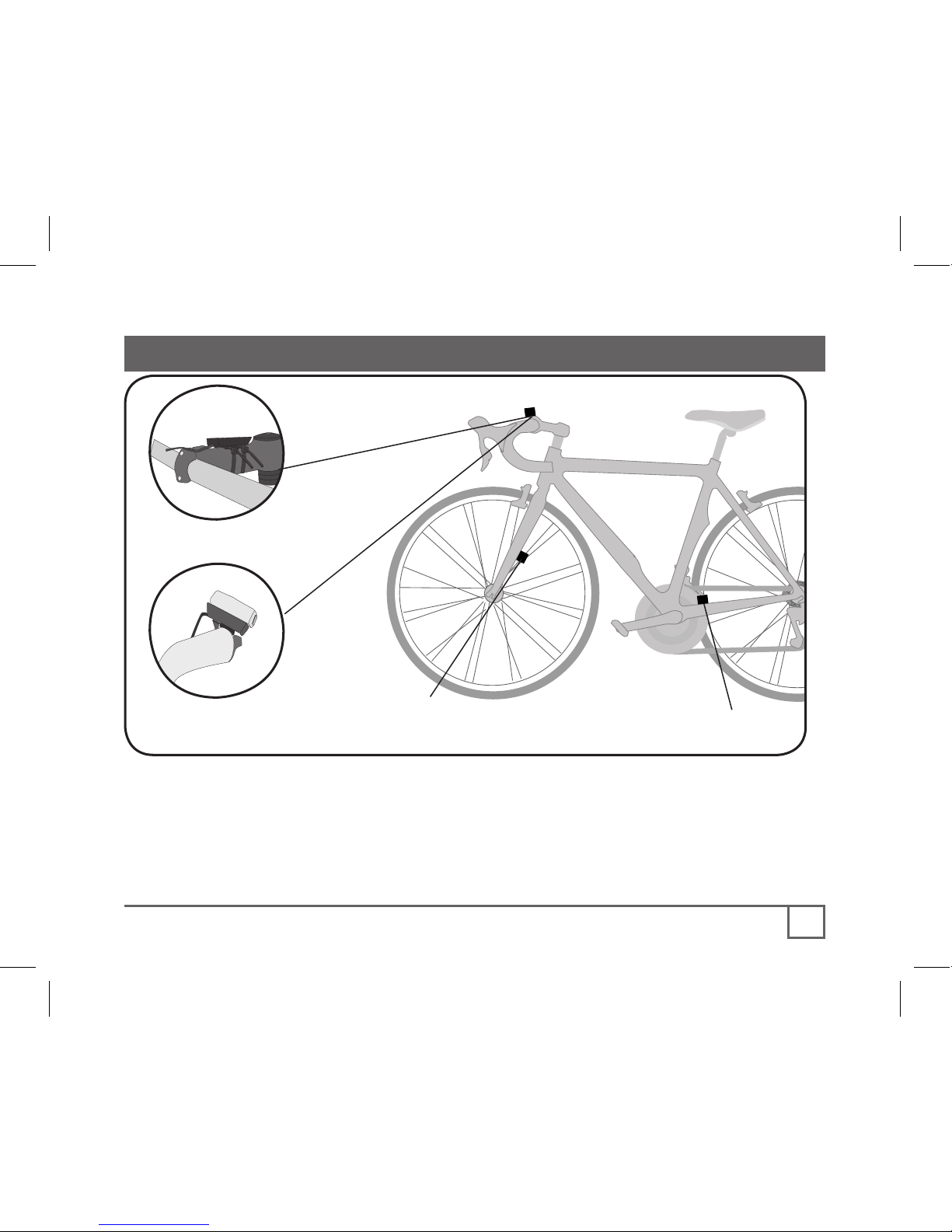

Stem mount
Handlebar
mount Speed sensor Cadence sensor
Tools needed:
• Electrical tape
• Slot-type screwdriver
• Phillips-type screwdriver
• Scissors
06 Incite ACH 07_13.indd 5 7/14/06 7:25:56 AM
The Trek Incite ACH computer can be
mounted on the handlebar or on the stem
(Figure 3).
1. Select the bar clamp that fits your bike.
31.8mm bars: large clamp
25.4mm and 26.0mm: small clamp
22.2mm bar: small clamp with rubber shim
2. Insert the handlebar clamp into the back of
the computer base (Figure 4) and slide it
towards the front of the base.
3. Insert the rubber friction pad into the computer base, aligned
across the computer base.
4. With the wire pointing toward the front of the bike, wrap the bar
clamp around the handlebar.
5. Insert the screw through the washer and into the computer base.
6. Tighten the screw until the computer base cannot rotate on the
handlebar.
7. Slide the computer into the computer base until the front of the
computer and computer base line up.
06 Incite ACH 07_13.indd 6 7/14/06 7:25:57 AM

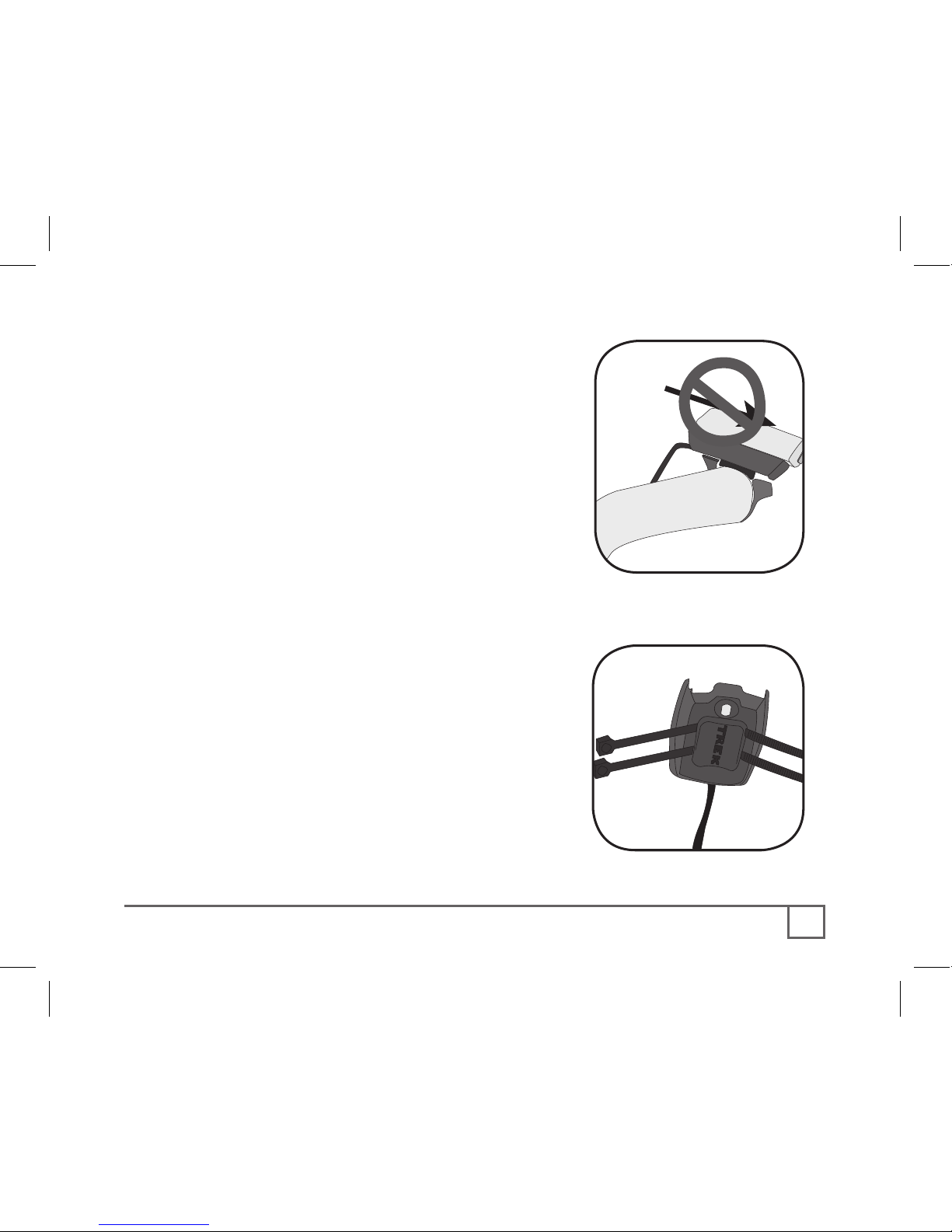

Check that the computer base cannot be
rotated around the handlebar, and that the
computer cannot slide backwards on the
computer base (Figure 5).
1. Insert the rubber friction pad into
the computer base, aligned along the
computer base.
2. Insert two nylon ties through the
computer base (Figure 6).
3. Place the base on the stem and tighten
the nylon tie.
4. Slide the computer into the computer
base until the front of the computer and
computer base line up.
5. Check that the computer base cannot
be rotated around the stem and the
computer cannot slide backwards on the
computer base.
6. Tighten the nylon ties and trim the
excess length.
06 Incite ACH 07_13.indd 7 7/14/06 7:25:57 AM

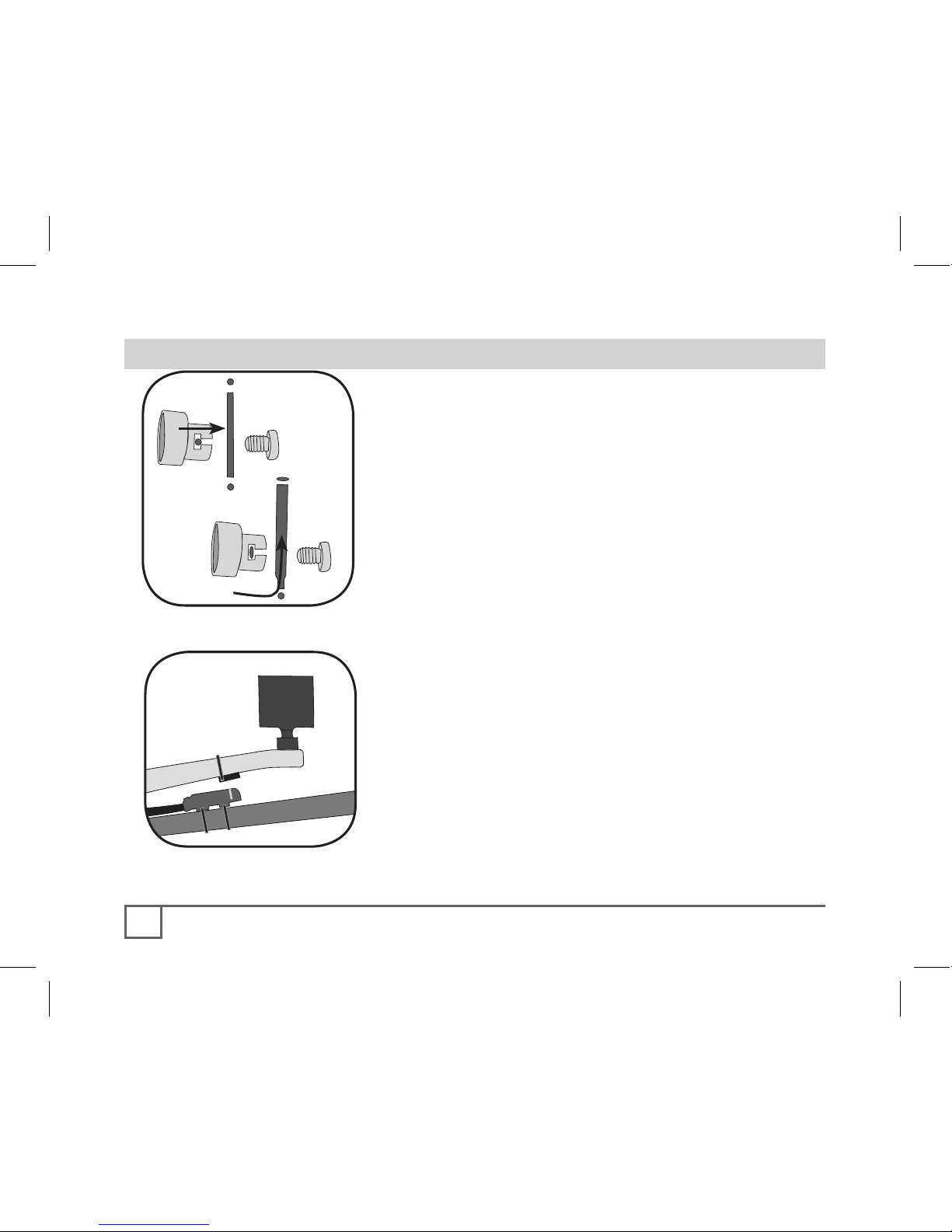

The wheel magnet must be aligned so that
it passes across the sensor. As the magnet
passes the sensor, it must be no further from
the sensor than 1 to 3mm (1/32 to 1/8 inch).
The wheel magnet has a ‘T’ shaped slot with
two configurations: round spokes and flat or
bladed spokes (Figure 7).
The cadence sensor, with the wire, mounts
near the crankset. It must be aligned so that
the magnet passes within 1-3mm, and in line
with the small line on the sensor (Figure 8).
1. Remove the screw from the magnet.
2. Slide the slot in the back of the magnet
over the spoke.
For a flat or bladed spoke, start the spoke near
the end where the spoke is round, and align the
top of the ‘T’ with the spoke as you slide the
magnet up the blade (Figure 7).
3. Thread the screw into the magnet until it
is snug against the spoke.
06 Incite ACH 07_13.indd 8 7/14/06 7:25:58 AM
These instructions are written for the
cadence sensor, which goes on the frame’s
left chainstay. The instructions apply
equally to installing the ACH Digital
cadence sensor or the wheel sensor on the
fork- where there is no wire on the sensor.
1. Align the sensor with the magnet.
The magnet must pass across the line on the
sensor (Figure 9).
2. Orient the sensor so that the clearance
between the sensor and the magnet is
between 1 to 3mm.
The sensor can be rotated around the crank
about 45 degrees.
If needed, the sensor and magnet can be moved
up or down the crank and bike frame to change
the amount of clearance.
3. For a wireless sensor, install the rubber
“foot” in the sensor (Figure 10).
The ACH Digital has an integrated rubber foot.
4. Attach the sensor with nylon ties, but
do not fully tighten.
1.0 -
3.0mm
06 Incite ACH 07_13.indd 9 7/14/06 7:25:59 AM
5. With the computer in the computer base,
check the alignment of the sensor and magnet
by spinning the wheel and noting if the
computer is displaying cadence (or for the
wheel sensor, speed).
If the computer shows cadence (RPM) or current
speed, the sensor is reading the magnet. If the
computer is not displaying a value, realign the sensor
and magnet until one is displayed.
6. Tighten the nylon ties and trim the excess
length (Figure 11).
06 Incite ACH 07_13.indd 10 7/14/06 7:25:59 AM

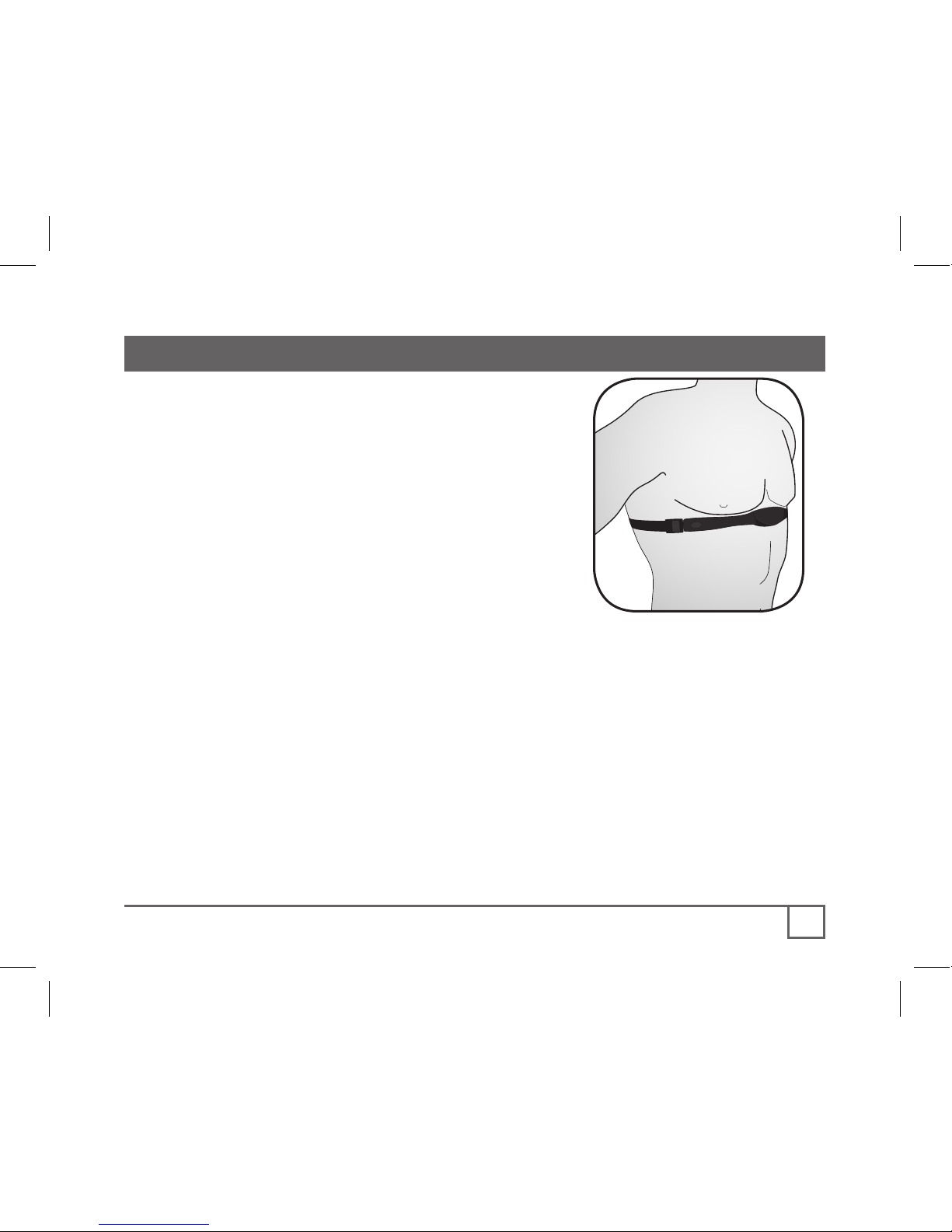

To monitor your pulse, or heart rate, you
must be wearing the heart rate strap. The
strap senses each contraction, or beat, of
your heart. The beat is sensed electrically,
so proper location of the strap is important
to attain the strongest signal.
To be near to your heart, wear the heart
rate strap around your lower rib cage, just
under the breasts (Figure 12).
For best results, the contact between the
sensor and your skin should be moist.
Wet the ribbed section of the sensor before
putting it on. Once you start riding, this
area will stay moist from perspiration.
06 Incite ACH 07_13.indd 11 7/14/06 7:25:59 AM
Mode
Set
Scroll
The computer must be set, or
“programmed,” so that it gives its
readout in the units you prefer, and so
that it calculates with the correct wheel
size.
When setting the computer, there are
three ways to use the buttons:
Push- touch once
Cycle- push repeatedly as needed
Hold- push and hold in for two
or three seconds

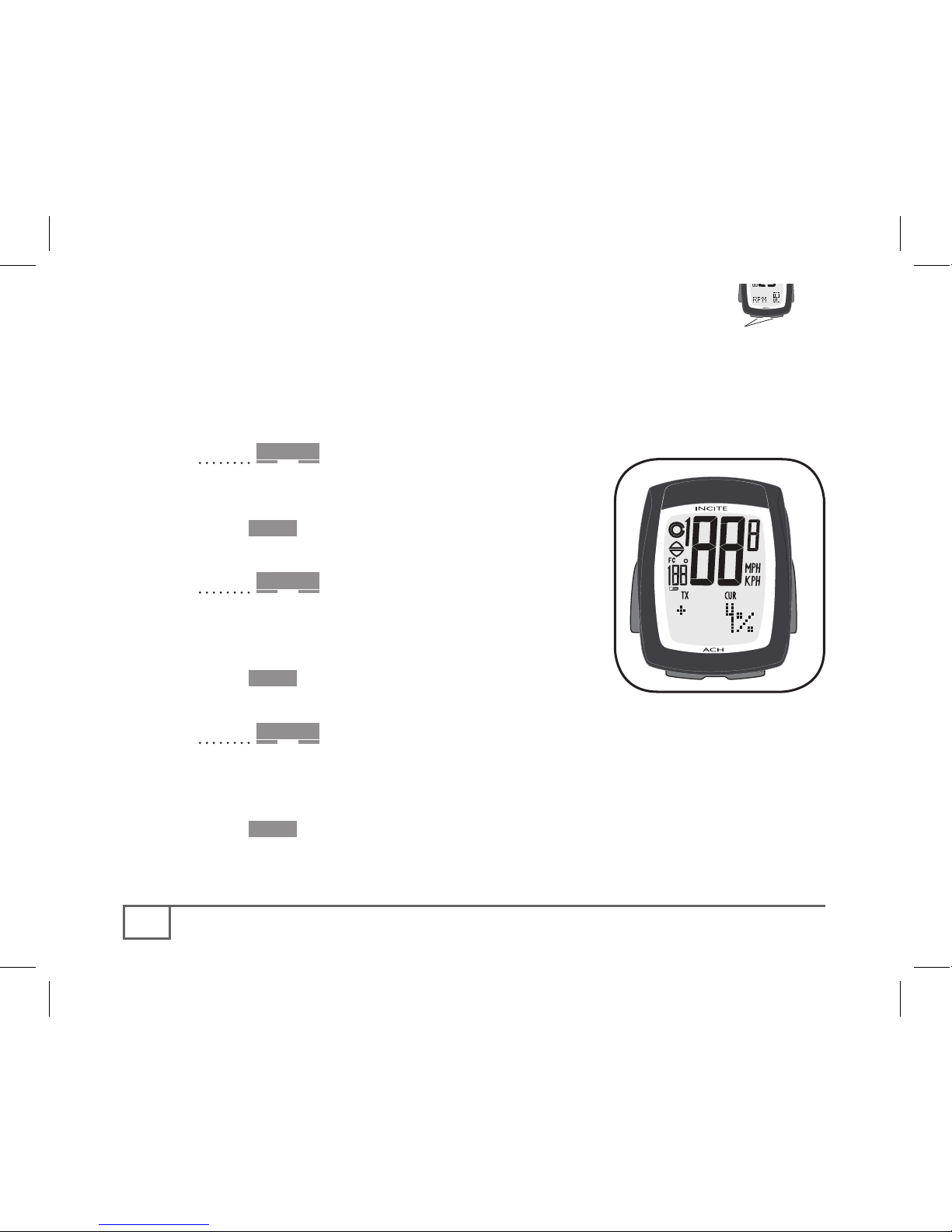

To set the ACH, you must use the
four buttons (Figure 13) in a specific
sequence:
Set• (button on the right)
•Mode (button on the left)
Scroll (two bottom buttons, push
either one- the computer will
scroll in a different direction)
06 Incite ACH 07_13.indd 12 7/14/06 7:26:00 AM
Mode Set
Scroll

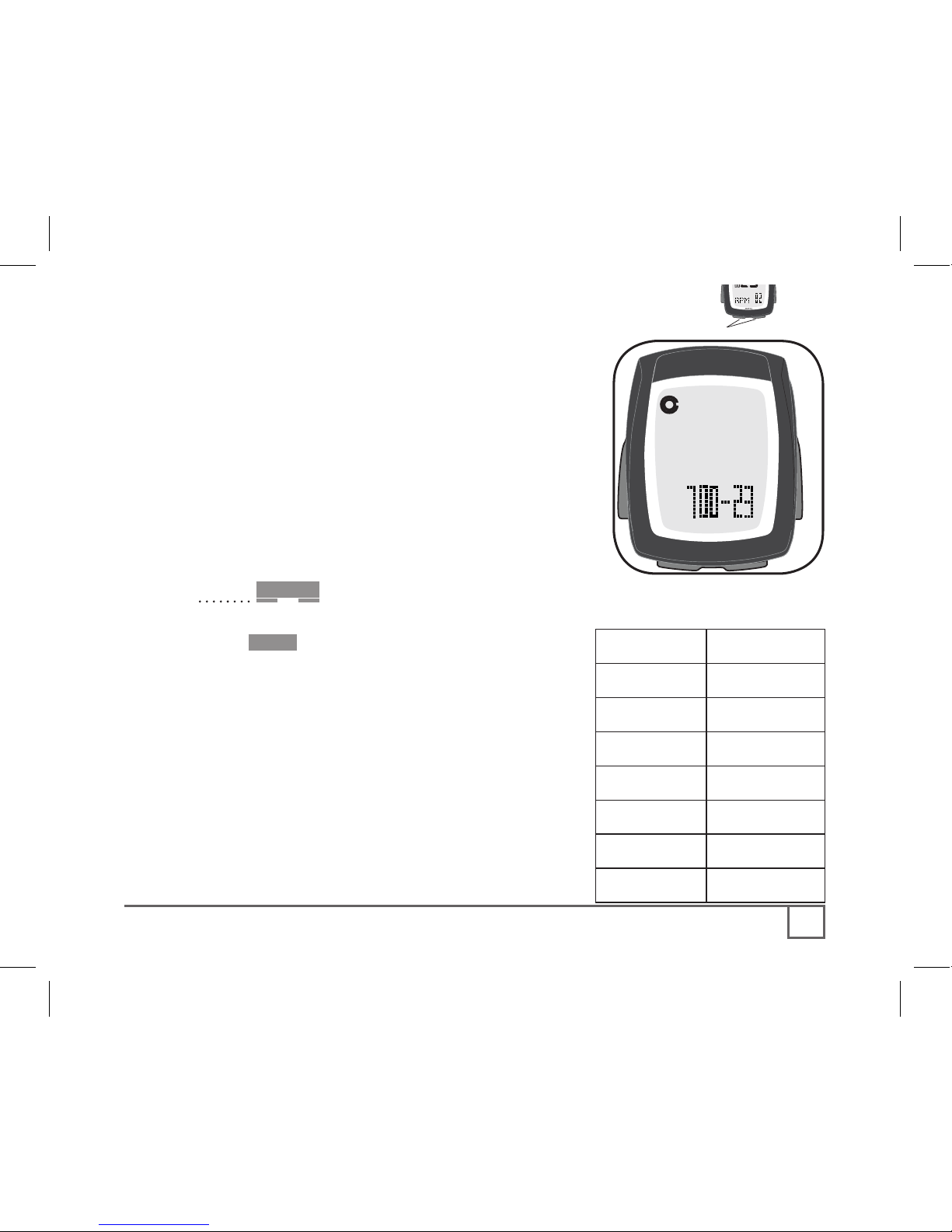

Choose a method to ReSet the computer:
• Push any button to wake the
computer from shipping mode
• Push the ReSet button (AC) on the
back of the computer
• Install a new battery
The Wheel select icon appears with a tire
size: 700-23 (Figure 14).
1. Cycle Scroll to your preferred wheel size
(options are shown on Table 2).
2. Push Set• to select.
The computer displays KMH. Continue “To set
Units and Time” on the next page.
To set a custom value, or set the second wheel
size, see pages 26-29.
INCITE
ACH
06 Incite ACH 07_13.indd 13 7/14/06 7:26:01 AM
Mode Set
Scroll
This setting tells the computer which conversion to use: metric
or SAE (“English”), which clock style to use (12-hour or 24-hour)
and sets the time.
1. Cycle Scroll to your preferred setting:
• MPH for miles
• KPH for kilometers
2. Push Set• to choose your setting.
“F” (Figure 15) appears.
3. Cycle Scroll to your preferred tempera-
ture setting:
• F for Fahrenheit
• C for Celsius
4. Push Set• to choose your setting.
“12” flashes.
5. Cycle Scroll to your preferred clock
setting:
• 12 for 12-hour clock
• 24 for 24-hour clock
6. Push Set• to choose your setting.
The hour flashes:
• “12” (12-hour)
• “0” (24-hour)
06 Incite ACH 07_13.indd 14 7/14/06 7:26:02 AM
Mode Set
Scroll
9. Cycle Scroll to the hour:
• 1, 2, 3, etc. from 1A through 12P (for 12-hour clock)
• 1, 2, 3, etc. through 24 (for 24-hour clock)
10. Push Set• to choose your setting.
“00” flashes.
11. Cycle Scroll to the minute:
• 00, 01, 02, 03, etc. through 59
12. Push Set• to choose your setting.
The screen will show one of two things:
• SPD - you are ready to ride. However, your computer has many other
features; see the Advanced Features section on pages 22-37.
• PAIR? - see next section.
The ACH Digital computer uses a wireless system where the
computer reads radio signals from the speed, cadence, or heart
rate sensors. For the computer to differentiate the signals, the
computer must be paired to the correct sensor.
Only activate one sensor at a time. Until Pairing for a given
mode (Speed, Cadence, Heart Rate) is completed, the computer
cannot tell one signal from another.
06 Incite ACH 07_13.indd 15 7/14/06 7:26:03 AM
Mode Set
Scroll
1. Cycle •Mode to SPEED.
The PAIR? signal appears.
2. Make the wheel sensor send a signal (spin the bicycle wheel).
3. Place the computer within 3 feet (1 meter) of the sensor and Hold
the Set• button.
The screen changes to PAIR....
4. Release the Set• button.
The computer works for a moment, then returns to the SPEED screen.
5. Repeat steps 1-4 in CAD mode (Cadence) while spinning the
crankset.
6. Repeat steps 1-4 in HR mode (Heart Rate) while wearing the heart
rate strap.
If the ERROR screen appears, there may be a
problem:
• There is interference (proximity to another
signal)
Move away from other computers, cell phones, etc.
• The battery in the sensor is weak
Replace the battery in the sensor- see page 20.
• There is too much distance between the
computer and sensor.
Move the computer closer to the sensor.
06 Incite ACH 07_13.indd 16 7/14/06 7:26:03 AM
Mode Set
Scroll
Your computer stores data for two
intervals- since last ReSet and since last
ReStart. ReSet sets ALL data to zero.
ReStart sets only the Trip data to zero.
The trip data includes five modes for seven
total sets:
• ODOMETER TRP
• SPEED AVG, MAX
• ALTITUDE TRP, MAX
• GRADE AVG
• CLOCK (Stopwatch)
1. Cycle •Mode to CLOCK.
2. Cycle Scroll to Stopwatch (Figure 16).
3. Hold Set• and then at the same time, Hold •Mode.
Stopwatch setting reads ‘00:00.00’ indicating trip mode is set to zero.
Any input of distance or cadence will start the stopwatch and
other trip modes.
06 Incite ACH 07_13.indd 17 7/14/06 7:26:04 AM
Mode Set
Scroll
Once the computer is programmed and installed, it is very easy
to use. To change to different modes (functions), simply Cycle
the •Mode button on the left of the computer until the desired
function appears, shown by the spelled name of the function. To
move within that function, Cycle the Scroll buttons.
The computer is held on its base by a flexible snap. To remove
the computer, press firmly on the computer (not on the base) in a
rearward direction.
Bicycle computers function on electricity. If the electrical contacts
between the computer and its base become saturated, the
electrical signals may become irregular or interrupted entirely.
06 Incite ACH 07_13.indd 18 7/14/06 7:26:05 AM
Other manuals for Bicycle Computer
4
This manual suits for next models
1
Table of contents
Other Trek Bicycle Accessories manuals
Trek
Trek INCITE 11i User manual
Trek
Trek INCITE 6i User manual
Trek
Trek INCITE 6i User manual
Trek
Trek INCITE 6i User manual
Trek
Trek Sonic 2.0 User manual
Trek
Trek Pro RT User manual
Trek
Trek TQ Drive System User manual
Trek
Trek 08 User manual
Trek
Trek TQ HPR50 User manual
Trek
Trek Bicycle Computer User manual
Popular Bicycle Accessories manuals by other brands
Racktime
Racktime LIGHTIT 2.0 Assembly instructions
Specialized
Specialized AFR Rear Shock EPA owner's manual
CYCLITE
CYCLITE SKI RACK / 02 Instructions for use
KZONE
KZONE ST 020121KC instruction manual
Volter
Volter ROXER xRover S Operation manual
Black Inc
Black Inc Carbon Seatpost installation instructions
Performance
Performance ViewPoint Single Pro owner's manual
Cateye
Cateye Adventure CCAT2W-110930 manual
ERGOTEC
ERGOTEC FUTURA Assembly and safety instructions
Carbon-Ti
Carbon-Ti X-Spider AL7075 quick start guide
Profile Design
Profile Design Swiftshift installation instructions
Rungu
Rungu Rear Rack owner's manual
