TRENDnet’s TEG-S224TXA is a 26-port 10/100/1000Mbps
Smart Gigabit Ethernet Switch with 24 10/100Mbps Fast
Ethernet ports and 2 10/100/1000Mbps Copper Gigabit
Ethernet ports. All ports supports wire-speed transfer mode
with non-blocking store-and-forward switching method. This
high-performance switch also supports port-based Quality of
Service (QoS) for priority data packet processing. With
Broadcast Storm Control and port-based VLAN support, the
TEG-S224TXA is powerful and easy-to-use in reducing
unnecessary broadcast traffic, segmenting the network, and
enhancing network security.
TEG-S224TXA
26-Port 10/100/1000Mbps Smart Copper Gigabit Switch
2 10/100/1000Mbps Auto-Negotiation Copper Gigabit
Ethernet Ports
24 10/100Mbps Auto-Negotiation Fast Ethernet Ports
Full/Half Duplex transfer mode for each Fast Ethernet port
Full Duplex transfer mode for Gigabit Ethernet ports
Auto-MDIX media type detection for all ports; easy uplink
with any port.
802.3x flow control for full duplex and collision-based back
pressure function for half duplex operation
Supports store-and-forward architecture with non-blocking
full wire-speed performance
Supports up to 8K unicast addresses entities per device
Supports 512KB packet buffer per device
Port-based VLAN (26 groups) and Port-Based Quality of
Service (QoS) (2 levels)
RS 232 DCE Console Port for easy configuration with
terminal emulation program (serial cable included)
Extensive front panel diagnostic LEDs
Standard 19” rack-mount size
5-Year Warranty
BENEFITSFEATURES
Performance:
Flexibility:
Expandability:
Cost Effectiveness:
Security:
Provides two 1000Mbps Gigabit
connections to Power Servers and/or
other Gigabit Switch, with both ports
running at full wire-speed.
Connects to 10Base-T, 100Base-TX,
and 1000Base-T Networks.
Simple expansion can be done by
uplinking to other 10/100Mbps or
Gigabit Switches.
Provides Gigabit Performance at an
affordable price.
Port-based VLAN to further
segmenting the network.
TEG-S224TXA (02-24-2003)
TRENDnet
TRENDware, USA
What's Next in Networking
PRODUCT INFORMATION
To Order Please Call:
1-888-326-6061

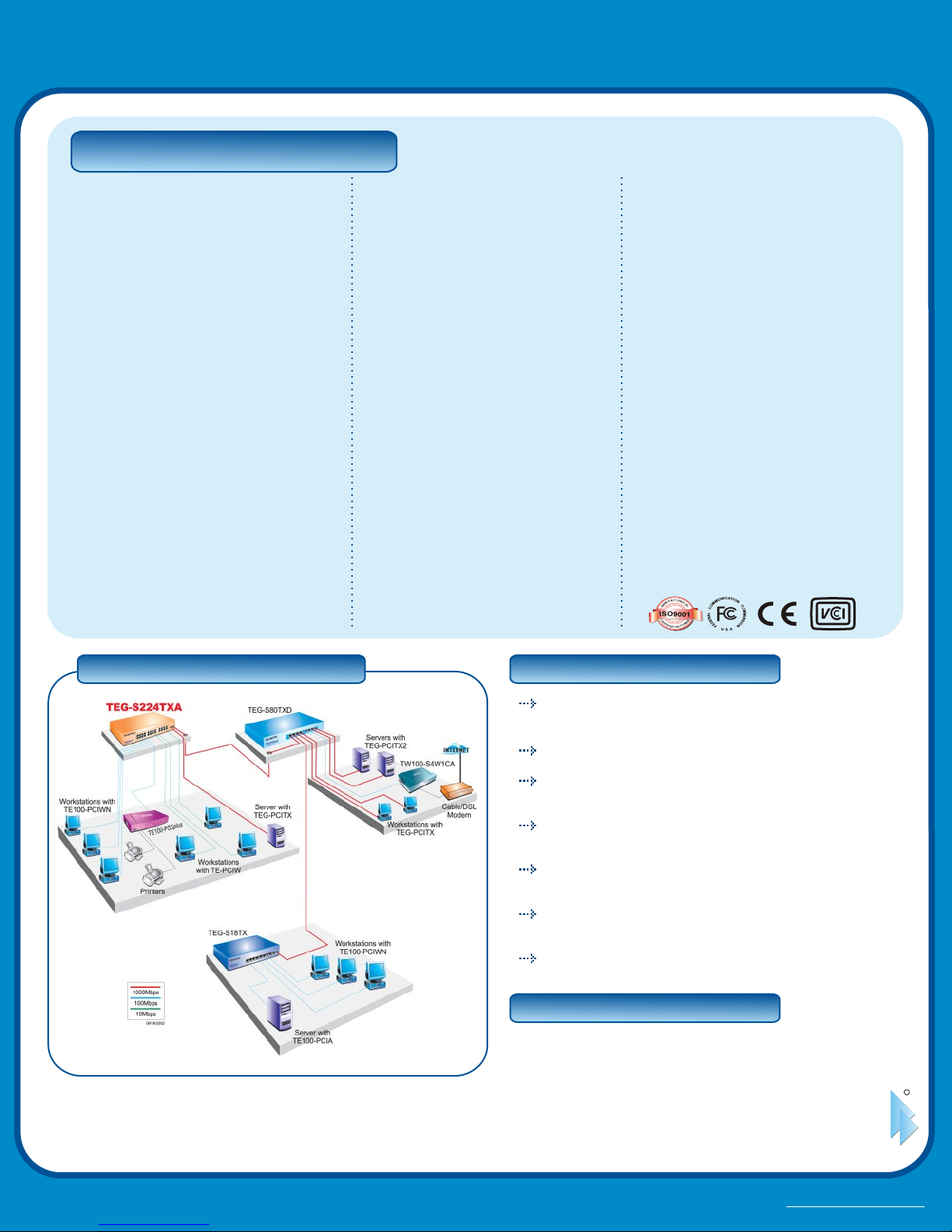

NETWORKING SOLUTIONS
SPECIFICATIONS
TEG-S224TXA
26-Port 10/100/1000Mbps Smart Copper Gigabit Switch
TEG-S224TXA
26-Port 10/100/1000Mbps Smart Copper Gigabit Switch
Standards:
• IEEE 802.3 10Base-T Ethernet, IEEE
802.3u 100Base-TX Fast Ethernet, IEEE
802.3ab 1000Base-T Gigabit Ethernet,
ANSI/IEEE 802.3 Auto-Negotiation,
IEEE 802.3x Full Duplex Flow Control
Data Transfer Rate:
• Ethernet: 10Mbps (Half Duplex),
20Mbps (Full Duplex),
• Fast Ethernet: 100Mbps (Half
Duplex), 200Mbps (Full Duplex),
• Gigabit Ethernet: 2000Mbps (Full
Duplex)
Cabling:
• Ethernet: Cat. 3,4,5, UTP/STP,
EIA/TIA-568, 100-Ohm, 100 meters max
• Fast Ethernet: Cat. 5, UTP/STP,
EIA/TIA-568, 100-Ohm, 100 meters max
• Gigabit Ethernet: Cat. 5, UTP/STP,
EIA/TIA-568, 100-Ohm, 100 meters max
Console Port:
• RS-232, male 9-Pin Serial Port (DB-9
female-to-female cable included)
Protocol:
• CSMA/CD
Topology:
• Star
Data RAM Buffers:
• 512KB per Device
Filtering Address Table:
• 8K entries per device
Diagnostic LEDs:
• Unit: POWER, SYSTEM.
• 10/100Mbps Ports: 100Mbps,
LINK/ACT
• 10/100/1000Mbps Ports: 100Mbps,
1000Mbps, LINK/ACT
Power Consumption:
• 100~240V AC, 50/60hz, Internal
Universal Power Supply
Dimensions:
• 440 x 200 x 44mm
(17.3 x 7.87 x 1.73 inch) (W x H x D)
Weight:
• 2.8 Kg. (6.2 lb.)
Temperature:
• Operating: 0°~40° C (32°~104° F)
• Storage: -10°~70° C (14°~158° F)
Humidity:
• Operating: 10% to 90% non-
condensing
• Storage: 5% ~ 90% non-condensing
Certifications:
• CE Class A, FCC Class A, VCCI-A
TEG-S224TXA: 26-port 10/100/1000Mbps Smart Copper
Gigabit Switch
TEG-S18TX: 9-port 10/100/1000Mbps Copper Gigabit Switch
TEG-S224TX: 26-port 10/100/1000Mbps Copper Gigabit
Switch
TEG-S40TXD: 4-port 10/100/1000Mbps Copper Gigabit
Switch
TEG-S80TXD: 8-port 10/100/1000Mbps Copper Gigabit
Switch
TEG-PCITX: 32-Bit PCI 10/100/1000Mbps Copper Gigabit
Ethernet Adaptor
TEG-PCITX2: 64/32-Bit PCI 10/100/1000Mbps Copper
Gigabit Ethernet Adaptor
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web:
Email: [email protected]
www.TRENDNET.com
ORDERING INFORMATION
