TRENDnet TEG-S811Fi User manual

Notice
This manual contents are based on the below table listing software
kernel version, hardware version, and firmware version. If your switch
functions have any different from the manual contents description,
please contact the local sale dealer for more information.
Firmware Version V1.08
Kernel Version V1.23
Hardware Version V1.0R

FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Content
FCC Warning..........................................................................................i
CE Mark Warning ...................................................................................i
Introduction .............................................................................1
Features ............................................................................................... 1
Software Feature.................................................................................. 2
Package Contents ................................................................................ 5
Hardware Description .............................................................7
Physical Dimension .............................................................................. 7
Front Panel........................................................................................... 7
LED Indicators...................................................................................... 8
Rear Panel ........................................................................................... 9
Desktop Installation ............................................................................ 10
Attaching Rubber Pads .......................................................................................10
Power On ........................................................................................... 10
Network Application..............................................................11
Small Workgroup................................................................................ 11
Segment Bridge.................................................................................. 12
Console Management ...........................................................14
Login in the Console Interface............................................................ 14
CLI Management................................................................................ 15
Commands Level................................................................................................16
Commands Set List.............................................................................................18
System Commands Set ...................................................................................18
Port Commands Set.........................................................................................20
i

Trunk Commands Set ......................................................................................23
VLAN Commands Set ......................................................................................24
Spanning Tree Commands Set ........................................................................26
QOS Commands Set .......................................................................................29
IGMP Commands Set ......................................................................................30
Mac / Filter Table Commands Set....................................................................30
SNMP Commands Set .....................................................................................31
Port Mirroring Commands Set..........................................................................34
802.1x Commands Set.....................................................................................34
TFTP Commands Set ......................................................................................37
SystemLog, SMTP and Event Commands Set.................................................37
SNTP Commands Set......................................................................................39
X-ring Commands Set......................................................................................40
Web-Based Management......................................................42
About Web-based Management......................................................... 42
Preparing for Web Management ........................................................ 42
System Login...................................................................................... 42
System Information ............................................................................ 43
IP Configuration.................................................................................. 44
DHCP Configuration........................................................................... 45
DHCP Server Configuration................................................................................45
DHCP Client Entries ...........................................................................................46
Port and IP Bindings ...........................................................................................47
TFTP - Update Firmware.................................................................... 48
TFTP - Restore Configuration ............................................................ 48
TFTP - Backup Configuration............................................................. 49
System Event Log – Syslog Configuration ......................................... 49
System Event Log - SMTP Configuration........................................... 50
System Event Log - Event Configuration............................................ 51
ii

SNTP Configuration ........................................................................... 53
IP Security .......................................................................................... 56
User Authentication ............................................................................ 57
Port Statistics ..................................................................................... 58
Port Control ........................................................................................ 59
Port Trunk........................................................................................... 60
Aggregator setting ..............................................................................................60
Aggregator Information .......................................................................................62
State Activity .......................................................................................................63
Port Mirroring...................................................................................... 63
Rate Limiting ...................................................................................... 64
VLAN configuration ............................................................................ 66
VLAN configuration - Port-based VLAN ..............................................................66
802.1Q VLAN......................................................................................................68
802.1Q VLAN......................................................................................................69
802.1Q Configuration .......................................................................................70
Group Configuration.........................................................................................70
Rapid Spanning Tree ......................................................................... 72
RSTP - System Configuration.............................................................................72
RSTP - Port Configuration ..................................................................................73
SNMP Configuration........................................................................... 74
System Configuration..........................................................................................75
Trap Configuration ..............................................................................................76
SNMPV3 Configuration.......................................................................................77
QoS Configuration.............................................................................. 80
QoS Policy and Priority Type ..............................................................................80
Port Base Priority................................................................................................82
COS Configuration..............................................................................................82
TOS Configuration ..............................................................................................82
IGMP Configuration ............................................................................ 83
iii

X-Ring ................................................................................................ 84
802.1X/Radius Configuration ..............................................................................86
System Configuration.......................................................................................86
802.1x Per Port Configuration ..........................................................................87
Misc Configuration ...........................................................................................88
MAC Address Table............................................................................................89
Static MAC Address .........................................................................................89
MAC Filtering ...................................................................................................90
All MAC Addresses ..........................................................................................91
Factory Default ................................................................................... 92
Save Configuration............................................................................. 92
System Reboot................................................................................... 93
Troubleshooting ....................................................................94
Incorrect connections ......................................................................... 94
Faulty or loose cables...........................................................................94
Non-standard cables ............................................................................94
Improper Network Topologies...............................................................95
Diagnosing LED Indicators................................................................. 95
Technical Specification ........................................................96
Appendix ................................................................................99
Console Port Pin Assignments........................................................... 99
Cables .............................................................................................. 100
100BASE-TX/10BASE-T Pin Assignments ...................................... 100
iv

Introduction
The 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch is a multi-port switch
that can be used to build high-performance switched workgroup networks. This switch is a
store-and-forward device that offers low latency for high-speed networking. The switch is
targeted at workgroup, department or backbone computing environment.
The 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch features a
“store-and-forward “switching scheme. This allows the switch to auto-learn and store
source address in an 8K-entry MAC address table.
The 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch has 8x auto-sensing
10/100Base-TX RJ-45 ports and 1 Giga copper port and 1 Mini GBIC slot for higher
connection speed.
Features
 Confirm to IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3z Gigabit fiber and
IEEE 802.3ab 1000Base-T
 8-port 10/100TX plus 1 Mini GBIC socket and 1 10/100/1000T port
 5.6Gbps switch bandwidth
 Support IEEE802.3x Flow control
 Flow control with full duplex
 Backpressure with half duplex
 Support 802.1p COS with per port 4 queues
 Support IGMP snooping and Query mode with Multi-Media application
 Support Port mirror and bandwidth control
 Support GVRP function
 Support TFTP firmware update
 Support Web/SNMP/Telnet/CLI management
1

 Support Per port band width control
Support Management IP address security










Support System Event log
Support Port Based VLAN /802.1Q VLAN
Support IEEE802.3ad Port trunk with LACP
 Support Spanning tree protocol
 STP / Rapid STP
 QoS method:
 Port based / Tag based
 IPv4 ToS/ Ipv4, IPv6 DiffServe
Support IEEE 802.1x user authentication
Support Broadcast storm filter
Support DHCP Client and Server
Support SNTP and SMTP
Support MAC address security
Support SNMP Trap
Configuration up-load and down-load
Software Feature
Management
SNMP v1
SNMP v2c
SNMP v3
Telnet
Console (CLI) and Web management
SNMP Trap
Up to 3 Trap stations
Cold start, Port link up, Port link down,
Authentication Failure, Private Trap for power
status, X-ring topology change
2

RFC standard
RFC2233 MIBII
RFC 1157 SNMP MIB
RFC 1493 Bridge MIB
RFC 2674 VLAN MIB
RFC 2665 Ethernet like MIB
RFC1215 Trap MIB
RFC 2819 RMON MIB
Private MIB
RFC2030 SNTP
RFC 2821 SMTP
RFC 1757 RMON1 MIB
RFC 1215 Trap
Port Trunk
IEEE802.3ad with LACP function
Up to 3 trunk groups
Maximum group member up to 4 ports
Spanning Tree IEEE802.1d Spanning tree
IEEE802.1w Rapid spanning tree
VLAN
Port Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up
to 4K, VLAN ID can be assigned from 1 to 4096.)
GVRP (256 Groups)
Double Tag VLAN (Q in Q)*
Class of Service
Per port supports 4 queues
Weight round ratio (WRR): High: Mid-High:
Mid-Low: Low (8:4:2:1)
3

Quality of
service
Port based
Tag based
IPv4 Type of service
IPv6 Different service
IGMP
IGMP v1 and v2 compliance
256 IGMP groups
query mode
Port Mirror 3 mirroring types: “RX, TX and Both packet”
Maximum of port mirror entries is up to 8.
Port Security ingress and egress MAC address filter
Static source MAC address lock
Bandwidth
Control
Support ingress packet filter and egress packet limit
The egress rate control supports all of packet type
and the limit rates are 100K~250Mbps
Ingress filter packet type combination rules are
Broadcast/Multicast/Unknown Unicast packet,
Broadcast/Multicast packet, Broadcast packet only
and all of packet. The packet filter rate can be set
from 100k to 250Mbps
SNMP IP security
10 IP address accounts for system management
security for Web, SNMP, Telnet management
security to prevent intruder
User
Authentication
IEEE802.1x User-Authentication and can report to
RADIUS server.
 Reject
 Accept
 Authorize
 Disable
4

DHCP DHCP Client
DHCP Server
Software
Upgrade TFTP firmware upgrade
Packet filter Broadcast storm packet filter
Port security Support 100 entries of MAC address for static MAC
and another 100 for MAC filter
System log Support System log record and remote system log
server
SNTP Support SNTP to synchronize system clock in
Internet
SMTP Support SMTP Server and 6 e-mail accounts for
receiving event alert
Configuration
upload and
download
Support text format configuration file for system
quick installation
* Future release
Package Contents
5

Unpack the contents of the 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed
Switch and verify them against the checklist below:
8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch




Four Rubber Pads
RS-232 cable
Power Cord
User Manual
8 10/100TX + 1 10/100/1000T Four Rubber Pads RS-232 cable
+ 1 Mini-GBIC Managed Switch
PowerCord UserManual
Compare the contents of your 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed
Switch package with the standard checklist above. If any item is missing or damaged,
please contact the local dealer for exchanging.
6

Hardware Description
This section mainly describes the hardware of the 8 10/100TX plus 1 10/100/1000T + 1
MINI GBIC Managed Switch and gives a physical and functional overview on the certain
switch.
Physical Dimension
8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch’s physical dimensions is
217mm(W) x 140mm(D) x 43mm(H).
Front Panel
The front panel of the 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch
consists of 8x 10/100Base-TX RJ-45 ports (Auto MDI/MDIX), 1 Giga port and 1 Mini GBIC
module (module is optional). The LED Indicators are also located on the front panel of the
switch.

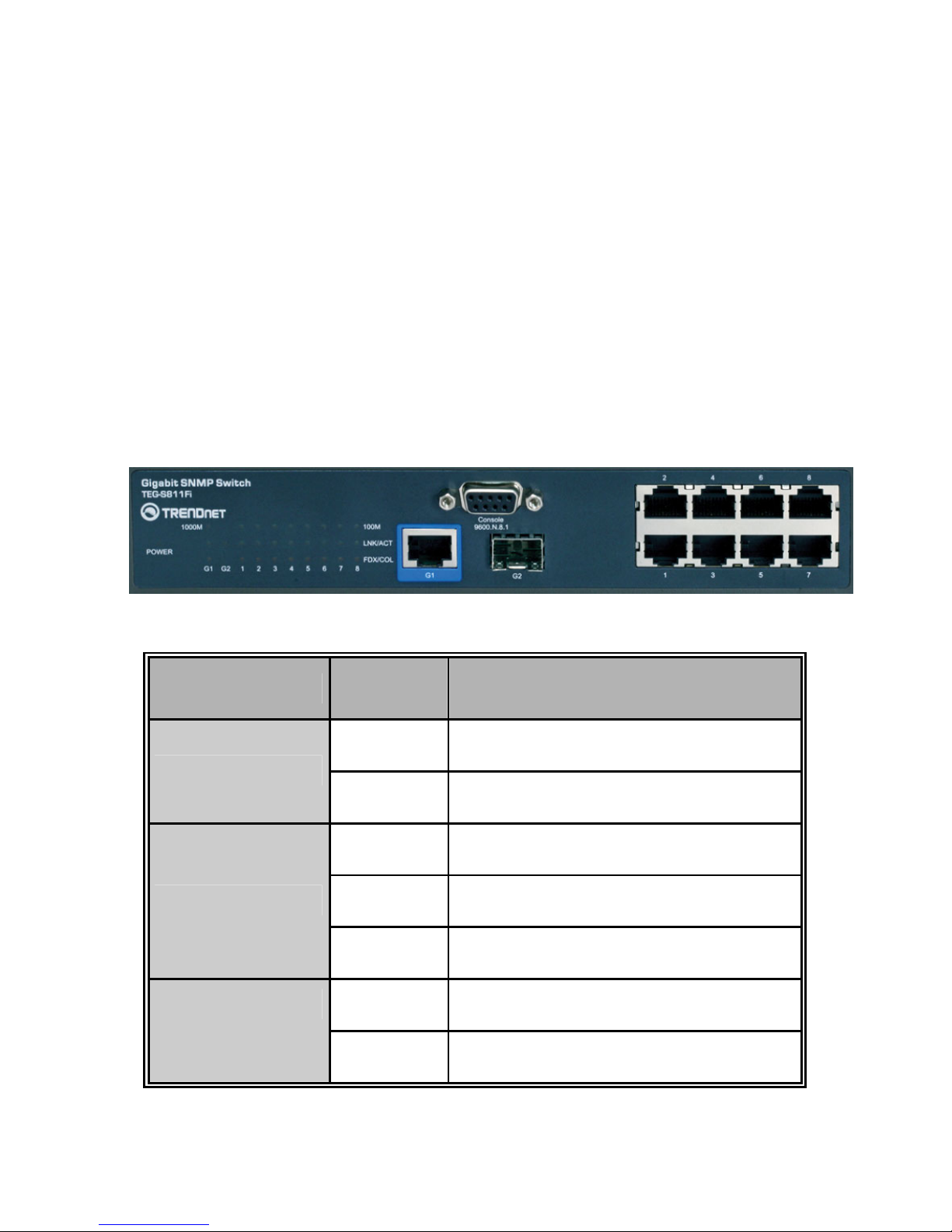

The Front panel of the 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch
RJ-45 Ports (Auto MDI/MDIX): 8x 10/100 N-way auto-sensing for 10Base-T or
100Base-TX connections.

In general, MDI means connecting to another Hub or Switch while MDIX means
7

connecting to a workstation or PC. Therefore, Auto MDI/MDIX would allow connecting
to another switch or workstation without changing non-crossover or crossover cabling.
1 Giga port: 1x 10/100/1000TX N-Way auto-sensing for 10/100/1000 connection.
 1 Mini GBIC port: one optional mini GBIC module port
LED Indicators
The LED Indicators display real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning.
LED indicators
LED Status Description
Green Power On
Power
OFF Power is not connected
Green In 100Mbps connection speed
Blink In 10Mbps connection speed
100M
OFF No device attached
Green The port is connecting with the device
LNK/ACT
Blink The port is receiving or transmitting data
8

OFF No device attached.
Orange The port is operating in Full-duplex mode
Blinks Collision of packets occurs
FDX/COL
OFF In half-duplex mode
Green In 1000Mbps connection speed
Orange In 100Mbps connection speed
1000M (G1 port)
OFF No device attached
Green The port is connecting with the device
Blink The port is receiving or transmitting data
LNK/ACT (G1 port)
OFF No device attached
Orange The port is operating in Full-duplex mode
Blink Collision of Packets occurs in the port
FDX/COL (G1 port)
OFF In half-duplex mode
Green The port is connecting with the device
LNK/ACT (G2 port)
Blink The port is receiving or transmitting data
Rear Panel
The 3-pronged power plug is located at the rear panel of the 8 10/100TX plus 1
10/100/1000T + 1 MINI GBIC Managed Switch as shown in figure. The switch will work with
9

AC in the voltage range of AC 100-240V and Frequency of 50-60Hz.
The Rear Panel of the 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The surface
where you put the switch should be clean, smooth, level and sturdy. Make sure there is
enough clearance around the switch to allow attachment of cables, power cord and allow
air circulation.
Attaching Rubber Pads
A. Make sure mounting surface on the bottom of the switch is grease and dust free.
B. Remove adhesive backing from your Rubber Pads.
C. Apply the Rubber Pads to each corner on the bottom of the switch. These footpads
can prevent the switch from shock/vibration.
Power On
Connect the power cord to the power socket on the rear panel of the switch. The other side
of power cord connects to the power outlet. The internal power supply of the switch works
with voltage range of AC in the 100-240VAC and Frequency of 50~60Hz. Check the power
indicator on the front panel to see if power is properly supplied.
10

Network Application
This section provides a few samples of network topology in which the switch is used. In
general, the 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch is designed
as a segment switch which with its large address table (8k MAC address) and high
performance, it is ideal for interconnecting networking segments.
PC, workstations, and servers can communicate each other by directly connecting with 8
10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch. The switch automatically
learns nodes address, which are subsequently used to filter and forward all traffic based on
the destination address.
By using Uplink port, the switch can connect with another switch or hub to interconnect
other small-switched workgroups to form a larger switched network. Meanwhile, user can
also use fiber ports to connect switches.
Small Workgroup

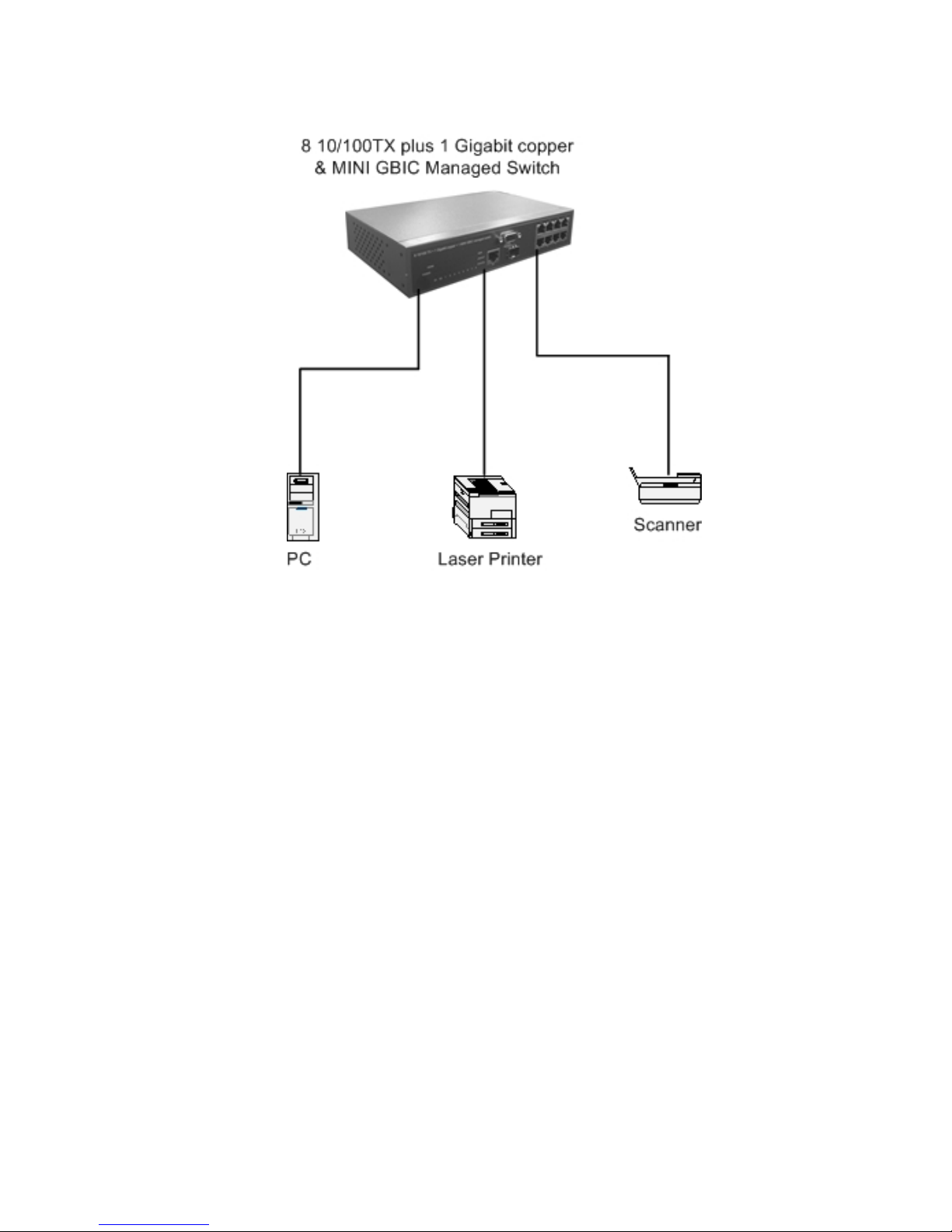

The 8 10/100TX plus 1 10/100/1000T + 1 MINI GBIC Managed Switch can be used as a
standalone switch to which personal computers, server, printer server, are directly connect
to form a small workgroup.
11

Small Workgroup application
Segment Bridge
For enterprise networks where large data broadcasts are constantly processed, this switch
is an ideal solution for department users to connect to the corporate backbone.

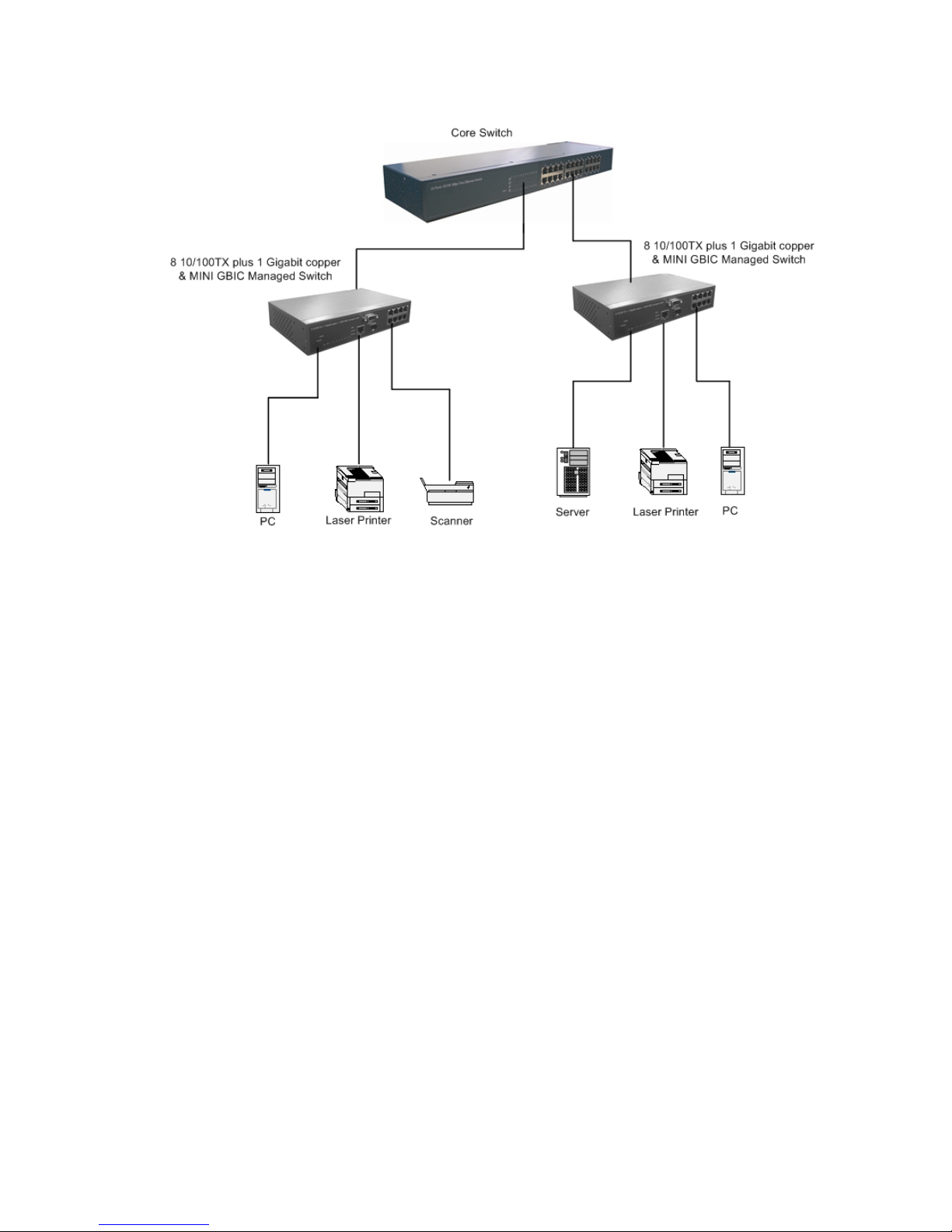

In the illustration below, two Ethernet switches with PCs, print server, and local server
attached, are both connect to the switch. All the devices in this network can communicate
with each other through the switch. Connecting servers to the switch allow other users to
access the data on server.
12

Segment Bridge application
13
