Trikke DEFENDER User manual

Specifications and Features
DEFENDER Owner’s manual
Page 2

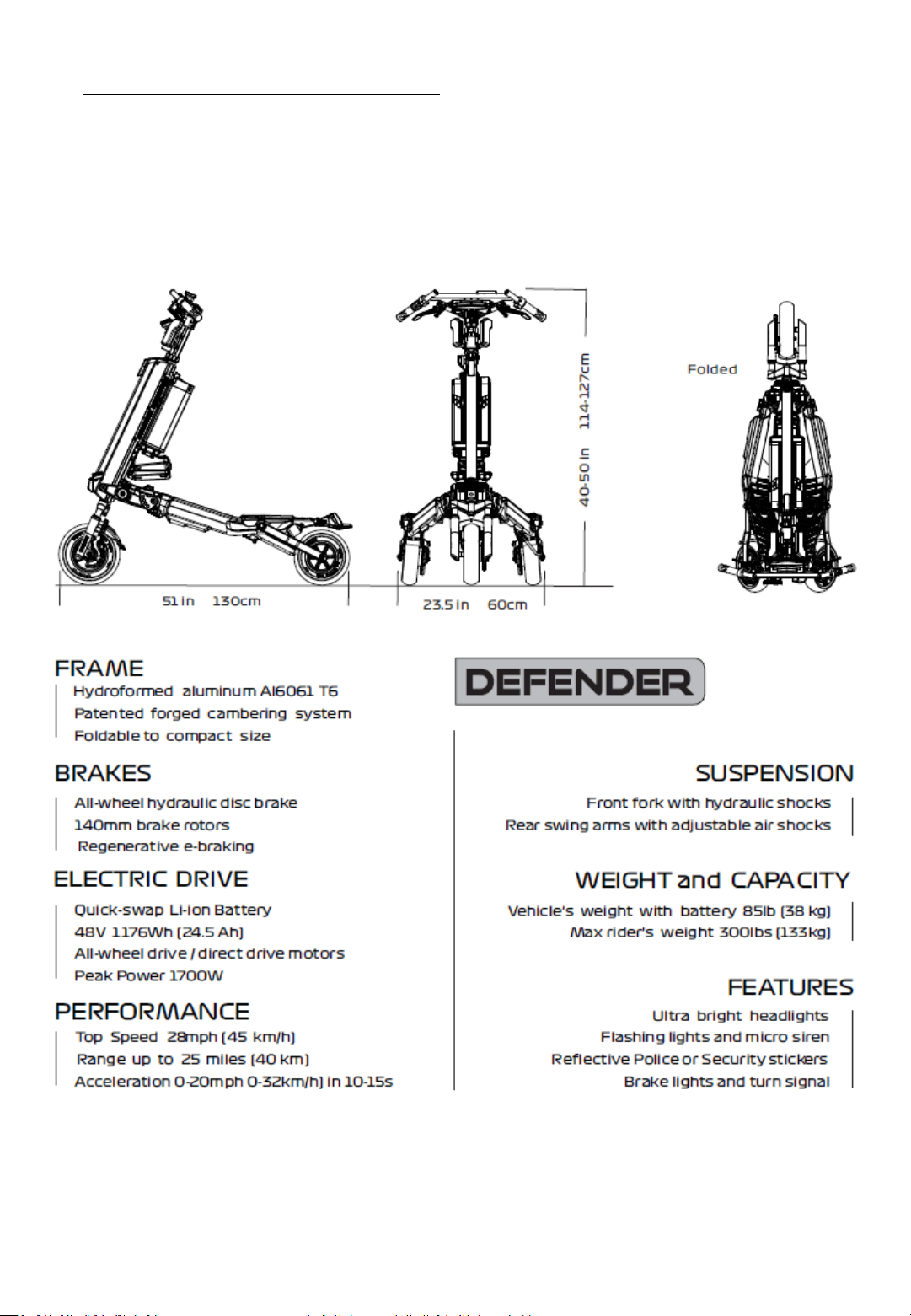

TRIKKE Defender is a professional grade light electric vehicle for personal mobility.
It was developed to offer quick and efficient transport of an individual in a wide range
of terrain: street, sidewalk, walk paths, on and off-road, indoor and outdoors.
The maximum rider’s weight is 300lbs (135kg)
Rear wheels/motor
Decks
Rear fenders
Rear lights
Trailing arms
Swing arm

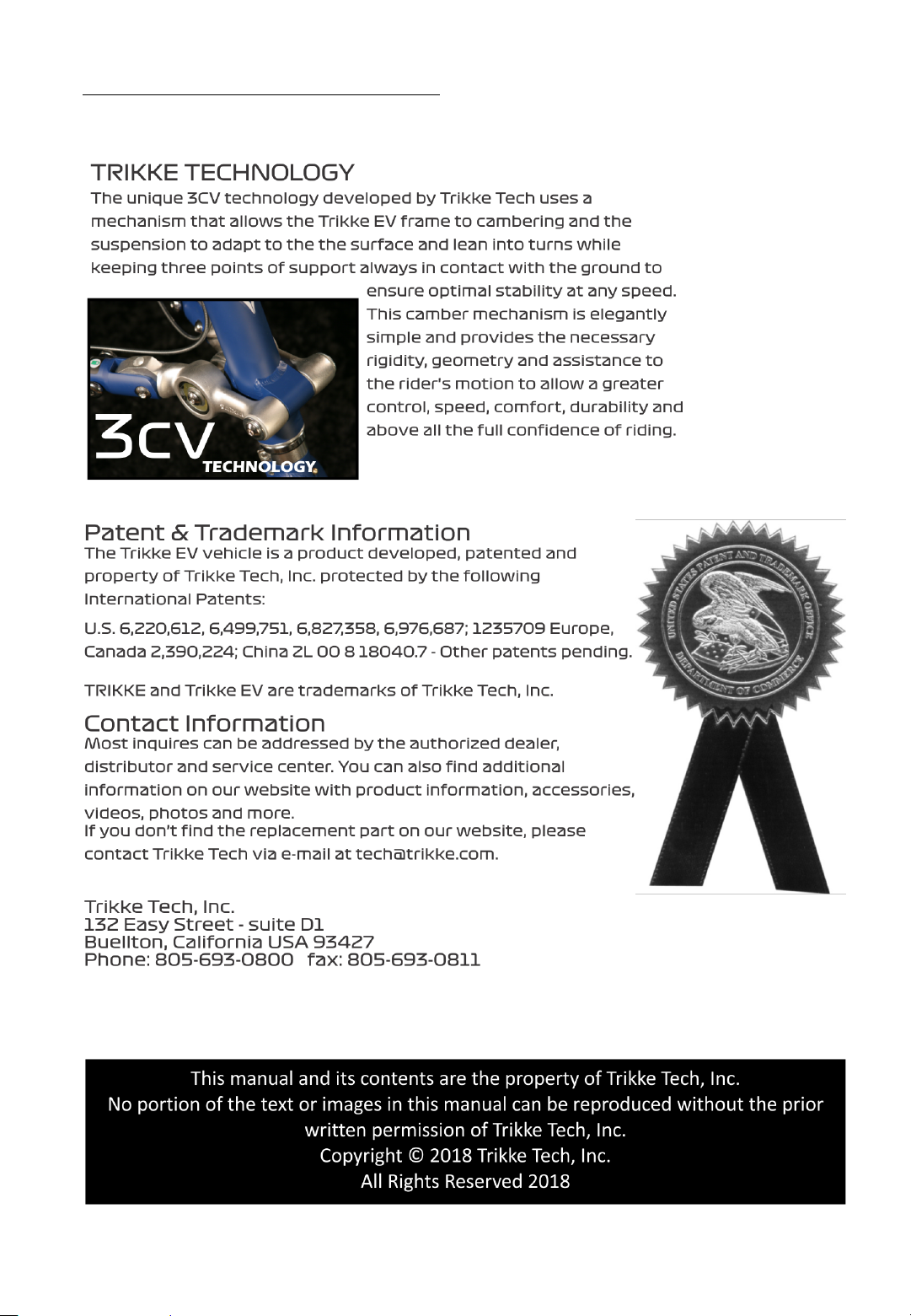

Cambering
mechanism
Front fork
Front wheel/motor
Brake caliper
Brake rotor
Front structure
battery
Controller box
Battery tray
handlebar
Brake levers
display
Front lights
horn
Steering lock
Folding mechanism
MAIN PARTS
DEFENDER Owner’s manual
Page 3
headlights

DEFENDER Owner’s manual
Specs and Features

FIRST ASSEMBLY (watch assembly video)
1) Remove the unit from the packing box
2) Unfold the frame, lock the folding levers.

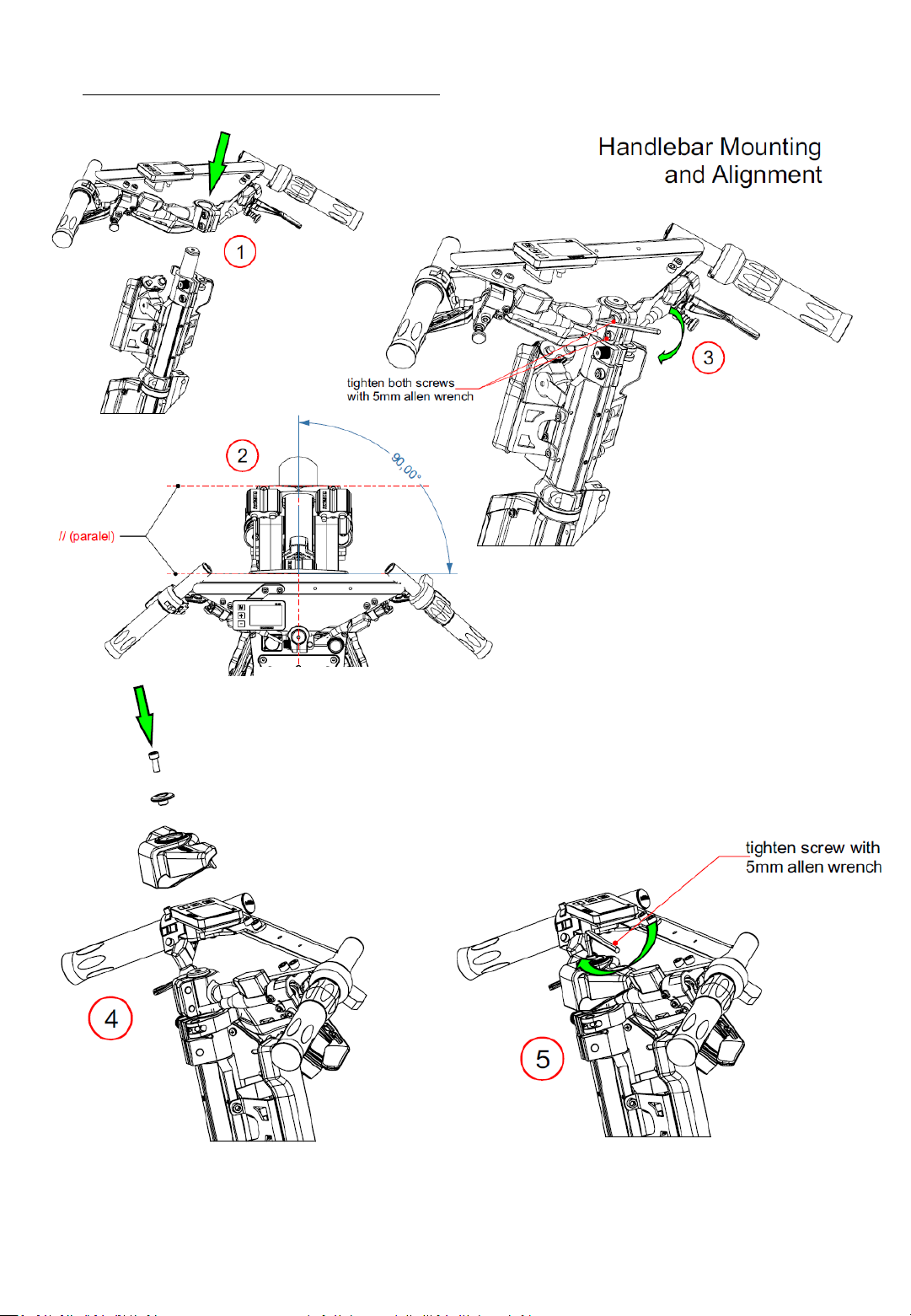

3) Attach handlebar, align with front wheel, tight handlebar clamp bolts.
4) Install the foam protector
5) Locate and connect the 4 wires of the front lights and horn. Keep the wires neat.

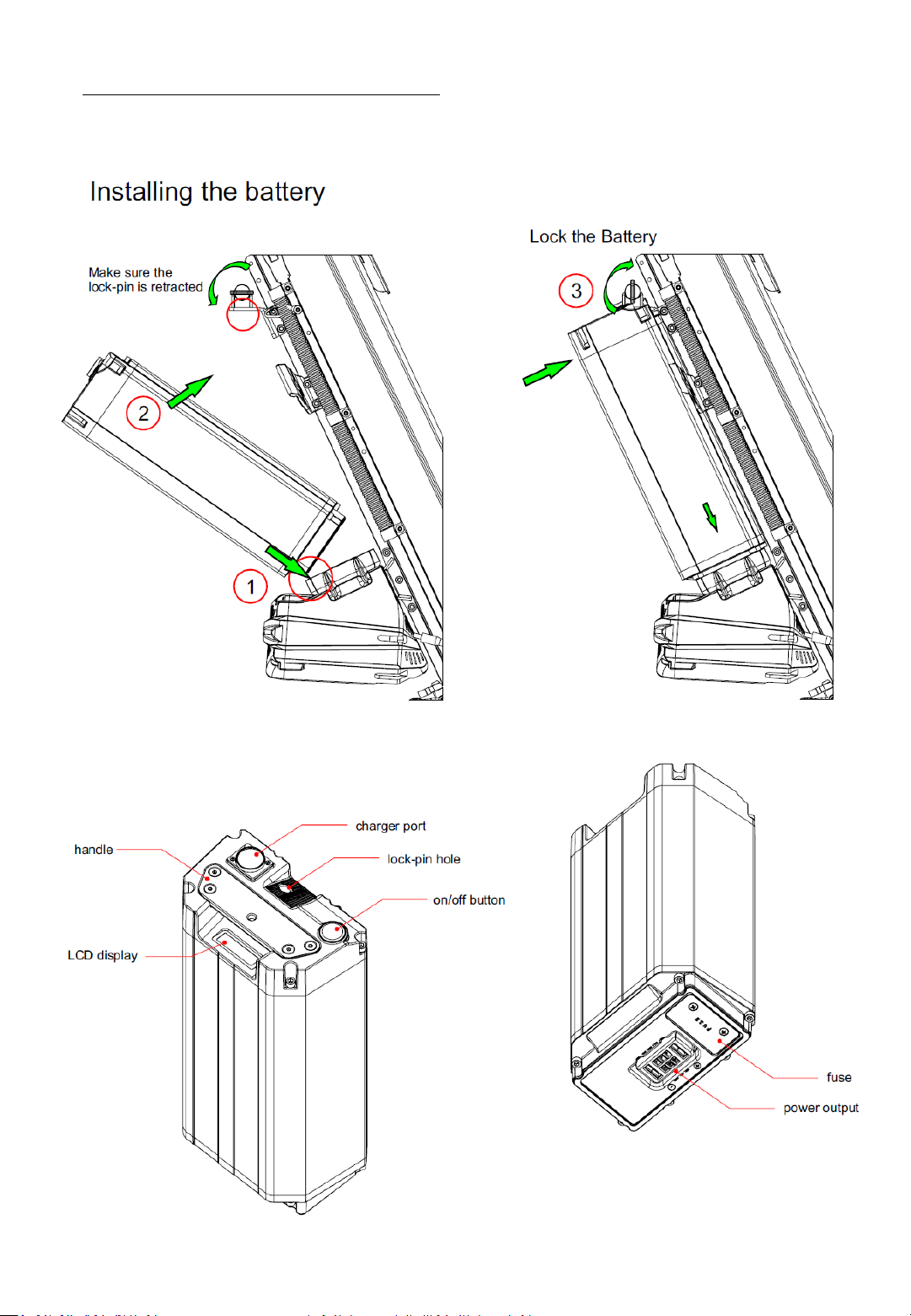

6) Install battery –a) make sure the key-lock pin is retracted (counterclockwise). b) identify
front and back side of the battery c) place the battery on the tray tilted to the back. d)
push the battery forward against the lock all the way and turn the key clockwise to lock.
You may remove the key from the lock and place in a safe place.
7) Check/calibrate tires pressure. Use a floor pump with a reliable gauge with a threaded
connector. Front 50psi, Rear 65psi.
DEFENDER Owner’s manual
Page 4
FOLDING
1) Retract the lock knob on each folding mechanism
2) Pull the knob up to unlock the tensioners (while leaning the vehicle to the opposite
side)
3) Fold the frame
4) Screw the knobs into the hole in order to lock the frame folded. This is imperative
for handling and transport.

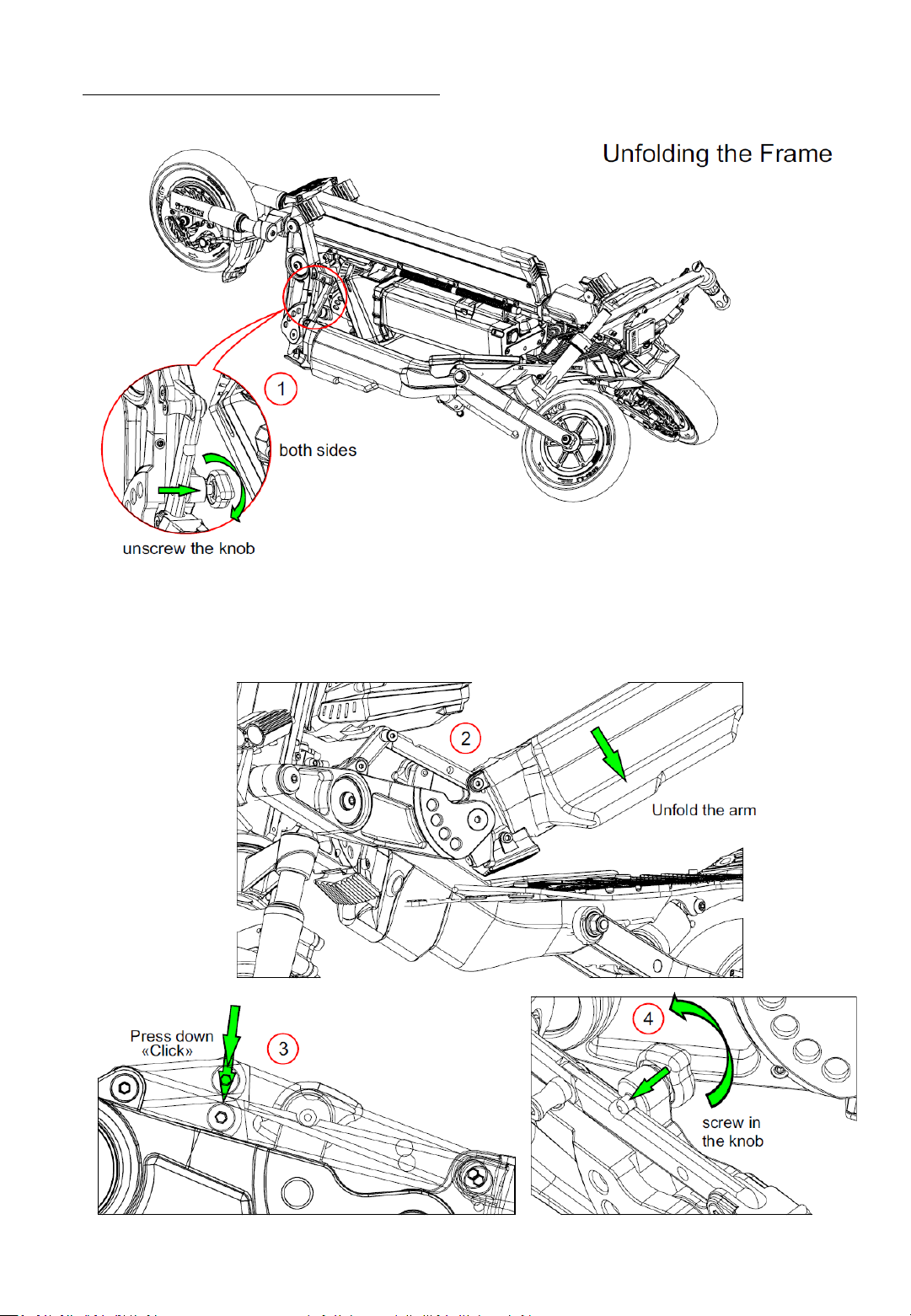

UNFOLDING
1) Retract the lock knob on each folding mechanism (about 1cm)
2) Unfold the frame
3) Press down the tensioners (while leaning the vehicle to the opposite side) until it
snaps into locked position
4) Screw the knobs in until it locks. These will be on top of the tensioners as a safety
pin.

DEFENDER Owner’s manual

DEFENDER Owner’s manual

DEFENDER Owner’s manual

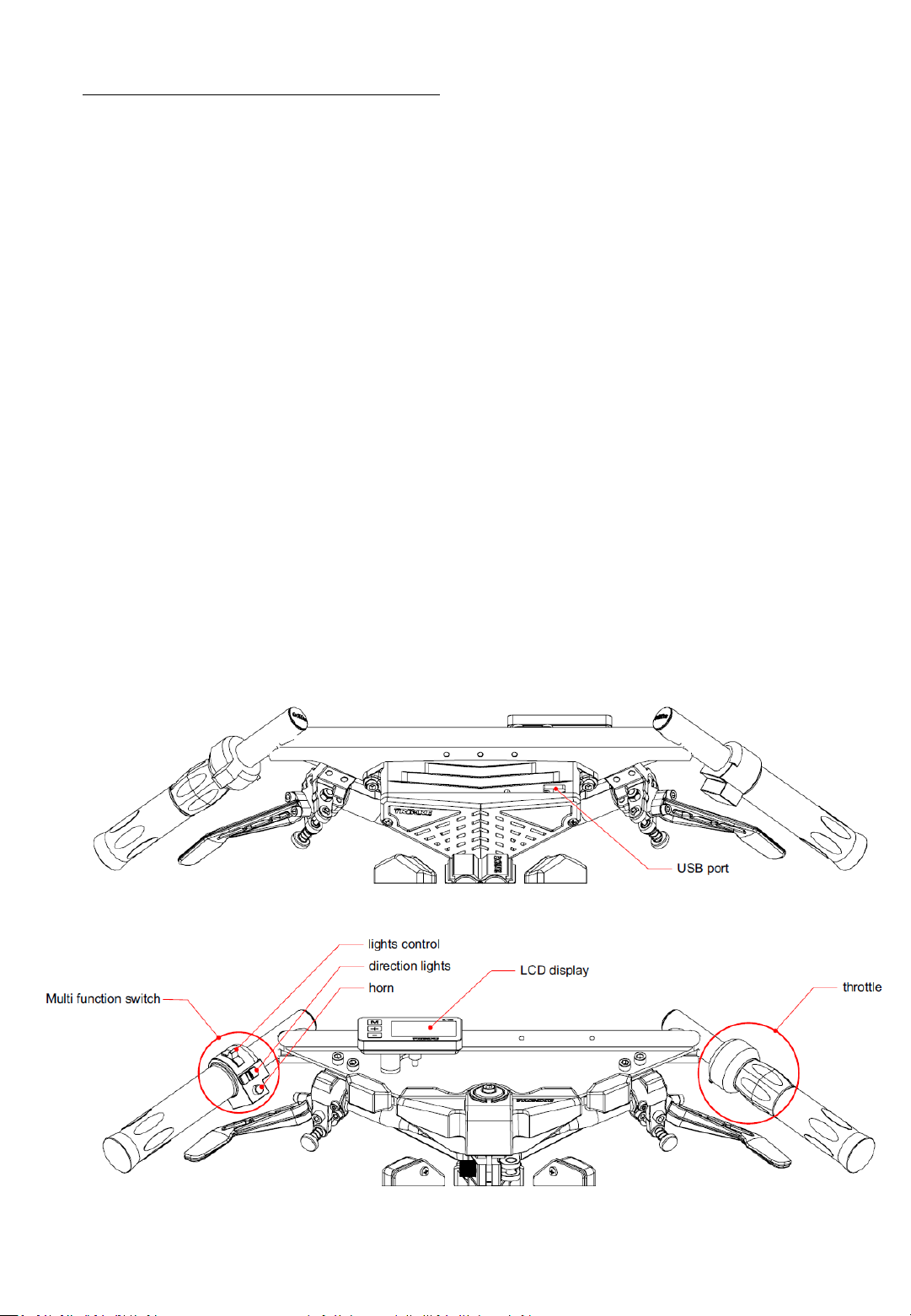

Handlebar mounted controls
DEFENDER Owner’s manual
OPERATION (watch operation tutorial video)
Turn On the battery power: press in the on-off switch. The battery LCD will light up
showing the % of remaining charge.
Push [M] button on Display to turn ON the drive system.
By default the display is selected to PAS 2 (power level 2 of 5). You can increase or
decrease the power by using the [+] and [-] buttons
Gently twist the throttle towards you to make the vehicle move forward. The more
angle you turn the throttle, the speed will increase.
Use the brake levers situated on both sides of the handlebar to apply brake and reduce
speed or stop. Apply brakes evenly and gently. Avoid squeezing the brakes too hard as it
cause the wheels to lock and skid. Right hand brake for rear wheels. Left hand brake for
front wheel. Do not use front brake heavily while turning, the front wheel may skid or
lock, causing loss of control.

LCD Display Operation:
Turning Display ON-OFF and sleep.
After switching the battery power ON you will have to press M button to turn the
display ON and start the system.
To turn the system OFF press and hold M button. You may also switch the battery power
OFF. After a preset time of non-operation, the display will turn OFF by itself (sleep).
Press M to wake the system up.
Changing Display Settings
Press and hold [+] and [-] simultaneously for 2 seconds to enter Settings.
Press [M] to cycle through parameters P01 ~ P14
Press [+] or [-] to change value
** careful to not change factory default parameters if you are not sure of the values.
Press and hold [+] and [-] simultaneously for 2 seconds to save changes and leave
settings.
Useful settings:
a) Speed limiter P01 –> example 2WD model 100 = top speed (23mph) ; 50 = 50% of the
top speed (11.5mph)
b) Time out P06 –> minutes to sleep
c) Starting power P07 –> 1-5.
DEFENDER Owner’s manual
Page 8

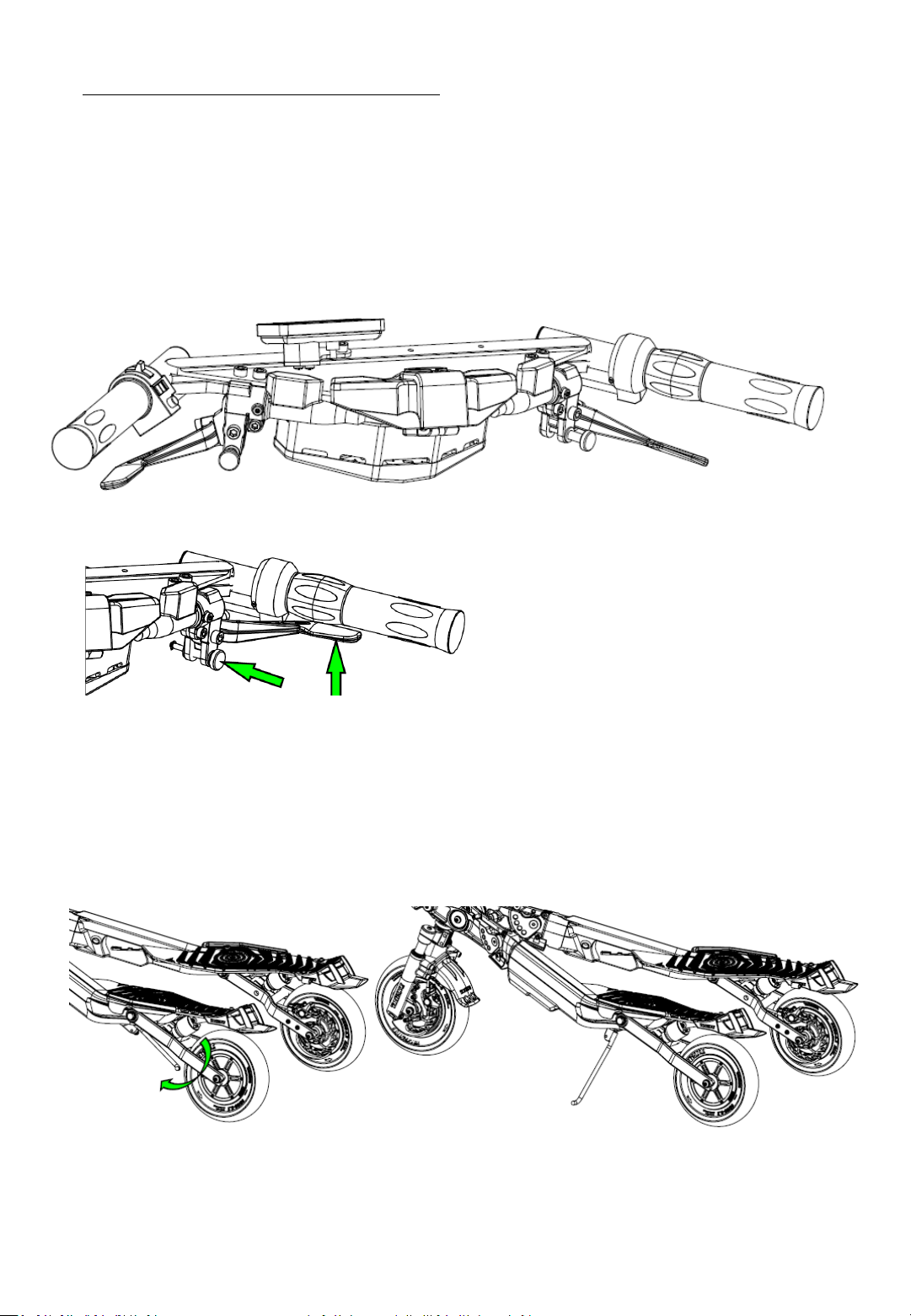

Set the kick-stand
Lean the vehicle over the kick-stand side
PARKING
1
2
Lock:
1) squeeze lever
2) Push-in the plunger and release lever
Unlock:
Squeeze lever
Lock parking brakes (both sides)
DEFENDER Owner’s manual

Steering lock
Useful for transport and maintenance, as well as theft deterrent.
Handlebar Height Adjustment
Useful for transport and maintenance, as well as theft deterrent.
Headlight
Push button: low-high-strobe-off
DEFENDER Owner’s manual

Folding Mechanism –adjusting lock tension
Keep a good tension to eliminate any play.
Reduce the tension for easy operation.
Rear Suspension –Adjusting air shock pressure
Use proper air shock pump
Air spring/shock
High pressure air pump
Rider’s weight / recommended pressure:
150lbs (67kg) - 70psi
180lbs (80kg) - 80psi
210lbs (93kg) - 90psi
250lbs (111kg) - 100psi
300lbs (133kg) - 120psi
DEFENDER Owner’s manual

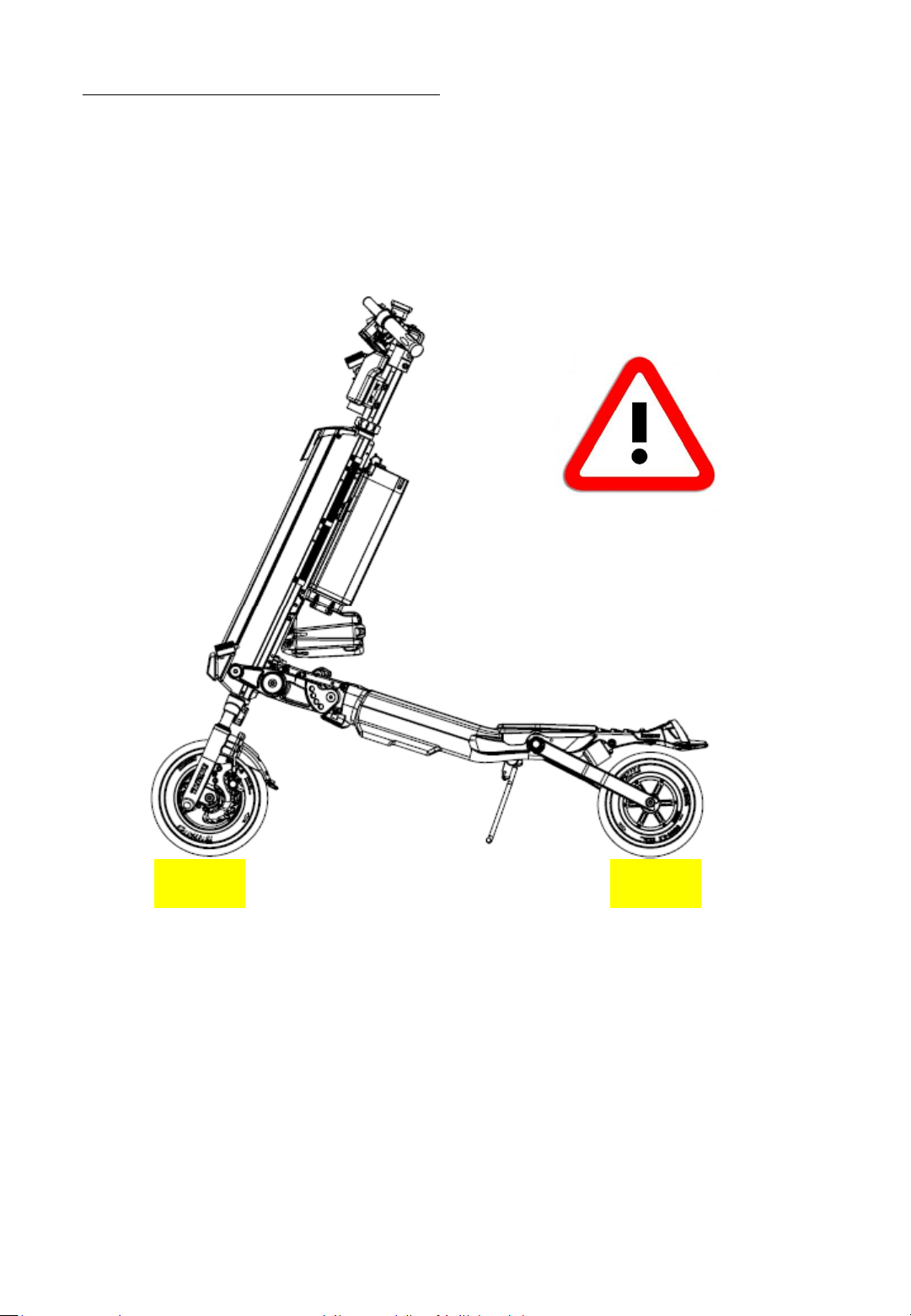

TIRES PRESSURE
65psi
Check and inflate every 3 weeks
REAR
50psi
FRONT
DEFENDER Owner’s manual

Removing/installing FRONT wheel
Removing/installing REAR wheel
DEFENDER Owner’s manual

SAFE RIDING:
•It is recommended the rider receive basic riding and safety training before operating
the vehicle.
•Rider must learn and understand the safety aspects of riding and operation.
•Rider must get familiar with all features of the vehicle.
•It is highly recommended to wear a safety helmet.
•Stand on the vehicle in a straight up posture.
•Grip handlebars with both hands at all times.
•Do not lean back or pull up on the handlebars
•Do not lean over the handlebar.
•Do not turn sharply. Make smooth and progressive turns.
•Be aware of the terrain around you. Scan for debris and obstacles as you ride.
•Watch for traffic of cars and pedestrians.
•Reduce speed to a walking pace around pedestrians, be courteous.
SAFETY EQUIPMENT:
ALWAYS USE SAFETY EQUIPMENT, ESPECIALLY A HELMET. A helmet is essential when
riding a Trikke EV or any exposed wheeled vehicle. We also recommend that you
wear gloves, elbow and knee pads, especially children and inexperienced riders.
Although it is a stable platform, there are always conditions that vary with the
environment, which may surprise you, such as cracks in the pavement, sand, gravel,
potholes, tree branches, people or other vehicles. Falls and accidents can occur.
Driving at night should be avoided, but in case of night time use we recommend the
use of headlamps and signal lights on front and rear. See and be seen.
Also the use of horn or bell helps you call attention and be noticed.
DEFENDER Owner’s manual
Page 6

Subject to the following limitations, terms and conditions, Trikke Tech, Inc. ("Company")
warrants to the original owner of each new vehicle Trikke ™ Trikke EV ("Vehicle") that the
vehicle when new is free from defects in material and workmanship. This warranty is valid
for 12 months from the date of purchase from the Company or an authorized dealer or
representative. This warranty is conditional on the vehicle being operated under normal
use and properly maintained according to the plan established by Owner's Manual. This
warranty is void if the vehicle has not been purchased from an authorized Trikke dealer,
not followed the periodic maintenance in accordance with the plan, or for abuse or
misuse. The Owner's Registration Card must be completed at the time of purchase by
dealer and a Warranty Certificate will be issued to the first owner. If the vehicle frame
breaks due to faulty materials or workmanship within the warranty period, the vehicle may
be replaced subject to the Conditions of Guarantee. If any part do not function properly
due to defects in material or workmanship during the warranty period, this piece will be
repaired or replaced at the discretion of the Company, subject to the warranty conditions
below.
Warranty Conditions
This Limited Warranty is made only to the original owner of the new Vehicle purchased
from Company or an authorized dealer or representative, and it shall remain in force only
as long as the original owner retains ownership of the Vehicle. This Limited Warranty is
not transferable.
This Limited Warranty is issued to the original owner of a brand new vehicle purchased
from the Company or an authorized dealer or representative, and shall remain in force as
long as the original owner retains ownership of the vehicle. This Limited Warranty is not
transferable. In order to exercise its rights under this limited warranty, the warranty must
be submitted during the warranty period, to the company or one of its authorized
representatives, along with the sales invoice or other documentary proof of purchase. The
owner will be responsible for costs related to return and delivery of the vehicle to the
Company or its authorized reseller. Under no circumstances this warranty covers the cost
of shipping the vehicle to the dealer. The Company will cover the cost of labor and parts
necessary to repair the vehicle warranty. This limited warranty does not apply to normal
wear or of any defects, malfunctions or failures resulting from abuse, neglect, damage
caused accidentally or deliberately, exceeding weight limits, improper operation, improper
maintenance, alteration, collision, accident or misuse or abuse. The vehicle was NOT
conceived, designed, distributed, manufactured or sold for use in stunts, jump ramps,
jumps, drive aggressively, use on uneven terrain or off road, submersion in water, use in
harsh climates, loaded over the weight limit, commercial activities, or any similar activities.
Such uses may damage the vehicle, can cause serious injury to the rider, and in all cases
will void this warranty. The user assumes all risks of physical injury, vehicle breakdown, loss
or personal injury caused to third parties or related to the use of the vehicle.
TRIKKE EV Limited Warranty
DEFENDER Owner’s manual
Page 9

Product Life Cycle
The Trikke ™ Trikke EV vehicle has a lifecycle. The duration of this cycle varies with the
maintenance and care received during their time of use, and the type and amount of
use that the vehicle is subjected. The vehicle must be inspected periodically by
observing indicators of fatigue and other indicators of potential problems. These are
very important safety checks to help prevent accidents, injuries to the rider and
shortening the lifecycle of the vehicle.
THIS IS AN INTEGRATED AND FINAL STATEMENT OF TRIKKE’S LIMITED WARRANTY.
COMPANY DOES NOT AUTHORIZE OR ALLOW FOR ANYONE, INCLUDING ITS
AUTHORIZED DEALERS OR REPRESENTATIVES, TO EXTEND ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED. NO OTHER REPRESENTATION AND NO STATEMENT OF ANYONE
BUT THE COMPANY, INCLUDING A DEMONSTRATION OF ANY KIND BY ANYONE, SHALL
CREATE ANY WARRANTY REGARDING THE TRIKKE CAMBERING VEHICLE. ALL OF THE
REMEDIES AVAILABLE TO THE ORIGINAL OWNER ARE STATED HEREIN.
IT IS AGREED THAT TRIKKE TECH, INC.’S LIABILITY UNDER THIS LIMITED WARRANTY
SHALL BE NO GREATER THAN THE AMOUNT OF THE ORIGINAL PURCHASE PRICE AND
IN NO EVENT TRIKKE TECH, INC. BE LIABLE SHALL FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
DISCLAIMER
All other remedies, obligations, liabilities, rights, warranties, express or implied, arising
from law or otherwise, including but not limited to, any claimed implied warranty of
merchantability, any claimed implied warranty arising from course of performance,
course of dealing or usage of trade, and any claimed implied warranty of fitness, are
disclaimed by Company and waived by the original owner.
Some states, jurisdictions, countries, do not allow some or all of the limitations set for
herein, or the exclusion or limitation of incidental or consequential damages. If any
provision is found unenforceable, only that provision shall be stricken and all others
shall apply. This limited warranty does provide the original owner with certain legal
rights and recourse and the original owner may possess other rights or recourse,
depending on the state, jurisdiction
DEFENDER Owner’s manual
Page 10
