Triplett LazerTape 160 User manual

       


Lazer Distance Mer
Inscn Manual
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

LazerTape 160 Users Manual

LazerTape 160 Users Manual
Contents
1. Safety Instructions______________________________ 4
2. Start-Up______________________________________ 6
3. Initial Operation and Setting______________________ 8
4. Measuring____________________________________ 10
5. Functions_____________________________________ 11
6. Specifications and Features_______________________ 15
7. Troubleshooting________________________________ 17
8. Measuring Conditions____________________________18
9. Return Instructions______________________________ 19
10. Warranty_____________________________________ 20
The Triplett LazerTape 160 is a compact feature loaded Laser Distance Meter specifically designed for indoor
applications. With it, one person can measure distance in seconds with high accuracy and repeatability. Housed in
a rugged overmolded case, with durable soft touch buttons and backlit LCD display, the LazerTape 160 offers
convenient and reliable performance. Built-in features include Addition, Subtraction, Area, and Volume measurement
and calculation.
Useful to Installers, Estimators, Contractors, Realtors, Technicians, Electricians, Plumbers, Painters, Carpenters,
Flooring specialists, Handymen, Appraisers, and many other Tradesmen and DIY’ers, the LazerTape 160 is a
great addition to anyone’s tool pouch.
3

LazerTape 160 Users Manual
1. Safety Instructions
• Do not use this instrument before reading this instruction manual.
• Do not use the instrument beyond its stated limits.
• Do not modify this instrument.
• Do not open this instrument. There are no user serviceable parts inside.
• Do not remove warning labels from this instrument.
• Do not point the laser into anyone’s eyes, including your own.
• Do not use the product in situations where the laser may cause anyone’s distraction or injury.
• Do not aim directly into the sun.
• Store in a location where children may not gain access
4

LazerTape 160 Users Manual
Laser Classification
The LazerTape 160 uses a Class 2 laser that emerges from the front of the instrument when the product is in use.
Do not stare into the laser or direct it towards other people. Although the laser is low power, and is usually
harmless, itshould never be purposely directed into anyone’s eyes.
WARNING:
Looking directly into the laser with magnifying lenses (e.g. binoculars, telescopes) can be hazardous.
Injury to the eye may result.
CAUTION:
Looking into the laser may be h a z a r d ous to the eyes. Never stare into the beam or direct the beam
towards other people.
5

5
6
LazerTape 160 Users Manual
2. Start-Up
Inserting/Replacing Batteries (See Figure A)
1) Remove battery cover (a small screwdriver is required)
2) Insert batteries, observing correct polarity .
3) Replace battery cover.
• Replace batteries when this symbol “ “ appears
permanently in the
display .
• Use alkaline batteries only .
• Remove the batteries if the unit is unused for several weeks or
longer.
Keypad (See Figure B)
Figure A
1-
ON/MEASURE button
2- Area/Volume button
3- Indirect measurement button
8- Reference button
1
9- Backlite/UNITS button
2 3
10- Clear/Off button
4
4- Single/Continuous,MAX/MIN measurement button
7
5- Plus ( ) button
8
6- Minus ( ) button
7- Memory button
6
9
10
Figure B

LazerTape 160 Users Manual

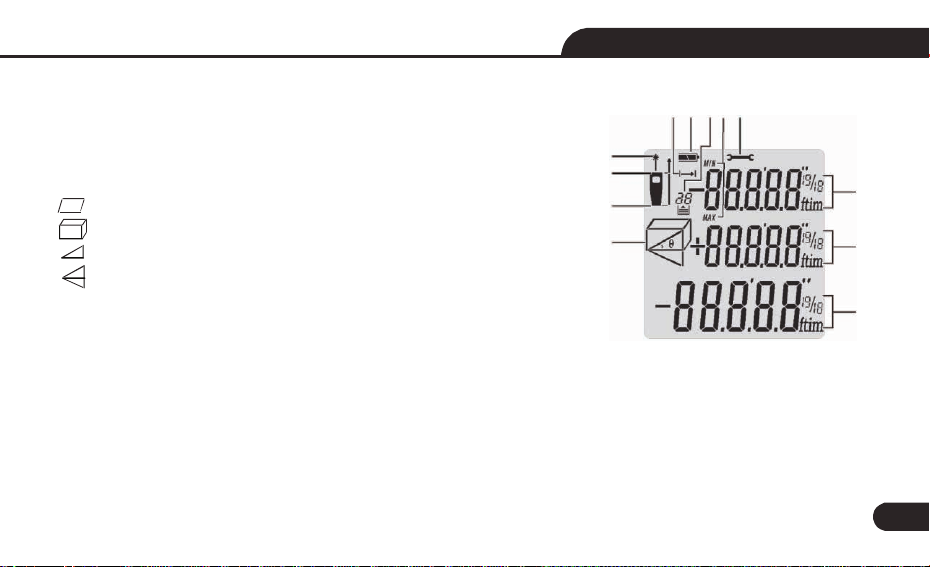

LCD Display (See Figure C)
1- Laser active
2- Reference location (front)
3- Reference location (rear)
4- Various measurement symbols
Area measurement
Volume measurement
Indirect measurement
Indirect
(second) measurement
5- Single measurement
6- Battery status
7- Memory (memories used, memory selected)
8- Error symbol
9-
Continuous & MAX / MIN measurement
10- First value display line
11-
Second value display line
12- Last measurement or
calculation result
5 6 7 9 8
1
2
3
4
10
11
12
Figure C
7

LazerTape 160 Users Manual
3. InitialOperation and Settings
Refer to Figure B for the locations of the following buttons
ON / MEASURE Button
Press to turn the instrument on, or to take another measurement.
CLEAR / OFF Button
Press and hold to turn the instrument off. The instrument will turn off automatically after 3 minutes of inactivity.
Press and release to cancel the last action or to clear the data display. To clear the memories, press the Memory
button and Clear /Off button simultaneously.
Reference Location (See Figure D)
The default Reference Location is from the rear of the instrument.
Press this button to take the
selection from the front edge ,
A beep sounds whenever the referencesetting is changed. Press the
button repeatedly to change from the front to the rear or vice versa. When
the instrument is turned off and back on, the
reference location defaults
automatically to the rear of the instrument.
Figure D
8

LazerTape 160 Users Manual
LCD Backlite
Momentarily press and release this button to turn the backlite on or off. The backlite will turn off
automatically in 30 seconds.
Units of measure
Press and hold this button for severalseconds, then release, to change the measuring UNITS.
9
Test Equipment Depot - 800.517.8431
99 Washington Street, Melrose, MA 02176
TestEquipmentDepot.com

LazerTape 160 Users Manual
4. Measuring
Single DistanceMeasurement
Press to activate the laser. Point the laser at the target to be measured. Press again to trigger the distance
measurement. The distance is displayed in several seconds on the LCD. The laser turns off.
Continuous Measurement &Max and Min Measurement (See Figure E)
The continuous measurement function can be used to find a specific
distance from a target. When activated, a series of 100 measurements is
taken every 0.5 seconds, the latest being displayed on
the 3r d line (12) of the LCD. The MAX and MIN values
are captured and displayed on the LCD. This feature can
be used to find the shortest or longest distance to a
surface (like at inside and outside corners).
To activate, press and hold the MAX/MIN button until MAX and MIN
appear in the LCD. To cancel, press the MEAS or CLEAR button.
10
Figure E
MAX
10

LazerTape 160 Users Manual
5. F unctions

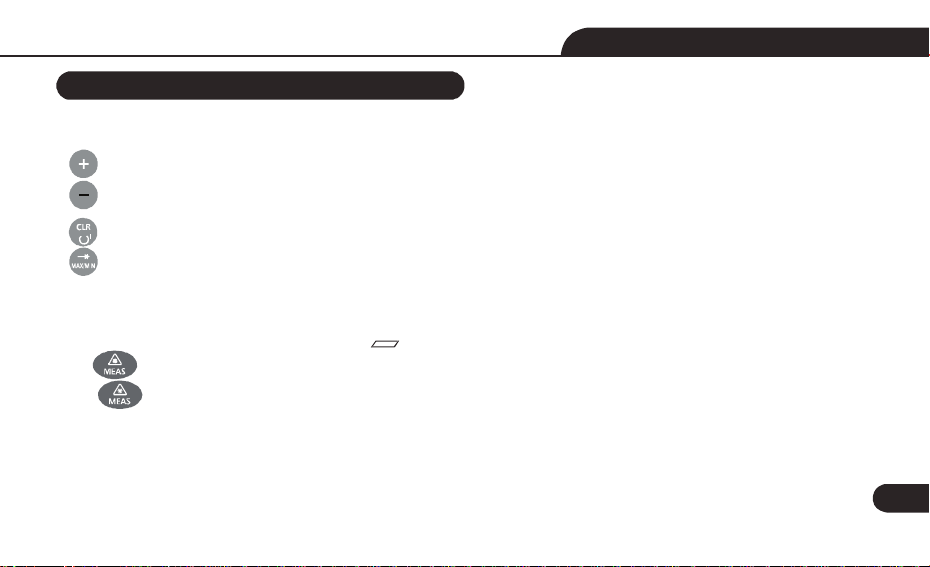

Addition
/
Subtraction
Press so that the next measurement is added to the previous measurement.
Press so that the next measurement is subtracted from the previous measurement.
Press to cancel the last operation.
Press to return to Single Measurement mode.
Area Measurement
Press theAre a/Volume button once. The symbol appears in the display .
Press button to take the first length measurement (i.e. length).
Press again to take the second length measurement (i.e. width).
The result is displayed in the 3rd line, the individually measured values are displayed in lines 1 and 2.
11

LazerTape 160 Users Manual
Volume Measurement
For volume
measurements,
push Area/Volume
button twice
until the
i ndicator
for volume
measurement
appears
in the display.
Press to take the first distance measurement (i.e. length)
Press to take the second distance measurement (i.e. width)
(Area displays on the 3rd line)
Press to take the third distance measurement (i.e. height). The Volume is displayed on the 3rd line. The two previously
measured values appear on lines 1 and 2.
12

LazerTape 160 Users Manual

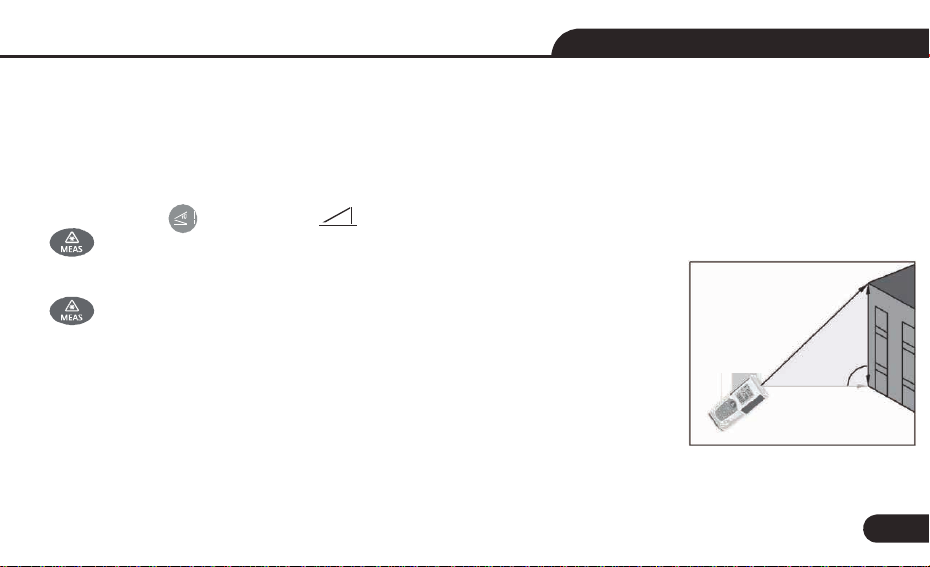

IndirectMeasurement - Determining a Distance Using 2 Measurements (See Figure G)
A height that cannot be measured directly can be calculated from 2 indirect measurements.
Press this
button once, the display s hows. The distance to be measured (1) flashes in the symbol.
Aim at the upper point (1) and trigger the measurement.
After measurement (1), move the LazerTape to point at the
base of the unknown height (establish a right angle).
Press to measure distance (2).
The 3
rd
line with the display the calculated height. 1
2
Figure G
13

LazerTape 160 Users Manual
Indirect Measurement - Determining a Distance Using 3 Measurements (See Figure H)
Press this button twice; the display shows the double pythagoren
symbol
. The distance to be measured (1) flashes in the symbol.
Aim at point (1) and trigger the measurement. After the first
measurement, point at (2), establishing a right angle.
Press to measurepoint(2)
. Aim laser at point (3)
Press to measure point(3)
.
The total height is displayed on the 3rd line.
Historical Storage
Press to review the previous 20 records. Press button repeatedly to cycle
through the memory, or use
or buttons to navigate through the
records.
All of the records can be cleared by pressing the Memory
and Clear buttons
simultaneously.
14
3
2
1
Figure H

LazerTape 160 Users Manual
6. Specifications and Features
T echnical Specifications
Range
Measuring accuracy up to 30ft
(2 σ , standard deviation)
Measuringunits
Laser Class
Laser T ype
Area, Volume Calculations
Indirect measurement using Pythagoras
Addition/Subtraction
Continuous Measurement
Min/Max Distance T racking
Display illumination and multi-line display .
Beep indication
Dust Protect/Splash proof
Memories
Model: LazerTape 160 (TLT-160)
0.16 ft to 164 ft* (0.05 to 50 m* )
T ypically: ± 0.06 in **
±1.5 mm* *
Meters, Inches, Feet
Class II
635 nm, <1mW
•
•
•
•
•
•
•
IP 54
20
15

K eyboard T ype
Super Soft- T ouch (Long life)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
14°F to 140°F (-10°Cto 60°C)
Battery Life up to 4 0 0 0 m ea s u re m en t s
Batteries
T
ype
AAA,
2 x 1.5V
Auto laser time out
after 0.5 min
Auto instrument time out
after 3 min
Dimension 4.4 x 1.9 x 1.1”(115 x 48 x 28
mm)
Weight 5.3 oz (150
g)
LazerTape 160 Users Manual
*Use target plate to increase measurement range in brightly lit conditions (daylight)
** With good measuring conditions. With poor conditions (bright light, poor surface, high temperature, high humidity, etc)
accuracy can degrade by +/- 0.0018 in/ft.
16

LazerTape 160 Users Manual
7. Troubleshooting – Causes and Corrective Measures
Code Cause Corrective measure
204
Calculation error Repeat
procedure
208
Received signal too weak,
measurement time too long.
Distance greater than 160ft
Use target plate
Reduce distance
209
Received signal too strong Target too reflective (use target plate)
252
Temperarure too high Cool
down instrument
253 Temperature too
low
W arm up instrument
255
Hardware error
Switch on/off the device several times,
If the code still appears, please contact your
dealer
for assistance.
17

LazerTape 160 Users Manual
8. Measuring Conditions
Measuring Range
The range is limited to 160ft.
When ambient lighting is reduced, such as at nighttime or dusk, the measuring range without a target plate may be
increased. Use a target plate to increase the measurement range during daylight or if the target has poor
reflective properties.
Misc
Measurement errors occur if measurement through liquids or glass is attempted. Styrofoam or similar
semi-permeable surfaces can also cause measurement errors. Aiming at high gloss surfaces may reflect
the laser and lead to measurement errors. N on-reflective or dark surfaces may cause the measuring time to
increase. Moisture or dust in the atmosphere can also cause measurement errors.
Care
Do not immerse the instrument in water. Wipe off dirt with a damp, soft cloth. Do not use aggressive cleaning
agents or solutions. Handle the instrument as you would a teles cope or camera.
18
