Trotec TTK 128 E User manual

TTK 128 E
TRT-BA-TTK128E-TC-001-EN
OPERATING MANUAL
DEHUMIDIFIER
EN

1Operating Manual – Dehumidifier TTK 128 E EN
Notes regarding the operating manual ............................... 01
Safety ................................................................................ 02
Information about the device.............................................. 03
Transport ........................................................................... 05
Operation........................................................................... 05
Errors and faults ................................................................ 08
Maintenance...................................................................... 09
Disposal............................................................................. 11
Declaration of conformity ....................................................11
Symbols
Hazardous electric current!
Warns about hazards from electric current which can
lead to injuries or even death.
Danger!
Warns of a hazard which can lead to personal injury.
Caution!
Warns of a hazard which can lead to damage to
property.
The current version of the operating manual can be found at:
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
Trotec. The same applies for electronically processing,
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care. Trotec accepts no
liability whatsoever for possible mistakes or omissions. © Trotec
Table of contents
Notes regarding the operating manual
TTK 128 E
http://download.trotec.com/?sku=1120000125&id=1

EN Operating Manual – Dehumidifier TTK 128 E 2
Carefully read this manual before starting / using the device
and keep it within reach!
• Do not use the device in potentially explosive rooms. Do not
use the device in aggressive atmosphere.
• The device is designed for indoor installation.
• The device must have an upward safety distance of 90 cm to
all combustible materials.
• Keep away from children and animals.
• Set the device up in an upright and stable position.
• Do not expose the device to dripping water.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the suction side is kept free of dirt and loose
objects.
• Never reach or put objects into the device.
• Do not cover the device during operation.
• Do not transport the device during operation.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. from animals).
• Only use extensions to the connecting cable which are
appropriate to the device power consumption, the length of
its cable and its use. Avoid electrical overload.
• Only transport the device in an upright position with an
emptied condensation tank.
• Dispose of the collected condensation. Do not drink it. Health
hazard!
Intended use
Use the device TTK 128 E only for drying and dehumidifying room
air, while adhering to and following the technical data.
Intended use comprises:
• drying and dehumidifying:
– living rooms, bedrooms or basements
– laundries, holiday homes.
• maintaining the dryness of:
– storage spaces, archives, laboratories, museums, garages
– changing rooms etc.
Improper use
Do not place the device TTK 128 E on wet or flooded ground. Do
not use the device outdoors. Do not lay any objects, e.g. wet
clothing, on the device for drying. Any unauthorised changes,
modifications or alterations to the device are forbidden.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Hazardous electric current!
Work on the electrical components must only be carried
out by an authorised specialist company!
Hazardous electric current!
Before any work on the device, remove the mains plug
from the mains socket!
Danger!
The device is not a toy and does not belong in the hands
of children!
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Danger!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution!
To avoid damages to the device, never operate the
device without an air filter inserted!
Behaviour in the event of an emergency
1. Disconnect the device from the mains power in an
emergency.
2. Do not reconnect a defective device to the mains power.
Safety

3Operating Manual – Dehumidifier TTK 128 E EN
Device description
This device TTK 128 E uses the principle of condensation to
automatically dehumidify rooms.
The fan sucks damp room air through the air inlet (5), the air filter,
the evaporator and to the condenser located behind it. The air is
cooled at the cold evaporator until it is below the dew point. Water
vapour contained in the room air precipitates on the evaporator
fins as either condensation or frost. At the condenser the
dehumidified, cooled air is warmed by a few degrees and blown
out. The drier air thus conditioned mixes with the air in the room.
The humidity in the room where the device is positioned is
reduced as air constantly circulates through the device.
Depending on the air temperature and the relative humidity, the
condensed water either drops continuously or only during the
defrost phase through the integrated drain nozzle into the
condensation tank (7) below. It is fitted with a float to measure the
filling level.
The device has a control panel (1) for operating and controlling
the functions.
Once the maximum fill level of the condensation tank (7) is
reached, the condensation tank indicator light (see chapter
Operating elements) on the control panel (1) is illuminated. The
device switches off. The condensation tank indicator light only
goes out again once the emptied condensation tank (7) is
reinserted. The condensed water can be diverted by attaching a
hose at the condensation connection (6). The device can reduce
the relative humidity of a room by up to approx. 30 %. Because of
the heat radiation generated during operation, the room
temperature may rise slightly.
Device depiction
Information about the device
No. Operating element
1 control panel
2 air outlet (shut, open prior to start-up)
3 lateral carrying handles
4front
5 air inlet at the rear
6 hose connection for the condensate outlet
7 condensation tank

EN Operating Manual – Dehumidifier TTK 128 E 4
Technical data
Wiring diagram
Parameter Value
Model TTK 128 E
Dehumidifying capacity, max. 55 l / 24 h
Dehumidification performance @ 30 °C and 80 % RH 50 l / 24 h
Operating temperature 5 to 32 °C
Operating range relative humidity 30 to 90 %
Air flow rate, max. 380 m³/h
Mains connection 1/N/PE~ 230 V 50 Hz
Power consumption (acc. to EN 60335) 1150 W
Nominal current 5.1 A
Condensation tank 7.2 l
Refrigerant R410A
Amount of refrigerant 515 g
Weight 23.0 kg
Dimensions (height x depth x width) 628 x 286 x 481 (mm)
Minimum distance to walls or other objects A: Top: 50 cm
B: Rear: 50 cm
C: Side: 50 cm
D: Front: 50 cm
Sound pressure level LpA (1 m; complies with DIN 45635-01-KL3) 58 dB (A)

5Operating Manual – Dehumidifier TTK 128 E EN
To make the device easier to transport, it is fitted with wheels and
carry handles.
Before transporting the device, observe the following:
1. Switch off the device at the mains switch (see chapter
Operating elements).
2. Remove the mains plug from the mains socket. Do not use
the power cable to drag the device!
3. Empty the condensation tank. Check for dripping
condensation.
After transporting the device, proceed as follows:
1. Set the device in an upright position after transport.
2. Wait one hour before switching the device on!
Storage
When out of use, store the device as follows:
•dry,
• with a roof overhead,
• in an upright position where it is protected from dust and
direct sunlight,
• with a plastic cover to protect it from invasive dust, if
necessary.
• The storage temperature is the same as the range given for
the operating temperature in the chapter Technical Data.
• After being switched on, the device operates fully
automatically.
• Avoid open doors and windows.
Positioning
When positioning the device, observe the minimum distance from
walls or other objects as described in chapter Technical Data.
• Set the device up in a level and stable position.
• If possible, set the device in the middle of a room and keep it
away from sources of heat.
• When positioning the device in wet areas such as laundries,
bath rooms or the like, secure the device locally with an RCD
(Residual Current protective Device) which complies with the
appropriate regulations.
• Ensure that extension cords are completely unrolled.
Notes regarding the dehumidification performance
The dehumidification performance depends on:
• the layout of the room
• the room temperature
• the relative humidity
The higher the room temperature and relative humidity, the
greater the dehumidification performance.
For using in living rooms, a relative humidity of approx. 50-60 %
is sufficient. In store rooms and archives, the humidity should not
exceed approx. 50 %.
Transport Operation
CC
A
B
D

EN Operating Manual – Dehumidifier TTK 128 E 6
Operating elements
Switching the device on
1. Ensure that the condensation tank is empty and inserted
correctly. Otherwise, the device will not operate!
2. Insert the mains plug into a properly secured mains power
socket.
3. Open the fins at the air outlet (2).
4. Press the POWER button (14).
5. Press the SPEED button (15) to select the desired fan speed.
6. Press HUMIDITY SETTING (18) to set the desired humidity
level.
Setting the humidity level
Note:
The selected humidity value must not be higher than the current
humidity level in the room where the device is positioned.
The humidity level can be adjusted in steps of 5 % in the range
between 20 % and 90 %. The set humidity value is indicated on
the display (16).
• Press HUMIDITY SETTING (18) to set the desired humidity
level.
Selecting the fan speed
The fan speed setting can be adjusted to either high or low.
• Press the SPEED button (15) to select the desired fan speed.
– The indicator light HI (12) is illuminated at high fan speed.
– The indicator light LOW (11) is illuminated at low fan speed.
Continuous operation mode
In continuous operation mode, the device dehumidifies the air
constantly, regardless of the humidity in the air.
The condensate is collected in the condensation tank or drained
separately.
For separate draining, both a suitable hose (ø ½") and a
sufficiently dimensioned collection container or drain are
required.
Start the continuous operation mode as follows:
1. Switch off the device.

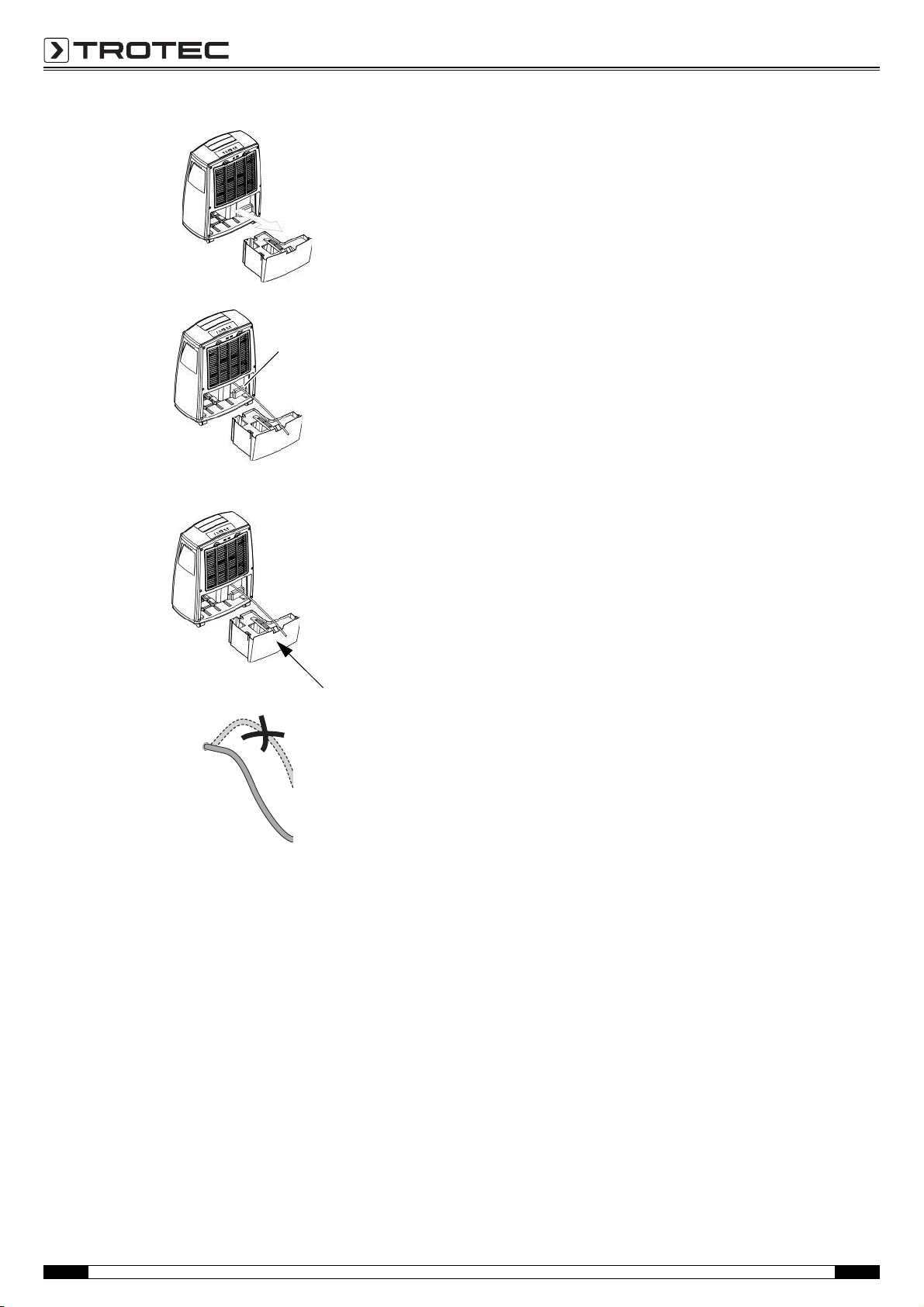

2. If you want to drain the condensate separately, remove the
condensation tank (7) and carry out steps 3. and 4. If you
want to collect the condensate in the condensation tank,
proceed with step 5.
3. Connect a suitable hose (ø ½") to the hose connector (6) and
introduce it into an appropriate condensate collection
container.
– Make sure that the container is located at a lower level than
the hose connector.
– During operation, make sure that the condensate collection
container does not overflow to avoid water damage.
4. Put the condensation tank (7) back in.
– In doing so, make sure not to crush the hose.
5. Press HUMIDITY SETTING (18) until "CO" is displayed.
– The dehumidifier now works in continuous operation mode.
No. Designation
8 DEFROST indicator light
9 TANK FULL indicator light
10 TIMER indicator light
11 Indicator light LOW
12 Indicator light HI
13 Indicator light OPERATION
14 POWER button
15 SPEED button
16 Display
17 TIMER button
18 HUMIDITY SETTING button
10
16
9
8
1718 15 14
13
1211

7Operating Manual – Dehumidifier TTK 128 E EN
Automatic operation
In automatic operation mode the device automatically adjusts the
dehumidification performance to the surrounding conditions.
• Press HUMIDITY SETTING (18) until "AU" is displayed.
– If the ambient temperature is higher than 27 °C, the device
sets the humidity level to 50 %.
– If the ambient temperature is higher than 20 °C but lower
than 27 °C, the device sets the humidity level to 55 %.
– If the ambient temperature is higher than 5 °C but lower
than 20 °C, the device sets the humidity level to 60 %.
– If the ambient temperature is lower than 5 °C, the
compressor switches off automatically.
Automatic defrost
If the room temperature is below 12 °C, the evaporator becomes
covered in frost during dehumidification. The device then carries
out an automatic defrost. The duration of the defrost process can
vary. The DEFROST indicator light (8) is illuminated.
• Do not turn off the device during the automatic defrost. Do not
remove the mains plug from the mains socket.
If the room temperature is less than 5 °C, switch the device off.
• Wait for at least 3 minutes before switching the device back
on.
Setting the timer
Via the timer you can control the number of hours until automatic
switch-on or -off. The timer can be set to a value between 1 and
24 hours.
Automatic switch-on of the device after a determined period:
1. Make sure that the power plug is inserted and the device
switched off.
2. Press the TIMER button (17) to adjust the desired number of
hours until automatic switch-on.
– The TIMER indicator light (10) is lit.
Note:
The timer setting will be deleted upon removing the mains plug
as well as by manually switching the device back on by use of the
power button.
Automatic switch-off of the device after a determined period:
1. The device is switched on.
2. Press the TIMER button (17) to adjust the desired number of
hours until automatic switch-off.
– The TIMER indicator light (10) is lit.
Note:
The timer setting will be deleted if you switch the device off.
A.
B.
ø 1/2´´
C.

EN Operating Manual – Dehumidifier TTK 128 E 8
Emptying the condensation tank
Shutdown
1. Switch off the device at the mains switch (see chapter
Operating elements).
2. Do not touch the mains plug with wet or damp hands.
3. Remove the mains plug from the mains socket.
4. Empty the condensation tank and wipe it dry with a clean
cloth. Check for dripping condensation.
5. Clean the device, and especially the air filter, according to the
chapter Maintenance.
6. Store the device according to chapter Storage.
The accurate functionality of the device was tested during
production a number of times. However, if functionality faults do
occur, then check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the mains plug for damages.
• Wait for 10 minutes before restarting the device. If the device
is not starting, have the electrics checked by a specialist
company for cooling and air-conditioning or by Trotec.
The device is running, but forms no condensate:
• Check that the condensation tank is positioned correctly.
Check the filling level of the condensation tank and empty it,
if necessary. The condensation tank indicator light must not
light up.
• Check the float in the condensation tank for dirt. If necessary,
clean the float and condensation tank. The float must be able
to move freely.
• Check the room temperature. Observe the device's
permissible operating range according to the technical data.
• Check that the selected desired humidity level. The humidity
in the room must be above the selected range. Reduce the
preselected humidity by turning the rotary switch (11), if
necessary.
• Check the air filter for dirt. If necessary, clean or replace the
air filter.
• From the outside, check the condenser for dirt (see chapter
Maintenance). If your condenser is dirty, have it cleaned by a
specialist company for cooling and air-conditioning or by
Trotec.
The device is loud or vibrates; condensate is leaking:
• Check whether the device is standing upright and on an even
surface.
The device gets very warm, is loud or is losing performance:
• Check the air inlets and air filter are not dirty. Remove
external dirt.
• Check the inside of the device and especially the fan, the fan
housing, the evaporator and the condenser for external dirt
(see chapter Maintenance). If the inside of the device is dirty,
have it cleaned by a specialist company for cooling and
air-conditioning or by Trotec.
Your device still does not operate correctly after these
checks?
Bring the device to a specialist company for cooling and
air-conditioning or to Trotec for repair.
A.
C.
B.
D.
Errors and faults

9Operating Manual – Dehumidifier TTK 128 E EN
Activities required before starting maintenance
1. Do not touch the mains plug with wet or damp hands.
2. Before any work, detach the mains plug!
3. Do not remove the float from the condensation tank.
Maintenance tasks, which require the housing to
be opened, must only be carried out by specialist
companies for cooling and air-conditioning or by
Trotec.
Visual inspection for dirt in the inside of the device
1. Remove the air filter (see chapter Cleaning the air inlets and
the air filter).
2. Use a torch to illuminate the openings of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, have the inside of the device
cleaned by a specialist company for cooling and
air-conditioning or by Trotec.
5. Put the air filter back in.
Cleaning the housing and condensation tank
1. Use a soft, lint-free cloth for cleaning.
2. Dampen the cloth with clean water. Do not use sprays,
solvents, alcohol-based or abrasive cleaners to dampen the
cloth.
Cleaning the air filter
Caution!
Ensure that the air filter is not worn or damaged. The
corners and edges of the air filter must not be rounded
or misshaped.
Before reinserting the air filter, ensure that it is dry and
is not damaged!
Read the chapter Maintenance intervals and replace
the air filter in due time!
Maintenance
C.
A.
B.

EN Operating Manual – Dehumidifier TTK 128 E 10

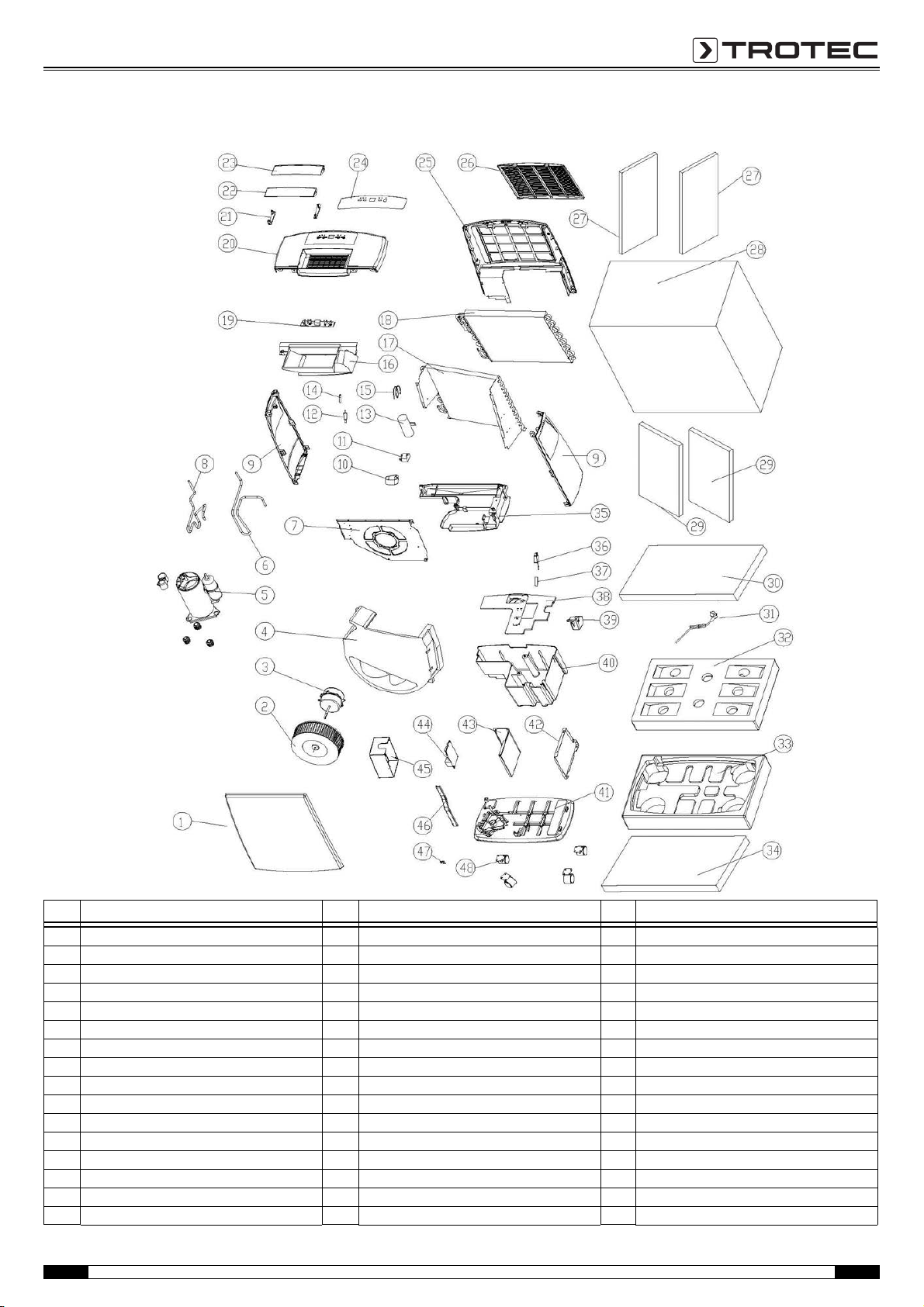

Overview and list of spare parts
No. Spare part No. Spare part No. Spare part
1 front panel 17 condenser 33 down poly foam
2 fan 18 evaporator 34 upper foam cutting piece a
3 fan motor 19 display pcb 35 middle partition panel
4 housing for blower 20 top cover 36 micro switch
5 sleeve of micro switch 21 connecting link 37 sleeve of micro switch
6 micro switch 22 back blade 38 water tankcover
7 motor support 23 front blade 39 float
8 discharge pipe 24 control plate 40 water tank
9 side panel 25 back panel 41 base
10 holder of 26 air filter 42 right support blade
11 capacitor 27 foam cutting piece a 43 left support blade
12 round filter 28 carton box 44 pcb board
13 capacitor 29 foam cutting piece b 45 protection cover box
14 charge pipe 30 upper foam cutting piece a 46 side panel resistance plate
15 capillary 31 supply cord 47 fixed plate for the front top panel
16 air outlet 32 upper poly foam 48 caster
Note!
The position numbers of the
spare parts differ from those
describing the positions of
other parts mentioned in this
operating manual.

11 Operating Manual – Dehumidifier TTK 128 E EN
In the European Union, electronic equipment must not
be treated as domestic waste, but must be disposed of
professionally in accordance with Directive
2002/96/EC of the European Parliament and of the Council of
27 January 2003 on waste electrical and electronic equipment
(WEEE). At the end of its life, please dispose of this device
according to the valid legal requirements.
The device uses an environmentally friendly and ozone-neutral
cooling agent (see chapter Technical data). Dispose of the cooling
agent/oil mixture appropriately and according to the national
regulations.
in accordance with the EC Low Voltage Directive 2006/95/EC,
Annex III, Section B and the Directive 2014/30/EU about
electromagnetic compatibility.
Herewith, we declare that the dehumidifier TTK 128 E was
developed, constructed and produced in compliance with the
named directives.
Applied standards:
EN 60335-2-40:2002 + A1:2005 (incl. corr. 2006) + A2:2005
EN 60335-1:2010
EN 55014-1:2006 + A1:2009 + A2:2011
EN 61000-3-2:2014
EN 61000-3-3:2013
The marking is found on the device nameplate.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: [phone]
Fax: [phone]
E-mail: in[email protected]
Heinsberg, 06 July 2015
Managing Director: Detlef von der Lieck
Disposal Declaration of conformity

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[e-mail]
www.trotec.com
