Trotec Ttk 655 s User manual

TRT-BA-TTK655S-TC2018-54-004-EN

TTK 655 S

ORIGINAL INSTRUCTIONS

DEHUMIDIFIER

2 EN

dehumidifier TTK 655 S

Table of contents

Notes regarding the instructions ..........................................2

Safety .....................................................................................2

Information about the device................................................5

Transport and storage...........................................................6

Assembly and installation.....................................................7

Operation ...............................................................................9

Available accessories..........................................................10

Errors and faults..................................................................10

Maintenance ........................................................................12

Technical annex...................................................................14

Disposal ...............................................................................19

Declaration of conformity ...................................................19

Notes regarding the instructions

Symbols

Danger

This symbol indicates dangers to life and health of

persons due to the flammable substanceR454C.

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Note

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

instructions must be observed.

You can download the current version of the instructions and

the EUdeclaration of conformity via the following link:

TTK 655 S

https://hub.trotec.com/?id=41430

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet or when in moist surroundings.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device and never

use it as source of ignition.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

EN 3

dehumidifier TTK 655 S

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk!

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Make sure that the air inlet and outlet are not obstructed.

• Make sure that the suction side is kept free of dirt and

loose objects.

• Do not remove any safety signs, stickers or labels from the

device. Keep all safety signs, stickers and labels in legible

condition.

• Only transport the device in an upright position with an

emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and

storage. Do not drink it. Health hazard!

Safety warnings for devices containing flammable

refrigerants

• Only position the device in rooms where potentially leaking

refrigerant cannot accumulate.

• Only position the device in rooms where there is no source

of ignition (e.g. open flames, an active gas appliance or an

electric heater).

• Please note that the refrigerant is odourless.

• Only install the device in compliance with the national

installation regulations.

• Observe the national gas regulations.

• Only install, operate and store the device TTK 655 S in a

room measuring more than 4m2.

• Store the device in a way that no mechanical damage can

occur.

• Please note that the connected ducts must not contain any

sources of ignition.

• R454C comes with a low GWP factor (Global Warning

Potential) of146 and an ODP (ozone depletion potential)

of0.

• Observe the maximum refrigerant capacity in the technical

data.

• Do not drill through or burn.

• Do not use any means other than those recommended by

the manufacturer for accelerating the defrosting process.

• Every person working with or at the refrigerant circuit must

be able to provide a certificate of qualification issued by a

body accredited by the industry, demonstrating their

competence in the safe use of refrigerants based on a

procedure well-known in the industry.

• Service work may only be carried out in accordance with

the manufacturer's specifications. If maintenance and

repair work require the support of additional persons, the

person trained in handling flammable refrigerants shall

continuously supervise the work carried out.

• Unventilated rooms, in which the device is installed,

operated or stored, must be built in a way to ensure that

potentially leaking refrigerant cannot accumulate. This

serves to avoid fire or explosion hazards resulting from an

ignition of the refrigerant by an electric furnace, cooking

stove or another ignition source.

• The entire refrigerant circuit is a maintenance-free,

hermetically sealed system and may only be maintained or

repaired by specialist companies for cooling and air-

conditioning or by Trotec.

Intended use

Only use the device for drying and dehumidifying room air, while

adhering to and following the technical data.

Intended use comprises:

• dehumidifying and drying:

– living rooms, bedrooms, bathrooms and basements

– laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– storage spaces, archives, laboratories, garages

– bathrooms, wash rooms, changing rooms etc.

4 EN

dehumidifier TTK 655 S

Improper use

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the instructions, especially the

Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling and

air-conditioning or by Trotec.

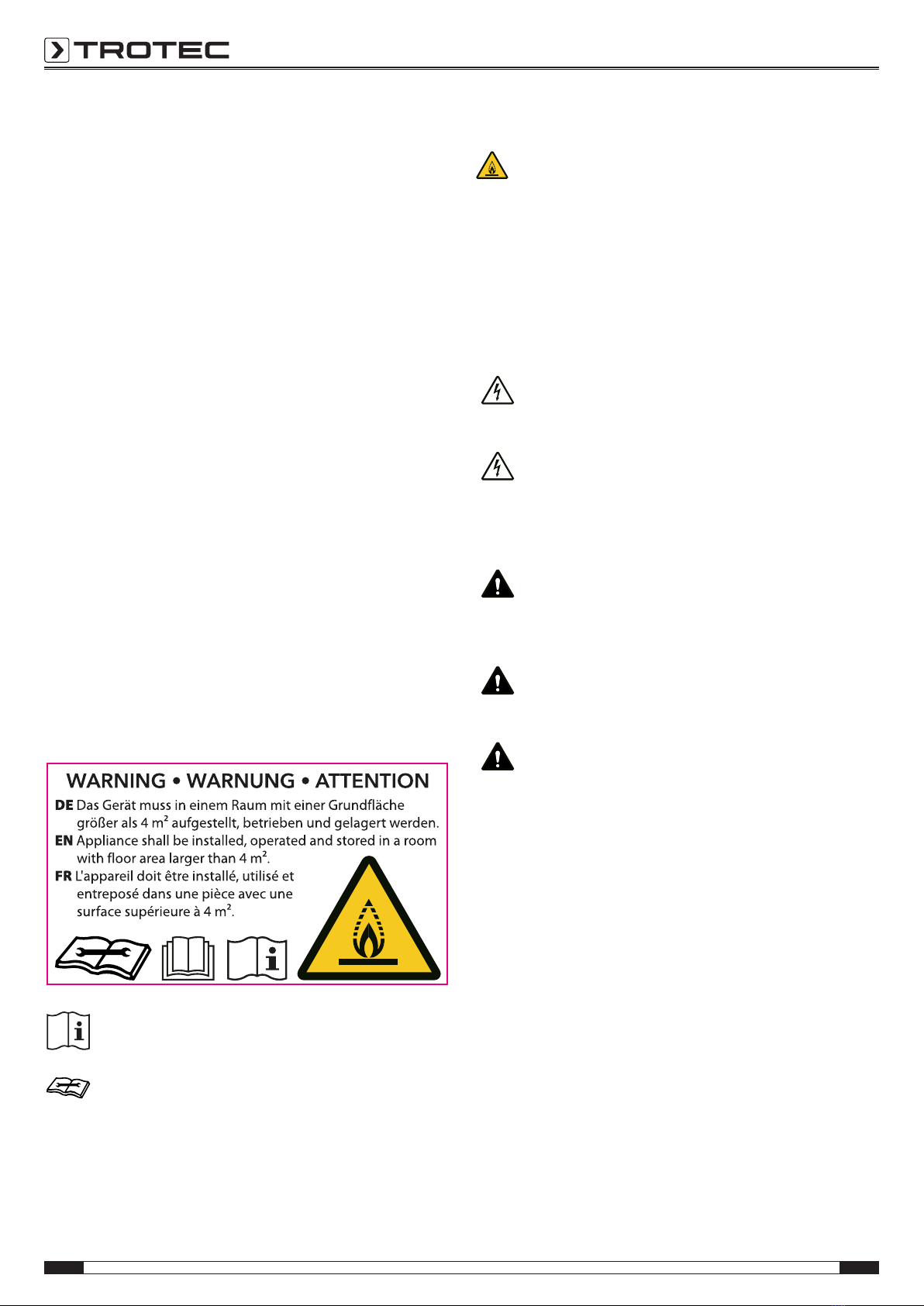

Safety signs and labels on the device

Note

Do not remove any safety signs, stickers or labels from

the device. Keep all safety signs, stickers and labels in

legible condition.

The following safety signs and labels are attached to the device:

TTK 655 S

Follow the manual

This symbol indicates that the operating manual must

be observed.

Follow the repair manual

Disposal, maintenance and repair work of the

refrigerant circuit may only be carried out in

accordance with the manufacturer's specifications and

by persons having a certificate of qualification. A

corresponding repair manual is available from the

manufacturer upon request.

Residual risks

Danger

RefrigerantR454C!

H220 – Extremely flammable gas.

H280 – Contains gas under pressure; may explode if

heated.

P210 – Keep away from heat, sparks, open flames

and other ignition sources. No smoking.

P381– Eliminate all ignition sources if safe to do so.

P403 – Store in a well-ventilated place.

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Note

Do not operate the device without an air filter inserted

into the air inlet!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

Behaviour in the event of an emergency

1. Switch off the device.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

EN 5

dehumidifier TTK 655 S

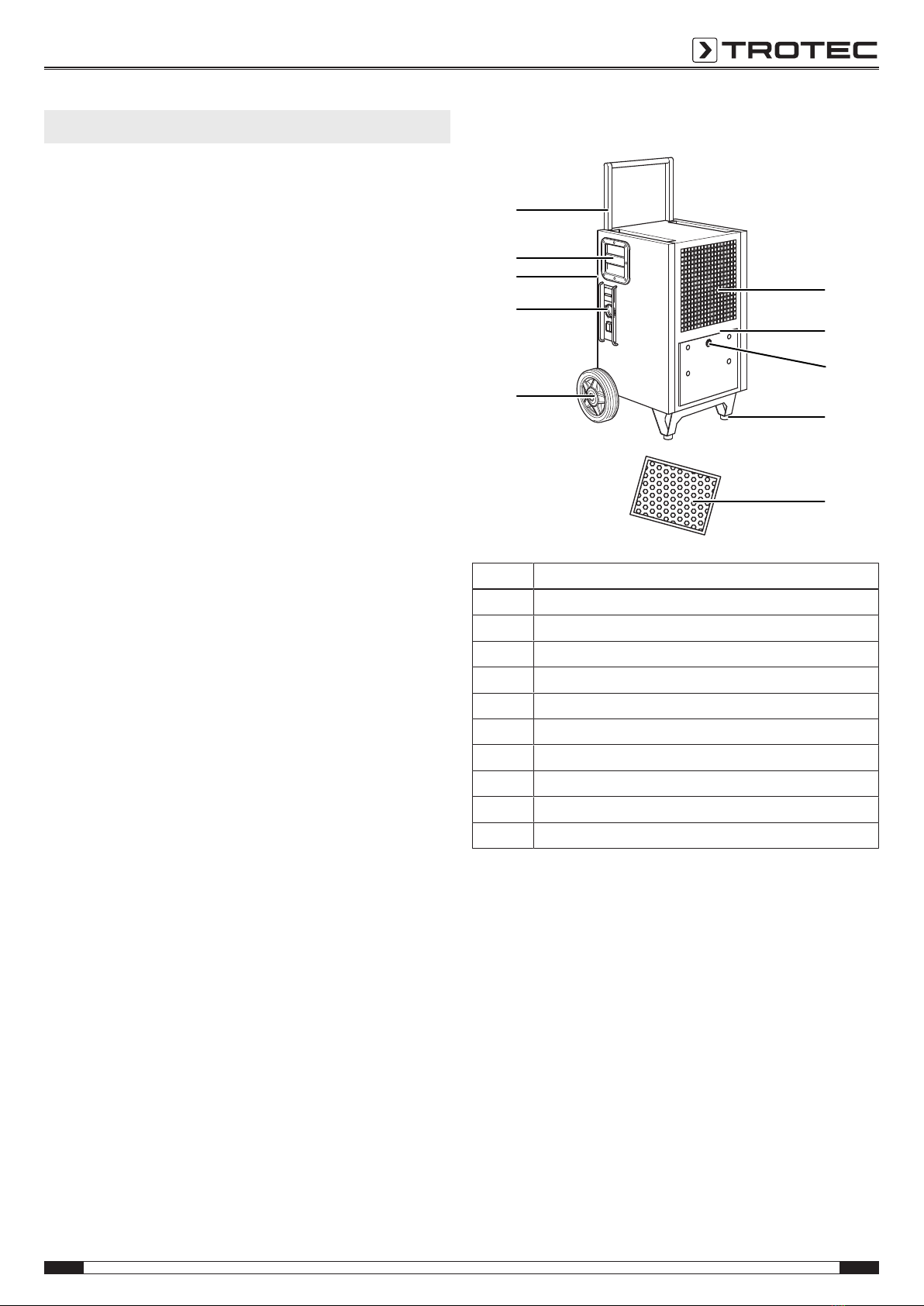

Information about the device

Description of the device

The device uses the principle of condensation to automatically

dehumidify rooms.

The fan sucks damp room air through the air inlet, the air filter,

the evaporator and to the condenser located behind it. The air is

cooled at the cold evaporator until it is below the dew point.

Water vapour contained in the room air precipitates on the

evaporator fins as condensation or rime. The dehumidified,

cooled air is slightly warmed at the condenser and blown out

again. The drier air thus conditioned mixes with the air in the

room. The humidity in the room where the device is positioned

is reduced as air constantly circulates through the device.

The condensation is fed from the device through the

condensation drain hose connected to the hose connector into

an external container or drain.

Optionally, the condensed water can also be discharged from

the device by means of a retrofitted condensate pump (see

chapter Installing the condensate pump).

For easy operation and transport, the device is fitted with an

on/ off switch, an operating hours counter, a transport handle

and wheels. Two feet with rubber buffers prevent the device

from rolling away.

The device can reduce the relative humidity of a room to approx.

32 %. Due to the heat radiation generated during operation, the

room temperature may rise by approx. 1–4°C.

The compressor comes with a temperature limitation protecting

the compressor and other components from overheating. The

compressor is automatically switched off when a temperature of

35°C is exceeded.

Device depiction

No. Designation

1 Air inlet

2 Connection for optional condensate pump

3 Hose connector for condensation drain hose

4 Foot

5 Transport wheel

6 Operating element

7 Air outlet

8 Carrying handle

9 Transport handle

10 Air filter

6 EN

dehumidifier TTK 655 S

Transport and storage

Note

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

To make the device easier to transport, it is fitted with a

transport handle and two wheels.

Before transporting the device, observe the following:

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Do not use the power cable to drag the device.

• Do not incline the device by more than 45°, for otherwise

the device could be damaged.

• Only wheel the device on a level and smooth surface.

Note

After unpacking the device, remove the two lower

screws and adjust the transport handle. Afterwards,

reinsert the screws. This only needs to be carried out

the very first time that the device is unpacked.

Transport handle upon delivery

Transport handle in transport position

While transporting the device, observe the following:

• Hold the transport handle in both hands and tilt the device

so that it can be rolled on its wheels.

• Move the device to the site where you want to use it.

EN 7

dehumidifier TTK 655 S

Stacking After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• After having transported the device in horizontal position,

leave the device to rest for 12to24hours, so the

refrigerant can accumulate within the compressor. Wait

12to24hours before switching the device back on! Acting

contrary might lead to compressor damage and a

malfunctioning device. Any warranty claims will be voided

in this case.

Storage

Before storing the device, observe the following:

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Drain any possibly remaining condensate.

When the device is not being used, observe the following

storage conditions:

• Only store the device in a room measuring more than 4m2.

• Only position the device in rooms where there is no source

of ignition (e.g. open flames, an active gas appliance or an

electric heater).

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust, if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

Assembly and installation

Scope of delivery

• 1x Device

• 1x Air filter

• 1x Condensation drain hose, 15 mm diameter

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

8 EN

dehumidifier TTK 655 S

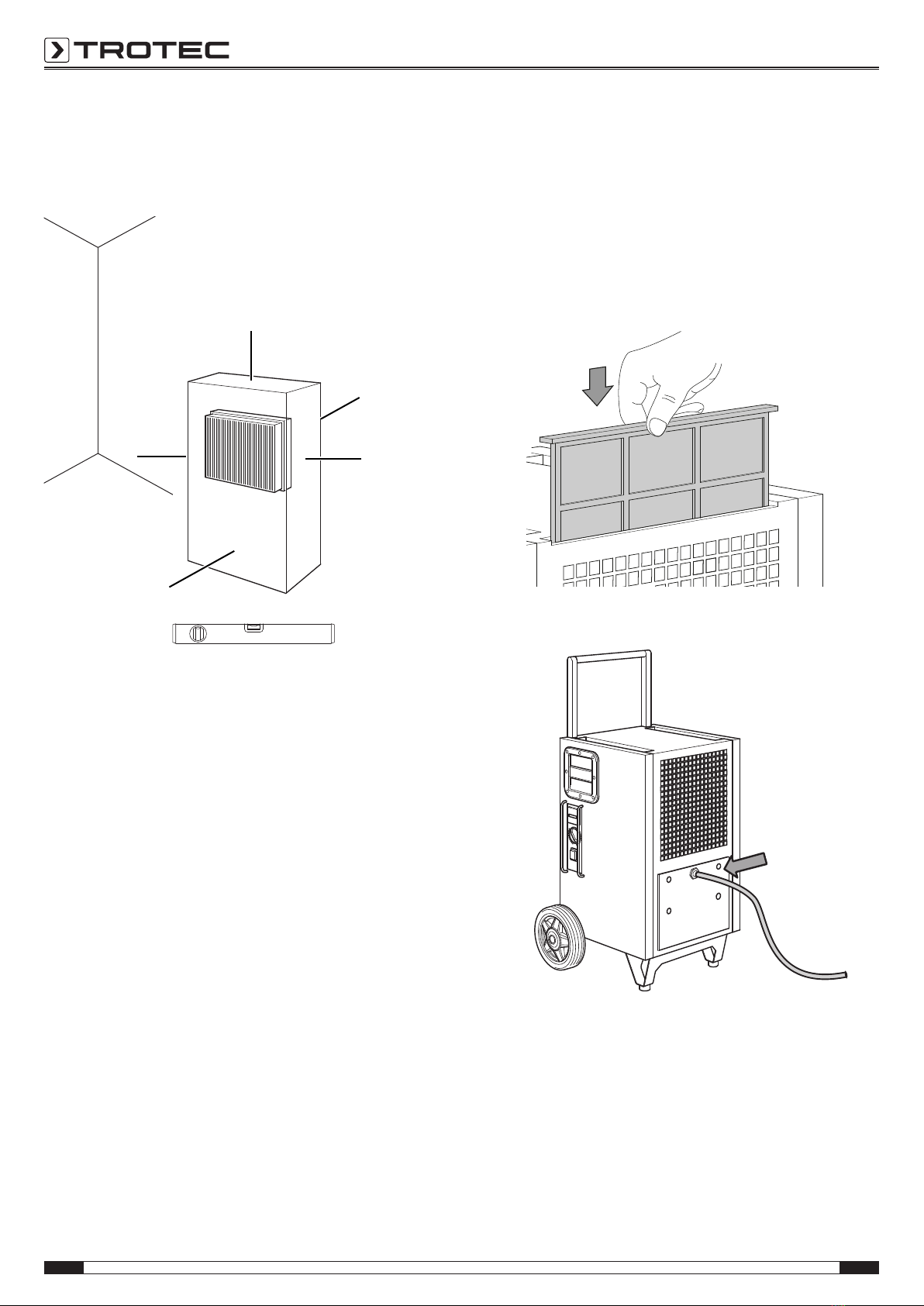

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Only position the device in rooms where potentially leaking

refrigerant cannot accumulate.

• Only position the device in rooms where there is no source

of ignition (e.g. open flames, an active gas appliance or an

electric heater).

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• When positioning the device, keep a sufficient distance to

heat sources.

• Make sure that no curtains or other objects interfere with

the air flow.

• When positioning the device, particularly in wet areas,

secure it locally with an RCD (residual current device)

which complies with the respective regulations.

Inserting the air filter

Note

Do not operate the device without an air filter inserted

into the air inlet!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that the air filter is installed before switching

the device on.

Connecting the condensation drain hose

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

EN 9

dehumidifier TTK 655 S

Operation

Operating element

OFF

SSTTAATTUUSS

OFF

SSTTAATTUUSS

No. Designation Meaning

11 Operating hours

counter

Indication of operating hours

12 Kilowatt hours counter,

MID-certified (optional)

Indication of energy consumption

13 Rotary switch Selection of relative room

humidity

14 On/off switch Switching the device on and off;

Is illuminated when the device is

switched on

15 Status LED Indicates the operating status and

error messages

The device is optionally available with an operating element with

dual counter (see the image at the top right). The dual counter

registers both the operating hours and the energy consumption

and is certified according to the MID (Measuring Instruments

Directive 2004/22/EC). The kWh display is factory-calibrated

and may be used for accounting purposes. Contact your Trotec

customer service.

The Status LED(15) flashes once a second during normal

operation. If it flashes more frequently, lights up permanently or

does not light up at all, there might be a fault, see chapter

Errors and faults.

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

1. Ensure that the condensation drain hose is properly

connected to the device and is free of damage.

2. Position a sufficiently large container (at least 20litres; we

recommend a 60-litre mortar tub) beside the device and

insert the hose end. Check the filling level of the container

regularly.

3. Make sure that the condensation drain hose is installed

with a continuous decline.

4. Insert the mains plug into a properly secured mains

socket.

5. Switch on the device at the mains switch (14).

6. Ensure that the mains switch (14) is lit.

7. Adjust the room humidity level with the rotary switch (13).

Info

The compressor always starts with a delay. This

protects the compressor and thus increases its

lifetime. This delay is enabled during optional hygrostat

operation. If the room humidity exceeds the setting of

the selection switch, the compressor will only switch

back on after a delay. The fan keeps running

independently of the compressor.

Continuous operation mode

In continuous operation mode, the device dehumidifies the air

constantly, regardless of the humidity. To start continuous

operation mode, set the rotary switch(13) to Max.

Automatic defrost

If the room temperature is below 11°C, the evaporator will

freeze during dehumidification. The device will then carry out an

automatic defrost. The duration of the defrost process can vary.

• Do not switch off the device during automatic defrost. Do

not remove the mains plug from the mains socket.

10 EN

dehumidifier TTK 655 S

Temperature limitation (overheating protection)

The device comes with a temperature limitation. It serves to

protect e.g. the compressor from overheating.

• Upper temperature limit: +35°C +/- 2°C

• Lower temperature limit: -3°C +/- 2°C

If the ambient temperature exceeds or falls below these limits,

the device automatically switches off the compressor; only the

fan will keep running. This feature protects the device from

overloading since high temperatures and high humidity levels

expose the device to extreme stresses. Moreover, drying is no

longer economical at such high temperatures and also poses

dangers for the inventory of the room to be dried. Please note

that the switch-off function works with a switch-on hysteresis of

-2°C.

Operation with condensate pump (optional)

Note

The connection for the hose adapter is located in the

inside of the device.

Warning of electrical voltage

Always disconnect the condensate pump from the plug

connection before connecting the pump. This process

has to be carried out with the device disconnected

from the mains.

Otherwise there is a risk of an electric shock!

Optionally, the condensed water can also be discharged from

the device by means of a retrofitted condensate pump (see

chapter Available accessories). With a pump performance of up

to 50m and a maximum pump height of 4m, the condensate

can even be continuously discharged across storeys of a

building.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Available accessories

Warning

Only use accessories and additional equipment

specified in the instructions.

Using insertion tools or accessories other than those

specified in the instructions may cause a risk of injury.

Designation Article number

Air filter TTK655S 7,160,000,009

External condensate pump 6,100,003,030

Protective cover 6,100,003,115

Dual counter for operating and kilowatt

hours

7,140,000,903

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damage.

• Check the on-site fusing.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

The device is running, but there is no formation of

condensate:

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Ensure that the relative room humidity complies with the

technical data.

• Check the air filter for dirt. If necessary, clean or replace

the air filter.

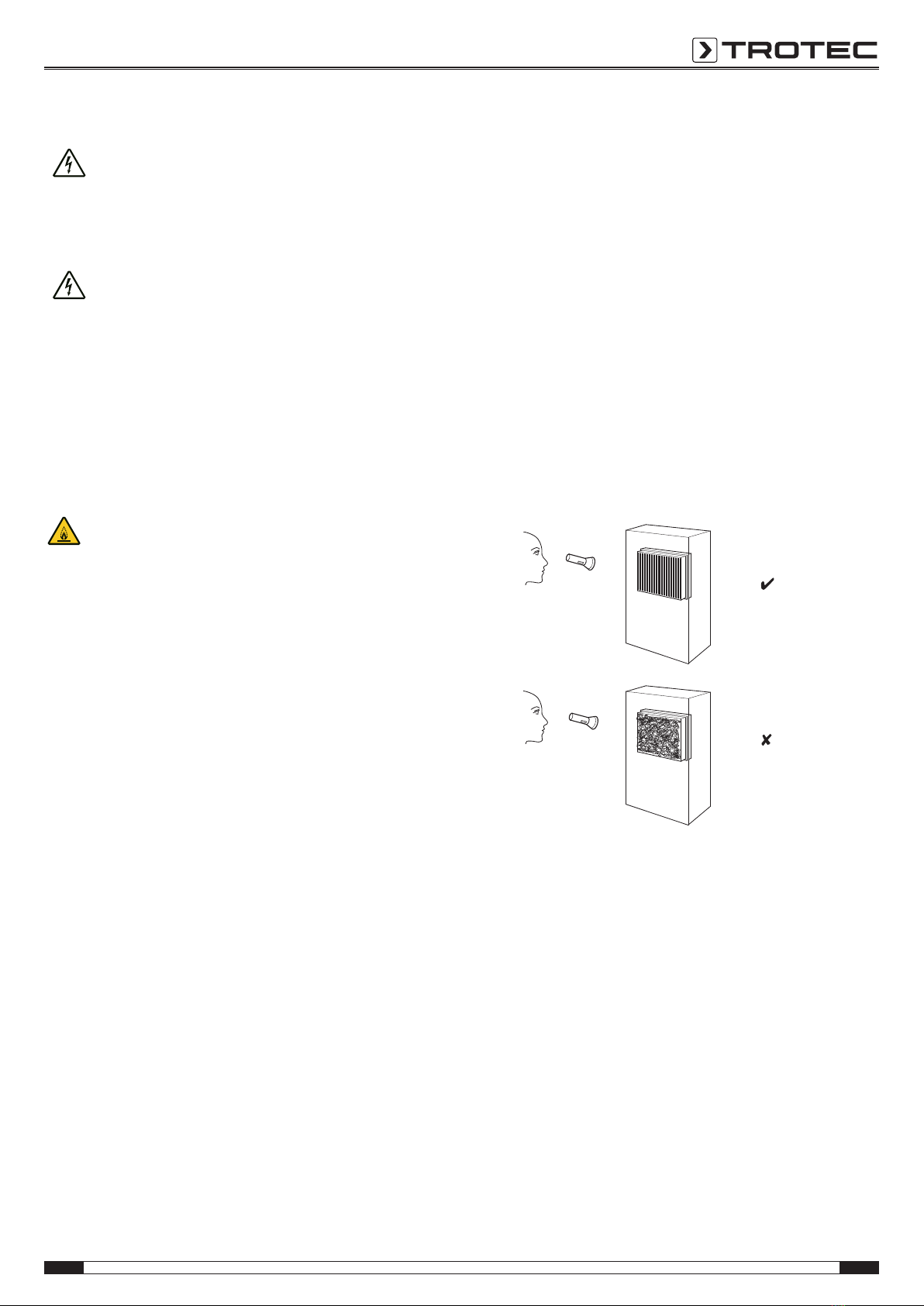

• From the outside, check the condenser for dirt (see

chapter Maintenance). If the condenser is dirty, have it

cleaned by a specialist company or by Trotec.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

Condensate is leaking:

• Check the device for leaks.

EN 11

dehumidifier TTK 655 S

The compressor does not start:

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Check whether the overheating protection of the

compressor has tripped. Disconnect the device from the

mains and let it cool down for approx. 10minutes before

reconnecting it.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filters for dirt. Remove external

dirt.

• From the outside, check the device for dirt (see chapter

Maintenance). If the inside of the device is dirty, have it

cleaned by a specialist company for cooling and air-

conditioning or by Trotec.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to a specialist company for cooling and air-conditioning

or to Trotec for repair.

Error codes

The Status LED(15) can indicate the following statuses during

operation:

Error message Meaning Remedy

Flashing once per

second

Normal operation No remedy required

Flashing five times

per second

The temperature is

above or below the

limit.

The temperature

should be within the

operating

temperature range

specified in the

Technical data.

The humidity level

has reached the

switching point.

The device will

switch back on once

the humidity level

set is exceeded.

Permanently

illuminated

There is a general

problem.

Please contact the

customer service.

Not illuminated

12 EN

dehumidifier TTK 655 S

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2weeks

at least every

4weeks

at least every

6months

at least

annually

Check the air inlets and outlets for dirt

and foreign objects and clean if

necessary

X X

Clean the exterior X X

Visually check the inside of the device

for dirt

X X

Check the air filter for dirt and foreign

objects and clean or replace if

necessary

X X

Replace the air filter X

Check for damage X

Check the attachment screws X X

Test run X

Empty the condensation tank and/or

drain hose

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Check air inlets and outlets for dirt and

foreign objects and clean if necessary

Clean the exterior

Visually check the inside of the device

for dirt

Check the air filter for dirt and foreign

objects and clean or replace if

necessary

Replace the air filter

Check for damage

Check the attachment screws

Test run

Empty the condensation tank and/or

drain hose

Comments

1. Date: ........................................

Signature: .....................................

2. Date: ..........................................
