EN Operating manual – Dehumidifier TTK 75 S 1

Notes on the operating manual............................. 01

Information about the device ................................ 02

Safety................................................................... 04

Transport.............................................................. 05

Operation ............................................................. 05

Errors and faults ................................................... 09

Maintenance......................................................... 10

Disposal ............................................................... 14

Declaration of conformity...................................... 14

Symbols

Hazardous electric current!

Warns about hazards from electric

current which can lead to injuries or even

death.

Danger!

Warns of a hazard which can lead to

personal injury.

Caution!

Warns of a hazard which can lead to

damage to property.

The current version of the operating manual can be

found at: www.trotec.de

Legal notice

This release replaces all previous releases. No part of

this publication may be reproduced without written

permission. The same applies for electronically

processing, duplicating or spreading the publication.

Trademarks are used without guarantee that they may

be used freely and primarily following the spelling of

the manufacturer. The product names used are

registered and should be treated appropriately. The

delivered product may vary from product images. This

document was produced with all due care. We accept

no liability whatsoever for mistakes or omissions.

Table of contents

Notes on the operating manual

2Operating manual – Dehumidifier TTK 75 S EN

Description of the device

This device uses the principle of condensation to

automatically dehumidify rooms.

The fan sucks damp room air through the rear air

inlet (7), via the air filter (6) and the side air inlets (4),

the evaporator and the condenser located behind it.

The air is cooled at the cold evaporator until it is below

the dew point. Water vapour contained in the room air

precipitates on the evaporator fins as either

condensation or frost. The dehumidified, cooled air is

rewarmed at the condenser and blown out at a

temperature of approx. 5 °C above room temperature.

The drier air which is prepared in this way mixes with

the air in the room. The humidity in the room where

the device is positioned is reduced as air constantly

circulates through the device. Depending on the air

temperature and the relative humidity, the condensed

water either drops continuously or only during the

defrost phase into the condensation tray and through

the integrated drain nozzle into the condensation

tank (3) below. This is fitted with a float to measure

the fill level.

The device has a control panel (2) for operating and

controlling the functions. Once the maximum fill level

of the condensation tank (3) is reached, the

condensation tank indicator light ("FULL") on the

control panel (2) flashes orange. The device switches

off. The condensation tank indicator light only goes

out again once the emptied condensation tank (3) is

reinserted. The condensed water can be diverted by

attaching a hose at the condensation plug (8). The

device can reduce the relative humidity of a room by

up to approx. 50 %. It provides additional assistance

for drying wet washing or clothing in living or working

spaces. Because of the heat radiation which is tied up

in operation, the room temperature can rise by

approx. 1-4 °C.

Device depiction

Information about the device

No. Operating element

1 air outlet (top)

2 control panel

3 condensation tank

4 air outlet (side)

5 carry handle

6 air filter

7 air inlet (rear)

8 condensation plug

9powercablecoil

10 wheels

EN Operating manual – Dehumidifier TTK 75 S 3

Technical data

Circuit diagram

Parameters Values

Model TTK 75 S

Dehumidifying capacity, max. 24 l / 24 h

Operating temperature 5-35 °C

Working range for relative humidity 49-100 %

Volume of airflow, max. 180 m³/h

Electric connection 230 V / 50 Hz

Power consumption, max. 330 W

Fuse (home) 10 A

Condensation tank 3.6 l

Refrigerant R134a

Amount of refrigerant 170 g

Weight 12.8 kg

Dimensions (HxDxW) 585 x 300 x 350 mm

Minimum distance from walls of other objects A: Above: 30 cm

B: Behind: 20 cm

C: Side: 20 cm

D: Front: 20 cm

Sound pressure level LpA (1 m; complies with DIN 45635-01-KL3) 40 dB(A)

4Operating manual – Dehumidifier TTK 75 S EN

Read this manual carefully before starting or

using the device. Store the manual near the device

or its site of use!

• Do not use the device in potentially explosive

rooms.

• Do not use the device in atmospheres containing

oil, sulphur, chlorine or salt.

• Set the device in an upright and stable position.

• Do not expose the device to directly squirting

water.

• Ensure that the air inlet and outlet are not

obstructed.

• Ensure that the side of the device where the air

inlet is found is kept free of dirt and loose objects.

• Never insert objects into the device.

• Do not cover or transport the device during

operation.

• Ensure that all electric cables outside of the device

are protected from damage (e.g. from animals).

• Only use extensions to the electric cable which are

appropriate to the device power consumption, the

length of its cable and its use. Avoid electrical

overload.

• Only transport the device in an upright position

with an emptied condensation tank.

• Dispose of the collected condensation. Do not

drink it. There is a risk of infection!

The device is not suitable for drying rooms and areas

after water damages from burst pipes or flooding.

Intended use

Use the device TTK 75 S only for drying and

dehumidifying room air, while adhering to and

following the technical data.

Intended use encapsulates:

• drying and dehumidifying:

– living rooms, bedrooms, bathrooms or

basements

– laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– store rooms, archives, laboratories

– bathrooms, wash rooms and changing rooms

Improper use

Do not place the device on damp or flooded ground.

Do not use the device outdoors. Do not lay any

objects, e.g. wet clothing, on the device for drying.

Any unauthorised changes, modifications or

alterations to the device are forbidden.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working

with electric devices in damp areas.

• take measures to protect themselves from direct

contact with live parts.

• have read and understood the operating manual,

especially the "Security" chapter.

Maintenance tasks which require the housing to

be opened must only be carried out by specialist

companies for cooling and air-conditioning or by

TROTEC®.

Residual risks

Hazardous electric current!

Work on the electrical components must

only be carried out by an authorised

specialist company!

Hazardous electric current!

Before any work on the device, remove

the mains plug from the mains socket!

Safety

EN Operating manual – Dehumidifier TTK 75 S 5

Caution!

To avoid damages to the device, never

operate the device without an air filter

inserted!

Danger!

Dangers can occur at the device when it

is used by untrained people in an

unprofessional or improper way! Observe

the personnel qualifications!

Behaviour in the event of an emergency

1. Disconnect the device from the mains power in an

emergency.

2. Do not reconnect a defective device to the mains

power.

To make the device easier to transport, it is fitted with

wheels and a carry handle.

Before transporting the device, proceed as follows:

1. Switch the device off at the mains switch (see

chapter "Operating elements").

2. Remove the mains plug from the mains socket.

Do not use the power cable to drag the device!

3. Empty the condensation tank. Check for dripping

condensation.

After transporting the device, proceed as follows:

1. Set the device in an upright position after

transport.

2. Wait one hour before switching the device on!

Storage

When out of use, store the device as follows:

•dry,

• with a roof overhead,

• in an upright position where it is protected from

dust and direct sunlight,

• with a plastic cover to protect it from invasive dust,

if necessary.

• The storage temperature is the same as the range

given for the operating temperature in the chapter

"Technical Data".

• After being switched on, the device operates fully

automatically until the float indicates that the

condensation tank is full and the device switches

itself off.

• So that the built in sensor can correctly detect the

humidity, the fan continues to operate until the

device is switched off.

• Avoid open doors and windows.

Positioning

When positioning the device, observe the minimum

distance from walls of other objects as described in

chapter "Technical Data".

• Set the device in a level and stable position.

• If possible, set the device in the middle of a room

and keep it away from sources of heat.

• When positioning the device in wet areas such as

laundries, bath rooms or the like, secure the

device locally with an RCD (Residual Current

protective Device) which complies with the

appropriate regulations.

• Ensure that extension cords are completely

unrolled.

Transport

Operation

6Operating manual – Dehumidifier TTK 75 S EN

Notes regarding the dehumidifying capacity

The dehumidifying capacity depends on:

• the spatial composition of the room

• the room temperature

• the relative humidity

The higher the room temperature and relative

humidity, the higher the dehumidifying capacity.

For using in living rooms, a relative humidity of

approx. 50-60 % is sufficient. In store rooms and

archives, the humidity should not exceed approx.

50 %.

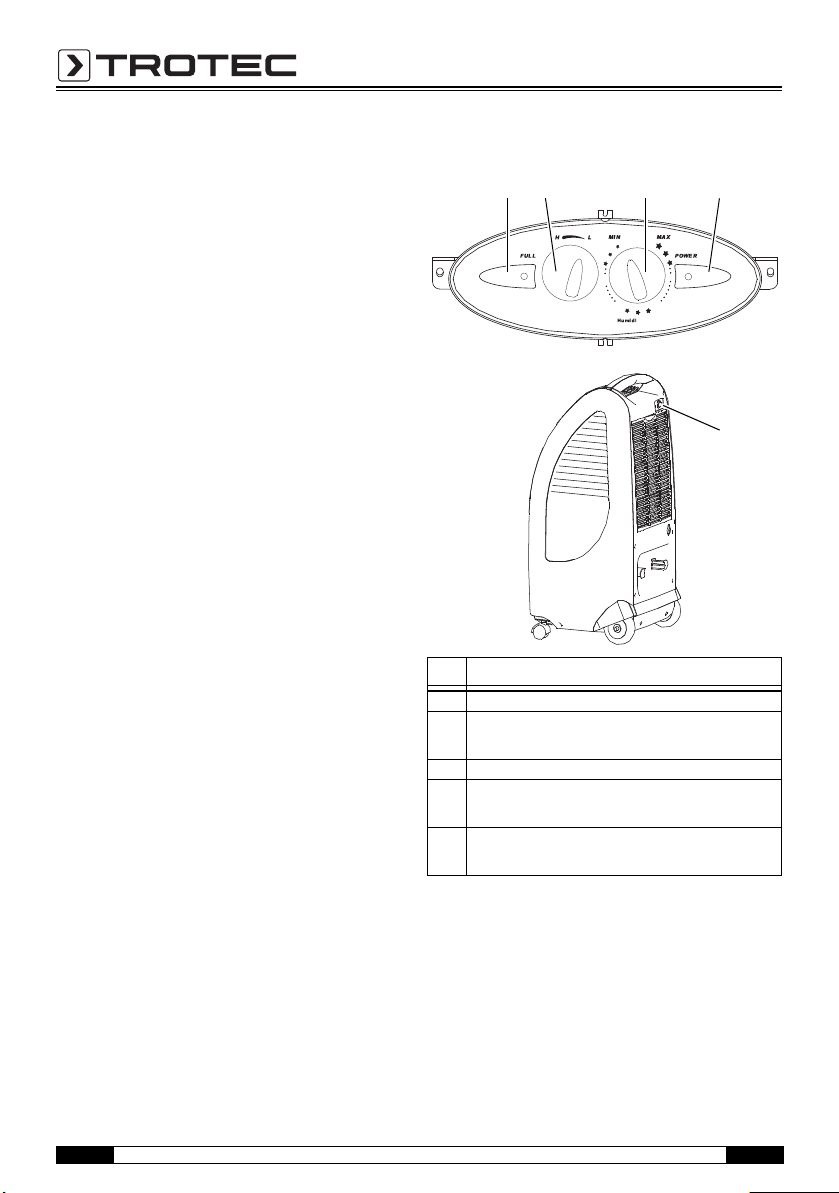

Operating elements

No. Operating element

11 Operation indicator light (red)

12 Mains switch:

"I": Device is switched on.

"0": Device is switched off.

13 Condensation tank full indicator light (orange)

14 Selector switch to choose the level of power:

"H": high fan speed

"L": low fan speed

15 Knob for selecting desired level of humidity:

"MIN": low humidity (up to 49 %)

"MAX": high humidity (up to 100 %)

13 14 15 11

EN Operating manual – Dehumidifier TTK 75 S 7

Start procedure

Insert air filter

Switch device on

1. Ensure that the condensation tank is empty and

inserted correctly. Otherwise, the device will not

operate!

2. Insert the mains plug into a properly secured

mains power socket.

3. Check whether the operation indicator light (11)

lights up red.

4. Check whether the condensation tank indicator

light (13) is out.

5. Switch on the device at the mains switch.

6. Adjust the device's fan speed by setting the

selector switch (14) to "H" or "L".

7. Adjust the room humidity level with the rotary

switch (15).

Automatic defrost

If the room temperature is below 15 °C, the

evaporator becomes covered in frost while

dehumidifying. The device then carries out an

automatic defrost approx. every 30 minutes (duration:

approx. 5 minutes).

• The automatic defrost is interrupted when you

press the mains switch (11) or turn the selector

switch (14).

• Do not turn off the device during the automatic

defrost. Do not remove the mains plug from the

mains socket.

8Operating manual – Dehumidifier TTK 75 S EN

Emptying the condensation tank Operation with hose attached to the

condensation plug

1/2 inch

E. F.

EN Operating manual – Dehumidifier TTK 75 S 9

Shut down procedure

1. Switch off the device at the mains switch (see

chapter "Operating elements").

2. Do not touch the mains plug with wet or damp

hands.

3. Remove the mains plug from the mains socket.

4. Empty the condensation tank and wipe it dry with

a clean cloth. Check for dripping condensation.

5. Clean the device, and especially the air filter,

according to chapter "Maintenance".

6. Store the device according to chapter "Storage".

The accurate functionality of the device was tested

during production a number of times. However, if

functionality faults do occur, then check the device

according to the following list.

The device does not start:

• Check the mains power (230 V/1~/50 Hz).

• Check the mains plug for damages.

• Have the electrics checked by a specialist

company for cooling and air-conditioning or by

TROTEC®.

The device runs but forms no condensation:

• Check the condensation tank is positioned

correctly. Check the fill level of the condensation

tank and empty it if necessary. The condensation

tank indicator light must not light up.

• Check the float in the condensation tank for

damages. If necessary, clean the float and

condensation tank. The float must be able to move

freely.

• Check the room temperature. The working range

of the device is between 5 °C and 35 °C.

• Ensure that the relative humidity complies with the

technical data (min. 49 %).

• Check the preset humidity is as you want. The

humidity in the room must be above the selected

range. If necessary, turn the rotary switch (15)

clockwise towards "MIN".

• Check the air filter is not dirty. If necessary, clean

or replace the air filter.

• From the outside, check the condenser is not dirty

(see chapter "Maintenance"). If your condenser is

dirty, have it cleaned by a specialist company for

cooling and air-conditioning or by TROTEC®.

The device is loud or vibrates; condensation leaks:

• Check whether the device is standing upright and

on an even surface.

The device gets very warm, is loud or is losing

performance:

• Check the air inlets and air filter are not dirty.

Remove external dirt.

• Check the inside of the device and especially the

fan, the fan housing, the evaporator and the

condenser for external dirt (see chapter

"Maintenance"). If the inside of the device is dirty,

have it cleaned by a specialist company for cooling

and air-conditioning or by TROTEC®.

Your device still does not operate correctly after

these checks?

Bring the device to a specialist company for cooling

and air-conditioning or to TROTEC®for repairs.

Errors and faults

10 Operating manual – Dehumidifier TTK 75 S EN

Maintenance intervals

Maintenance and care log

Device type: ........................................ Device number: ........................................

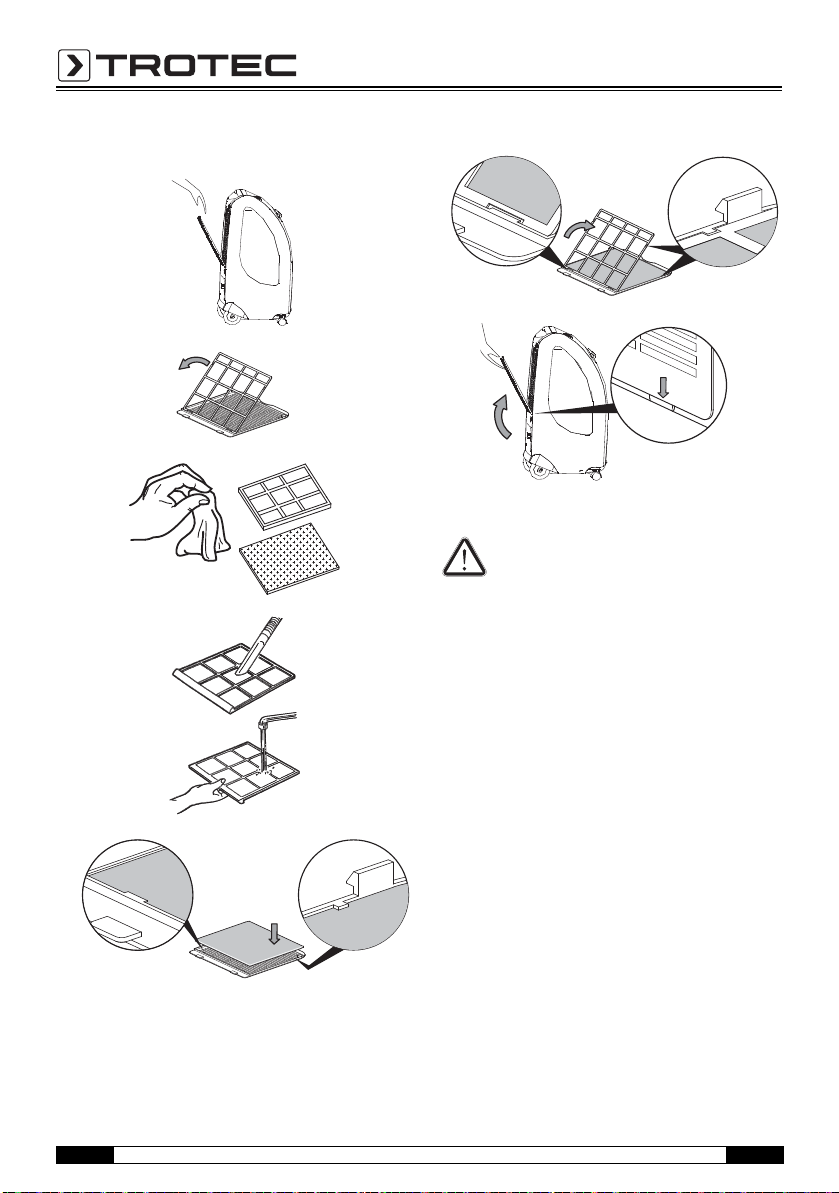

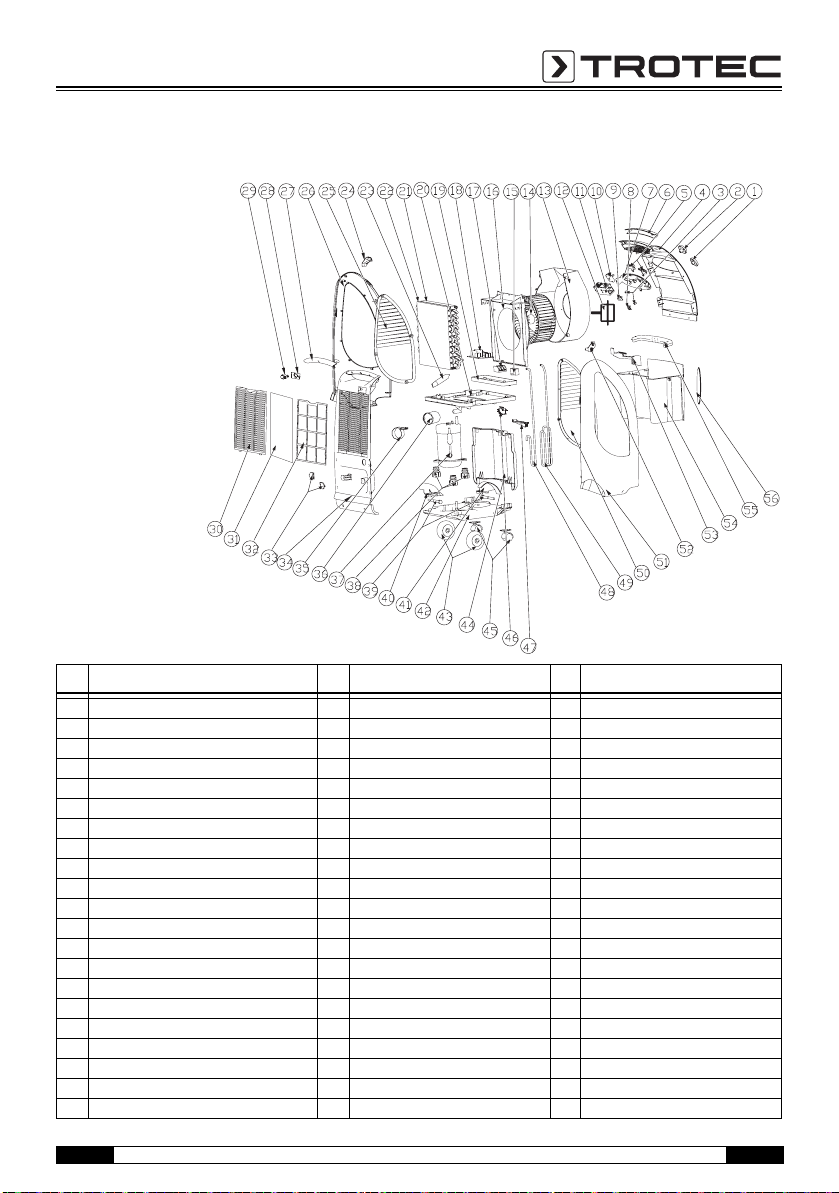

Maintenance

Maintenance and care interval Before every

start

When

necessary

At least

every 2

weeks

At least

every 4

weeks

At least

every 6

months

At least

annually

empty condensation tank X

check air inlets and outlets for dirt and foreign

objects and clean if necessary X

clean housing X X

visually check whether the inside of the device is

dirty XX

check air inlet grid and air filter for dirt and

foreign objects and clean or replace if necessary XX

replace air filter X

check for damages X

check attachment screws X X

carry out a test run X

Maintenanceandcareinterval 12345678910111213141516

check air inlets and outlets for dirt and foreign

objects and clean if necessary

clean housing

visually check whether the inside of the device

is dirty

check air inlet grid and air filter for dirt and

foreign objects and clean or replace if

necessary

replace air filter

check for damages

check attachment screws

carry out a test run

Remarks:

1. Date: ..................................
