Trotec TDX 10 User manual

TRT-BA-TDX10-TDX19-TC220719TTRT01-003-EN
TDX 10 / TDX 19
EN
ORIGINAL INSTRUCTIONS
ELECTRIC HEATER

2 EN
electric heater TDX 10 / TDX 19
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................6
Assembly and start-up..........................................................6
Operation ...............................................................................7
Errors and faults....................................................................8
Maintenance ..........................................................................9
Technical annex...................................................................10
Disposal ...............................................................................15
Declaration of conformity ...................................................16
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions via the
following link:
TDX 10
https://hub.trotec.com/?id=45463
TDX 19
https://hub.trotec.com/?id=45464
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Children of less than 3years should be kept away from
the device unless continuously supervised.
Children aged from 3years and less than 8years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3years and less than 8years shall
not plug in, regulate and clean the appliance or
perform user maintenance.

EN 3
electric heater TDX 10 / TDX 19
Warning
Do not use the device in small rooms if persons are
present who cannot leave the room independently and
who are not under constant supervision.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Only put up the device in an upright, stable position on firm
ground.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover the device during operation.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not sit on the device.
• This device is not a toy. Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The mains connection must correspond to the
specifications in the Technical annex.
• Insert the mains plug into a properly fused mains socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• When positioning the device, observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
annex.
• Keep a safety distance of at least1m between the air inlet
and the air outlet of the device and all combustible
materials such as textiles, curtains, beds and sofas.
• Make sure that the air inlet and outlet are not obstructed.
• Do not place the device on combustible ground.
• Only use original spare parts, for otherwise safe and
functional operation cannot be ensured.
• Allow the device to cool down before transport and/or
maintenance work.
• Do not use the device if it has been dropped or if it shows
visible signs of damage.
• Do not use the heating device together with a
programming device, a timer, a separate remote control
system or any other device that automatically switches the
heating device on, as there is a risk of fire if the heating
device is covered or incorrectly positioned.
Intended use
Only use the device for heating closed rooms whilst adhering to
the technical data.
Intended use comprises heating the air in:
– Construction trailers
– Garages
– Market stalls
– Workshops
– Gastronomy sector
– Warehouses and halls
– Shipyards
Foreseeable misuse
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use this device in the vicinity of fuel, solvents,
varnishes or other easily inflammable vapours or in rooms
where these substances are stored.
• Do not use the device out of doors.
• Do not use the device for heating vehicles.
• This heating device must not be used in wet rooms (e.g.
bathrooms or laundry rooms).
• Do not use the heating device in immediate vicinity of
swimming pools, bathtubs and showers.
• Never immerse the device in water.
• Any use other than the intended use is regarded as a
reasonably foreseeable misuse.
• Do not make any unauthorised modifications, alterations or
structural changes to the device.

4 EN
electric heater TDX 10 / TDX 19
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the instructions, especially the
Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist electrical companies or by
Trotec.
Symbols on the device
Symbols Meaning
This symbol located on the device indicates that it
is prohibited to place objects (such as towels,
clothes etc.) above or directly in front of the
device.
In order to avoid overheating and fire hazards, the
heater must not be covered.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
Risk of electric shock!
The device must not come into contact with water,
otherwise there is a risk of an electric shock!
Do not use this heating device in wet rooms!
Warning of hot surface
Parts of this appliance can become very hot and cause
burns. Particular attention is to be paid when there are
children or vulnerable persons present!
Warning
Improper handling entails a risk of burning and electric
shock.
Only use the device as intended!
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
Improper installation entails a risk of fire.
Do not place the device on combustible ground.
Do not place the device on high-pile carpets.
Warning
In order to avoid overheating and fire hazards, the
device must not be covered!
Behaviour in the event of an emergency
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.
Overheating protection
The device is provided with a safety thermostat, which is
activated by overheating of the device. In such an event the
device switches off automatically.
When the safety thermostat is activated, allow the device to cool
down. Only then start to look for the cause of overheating.
Should the problem persist, please contact the customer
service.
Information about the device
Device description
The electric heater serves to generate and distribute warm air,
e.g. in interior spaces.
The device generates heat by means of a ceramic heating
element. The air surrounding the ceramic heating element is
heated. The heated air is blown into the room by a fan.
The device is equipped with an integrated thermostat and so
generates a constant flow of warm air.
The TDX19 can be used in fan mode without heating function.

EN 5
electric heater TDX 10 / TDX 19

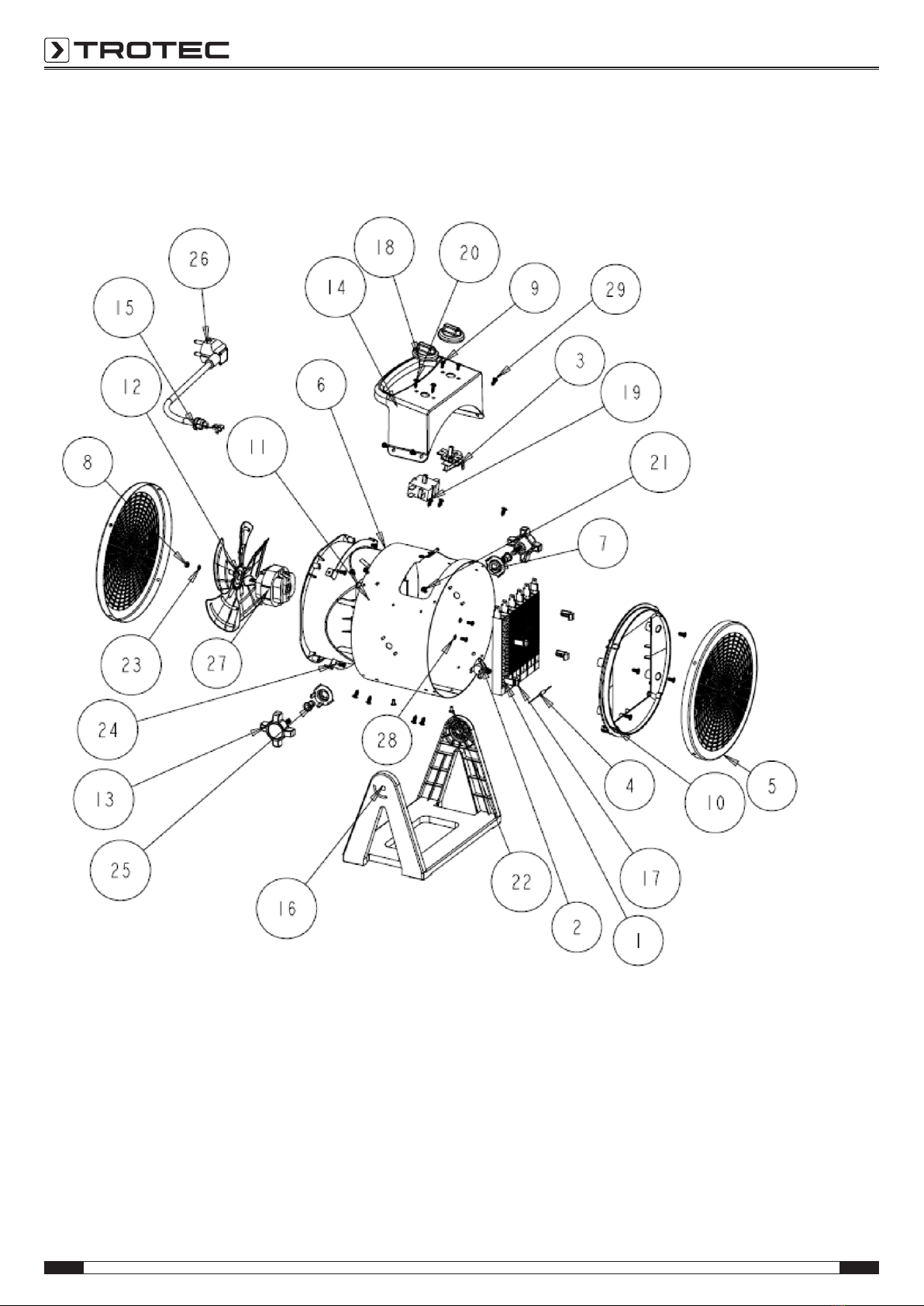

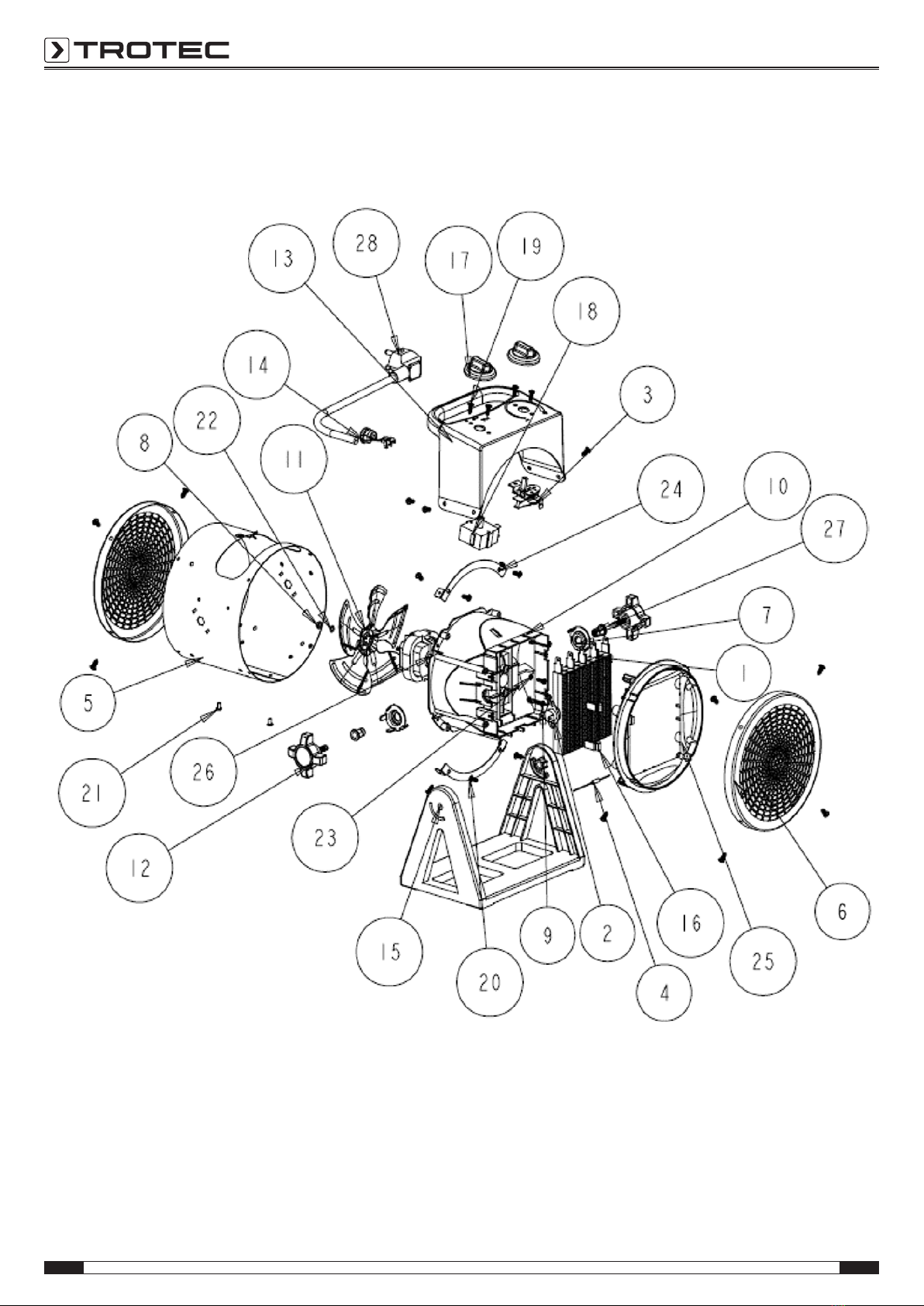

Device depiction
TDX 10
1
2
7
3
4
6
5
6
TDX 19
1
2
3
4
6
7
6
5
No. Designation
1Transport handle
2Rotary switch temperature
3Air outlet
4Foot
5Air inlet
6Setting wheel
7Selection switch ventilation and heating levels

6 EN
electric heater TDX 10 / TDX 19
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
To make the device easier to transport, it is fitted with a carry
handle.
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Allow the device to cool down sufficiently.
Storage
Before storing the device, proceed as follows:
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down sufficiently.
When the device is not being used, observe the following
storage conditions:
• Store the device in a dry location and protected from frost
and heat.
• Store the device in an upright position where it is protected
from dust and direct sunlight.
• If required, use a cover to protect the device from invasive
dust.
• Place no further devices or objects on top of the device to
prevent it from being damaged.
Assembly and start-up
Scope of delivery
• 1 x Electric heater
• 1x manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Start-up
Info
Odours might arise upon initial start-up or after a
longer period of non-use.
When positioning the device, observe the minimum distance
from walls or other objects as described in the chapter
Technical annex.
A
B
C
C
D
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.

EN 7
electric heater TDX 10 / TDX 19
• Make sure that no curtains or other objects interfere with
the air flow.
• Make sure that the device cannot come into contact with
moisture or water.
Adjusting the stand position
Please proceed as follows to adjust the stand position of the
device:
1. If necessary, switch off the device by proceeding as
described in the chapter "Operation" in the "Shutdown"
section.
2. Loosen the setting wheels(6) on both sides of the device
by turning in counter-clockwise direction.
3. Turn the device to the desired position.
4. Lock the new position of the device by turning the setting
wheels(6) on both sides of the device in clockwise
direction.
Connecting the power cable
• Insert the mains plug into a properly fused mains socket.
• Make sure that the power cable is guided along the back
of the device. Never guide the power cable along the front
of the device!
Operation
• Avoid open doors and windows.

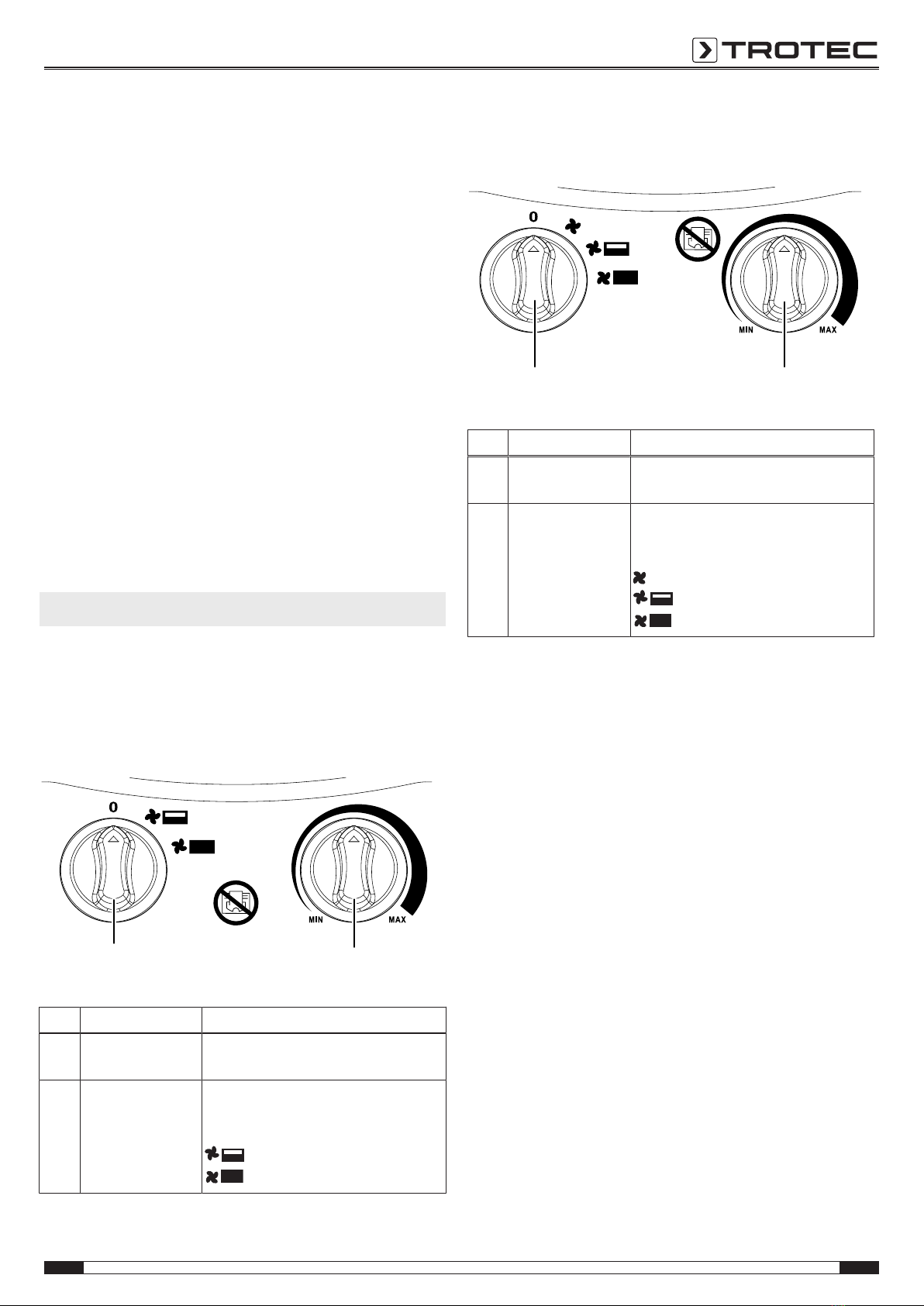

Control panel
TDX 10
2
7
No. Designation Meaning
2Rotary switch
temperature
For setting the temperature via the
room thermostat
7Selection switch
ventilation and
heating levels
For selecting the heating levels and
ventilation
0 : OFF
: heating level 1
: heating level 2
TDX 19
27
No. Designation Meaning
2Rotary switch
temperature
For setting the temperature via the
room thermostat
7Selection switch
ventilation and
heating levels
For selecting the heating levels and
ventilation
0 : OFF
: cold air/ ventilation
: heating level 1
: heating level 2
Switching the device on
Once you have completely installed the device as described in
the chapter Assembly and start-up, you can switch it on.
Setting the heating level
1. Set the selection switch ventilation and heating levels(7)
to the desired heating level.
Setting the room thermostat
1. Turn the room thermostat's infinitely variable rotary switch
temperature(2) to the desired temperature range.
ðThe adjustable temperature range is between0°C(MIN)
and85°C(MAX).
The room thermostat controls the room temperature
automatically:
• As soon as the desired room temperature has been
reached, slowly turn the rotary switchtemperature(2) to
counter-clockwise direction until the rotary switch locks in
place.
• When the set value is exceeded, the electric heater
switches off.
• When the set value is fallen below, the electric heater
automatically switches back on.

8 EN
electric heater TDX 10 / TDX 19
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
TDX 10
• Turn the rotary switchtemperature(2) to positionMIN.
• Switch off the device by setting the selector switch
ventilation and heating levels(7) to the0position.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
TDX 19
• Turn the rotary switchtemperature(2) to positionMIN.
• Turn the selection switch ventilation and heating levels(7)
to the ventilation position .
• Keep the fan running for 3minutes before switching the
device off.
• Switch off the device by setting the selector switch
ventilation and heating levels(7) to the0position.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Transport and storage
chapter.
Errors and faults
Warning of electrical voltage
Tasks which require the device to be opened must
only be carried out by authorised specialist
companies or by Trotec.
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damage. If you
notice damages, do not try to take the device back into
operation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Check the on-site fusing.
• The motor might be defective. Have a defective motor
replaced by a specialist electrical company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
• Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
The device is switched on, the fan is operating, the heating
is not:
• Check the room temperature. The room thermostat may
have switched off, because the desired room temperature
has been reached.
• Check whether the overheating protection has tripped (see
chapter Safety).
• The heating resistor might have blown. Have a defective
heating resistor replaced by a specialist electrical
company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
The fan is not running:
• Check whether the device is switched on.
• Check the power connection.
• Check the power cable and mains plug for damages.
• The fan motor might be defective. Have a defective fan
motor replaced by a specialist electrical company.
The air current is reduced:
• Check the air inlet and outlet. Make sure that air inlet and
outlet are not obstructed. Remove any dirt. Observe the
minimum distance from walls or other objects according to
the technical data.
The device is loud or vibrates:
• Check whether the device is set up in a stable and upright
position.
Note
Wait for at least 3minutes after maintenance and
repair work. Only then switch the device back on.
The device still does not operate correctly after these
checks:
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.

EN 9
electric heater TDX 10 / TDX 19
Maintenance Maintenance intervals
Maintenance and care interval before every
start-up
as needed at least every
2weeks
at least every
4weeks
at least every
6months
at least
annually
Check air inlets and outlets for dirt
and foreign objects and clean
ifnecessary
X
Check air inlet grid(s) for dirt and
foreign objects and clean
ifnecessary
X X
Clean the exterior X X
Visually check the inside of the
device for dirt
X X
Check for damage X
Check attachment screws X X
Test run X
Maintenance and care log
Device type: ............................................. Device number: ....................................
Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Check air inlets and outlets for dirt
and foreign objects and clean
ifnecessary
Check air inlet grid(s) for dirt and
foreign objects and clean
ifnecessary
Clean the exterior
Visually check the inside of the
device for dirt
Check for damage
Check attachment screws
Test run
Comments
1. Date: ...................................
Signature: ................................
2. Date: ....................................
Signature: .................................
3. Date: ....................................
Signature: .................................
4. Date: ....................................
Signature: .................................
5. Date: ...................................
Signature: ................................
6. Date: ....................................
Signature: .................................
7. Date: ....................................
Signature: .................................
8. Date: ....................................
Signature: .................................
9. Date: ...................................
Signature: ................................
10. Date: ..................................
Signature: .................................
11. Date: ..................................
Signature: .................................
12. Date: ..................................
Signature: .................................
13. Date: .................................
Signature: ................................
14. Date: ..................................
Signature: .................................
15. Date: ..................................
Signature: .................................
16. Date: ..................................
Signature: .................................

10 EN
electric heater TDX 10 / TDX 19
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Tasks which require the device to be opened must
only be carried out by authorised specialist
companies or by Trotec.
Cleaning the housing
Warning of electrical voltage
Never immerse the device in water!
Clean the housing with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Wipe the housing dry after cleaning.
Technical annex
Technical data
Parameter Value
Model TDX10 TDX19
Heating capacity
level1:
level2:
level3:
1000W
2000W
-
ventilation only
1500W
3000W
Amount of air 100l/h 200l/h
Operating range -10 °C to + 25 °C -10 °C to + 25 °C
Mains connection 220 – 240 V /
50-60 Hz
220 – 240 V /
50-60 Hz
Max. power input 2000 W 3000 W
Nominal current
consumption
8.6 A 13 A
Fusing 16 A 16 A
Plug type Schuko plug
CEE7/7
Schuko plug
CEE7/7
Cable length 1.2 m 1.2 m
Sound pressure
level(1m distance)
65 dB(A) 65 dB(A)
Type of protection IP20 IP20
Overheating protection 121 °C 121 °C
Dimensions (depth x
width x height)
125 x 227 x
240 mm
132 x 270 x
281 mm
Minimum distance to
walls and other objects
top (A):
rear (B):
sides (C):
front (D):
50 cm
50 cm
50 cm
50 cm
50 cm
50 cm
50 cm
50 cm
Weight 1.5 kg 2 kg

EN 11
electric heater TDX 10 / TDX 19

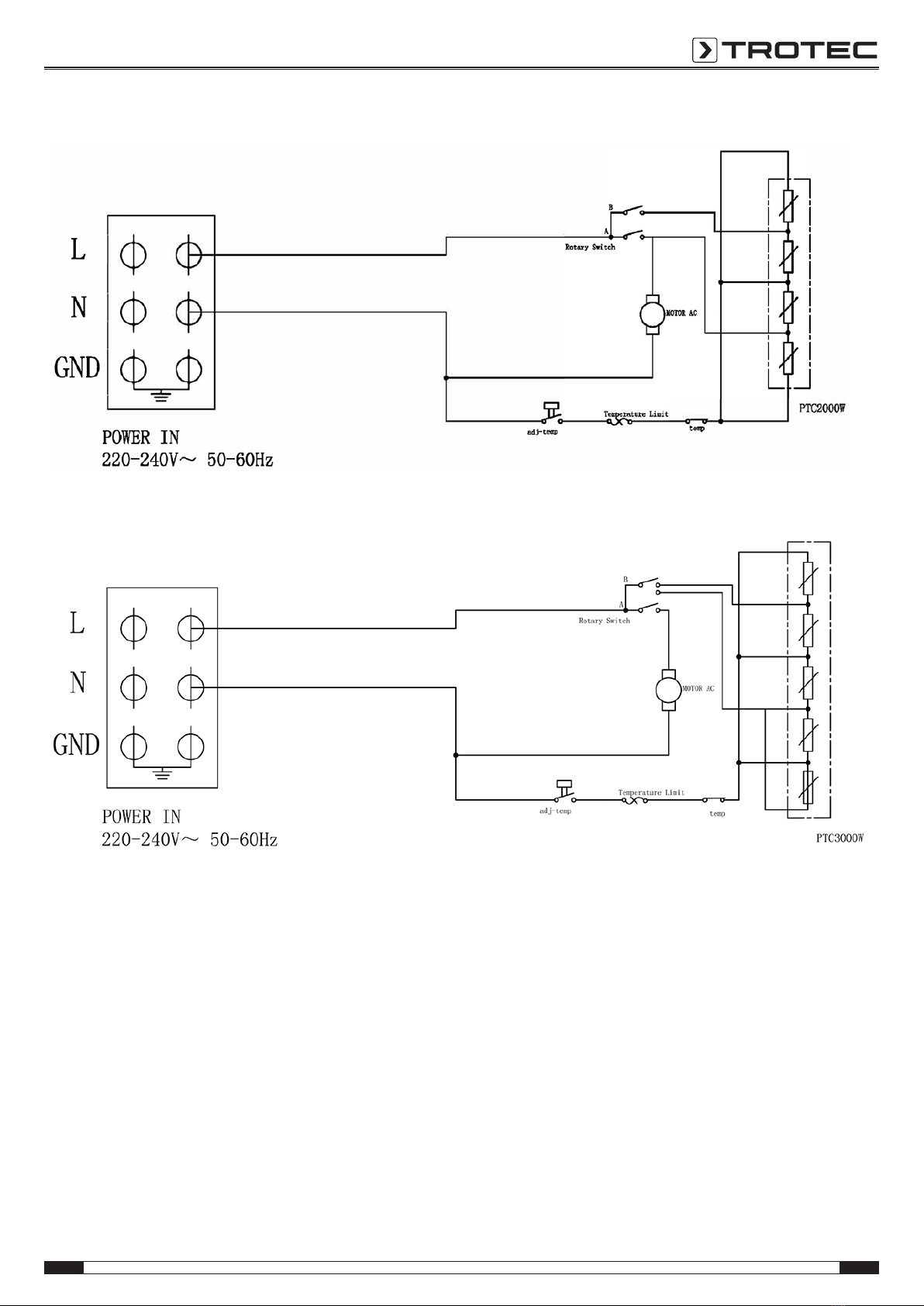

Circuit diagram TDX10
Circuit diagram TDX19

12 EN
electric heater TDX 10 / TDX 19
Overview of spare parts and spare parts list TDX10 Note!
The position numbers of the spare parts differ from those
describing the positions of the components mentioned in these
instructions.

EN 13
electric heater TDX 10 / TDX 19
No. Spare part No. Spare part
1 Ceramic Heating element (220-240V 50Hz 2000W) 17 Plastic base (PP)
2 Thermal cut-out (250V 10A Tf150) 16 Fixer (PPS)
3 Adjustable thermostat (250V 10A Tf85) 17 Knob (PP)
4 Thermal link (250V 10A Tf121) 18 Power switch (250V 16A)
5 Outer sheet (cold rolled sheet 0.4mm in thickness) 19 Screw (ST3x12)
6 Grid (cold rolled sheet 0.5mm in thickness) 20 Screw (ST4x10)
7 Plate (cold rolled sheet 1.5mm in thickness) 21 Rivet (ø3.2)
8 Nut (M4) 22 Washer (ø4)
9 Screw (M4x10) 23 Spring washer (ø4)
10 Bracket for heating element (PA66) 24 Bracket (Galvanized sheet 0.8mm in thickness)
11 Fan blade (PA66) 25 Frame (PA66)
12 Knob for base (PC) 26 Motor (220-240V~ 50Hz)
13 Control panel (PC) 27 Nut
14 Strain relief (PP) 28 Supply cord (H05VV-F 3G0.75mm² or)

14 EN
electric heater TDX 10 / TDX 19
Overview of spare parts and spare parts list TDX19 Note!
The position numbers of the spare parts differ from those
describing the positions of the components mentioned in these
instructions.

EN 15
electric heater TDX 10 / TDX 19
No. Spare part No. Spare part
1 Ceramic Heating element (220-240V 50Hz 3000W) 16 Plastic base (PP)
2 Thermal cut-out (250V 16A Tf150) 17 Fixer (PPS)
3 Adjustable thermostat (250V 16A Tf85) 18 Knob (PP)
4 Thermal link (250V 16A Tf121) 19 Power switch (250V16A)
5 Grid (cold rolled sheet) 20 Screw (ST3x12)
6 Outer sheet (cold rolled sheet) 21 Screw (ST4x10)
7 Plate (cold rolled sheet) 22 Rivet (ø3.2)
8 Nut (M4) 23 Washer (ø4)
9 Screw (M4x10) 24 Bracket (Galvanized sheet)
10 Frame (PA66) 25 Nut (M6)
11 Bracket for heating element (PA66) 26 Supply cord (H05VV-F 3G1.5mm²)
12 Fan blade (PA66) 27 Motor (220-240V 50Hz)
13 Knob for steel base (PC) 28 pring washer (ø4)
14 Control panel (PC) 29 Screw (ST4x10)
15 Strain relief (PP)
Disposal
Always dispose of packing materials in an environmentally
friendly manner and in accordance with the applicable local
disposal regulations.
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. You can also find out about other return options
that apply for many EU countries on the website
https://hub.trotec.com/?id=45090. Otherwise, please contact an
official recycling centre for electronic and electrical equipment
authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Only for United Kingdom
According to Waste Electrical and Electronic Equipment
Regulations 2013 (SI2013/3113) (as amended) devices that are
no longer usable must be collected separately and disposed of
in an environmentally friendly manner.

16 EN
electric heater TDX 10 / TDX 19
Declaration of conformity
Declaration of conformity in accordance with the ECMachinery
Directive 2006/42/EC, AnnexII, Part1, SectionA
We– Trotec GmbH– declare in sole responsibility that the
product designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: TDX 10
TDX 19
Product type: electric heater
Year of manufacture as of: 2022
Relevant EUdirectives:
• 2011/65/EU
• 2012/19/EU
• 2014/30/EU
• 2015/863/EU
Applied harmonised standards:
• EN 55014-1:2017
• EN 55014-1:2017/A11:2020
Applied national standards and technical specifications:
• EN 55014-2:2015
• EN 60335-1:2012/A1:2019
• EN 60335-1:2012/A2:2019
• EN 60335-1:2012/A14:2019
• EN 60335-2-30:2009
• EN 60335-2-30:2009/A11:2012
• EN 61000-3-3:2013/A1:2019
• EN 62233:2008
• EN IEC 61000-3-2:2019
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 19.07.2022
Detlef von der Lieck, Managing Director

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
