Trotec TCH 2310 E User manual

TRT-BA-TCH2310E-2311E -TC2020-44-001-EN
TCH 2310 E / 2311 E
EN
OPERATING MANUAL
CONVECTOR
EN This product is only suitable for well
insulated spaces or occasional use.

2 EN
convector TCH 2310 E / 2311 E
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................5
Assembly and installation.....................................................6
Operation ...............................................................................7
Errors and faults....................................................................9
Maintenance ........................................................................10
Technical annex...................................................................11
Disposal ...............................................................................13
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
TCH 2311 E
TCH 2310 E
https://hub.trotec.com/?id=44795
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Children of less than 3years should be kept away from
the device unless continuously supervised.
Children aged from 3years and less than 8years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3years and less than 8years shall
not plug in, regulate and clean the appliance or
perform user maintenance.
Warning
Do not use the device in small rooms if persons are
present who cannot leave the room independently and
who are not under constant supervision.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.

EN 3
convector TCH 2310 E / 2311 E
• Only put up the device in an upright, stable position on firm
ground.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• During the installation of the device observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Do not use the device in immediate proximity to curtains,
beds or sofas.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Do not place the device on combustible ground.
• Only use original spare parts, for otherwise safe and
functional operation cannot be ensured.
• Allow the device to cool down before transport and/or
maintenance work.
• Do not use this device near bathtubs, shower trays,
swimming pools or other water containers. Risk of electric
shock!
• Do not use the device any more once it has been dropped.
• Do not insert rechargeable batteries into the remote
control.
Intended use
The device is only suitable for well insulated spaces or
occasional use.
Only use the device for heating closed rooms whilst adhering to
the technical data.
Intended use comprises heating the air in:
• living spaces
• storerooms
• salesrooms
• construction areas
• containers
• basements
Improper use
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use this device in the vicinity of fuel, solvents,
varnishes or other easily inflammable vapours or in rooms
where these substances are stored.
• Do not use the device outdoors.
• Do not use the device for heating vehicles.
• The device must not be used near swimming pools.
• Do not use this device in the immediate vicinity of sinks,
bathtubs or other water containers.
Never immerse the device in water.
• Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability
and guarantee null and void.
• Any unauthorised modifications, such as alterations or
structural changes to the device, are forbidden.

4 EN
convector TCH 2310 E / 2311 E
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist electrical companies or by
Trotec.
Symbols on the device
Symbols Meaning
This symbol located on the device indicates that it
is prohibited to place objects (such as towels,
clothes etc.) above or directly in front of the
device.
In order to avoid overheating and fire hazards, the
heater must not be covered.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of hot surface
Some parts of this product can become very hot and
cause burns. Particular attention has to be given where
children and vulnerable people are present!
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
Improper installation entails a risk of fire.
Do not place the device on combustible ground.
Do not place the device on high-pile carpets.
Warning
In order to avoid overheating and fire hazards, the
device must not be covered!
Behaviour in the event of an emergency
1. Switch off the device.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.
Overheating protection
The device is provided with a safety thermostat which is
activated by overheating of the device (when exceeding the
operating temperature).
Once the safety thermostat has switched itself on, the device
will be turned off.
When the device has cooled down sufficiently, the heating will
be switched back on.
Investigate the cause of overheating.
If the safety thermostat does not switch in the event of
overheating, the overheating protection will be tripped. In that
case the device switches off completely. If so, please contact
the customer service to have the overheating protection
replaced.
Information about the device
Device description
The convector TCH2310E/ TCH2311E is used to generate
warm air for interior spaces.
The device generates heat by means of an electric heating
element. The air surrounding the heating element is heated. The
heated air rises through the air outlet and thus creates a natural
suction that makes the cold room air flow into the device.
In addition, the device is equipped with a fan serving for a faster
distribution of the heated air.
The device is equipped with an integrated temperature sensor
which controls the heating depending on the current and the
desired room temperature.

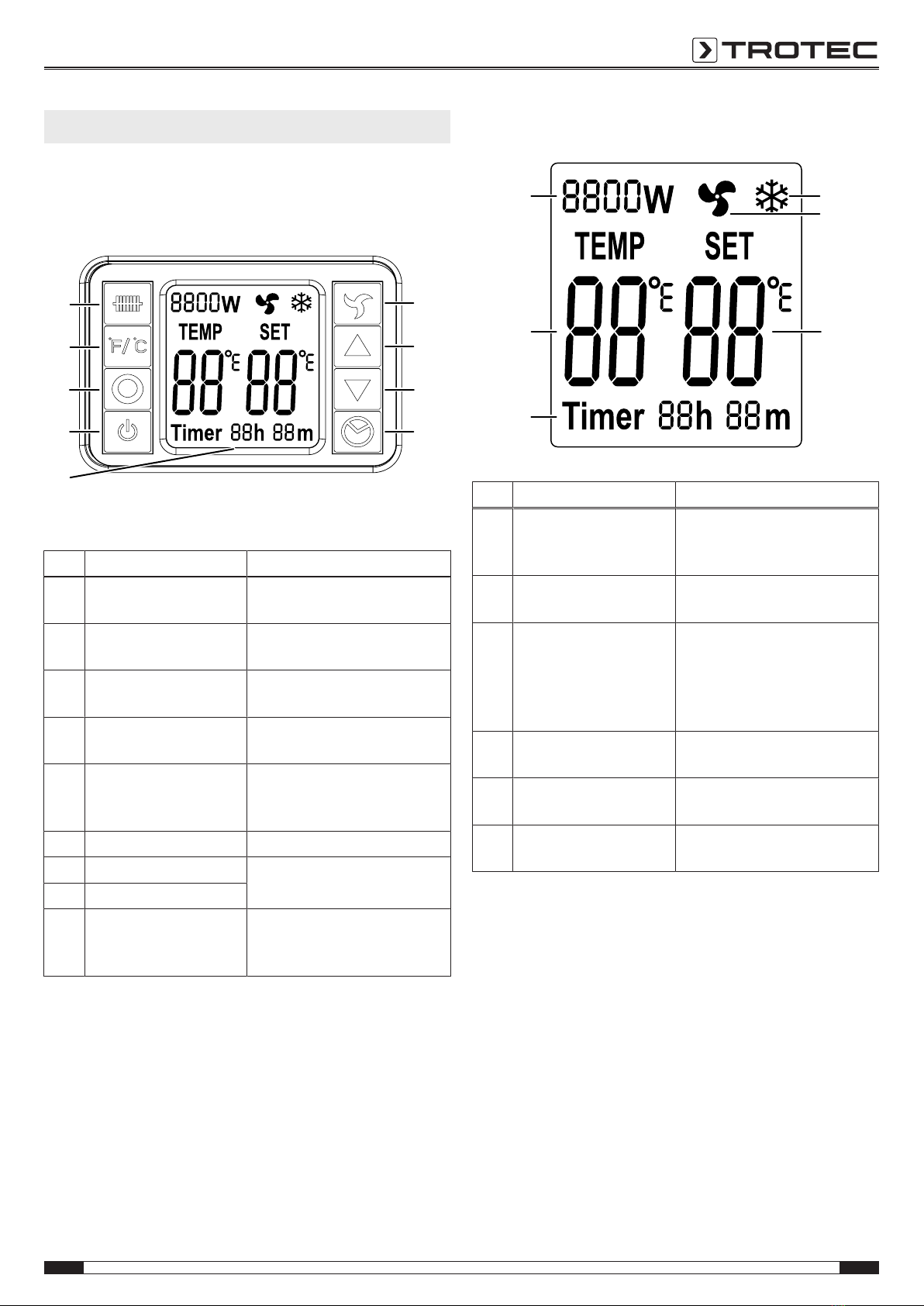

Via the control panel integrated in the housing you can set a
target temperature value between5°C and37°C.
Moreover, the device is equipped with a remote control that can
be used for controlling all functions and settings.
The integrated timer makes it possible to switch the device off
with time delay.
The functioning of the two devices is identical, they merely
differ in appearance or to be precise in colour: The device
TCH2310E comes in white colour, the TCH2311E is black.

EN 5
convector TCH 2310 E / 2311 E
Device depiction
1
3
4
5
2
7
6
3
8
No. Designation
1On/off switch (operating control lamp)
2Air outlet of fan
3Transport handle
4Control panel
5Air outlet for convector heat
6Air inlet
7Foot
8Remote control
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
To make the device easier to transport, it is fitted with a carry
handle.
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Allow the device to cool down sufficiently.
Storage
Before storing the device, proceed as follows:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down sufficiently.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.
• Remove batteries from the remote control.

6 EN
convector TCH 2310 E / 2311 E
Assembly and installation
Scope of delivery
• 1x Convector
• 1x Remote control
• 2x Foot
• 4 x Screw (for foot)
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Assembly
Feet assembly
1. Place the device on a table or on the packaging board with
the short side pointing down.
2. Fasten both feet with two screws each.
3. Check the feet for tight fit.
4. Set the device up in an upright and stable position.
Start-up
Info
Odours might arise upon initial start-up or after a
longer period of non-use.
When positioning the device, observe the minimum distance
from walls or other objects as described in the chapter
Technical data.
A
B
C
C
D
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.
• Make sure that no curtains or other objects interfere with
the air flow.
• Do not position the device directly below a wall socket.
• Make sure that the device cannot come into contact with
moisture or water.
Prior to initial start-up, insert batteries in the remote control.
Connecting the power cable
• Insert the mains plug into a properly fused mains socket.
• Make sure that the power cable is guided along the back
of the device. Never guide the power cable along the front
of the device!

EN 7
convector TCH 2310 E / 2311 E
Operation
• Avoid open doors and windows.
Control panel
9
10
11
12
13 14
17
15
16
No. Designation Meaning
9Segment display Indicates all settings (e.g.
current room temperature)
10 Power button For switching the device on or
activating standby mode
11 Infrared receiver Receives the remote control
signals
12 °C/°F button Changing between °F/
Fahrenheit and °C/Celsius
13 Mode button Selecting the operating mode:
Heating mode
Frost monitor mode
14 Ventilation button Switching the fan on or off
15 Increase value button Set the desired room
temperature (5°C to 37°C)
16 Decrease value button
17 Timer button Switching the timer on and off,
setting the number of hours of
the timer(1to24h)
Segment display
19
20 21
22
23
18
No. Designation Meaning
18 Timer indication Indication of the remaining
hours and minutes of the
activated timer
19 Current temperature
indication
Indication of the current room
temperature
20 Performance level
indication
Current heating capacity
indication
level 1 = 1000W
level 2 = 1300W
level 3 = 2300W
21 Frost monitor indication Is displayed when the frost
monitor mode is activated
22 Ventilation indication Is displayed when the fan is
activated
23 Target temperature
indication
Indication of the desired room
temperature

8 EN
convector TCH 2310 E / 2311 E
Remote control
All settings of the device can also be made using the remote
control included in the scope of delivery.
15
12
10
24
13
16
17
14
No. Designation Meaning
12 °C/°F button Changing between °F/
Fahrenheit and °C/Celsius
13 Mode button Selecting the operating mode:
Heating mode
Frost monitor mode
15 Increase value button Set the desired room
temperature (5°C to 37°C)
16 Decrease value button
17 Timer button Switching the timer on and off,
setting the number of hours of
the timer(1to24h)
10 Power button For switching the device on or
activating standby mode
14 Ventilation button Switching the fan on or off
24 Infrared transmitter
remote control
Sends signals to the device
Info
The indication comes with a background illumination.
The background illumination switches on as soon as
one of the control panel buttons or the remote control
is pressed. After approx.1min without any actuation,
the background illumination switches back off.
Switching the device on
Once you have completely installed the device as described in
the Start-up chapter, you can switch it on.
1. Set the on/off switch(1) to positionI.
ðThe device is now in standby mode.
2. Press the Power button(10).
ðThe device is switched on.
Setting the operating mode
The device has the following operating modes:
•Heating mode
•Frost monitor mode
Adjusting the heating mode
1. Press the Mode button(13) until the desired heating level
is selected. You can choose from three different levels.
ðThe selected performance level(20) is indicated on the
segment display.
Frost monitor mode
In frost monitor mode the device heats automatically. This
temperature cannot be changed.
1. Press the Mode button(13) until the Frost monitor
indication(21) is displayed.
ðThe device heats automatically if the temperature falls
below 5°C.
For setting the desired room temperature
The room temperature determined by the temperature sensor is
displayed on the Current temperature indication(19). You can
set the desired room temperature at any time.
Setting the room temperature is only possible in heating mode.
The room temperature is preset to 25°C.
1. Press the arrow button increase value(15) or decrease
value(16) to adjust the desired room temperature. Setting
is possible in the range between 5°C and 37 °C in
increments of 1°C.
ðThe set room temperature is displayed in the Target
temperature indication(23).
Info
The desired room temperature should be higher than
the current room temperature.
Ventilation
1. Press the Ventilation button(14) to switch on the fan.
ðThe Ventilationindication(22) appears.
2. Press the Ventilation button(14) to switch off the fan.
ðThe Ventilationindication(22) disappears.

EN 9
convector TCH 2310 E / 2311 E
Setting the timer
The timer has the following functionality:
• automatic switch-off upon expiry of a preset number of
hours.
The number of hours to be set can be between1 and24 and is
adjustable in increments of 1hour. If the timer is activated, the
time is also displayed in minutes.
Note
Do not leave the operating device unattended in a
freely accessible room with an activated timer.
Automatic switch-off
üThe device is switched on.
1. Press the Timer button(17).
2. Select the Timerbutton(17) to select the desired number
of hours. The value range is between1 and24.
ðThe number of hours flashes on the Timer
indication(18).
ðThe desired time until automatic switch-off is saved as
soon as the Timer(18) indication stops flashing.
ðThe time left until switch-off is displayed in the
Timerindication(18) and counted down.
ðThe device will switch to standby mode.
Note regarding automatic switch-off:
• Manually switching the device off disables the automatic
switch-off function.
• If you select 0hours, the timer will be switched off.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
1. Switch the device off by setting the mains switch to
position0.
2. Hold onto the mains plug while pulling the power cable out
of the mains socket.
3. Allow the device to cool down sufficiently.
4. Clean the device according to the Maintenance chapter.
5. Store the device according to the Storage chapter.
Errors and faults
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorised specialist
companies or by Trotec.
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
• Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
The device is switched on, but the heating is not operating:
• The heating resistor might have blown. Have a defective
heating resistor replaced by a specialist electrical
company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
The air current is reduced:
• Check the air inlet and outlet. Make sure that air inlet and
outlet are not obstructed. Remove any dirt. Observe the
minimum distance from walls or other objects according to
the technical data.
The device does not respond to the infrared remote control:
• Check whether the distance between remote control and
device is too large and reduce it if necessary.
• Make sure there are no obstacles, such as furniture or
walls, between the device and the remote control. Ensure
visual contact between device and remote control.
• Check the charging status of the batteries and change
them if required.
• If the batteries have just been changed, check them for
correct polarity.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.

10 EN
convector TCH 2310 E / 2311 E
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorised specialist
companies or by Trotec.
Cleaning the housing
Warning of electrical voltage
Never immerse the device in water!
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Wipe the housing dry after cleaning.

EN 11
convector TCH 2310 E / 2311 E
Technical annex Technical data
Parameter Value
Model TCH2310E TCH2311E
Housing colour white black
Heating capacity level 1 = 1000W
level 2 = 1300W
level 3 = 2300W
level 1 = 1000W
level 2 = 1300W
level 3 = 2300W
Setting range 5°C to 37°C 5°C to 37°C
Mains connection 220–240V /
50–60Hz
220–240V /
50–60Hz
Power consumption 2300 W 2300 W
Nominal current consumption 10A 10A
Cable length 1.8 m 1.8 m
Plug type CEE 7/7 CEE 7/7
Dimensions (incl. feed, excl.
wheels)
(depthx widthx height)
215 x 690 x 435mm 215 x 690 x 435mm
Minimum distance to walls and
other objects
A: top:
B: rear:
C: side:
D: front:
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
Weight 3.5 kg 3,5 kg
Remote control battery Typ CR 2032 Typ CR 2032

12 EN
convector TCH 2310 E / 2311 E
Information requirements for electrical local space heaters
Parameter Value/item
Model TCH 2310E TCH 2311E
Heat output
Nominal heat output Pnom 2.3 kW 2.3 kW
Minimum heat output (indicative) Pmin 1 kW 1 kW
Maximum continuous heat output Pmax,c 2.3 kW 2.3 kW
Auxiliary electricity consumption
At nominal heat output elmax NA NA
At minimum heat output elmin NA NA
In standby mode elsb 0.81 0.81 kW
Type of heat input
Manual heat charge control, with integrated thermostat NO NO
Manual heat charge control with room and/or outdoor temperature
feedback
NO NO
Electronic heat charge control with room and/or outdoor temperature
feedback
NO NO
Fan assisted heat output NO NO
Type of heat output/room temperature control
Single stage heat output, no room temperature control NO NO
Two or more manual stages, no room temperature control NO NO
With mechanic thermostat room temperature control NO NO
With electronic room temperature control NO NO
With electronic room temperature control plus day timer YES YES
With electronic room temperature control plus week timer NO NO
Other control options
Room temperature control, with presence detection NO NO
Room temperature control, with open window detection NO NO
With distance control option NO NO
With adaptive start control NO NO
With working time limitation YES YES
With black bulb sensor NO NO
Contact details TrotecGmbH
Grebbener Straße 7
D-52525 Heinsberg
NA: not applicable

EN 13
convector TCH 2310 E / 2311 E
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website https://de.trotec.com/shop/.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
