Troy-Bilt 20295 User manual

Model No. 020295 (3000 PSI (206.8 BARS) Pressure Washer) Manual No. 201837GS Revision A (01/29/2007)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Questions? Help is just a moment away!
Call: Pressure Washer Helpline
1-888-611-6708 M-F 8-5 CT
Operator’s Manual

Briggs & Stratton Power Products Group, LLC
900 North Parkway
Jefferson, WI 53549
Copyright © 2006 Briggs & Stratton Power Products Group,
LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without
the express written permission of Briggs & Stratton Power
Products Group, LLC.
Troy-Bilt® is a registered trademark of MTD Products Inc and is used under
license to Briggs & Stratton Power Products.
020295
Thank you for purchasing this quality-built Troy-Bilt pressure washer. We are pleased that you’ve placed your confidence in
the Troy-Bilt brand. When operated and maintained according to the instructions in this manual, your Troy-Bilt pressure
washer will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with pressure washers and
how to avoid them. Because Troy-Bilt does not necessarily know all the applications this pressure washer could be used for, it
is important that you read and understand these instructions thoroughly before attempting to start or operate this equipment.
Save these instructions for future reference.
This pressure washer requires final assembly before use. Refer to the Assembly section of this manual for instructions on
final assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to find Briggs & Stratton support and service for your pressure washer. Consult your Yellow Pages.
There are over 30,000 Briggs & Stratton authorized service dealers worldwide who provide quality service. You can also
contact Troy-Bilt Customer Service by phone at [phone], or on the Internet at www.troybilt.com.
Pressure Washer
Model Number
Revision
Serial Number
Engine
Model Number
Type Number
Code Number
Date Purchased

Table of Contents
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Equipment Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpack Pressure Washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Attach Handle and Accessory Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Attach Detergent Siphon Hose to Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Add Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Add Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect Hose and Water Supply to Pump. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Features and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pressure Washer Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How to Start Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to Stop Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Use Accessory Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Use Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and Applying Detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pressure Washer Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic Cool Down System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure Washer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After Each Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warranties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Emissions Control System Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pressure Washer Owner Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Common Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1
Español

Operator Safety
Equipment Description
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
This pressure washer operates at a maximum of 3,000 PSI
(206.8 BARS) and a flow rate of up to 2.7 gallons per minute
(10.2 liters per minute). This high quality residential system
features 10” (25.4 cm) wheels, axial cam pump with
stainless steel pistons, automatic cool down system,
detergent siphoning system, quick connect spray tips, safety
goggles, heavy duty 30’ (9.1 m) hose, and more.
Every effort has been made to ensure that information in this
manual is accurate and current. However, we reserve the
right to change, alter, or otherwise improve the product and
this document at any time without prior notice.
The Emission Control System for this pressure washer is
warranted for standards set by the Environmental Protection
Agency and the California Air Resources Board.
Safety Rules
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION, WARNING), a pictorial and/or a safety
message to alert you to hazards. DANGER indicates a hazard
which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not avoided, could
result in death or serious injury. CAUTION indicates a hazard
which, if not avoided, might result in minor or moderate
injury. NOTICE, indicates a situation that could result in
equipment damage. Follow safety messages to avoid or
reduce the risk of injury or death.
A - Explosion G - Flying Objects
B - Fire H - Slippery Surface
C - Electric Shock I - Fall
D - Toxic Fumes J - Fluid Injection
E - Kickback K - Moving Parts
F - Hot Surface L - Read Manual
2www.troybilt.com
WARNING
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth
defects, or other reproductive harm.
A B C
D E
G H
F
I
J K L
SAVE THESE INSTRUCTIONS

3
WARNING
Risk of electrocution.
Contact with power source can cause electric
shock or burn.
• NEVER spray near power source.
WARNING
Use of pressure washer can create puddles and
slippery surfaces.
Kickback from spray gun can cause you to fall.
• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WHEN ADDING OR DRAINING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve pressure
in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air cleaner are in
place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
• Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other ignition
source because they can ignite fuel vapors.
WARNING
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting, or poisoning.
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area,
even if windows and doors are open.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful
vapors.

4www.troybilt.com
WARNING
Starter cord kickback (rapid retraction) can result
in bodily injury. Kickback will pull hand and arm
toward engine faster than you can let go.
Broken bones, fractures, bruises, or sprains
could result.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction and squeeze spray gun trigger
to release high pressure. Engage spray gun trigger lock.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING
Contact with muffler area can result in serious
burns.
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and
Public Property require equipment powered by an internal
combustion engine to have a spark arrester, maintained in
effective working order, complying to USDA Forest service
standard 5100-1C or later revision. In the State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may have similar laws.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray
gun trigger, to release high pressure, every time you stop
engine. Engage trigger lock when not in use.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING
Unintentional sparking can result in fire or
electric shock.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

5
NOTICE
High pressure spray may damage fragile items including
glass.
• DO NOT point spray gun at glass when using red 0° spray tip.
• NEVER aim spray gun at plants.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
WARNING
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
• NEVER operate pressure washer without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that may be
caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
NOTICE
Improper treatment of pressure washer can damage it
and shorten its life.
• If you have questions about intended use, ask dealer or contact
qualified service center.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts
of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle
provided on unit.
• Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure
washer.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used
with parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.

Assembly
Read entire operator’s manual before you attempt
to assemble or operate your new pressure washer.
Your pressure washer requires some assembly and is ready
for use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your pressure
washer, please call the pressure washer helpline at
[phone]. If calling for assistance, please have the
model, revision, and serial number from the data tag
available.
Unpack Pressure Washer
1. Remove the parts bag, accessories, and inserts
included with pressure washer.
2. Open carton completely by cutting each corner from
top to bottom.
3. Ensure you have all included items prior to assembly.
Items in the carton include:
• Main Unit
• Handle with Cleaning Tanks Assembly
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Plastic Accessory Tray
• Oil Bottle
• Parts Bag (which includes the following):
• Safety Goggles
• Operator’s Manual
• Owner’s Registration Card
• Bag containing 4 Multi–Colored Spray Tips
• Spray Gun Holder Wireform
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolts (2)
• Plastic Knobs (3)
• Tree Clips (4)
To prepare your pressure washer for operation, you will
need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle to main unit.
3. Connect detergent siphon hose to pump.
4. Add oil to engine crankcase.
5. Add fuel to fuel tank.
6. Connect high pressure hose to spray gun and pump.
7. Connect water supply to pump.
8. Attach nozzle extension to spray gun.
9. Select/attach quick connect spray tip to nozzle
extension.
Attach Handle and Accessory Tray
1. Place handle (A) onto handle supports (B) connected to
main unit. Make sure holes (C) in handle align with
holes (C) on handle supports.
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
2. Insert carriage bolts (A) through holes from outside of
unit and attach a plastic knob (B) from inside of unit.
Tighten by hand.
3. Place accessory tray (A) over holes (C) on handle
(viewing from front of unit). Push the tree clips (B) into
the holes until they sit flat against the accessory tray.
4. Insert spray gun holder wireform (A) through hole on
left side of handle (viewing from front of unit). Hold
wireform in place and attach a plastic knob (B) from
inside of unit. Tighten by hand.
6www.troybilt.com
A
B
A
B
C
A
B
C
A
B

5. Insert multi–colored spray tips and other supplied
accessories in spaces provided in accessory tray. See
How to Use Accessory Tray.
Attach Detergent Siphon Hose to Pump
Attach detergent siphon hose (A) to barbed hose fitting (B)
on pump.
Add Engine Oil
1. Place pressure washer on a flat, level surface.
2. Clean area around oil fill and remove yellow oil fill
cap/dipstick.
NOTE: See Oil Recommendations in Maintenance section.
Verify provided oil bottle is the correct viscosity for current
ambient temperature.
3. Using oil funnel (optional), slowly pour contents of
provided oil bottle into oil fill opening.
4. Replace oil fill cap/dipstick and fully tighten.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). High
altitude use, see below.
• Gasoline with up to 10% ethanol (gasohol) or up to
15% MTBE (methyl tertiary butyl ether) is acceptable.
To protect the fuel system from gum formation, mix in a fuel
stabilizer when adding fuel. See Storage. All fuel is not the
same. If you experience starting or performance problems
after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operate on gasoline. The
emission control system for this engine is EM (Engine
Modifications).
1. Clean area around fuel fill cap, remove cap.
2. Slowly add regular unleaded fuel (A) to fuel tank (B). Be
careful not to overfill. Allow about 1.5" (4 cm) (C) of
tank space for fuel expansion.
3. Install fuel cap and let any spilled fuel evaporate before
starting engine.
High-altitude use
At higher altitudes (over 5,000 feet), 85 octane/85 AKI
(89 RON) gasoline is recommended. High-altitude use may
require a carburetor jet kit to improve performance and
decrease fuel consumption. See a qualified service dealer for
more information.
7
C
B
A
B
A
NOTICE
Improper treatment of pressure washer can damage it
and shorten its life.
• DO NOT attempt to crank or start the engine before it has been
properly serviced with the recommended oil. This may result in
an engine failure.
NOTICE
Avoid pressure washer damage.
Failure to follow Operator’s Manual for fuel
recommendations voids warranty.
• DO NOT use unapproved gasoline such as E85.
• DO NOT mix oil in gasoline.
• DO NOT modify engine to run on alternate fuels.
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WHEN ADDING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve pressure
in tank.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• DO NOT light a cigarette or smoke.

Connect Hose and Water Supply to Pump
NOTE: Remove and discard the shipping caps from the
pump’s high pressure outlet and water inlet before attaching
hoses.

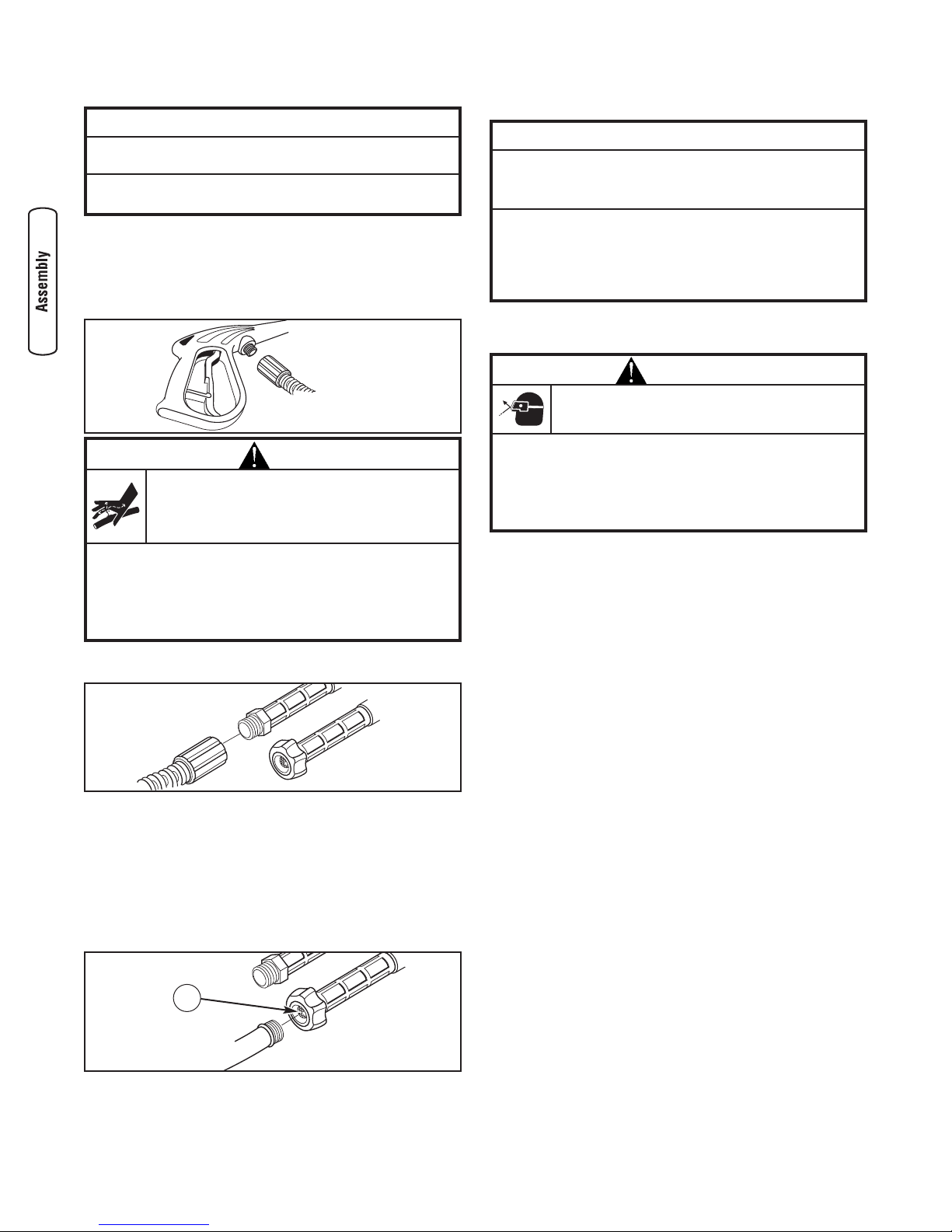

1. Uncoil high pressure hose and attach one end of hose
to base of spray gun. Tighten by hand.
2. Attach other end of high pressure hose to high
pressure outlet on pump. Tighten by hand.
4. Run water through your garden hose for 30 seconds to
clean out any debris.
IMPORTANT: DO NOT siphon standing water for the water
supply. Use ONLY cold water (less than 100°F (38°C)).
3. Before connecting garden hose to water inlet, inspect
inlet screen (A). Clean screen if it contains debris or
have it replaced if damaged. DO NOT run pressure
washer if inlet screen is damaged.
5. Connect the garden hose (not to exceed 50 feet (15 m)
in length) to the water inlet. Tighten by hand.
6. Turn ON the water and squeeze the trigger on the spray
gun to purge the pump system of air and impurities.
Checklist Before Starting Engine
Review the unit’s assembly to ensure you have performed all
of the following.
1. Make sure handle is in place and secure.
2. Check that oil has been added to proper level in the
engine crankcase.
3. Add proper fuel to fuel tank.
4. Check for properly tightened hose connections.
5. Check to make sure there are no kinks, cuts, or damage
to high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read the Operator Safety section and How to
Use Your Pressure Washer in Operation section before
using pressure washer.
8www.troybilt.com
A
NOTICE
DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
NOTICE
Damage to pump or water inlet connector will occur if a
One Way Valve (vacuum breaker or check valve) is
connected to pump.
• There MUST be at least ten feet (3M) of unrestricted garden
hose between the pressure washer inlet and any device, such
as a One Way Valve.
• Damage to equipment caused by attaching a One Way Valve to
pump will void warranty.

9
Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
B - Warning/Operating Instructions Tag — Identifies
hazards and proper procedure to start/stop pressure
washer.
C - Nozzle Extension with Quick Connect — Allows you to
switch between four different spray tips.
D - Recoil Starter — Used for starting the engine manually.
E - Fuel Tank — Fill tank with regular unleaded fuel. Always
leave room for fuel expansion.
F - Throttle Lever — Sets engine in starting mode for recoil
starter and stops a running engine.
G - Air Filter — Protects engine by filtering dust and debris
out of intake air.
H - Primer Bulb — Prepares a cold engine for starting.
J - Pump — Develops high pressure.
K - Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F (51°C-68°C).
Warm water will discharge from pump onto ground. This
system prevents internal pump damage.
L - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
M - High Pressure Outlet — Connection for high pressure hose.
N - Water Inlet — Connection for garden hose.
P - Cleaning Tanks — Use to hold up to two quarts (1.9 l)
of pressure washer detergent in each tank.
R - Oil Fill/Dipstick — Check, fill and drain with oil here.
S - High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
T - Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
U - Spray Tips — Detergent, 0°, 15° and 40°: for various
high pressure cleaning applications.
Items Not Shown:
Data Tag (near rear of base plate) — Provides model and
serial number of pressure washer. Please have these readily
available if calling for assistance.
Safety Goggles — Always use the enclosed safety goggles
when running your pressure washer.
F
E
H
A
K
,
J
C
D
T
G
B
P
R
S
N
,
M
U
L

Operation
If you have any problems operating your pressure washer,
please call the pressure washer helpline at [phone].

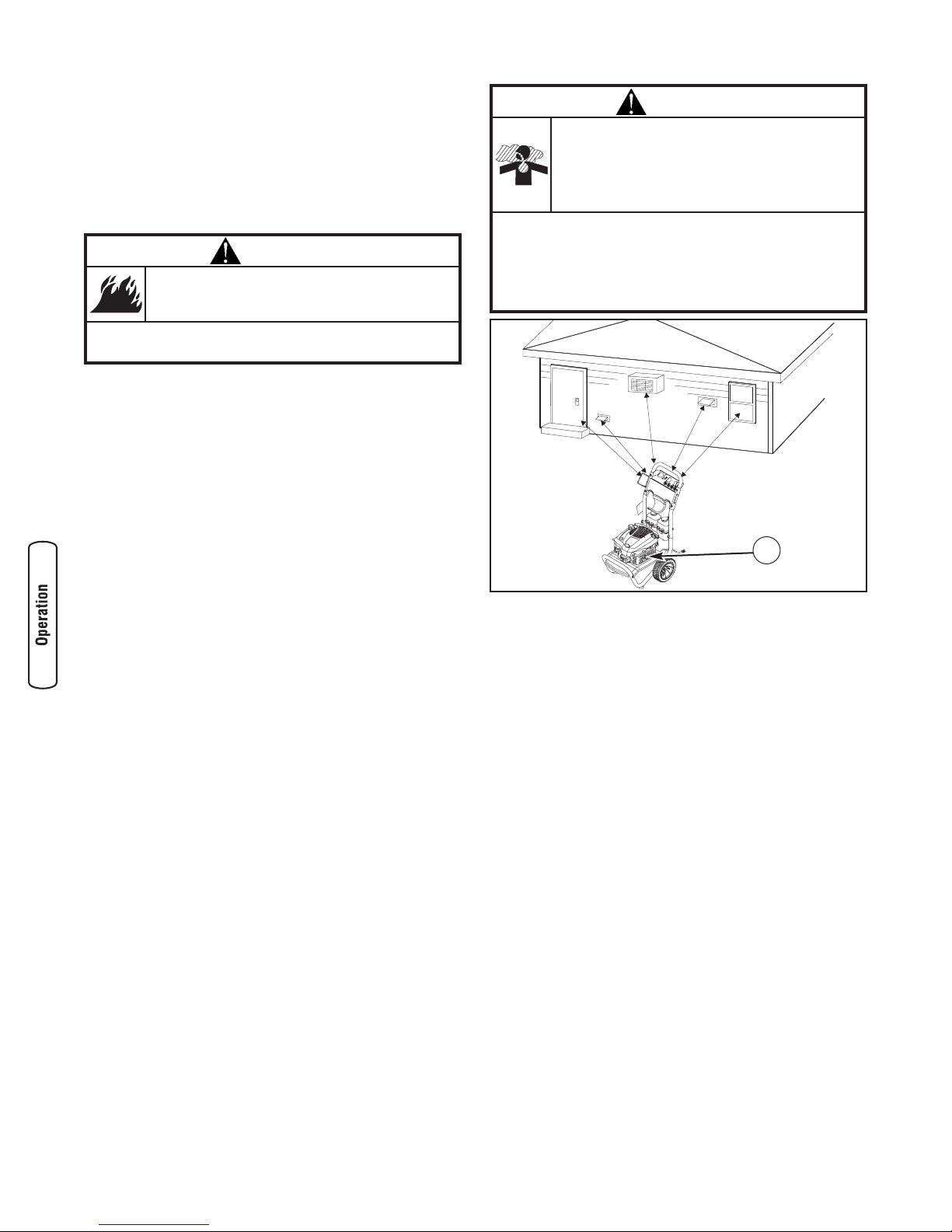

Pressure Washer Location
Clearances and Air Movement
Place pressure washer outdoors in an area that will not
accumulate deadly exhaust gas. DO NOT place pressure
washer where exhaust gas could accumulate and enter inside
or be drawn into a potentially occupied building. Ensure
exhaust gas is kept away from any windows, doors,
ventilation intakes, or other openings that can allow exhaust
gas to collect in a confined area. Prevailing winds and air
currents should be taken into consideration when positioning
pressure washer.
A - Exhaust Port
10 www.troybilt.com
A
WARNING
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
• Keep at least 5 ft. (1.5 m) clearance on all sides of pressure
washer including overhead.
WARNING
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area,
even if windows and doors are open.

11
How to Start Your Pressure Washer
To start your pressure washer for the first time, follow these
instructions step-by-step. This starting information also applies
if you have let the pressure washer sit idle for at least a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
3.7 gallons per minute (14 liters per minute) and no
less than 20 PSI (1.38 BARS) at pressure washer end
of garden hose. DO NOT siphon supply water.

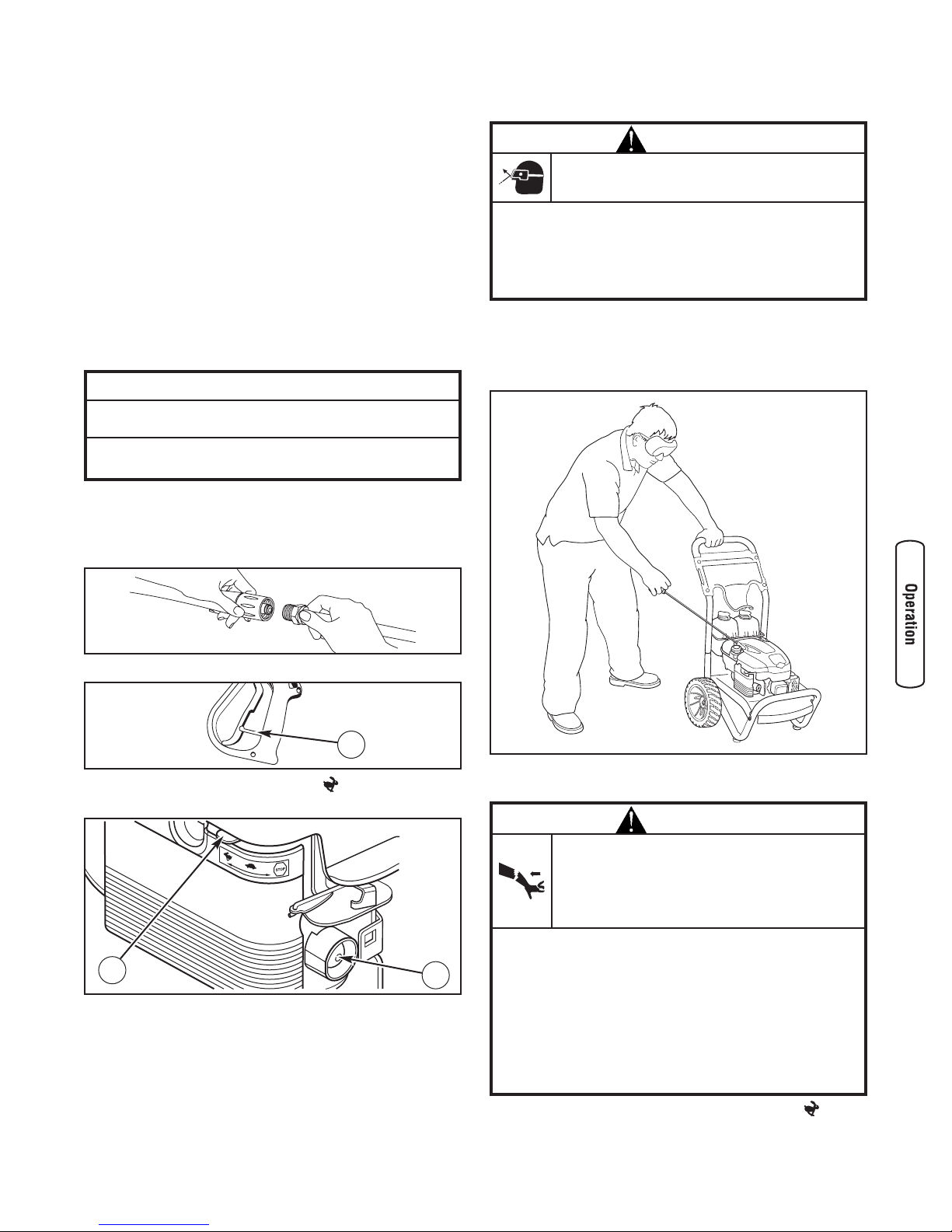

2. Check that high pressure hose is tightly connected to
spray gun and pump. See Assembly section.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure washer
pump.
5. Turn ON water, point spray gun in a safe direction and
squeeze trigger to purge pump system of air and
impurities.
6. Attach nozzle extension to spray gun. Tighten by hand.
7. Engage trigger lock (A) on spray gun trigger.
8. Move throttle lever (A) to “Fast” position, shown
here as a rabbit.
To start the engine for the very first time:
9. Push primer bulb (B) firmly 5 times, waiting 2 seconds
between each push.
To start engine thereafter:
9. Press primer bulb (B) firmly 3 times, waiting 2 seconds
between each push. For a warm engine, DO NOT press
primer bulb.
IMPORTANT: Before starting the pressure washer, be sure
you are wearing adequate safety goggles.
10. When starting engine, position yourself as
recommended and grasp starter grip handle and pull
slowly until you feel some resistance. Then pull rapidly
to start engine.
11. Return starter grip handle slowly. DO NOT let rope
“snap back” against starter.
NOTE: Always keep the throttle lever in the “Fast”
position when operating the pressure washer.
A
B
A
NOTICE
DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
WARNING
Starter cord kickback (rapid retraction) can result
in bodily injury. Kickback will pull hand and arm
toward engine faster than you can let go.
Broken bones, fractures, bruises, or sprains
could result.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction and squeeze spray gun trigger
to release high pressure. Engage spray gun trigger lock.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.

How to Stop Your Pressure Washer
1. Release spray gun trigger and let engine idle for two
minutes.
2. Move throttle to SLOW position, then STOP
position.
3. ALWAYS point spray gun in a safe direction and
squeeze spray gun trigger to release retained high
water pressure.
IMPORTANT: Spray gun traps high water pressure, even
when engine is stopped and water is disconnected.
4. Engage trigger lock on spray gun when not in use.
How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun, nozzle extension and quick connect
spray tips. There is also a hook at the front of the accessory
tray to hold your high pressure hose.
NOTE: The extra hole in the tray is for storing a utility brush.
The extra clip in the tray is for storing a turbo nozzle. The
brush and turbo nozzle are NOT included with your pressure
washer. You can buy these items as optional accessories.
1. Place nozzle extension through hole on accessory tray,
as shown.
12 www.troybilt.com
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
• DO NOT allow CHILDREN to operate pressure washer.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING
Contact with muffler area can result in serious
burns.
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and
Public Property require equipment powered by an internal
combustion engine to have a spark arrester, maintained in
effective working order, complying to USDA Forest service
standard 5100-1C or later revision. In the State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may have similar laws.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray
gun trigger, to release high pressure, every time you stop
engine. Engage trigger lock when not in use.

13

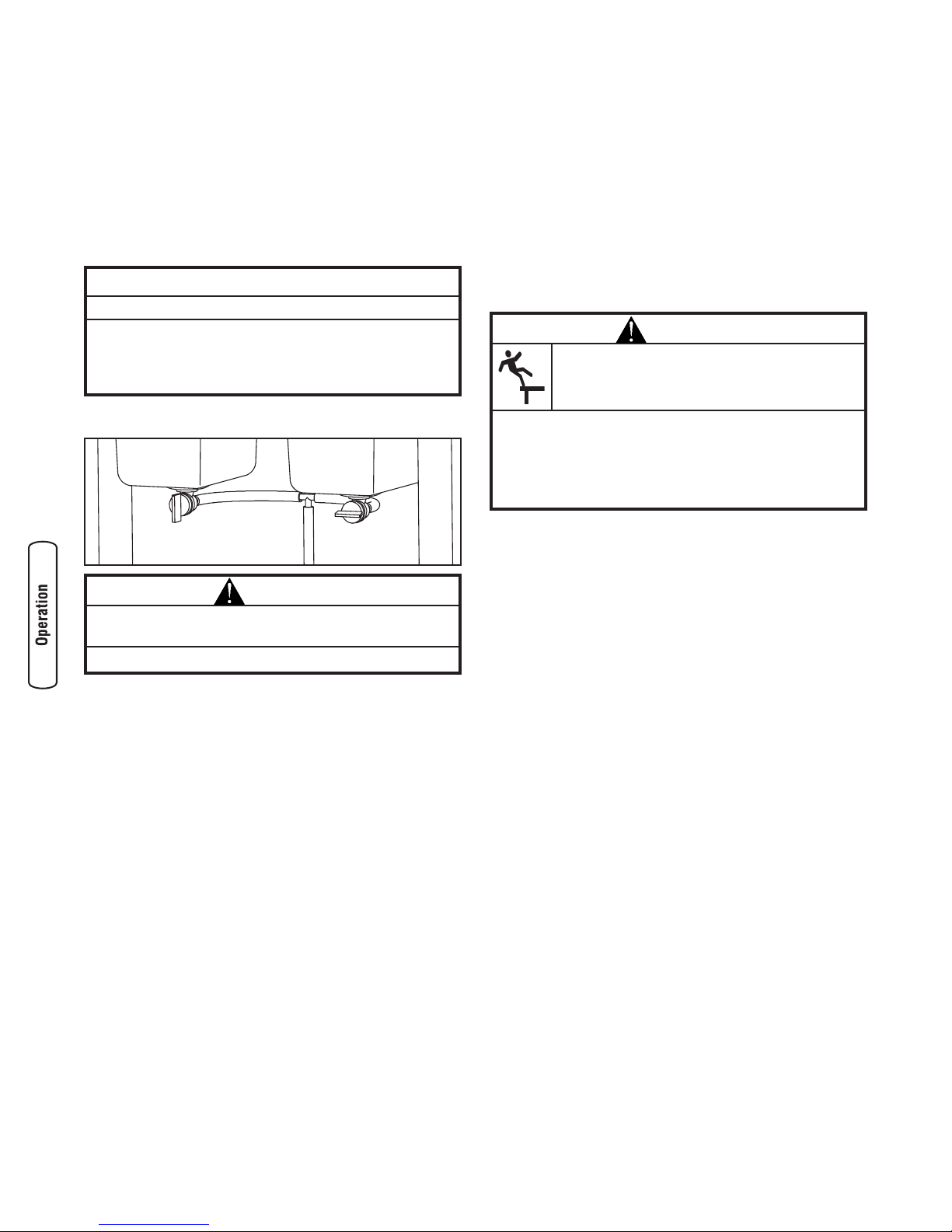

2. Place spray gun through hole on accessory tray on
right side of unit.
NOTE: You may also use the spray gun holder wireform
attached to the handle to store your spray gun and nozzle
extension, as shown in Features and Controls section.
3. Insert multi–colored spray tips in spaces provided in
accessory tray.
4. Hang high pressure hose on hook attached to
accessory tray on front of tray, as shown.
How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between four different quick connect spray tips. Spray
tips can be changed while pressure washer is running once
spray gun trigger lock is engaged. The spray tips vary the
spray pattern as shown below.
Follow these instructions to change spray tips:
1. Engage trigger lock on spray gun.
2. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
accessory tray.
3. Select desired spray tip:
• For delicate rinse (lower pressure and higher flow), for
gentle cleaning of cars/trucks, boats, RV’s, patio
furniture, lawn equipment, etc., select white 40° spray
tip.
• For general rinsing (medium pressure and medium
flow), ideal for most all purpose cleaning such as home
siding, brick patios, wood decks, driveways and
sidewalks, garage floors, etc., select yellow 15° spray
tip.
• For maximum rinsing (higher pressure and lower flow),
for stubborn or hard to reach surface such as second
story surfaces, paint removal, oil stains, rust removal
or other stubborn substances (tar, gum, grease, wax,
etc.), select red 0° spray tip.
• To apply detergent, applies project specific cleaners to
help break down stubborn dirt and grime on a variety of
surfaces, select black detergent spray tip.
4. Pull back on collar, insert new spray tip and release
collar. Tug on spray tip to make sure it is securely in
place.
Usage Tips
• For most effective cleaning, keep spray tip from 8 to
24 inches (20 to 61 cm) away from cleaning surface.
• If you get spray tip too close, especially using a high
pressure spray tip, you may damage surface being
cleaned.
• DO NOT get closer than 6 inches (15 cm) when
cleaning tires.
Cleaning and Applying Detergent
To apply detergent, follow these steps:
1. Review use of spray tips.
2. Prepare detergent solution as required by job.
3. Pour detergent solution into detergent reservoir labeled
A or B.
NOTE: Each detergent reservoir holds two quarts.
4. Fill other detergent reservoir with a different prepared
solution, as desired.
40° White
2350 PSI
2.7 GPM
15° Yellow
2675 PSI
2.5 GPM
0° Red
3000 PSI
2.3 GPM
Black
Use to apply
chemical
Low Pressure
High Pressure
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER exchange spray tips without locking the trigger lock on
the spray gun.
• DO NOT twist spray tips while spraying.
CAUTION
Chemicals can cause bodily injury, and/or property
damage.
• NEVER use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/soaps. Follow all
manufacturers instructions.

5. Make sure black spray tip is installed.
NOTE: Detergent cannot be applied with the high pressure
spray tips (White, Yellow or Red).
6. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
7. Engage trigger lock on spray gun and start engine
following instructions How to Start Your Pressure
Washer.
8. Rotate detergent shut-off valve on desired detergent
reservoir to “On” position.
9. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes.
10. Allow detergent to "soak in" for 3-5 minutes before
washing and rinsing. Reapply as needed to prevent
surface from drying. DO NOT allow detergent to dry on
(prevents streaking).
Pressure Washer Rinsing
For Rinsing:
1. Engage trigger lock on spray gun.
2. Make sure both detergent shut-off valves are in “Off”
position.
3. Remove black spray tip from nozzle extension.
4. Select and install desired high pressure spray tip
following instructions How to Use Spray Tips.
5. Keep spray gun a safe distance from area you plan to
spray.
6. Apply a high pressure spray to a small area and then
check surface for damage. If no damage is found, you
can assume it is okay to continue rinsing.
7. Start at top of area to be rinsed, working down with same
overlapping strokes as you used for cleaning.
Automatic Cool Down System (Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures above
125°F (51°C). The system engages to cool the pump by
discharging the warm water onto the ground.
14 www.troybilt.com
“On” Position “Off” Position
CAUTION
Mixing detergents can result in bodily injury and/or
property damage.
• DO NOT open both detergent shut-off valves at the same time.
NOTICE
You must attach all hoses before you start the engine.
• Starting the engine without all the hoses connected and without
the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
WARNING
Kickback from spray gun can cause you to fall.
• Operate pressure washer from a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.

15
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse
conditions noted below.
1Clean if clogged. Replace if perforated or torn.
2Change oil after the first (5) operating hours and every 50 hours or yearly thereafter. Change oil sooner when operating under dirty or dusty conditions.
3Replace more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance and
extend the life of the pressure washer. See any qualified
dealer for service.
The pressure washer’s warranty does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual,
including proper storage as detailed in Winter Storage and
Long Term Storage.
NOTE: Should you have questions about replacing
components on your pressure washer, please call
[phone] for assistance.
Some adjustments will need to be made periodically to
properly maintain your pressure washer.
All service and adjustments should be made at least once
each season. Follow the requirements in the Maintenance
Schedule chart above.
NOTE: Once a year you should clean or replace the spark
plug, clean or replace the air filter, and check the spray gun
and nozzle extension assembly for wear. A new spark plug
and clean air filter assure proper fuel-air mixture and help
your engine run better and last longer.
Emissions Control
Maintenance, replacement, or repair of the emissions control
devices and systems may be performed by any non-road
engine repair establishment or individual. See Emissions
Control System Warranty in Warranties section.
Maintenance Schedule - Fill in Dates as You Complete Regular Service
Maintenance Task Service Dates Service Dates
Before
Each Use
Every 25
Hours or
Yearly
Every 50
Hours or
Yearly
Every 100
Hours or
Yearly
Pressure Washer
Check/clean water inlet screen X1
Check high pressure hose X
Check detergent siphoning
hose/reservoirs X
Check spray gun and assembly for
leaks X
Check in-line filter X
Prepare pump for storage below
32°F (0°C) See Winter Storage
Engine
Check oil level X
Clean debris X
Change engine oil X2
Service air cleaner X3
Service spark plug X
Service spark arrester X
Air cooling system X3
Prepare for storage If unit is to remain idle for longer than 30 days.

16 www.troybilt.com
Before Each Use
1. Check engine oil level.
2. Clean debris.
3. Check water inlet screen for damage.
4. Check in-line filter for damage.
5. Check high pressure hose for leaks.
6. Check detergent siphoning tube and reservoirs for
damage.
7. Check spray gun and nozzle extension assembly for
leaks.
8. Rinse out garden hose to flush out debris.
Pressure Washer Maintenance
Clean Debris
Daily or before use, clean accumulated debris from cleaning
system. Keep linkage, spring and controls clean. Keep area
around and behind muffler free from any combustible debris.
Inspect cooling air slots and openings on the pressure
washer. These openings must be kept clean and
unobstructed.
Cleaning system parts should be kept clean to reduce the risk of
overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
Check and Clean Inlet Screen
Examine the screen on the pump’s water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before using it.
Check for cuts, leaks, abrasions or bulging of cover, damage
or movement of couplings. If any of these conditions exist,
replace the hose immediately.
Check Detergent Siphoning Tube
Examine the detergent reservoirs and detergent siphoning
tube and clean if clogged. The tube should fit tightly on the
barbed fitting of the pump and detergent shut-off valve.
Examine the tube for leaks or tears. Replace the reservoir or
tube if either is damaged.
Check Spay Gun and Nozzle Extension
Examine the hose connection to the spray gun and make
sure it is secure. Test the trigger by pressing it and making
sure it “springs back” into place when you release it. Put the
trigger lock in the ON position and test the trigger. You
should not be able to press the trigger.
Check In-Line Filter
Service the in-line filter if it becomes clogged, as follows:
1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension (A) from spray
gun and remove o-ring (C) and screen (B) from nozzle
extension. Flush screen, spray gun, and nozzle
extension with clean water to clear debris.
2. Place in-line filter screen into threaded end of nozzle
extension. Direction does not matter. Push screen in
with eraser end of pencil until it rests flat at bottom of
opening. Take care not to bend the screen.
3. Place o-ring into recess. Push o-ring snugly against
in-line filter screen.
4. Assemble nozzle extension to spray gun, as described
in Assembly section.
A
BC
NOTICE
Improper treatment of pressure washer can damage it
and shorten its life.
• DO NOT insert any objects through cooling slots.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure
rating of unit.

17
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure. The
principal cause of excessive pump pressure is a spray tip
clogged or restricted with foreign materials, such as dirt, etc.
To correct the problem, immediately clean the spray tip
following these instructions:
1. Shut off engine and turn off water supply.
2. ALWAYS point spray gun in a safe direction and
squeeze spray gun trigger to release retained high
water pressure.
3. Remove spray tip from end of nozzle extension.
4. Use a small paper clip to free any foreign material
clogging or restricting spray tip (A).
5. Remove nozzle extension from spray gun.
6. Remove in-line filter from other end of nozzle extension
following instructions Check In-Line Filter.
7. Using a garden hose, remove additional debris by back
flushing water through nozzle extension. Back flush
between 30 to 60 seconds.
8. Reinstall spray tip and in-line filter into nozzle
extension.
9. Reconnect nozzle extension to spray gun.
10. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
11. Engage trigger lock on spray gun and start engine
following instructions How to Start Your Pressure
Washer.
12. Test pressure washer by operating with each quick
connect spray tip.
O-Ring Maintenance
Purchase an O-Ring/Maintenance Kit, part number
100516GS by contacting the nearest authorized service
center. It is not included with the pressure washer. This kit
includes replacement o-rings, rubber washer and water inlet
filter. Refer to the instruction sheet provided in the kit to
service your unit’s o-rings.
Pump Oil Maintenance
DO NOT attempt any oil maintenance on this pump. This
model does not require any pump oil maintenance. The
pump is pre-lubricated and sealed from the factory, requiring
no additional lubrication for the life of the pump.
A
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray
gun trigger, to release high pressure, every time you stop
engine. Engage trigger lock when not in use.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.

18 www.troybilt.com
Engine Maintenance
Oil
Oil Recommendations
NOTE: Use a high quality detergent oil classified “For Service
SF, SG, SH, SJ” or higher. DO NOT use special additives.
1. Choose a viscosity according to the table below:
NOTE: Synthetic oil meeting ILSAC GF-2, API certification
mark and API service symbol with “SJ/CF ENERGY
CONSERVING” or higher, is an acceptable oil at all
temperatures. Use of synthetic oil does not alter required oil
change intervals.
SAE 30: 40°F and higher (5°C and higher) is good for all
purpose use above 40°F, use below 40°F will cause hard
starting.
10W-30: 0 to 100°F (-18 to 38°C) is better for varying
temperature conditions. This viscosity improves cold
weather starting, but may increase oil consumption above
80°F (27°C).
*Check oil level frequently at higher temperatures.
Synthetic 5W-30: -20 to 120°F (-30 to 40 °C) provides the
best protection at all temperatures as well as improved
starting with less oil consumption.
5W-30: 40°F and below (5°C and below) is recommended
for winter use and works best in cold conditions.
Checking Oil Level
Oil level should be checked prior to each use or at least
every 5 hours of operation. Keep oil level maintained.
1. Make sure pressure washer is on a level surface.
2. Remove oil dipstick and wipe dipstick with clean cloth.
Replace and tighten dipstick. Remove and and check oil
level.
3. Verify oil is at “Full” mark on dipstick. Replace and
tighten dipstick.
Adding Engine Oil
1. Make sure pressure washer is on a level surface.
2. Check oil level as described in Checking Oil Level.
3. If needed, slowly pour oil into oil fill opening to the
“Full” mark on dipstick. DO NOT overfill.
4. Replace and tighten dipstick.
Changing Engine Oil
Change the engine oil after the first 5 hours and every
50 hours thereafter. If you are using your pressure washer
under extremely dirty or dusty conditions, or in extremely
hot weather, change the oil more often.
KEEP OUT OF REACH OF CHILDREN. DON’T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
NOTICE
Overfilling with oil may cause the engine to not start, or
hard starting.
• DO NOT overfill.
• If over the FULL mark on dipstick, drain oil to reduce oil level to
FULL mark on dipstick.
CAUTION
Avoid prolonged or repeated skin contact with used motor
oil.
• Used motor oil has been shown to cause skin cancer in certain
laboratory animals.
• Thoroughly wash exposed areas with soap and water.
WARNING
Unintentional sparking can result in fire or
electric shock.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
