Troy-Bilt 2550 PSI User manual

i'_rm
,®
Washer
i
BRIGGS& STRATTONPOWERPRODUCTSGROUP,LLC
JEFFERSON,WISCONSIN,U.S.A.
Manual No. 203777GS Revision B (11/06/2007)

Thankyou for purchasing this quality-built Troy-Bilt pressure washer.We are pleasedthat you've placedyour confidencein
the Troy-Bilt brand.When operatedand maintainedaccording to the instructions in this manual, your Troy-Bilt pressure
washer will provide many years of dependableservice.
Thismanual containssafety information to makeyou awareof the hazardsand risks associatedwith pressure washersand
how to avoid them. BecauseTroy-Bilt does not necessarilyknow all the applications this pressurewasher could be used for, it
is important that you readand understandthese instructions thoroughly beforeattempting to start or operatethis equipment.
Save theseinstructionsfor future reference.
Thispressurewasher requires final assembly beforeuse. Referto the Assembly sectionof this manualfor instructions on
final assembly procedures.Follow the instructions completely.
Where to FindUs
You never haveto lookfar to find Briggs & Stratton support and servicefor your pressure washer. Consultyour Yellow Pages.
Thereare over 30,000 Briggs & Stratton authorized service dealersworldwide who provide quality service. You canalso
contact Troy-Bilt Customer Service by phone at [phone], or on the Internetat www.troybilt.com.
Pressure Washer
Model Number
Revision
Serial Number
Engine
Model Number
TypeNumber
CodeNumber
DatePurchased
Troy-Bilt® is a registeredtrademark of IVITDProducts Inc and is used under
license to Briggs & Stratton Power Products.
Briggs & Stratton PowerProducts Group, LLC
900 North Parkway
Jefferson, WI 53549
Copyright © 2007 Briggs & Stratton Power Products Group,
LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any meanswithout
the expresswritten permission of Briggs & Stratton Power
Products Group,LLC.
2 www.troybiit.corn

Table of Contents
OperatorSafety ................................. 2
Equipment Description......................................... 2
Safety Rules................................................. 2
Assembly ..................................... 6
Unpack PressureWasher....................................... 6
Attach Handleand AccessoryTray ............................... 6

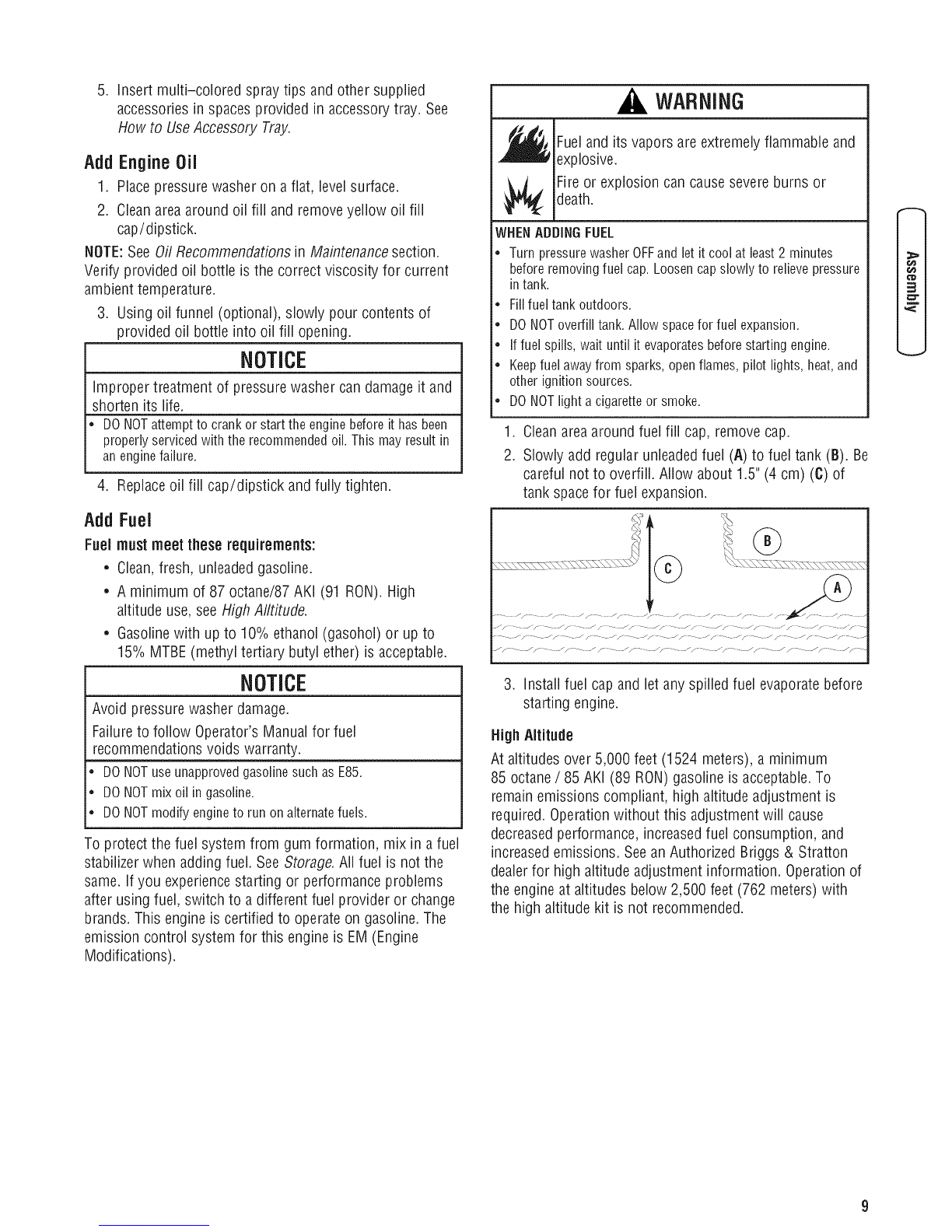

Add Engine Oil............................................... 7
Add Fuel.................................................... 7
Connect Hoseand Water Supply to Pump.......................... 8
FeaturesandControls............................. 9
Operation .................................... 10

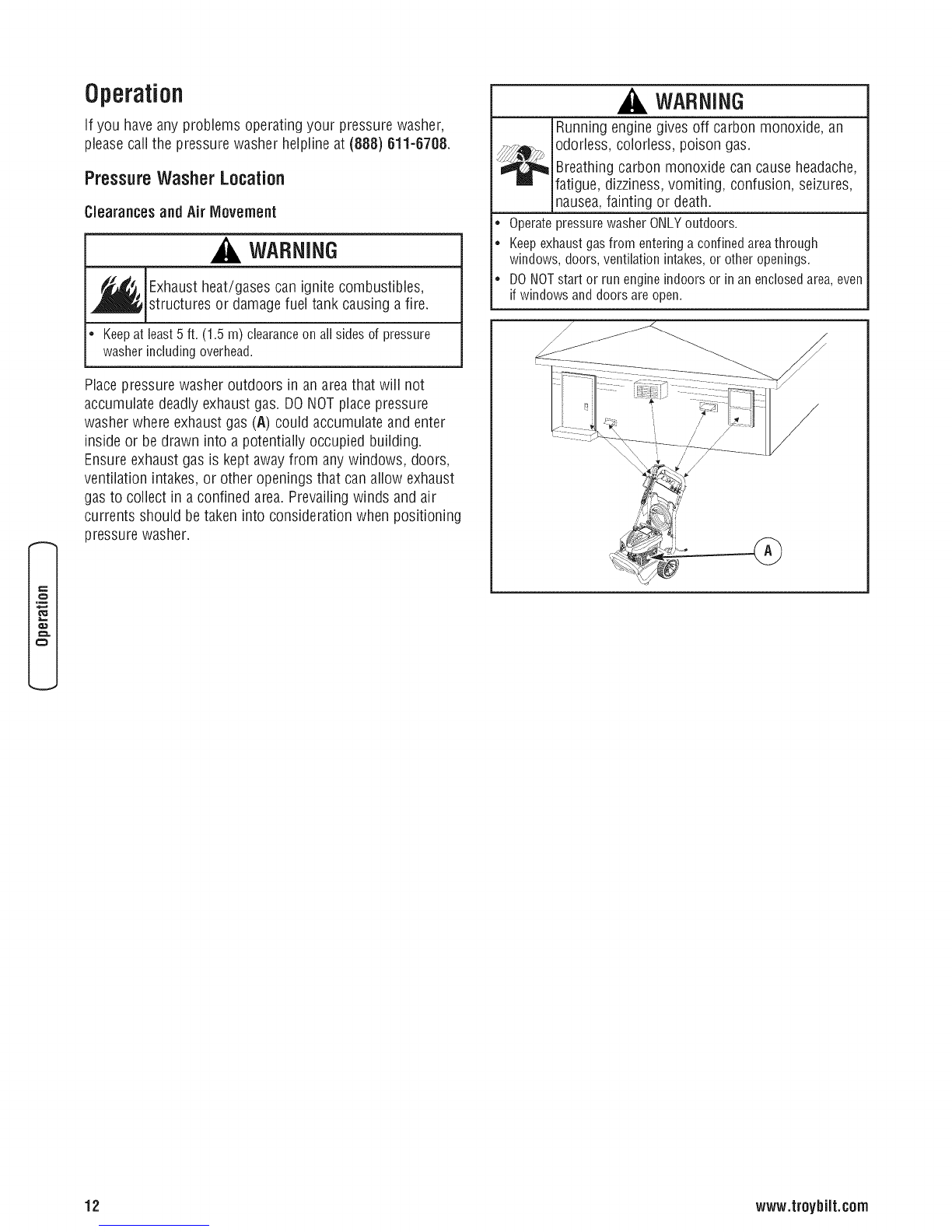

PressureWasher Location..................................... 10
How to Start Your PressureWasher ............................. 11
How to Stop Your PressureWasher ............................. 12

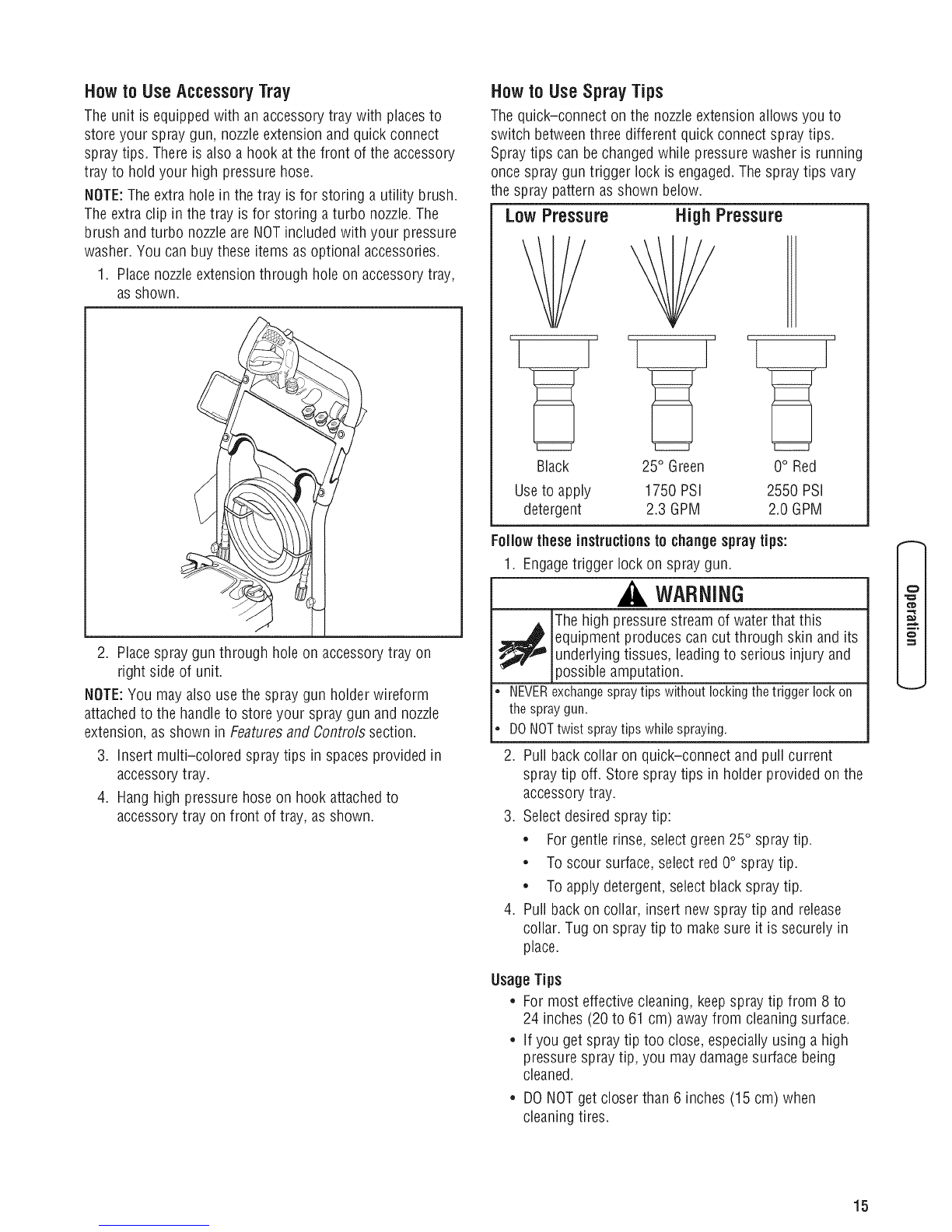

How to Use SprayTips ....................................... 13

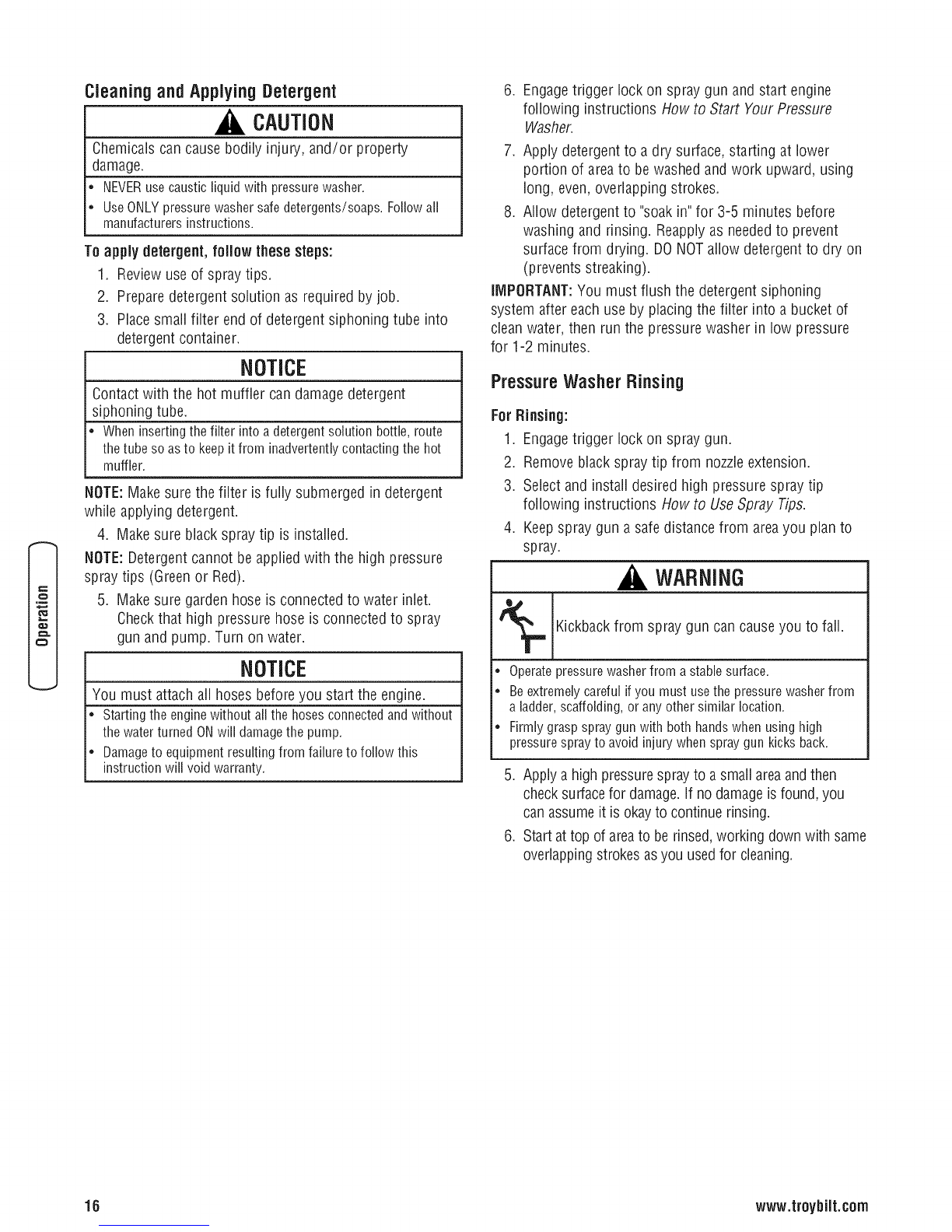

Cleaningand Applying Detergent................................ 14
PressureWasher Rinsing ..................................... 14
CleaningDetergentSiphoning Tube.............................. 15
Automatic Cool Down System (Thermal Relief)..................... 15
Maintenance .................................. 16
MaintenanceSchedule........................................ 16
PressureWasher Maintenance ................................. 17
Engine Maintenance.......................................... 18
After EachUse.............................................. 20
Winter Storage.............................................. 21
Long Term Storage .......................................... 21
Troubleshooting ................................ 22
Warranties.................................... 23
Emissions Control System Warranty............................. 23
PressureWasher OwnerWarranty............................... 25
Specifications ................................. 26
Product Specifications........................................ 26
Common Service Parts ....................................... 26
Espafi01
CD
3
o
"1o
o
o
€_
€_
o
o

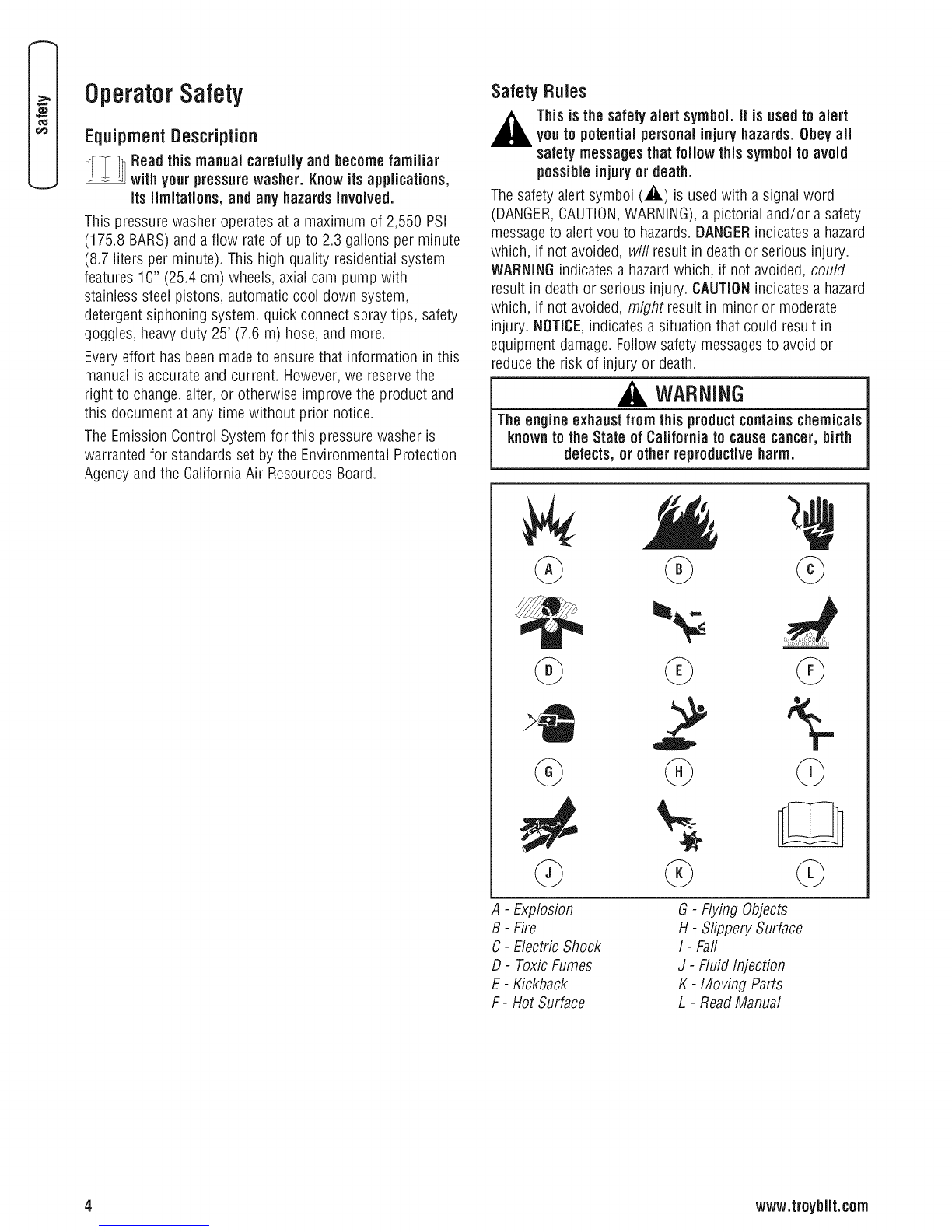

OperatorSafety
EquipmentDescription
Readthis manual carefullyand becomefamiliar
with yourpressure washer. Knowits applications,
its limitations,and any hazardsinvolved.
This pressurewasher operatesat a maximum of 2,550 PSi
(175.8 BARS)and a flow rateof up to 2.3 gallons per minute
(8.7 liters per minute). This high quality residential system
features 10" (25.4 cm) wheels,axial cam pump with
stainless steel pistons, automatic cool down system,
detergent siphoning system, quick connect spray tips, safety
goggles, heavy duty 25' (7.6 m) hose, and more.
Everyeffort has been madeto ensurethat information in this
manual is accurateand current. However,we reservethe
right to change,alter, or otherwise improve the product and
this document at any time without prior notice.
The EmissionControl System for this pressure washer is
warranted for standards set by the Environmental Protection
Agency andthe CaliforniaAir ResourcesBoard.
Safety Rules
,&This isthe safetyalert symbol. It is usedto alert
you to potential personal injuryhazards.Obeyall
safetymessagesthat follow this symbolto avoid
possibleinjuryor death.
Thesafety alert symbol (_.) is usedwith a signal word
(DANGER,CAUTION,WARNING),a pictorial and/or a safety
messageto alert you to hazards.DANGERindicatesa hazard
which, if not avoided, will result in deathor serious injury.
WARNINGindicatesa hazardwhich, if not avoided, could
result in deathor serious injury. CAUTIONindicatesa hazard
which, if not avoided, might result in minor or moderate
injury. NOTICE,indicates a situation that could result in
equipment damage.Follow safety messagesto avoid or
reducethe risk of injury or death.
WARNING
The engine exhaust from this product containschemicals
knownto the State of California to causecancer, birth
defects, or other reproductive harm.
©
A-Explosion
B-Fire
C-ElectricShock
D-ToxicFumes
E- Kickback
F-Hot Surface
G-Flying Objects
H-Slippery Surface
I-Fail
J-FluidInjection
K- Moving Parts
L-ReadManual
4www.troybiit.com

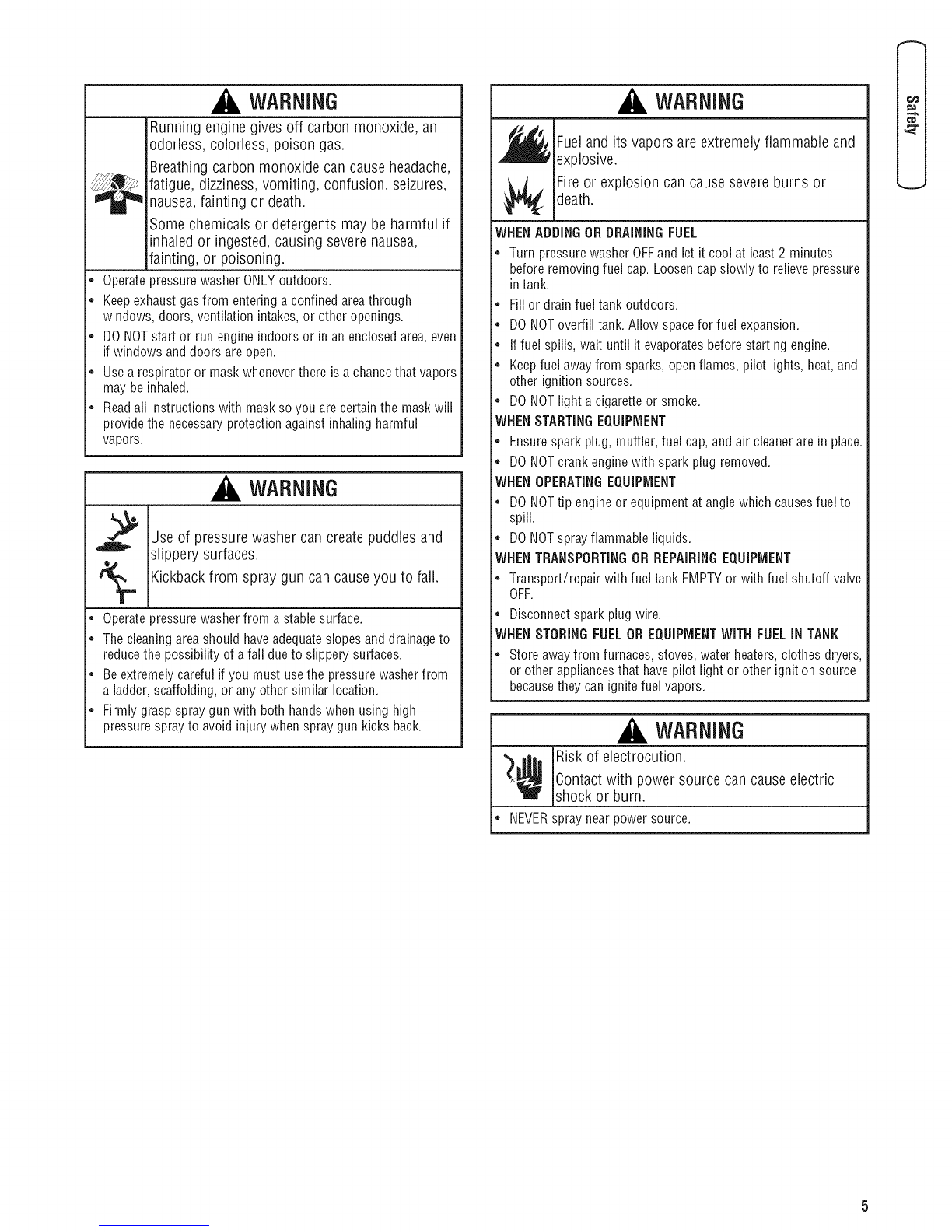

WARNING
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting, or poisoning.
• Operatepressurewasher ONLYoutdoors.
• Keep exhaustgas from entering a confined areathrough
windows, doors, ventilation intakes, or other openings.
• DO NOTstart or run engine indoors or in an enclosedarea,even
if windows and doors are open.
• Use a respirator or mask wheneverthere is a chancethat vapors
may beinhaled.
• Readall instructions with mask so you arecertain the mask will
provide the necessaryprotection against inhaling harmful
vapors.
WARNING
Useof pressure washer can createpuddles and
slippery surfaces,
Kickbackfrom spray gun can causeyou to fall.
• Operatepressurewasher from a stablesurface.
• Thecleaning areashould have adequateslopes anddrainage to
reducethe possibility of a fall dueto slippery surfaces.
• Beextremely careful if you must usethe pressurewasherfrom
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.
WARNING
,_ Fuel and its are extremely flammable and
vapors
explosive.
Fire or explosion can cause severe burns or
death.
WHEN ADDING OR DRAiNiNG FUEL
• Turn pressurewasher OFFand let it cool at bast 2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
• Fill or drain fuel tank outdoors.
• DO NOToverfill tank.Allow spacefor fuel expansion.
• Iffuel spills, wait until it evaporatesbefore starting engine.
• Keepfuel awayfrom sparks,open flames, pilot lights, heat,and
other ignition sources.
• DO NOTlight a cigarette or smoke.
WHENSTARTINGEQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air cleanerare in place.
• DO NOTcrank enginewith spark plug removed.
WHENOPERATINGEQUIPMENT
• DO NOTtip engine or equipmentat anglewhich causesfuel to
spill.
• DONOTsprayflammable liquids.
WHENTRANSPORTINGOR REPAIRINGEQUIPMENT
• Transport/repair with fuel tank EMPTYor with fuel shutoff valve
OFF.
•Disconnectspark plug wire.
WHENSTORINGFUELOR EQUIPMENTWITH FUELiN TANK
•Store awayfrom furnaces, stoves, water heaters,clothes dryers,
or other appliancesthat have pilot light or other ignition source
becausethey can ignite fuel vapors.
WARNING
_¢ Risk of electrocution.
Contact with power source can cause electric
shock or burn.
• NEVERspray near power source.

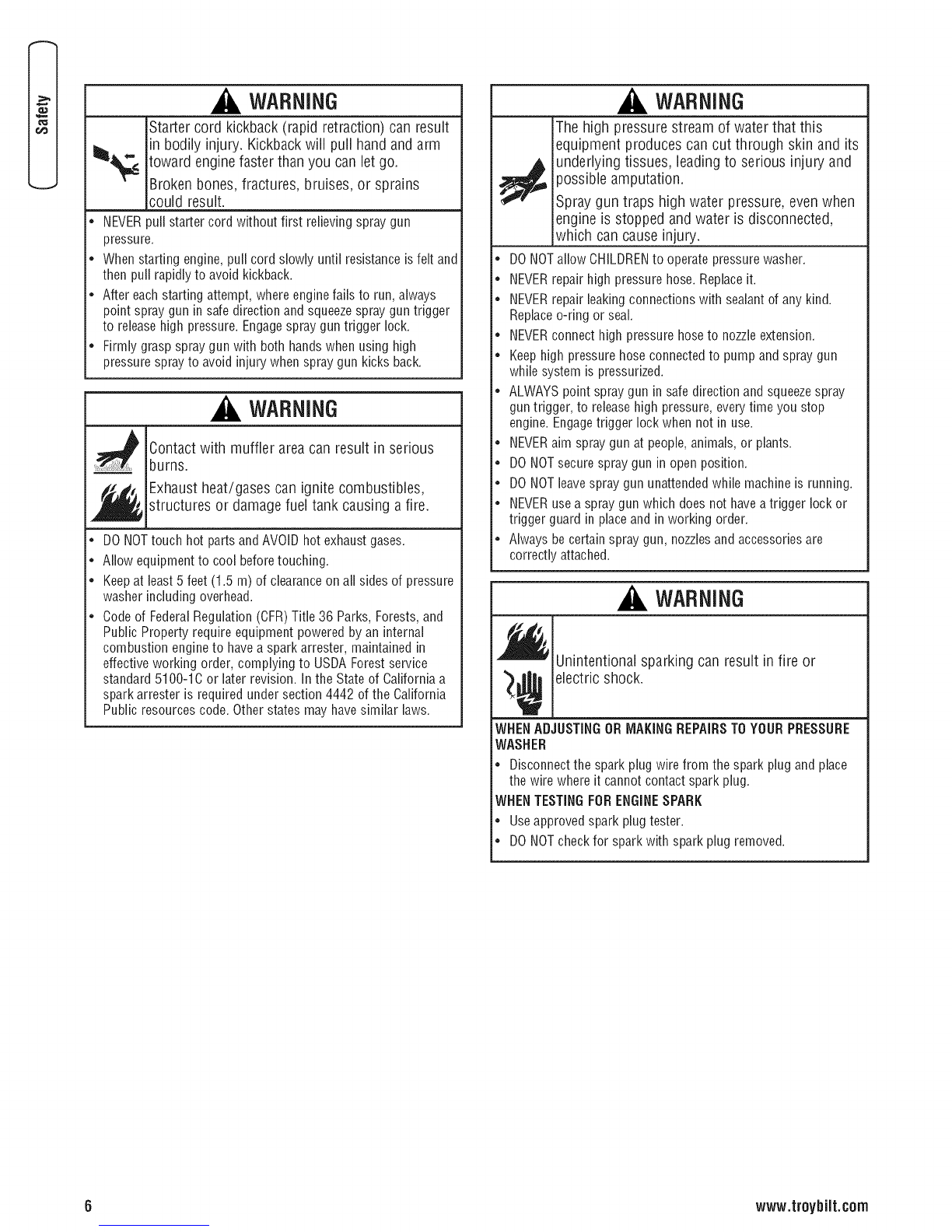

WARNING
Starter cord kickback(rapid retraction) can result
_nbodily injury. Kickbackwill pull hand and arm
toward enginefaster than you can letgo.
Brokenbones, fractures, bruises,or sprains
could result.
• NEVERpull starter cord without first relievingspray gun
pressure.
• When starting engine, pull cord slowly until resistanceisfelt and
then pull rapidly to avoid kickback.
• After each starting attempt, where enginefails to run, always
point spray gun insafe direction and squeezespray guntrigger
to releasehigh pressure. Engagespraygun trigger lock.
•Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.
WARNING
Contactwith muffler areacan result in serious
burns.
iExhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
e
e
e
DO NOTtouch hot parts and AVOID hot exhaust gases.
Allow equipmentto cool beforetouching.
Keepat least5 feet (1.5 m) of clearanceon all sidesof pressure
washer including overhead.
Codeof FederalRegulation (CFR)Title 36 Parks, Forests,and
Public Property require equipment powered byan internal
combustion engine to have aspark arrester, maintained in
effective working order, complying to USDAForest service
standard 5100-1C or later revision. In the Stateof California a
spark arrester is required undersection 4442 of the California
Public resources code. Other states may havesimilar laws.
WARNING
iThe high pressure stream of water that this
equipment produces can cut through skin and its
_ underlying tissues, leading to serious injury and
ipossible amputation.
Spray gun traps high water pressure, even when
lengine is stopped and water is disconnected,
which can cause injury.
• DONOTallow CHILDRENto operate pressure washer.
•NEVERrepair high pressure hose.Replaceit.
• NEVERrepair leaking connections with sealantof any kind.
Replaceo-ring or seal.
•NEVERconnect high pressure hose to nozzleextension.
•Keephigh pressure hoseconnectedto pump and spraygun
while system is pressurized.
•ALWAYSpoint spray gun in safedirection and squeezespray
guntrigger, to releasehigh pressure, everytime you stop
engine. Engagetrigger lock when not in use.
• NEVERaim spraygun at people, animals,or plants.
• DO NOTsecure spraygun in open position.
• DO NOTleavespray gun unattendedwhile machine is running.
•NEVERuse aspray gun which does not havea trigger lock or
trigger guard in place and in working order.
•Alwaysbe certain spray gun, nozzlesandaccessoriesare
correctly attached.
WARNING
_ Unintentional sparking can result in fire or
_¢ ielectric shock.
WHENADJUSTINGORMAKINGREPAIRSTOYOURPRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTINGFOR ENGINESPARK
•Useapproved spark plug tester.
•DO NOTcheckfor sparkwith spark plug removed.
6 www.troybilt.corn

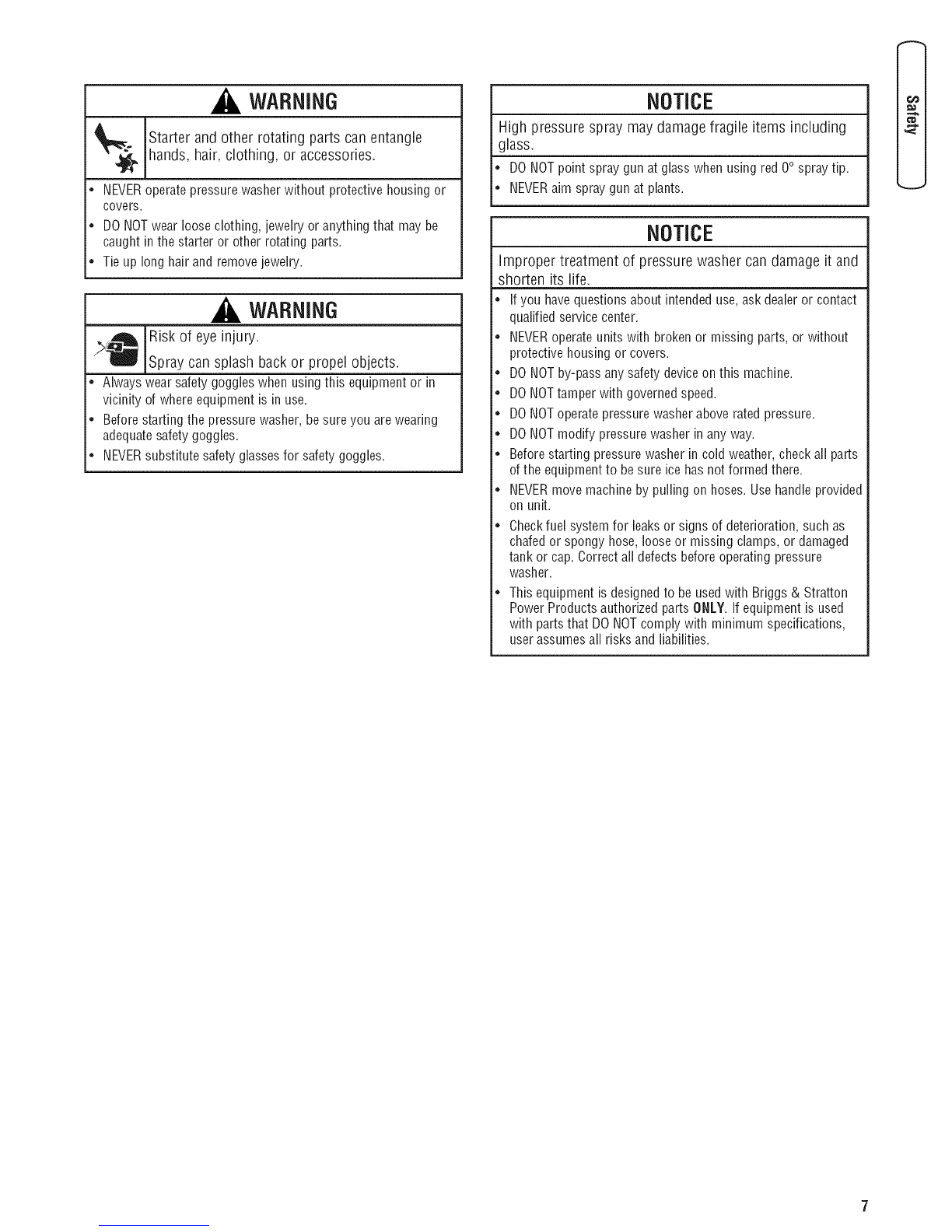

WARNING
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
•NEVERoperate pressure washerwithout protective housing or
covers.
•DO NOTwear loose clothing, jewelry or anything that may be
caught in the starter or other rotating parts.
• Tie up long hairand removejewelry.
WARNING
>._ Risk of eye injury.
" Spray can splash back or propel objects.
•Always wearsafety goggleswhen using this equipment or in
vicinity of where equipment is in use.
•Beforestarting the pressurewasher, besure you arewearing
adequatesafety goggles.
•NEVERsubstitute safetyglassesfor safety goggles.
NOTICE
High pressure spray may damage fragile items including
glass.
• DO NOTpoint spray gun at glasswhen using red 0° spray tip.
• NEVERaim spraygun at plants.
NOTICE
Improper treatment of pressure washer can damage it and
shorten its life.
• Ifyou havequestions about intended use,ask dealer or contact
qualified servicecenter.
• NEVERoperate units with broken or missing parts, or without
protective housing or covers.
•DO NOTby-pass any safetydevice on this machine.
•DONOTtamper with governedspeed.
•DONOToperate pressurewasher above rated pressure.
• DONOTmodify pressurewasher in any way.
•Beforestarting pressure washer in cold weather,check all parts
of the equipment to besure ice hasnot formed there.
• NEVERmove machine by pulling on hoses. Use handleprovided
on unit.
Checkfuel systemfor leaksor signs of deterioration, suchas
chafed or spongy hose,loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure
washer.
This equipment is designedto be usedwith Briggs & Stratton
Power Productsauthorized parts ONLY.If equipment is used
with parts that DO NOTcomply with minimum specifications,
userassumes all risks and liabilities.
CD

E
Assembly
-_i ead entire operator'smanual beforeyou attempt
to assemble or operate your new pressure washer.
Your pressure washer requires some assembly and is ready
for useafter it has beenproperly serviced with the
recommendedoil and fuel.
If you haveanyproblems with the assemblyof your pressure
washer, pleasecall the pressurewasher helpiine at
[phone]. if calling for assistance, pleasehavethe
model, revision, and serial number from the datatag
available.
UnpackPressureWasher
1. Removethe parts bag,accessories, and inserts
included with pressurewasher.
2. Opencarton completely by cutting eachcorner from
top to bottom.
3. Ensureyou haveall included items prior to assembly.
Items in the cartoninclude:
•Main Unit
•Handle
•HighPressure Hose
•Spray Gun
•NozzleExtensionwith Quick ConnectFitting
•PlasticAccessoryTray
•Oil Bottle
•Parts Bag(which includes the following):
•SafetyGoggles
•Operator's Manual
•Owner's Registration Card
•Bag containing 3 Multi-Colored Spray Tips
•Spray Gun HolderWireform
•HandleFasteningHardwareKit(which includes):
•CarriageBolts (2)
•PlasticKnobs (3)
•TreeClips (4)
To prepare yourpressurewasher for operation, youwill
need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handleto main unit.
3. Add oil to engine crankcase.
4. Addfuel to fuel tank.
5. Connecthigh pressure hoseto spray gun and pump.
6. Connectwater supply to pump.
7. Attach nozzleextensionto spray gun.
8. Select/attachquick connect spray tip to nozzle
extension.
Attach Handleand Accessory Tray
1. Placehandle (A) onto handle supports (B) connectedto
main unit. Makesure holes (C) in handle align with
holes (C) on handlesupports.
/,/,
(
i, !
7
NOTE:It may be necessaryto move the handle supports
from sideto side in order to align the handle so it will slide
over the handle supports.
2. insert carriage bolts (O) through holesfrom front of
unit and attacha plastic knob (E)from backof unit.
Tighten by hand.
.
----.i'_J
Race accessorytray (F) over holes (G) on handle
(viewing from front of unit). Pushthe tree clips (H) into
the holes until they sit fiat against the accessorytray.
.insert spray gun holder wireform (J) through hole on
left side of handle(viewing from front of unit). Hold
wireform in place and attacha plastic knob (K) from
inside of unit. Tighten by hand.
/,' /
/ /'
/,' /
/,' /,
/O /
/
/
//
/
,/
8www.troybilt.com

5. Insert multi-colored spray tips and other supplied
accessoriesin spacesprovided in accessorytray. See
How to UseAccessory Tray.
Add EngineOil
1. Placepressure washer on a fiat, levelsurface.
2. Cleanareaaroundoil fill and removeyellow oil fill
cap/dipstick.
NOTE:See Oil Recommendationsin Maintenancesection.
Verify provided oil bottle is the correct viscosity for current
ambient temperature.
3. Using oil funnel (optional), slowly pour contents of
provided oil bottle into oil fill opening.
NOTICE
improper treatment of pressurewasher candamageit and
shorten its life.
= DONOTattemptto crankor starttheenginebeforeit hasbeen
properlyservicedwiththerecommendedoil.Thismayresultin
anenginefailure.
4. Replaceoil fill cap/dipstick and fully tighten.
AddFuel
Fuel mustmeet these requirements:
•Clean,fresh, unleadedgasoline.
•A minimum of 87 octane/87AKI (91 RON).High
altitude use, seeHigh AIItitude.
Gasolinewith up to 10% ethanol (gasohoi) or up to
15% MTBE(methyl tertiary butyl ether) is acceptable.
NOTICE
Avoid pressure washer damage.
Failureto follow Operator's Manualfor fuel
recommendationsvoids warranty.
•DONOTuseunapprovedgasolinesuchasE85.
•DONOTmixoil in gasoline.
•DONOTmodifyengineto runonalternatefuels.
To protect the fuel system from gum formation, mix in a fuel
stabilizerwhen adding fuel. SeeStorage.All fuel is not the
same. If you experiencestarting or performanceproblems
after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operateon gasoline. The
emission control system for this engine is EM (Engine
Modifications).
WARNING
_Fuel and its are extremely flammable and
vapors
explosive.
Fireor explosion can causesevere burns or
death.
WHENADDING FUEL
*Turn pressurewasher OFFand let it cool at least2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
*Fill fuel tank outdoors.
*DO NOToverfill tank. Allow spacefor fuel expansion.
* iffuel spills, wait until it evaporatesbefore starting engine.
*Keepfuel awayfrom sparks,open flames, pilot lights,heat,and
other ignition sources.
*DO NOTlightacigarette or smoke.
.
2. Cleanarea around fuel fill cap, remove cap.
Slowly add regular unleadedfuel (A) to fuel tank (B). Be
careful not to overfill. Allow about 1.5" (4 cm) (C) of
tank space for fuel expansion.
3. Install fuel capand let anyspilled fuel evaporatebefore
starting engine.
HighAltitude
At altitudes over 5,000 feet (1524 meters), a minimum
85 octane/85 AKI (89 RON)gasoline is acceptable.To
remainemissions compliant, high altitude adjustment is
required.Operationwithout this adjustment will cause
decreasedperformance, increasedfuel consumption, and
increasedemissions. Seean Authorized Briggs & Stratton
dealerfor high altitude adjustment information. Operationof
the engine at altitudes below 2,500 feet (762 meters) with
the high altitude kit isnot recommended.
3

E
ConnectHoseandWater Supply to Pump
INOTICE
DONOTrun the pump without the water supply connected
and turned on==:=._ _ m
• Damageto equipmentresultingfromfailuretofollowthis
instructionwillvoidwarranty.
NOTE:Removeand discard the shipping caps from the
pump's high pressure outlet and water inlet before attaching
hoses.
1. Uncoil high pressure hoseand attachone end of hose
to base of spray gun. Tighten by hand.
WARNING
The high pressure stream of water that this
_ quipment produces can cut through skin and its
underlying tissues, leading to serious injury and
)ossible amputation.
= NEVERconnect high pressure hoseto nozzleextension.
= Keephigh pressure hose connectedto pump and spraygun
while systemis pressurized.
= Alwaysbe certain spray gun, nozzlesand accessoriesare
correctly attached.
2. Attach other end of high pressure hoseto high
pressure outlet on pump. Tighten by hand.
3. Beforeconnecting garden hoseto water inlet, inspect
inlet screen (A). Cleanscreen if it contains debris or
haveit replacedif damaged.DONOTrun pressure
washer if inlet screen is damaged.
4. Run water through your garden hosefor 30 secondsto
cleanout anydebris.
iMPORTANT:DONOTsiphon standing water for thewater
supply. UseONLYcold water (less than 100°F (38°C)).
5. Connectthe garden hose (not to exceed50 feet (15 m)
in length) to the water inlet. Tighten by hand.
NOTICE
Using a One Way Valve (vacuum breaker or check valve)
at pump inlet can cause pump or inlet connector damage.
= ThereMUST beat leastten feet (3 m) of unrestricted garden
hose betweenthe pressure washer inlet and any device,such as
avacuum breakeror checkvalve.
= Damageto equipment resultingfrom failure to follow this
instruction will void warranty.
6. Turn ONthe water and squeezethe trigger on the spray
gun to purge the pump system of air and impurities.
WARNING
>_ Risk of eye injury.
" Spray can splash back or propel objects.
• Always wear safetygoggles when using this equipment or in
vicinity of where equipment is in use.
• Beforestarting the pressurewasher, besure you arewearing
adequatesafety goggles.
• NEVERsubstitute safety glassesfor safety goggles.
Checklist Before Starting Engine
Reviewthe unit's assembly to ensureyou haveperformed all
of the following.
1. Be sureto readthe OperatorSafetysection and How to
Use Your Pressure Washerin Operationsection before
using pressurewasher.
2. Make sure handle is in placeand secure.
3. Checkthat oil hasbeen addedto proper levelin the
engine crankcase.
4. Addproper fuel to fuel tank.
5. Checkfor properly tightened hoseconnections.
6. Checkto make sure there are no kinks, cuts, or damage
to high pressure hose.
7. Provide a proper water supply at an adequateflow.
10 www.troybiit.corn

Featuresand Controls
_i ead this Operator's Manual and safetyrules beforeoperating yourpressure washer.
Comparethe illustrations with your pressure washer,to familiarizeyourself with the locations of various controls and
adjustments. Savethis manual for future reference.
//
\\\
\\ \,. _/_
..... /
A - SprayGun-- Controlsthe application of water onto
cleaningsurfacewith trigger device,includes trigger lock.
B-Warning/Operating/nstructlonsTag- identifies
hazardsand proper procedureto start!stop pressure
washer.
C-NozzleExtension with Quick Connect-- Allows you to
switch betweenthree different spray tips.
B- Recoil Starter-- Usedfor starting the engine manually.
E- Fuel Tank-- Fill tank with regular unleadedfuel. Always
leaveroom for fuel expansion.
F- Throttle Lever-- Sets engine in starting mode for recoil
starter and stops a running engine.
G-ChokeLever-- Preparesa cold enginefor starting.
H- Air Filter-- Protects engine by filtering dust and debris
out of intake air.
d-Pump-- Developshigh pressure.
K- AutomaticCoolDown System- Cycleswater through
pump when water reaches125°-155°F (51°0-68°C).
Warm water will discharge from pump onto ground. This
system preventsinternalpump damage.
L-Detergent SiphoningTube/Fitter-- Useto siphon
pressure washer safe detergents into the low pressure
stream.
M-NighPressure Outlet-- Connectionfor high pressure
hose.
N - WaterInlet-- Connectionfor garden hose.
P-Off Fill/Dipstick-- Checkand fill with oil here.
R-Nigh Pressure Nose-- Connectone end to water pump
and the other end to spray gun.
S- Accessory Tray-- Provides convenientstorage for
standard and optional accessories,such as brushes,
turbo wands, etc.
T- Spray Tips-- Detergent,0°, and 25°: for various high
pressure cleaning applications.
Items Not Shown:
Data Tag(near rear of baseplate) -- Provides model and
serial number of pressure washer. Pleasehavethese readily
availableif calling for assistance.
0
;=1
11

o
Operation
If you haveanyproblems operating your pressure washer,
pleasecall the pressure washer helpline at [phone].
PressureWasher Location
CJearancesand Air Movement
WARNING
,_ Exhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
•Keepat least5 ft. (1.5m) clearanceonall sidesof pressure
washerincludingoverhead.
Placepressure washer outdoors in an area that will not
accumulate deadlyexhaustgas. DO NOTplacepressure
washer where exhaustgas (A) could accumulate and enter
inside or be drawn into a potentially occupied building.
Ensureexhaustgas is kept awayfrom anywindows, doors,
ventilation intakes, or other openingsthat can allow exhaust
gasto collect in aconfined area. Prevailingwinds and air
currents should be taken into considerationwhen positioning
pressure washer.
WARNING
Running enginegives off carbon monoxide, an
odorless, colorless, poison gas.
Breathingcarbon monoxide cancause headache,
fatigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
•OperatepressurewasherONLYoutdoors.
•Keepexhaustgasfromenteringa confinedareathrough
windows,doors,ventilationintakes,orotheropenings.
•DONOTstartor runengineindoorsor in anenclosedarea,even
if windowsanddoorsareopen.
12 www.troybiJt.corn

Howto StartYourPressureWasher
To start your pressure washer for thefirst time, follow these
instructions step-by-step. This starting information also
applies if you havelet the pressure washer sit idle for at least
a day.
1. Placepressure washer near an outside water source
capableof supplying water at a flow rategreaterthan
3.3 gallons per minute (12.5 liters per minute) and no
less than 20 PSI (1.38 BARS)at pressure washer end
of garden hose. DONOTsiphon supply water.
2. Checkthat high pressure hoseistightly connectedto
spray gun and pump. SeeAssembly section.
3. Make sure unit is in a level position.
4. Connectgarden hoseto water inlet on pressurewasher
pump.
lNOTICE
DONOTrun the pump without the water supply connected
and turned on.
instructionwillvoidwarranty.
5. Turn ONwater, point spray gun in a safe direction and
squeezetrigger to purge pump system of air and
impurities.
6. Attach nozzleextensionto spray gun. Tighten by hand.
\.
7. Engagetrigger lock (A)on spray gun trigger.
8. Movethrottle lever(B)to "Fast" position,shown here
as a rabbit.
.......... ! I',!...... °°°
9. Move choke lever(C) to "Choke" I",1 position.
NOTE:Fora warm engine, be sure the choke lever is in the
"Run" l_tl position.
10. Whenstarting engine, position yourself as
recommendedand grasp starter grip handle and pull
slowly until you feel some resistance.Then pull rapidly
to start engine.
WARNING
Starter cord kickback (rapid retraction) can result
ll_ fin bodily injury. Kickback will pull hand and arm
,_,_ toward engine faster than you can let go.
Broken bones, fractures, bruises, or sprains
could result.
• NEVERpull starter cord without first relieving spraygun
pressure.
• When starting engine, pull cord slowly until resistanceisfelt and
then pull rapidly to avoid kickback.
• After each starting attempt, where enginefails to run, always
point spray gun in safedirection and squeezespray gun trigger
to release high pressure. Engagespray gun trigger lock.
• Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.
11. Return starter grip handle slowly. DONOTlet rope
"snap back"against starter.
12. Whenenginestarts,slowlymovechokeleverto "Run" IJtl
position,asenginewarms, if enginefalters,movechoke
leverto "Choke" I"_1position,thento "Run" IJtt position.
13. After eachstartingattempt, whereenginefails to run,
alwayspoint gun in safedirection and squeezespray gun
trigger to releasehigh pressure.Move choke leverto
"Choke" I",1 position,and repeatsteps10 through 12.
14. if engine fails to start after six pulls, move choke lever
to "Run" IJtt position, and repeatsteps 10 through 12.
NOTE:Always keepthe throttle leverin the "Fast"
position when operating the pressure washer.
o
13

e
e
e
e
e
e
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
)ossible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
DONOTallow CHILDRENto operatepressure washer.
Keephigh pressure hoseconnectedto pump and spraygun
while systemis pressurized.
NEVERaim spray gun at people,animals, or plants.
DO NOTsecure spraygun in open position.
DO NOTleavespray gun unattendedwhile machine is running.
NEVERuse aspray gun which does not have atrigger lock or
trigger guardin place and in working order.
Alwaysbe certain spray gun, nozzlesandaccessoriesare
correctly attached.
WARNING
Contactwith muffler areacan result in serious
burns.
_ Exhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
e
e
e
DO NOTtouch hot parts and AVOID hot exhaust gases.
Allow equipmentto cool beforetouching.
Keepat least5 feet (1.5 m) of clearanceon all sidesof pressure
washer including overhead.
Codeof FederalRegulation (CFR)Title 36 Parks, Forests,and
Public Property require equipment powered byan internal
combustion engine to have aspark arrester, maintained in
effective working order, complying to USDAForest service
standard 5100-1C or later revision. In the Stateof California a
spark arrester is required undersection 4442 of the California
PuNic resources code. Other states may havesimilar laws.
Howto Stop YourPressureWasher
1. Release spray gun trigger and let engine idle for two
minutes.
2. Move throttle to SLOW _ position, then STOP
position.
3. ALWAYS point spray gun in a safe direction and
squeeze spray gun trigger to release retained high
water pressure.
IMPORTANT: Spray gun traps high water pressure, even
when engine is stopped and water is disconnected.
WARNING
iThehigh pressure stream of water that this
equipment produces cancut through skin and its
_ underlying tissues, leading to serious injury and
ipossible amputation.
Spraygun traps high water pressure, evenwhen
lengine is stopped and water is disconnected,
iwhich can causeinjury.
• Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
• ALWAYSpointspraygunin safedirectionandsqueezespray
guntrigger,to releasehighpressure,everytimeyoustop
engine.Engagetriggerlockwhennotinuse.
4. Engagetrigger lock on spray gun when not in use.
14 www.troybilt.corn

Howto UseAccessoryTray
The unit is equipped with an accessorytray with places to
store your spray gun, nozzleextension and quick connect
spray tips. Thereis also a hook atthe front of the accessory
tray to hold your high pressure hose.
NOTE:Theextra hole in the tray is for storing a utility brush.
Theextra clip in the tray is for storing a turbo nozzle.The
brush and turbo nozzleare NOTincludedwith your pressure
washer.You can buythese items asoptional accessories.
1. Placenozzleextensionthrough hole on accessorytray,
as shown.
2. Placespray gun through hole on accessorytray on
right side of unit.
NOTE:You may alsouse the spray gun holder wireform
attachedto the handleto store your spray gun and nozzle
extension, as shown in Featuresand Controls section.
3. insert multi-colored spray tips in spaces providedin
accessorytray.
4. Hang high pressure hoseon hook attachedto
accessorytray on front of tray, as shown.
Howto UseSprayTips
Thequick-connect on the nozzleextensionallows you to
switch betweenthree different quick connect spray tips.
Spraytips can bechangedwhile pressure washer is running
once spray gun trigger lock is engaged.The spray tips vary
the spray pattern asshown below.
LowPressure HighPressure
Black
ii
25° Green
Useto apply 1750 PSi
detergent 2.3 GPIVl
0°Red
2550 PSi
2.0 GPM
Followtheseinstructionsto changespraytips:
1. Engagetrigger lock on spray gun.
WARNING
The high pressure stream of water that this
_ quipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVERexchangespraytipswithoutlockingthetriggerlockon
thespraygun.
• DONOTtwist spraytips whilespraying.
2. Pull back collar on quick-connect and pull current
spray tip off. Store spray tips in holder provided on the
accessorytray.
3. Select desiredspray tip:
•Forgentle rinse, selectgreen 25° spray tip.
To scour surface, select red 0° spray tip.
To apply detergent,select black spray tip.
4. Pull backon collar, insert newspray tip and release
collar. Tug on spray tip to make sure it is securely in
place.
UsageTips
*For most effective cleaning, keepspray tip from 8 to
24 inches (20 to 61 cm) awayfrom cleaning surface.
*If you get spray tip too close, especiallyusing a high
pressure spray tip, you may damagesurface being
cleaned.
*DONOTget closer than 6 inches (15 cm) when
cleaningtires.
o
15

Cleaning andApplyingDetergent
CAUTION
Chemicalscan causebodily injury,and/or property
damage.
, NEVERusecausticliquidwith pressurewasher.
, UseONLYpressurewashersafedetergents/soaps.Followall
manufacturersinstructions.
TOapply detergent,fellow thesesteps:
1. Reviewuse of spray tips.
2. Preparedetergentsolution as required by job.
3. Placesmall filter end of detergent siphoning tube into
detergent container.NOTICE
Contactwith the hot muffler candamagedetergent
siphoning tube.
•Wheninsertingthefilterintoadetergentsolutionbottle,route
thetubesoasto keepit from inadvertentlycontactingthehot
muffler.
NOTE:Make surethe filter is fully submerged in detergent
while applying detergent.
4. Make sure black spray tip is installed.
NOTE:Detergentcannot be applied with the high pressure
spray tips (Greenor Red).
5. Make sure garden hose is connectedto water inlet.
Checkthat high pressure hoseis connectedto spray
gun and pump. Turn on water.
NOTICE
You must attach all hoses beforeyou start the engine.
•Startingtheenginewithoutall thehosesconnectedandwithout
thewaterturnedONwill damagethepump.
•Damageto equipmentresultingfromfailuretofollowthis
instructionwillvoidwarranty.
6. Engagetrigger lock on spray gun and start engine
following instructions How to Start Your Pressure
Washer.
7. Apply detergent to a dry surface, starting at lower
portion of areato be washedand work upward, using
long, even,overlapping strokes.
8. Allow detergent to "soak in"for 3-5 minutes before
washing and rinsing. Reapplyas neededto prevent
surfacefrom drying. DONOTallow detergentto dry on
(prevents streaking).
IMPORTANT:You must flush the detergent siphoning
system after each useby placingthe filter into a bucket of
cleanwater, then run the pressure washer in low pressure
for 1-2 minutes.
PressureWasher Rinsing
For Rinsing:
1. Engagetrigger lock on spray gun.
2. Removeblack spray tip from nozzleextension.
3. Select and install desired high pressure spray tip
following instructions How to UseSpray Tips.
4. Keepspray gun a safedistance from areayou plan to
spray.
WARNING
_ iKickback spray gun can cause you to
from fall.
= Operatepressurewasher from a stable surface.
• Beextremely careful if you must usethe pressurewasher from
a ladder,scaffolding, or any other similar location.
= Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.
5. Applya high pressuresprayto asmall areaandthen
checksurfacefor damage.If no damageis found, you
canassumeit is okayto continue rinsing.
6. Start attop of areato be rinsed,working down with same
overlappingstrokes asyou usedfor cleaning.
16 www.troybilt.corn

Cleaning Detergent Siphoning Tube
if you usedthedetergent siphoning tube, you must flush it
with cleanwater before stopping theengine.
1. Placedetergent siphoning tube/filterin a bucket fuji of
cleanwater.
2. Engagetrigger lock on spray gun.
3. Removehigh pressure spray tip from nozzleextension.
4. Select and install black detergent spray tip following
instructions How to Use Spray Tips.
5. Flush for 1-2 minutes.
6. Shut off engine following instructions How to Stop
Pressure Washerand turn off water supply.
7. ALWAYSpoint spray gun in a safe direction and
squeezespray gun trigger to releaseretainedhigh
water pressure.
IMPORTANT:Spraygun traps high water pressure, even
when engine is stopped andwater is disconnected.
WARNING
iThehigh pressure stream of water that this
equipment produces cancut through skin and its
_ underlying tissues, leading to serious injury and
ipossible amputation.
Spraygun traps high water pressure, evenwhen
lengine is stopped and water is disconnected,
iwhich can causeinjury.
• Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
• ALWAYSpointspraygunin safedirectionandsqueezespray
guntrigger,to releasehighpressure,everytimeyoustop
engine.Engagetriggerlockwhennotinuse.
Automatic Cool Down System (ThermalRelief)
If you run the engineon your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reachtemperatures above
125°F (51°C).The system engagesto cool the pump by
discharging the warm water onto the ground.
o
17

11::
Maintenance
Maintenance Schedule
Follow the hourly or calendarintervals, whichever occurs
first. More frequent serviceis required when operating in
adverseconditions noted below.
•Changeengine oil
•Check/clean water inlet screen'
•Checkhigh pressure hose
•Checkdetergentsiphoning hose/filter
•Checkspray gun and assembly for leaks
•Cleandebris
•Checkengineoil level
•Service air cleaner2
•Changeengine oil
•Service spark attester
• Service spark plug
• Air cooling systeW
Clean if clogged. Replace if perforated or torn.
2Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenancewiii improve the performance and
extend the life of the pressure washer.See anyqualified
dealerfor service.
The pressurewasher's warranty does not cover items that
havebeen subjectedto operator abuseor negligence.To
receivefull valuefrom the warranty, the operator must
maintain the pressure washer as instructed in this manual,
including proper storage as detailedin Winter Storageand
Long TermStorage.
NOTE:Should you have questions about replacing
components on your pressure washer, pleasecall
[phone] for assistance.
Someadjustments will needto be made periodically to
properly maintain your pressure washer.
All serviceand adjustments should be madeat least once
eachseason.Follow the requirementsin the Maintenance
Schedulechart above.
NOTE:Onceayear you should cleanor replacethe spark
plug, clean or replacethe air filter, and checkthe spray gun
and nozzleextension assembly for wear. A new spark plug
and cleanair filter assure proper fuel-air mixture and help
your engine run better and last longer.
Pump Oil
DONOTattempt any oil maintenanceon this pump. The
pump is pre-lubricated and sealedfrom the factory, requiring
no additional maintenancefor the life of the pump.
EmissionsControl
Maintenance, replacement,or repair of theemissions
controldevices and systems may be performedby any
non-roadengine repair establishment or individual.
However,to obtain "no charge" emissions control service,
the work must be performed by a factory authorized dealer.
Seethe Emissions Warranty.
Before EachUse
1. Checkengineoil level.
2. Clean
3. Check
4. Check
5. Check
6. Check
leaks.
7. Rinse
debris.
water inlet screen for damage.
high pressure hosefor leaks.
detergentsiphoning tube and filter for damage.
spray gun and nozzleextension assemblyfor
out garden hoseto flush out debris.
PressureWasher Maintenance
Clean Debris
Dailyor before use, cleanaccumulated debris from cleaning
system. Keeplinkage, spring and controls clean. Keeparea
around and behind muffler free from any combustible debris.
Inspect cooling air slots and openings on the pressure
washer.These openings must be kept cleanand
unobstructed.
Cleaningsystempartsshouldbekeptcleanto reducethe riskof
overheatingandignitionof accumulateddebris.
•Use a damp cloth to wipe exterior surfaces clean.
[NOTICE
l Improper treatment of pressurewasher candamageit and
shorten its life.
l. DONOTinsert objectsthroughcoolingslots.
any
•Use a soft bristle brush to loosen cakedon dirt, oil, etc.
•Use a vacuum cleanerto pick up loose dirt and debris.
Checkand Clean Inlet Screen
Examinethe screen on the pump's water inlet. Cleanit if the
screen is clogged or replaceit if screen is damaged.
18 www.troybilt.com

CheckHigh Pressure Hose
The high pressure hosecan developleaksfrom wear,
kinking, or abuse. Inspect the hoseeachtime beforeusing it.
Checkfor cuts, leaks,abrasions or bulging of cover, damage
or movement of couplings. If anyof these conditions exist,
replacethe hose immediately.
WARNING
The high pressure stream of water that this
_ quipment produces can cut through skin and its
underlying tissues, leading to serious injury and
sossible amputation.
• NEVERrepairhighpressurehose.Replaceit.
• ReplacementhoseratingMUSTexceedmaximumpressure
ratingofunit.
CheckDetergent Siphoning Tube
Examinethe filter on the detergent tube and clean ifclogged.
Thetube should fit tightly on the barbed fitting. Examinethe
tube for leaks or tears. Replacethe filter or tube if either is
damaged.
CheckSpay Gunand NozzleExtension
Examinethe hose connection to the spray gun and make
sure it is secure.Test thetrigger by pressing it and making
sure it "springs back" into placewhenyou releaseit. Putthe
trigger lock in the ONposition and test the trigger. You
should not be able to press the trigger.
Nozzle Maintenance
A pulsing sensationfelt while squeezingthe spray gun
trigger may be caused by excessivepump pressure. The
principal causeof excessivepump pressure is a spray tip
clogged or restricted with foreign materials, such asdirt, etc.
To correct the problem, immediatelycleanthe spray tip
following these instructions:
1. Shut off engine and turn off water supply.
2. ALWAYSpoint spray gun in a safe direction and
squeezespray gun trigger to releaseretainedhigh
water pressure. WARNING
Thehigh pressure stream of water that this
equipment produces cancut through skin and its
_ nderlying tissues, leadingto serious injury and
}ossible amputation.
Spraygun traps high water pressure, evenwhen
engine is stopped and water is disconnected,
which cancause injury.
• Keephighpressurehoseconnectedto pumpandspraygun
whilesystemis pressurized.
• ALWAYSpointspraygunin safedirectionandsqueezespray
guntrigger,to releasehighpressure,everytimeyoustop
engine.Engagetriggerlockwhennotin use.
3. Removespray tip from end of nozzleextension.
4. Use a small paper clip to free anyforeign material
clogging or restricting spray tip (A).
5. Removenozzleextension from spray gun.
6. Usinga garden hose, remove additionaldebris by back
flushing water through nozzle extension. Back flush
between 30 to 60 seconds.
7. Reinstallspray tip into nozzleextension.
8. Reconnect nozzleextensionto spray gun.
9. Makesure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turnon water.
10. Engagetrigger lockon spray gun and start engine
following instructions How to Start Your Pressure
Washer.
11. Test pressurewasher by operatingwith eachquick
connect spray tip.
O-Ring Maintenance
Purchasean O-Ring/Maintenance Kit, model 6048 by
contacting the nearestauthorized service center. It is not
included with the pressurewasher. This kit includes
replacemento-rings, rubber washer andwater inlet filter.
Referto the instruction sheet provided in the kit to service
'our unit's o-rings.
WARNING
The high pressure stream of water that this
_ quipment produces can cut through skin and its
underlying tissues, leading to serious injury and
)ossible amputation.
• NEVERrepairleakingconnectionswithsealantofanykind.
Replaceo-ringorseal.
€ID
19

€
EngineMaintenance
WARNING
"_ Unintentionalsparking can result in fire or
_/f ielectric shock.
WHENADJUSTINGORMAKINGREPAIRSTOYOURPRESSURE
WASHER
• Disconnectthesparkplugwirefromthesparkplugandplace
thewirewhereit cannotcontactsparkplug.
WHEN TESTINGFORENGINESPARK
•Useapprovedsparkplugtester.
• DONOTcheckfor sparkwithsparkplugremoved.
Oil
Oil Recommendations
We recommendthe useof Briggs & Stratton Warranty
Certified oils for best performance. Otherhigh-quality
detergent oils are acceptableif classified for serviceSF, SG,
SH, SJ or higher. DONOTuse specialadditives.
Outdoor temperatures determine the proper oil viscosity for
the engine. Usethe chart to select the best viscosity for the
outdoor temperature rangeexpected.
oF
104 _ _ __ ,
86
so68i -- ng
32 2
14
-4
-22
oC
• 40
__30
:__20
__1o 0
-10
-20
-30
* Below 40°F (4°C) the use of SAE30 will result in hard starting.
** Above 80°F (27°C) the useof 10W30 may causeincreased oil
consumption. Checkoil levelmore frequently.
NOTE:Synthetic oil meeting ILSACGF-2,API
certification mark and API servicesymbol with
"SJ/CF ENERGYCONSERVING"or higher, is an
acceptableoil at all temperatures. Useof synthetic
oil does not alter required oil changeintervals.
Checking Oil Level
Oil levelshould be checked prior to each useor at least
every 8 hours of operation. Keepoil levelmaintained.
1. Make sure pressure washer is on a levelsurface.
2. Removeoil dipstick and wipe dipstick with clean cloth.
Replaceand tighten dipstick. Removeand and check oil
level.
3. Verify oil is at "Fulr' mark on dipstick. Replaceand
tighten dipstick.
Adding Engine Oil
1. Make sure pressure washer _son a levelsurface.
2. Checkoil levelas described in CheckingOilLevel
3. if needed,slowly pour oil into oil fill opening to the
"Fnlr' mark on dipstick. DONOToverfill.
NOTICE
Overfilling with oil may causethe engine to not start, or
hard starting.
•DONOToverfill.
•IfovertheFULLmarkondipstick,drainoil to reduceoil levelto
FULLmarkondipstick.
4. Replaceand tighten dipstick.
Changing Engine Oil
Changethe engine oil after the first 5 hours and every
50 hours thereafter. If you are using your pressure washer
under extremely dirty or dusty conditions, or in extremely
hot weather, changethe oil more often.
CAUTION
Avoid prolonged or repeatedskin contact with used motor
oil.
• Usedmotoroil hasbeenshownto causeskincancerin certain
laboratoryanimals.
• Thoroughlywashexposedareaswithsoapandwater.
KEEPOUTOFREACHOFCHILDREN.DON'T
POLLUTE.CONSERVERESOURCES.RETURN
USEDOIL TOCOLLECTIONCENTERS.
20 www.troybilt.com
