True GDM-47RL User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
Rough-In Data
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
ApprovAls: AvAilAble At:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
U.S.A.
GDM-47RL
GDM-47RL
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
L D†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-47RL 2fr/
2bk
47
1331
8 541/8
1375
321/8
816
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.3
5.4
5-15P

9
2.74
590
268
†Depth does not include 3/8” (8 mm) for front door handles. Rear doors are solid/swing with recessed handles.  Plug type varies by country.
8/06
Glass Door Merchandiser:
Slide Door Refrigerator with Rear Load Swing Door
The world’s #1 manufacturer of glass
door merchandisers.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - non-peel or chip rosewood
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
white aluminum interior liner with 300
series stainless steel floor.
Front doors - Self closing slide doors.
Counter-balanced weight system for
smooth, even, positive closing.
Rear doors - Self closing swing doors.
Positive seal, torsion type closure
system.
“Low-E”, double pane thermal glass
front door assemblies. The latest in
energy efficient technology.
Safety shielded flouresent interior
lighting.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
R
®

StanDaRD FeatuReS
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
Plan VIew
KCL
GDM-47RL TFAY04E TFAY13S TFAY13P TFAY133
GDM-47RL
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive merchandiser that brilliantly displays
packaged food and beverages.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
merchandisers a more efficient low velocity,
high volume airflow design. This unique
design ensures faster temperature pull down
of warm product, colder holding temperatures
and faster recovery in high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop” lower shelf
maximizes visibility by raising merchandised
product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip rosewood
laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum liner with 300 series stainless steel
floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of sign
options available.
DOORS
• Front doors - “Low-E”, double pane thermal
glass assemblies with mitered plastic channel
frames. The latest in energy efficient
technology.
• Rear doors - non-peel or chip rosewood
laminated vinyl exterior with white aluminum
interior liners.
• Each front door fitted with 12" (305 mm)
handle.
• Each rear door fitted with recessed handle.
• Front doors - Self closing slide doors.
Counter-balanced weight system for smooth,
even, positive closing.
• Rear doors - Self closing swing doors. Positive
seal, torsion type closure system.
• Rear doors - Magnetic door gaskets of one
piece construction, removable without tools
for ease of cleaning.
SHELVING
• Eight (8) adjustable, heavy duty PVC coated
wire shelves 247/16"L x 209/16"D (621 mm x
523 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior lighting.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer bulb
life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Convenient clean-out drain built in cabinet
floor.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
230-240V / 50 Hz.
Black exterior.
Rosewood exterior.
Stainless steel exterior.
Black aluminum interior liner with
black shelving.
Stainless interior liner.
 6" (153 mm) standard legs.
 6" (153 mm) seismic/flanged legs.
21/2" (64 mm) diameter castors.
 4" (102 mm) diameter castors.
Red wine thermostat.
Chocolate thermostat.
White wine thermostat.
 Barrel locks (factory installed)(front doors
only).
 Ratchet locks (front doors only).
 Novelty baskets.
 Wine racks
 Additional shelves.
TrueTrac4 gravity feed organizers.
11/4" (32 mm) pricing strips.
 Remote cabinet (condensing unit supplied
by others; system comes standard with
404A expansion valve ad requires R404A
refrigerant), consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Slide Door Refrigerator with Rear Load Swing Door

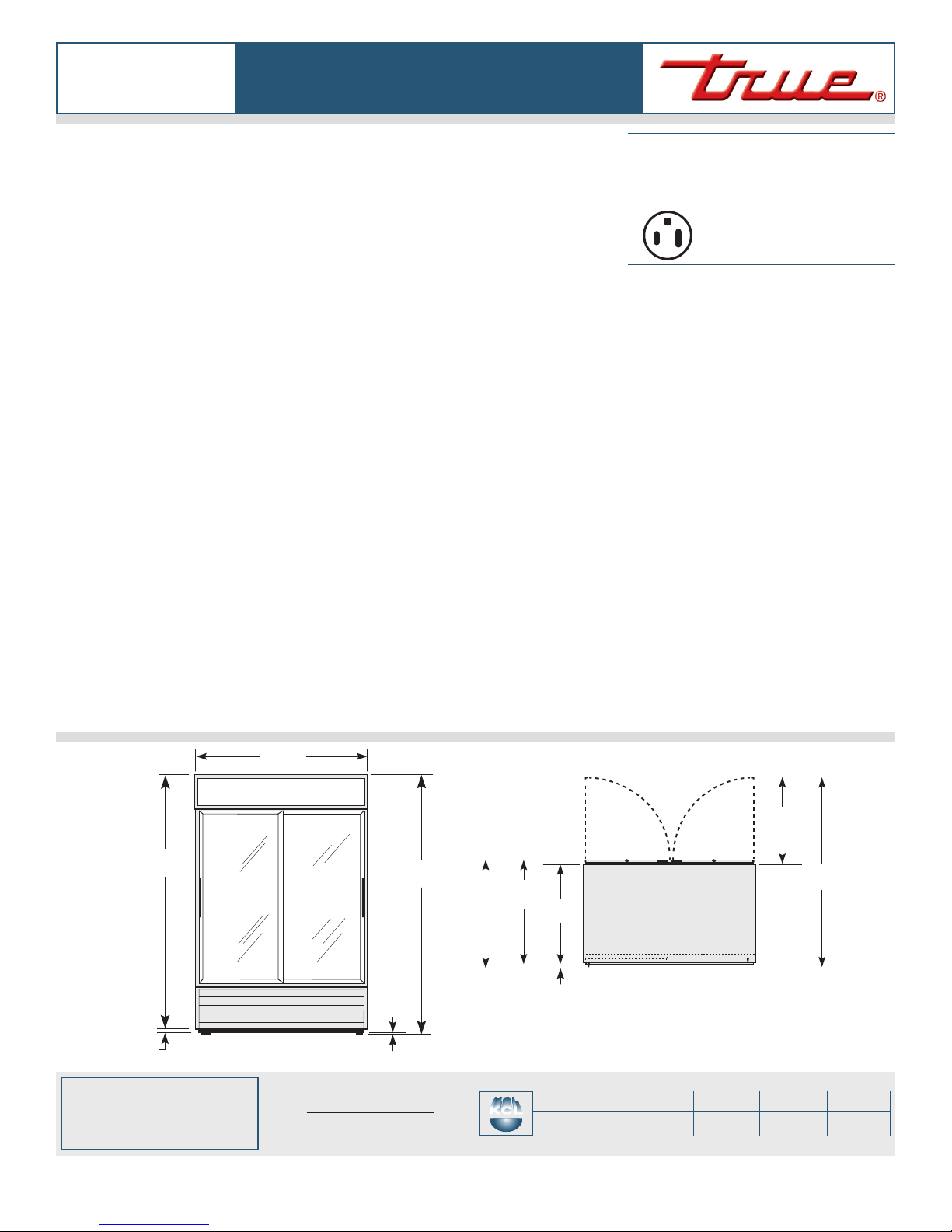

eleVatIon Plan VIew
541/8"
(1375 mm)
299/16"
(751 mm)
3213/32"
(824 mm)
7615/16"
(1955 mm)
13/8"
(35 mm)
785/8"
(1998 mm)
5/16"
(8 mm)
5/16"
(8 mm)
577/8"
(1471 mm)
2731/32"
(711 mm)
323/32"
(816 mm)
