4 Safety E621EN_01.DOC
1. Safety
1.1 General safety information
¾Read the operator's manual and the safety information
(Order No. 125699) in their entirety before starting up the
machine. Closely follow the instructions given.
¾Adhere to the safety regulations in accordance with DIN VDE,
CEE, AFNOR and to the specific regulations of the country of
operation.
Danger
Risk of fatal injury from electric shock.
¾Do not touch the electrical contacts on the recharger or on
the rechargeable battery.
Warning
Risk of injury from the rechargeable battery.
¾Always remove the rechargeable battery from the machine
prior to maintenance work.
¾Check the machine and the rechargeable battery for damage
each time before use.
¾Keep the machine dry and do not operate it in damp rooms.
¾Charge the exchangeable battery of the Li-Ion Energy 28 V
system only with the recharger of the Li-Ion Energy 28 V
system.
¾Do not attempt to open the exchangeable batteries or the
recharger.
¾Do not dispose of the exchangeable batteries in fires or
household waste.
Warning
Risk of injury due to improper handling.
¾Wear safety glasses, hearing protection, protective gloves
and work shoes when working at the machine.
Caution
Damage to property due to improper handling.
The machine will be damaged or destroyed.
¾Have servicing and inspections of hand-held electric tools
and recharger carried out by a qualified specialist. Only use
original TRUMPF accessories.

E621EN_01.DOC Safety 5
1.2 Specific safety information
Warning
Risk of injury due to improper handling.
¾Make sure the machine is always in a stable position when
operating it.
¾Never touch the tool while the machine is running.
¾Always operate the machine away from your body.
¾Do not operate the machine above your head.
Warning
Risk of injury to hands.
¾Do not reach into the processing line with your hands.
¾Use both hands to hold the machine.

6 Description E621EN_01.DOC
2. Description
1
5
4
2
3
6
7
1 Cutter plate
2 Chip separator
3 On/Off switch
4 Blade
5 Bearing pin
6 Rechargeable battery
7 Recharger CLi

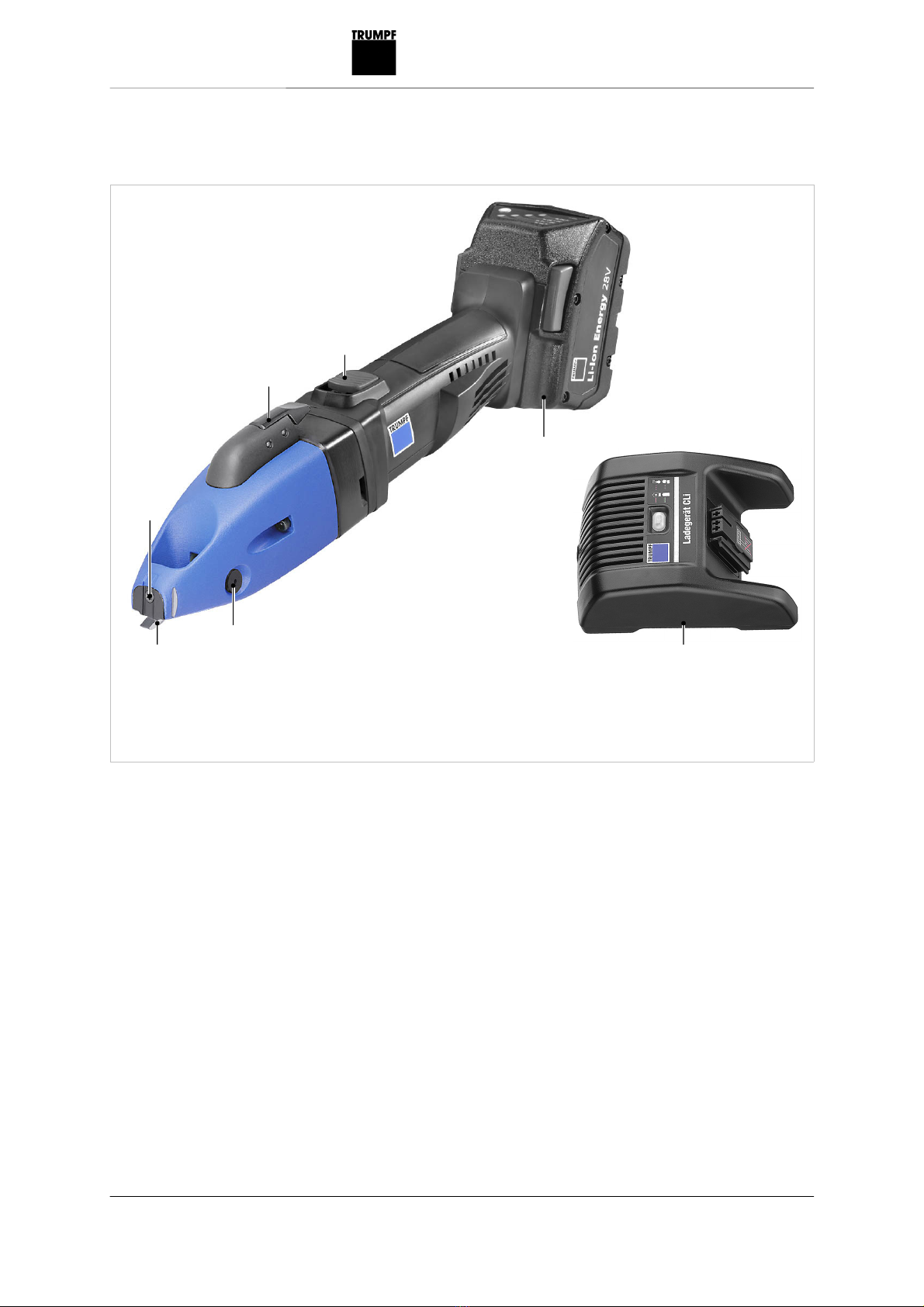

Slitting shears TruTool C 250 with recharger
Fig. 53344

E621EN_01.DOC Description 7
2.1 Intended use
Warning
Can cause injury or damage to health!
¾Only use the machine for work and materials described in
"Intended use".
¾Do not process materials containing asbestos.
The TRUMPF Slitting Shears TruTool C 250 is an electrical hand-
held device used for the following applications:
•Cutting plate-shaped workpieces made of steel, aluminum,
plastic, etc.
•Cutting straight or curved exterior and interior cutouts.
•Cutting along scribed lines.
The TRUMPF TruTool C 250 Slitting Shears enable chips to be cut
off that are produced while machining the workpiece as required.
The CLi recharger charges exchangeable batteries of the Li-Ion
Energy 28 V system.

8 Description E621EN_01.DOC
2.2 Technical data
Other countries USA
Values Values
Voltage 28 V 28 V
Permissible material thickness
•Steel up to 400 N/mm²
•Steel up to 600 N/mm²
•Aluminum 250 N/mm²
2.5 mm
1.5 mm
3.0 mm
0.098 in
0.059 in
0.118 in
Working speed 3-6 m/min 10-20 ft/min
Weight with rechargeable
battery
3.3 kg 7.3 lbs
Weight without rechargeable
battery
2.3 kg 5.1 lbs
Start hole diameter 25 mm 0.98 in
Technical data TruTool C 250
Voltage 28 V
Loading time at 28 V approximately 1 h
Weight without power cord 700 g
Technical data CLi recharger
Vibration Specifications in accordance with
EN 12096
Measured values in accordance
with EN ISO 8662-10
Vibration value at the handle a 6.2 m/s²
Uncertainty K 1.5 m/s²
Measured values were measured while machining sheet steel
400 N/mm² with max. material thickness.
Noise emissions Specifications in accordance with
EN ISO 4871
Measured values in accordance
with EN ISO 15744
A-rated sound level LWA 106 dB
A-rated acoustic power level at the
work place LPA
92 dB
The noise emission values given are the sum of the measured
values and the corresponding uncertainties. They represent an
upper value limit which can emerge during measurements.
Tab. 1
Tab. 2
Tab. 3
Tab. 4

E621EN_01.DOC Setting work 9
3. Setting work
3.1 Selection of tools
Note
The blades have 2 cutting edges. They cannot be resharpened.
Different types of blades are required, depending on the material
thickness or the tensile strength of the workpiece. (See Tab. 5,
p. 10.)
Note
If the blade is not selected as specified in the table,
–The cutting quality will be severely impaired.
–If the feed power increases significantly.
–The blade will break.

10 Setting work E621EN_01.DOC
Tool type Description Material thickness
in mm
Radius Order no.
Straight blade
1.5 – 2.5 mm
Aluminum max.
250 N/mm²
1.5 to 3.0
Steel max. 400 N/mm²
1.5 to 2.5
150
1273341
Straight blade
- 1.5 mm
Aluminum max.
250 N/mm²
0.5 to 2.0
Steel max. 400 N/mm²
0.5 to 1.5
80
1258006
Curve blade
- 1.5 mm
Aluminum max.
250 N/mm²
0.5 to 2.0
Steel max. 400 N/mm²
0.5 to 1.5
45 left
80 right 1260101
Blade CR
Stainless steel max.
600 N/mm²
0.5 to 1.5
120
1278387
Blade SC
(parallel fold)
Steel max. 400 N/mm²
4x0.9
Stainless steel max.
600 N/mm²1
4x0.6
150 1260102
Insertable cutters
(1 set = 2 pieces)
All materials
1275275
Cutter plate
All materials
1267770
Screw
All materials 0350327

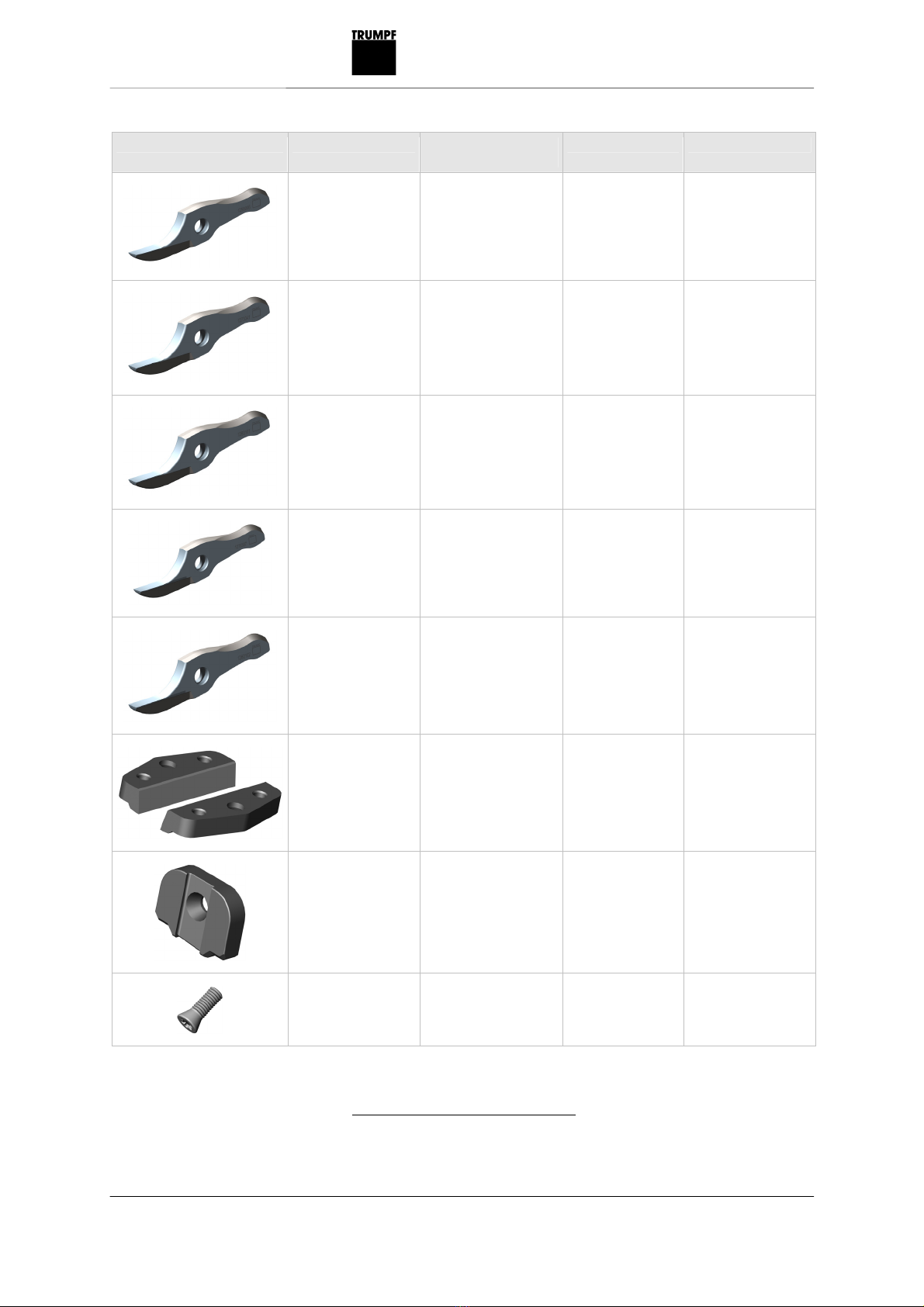

Blade selection
1If possible, do not cut chips on the lock seam. That would reduce the
service life.
Tab. 5

E621EN_01.DOC Setting work 11
3.2 Loading the rechargeable battery
Danger
Risk of fatal injury from electric shock.
Line voltage is present at the battery terminals.
¾Do not touch the electrical contacts (battery terminals) on the
recharger.
The rechargeable battery is partially charged (50%) at the time the
rechargeable battery electric tool is delivered.
Prerequisites
•The electric tool has been switched off for at least 1 minute.
¾Press the key on the rechargeable battery.
The LEDs on the rechargeable battery show the charging status.

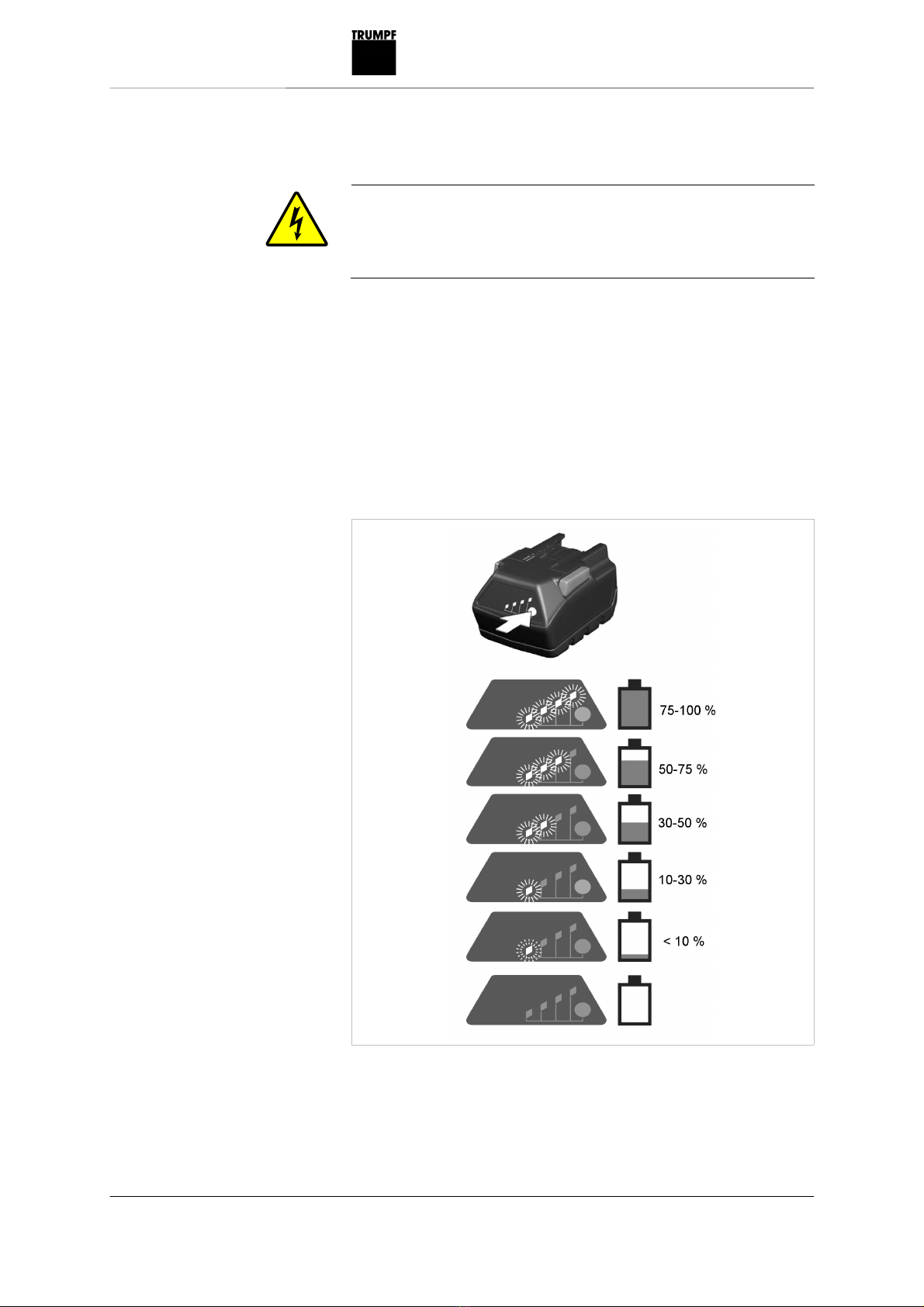

Check of charging status on the rechargeable battery
Checking loading status
Fig. 53299

12 Setting work E621EN_01.DOC
Before using the cordless electric tool, a new exchangeable battery
or one that has not been used for a long time needs to be charged.
Note
The full capacity is reached after 2-10 charging cycles.
¾Insert the exchangeable battery into the insertion well on the
recharger.
The loading time is between 1 min and 60 min, depending on how
far the rechargeable battery had been discharged beforehand. The
rechargeable battery is completely charged after 60 min.
The maximum charging current flows when the temperature of the
rechargeable battery is between 0°C and 66°C. If a rechargeable
battery is inserted into the recharger that is too cold or too warm
(red LED flashes), then the charging process will begin
automatically as soon as the rechargeable battery has reached the
correct charging temperature (–10°C to +66°C).

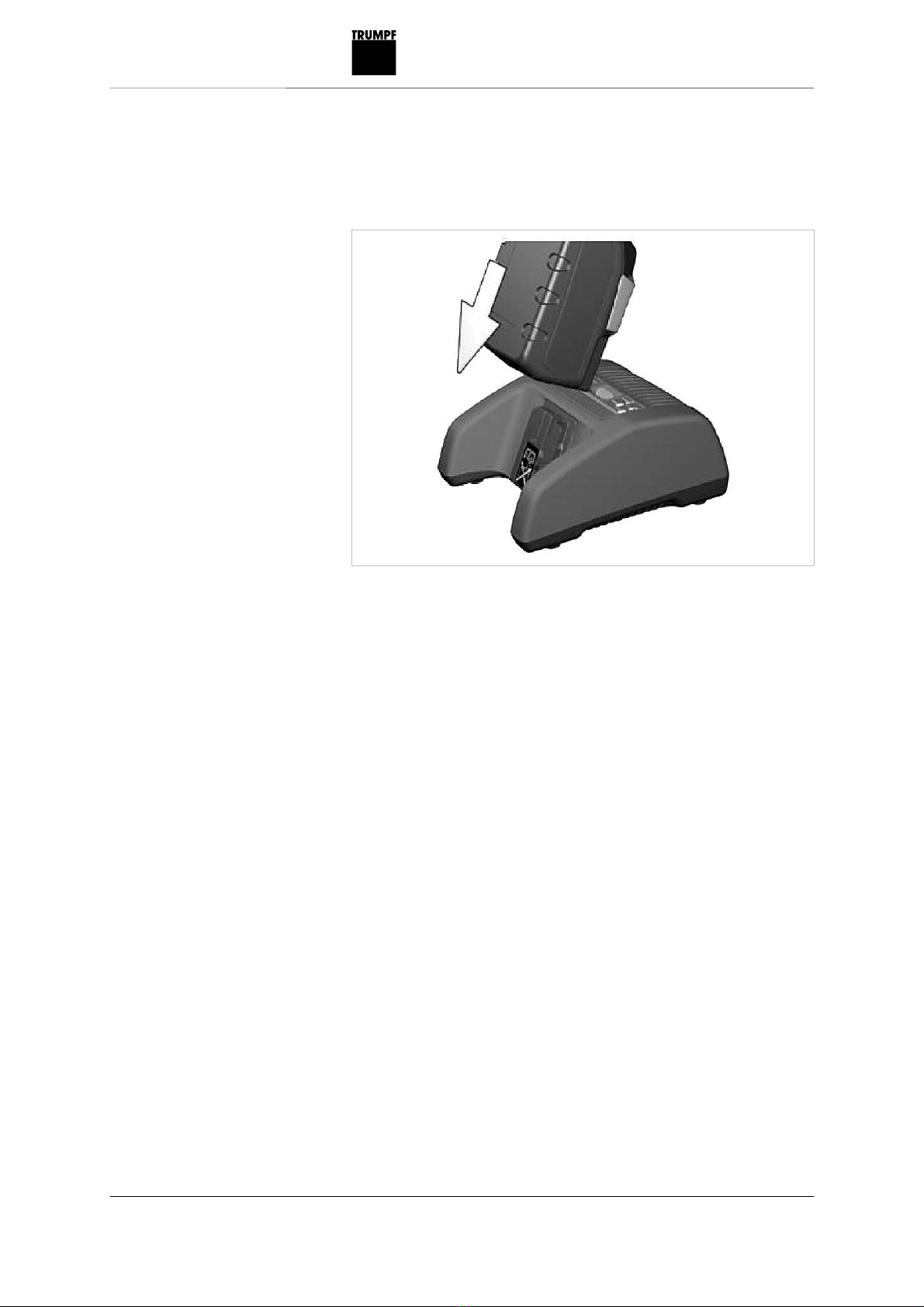

Loading the rechargeable
battery
Fig. 53300

E621EN_01.DOC Setting work 13
1
1 Status display
Recharger CLi
Display Function
Red continuous Loading
Green continuous Rechargeable battery is full
Red, flashing Rechargeable battery too warm/cold
Flashing red and green Error in the rechargeable battery
Status display on the
recharger
Fig. 53306
Tab. 6

14 Setting work E621EN_01.DOC

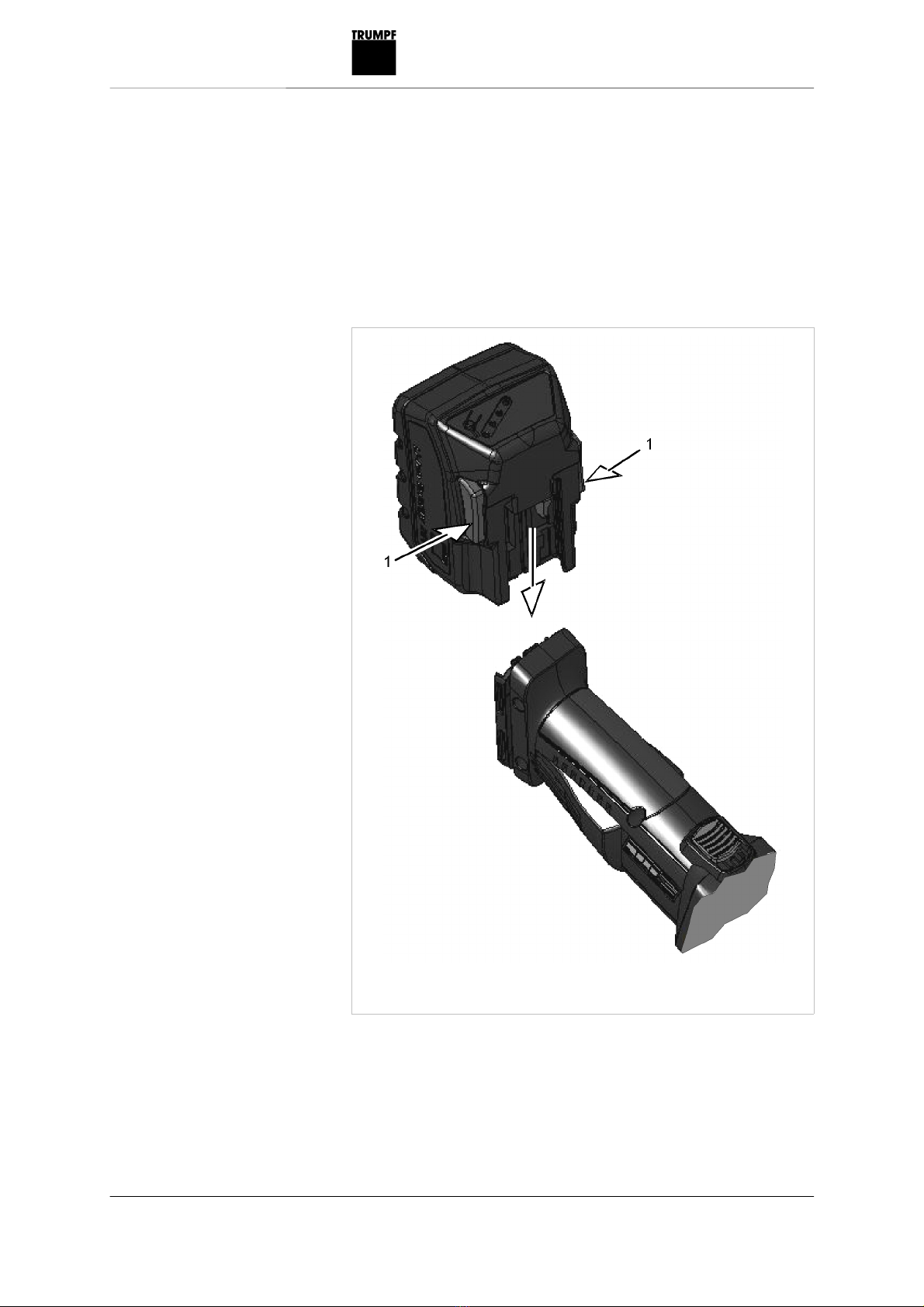

3.3 Changing the battery
¾Press the locking mechanism (1) together and pull the
exchangeable battery out and upwards.
¾Slide the exchangeable battery into the machine holder from
above until the battery locks into place.
1 Locking mechanism
Removing the exchangeable
battery
Inserting the exchangeable
battery
Fig. 53321

E621EN_01.DOC Operation 15
4. Operation
Warning
Risk of injury due to improper handling.
¾Make sure the machine is always in a stable position when
operating it.
¾Wear safety glasses, hearing protection, protective gloves
and work shoes when working at the machine.
¾Never touch the tool while the machine is running.
¾Always operate the machine away from your body.
¾Do not operate the machine above your head.
Caution
Damage to property caused by blunt tools.
Machine overload.
¾Check the cutting edge of the blade hourly for wear. Sharp
blades ensure good cutting quality and protect the machine.
¾Replace the blades in due time.

16 Operation E621EN_01.DOC
4.1 Working with the TruTool C 250
Before using the cordless electric tool, a new exchangeable battery
or one that has not been used for a long time needs to be
activated.
¾Place rechargeable battery briefly on the recharger or charge it
completely.
The LEDs on the rechargeable battery show the charging status.
Note
The performance capacity of the rechargeable battery is available
to only a limited extent at temperatures below -10°C.
The rechargeable battery shuts off automatically when it is
completely discharged. The rechargeable battery emits brief
electricity pulses when the electrical tool is switched on.
Note
Do not move the machine towards the workpiece until full speed
has been reached.
1
2
14°
1 Marking for cutting position 2 Chip separator
1. Slide the On/Off switch forwards.
2. Guide the machine at an angle of about 14° to the sheet
surface.
Activating rechargeable
battery
Discharging the rechargeable
battery
Switching on the
TruTool C 250
Fig. 37735

E621EN_01.DOC Operation 17
Note
If the electric tool does not work after being switched on, stick the
rechargeable battery on the recharger and check the charging
status.
1
1 Charging status
Rechargeable battery Li-Ion Energy 28 V
Note
Do not subject the machine to heavy loads to such an extent that it
stops.
Never operate the machine without blades.
To protect the machine and for a good cutting performance:
•Ensure that blades are sharp.
•Turn insertable cutters in due time.
•Change insertable cutters in due time.
The following applies when cutting radii:
•Do not tilt the machine.
•Only operate at a low feed rate.
Fig. 53294

18 Operation E621EN_01.DOC
1
1 Chip
¾Press the cut-off switch for approx. 0.5 s while the machine is
running. The cutting process is stopped automatically.
Note
Do not cut off small chips. The minimum length of a chip must be
at least one full turn.
Remove the chip manually.
Note
The front part of the casing has a marking that indicates the cutting
position.
¾Slide the On/Off switch to the rear.
Cutting off chips
Fig. 37734
Switching off the
TruTool C 250

E621EN_01.DOC Maintenance 19
5. Maintenance
Warning
Risk of injury from the rechargeable battery.
¾Remove rechargeable battery when changing tools and
before performing any maintenance work on the machine.
Warning
Risk of injury due to incorrect repair work.
Machine does not work properly.
¾Repair work may only be carried out by a qualified technician.
Caution
Damage to property caused by blunt tools.
Machine overload.
¾Check the cutting edge of the blade hourly for wear. Sharp
blades ensure good cutting quality and protect the machine.
¾Replace the blades in due time.
Maintenance point Procedure and interval Recommended
lubricant
Lubricant
order no.
Bearing pin Lubricate when replacing the blade Lubricating grease
"G1"
0139440
Blades Lubricate when replacing the blades Lubricating grease
"G1"
0139440
Gear,
gear head and cutter
After 300 operating hours, arrange for a
qualified technician to relubricate or to replace
the lubricating grease
Lubricating grease
"G1"
0139440
Insertable cutters Turn as needed - -
Insertable cutters Replace as needed - -
Blades Replace as needed - -
Cutter plate Replace as needed - -
Rechargeable battery Replace as needed - -
Maintenance positions and maintenance intervals
Tab. 7

20 Maintenance E621EN_01.DOC
5.1 Replacing the tool
1
3 4
5
6
7
2
1 Bearing pin
2 Cutting head
3 Fixing screw
4 Cutter plate
5 Blade
6 Insertable cutter
7 Fixing screws
Replacing the tool
Fig. 37728
