tryten Nova Line User manual

Nova Connect Assembly Instructions –Rev B Page 1
Nova Mobile Carts 1-800-860-4455
Tryten Nova Connect
Assembly Instructions
For further instructions please visit Tryten.com/instructions.
For additional questions or technical support contact us at
Tryten.com/contact or 1-800-860-4455.

Nova Connect Assembly Instructions –Rev B Page 2
Assembly Instructions Page
Receiving the Shipping Box 4
Assembling Base to Pole 5
Removing Channel Strips 6
Power Box and Cabling Installation 7
Extension Pole Installation 8
Handle Installation 8
Device Height Adjustment 9
Work Surface Installation 10
Keyboard Tray Installation 11
Nova Connect Vesa Bracket and Monitor
Installation 12-13
Nova Connect Camera Bracket Installation 14
Logitech Bracket and Camera Installation 15-16
Poly P15/X30 Mount Installation 17
HD Hinge Installation and Adjustment 18
Transducer Holder Installation 19
Lockable Caddy Installation 20-21
Yeti 200 Battery Bracket Installation 22
Poly SY20 Speaker installation 23
Speaker Bracket and Speaker Installation 24-25
Intel NUC Bracket and Unit Installation 26

Nova Connect Assembly Instructions –Rev B Page 3
NOVA HARDWARE PACK
•Label Hardware Kit Nova (1)
•Hex L-Key - 3/16” size (1)
•Torx Security L-Key - T25 (1)
•Hex L-Key - 5/32” size (1)
•Screw 10-24 x 3/4" Security Torx, Button head, SS (1)
•Screw 1/4-20 by 1" Socket Head, Zinc (8)
•Belleville (dome) Washer 1/4" 18-8 SS (4)
ADDITIONAL TOOLS NEEDED FOR INSTALLATION
•Scissors for cutting channel cover to length.
ASSEMBLY INSTRUCTIONS
Note: Shipping box pictures show Nova Connect Cart for
assembly reference. Configurations may vary, but the installation
process will be similar.
INSTALLATION OF ACCESSORIES TO THE CARTS
Note: When installing accessories, the Z or T-Nut has to be loose
and aligned vertically (up/down) when inserted into the extrusion
channel. Once adjusted at the desired height, tighten the screw
until it is fully locked to the extrusion. Always verify that the nut is
aligned across the channel (left/right) when fully tightened.

Nova Connect Assembly Instructions –Rev B Page 4

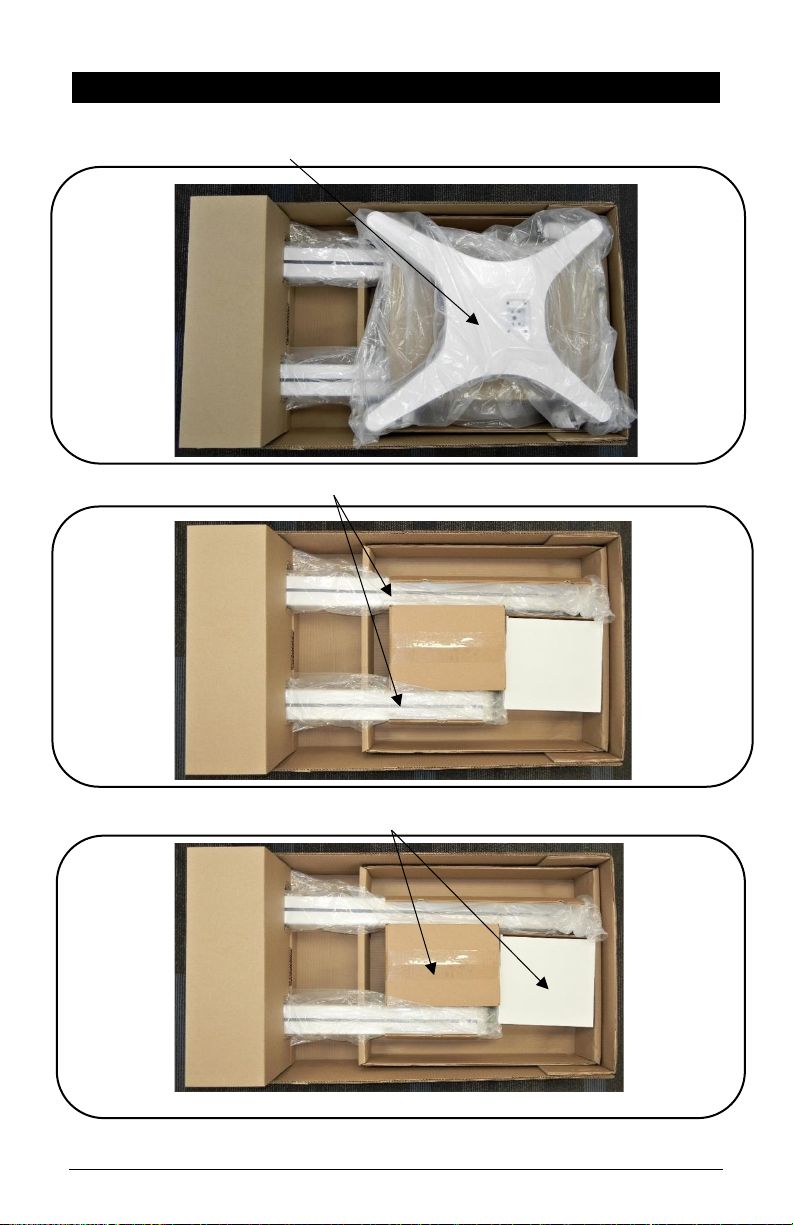

1. OPEN THE SHIPPING BOX
•Base.
•Extract Poles.
•Extract Accessories.

Nova Connect Assembly Instructions –Rev B Page 5

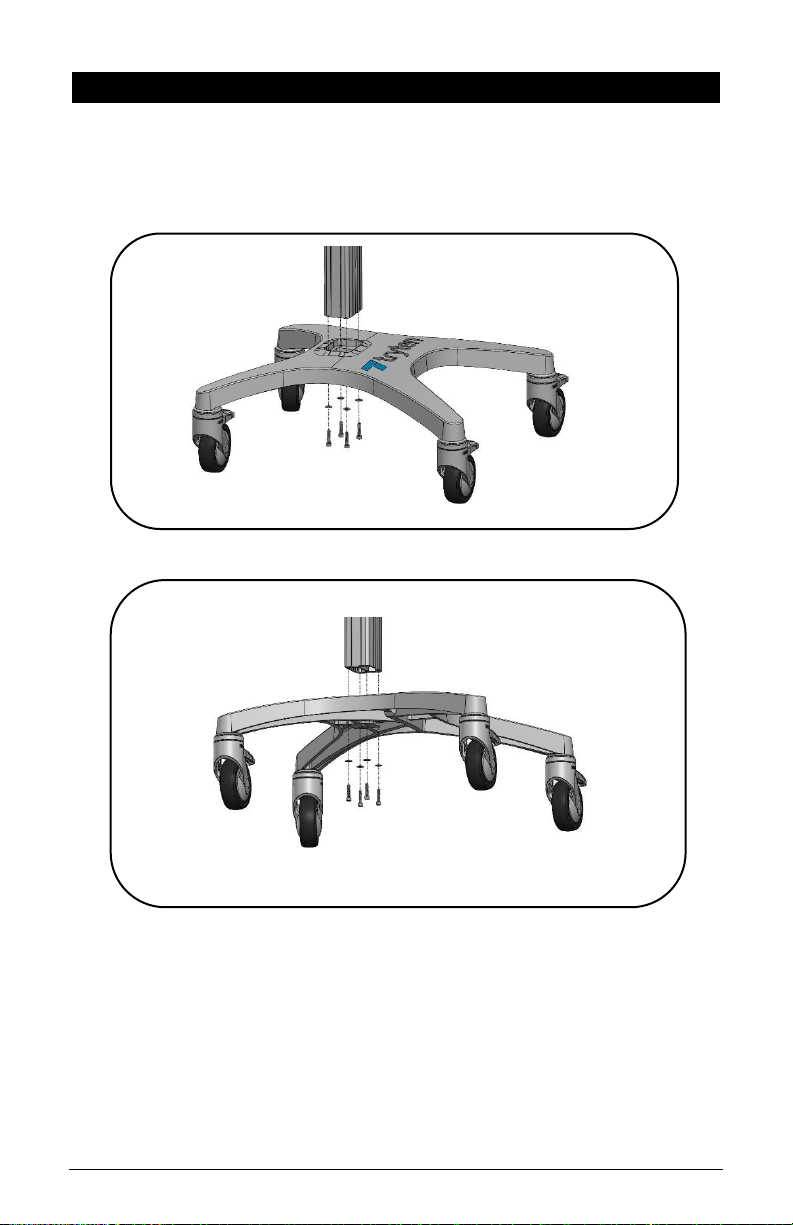

2. ASSEMBLE THE POLE
•Assemble the Pole to the base with the four (4) screws and
dome washers using the 3/16”Hex L-Key from the
hardware pack.

Nova Connect Assembly Instructions –Rev B Page 6
•Insert one (1) of the smaller Allen L-Keys or similar devices
in behind the top of the channel cover to pull out of the
pole slot. Reinstall covers after the power cords are in
place.
place.
Note: Channel Cover Strips will need to be adjusted if
accessories are installed.
3. REMOVE THE CHANNEL STRIPS

Nova Connect Assembly Instructions –Rev B Page 7
4. POWER BOX AND CABLING INSTALLATION
•Install Utility box by loosening the T-Nuts, insert T-Nuts to
the extrusion channel, slide box up or down to desired
height and tighten screws.
•Open box by using Torx Security L-Key, loosen two (2)
screws from the back of the Power Box until door swings
open.
•Install 9’ Green Dot Hospital Grade Power Extension Cable
as shown (see middle image).
•Install tablet’s power cable through hole and up the
channel as shown.
•Close door back in place and re-install the screws from
back.
STORING THE POWER CORD
When the cart is not in use, or device is not being charged, the
extension cord should be wrapped and stored on the unit. Wrap
the cable firmly around the upper and lower cord wraps located
on the back of the unit pole.

Nova Connect Assembly Instructions –Rev B Page 8

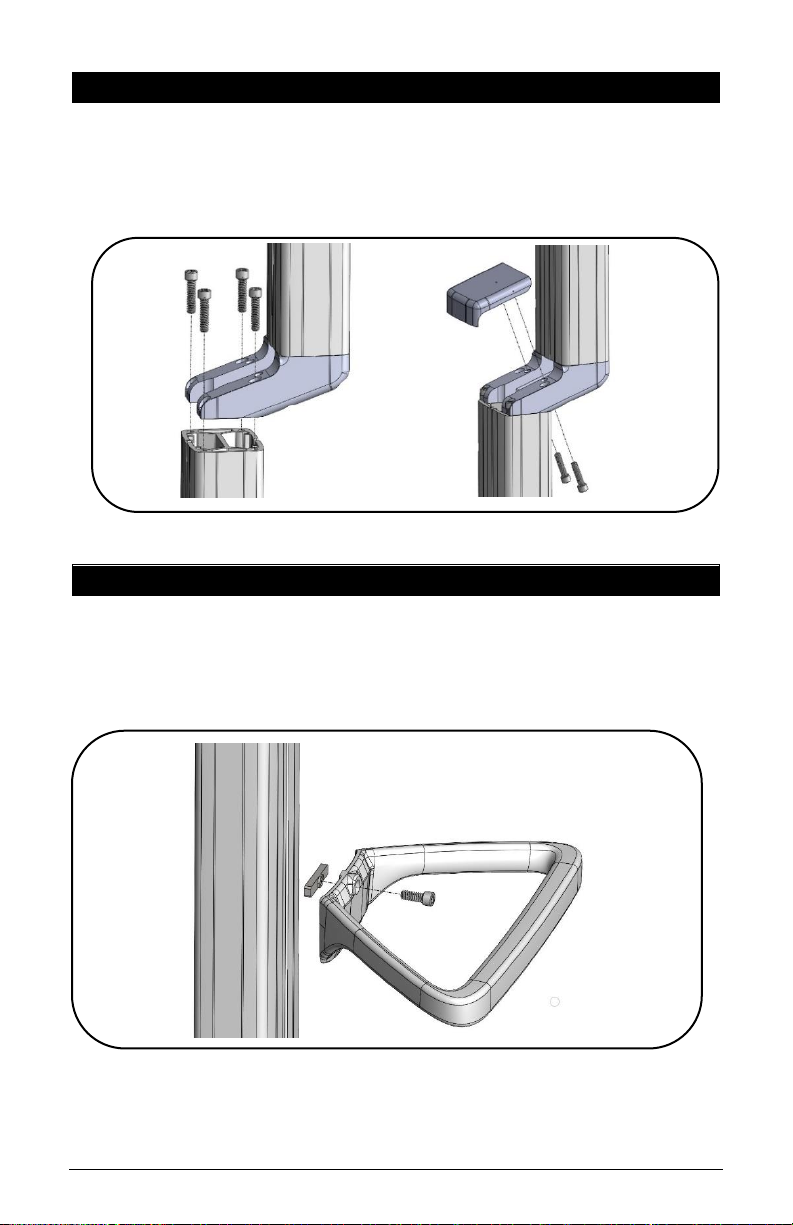

5. EXTENSION POLE INSTALLATION, NOVA CONNECT
•On the Nova Connect, shown below, assemble the offset
adapter to the main extrusion with the four (4) screws (1”)
using the 3/16” Allen L-Key.
6. HANDLE INSTALLATION
•Install Handle by loosening the T-Nut, insert T-Nut into the
extrusion channel, slide handle up or down to desired
height and tighten screw.

Nova Connect Assembly Instructions –Rev B Page 9
7. DEVICE HEIGHT ADJUSTMENT
•In order to adjust the height of the surface or keyboard tray, the
handle may need to rotate to add more turns. The handle is
spring loaded so it can be rotated to a different position to
tighten the assembly. With assembly loose, move assembly to
desired height. Tighten the handle and lock the device in place
by turning the handle clockwise. If the handle cannot turn
anymore and the assembly is not yet tight, pull the handle out
(image 1), rotate counterclockwise and release handle back in
place (image 3) to tighten the assembly. Repeat process until
device is fully tightened.
•Work Surface adjustment
•Keyboard Tray adjustment
Image 1
Image 2
Image 3
Image 1
Image 2
Image 3

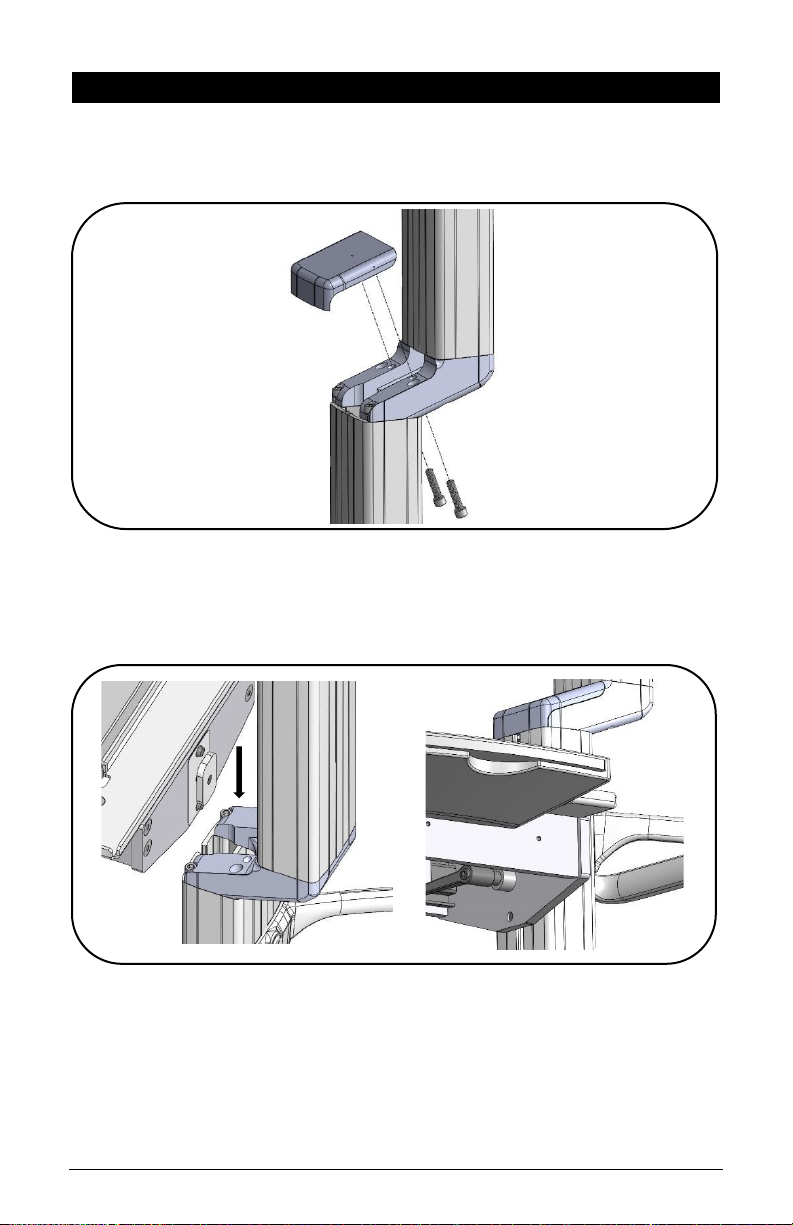

Nova Connect Assembly Instructions –Rev B Page 10
8. NOVA CONNECT –WORK SURFACE INSTALLATION
•Remove channel cover strip (ref. point 3).
•Remove two (2) screws from underneath to remove offset
adapter cap using L-Key provided.
•Slide Work Surface down channel from top, set and lock
with handle at desired height (ref. point 7).
•Re-install offset adapter cap.

Nova Connect Assembly Instructions –Rev B Page 11
9. NOVA CONNECT - KEYBOARD TRAY INSTALLATION
•Remove channel cover strip (ref. point 3).
•Remove two (2) screws from underneath to remove offset
adapter cap using L-Key provided.
•Slide Keyboard Tray down channel from top, set and lock
with handle at desired height (ref. point 7).
•Re-install offset adapter cap to pole.

Nova Connect Assembly Instructions –Rev B Page 12

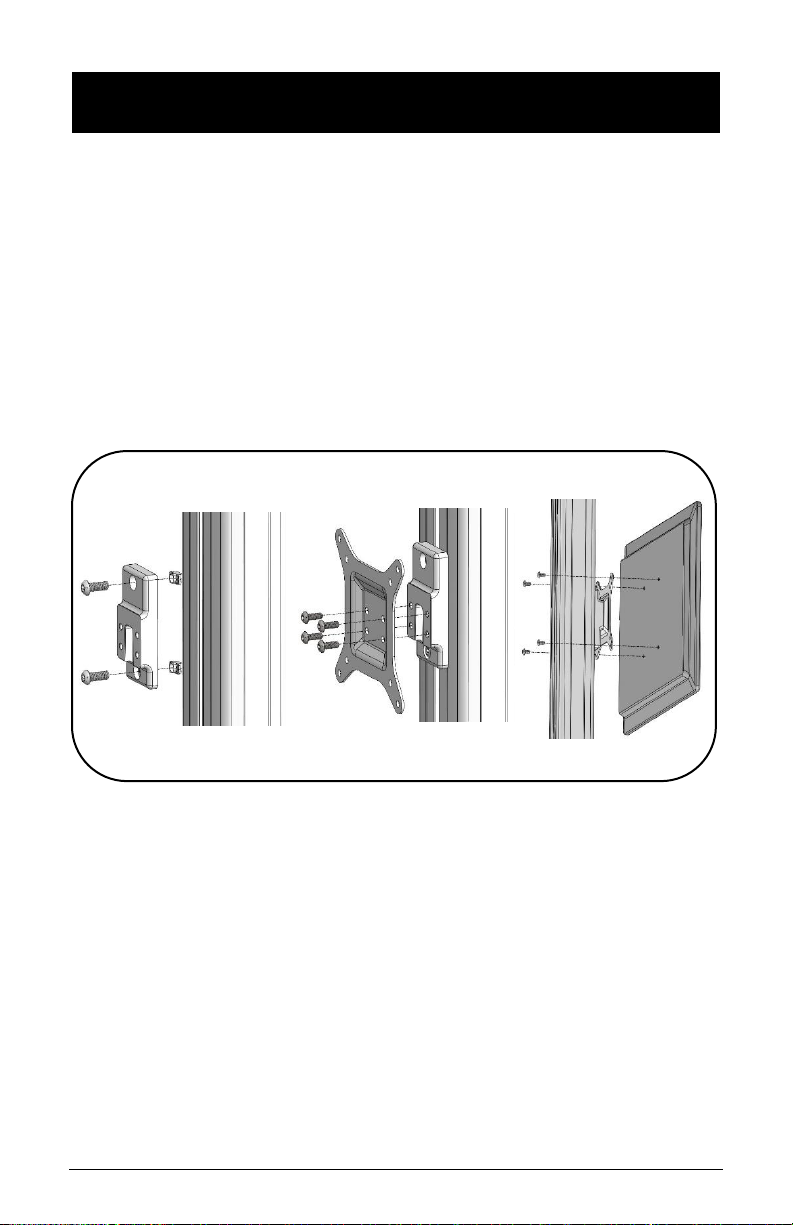

10. NOVA CONNECT–FIXED VESA BRACKET & MONITOR
INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install bracket to extrusion with two (2) screws and two (2)
Z-Nuts.
Note: Ensure the thicker section of the bracket is
mounted at the top
•Install VESA plate to bracket with four (4) button head
screws.
•Install Monitor to VESA plate with four (4) mounting
screws (not included).

Nova Connect Assembly Instructions –Rev B Page 13

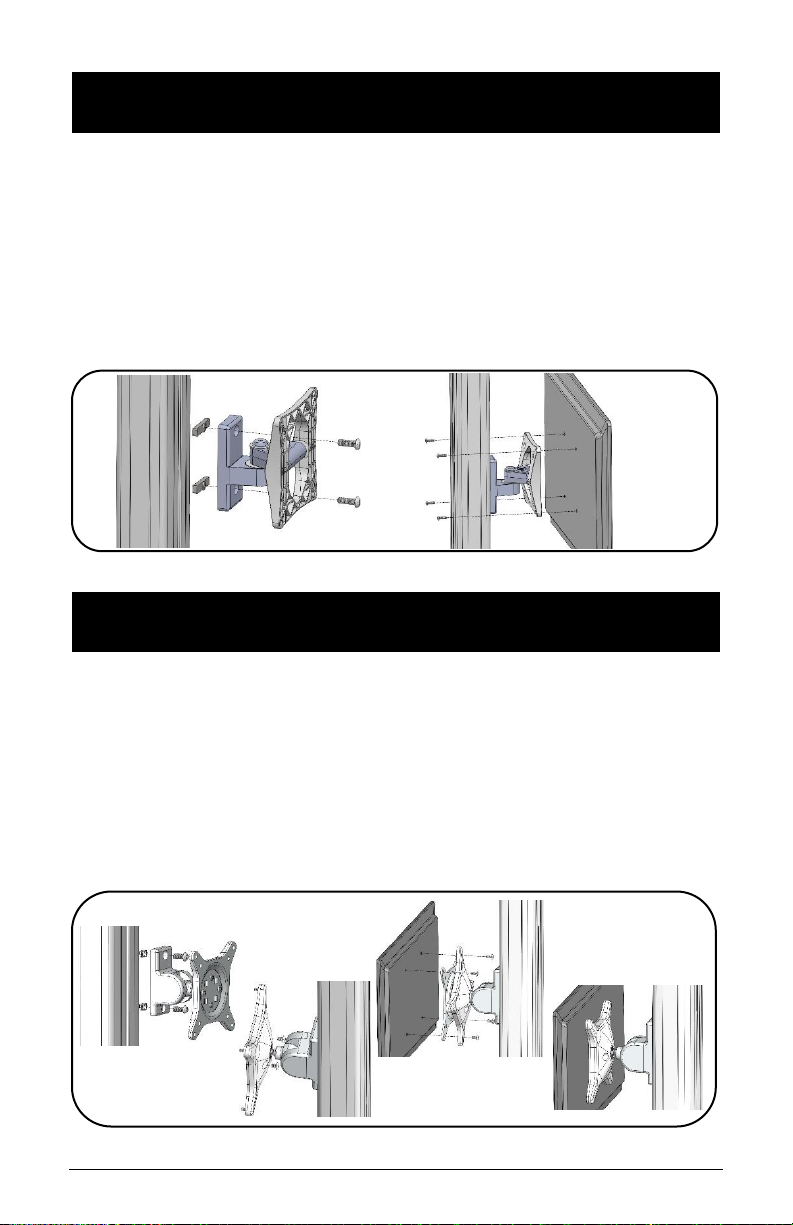

11. NOVA CONNECT–TILTING VESA BRACKET & MONITOR
INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install bracket to extrusion with two (2) screws and two (2)
T-Nuts.
Note: Ensure the thicker section of the bracket is
mounted at the top FOR ALL VESA BRACKETS
•Install Monitor to VESA plate with four (4) mounting
screws (not included).
12. NOVA CONNECT–ARTICULATING VESA BRACKET &
MONITOR INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install bracket to extrusion with two (2) screws and two (2)
Z-Nuts.
•Remove two (2) cover screws using Torx Security L-Key.
•Rotate plastic cover to install Monitor to VESA plate with
four (4) mounting screws (not included).
•Re-install two (2) cover screws.

Nova Connect Assembly Instructions –Rev B Page 14

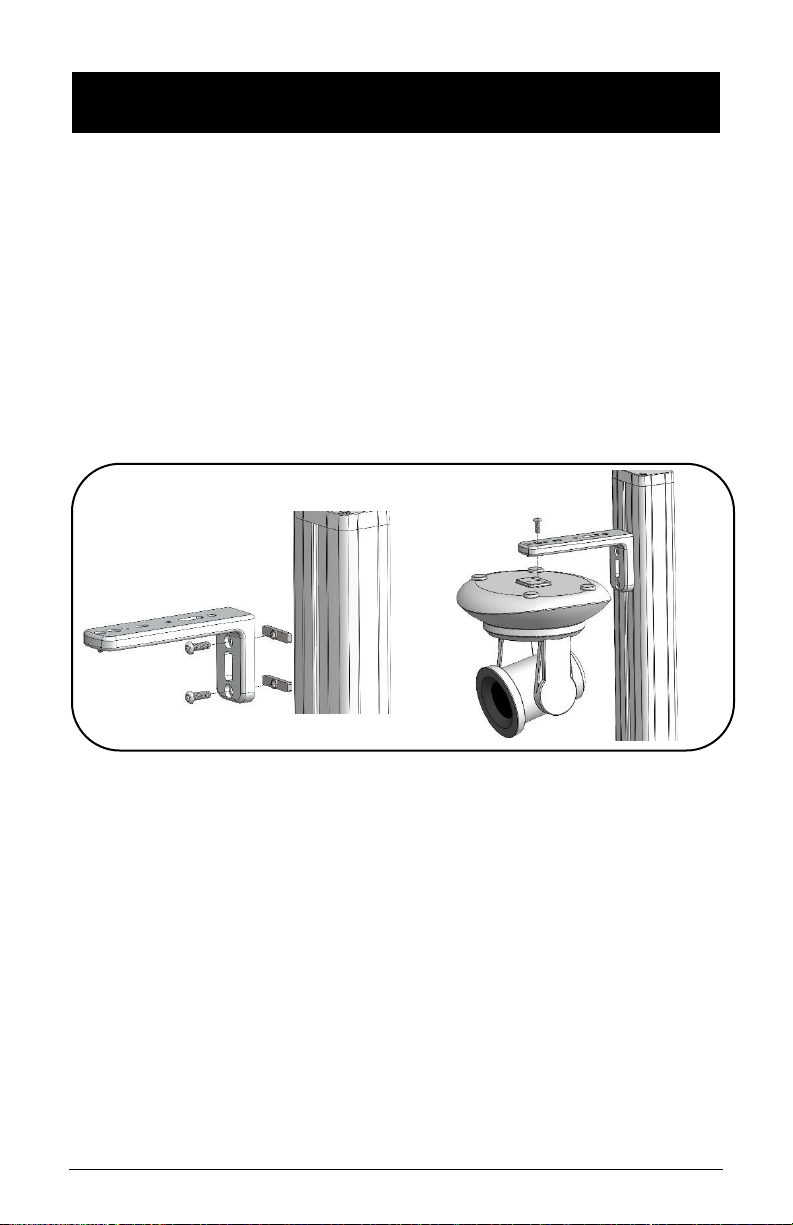

13. NOVA CONNECT–UNIVERSAL ANGLE BRACKET &
CAMERA INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install camera bracket to extrusion with two (2) screws
and two (2) T-Nuts.
•Align the alignment hole on camera with protruding
alignment screw on bracket.
•Use screw and Allen L-Key provided to install camera on
bracket.
•Remove alignment screw and install from opposite side to
mount camera opposite way.

Nova Connect Assembly Instructions –Rev B Page 15
14. NOVA CONNECT - LOGITECH MEETUP & RALLY, FIXED
BRACKET –BRACKET & CAMERA INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install Logitech bracket to extrusion with one (1) screw
and (1) Z-Nut.
•Remove screws and cap with Allen L-Key provided.
•Install camera by placing camera slot over bracket ledge.
•Re-install screws and cap with Allen L-Key provided.

Nova Connect Assembly Instructions –Rev B Page 16
15. NOVA CONNECT - LOGITECH MEETUP & RALLY, 180 PAN
BRACKET –BRACKET & CAMERA INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install Logitech bracket to extrusion with two (2) screws
and two (2) Z-Nuts.
•Remove screws and cap with Allen L-Key provided.
•Install camera by placing camera slot over bracket ledge.
•Re-install screws and cap with Allen L-Key provided.

Nova Connect Assembly Instructions –Rev B Page 17

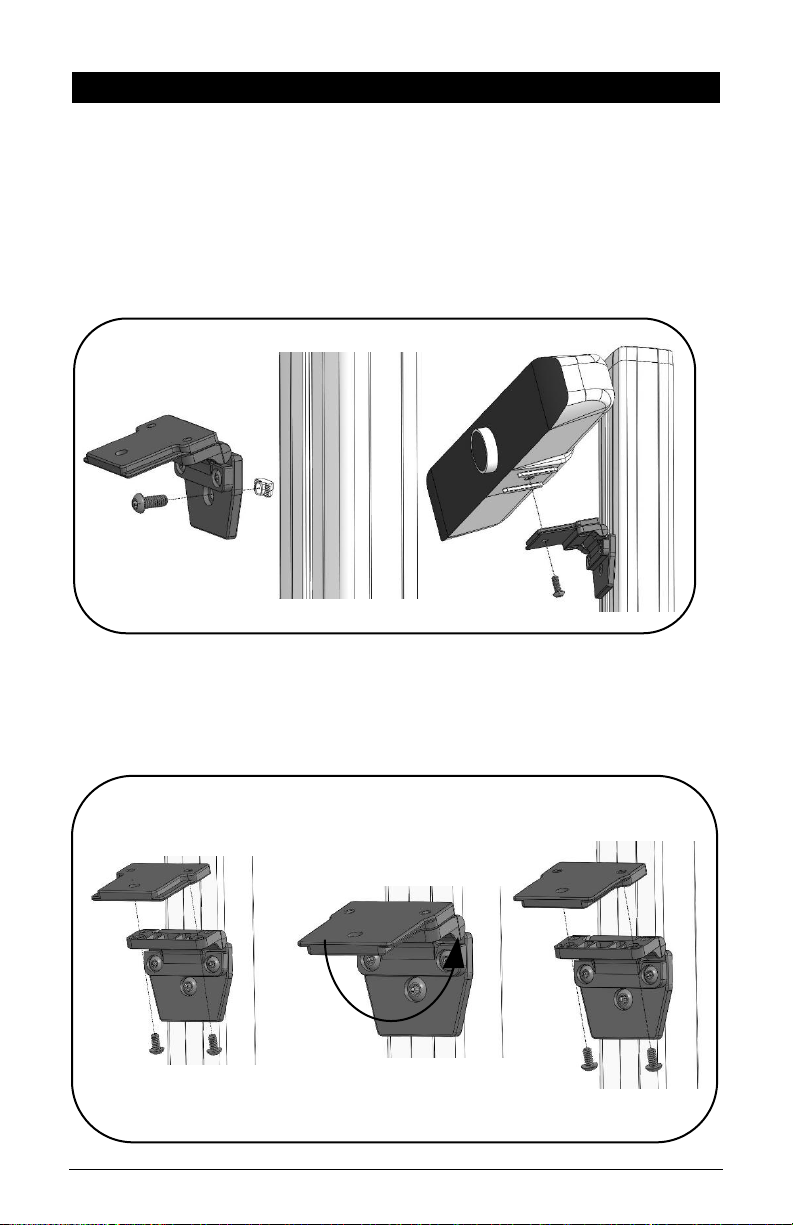

16. NOVA CONNECT - POLY P15/X30 MOUNT INSTALLATION
•Remove channel cover strip (ref. point 3).
•Loosen T-Nut but do not remove, insert T-Nut into the
extrusion channel, move bracket up or down to desired
height.
•Tighten bracket to extrusion with screw and T-Nut.
•Install camera/speaker, as per example, as shown.
•To adapt the mount from P15 to X30 or reverse, undo two
(2) screws from hinge and flip plate over, re-install two (2)
screws.

Nova Connect Assembly Instructions –Rev B Page 18

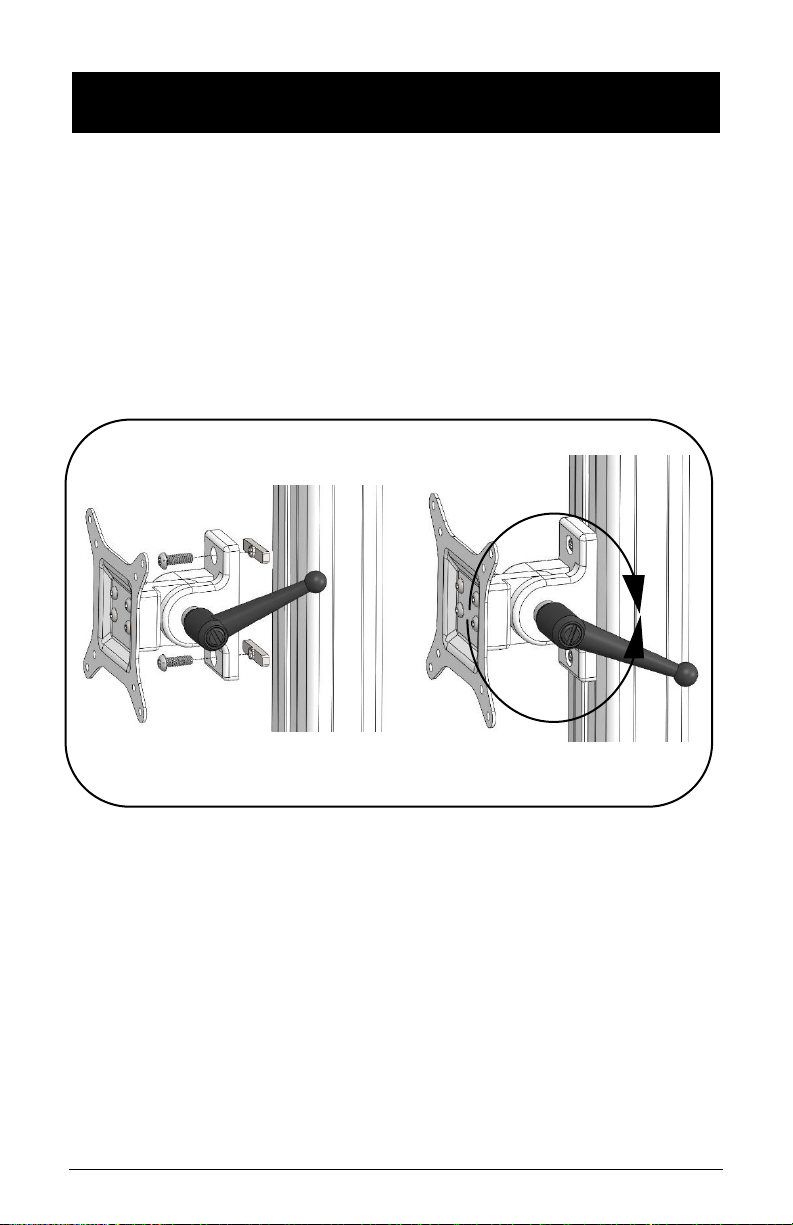

17. NOVA CONNECT - HD HINGE INSTALLATION AND
ADJUSTMENT
•Remove channel cover strip (ref. point 3).
•Install HD Hinge to extrusion by having two (2) screws and
T-Nuts loose, insert into extrusion channel, move up or
down to desired position and tighten screws.
•To adjust, rotate handle CCW to loosen just enough to
rotate hinge up or down to desired angle, rotate handle
CW to tighten.
•To adjust handle, refer to point 7.

Nova Connect Assembly Instructions –Rev B Page 19
18. NOVA CONNECT - TRANSDUCER HOLDER INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install Adapter Block bracket to extrusion by having two
(2) screws and T-Nuts loose, insert into extrusion channel,
move up or down to desired position and tighten screws.
•Attach plastic pole attachment to Adapter Block by using
two (2) screws as shown.
•Slide Transducer Holder down from top onto pole
attachment taper until it ‘clicks’ into place.

Nova Connect Assembly Instructions –Rev B Page 20
19. NOVA CONNECT - LOCKABLE CADDY INSTALLATION
•Remove channel cover strip (ref. point 3).
•Install Adapter Block bracket to extrusion by having two
(2) screws and T-Nuts loose, insert into extrusion channel,
move up or down to desired position and tighten screws.
•Attach plastic pole attachment to Adapter Block by using
two (2) screws as shown.
•Slide Caddy down from top onto pole attachment taper
until it ‘clicks’ into place.
