Tufline LR1 Series User manual

LR1 & LR2_14339_07/18
Landscape Rakes
OPERATOR'S MANUAL
LR1&LR2
LR1-60
LR1-72
LR1-84
LR2-72
LR2-84
LR2-96
LR2-120

Introduction ii
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Monroe Tufline dealer. Read
manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery
Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
The dealer must complete the Warranty Registration located on the Monroe Tufline website.
TO THE OWNER:
Read this manual before operating your Monroe Tufline equipment. The information presented will pre-
pare you to do a better and safer job. Keep this manual handy for ready reference. Require all opera-
tors to read this manual carefully and become acquainted with all the adjustment and operating proce-
dures before attempting to operate. Replacement manuals can be obtained from your Monroe Tufline
dealer.
The equipment you have purchased has been carefully engineered and manufactured to provide
dependable and satisfactory use. Like all mechanical products, it will require cleaning and upkeep.
Lubricate the unit as specified. Observe all safety information in this manual and safety decals on the
equipment.
For service, your authorized Monroe Tufline dealer has trained mechanics, genuine Monroe Tufline
service parts, and the necessary tools and equipment to handle all your needs.
Use only genuine Monroe Tufline service parts. Substitute parts will void the warranty and may not
meet standards required for safe and satisfactory operation. Record the model number and serial num-
ber of your equipment in the spaces provided:
Model:____________________________________ Date of Purchase:_________________
Serial Number: (see Safety Decal section for location)_______________________________
Dealer Name: __________________ Dealer Contact Information:______________________
Provide this information to your dealer to obtain correct repair parts.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause
damage to equipment. The terms CAUTION,WARNING and DANGER are used in conjunction with the
Safety-Alert Symbol, (a triangle with an exclamation mark), to indicate the degree of hazard for items
of personal safety.
DANGER
WARNING
CAUTION
IMPORTANT
NOTE
This Safety-Alert Symbol indicates a hazard and means ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury, and includes hazards that are exposed when guards
are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.

Table of Contents
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SPECIFICATIONS / GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DEALER INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PARTS CATALOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
BOLT SIZE AND BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Specifications
The purpose of this manual is to assist you
in operating and maintaining your Land
Plane. Read it carefully. It furnishes infor-
mation and instructions that will help you
achieve years of dependable performance.
These instructions have been compiled
from field experience and engineering
data. Some information may be general in
nature, due to unknown and varying oper-
ating conditions. However, through expe-
rience and these instructions, you should
be able to develop procedures suitable to
your particular situation.
The illustrations and data used in this
manual were current at the time of print-
ing. However, due to possible inline pro-
duction changes, your machine may vary
slightly in detail. We reserve the right to
redesign and change the machines as
may be necessary without notification.
Throughout this manual, references are
made to right and left direction. These are
determined by standing behind the tractor
facing the direction of forward travel.
GENERAL INFORMATION
SPECIFICATIONS
Model # Width Weight
LR1-60 5' 348#
LR1-72 6' 328#
LR1-84 7' 405#
Model # WIdth Weight
LR2-72 6' 475#
LR2-84 7' 525#
LR2-96 8' 575#
LR2-120 10 650#

Safety Decals 2
SAFETY & INSTRUCTIONAL DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR
DEATH
Replace Decals Immediately If Damaged!
Check that all safety decals are
installed and in good condition.
Replacement Part numbers are
listed below. Use this diagram to
affix new safety decals. Decals
can be obtained from your local
dealer.

SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped out
by an operator’s single careless act.
In addition to the design and configuration of equip-
ment, hazard control and accident prevention are
dependent upon the awareness, concern, judge-
ment, and proper training of personnel involved in
the operation, transport, maintenance and storage
of equipment.
It has been said “The best safety device is an
informed, careful operator.”We ask you to be that
kind of operator.
TRAINING
• Safety instructions are important! Read all attach-
ment and power unit manuals; follow all safety
rules and safety decal information. (Replacement
manuals are available from selling dealer.) Failure
to follow instructions or safety rules can result in
serious injury or death.
• If you do not understand any part of this manual
and need assistance, see your dealer.
• Operators must be instructed in and be capable
of the safe operation of the equipment, its attach-
ments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
• Never allow children or untrained persons to
operate equipment.
• Train all new personnel and review instruction’s
frequently with existing workers. A person who has
not read and understood all operating and safety
instructions is not qualified to operate the machine.
An untrained operator exposes himself and bystand-
ers to possible serious injury or death.
PREPARATION
• Always wear relatively tight and belted clothing to
avoid getting caught in moving parts.
Wear sturdy, rough-soled work shoes and protec-
tive equipment for eyes, hair, hands, hearing,
and head; and respirator or filter mask where
appropriate.
• Make sure attachment is properly secured,
adjusted, and in good operating condition.
• Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in
death from being run over or crushed. Keep fold-
able ROPS system in “locked up” position at all
times.
• A minimum 20% of tractor and equipment
weight must be on the tractor front wheels when
attachments are in transport position. Without
this weight, tractor could tip over, causing per-
sonal injury or death. The weight may be attained
with a loader, ballast in tires or front tractor
weights. Weigh the tractor and equipment. Do
not estimate. Implement Code given in
Specifications Section, page #1, is used to deter-
min appropriate ballast. See your tractor opera-
tor's manual for required number of weights to
use for your specified Implement Code.
TRANSPORTATION
• Always comply with all state and local laws gov-
erning highway safety and lighting and marking
requirements.
• Never allow riders on power unit or attachment.
• Do not operate or transport on steep slopes.
• Use extreme care and reduce ground speed on
slopes and rough terrain.
• Do not operate or transport equipment while
under the influence of alcohol or drugs. Consult
your doctor about operating this machine while
taking prescription medications.
3 Safety Rules

SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
OPERATION
• Never go underneath equipment (lowered to
the ground or raised) unless it is properly blocked
and secured. Never place any part of the body
underneath equipment or between moveable
parts even when the engine has been turned off.
Hydraulic system leak down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
• Always comply with all state and local laws gov-
erning highway safety and lighting and marking
requirements.
• Operate only in daylight or good artificial light.
• Keep bystanders away from equipment.
• Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of
all moving parts.
• Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in
death from being run over or crushed. Keep fold-
able ROPS system in “locked up” position at all
times.
• Never allow riders on power unit or attachment.
• Always sit in power unit seat when operating
controls or starting engine. Securely fasten seat
belt, place transmission in neutral, engage brake,
and ensure all other controls are disengaged
before starting power unit engine.
• Look down and to the rear and make sure area
is clear before operating in reverse.
• Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides.
• Do not operate or transport on steep slopes.
• Do not stop, start, or change directions suddenly
on slopes.
• Always operate down slopes; never across the
face.
• Use extreme care and reduce ground speed on
slopes and rough terrain.
• Keep alert and watch the front as well as the
rear when operating.
• When making pitch and roll angle adjustments,
be careful to keep hands and feet clear of sliding
parts and possible pinch points.
• Stop power unit and equipment immediately
upon striking an obstruction. Turn off engine,
remove key, inspect, and repair any damage
before resuming operation.
• Before leaving operator’s seat, lower lift arms
and put attachment on the ground. Engage brake,
stop engine, remove key, and remove seat belt.
MAINTENANCE
• Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and
head; and respirator or filter mask where appropri-
ate.
• Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak down, hydraulic system
failures, mechanical failures, or movement of con-
trol levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
Safety Rules 4

MAINTENANCE(cont’d)
• When performing maintenance or repairs
make sure the equipment is in the lowered
position and properly blacked and secured to
prevent rolling. Failure to do so can cause seri-
ous injury or death.
• Make sure attachment is properly secured,
adjusted, and in good operating condition.
• Before leaving operator’s seat, lower lift arms
and put attachment on the ground. Engage
brake, stop engine, remove key, and remove
seat belt.
• Never perform service or maintenance with
engine running.
• Keep all persons away from operator control
area while performing adjustments, service, or
maintenance.
• Tighten all bolts, nuts, and screws to torque
chart specifications, page 12. Check that the
land plane is properly attached to the power
unit and that the equipment is in a safe condi-
tion before putting unit into service.
STORAGE
• Block equipment securely for storage.
• Keep children and bystanders away from stor-
age area.
5 Safety Rules
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Dealer Checklist
(Dealer’s Responsibility)
Inspect the equipment thoroughly after assem-
bly to be certain it is set up properly before
delivering it to the customer. The following
check list is a reminder of points to inspect.
Check off each item if it is found satisfactory or
after proper adjustment is made.
____ Check that all safety decals are installed
and in good condition. Replace if damaged.
____ Check all bolts to be sure they are tight.
____ Check that all cotter pins and safety pins
are properly installed.
____It is important for the dealer to visually
check and make sure all parts are intact prior to
delivery to customer.
____ Show customer the safe, proper proce-
dures to be used when mounting, dismounting,
and storing equipment.
____ For mounted units, add ballast in front
tires, and/or front tractor weight to enhance front
end stability. A minimum 20% of tractor and
equipment gross weight must be on front tractor
wheels. When adding weight to attain 20% of
tractor and equipment weight on front tractor
wheels, you must not exceed the ROPS weight
certification. Weigh the tractor and equipment.
Do not estimate!
____ Show customer how to make adjustments.
____ Present Owner’s/Operator’s Manual and
request that customer and all operators read it
before operating equipment. Point out the man-
ual safety rules, explain their meanings and
emphasize the increased safety hazards that
exist when safety rules are not followed.
____ Point out the safety decals. Explain their
meaning and the need to keep them in place
and in good condition. Emphasize the increased
safety hazards when instructions are not fol-
lowed.
____ Explain to customer the potential crushing
hazards of going underneath raised equipment.
Instruct customer that service work does not
require going underneath unit and never to do
so.
____ Complete the Warranty Registration
located on the Frontier website.
DEALER INSTRUCTIONS
Dealer Instructions 6

levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
• Service work does not require going under-
neath.
• Read Manual for service instructions or have
service performed by a qualified dealer.
• Stop tractor and implement immediately upon
striking an obstruction. Turn off engine, remove
key, inspect, and repair any damage before
resuming operation.
• Always wear relatively tight and belted cloth-
ing to avoid entanglement in moving parts.
Wear sturdy, rough-soled work shoes and pro-
tective equipment for eyes, hair, hands, hear-
ing, and head.
Owner/Operator Pre-Operation Checklist
(Owner’s/Operator’s Responsibility)
____ Review and follow all safety rules and
safety decal instructions on page 2 through
page 6.
____ Check that equipment is properly and
securely attached to tractor.
____ Check that all safety decals are installed
and in good condition. Replace if damaged.
____ Check that all hardware is properly
installed and secured.
____ Do not allow riders.
____ Make sure tractor ROPS or ROPS CAB
and seat belt are in good condition. Keep seat
belt securely fastened during operation.
_______ After day of operation, check all hard-
ware. Retighten if needed. Please see Bolt Torque
Chart (page 12) for proper torque information.
7 Operation
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.
In addition to the design and configuration of
equipment, hazard control and accident prven-
tion are dependent upon the awareness, con-
cern, judgement, and proper training of person-
nel involved in the operation, transport, mainte-
nance and storage of equipment.
It has been said “The best safety device is an
informed, careful operator.”We ask you to be
that kind of operator.
The operator is responsible for the safe opera-
tion of this equipment. The operator must be
properly trained.Operators should be familiar
with the equipment, the tractor, and all safety
practices before starting operation. Read the
safety rules and safety decals on pages 2-5.
• Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt
securely fastened. Falling off power unit can
result in death from being run over or crushed.
Keep foldable ROPS systems in “locked up”
position at all times.
• Never allow children or untrained persons to
operate equipment.
• Keep bystanders away from equipment.
• NEVER GO UNDERNEATH EQUIPMENT.
Never place any part of the body underneath
equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control
OPERATION
WARNING

Connecting Landscape Rakes
The landscape rakes compatible with tractors
equipped with Category 1, 3-point hitch systems
that use side-swing type lower lift arms. The land
planes will also fit tractors equipped with an
Category 1 Quick Hitch system.
Category 1 Standard 3-Point Hook-up
1. Attach the tractor’s lower lift arms to the land
plane on the lower draft hitch pins. Re-install the
lynch pins.
2. Attach the tractor’s top link to the land plane’s
A-Frames, using the heavy-duty top link pin and
lynch pin supplied, with the top link to the upper
top link pin hole.
Category Quick Hitch (Figure 1)
1. Connect the tractor’s Quick Hitch by guiding the
top hook through the lower top link pin with bush-
ings.
2. Install bushing set (sold separately), Number
BW15056, or equivalent, to lower draft pins. These
bushings allow the hooks on the Quick Hitch and
the pins on the landscape rake to fit together prop-
erly. Slide sleeve shoulder bushings over draft
pins. Secure each shoulder bushing with roll pins.
3. Upper bushing should already be installed to
the top link.
Adjusting LR1&LR2
Operation 8
ANGLE
To adjust the angle, remove the pivot pin, Ref. 1,
Fig.1 , and rotate the raketire until the desired
angle is reached. Replace the pivot pin to lock the
angle setting.
TILT
There are two tilt to positions of 15" amd 30"
to both the left and right. Remove the tilt pin,
Ref. 1, FIG. 1A. Pull or push on the edge of the
raketire in order to rotate it up, and down.
Replace the pin when tilt angle is reached and
secure it with the hair pin cotter, Ref. 2.
OFFSET
The LR1&LR2 series landscape rake has 2
manual o󰀨set positions on both the left, and right
side. Adjust the adjustment ratchet in or out thr
desired o󰀨set.

9 Owner Service
• NEVER GO UNDERNEATH EQUIPMENT.
Never place any part of the body underneath
equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control
levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
• Service work does not require going under-
neath.
• Read Manual for service instructions or have
service performed by a qualified dealer.
The information in this section is written for oper-
ators who possess basic mechanical skills. If you
need help, your dealer has trained service techni-
cians available. For your protection, read and
follow the safety information in this manual.
Owner should check and tighten all hardware
after the first hour of operation. The break in
stage of your new grader blade can cause mini-
mal loosening of hardware. Please see Bolt
Torque Chart (page 12) for proper torque infor-
mation.
• Keep all persons away from operator control
area while performing adjustments, service, or
maintenance.
• Before dismounting power unit or performing
any service or maintenance, follow these steps:
disengage power to equipment, lower the 3 point
hitch and all raised components to the ground,
operate valve levers to release any hydraulic
pressure, set parking brake, stop engine, remove
key, and unfasten seat belt.
• Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and
head.
Storage
When storing your land plane make sure the unit
is placed on level ground and clear of any
obstructions. Use caution when disconnecting
the land plane from the tractor.
WARNING WARNING
WARNING
CAUTION
OWNER SERVICE
CAUTION

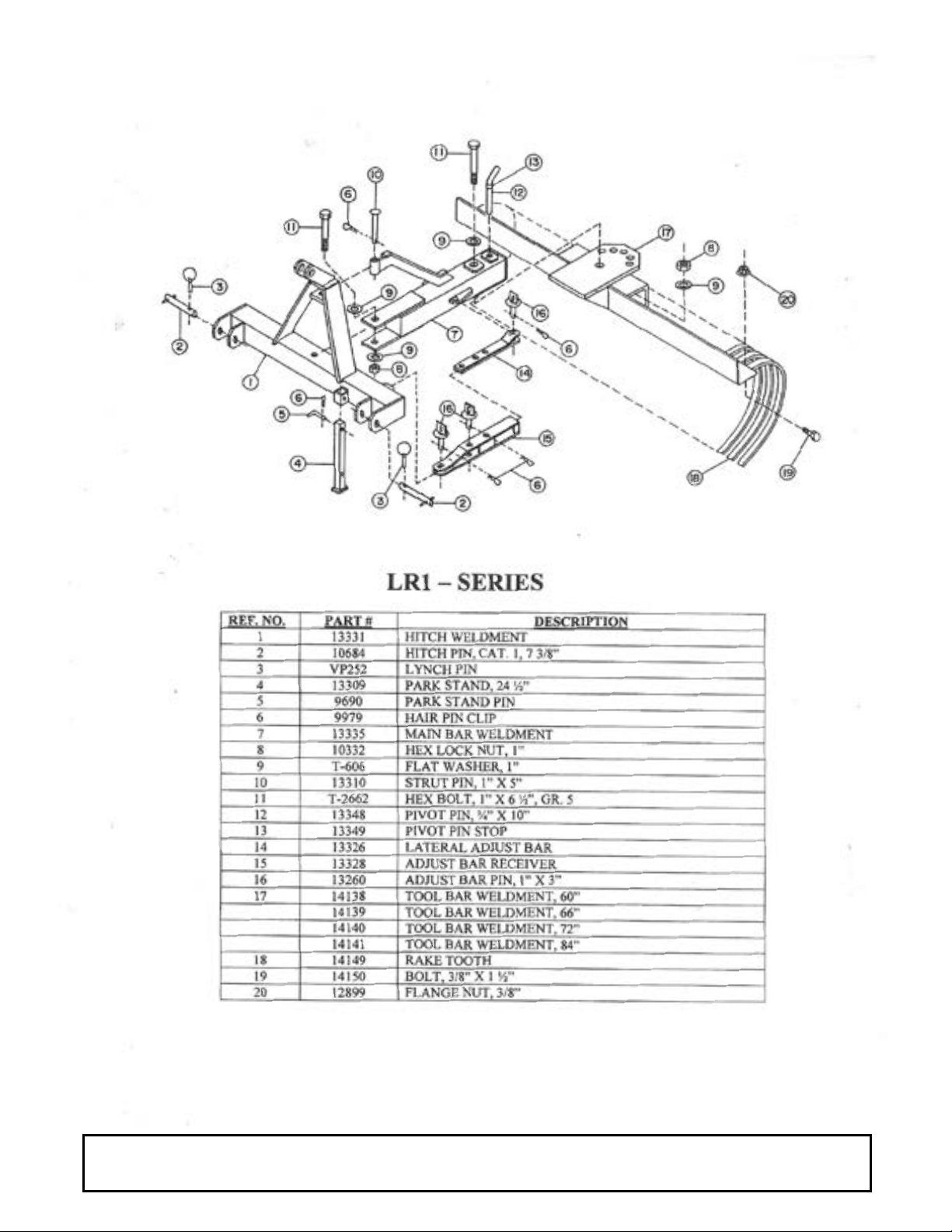

Parts Catalog 10
*MS = Model Specic

12 Parts Catalog
11 Parts Catalog

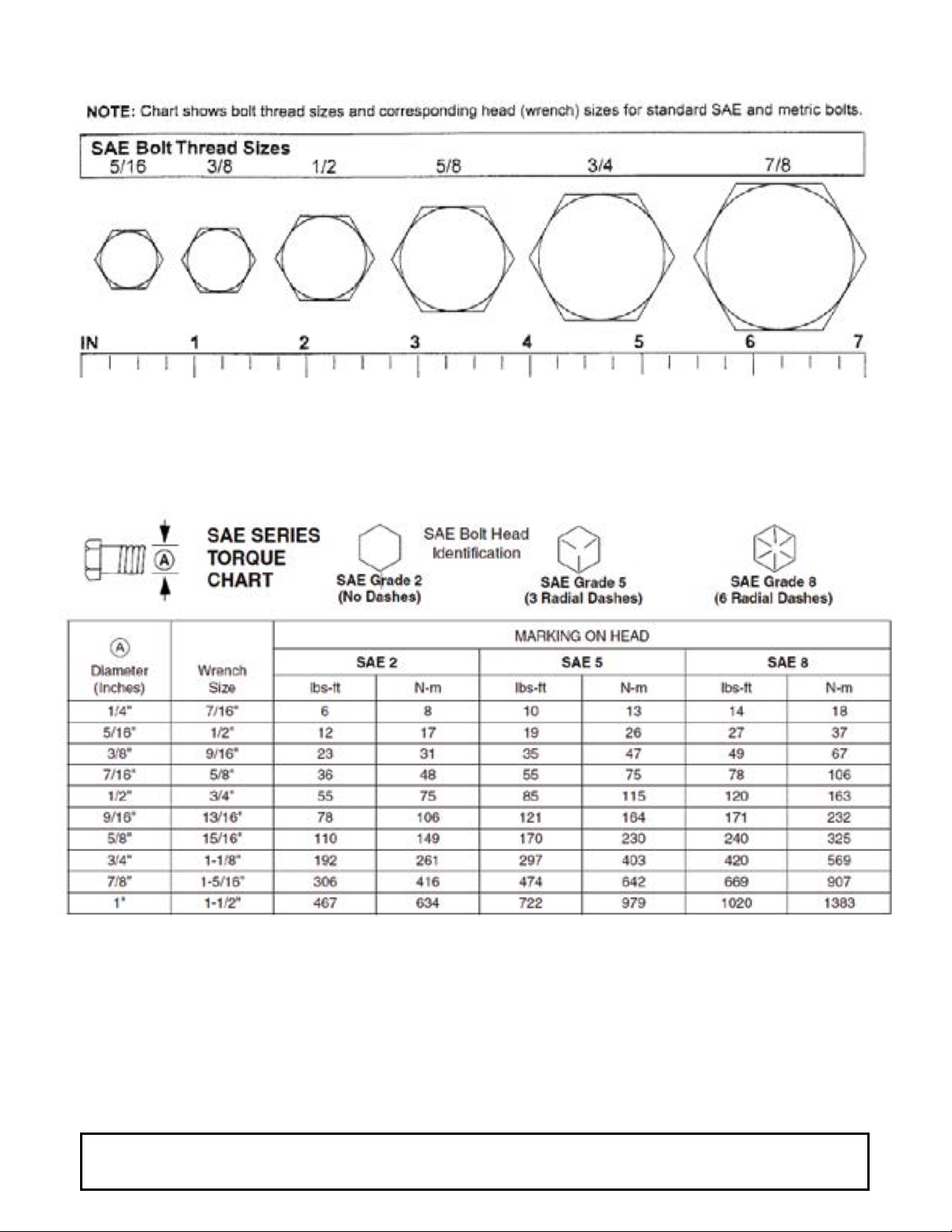

Bolt Size and Bolt Torque Chart 12
Bolt Size Chart
SAE Torque Chart

© 2018 Monroe Tufline Manufacturing, Inc. All Rights Reserved
PART NO.
14339
