Tuindeco 31.5007 User manual

Instruction Manual
Electric Patio Heater
ART. NR. 31. 5007
Please read these instructions carefully before using your
new heater
Unpack the heater to make sure that all the items are present
and that there are no components left in the box and that the
heater head is free from any packing material.
Using the detailed drawing follow the steps to assemble your
heater.
Do not connect the heater to the electrical supply until all the
assembly is complete.
Do not connect the heater to the electrical supply if any of the
components or the power cord is damaged in any way.
If in doubt contact your supplier.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
The instruction manual shall provide adequate instructions for
connection to the supply ensuring an equivalent protection!
WARNING: This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant
supervision is provided.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
Accessories
Connection to 220-240 Volts Power Supply
It is important to ensure that the electricity supply is of adequate
capacity for the electrical load required by the appliance being
installed.
These appliances must be earthed.
Installation
Heater ZHQ1898-CW is built with the best quality components in
accordance to the prevailing legal regulations and certified for safety in
use. For best results from the appliance please ensure that the
installation is done by a qualified electrician in accordance with the
following instructions and taking full account of current regulations.
When using the heater, please carefully follow the instructions and
recommendations below.
You could change the position of the M4*8 screws○ 7and the
M6*10 screws○ 3 for the best Angle of heating. We have 6
positions for your choice. (near:0°，16°，32°；far: 0°，16°，32°)
REF.
Name
Qty
REF.
Name
Qty
1
Part 1
1
7
screws M4*8
2
2
Explosive bolt
M6*50
4
8
screws M6*10
2
3
screws M6*10
4
9
M6 spanner
1
4
Part 2
1
10
‘L' hexagonal
wrench
1
5
Security screw
M6*10
1
11
Remote control
1
6
part 3
2
12
chain
2

Installation to Wall
When fixing the heater to a wall, ensure hinges are in the
underside so that the lid hands down in the open position.
Minimum required distances:
a) 500mm from the side wall
b) 500 mm from the ceiling
c) Installation height above 1.8M
Installation to Ceiling
Minimum required distances:
d) 250mm from the side wall
e) Minimum 500mm from the ceiling(range:500mm-750mm)
f) Installation height above 1.8M
The heater must be fixed to a wall with the bracket supplied to
allow adequate ventilation.
Never fix or place heater near flammable or combustible materials.
Generally heaters must be placed at a safe distance (clear space)
of at least 2.0m from combustible materials and glass walls. If
installed in workshops or garages where inflammable or
combustible paints are used, the heaters must be installed at a
distance of at least 4.0m from the source of danger.
If the heaters are placed in areas where spray painting of any
description is taking place, they should not be used during the
painting operations.
Never use the heater in particularly dusty and explosive areas.

Assembling Processfor wall mounted
Preparation stage:
Please remove the four M6*10 Screwson the heater,and use them
for the Step 2

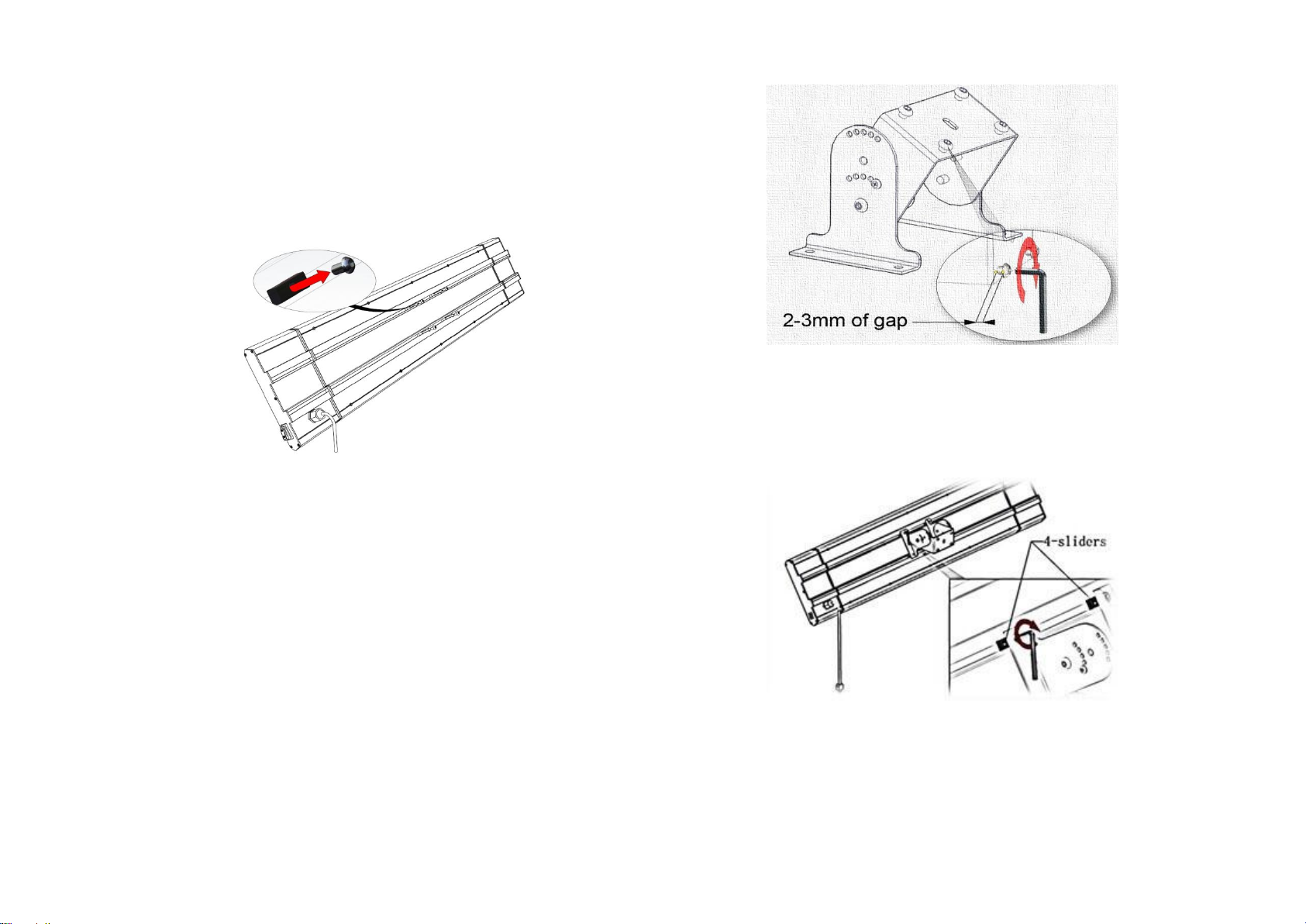

Step1: Assemble the bracket. (③,⑥,⑦,⑧)
Do not tighten the four M6*10screws ③, reserve 2-3mm of gap for
step 4.
Step 2:Install the bracket on the back of the heater.
Adjust the four sliders which inside the track to the middle of the
heater .Fix the bracket which you have assemble in the step 1 with four
M6*10 screws○ 3 , tighten them with ‘L ‘hexagonal wrench○ 10。
Step 3: Fix the part 1○ 1 on the wall, tighten the four nuts (a part of
explosive bolt M6*50)○ 2 with M6 spanner○ 9

Step 4: Put the heater on the wall, slide it into the part 1○ 1 .
Step 5: Please tighten the M6*10securityscrew○ 5toavoid accidents
Complete!

Assembling Process for celling type
Preparation stage:
Please remove the four M6*10 Screws on the heater,and use them for
the step1.
Step1:
Adjust the four sliders which inside the track.The distance between the
sliders should be between 600 mm to 788 mm. Fix the Brackets⑥
with four M6*18 screws, tighten them with ‘L ‘hexagonal wrench.
Step2:
Let the carabineer at the end of the chains○ 12 through the holes of the
Brackets .The length adjustment range of two Chains○ 12 are between
500mm-750mm.
Complete!

Caution
Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable
people are present.
1. Mount the heater outside or in a large open area and well away
from any obstructions such as branches or where the heater is
near any objects that can be affected by heat, such as furniture,
curtains or other inflammable objects (minimum distance 1
meter).
2. Do not position immediately above or below an electrical socket.
3. The unit must be placed with the clearance of 180cm to the floor
and 30cm to the ceiling.
4. When the power supply cord is damaged, it must be replaced by
authorized agent or other professional people to avoid danger.
5. This appliance is not intended for use by persons (including
children) with reduced physical. Sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not use it near bath tubs, wash areas or swimming pools.
8. Do not use it in unventilated areas
9. Do not use where gas, petrol, paint or other inflammable goods
are stored.
10. Do not move when connected to an electrical supply and always
wait until the patio heater cool down before storing away.
11. Do not touch the heater head when in use.
12. Do not leave after turn it on and unattended especially when
children or animals are in the vicinity.
13. The indication of different positions of switches should be visible
from a distance of 1M at least.
14. The Marking concerning covering shall be visible after the
heater has been installed. It shall not be placed on the back of
heaters.
15. The heater must be correctly installed according to the
instructions.
16. The heater must be securely placed on a horizontal and flat Wall
surface.
17. The heater will be at high temperature when in use. It keeps hot
for a period after shut down. Potential danger would occur when
you touch it during this period.
18. Don’t place the heater closed to curtain or other flammable
objects. Otherwise there will be a danger of catching fire.
19. Don’t cover the heater with anything when in use or a short time
after it is shut down.
20. Don’t wrap the power supply cord on the heater.
21. The heater must be handled with care, and avoid vibration or
hitting.
22. The heater must be securely grounded when in use.
23. If the heater gets damaged, it must be repaired by professional
electricians.
24. When assembling, keep away from any board or flammable
material.
25. The heater must be supervised by adults when it is used by a
child.
26. It is not safe to install the heater near a swimming pool, in a
bathroom or shower area.
27. The heater is for household use only. It is not safe to use on a
building site, greenhouse, barn or stable where there’s
flammable dust.

28. The heater is at high temperature when in use. Unplug the
heater and wait until it cools down before cleaning.
29. Don’t use this heater in place where causticity or volatile air
exists, such as dust, steam, gas, etc.
30. Don’t use this heater as a cloth drier or towel drier.
31. Don’t use this heater as a sauna heater.
32. Don’t use this heater in place of animal propagating and raising.
33. The heater should be plugged in a socket, which is easily visible
and reachable.
34. Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.
35. Do not use this heater with a programmer, timer, separate
remote-control system or any other device that switches the
heater on automatically, since a fire risk exist if the heater is
covered or positioned incorrectly.
36. Place the heater outside or in a large open area and well away
from any obstructions such as branches or where the heater is
close to any objects that can be affected by heat, such as
furniture, curtains or other inflammable objects (minimum
distance 1 meter).
37. The instruction manual shall provide adequate instructions for
connection to the supply ensuring an equivalent protection!
38. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Operation
Connect the power cable to a 13 amp supply which is located in a safe,
dry area.
The switch on the heater is used to control the Heater. When the
position mean on the【ON】, the first indicator light will be turn red,
the heater will be in standby mode. The【OFF】position will turn off
the Heater.

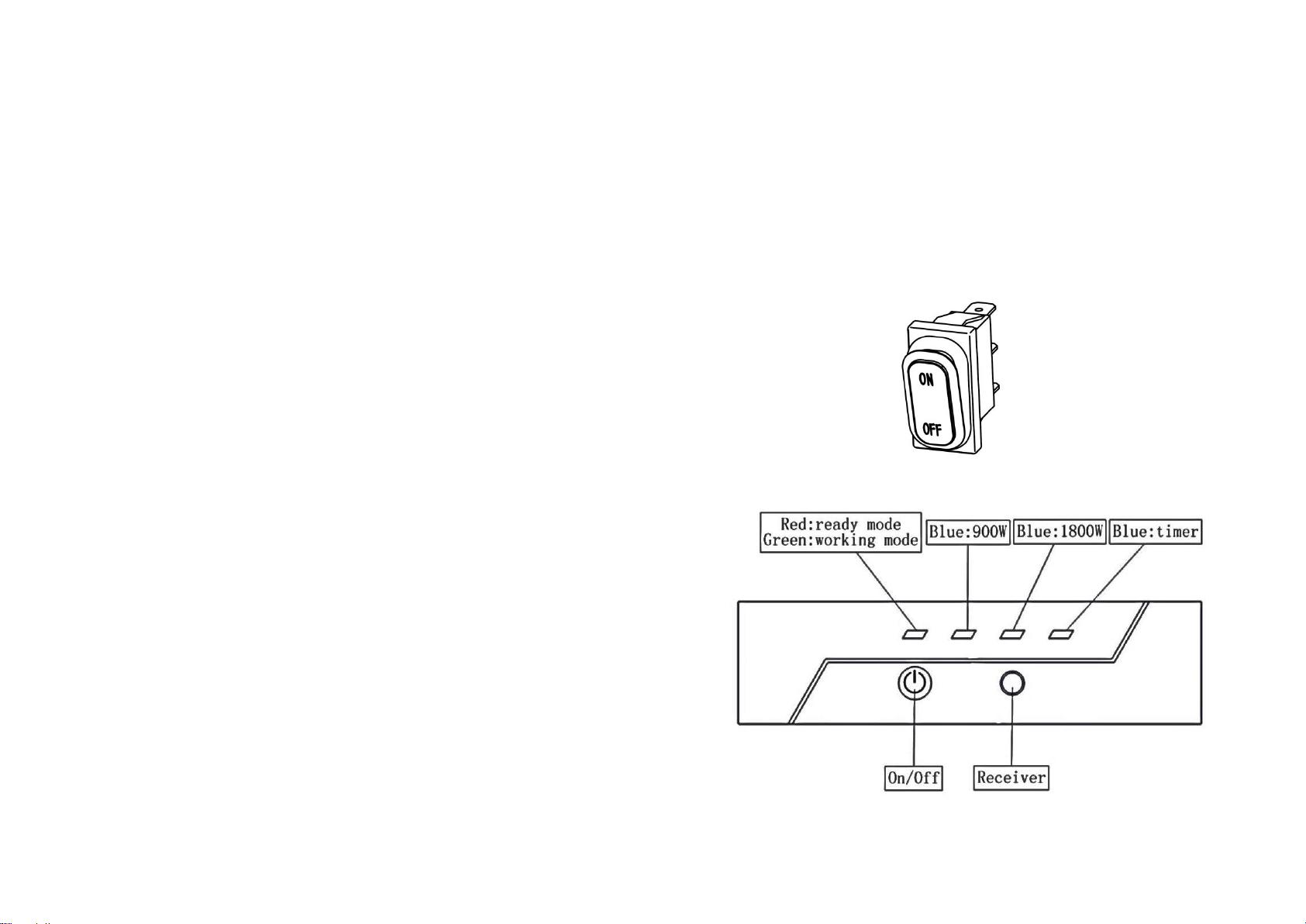

The panel control:

The remote control:
Although the patio heater is waterproof, do not use when raining or
in wet conditions.
Never connect the power cable from the electrical supply, when the
patio heater is not in use.
Care and maintenance
•When disconnected from the electrical supply, clean the surface
of the patio heater with a damp cloth. Never use corrosive or
solvent cleaners or immerse in water.
•Any maintenance or repairs including replacing the halogen
tube should only be carried out by a qualified electrician or by a
recommended service center.
Technical specification
•Power supply 230V~50Hz
•Wattage max1800w
•Net weight 6.5 kg
•Insulation class I
•Width23 cm; Lengh:109cm
