Turn of the century 355-6777 User manual

LIMITED LIFETIME WARRANTY
Model No.: # 355-6777 / 355-7531
To obtain Service, please contact Turn of the Century Service Department:
1-800-887-6326, 9 a.m.- 5 p.m. central time.
Turn of the Century
TM
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Turn of Century Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Turn of Century Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Turn of Century Service Department at 1-800-887-6326, 9AM-5PM CST. You will be
responsible for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Turn of Century Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

121013

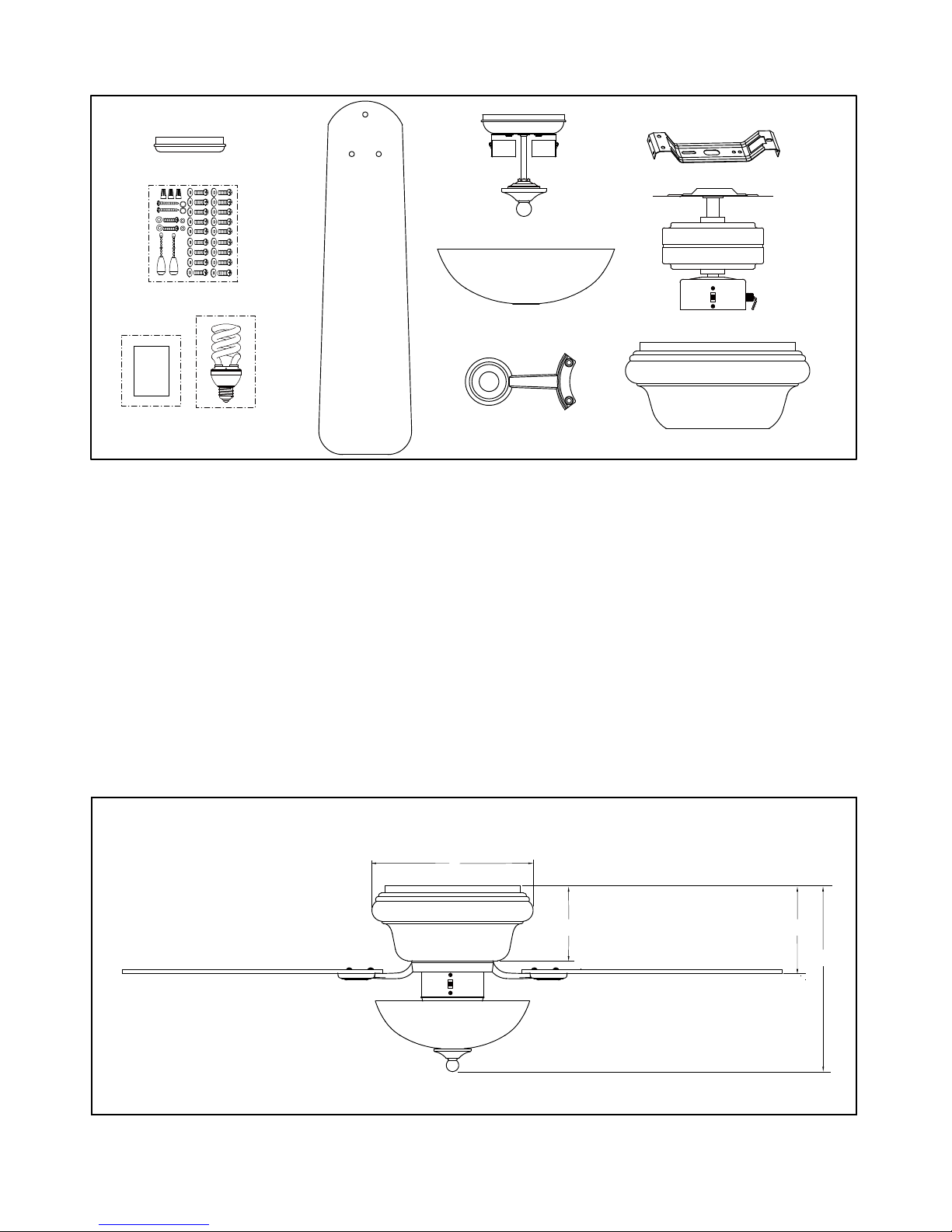

Unpack your fan and check the contents. You should have the following items.
1.) Mounting Bracket
2.) Hang Motor Assembly
3.) Housing
4.) Fan Light Kit
5.) Glass Shade
6.) Blade Bracket (5 PCS)
7.) Fan Blade (5 PCS)
8.) Switch Box Cover
9.) Assembly Kit
10.) Installation Instructions
11.) E26 Medium Base Spiral Fluorescent Bulb (Max.13W, incluced) (2 PCS)
Package Contents:
Dimension Reference:
A. 12-1/2” B. 5” C. 10-1/4” D. 4-3/4”
Turn of the Century
10
9
Installation Instructions
1
2
3
4
5
6
8
7
C
B
D
A
11
PAGE: 1 / 7

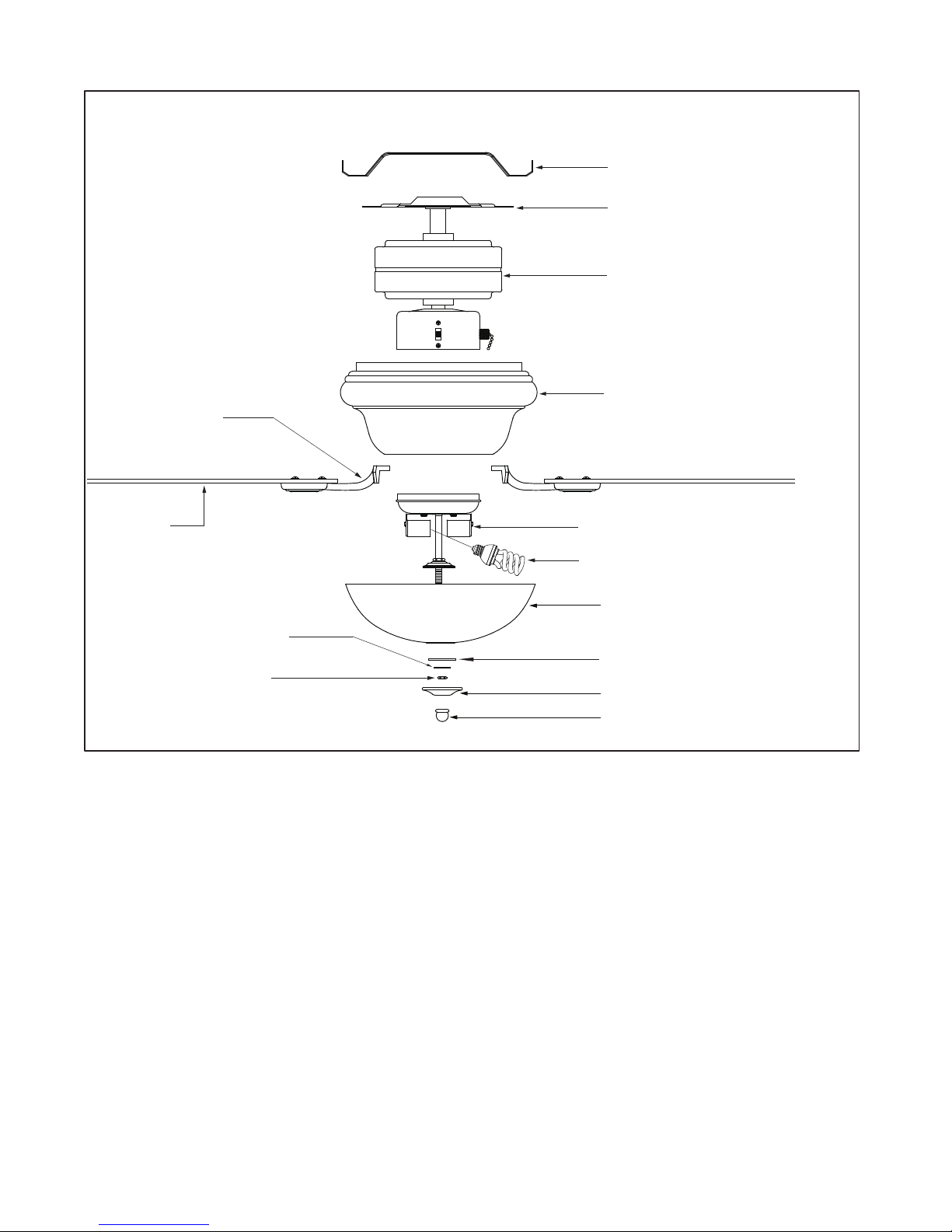

Exploded View Detail
Mounting Bracket
Mounting Bar
Hang Motor Assembly
Housing
Blade Bracket
Blade
121013
Turn of the Century
TM
Glass Shade
Finial
End Cap
Rubber Pad
Hex Nut
Metal Pad
Light Bulb
Fan Light
PAGE: 2 / 7

Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
121013
Turn of the Century
PAGE: 3 / 7

PAGE: 4 / 7

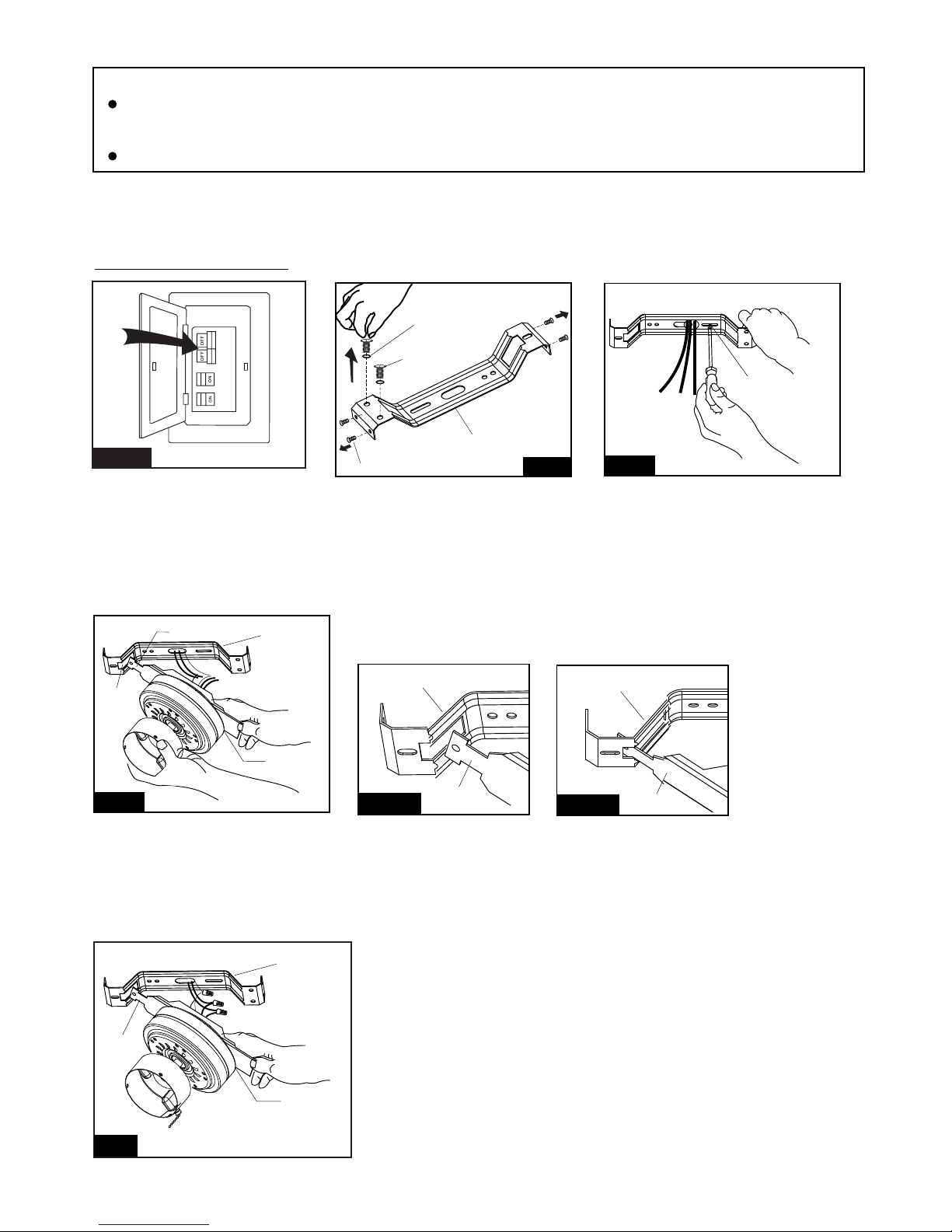

Installation Steps :
INSTALLATION INSTRUCTIONS
IMPORTANT:
NOTE: The fan weight is 12.2 lbs (5.5 kgs). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury.
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
121013
Turn of the Century
TM
Screws
and Washers
Fig.3
Unscrew the lock screws, lock
washers and screws from mounting
bracket.
Screw
Fig.2
Mounting Bracket
Lock Screw
Lock Screw
Tighten the mounting bracket to the
outlet box with 2 mounting screws
and washers. (To reduce the risk of fire,
electric shock, or personal injury, mount
to the outlet box marked "Acceptable for
fan support" and use mounting screws
provided with the outlet box.)
Pull the electrical wires from the outlet box
through the center hole of the mounting
bracket for motor wiring installation.
Attach hang motor assembly onto
mounting bracket. Insert the End A
of mounting bar through the loop
hole of the mounting bracket for
hands-free wiring.
(See Fig.4-1 and Fig.4-2)
Fig.4
End A
loop hole
Mounting
Bar
Mounting
Bracket
Fig.4-1 Fig.4-2
Before install After install
End A
End A
Mounting Bracket Mounting Bracket
Mounting
Bar
End A
Mounting
Bracket
Fig.5
Connect wires:
1). The white (neutral) wire from motor to the white (neutral) wire from the
outlet box with a wire nut.
2). The black (hot) wire from motor and blue wire to the black (hot) wire
from the outlet box with a wire nut.
3). The green (ground) wire from the motor to the ground wire from the
outlet box with a wire nut.
*** After making the wire connections, the wires should be spread
apart with the white (neutral) conductor and the green (ground)
conductor on one side and the black (hot) conductor on the other
side of the outlet box.
*** The wire connection points should be turned upward and pushed
carefully up into the outlet box.
BEFORE YOU BEGIN INSTALLATION, CAREFULLY READ ALL INFORMATION PROVIDED ON THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
SAVE ALL INSTRUCTIONS.

PAGE: 5 / 7 121013
Turn of the Century
TM
Screw & Lock Washer
Decorative Housing
Mounting Bracket
The decorative housing has two mating
slots and two mating holes. Position both
slots on the decorative housing directly
under and in line with two screws and
washers in the mounting bracket. Lift the
decorative housing, allowing the two
screws and washers to slide into the
mating slots. Rotate the decorative
housing counterclockwise until both screws
from the mounting bracket drop into the slot
recesses. Tighten screws securely.
Install the other two screws and washers
into the mating holes of the mounting
bracket and tighten to secure the decorative
housing to the mounting bracket.

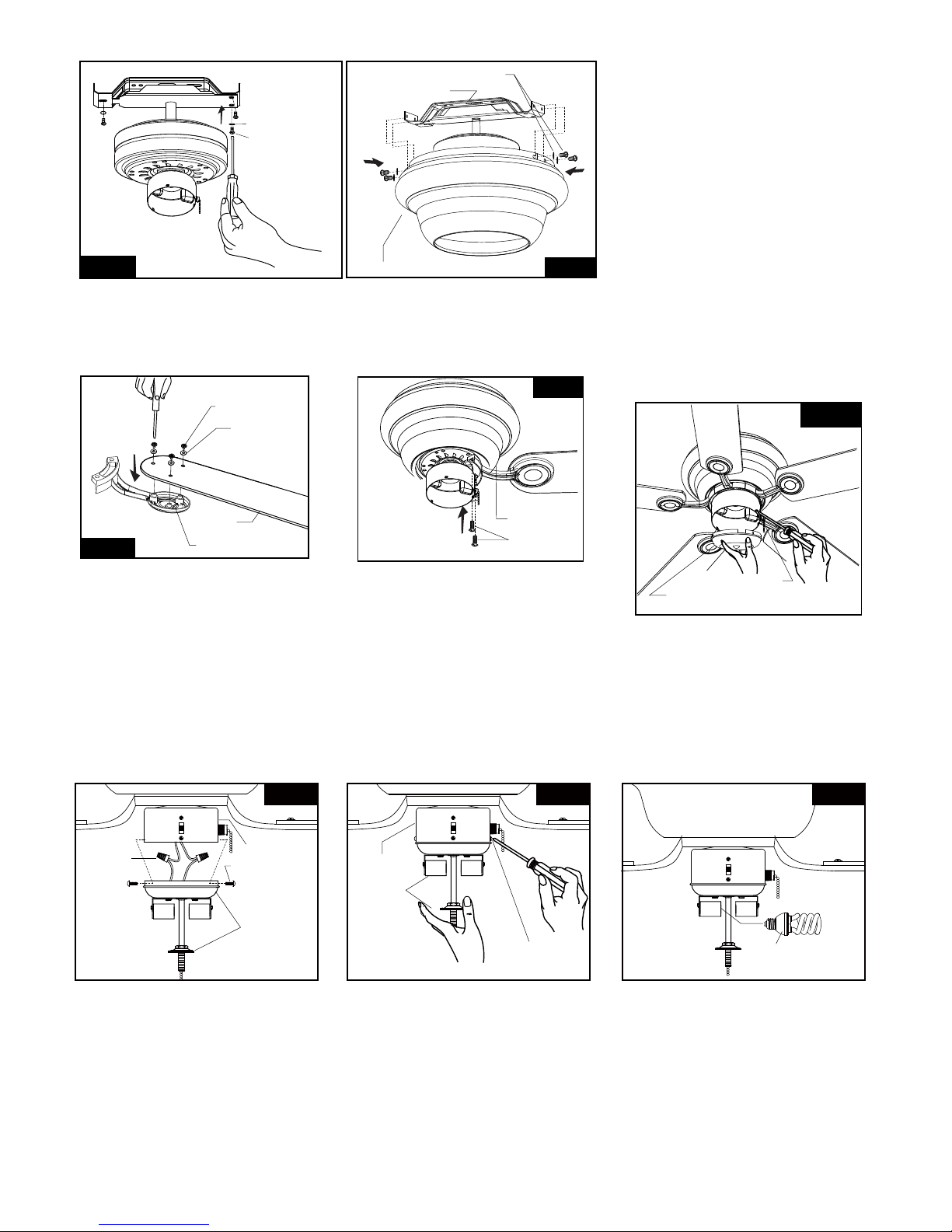

Fig.7
Fig.8
Blade Screw
Washer
Blade Bracket
Blade
Secure the blade brackets to the motor
with motor screws and washers.
Fig.9
Motor Screw
Blade bracket
Fig.6
Lock Washer
Lock Screw
Attach the mounting bar to the mounting bracket with the lock washers
and lock screws using a screwdriver. (Tighten the three locked screws
securely)
Fig.10
Switch Box Screw
Switch Box Cover
Make sure the wires of the fan light in
the switch box are capped with wire
nuts. Secure the switch box cover
with the switch box screws.
To install the fan light, skip this
step and proceed to Fig.11.
Fig.11
Install bulbs (included). See relamping
label at socket area or packaging for
maximum allowed wattage.
Connect wires:
--- The blue wire from the switch box to
the black wire from fan light.
--- The white wire from the switch box
to the white wire from fan light.
Carefully put the wires into the switch
box.
Wire Nut Switch Box
Switch Box Screw
Fan Light
Fig.12
Install the fan light onto the switch box
with the switch box srews.
Switch Box
Switch Box Screw
Fan Light
Fig.13
E26 medium base spiral
fluorescent Bulb
(Max.13W, incluced)
Install without fan light
Mount each blade bracket to fan blade
using three blade screws and washers.
Install fan light

PAGE:6/ 7
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Fig.20
121013
Turn of the Century
TM
Fan Speed Pull
Chain
Fan Light Pull Chain
Reverse
Forward
Reverse Switch
Fig.21-a
The slide switch sets direction of fan rotation. Select the desired direction of fan
rotation. Push the slide switch down for " Forward" and up for "Reverse".
CAUTION: If you install a Wall Control for this fan, make sure to use the pull
chains to select the "high" position for the fan speed and the "on" position
for the fan light.

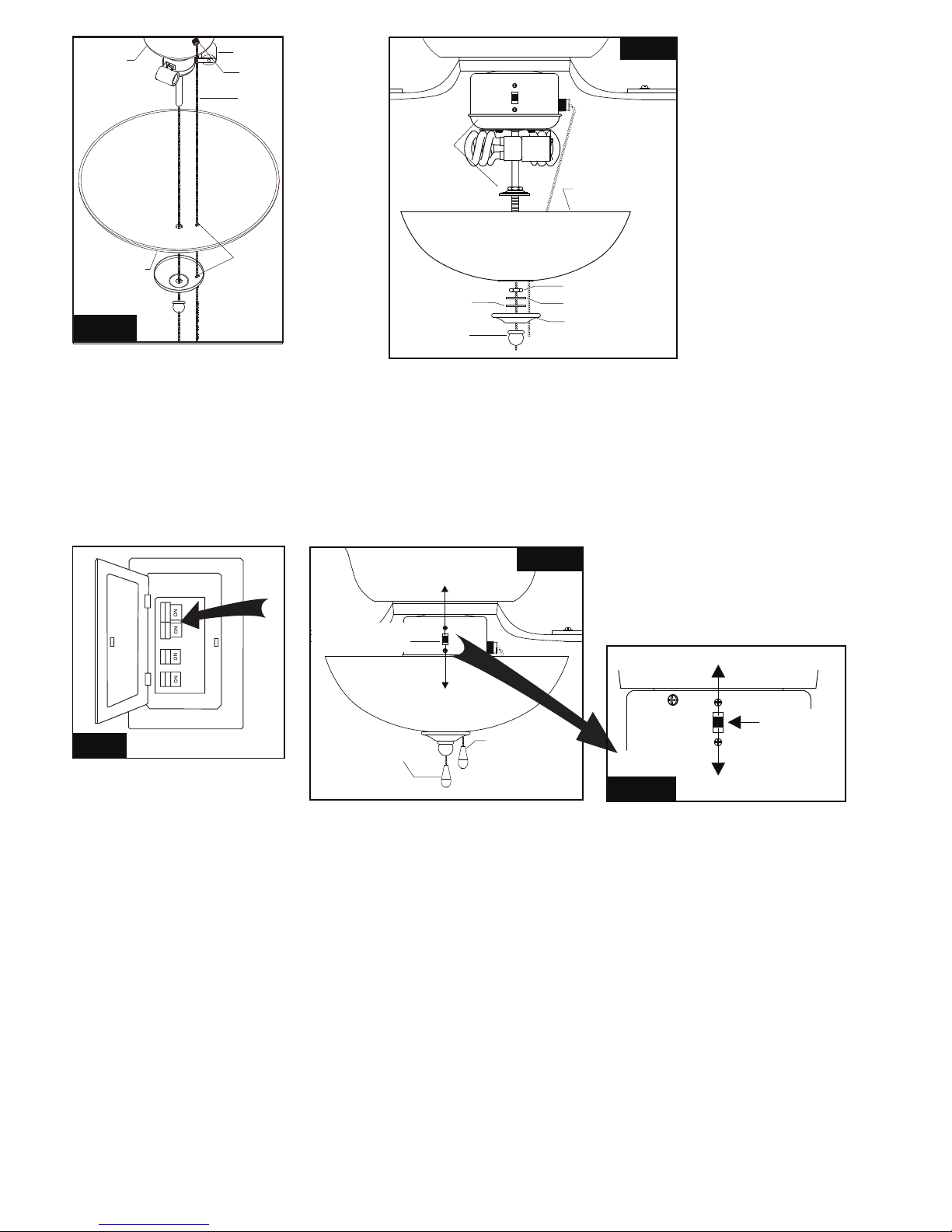

Install the glass shade, rubber washer and metal washer upward
through the nipple and secure with hex nut. Then attach the end
cap to the glass shade and secure it with finial. Take care to align
the holes on the glass shade and the end cap, so the pull
chains pass through and move freely.
Glass Shade
Fan Light
Hex Nut
Metal Pad
Rubber Pad
End Cap
Finial
Fig.19
Fig.21-b
Slide Switch
Reverse
Forward
Hole
Fan Light
Knob
Switch Box
Glass Shade
Chain
Fig.18
*** Adjust the glass shade and cap
direction, make sure that the
hole of glass shade and the knob
of the switch box are lined up
perpendicularly.
*** Adjust the fan light direction,
make sure that the chain does
not touch the sockets or light bulb.

PAGE: 7 / 7 121013
Turn of the Century
TM
Trouble Shooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department
(1-800-887-6326).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4. If using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. Wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade holders.
2. Check that all blade holders are tightened securely to motor.
3. Make sure that canopy and mounting plate are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main circuit is turned off before entering switch housing.
SUGGESTED REMEDY

DYNAMIC BLADE BALANCING KIT
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade holders. Also, improper assembly in the mounting system or crooked bearings
may cause some additional problems. This balancing kit can be used to fix wobbling problems.
1. Make certain that all blades are firmly screwed into the blade holder.
2. Make sure that all blade holders are firmly secured to the motor housing and check that the pitch
of blade holders are all the same.
3. By looking up at the fan from below, check and be certain that none of the blade holders are bent
and that none of the blades are out of position. A correction can be made by very gently bending
the blade holder back into position.

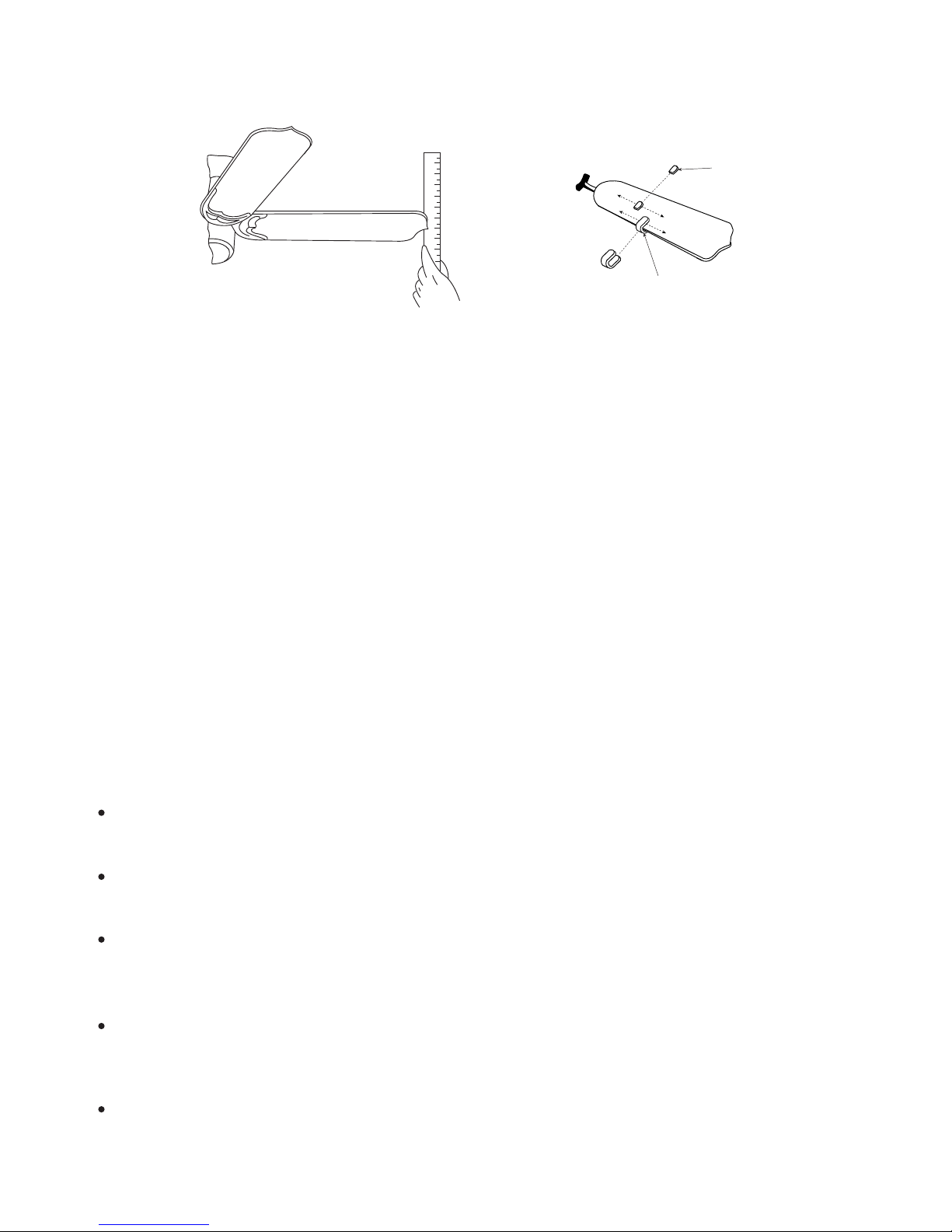

4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. If the blade is not in
alignment, the blade holder may be gently bent up or down to be in line with the other blades.
After following all the steps and if the wobbling problem is not solved, a dynamic balancing needs
to be done by balancing kit. Follow the procedure listed below:
Turn the fan on and adjust the speed control (usually high speed) setting to the speed which
creates the greatest wobble.
Turn the fan off. Select one blade and place the balance clip on it, halfway between the blade
holder and the blade tip on the rear edge of the blade.
Turn the fan on. Watch to see if the wobble is improved or worsened. Turn the fan off again and
move the clip to another blade and test again. Repeat this process with all blades and then note
the blade which is the most improved.
Move the clip back to the blade which showed the most improvement. Move the clip inward and
outward on this blade and operate the fan to find the position where the clip gives the most
improvement.
Next remove the clip and install a balancing weight to the top of the blade along the centerline
near the point where the clip was positioned. Use a sharp knife or razor to separate the weights.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result .
PREFACE
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
1
2
3
4
5
6
7
8
9
