Turn of the century 355-3001 User manual

LIMITED LIFETIME WARRANTY
Model No.: # 355-3001/355-3002
To obtain Service, please contact or call Turn of the Century Service Department:
1-800-887-6326, 9 a.m.- 5 p.m. central time.
Turn of the Century
TM
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Turn of Century Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Turn of Century Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Turn of Century Service Department at 1-800-887-6326, 9AM-5PM CST. You will be
responsible for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Turn of Century Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

121019
Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Downrod Set (Includes Hanger Ball, 4” Downrod, Hanger Pin & Lock Pin)
4.) Blade Bracket (5 PCS)
5.) Fan Fixture Set
6.) Switch Box
7.) Switch Box Cover
8.) Fan Light
9.) Fan Blade (5 PCS)
10.) Glass Shade (4 PCS)
11.) Assembly Kit
12.) Type A15 Bulb Max.40W (4 PCS)
13.) Installation Instructions
Package Contents:
Dimension Reference (Installed with 4” Downrod):
A. 18” B. 11-1/2” C. 2-1/8” D. 11” E. 5-1/4”
Turn of the Century
Installation Instructions
1
5
6
8
9
10
2
3
4
E
C
B
A
D
PAGE: 1 / 7
7
11
12
13

Exploded View Detail
Hanger Bracket
Canopy
Downrod
Hanger Ball
Collar
Lock Pin
Housing
Hanger Pin
Blade Bracket
Switch Box
Blade
Fan Light
Glass Shade
121019
Turn of the Century
TM
PAGE: 2 / 7
Bulb
Downrod Mount
Ceiling Mount
Slope Ceiling Mount (Up to 23 degrees)
Triple Mount Options

121019
Turn of the Century
TM
PAGE: 3 / 7
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING

PAGE: 4 / 7
(For ceiling mount only):
Attach the canopy to the housing
with three ceiling mount screws.
Go to Fig.9 for the next step.
(For downrod mount only):
Thread the motor wires through the
canopy and downrod.

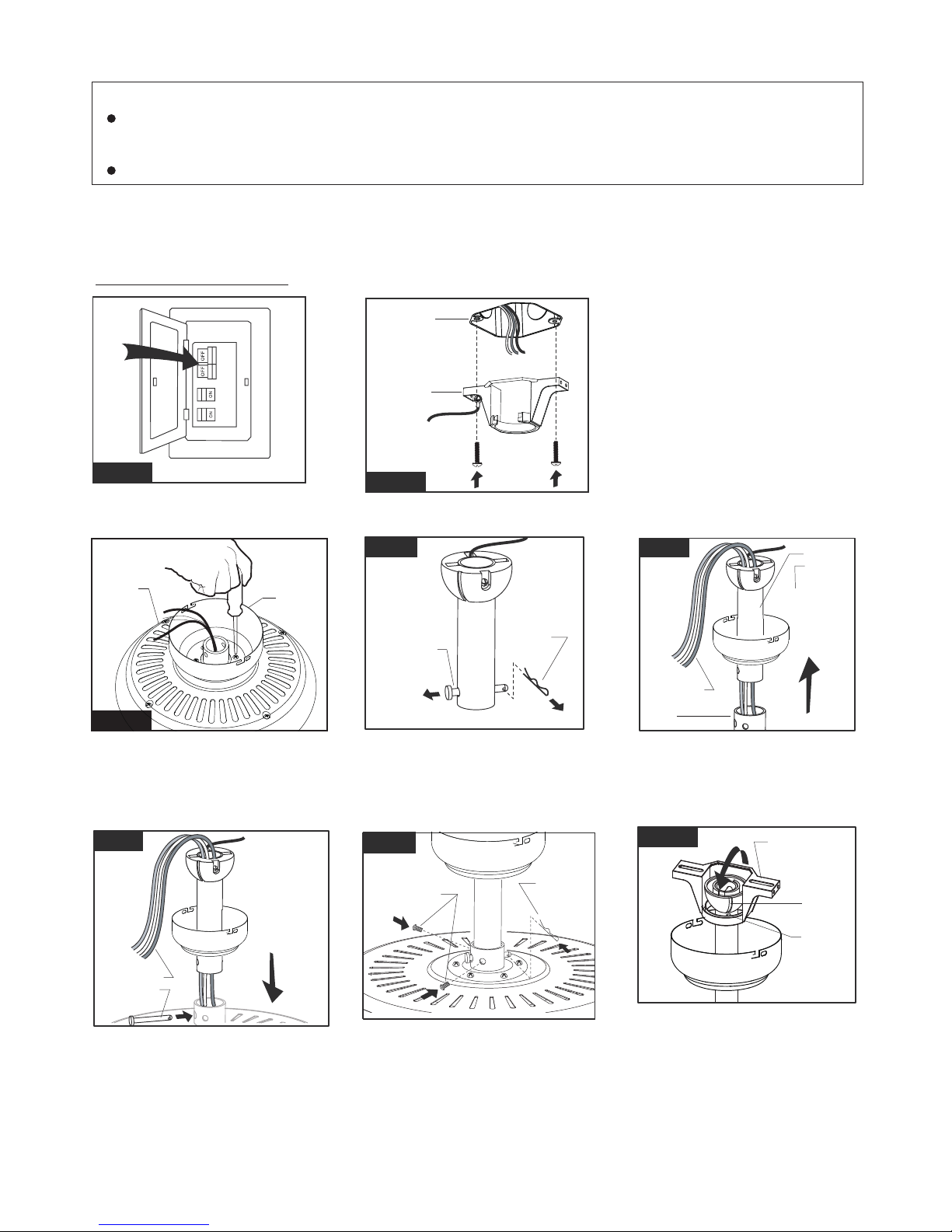

Installation Steps :
Fig.3.
Canopy
Hanger Pin
Lock Pin
Collar
Housing
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLATION, CAREFULLY READ ALL INFORMATION PROVIDED ON THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
NOTE: The fan weight is 15 lbs (6.9 kgs). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury.
Tighten the hanger bracket to the outlet
box with 2 mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to the outlet box marked
"Acceptable for fan support" and use
mounting screws provided with the outlet
box.)
Note: For slope ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
(For downrod mount only):
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For slope ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket faces down.
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
(For downrod mount only):
Remove the Lock Pin and take off
the Hanger Pin.
Fig.4
(For downrod mount only):
Insert the Downrod into the Collar.
Slide Hanger Pin through holes of
Collar and Downrod.
Fig.5
Motor Wires
Downrod
Canopy
Fig.6
Motor Wires
Hanger Pin
(For downrod mount only):
Insert and tighten the two Collar
Screws. Slide Lock Pin into Hanger
Pin until it locks into position.
Fig.7
Lock Pin
Collar Screws Slot
Chip
Hanger Bracket
Fig.8
121019
Turn of the Century
TM
Hanger
Bracket
Fig.2
Outlet Box

Fig.11. Fig.12. Fig.13.
Insert the motor wires through the
switch plate.Tighten switch plate to
fan using the screws. Secure the switch cover with the
switch plate screws.
Use pull chain to control the fan
speed.
Connect the female terminal from
motor and male terminal from the
switch plate.
Install without fan light kit
switch plate
Pull Chain
PAGE: 5 / 7
Fig.11. Fig.12.

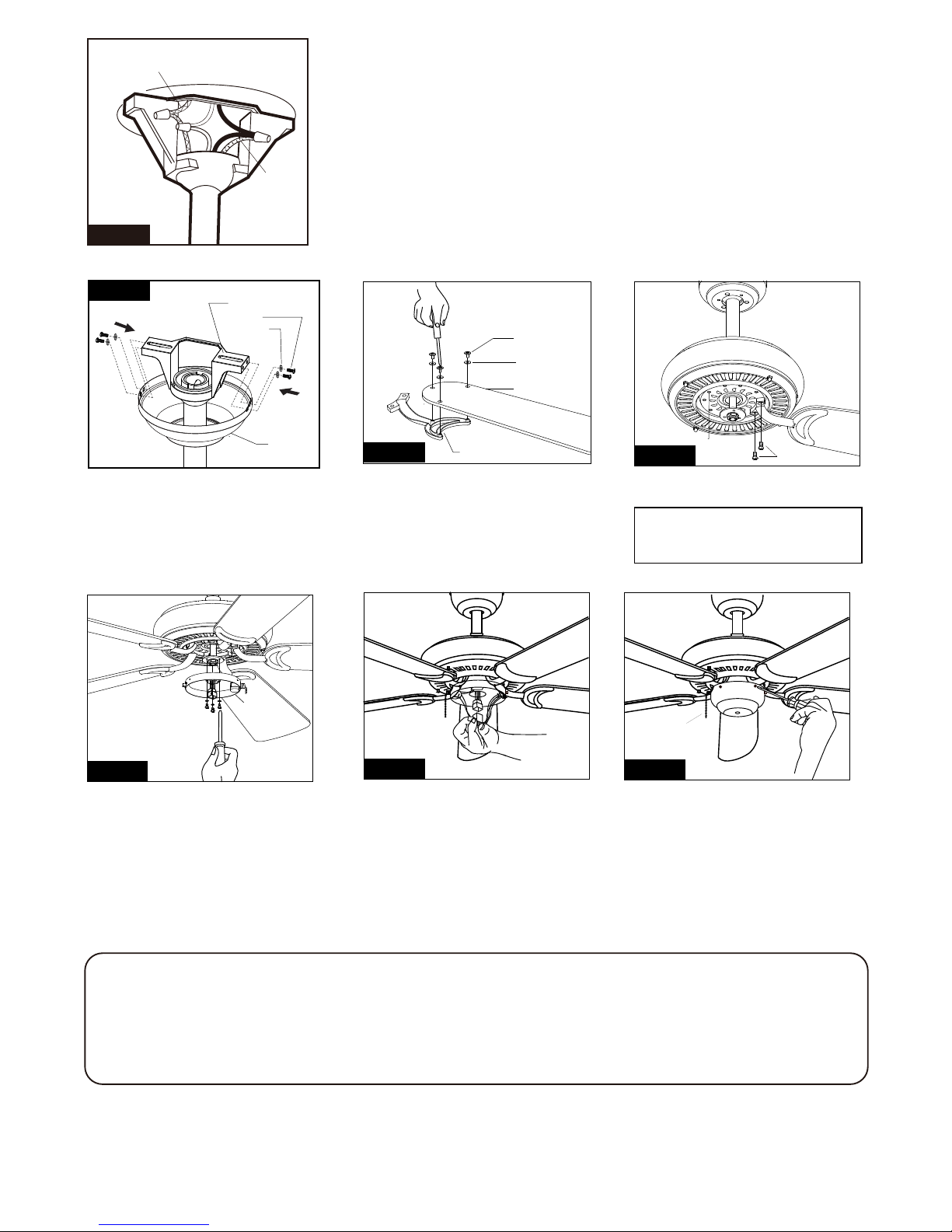

Tighten blades to blade brackets by
using blade screws and washers.
Blade Screw
Washer
Blade
Blade Bracket
Secure blade brackets to the motor
with motor screws and washers.
Turn of the Century
TM
Blue
Green (Ground)
Fig. 9
Motor Screw
WARNING:
As per EPACT 2005 requirements, this fan light has a built-in current limiting device to conserve
energy. The fan light will not operate if the combined wattage of the installed bulbs exceeds 190
Watts. If the fan light shuts off shortly after being switched on, it may be due to excessive current
demand. You should replace the light bulbs with lower wattage bulbs.
NOTE: Before installing blade
brackets to the motor, please
remove the plastic inserts.
Plastic Insert
Connect wire:
1). The white (neutral) wire from motor to the white (neutral) wire from the outlet
box with a wire nut.
2). The black (hot) wire from motor and blue (hot) wire to the black (hot) wire from
the outlet box with a wire nut.
3). The green (ground) wire from the motor to the ground wire from the outlet box
with a wire nut.
*** After making the wire connections, the wires should be spread apart with the
white (neutral) conductor and the green (ground) conductor on one side
and the black (hot) conductor on the other side of the outlet box.
*** The wire connection points should be turned upward and pushed carefully up
into the outlet box.
Attach the canopy to the hanger
bracket, and then secure it with
four screws and washers.
Screw
Hanger Bracket
Washer
Canopy
Fig.10
121019
Install fan light (Provided with package)

Fig.17.
Fig.14. Fig.15. Fig.16.
Secure the fan light kit with the switch
box screws. Secure the glass shade with set
screws. Install light bulbs (included).
••
Connect the white (neutral) wire from
the fan light kit to white (neutral) wire
from switch plate with a wire nut,
connect the black (hot) wire from fan
light kit to blue (hot) wire from switch
plate with a wire nut.
Turn on the electric circuit.
1).The fan switch can switch advances to a new position
whenever the switch is pulled.The sequence of
position is OFF-HI-MED-LOW.
2).The slide switch sets direction of fan rotation.Select
the desired direction of fan rotation.Push the
slide switch left for" Forward" and right for "Reverse".
3). Use the light kit switch to control the light.
Fan Switch
Fan Light Switch
Slide Switch
Reverse
Forward
Bulb Type A Max.40W
(included)
Fig.18
121019
Turn of the Century
TM
PAGE: 6 / 7

PAGE: 7 / 7 121019
Turn of the Century
TM
Trouble Shooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department
(1-800-887-6326).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4. If using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. Wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade holders.
2. Check that all blade holders are tightened securely to motor.
3. Make sure that canopy and mounting plate are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main circuit is turned off before entering switch housing.
SUGGESTED REMEDY

DYNAMIC BLADE BALANCING KIT
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade holders. Also, improper assembly in the mounting system or crooked bearings
may cause some additional problems. This balancing kit can be used to fix wobbling problems.
1. Make certain that all blades are firmly screwed into the blade holder.
2. Make sure that all blade holders are firmly secured to the motor housing and check that the pitch
of blade holders are all the same.
3. By looking up at the fan from below, check and be certain that none of the blade holders are bent
and that none of the blades are out of position. A correction can be made by very gently bending
the blade holder back into position.
4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. If the blade is not in
alignment, the blade holder may be gently bent up or down to be in line with the other blades.
After following all the steps and if the wobbling problem is not solved, a dynamic balancing needs
to be done by balancing kit. Follow the procedure listed below:
Turn the fan on and adjust the speed control (usually high speed) setting to the speed which
creates the greatest wobble.
Turn the fan off. Select one blade and place the balance clip on it, halfway between the blade
holder and the blade tip on the rear edge of the blade.
Turn the fan on. Watch to see if the wobble is improved or worsened. Turn the fan off again and
move the clip to another blade and test again. Repeat this process with all blades and then note
the blade which is the most improved.
Move the clip back to the blade which showed the most improvement. Move the clip inward and
outward on this blade and operate the fan to find the position where the clip gives the most
improvement.
Next remove the clip and install a balancing weight to the top of the blade along the centerline
near the point where the clip was positioned. Use a sharp knife or razor to separate the weights.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result .
PREFACE
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
1
2
3
4
5
6
7
8
9
