TV One MX-2522 User manual

Instruction Manual
MX-2522
VGA MATRIX SWITCHER

2

Table Of Contents
1.0 Introduction 4
2.0 Specifications 5
3.0 Checking Package Contents 5
4.0 Connecting the Hardware 6
5.0 Operating The Unit 7
6.0 Troubleshooting 8
7.0 Limited Warranty 9
8.0 Regulatory Compliance 9
9.0 Contact Information 10

1.0 INTRODUCTION
Thanks for purchasing this MX-2522 Matrix switcher from TV One. The MX-2522
is a 2X2 Matrix switcher. With a 2X2 matrix switcher, either input can be directed
to either output, or both inputs to a single output, a feature that greatly improves
its utility. Possible uses for the device include Test Benches, Data Centers, Help
Desks, Video Broadcasting Corporate Presentation Rooms and Educational
Facilities. Our professional video conversion products have been serving the
industry for over twenty years. TV One offers a full line of high quality Video
Scalers, Scan Converters, Analog-Digital (DV, SDI, DVI) Converters, Standards
Converters, Digital Video Recorders, Frame Synchronizers, Time Base
Correctors, LCD Monitors, Matrix Routing Switchers and Distribution Amplifiers.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One
cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The TV One logo, TV
One-task and CORIO are the registered Trademarks of TV One. All other
trademarks are the property of their respective holders.
1.2 FEATURES
The MX-2522 Matrix Switcher has many features that enable it to perform in a
superior manner. Among those features you will find:
•1920x1440 Maximum Resolution
•250Mhz Pixel Frequency
•Extends Video Signal Distribution up to 17 Feet
•Supports DDC, DDC2 and DDC2B on the outputs
•Can be Cascaded
•Output compatible with standard VGA cards
•Optional Rack Mount kits are available
4

2.0 SPECIFICATIONS
General Function Specification
Video Input/Output HD-15 Female Connectors
Select Switches 2 In, 2 Out
LEDs 4: 2 Available Inputs, 2 Selected
Outputs
Maximum Resolution 1920 X 1440, 60Hz
Pixel Frequency 250 Mhz
Maximum Cable Distance 200 Feet (Device to Monitor)
Signal Types VGA, SVGA, XGA, Multisync
Power Adaptor AC, 7.5 VAC, 800 ma
Weight 420g (15oz)
Dimensions 130mm x 75 mm x 42 mm
5.12” x 2.95” x 1.65”
Input/Output Signals
Pin # Signal
1 Red Video
2 Green Video
3 Blue Video
4 ID2
5 Ground
6 Analog Ground
7 Analog Ground
8 Analog Ground
9 NC
10 Ground
11 ID0
12 ID1
13 Horizontal Sync
14 Vertical Sync
15 ID3
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
•1 MX-2522 Video Matrix
•1 User Manual
•1 Power Adapter with 7.5VAC, 800mA output
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
5

4.0 CONNECTING THE HARDWARE

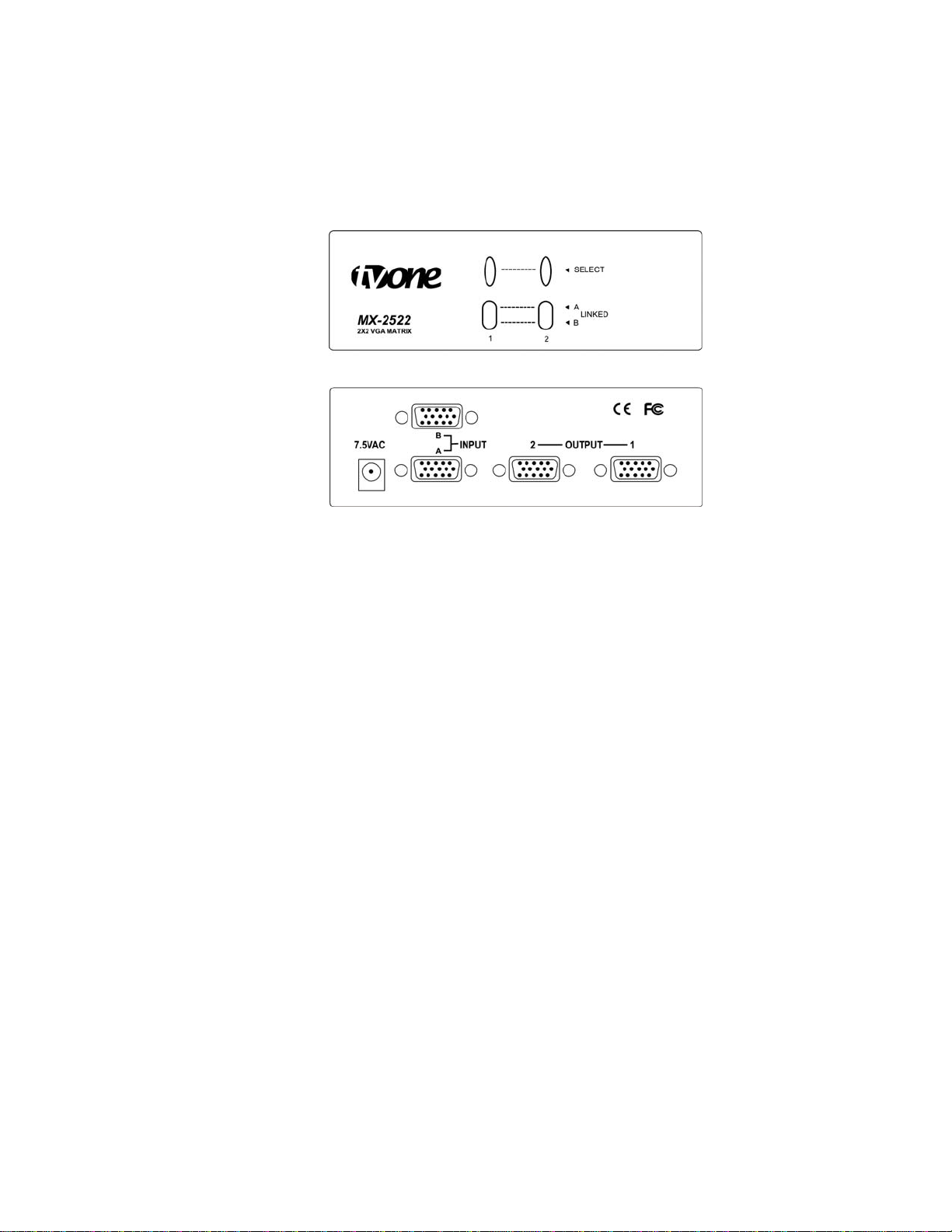

Please study the panel drawings below and become familiar with the signal input,
outputs, power requirements/inputs plus any controls present.
After you have familiarized yourself with the front and rear panel layouts, connect
the various signal cables and power connections in the following order:
1. Turn off all PCs and Monitors
2. Connect PCs to A and B inputs using high quality HD-15 Cables
3. Connect Outputs 1 and/or 2 to the desired monitors or projectors
4. Connect Power to Video Matrix, turning and locking DC connector in place,
then plug Power Adapter into AC socket
5. Turn on PCs and Monitors or Projectors.
Note: Optional rack mount kits are available to allow placing either one or two MX-
2522 units in a standard 19” rack. The part numbers are RM-310S for mounting a
single MX-2522 and RM-310D for mounting two MX-2522 units.
6

5.0 OPERATING THE UNIT

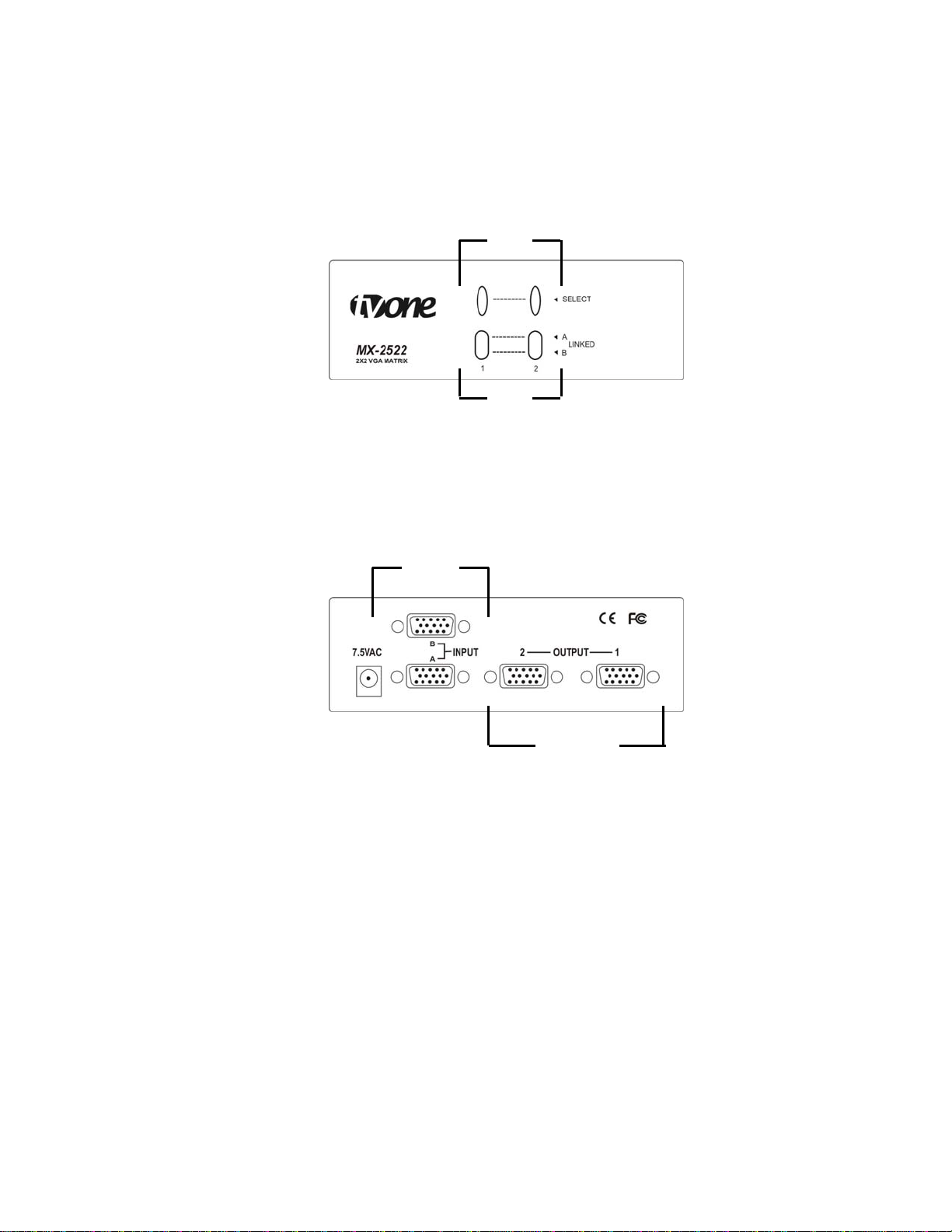

FRONT VIEW
Status
Select
Inputs A or B are directed to the desired output (1 or 2) by pressing the Select Buttons.
These are toggle buttons and will cause either Input A or Input B to appear on either
Output 1 or Output 2. By using the same procedure, both Outputs can be assigned to the
same Input. LEDs (Status) indicate your choice.
Out
p
uts
Power
In
In
p
uts
REAR VIEW
7

6.0 TROUBLESHOOTING
Problems with the MX-2522 Matrix Switcher are rare. Most of the time, the
problem is caused by the use of an incorrect cable for the signal type, to long a
cable run, bad connectors on the cable and occasionally damaged cables. Bad
grounds or use of different AC power sources for the MX-2522 Matrix Switcher,
Signal Source and/or Display Device(s) may also cause problems due to ground
loops.
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions before contacting TV One. Should the dealer’s
technical personnel be unable to assist you, contact TV One via our support
website: http://tvone.crmdesk.com. Create a technical support request on the
site and our support team will respond within a short period of time.
8

7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV
One warrants the original purchaser that the equipment it manufactures or sells
will be free from defects in materials and workmanship for a period of two years
from the date of purchase. Should this product, in TV One’s opinion, prove
defective within this warranty period, TV One, at its option, will repair or replace
this product without charge. Any defective parts replaced become the property of
TV One. This warranty does not apply to those products which have been
damaged due to accident, unauthorized alterations, improper repair,
modifications, inadequate maintenance and care, or use in any manner for which
the product was not originally intended.
Items integrated into TV One products that are made by other manufacturers,
notably computer hard drives and liquid crystal display panels, are limited to the
term of the warranty offered by the respective manufacturers. Such specific
warranties are available upon request to TV One.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from TV One and return the product to a
location designated by TV One, freight prepaid. After repairs are complete, the
product will be returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in
lieu of all other warranties for this product, expressed or implied, and is strictly
limited to two years from the date of purchase. TV One assumes no liability to
distributors, resellers or end-users or any third parties for any loss of use,
revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose
or merchantability or otherwise in respect of any of the products sold. The
liability of TV One with respect to any defective products will be limited to the
repair or replacement of such products. In no event shall TV One be responsible
or liable for any damage arising from the use of such defective products whether
such damages be direct, indirect, consequential or otherwise, and whether such
damages are incurred by the reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The MX-2522 Matrix Switcher has been tested for compliance with: FCC Class B
and CE.
The Power Adaptor/Supply has been tested for compliance with: UL, CSA and
CE.
The MX-2522 Matrix Switcher and Power Adaptor are RoHS compliant products.
9
